S P E C I F I C A T I O N S

SPECIFICATIONS
660

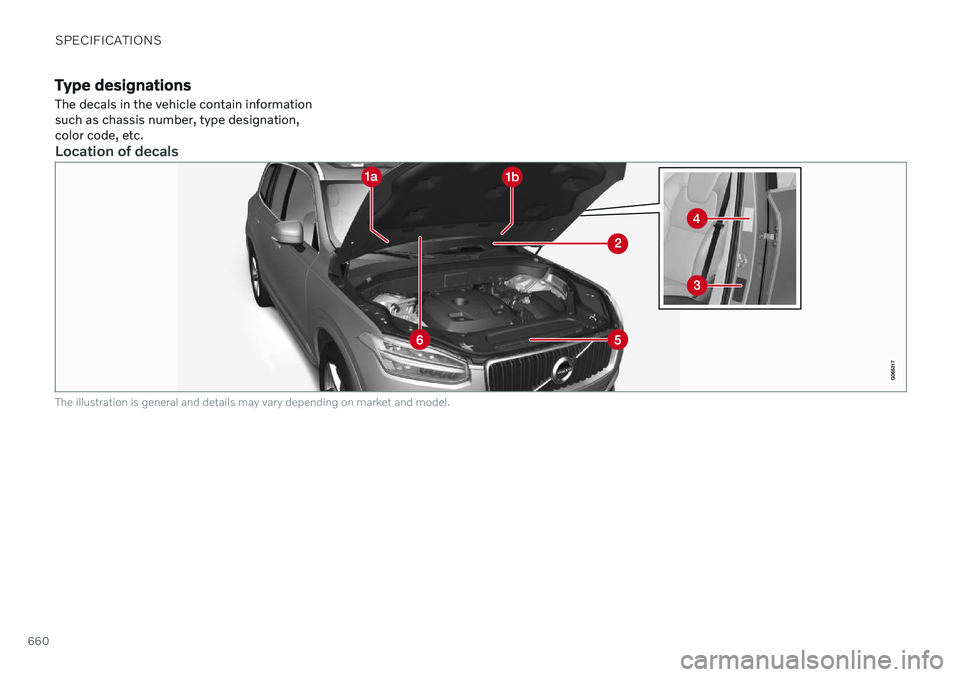

Type designationsThe decals in the vehicle contain information such as chassis number, type designation,color code, etc.
Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
661
Vehicle Emission Control Information.
US models. Your Volvo is designed to meet all
applicable emission standards, as evidenced by the certification label on the underside ofthe hood. For further information regardingthese regulations, please consult your Volvoretailer. Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the under-side of the hood. For further information regar-ding these regulations, please consult yourVolvo retailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when it left thefactory.

||
SPECIFICATIONS
662
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada).Your Volvo is designed to meet all applicablesafety standards, as evidenced by the certifi-cation label on the driver's side B-pillar (thestructural member at the side of the vehicle, atthe rear of the driver's door opening). Thislabel also includes codes for paint color, etc.For further information regarding these regula-tions, please consult your Volvo retailer. U.S.models have the upper decal; Canadian mod-els have the lower one. Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R134a.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions ofthose found in the vehicle. The purpose isto show approximately how they look andabout where they are located on the vehi-cle. The information that applies for yourvehicle in particular is found on the decalon the vehicle.
Related information
Air conditioning specifications (p. 671)

SPECIFICATIONS
}}
* Option/accessory.663
Dimensions
The vehicle's length, height, etc. are shown in the table.
Dimen- sions mm inches
A Ground clearance A212 8,3
B Wheelbase 2984 117.5 C Length 4953 195.0
D Load length, floor, folded backrest B2040 1260
C
1260 D 80.349.6
C
49.6 DDimen- sions mm inches
E Load length, floor 761/898
E
1220 F
554 G
554 H 30.0/35.4
E
48.0 F
21.8 G
21.8 H
F Height I
1776 69.9
G Load height 816 32.1Dimen- sions mm inches
H Wheel track, front J 1665
K
1673 L 65.6
K
65.9 L
Wheel track, front M 1668
K
1676 L 65.7
K
66.0 L

||
SPECIFICATIONS
664
Dimen- sionsmm inches
I Wheel track, rearJ 1667
K
1675 L 65.6
K
65.9 L
Wheel track, rear M 1671
K
1679 L 65.8
K
66.1 L
J Load width, floor 1192 46.9
K Width 1923N
1931 O
1958 P 75.7
N
76.0 O
77.1 PDimen- sions mm inches
L Width incl. rearview mirrors 2140 84.3
M Width incl. folded rear-view mirrors 2008 79.1
A
At curb weight + 2 people. (Varies slightly depending on tire dimensions, chassis, etc.)
B Does not apply to vehicles with 3 or 4 seats.
C From the second row of seats in 6-seat models *.
D From the second row of seats in 7-seat models *.
E Vehicles with 3 or 4 seats.
F Vehicles with 5 seats.
G Vehicles with 6 seats.
H Vehicles with 7 seats.
I Including roof antenna, at curb weight.
J Vehicles without pneumatic suspension.
K Vehicles with 19-inch wheels.
L Vehicles with 20, 21 and 22-inch wheels.
M Vehicles with pneumatic suspension.
N Chassis width.
O Width for vehicles with 19-inch wheels.
P Width for vehicles with 20, 21 and 22-inch wheels.
Related information
Weights (p. 665)

SPECIFICATIONS
}}
665
WeightsThe following table lists important weight data for your vehicle.
Category USA
(lbs) Canada
(kg)
Gross vehicle weight 7-seat 6635 3010
6-seat 6370 2890
4-seat 6140 2785
Capacity weight 7-seat 1210 550
6-seat 1160 525
4-seat 1000 450
Permissible axle weights, front 7-seat 3130 1420
6-seat 2975 1350
4-seat 2975 1350
Permissible axle weights, rear 7-seat 3590 1630
6-seat 3505 1590
4-seat 3305 1500
Curb weight 7-seat 4440–5220 2040–2380
6-seat 4540–5160 2060–2340
4-seat 5230–5240 2370–2380
Max. roof load 220 100

||
SPECIFICATIONS
666
CAUTION
When loading the vehicle, the maxi- mum gross vehicle weight and permis-sible axle weights may not be excee-ded.
Related information

Type designations (p. 660)
Towing capacity and tongue weight (p. 667)

SPECIFICATIONS
* Option/accessory.667
Towing capacity and tongue weight Towing capacity and tongue weight are shown in the tables below.
Category
USA
(lbs) Canada
(kg)
Max. trailer weights Without brakes: 1650 750 With brakes:
5000 2250
Max. tongue weight 500 225
CAUTION
The maximum trailer weights listed are only applicable for altitudes up to3280 ft (1,000 m) above sea level.With increasing altitude the enginepower and therefore the car's climbingability are impaired because of thereduced air density, so the maximumtrailer weight has to be reducedaccordingly. The weight of the car andtrailer must be reduced by 10% forevery further 3280 ft (1,000 m) (orpart thereof).
Related information

Type designations (p. 660)
Weights (p. 665)
Driving with a trailer (p. 465)
Trailer Stability Assist
* (p. 467)

SPECIFICATIONS
668
Engine specifications Engine specifications (output, etc.) for each engine variant are shown in the table below.The specifications for Special Edition vehiclesmay vary.Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD– Electric Rear Axle Drive).NOTE
Not all engines are available on all markets.
Engine
Engine codeA
Output
(kW/rps) Output
(hp/rpm) Torque
(Nm/rps) Torque
(ft. lbs./rpm) Number of cylinders
T8 Twin Engine B4204T28 233/100 313/6000 400/37–90 295/2200–5400 4
T8 Twin Engine Polestar B4204T39 245/100 328/6000 430/75 317/4500 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Electric motorMax. output: 65 kW (87 hp).
Torque: 240 Nm.
Related information
Type designations (p. 660)
Engine oil specifications (p. 669)
Coolant specifications (p. 670)
