oil YAMAHA AEROX50 2006 Owners Manual

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer unit ...........................3-3
Tachometer (Depends on
models) ........................................3-3
Fuel gauge ......................................3-4
Handlebar switches ........................3-4
Front brake lever ............................3-5
Rear brake lever .............................3-5
Fuel tank cap ..................................3-5
Fuel .................................................3-6
Catalytic converter ..........................3-7
2-stroke engine oil tank ..................3-7
2-stroke engine oil ..........................3-8
Kickstarter .......................................3-8
Rider seat .......................................3-8
Storage compartment A...................3-9
Storage compartment B.................3-10
Adjusting the shock absorber
assembly (Depends on
models) ......................................3-10PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine .......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3

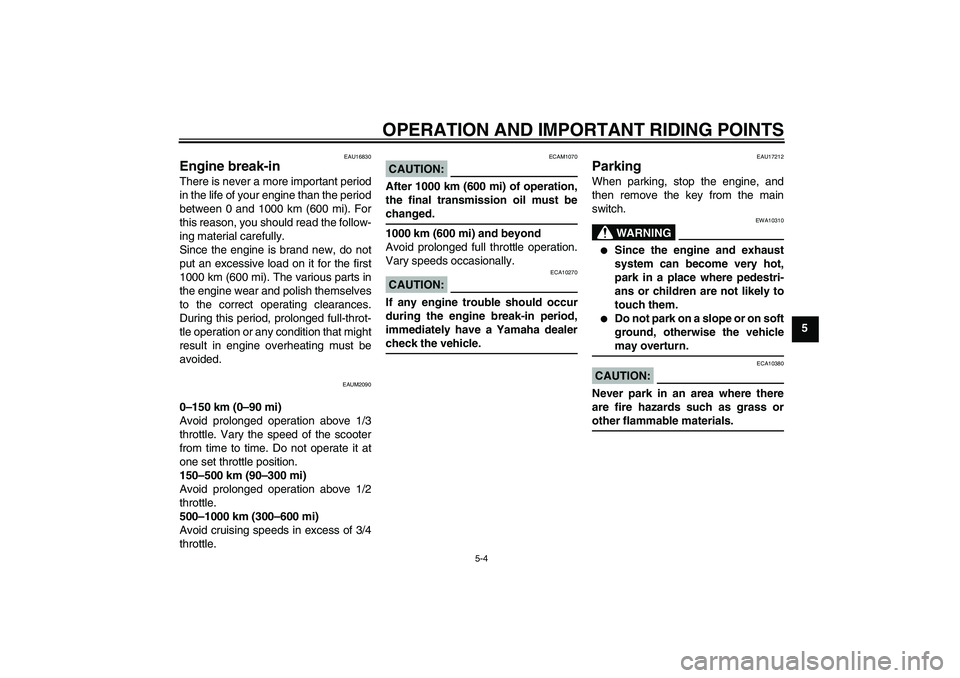

Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing the
cowling and panel ....................... 6-5
Checking the spark plug ................. 6-6
Final transmission oil ...................... 6-7
Coolant ........................................... 6-8
Cleaning the air filter element ........ 6-9
Adjusting the carburetor ............... 6-10
Checking the throttle cable free
play ........................................... 6-11
Tires ............................................. 6-11
Cast wheels .................................. 6-13
Checking the front and rear brake
lever free play ........................... 6-13Checking the front and rear brake
pads .......................................... 6-14
Checking the brake fluid level ...... 6-15
Changing the brake fluid .............. 6-15
Checking and lubricating the
throttle grip and cable ............... 6-16
Lubricating the front and rear brake
levers ........................................ 6-16
Checking and lubricating the
centerstand............................... 6-16
Checking the front fork ................. 6-17
Checking the steering .................. 6-17
Checking the wheel bearings ....... 6-18
Battery ......................................... 6-18
Replacing the fuse ....................... 6-20
Replacing the headlight bulb ....... 6-21
Replacing the tail/brake light
bulb ........................................... 6-21
Replacing a turn signal light
bulb ........................................... 6-22
Troubleshooting ........................... 6-22
Troubleshooting charts ................ 6-23
SCOOTER CARE AND STORAGE... 7-1
Care ............................................... 7-1
Storage .......................................... 7-3
SPECIFICATIONS ............................ 8-1
CONSUMER INFORMATION............ 9-1
Identification numbers .................... 9-1

DESCRIPTION
2-1
2
EAU10410

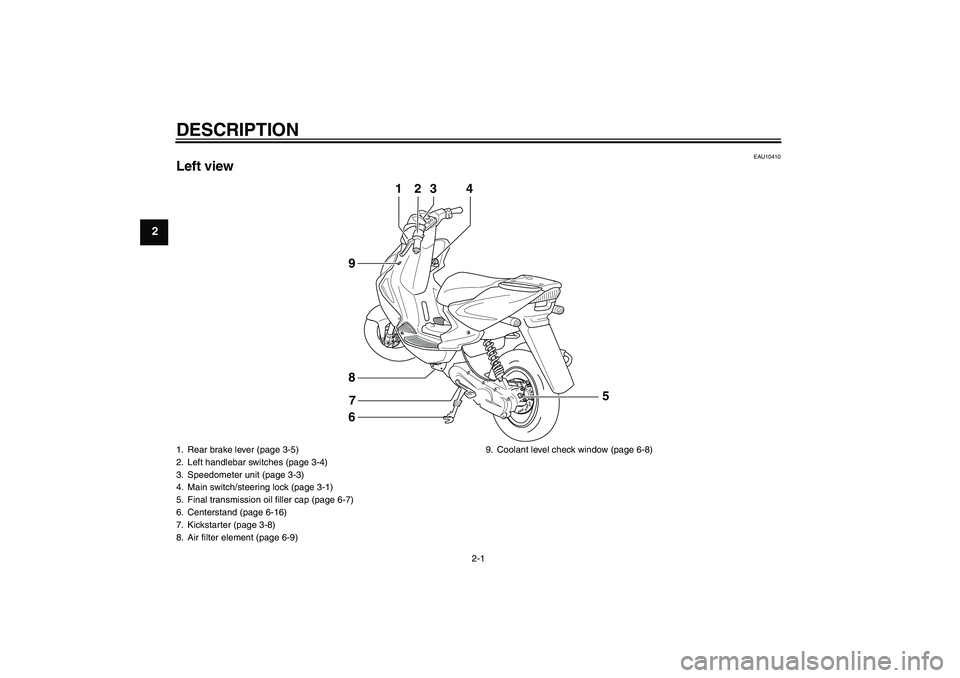

Left view
1
23
4
6 8
9
7
5
1. Rear brake lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Speedometer unit (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Final transmission oil filler cap (page 6-7)
6. Centerstand (page 6-16)
7. Kickstarter (page 3-8)
8. Air filter element (page 6-9)9. Coolant level check window (page 6-8)

DESCRIPTION
2-2
2
EAU10420

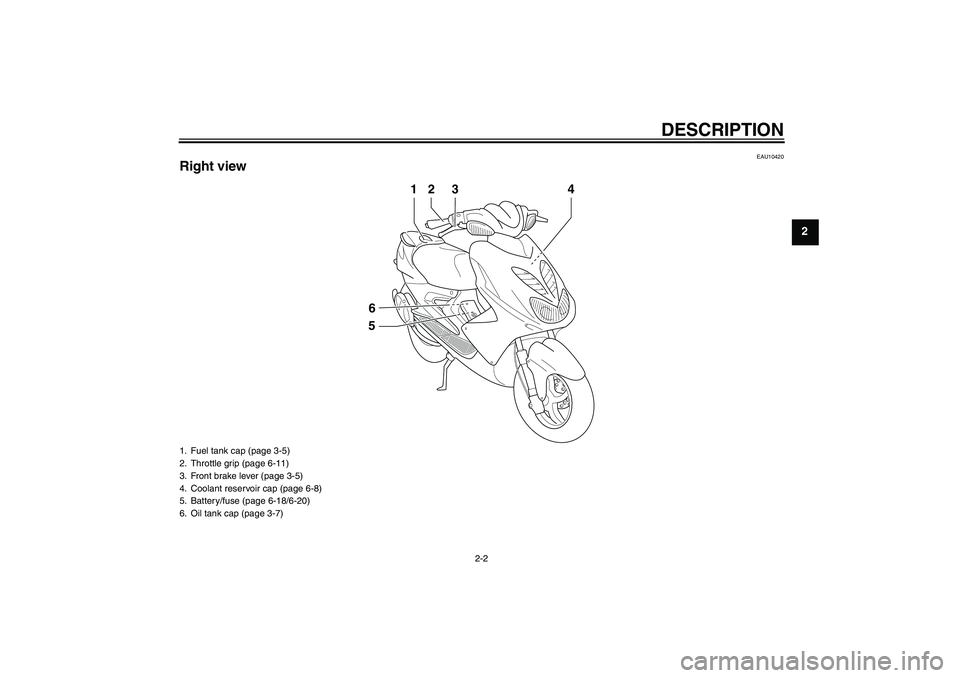

Right view
23
1
4
56
1. Fuel tank cap (page 3-5)
2. Throttle grip (page 6-11)
3. Front brake lever (page 3-5)
4. Coolant reservoir cap (page 6-8)
5. Battery/fuse (page 6-18/6-20)
6. Oil tank cap (page 3-7)

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10640
ON “”
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.NOTE:The headlight, meter lighting and tail-
light come on automatically when theengine is started.
EAU10660
OFF “”
All electrical systems are off. The key
can be removed.
EAU10670
CHECK “”
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAU10680
LOCK “”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “” posi-
tion, and then turn it to “” while
still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to “”
while still pushing it.
WARNING
EWA10060
Never turn the key to “” or “”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-fore turning the key to “” or “”.
PUSHOPEN
ZAUM0253

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11002
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11180
Oil level warning light “”
This warning light comes on when the
key is in the “” position or when the oil
level in the 2-stroke engine oil tank is
low during operation. If the warninglight comes on during operation, stop
immediately and fill the oil tank with Ya-
malube 2 or equivalent 2-stroke engine
oil of either JASO grade “FC” or ISO
grades “EG-C” or “EG-D”. The warning
light should go off after the 2-stroke en-
gine oil tank has been refilled.
NOTE:If the warning light does not come on
when the key is in the “” position or
does not go off after the 2-stroke en-
gine oil tank has been refilled, have a
Yamaha dealer check the electrical cir-cuit.CAUTION:
ECA10010
Do not operate the vehicle until you
know that the engine oil level is suf-ficient.
EAU11430
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
1. Turn signal indicator light “”
2. High beam indicator light “”
3. Oil level warning light “”
TEMP
123
ZAUM0254
1. Coolant temperature warning light “”
TEMP
Km / h
E1/2
F
1
ZAUM0255

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU13440
Catalytic converter This vehicle is equipped with a catalytic
converter in the muffler.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.


Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.


Do not allow the engine to idletoo long.
EAUM1140
2-stroke engine oil tank To access the 2-stroke engine oil tank,
open the storage compartment. (See
page 3-10.)
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
2. Install the 2-stroke engine oil tank
cap by pushing it into the oil tank
opening.
NOTE:Make sure that the 2-stroke engine oil
tank cap is properly installed beforeriding the vehicle.
1. Storage compartment B
2. Oil tank cap
1
2
ZAUM0263
ZAUM0204

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU13460
2-stroke engine oil Make sure that there is sufficient oil in
the 2-stroke engine oil tank. Add the
recommended 2-stroke engine oil if
necessary.NOTE:Make sure that the 2-stroke engine oiltank cap is properly installed.
EAUS1050
Kickstarter To start the engine, push the kickstarter
down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
EAU14160
Rider seat To open the rider seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.NOTE:Do not push inward when turning thekey.
3. Fold the rider seat up.
To close the rider seat
1. Fold the rider seat down, and then
push it down to lock it in place.
Recommended oil:
Yamalube 2 or equivalent 2-stroke
engine oil (JASO grade “FC”, or ISO
grades ”EG-C” or “EG-D”)
Oil quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)
1. KickstarterZAUM0289
1. Seat
1
ZAUM0264

PRE-OPERATION CHECKS
4-2
4
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-6
2-stroke engine oilCheck oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.3-7, 3-8
Final transmission oilCheck vehicle for oil leakage. 6-7
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-8
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-13, 6-14, 6-15
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-13, 6-14, 6-15
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-11, 6-16

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15980
WARNING
EWA10870


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


For safety, always start the en-gine with the centerstand down.
EAU16560
Starting the engineCAUTION:
ECA10250
See page 5-4 for engine break-in in-
structions prior to operating the ve-hicle for the first time.
1. Turn the key to “”, and when the
oil level warning light comes on,
turn it to “”.CAUTION:
ECA10240
If the oil level warning light does not
come on, have a Yamaha dealercheck the electrical circuit.
2. Close the throttle completely.3. While applying the front or rear
brake, start the engine by pushing
the start switch or by pushing the
kickstarter lever down.
NOTE:If the engine fails to start by pushing the
start switch, release the switch, wait a
few seconds, and then try again. Each
starting attempt should be as short as
possible to preserve the battery. Do not
crank the engine more than 5 seconds
on any one attempt. If the engine does
not start with the starter motor, try usingthe kickstarter.
PUSHOPEN
ZAUM0253
ZAUM0367

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU16830
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1000 km (600 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAUM2090
0–150 km (0–90 mi)
Avoid prolonged operation above 1/3
throttle. Vary the speed of the scooter
from time to time. Do not operate it at
one set throttle position.
150–500 km (90–300 mi)
Avoid prolonged operation above 1/2
throttle.
500–1000 km (300–600 mi)
Avoid cruising speeds in excess of 3/4
throttle.
CAUTION:
ECAM1070
After 1000 km (600 mi) of operation,
the final transmission oil must bechanged.
1000 km (600 mi) and beyond
Avoid prolonged full throttle operation.
Vary speeds occasionally.CAUTION:
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealercheck the vehicle.
EAU17212
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.
