YAMAHA AEROX50 2009 Owner's Guide

OPERATION AND IMPORTANT RIDING POINTS
5-4
5 1000 km (600 mi) and beyond
Avoid prolonged full throttle operation.
Vary speeds occasionally. NOTICE:
After 1000 km (600 mi) of operation,
the final transmission oil must be
changed.
[ECAM1071]
NOTICE
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealercheck the vehicle.
EAU17213
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials whichmight catch fire.
U3C6E1E0.book Page 4 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAU17281
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, depending on the
weather, terrain, geographical location,
and individual use, the maintenance in-
tervals may need to be shortened.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer performservice.
WARNING
EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.

A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.


Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more in-
formation about carbon monox-ide.WARNING
EWA10330
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty, mud-
dy or wet conditions, the air filter el-
ement should be cleaned or
replaced more frequently, otherwise
rapid engine wear may result. Con-
sult a Yamaha dealer for propermaintenance intervals.
U3C6E1E0.book Page 1 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU17715

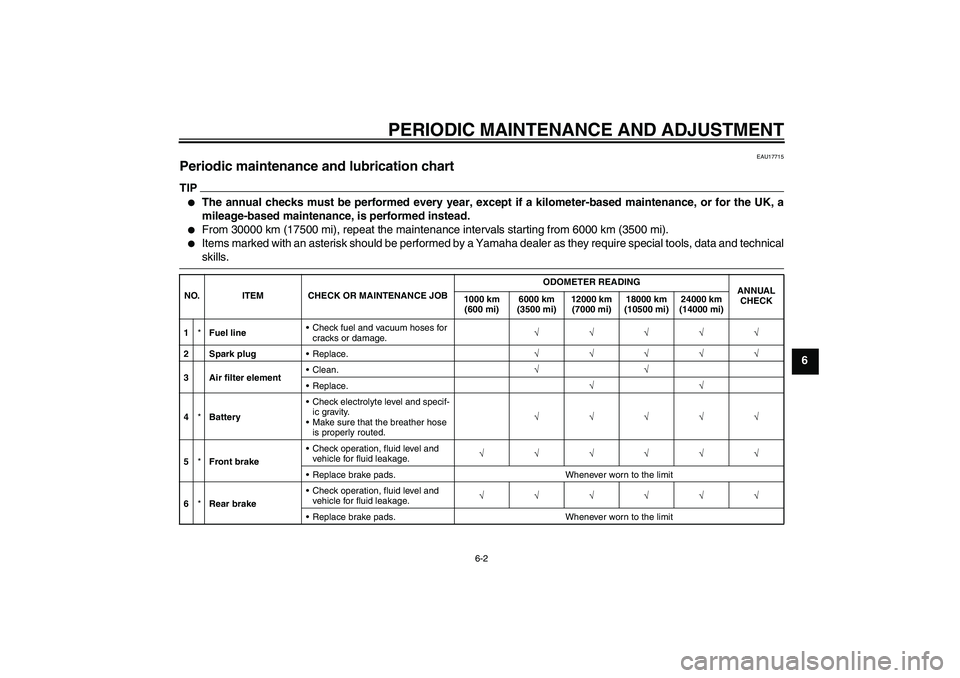

Periodic maintenance and lubrication chart TIP

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Fuel lineCheck fuel and vacuum hoses for
cracks or damage.√√√√√
2 Spark plugReplace.√√√√√
3 Air filter elementClean.√√
Replace.√√
4*BatteryCheck electrolyte level and specif-
ic gravity.
Make sure that the breather hose
is properly routed.√√√√√
5*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
6*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U3C6E1E0.book Page 2 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
7*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
8*WheelsCheck runout and for damage.√√√√
9*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
10*Wheel bearingsCheck bearing for looseness or
damage.√√√√
11*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 24000 km (14000 mi)
12*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
13Front brake lever
pivot shaftLubricate with silicone grease.√√√√√
14Rear brake lever
pivot shaftLubricate with silicone grease.√√√√√
15 CenterstandCheck operation.
Lubricate.√√√√√
16*Front forkCheck operation and for oil leak-
age.√√√√
17*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U3C6E1E0.book Page 3 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
EAUM2070
TIP

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
18*CarburetorAdjust engine idling speed.√√√√√√
19*Autolube pumpCheck operation.
Bleed if necessary.√√√√
20*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years
21Final transmission
oilCheck vehicle for oil leakage.√√ √
Change.√√√
22*V- b e l tReplace. Every 10000 km (6000 mi)
23*Front and rear brake
switchesCheck operation.√√√√√√
24Moving parts and
cablesLubricate.√√√√√
25*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
26*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U3C6E1E0.book Page 4 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6

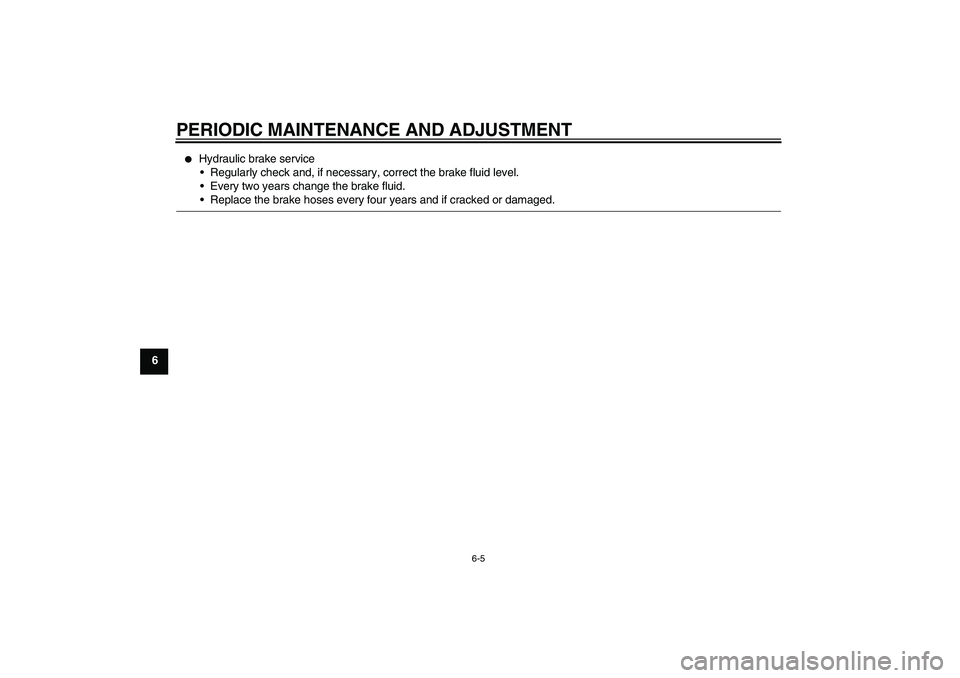

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years change the brake fluid.Replace the brake hoses every four years and if cracked or damaged.
U3C6E1E0.book Page 5 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18740

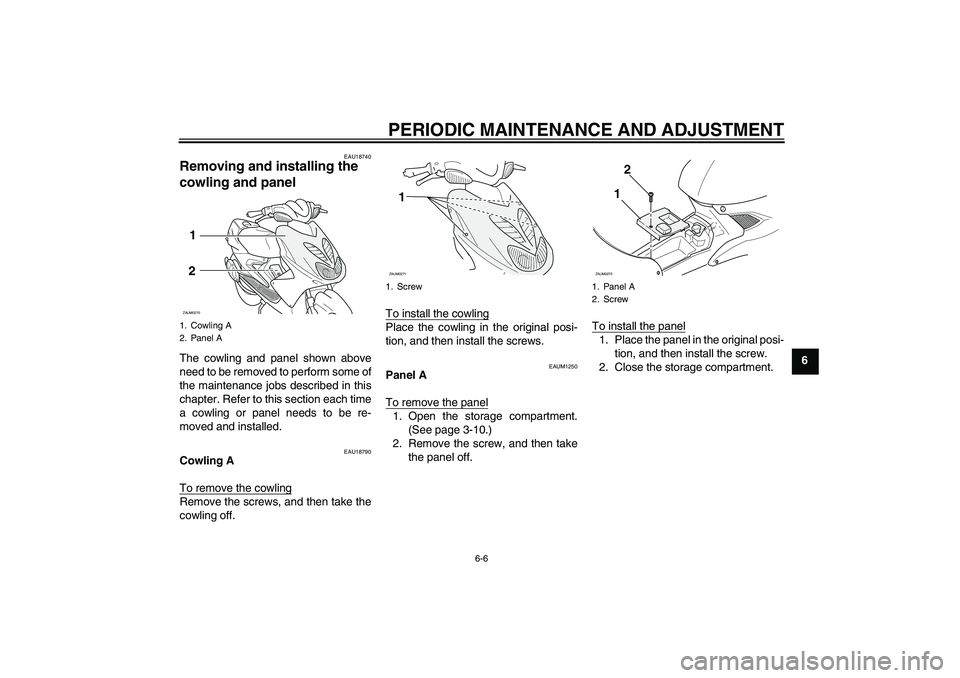

Removing and installing the
cowling and panel The cowling and panel shown above
need to be removed to perform some of
the maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU18790
Cowling A
To remove the cowlingRemove the screws, and then take the
cowling off.To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
EAUM1250
Panel A
To remove the panel1. Open the storage compartment.
(See page 3-10.)
2. Remove the screw, and then take
the panel off.To install the panel
1. Place the panel in the original posi-
tion, and then install the screw.
2. Close the storage compartment.
1. Cowling A
2. Panel A1
2ZAUM0270
1. Screw
1ZAUM0271
1. Panel A
2. Screw
2
1
ZAUM0272
U3C6E1E0.book Page 6 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU19622
Checking the spark plug The spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode, it
should be removed and checked in ac-
cordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of the spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally). If
the spark plug shows a distinctly differ-
ent color, the engine could be operating
improperly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
Specified spark plug:
NGK/BR8HS
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1
ZAUM0037
U3C6E1E0.book Page 7 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU20064
Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm up the final
transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and final transmission
drain bolt to drain the oil from the fi-
nal transmission case.5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
6. Refill with the specified amount of
the recommended final transmis-
sion oil, and then install and tighten
the oil filler cap. WARNING! Make
sure that no foreign material en-
ters the final transmission case.
Make sure that no oil gets on the
tire or wheel.
[EWA11311]
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
1. Final transmission oil drain bolt
2. Final transmission oil filler cap
Tightening torque:
Final transmission oil drain bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
12
ZAUM0273
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.11 L (0.12 US qt, 0.10 Imp.qt)
U3C6E1E0.book Page 8 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU20070

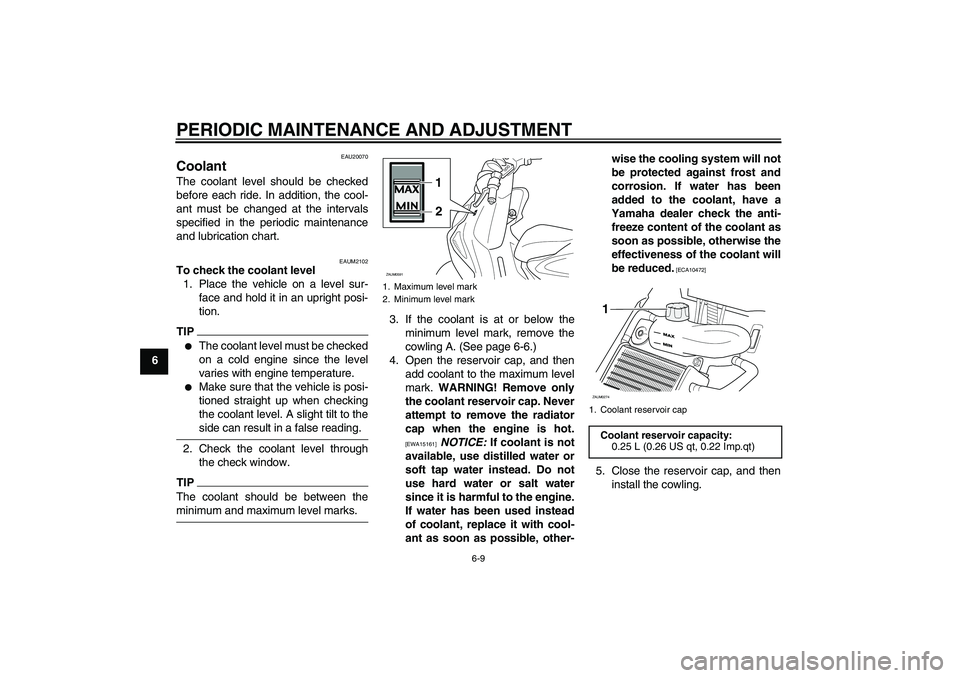

Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM2102
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIP

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level through
the check window.
TIPThe coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove the
cowling A. (See page 6-6.)
4. Open the reservoir cap, and then
add coolant to the maximum level
mark. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]
5. Close the reservoir cap, and then
install the cowling.
1. Maximum level mark
2. Minimum level mark
1
2
ZAUM0591
1. Coolant reservoir capCoolant reservoir capacity:
0.25 L (0.26 US qt, 0.22 Imp.qt)1ZAUM0274
U3C6E1E0.book Page 9 Friday, August 8, 2008 10:09 AM
