7. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
8. Replace the coolant drain bolt washers if they
are damaged, and then tighten the coolant
drain bolts to the specified torque.
9. Connect the coolant reservoir hose.
10. Pour the recommended coolant into the reser-voir to the maximum level mark, and then in-
stall the reservoir cap.
11. Pour the recommended coolant into the radia-
tor until it is full.
CAUTION:
ECB00401

If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.

If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
1. Coolant reservoir hose
2. Coolant reservoir
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7 ft·lbf)
1
2

Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.50 L (1.59 US qt) (1.32 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.28 L (0.30 US qt) (0.25 Imp.qt)

8-16
1
2
3
4
5
6
78
9
10
11

tected against frost and corrosion.

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant will
be reduced.
12. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
13. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.
14. Start the engine, and then check for coolant
leakage.
NOTE:

If any leakage is found, have a Yamaha dealer
check the cooling system.
15. Install the radiator cover by installing the bolts.
EBU23620
Cleaning the air filter element
The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dustyareas.
NOTE:

There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Remove the seat. (See page 4-11.)
2. Remove the air filter case cover by unhooking
the holders.

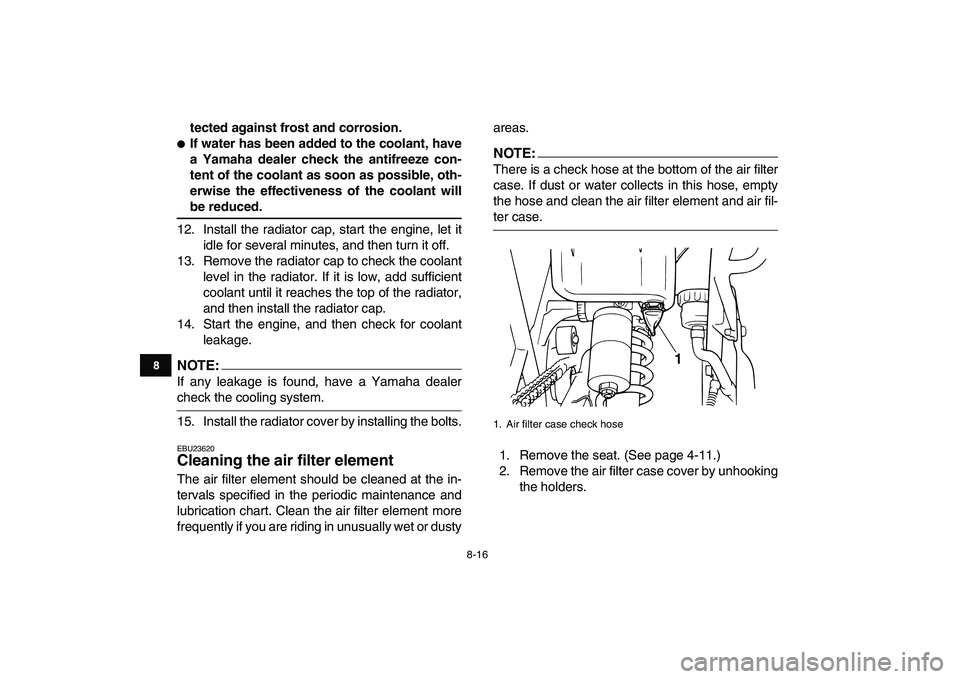

1. Air filter case check hose
1

8-17
1
2
3
4
5
6
78
9
10
11

3. Pull the air filter element out of the air filter
case.4. Remove the lock plate by turning it, and then
remove the sponge material from the air filter
element frame.

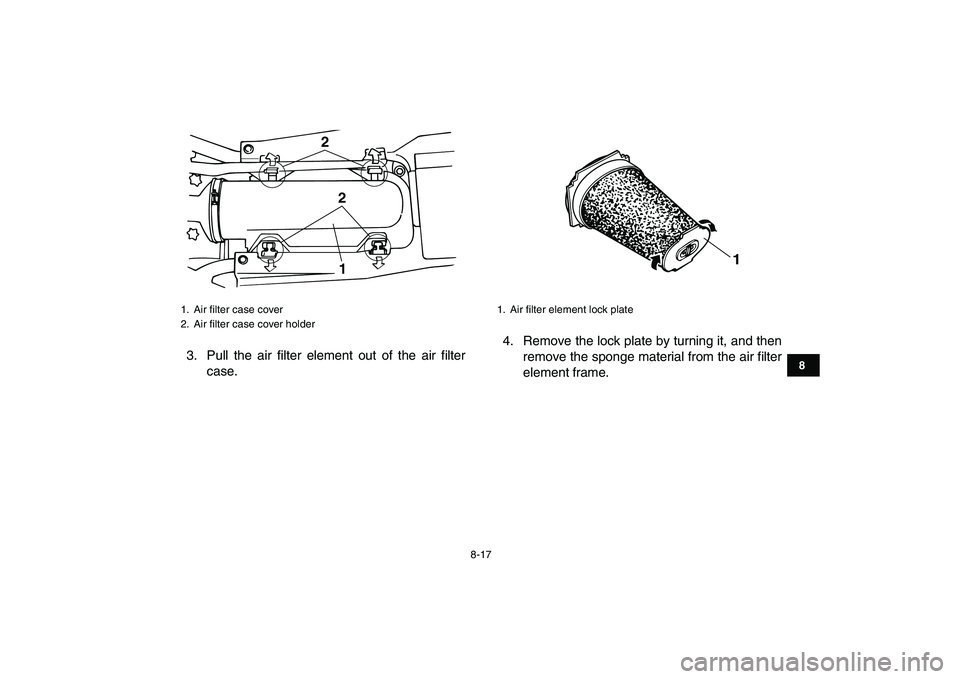

1. Air filter case cover
2. Air filter case cover holder
1 2 2

1. Air filter element lock plate
1

8-18
1
2
3
4
5
6
78
9
10
11

5. Wash the sponge material gently but thor-
oughly in solvent.
WARNING

EWB01940
Always use parts cleaning solvent to clean the
sponge material. Never use low-flash-point
solvents or gasoline to clean the sponge mate-
rial because the engine could catch fire or ex-
plode.
6. Squeeze the excess solvent out of the sponge
material and let it dry.CAUTION:
ECB00440
Do not twist the sponge material when squeez-
ing it.
7. Check the sponge material and replace it if
damaged.
8. Apply a quality foam air filter oil to the sponge
material.
NOTE:

The sponge material should be wet but not drip-
ping.
9. Pull the sponge material over the air filter ele-
ment frame, and then install the lock plate by
turning it.

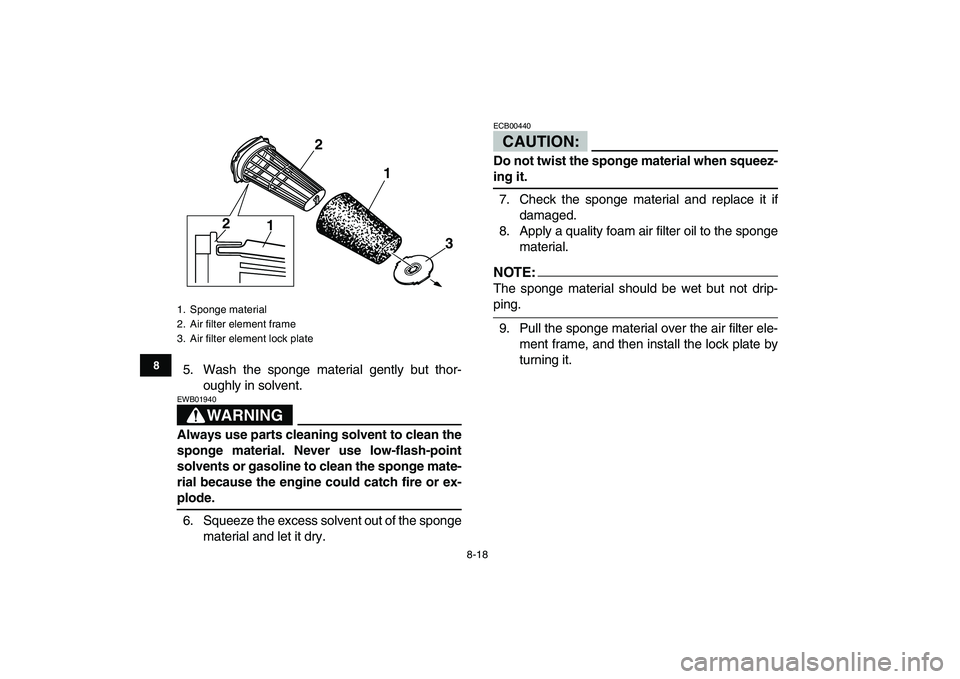

1. Sponge material
2. Air filter element frame
3. Air filter element lock plate
1 22
1
3

8-19
1
2
3
4
5
6
78
9
10
11

10. Insert the air filter element into the air filter
case, and then install the air filter case cover
by hooking the holders onto the air filter case.
11. Install the seat.
NOTE:

The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber jointmanifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.CAUTION:
ECB00460

Make sure that the air filter element is prop-
erly seated in the air filter case.

Never operate the engine with the air filter el-
ement removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addition-
ally, operation without the air filter element
will affect carburetor jetting with subsequent
poor performance and possible engine over-
heating.
EBU28310
Cleaning the spark arrester
Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the screws.

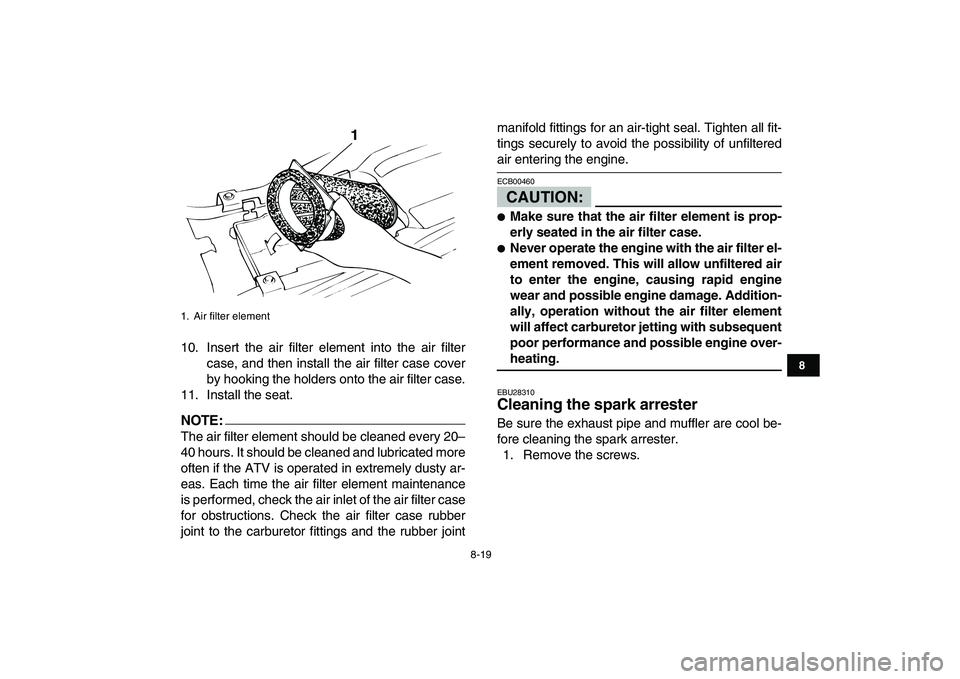

1. Air filter element
1

8-20
1
2
3
4
5
6
78
9
10
11

2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.4. Make sure the gasket is properly positioned,
then insert the tailpipe into the muffler and
align the screw holes.
5. Install the screws and tighten them.
WARNING

EWB02340
Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to

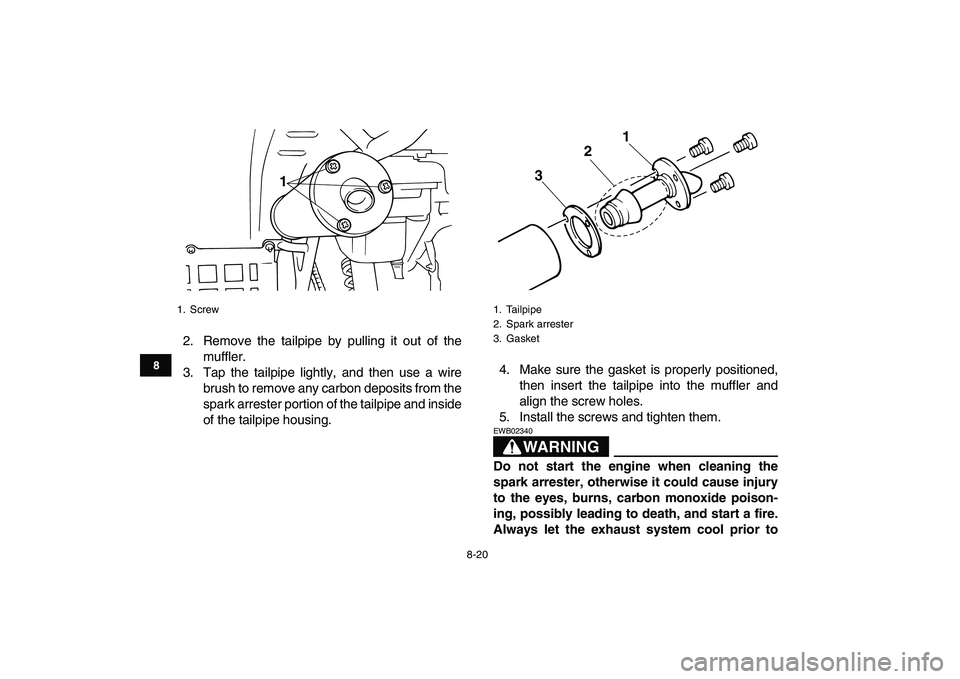

1. Screw
1

1. Tailpipe
2. Spark arrester
3. Gasket
1
2
3

8-21
1
2
3
4
5
6
78
9
10
11

touching exhaust components.
EBU23992
Changing the carburetor settings
In extremely cold weather, it is necessary to
change the carburetor settings to maintain opti-
mum engine performance and to prevent engine
damage.
WARNING

EWB01990

Improperly servicing or adjusting the carbu-
retors could cause them to malfunction with
the possibility of an accident, or the carbure-
tors could leak fuel, which would be a fire
hazard.

Carburetor adjustments should only be per-
formed by a Yamaha dealer. Do not attempt
to perform these procedures unless you
have mechanical knowledge and the neces-
sary tools.

Do not perform this procedure while the en-
gine is hot. Place a rag under each carbure-
tor to catch any fuel. Wipe up any spilled fuel
completely.

After servicing the carburetors, always
check the throttle lever operation before op-erating the ATV to make sure it is working
correctly.
Standard settings

Main jet #200
Jet needle clip position 3rd groove
Pilot air screw 2.0 turns out

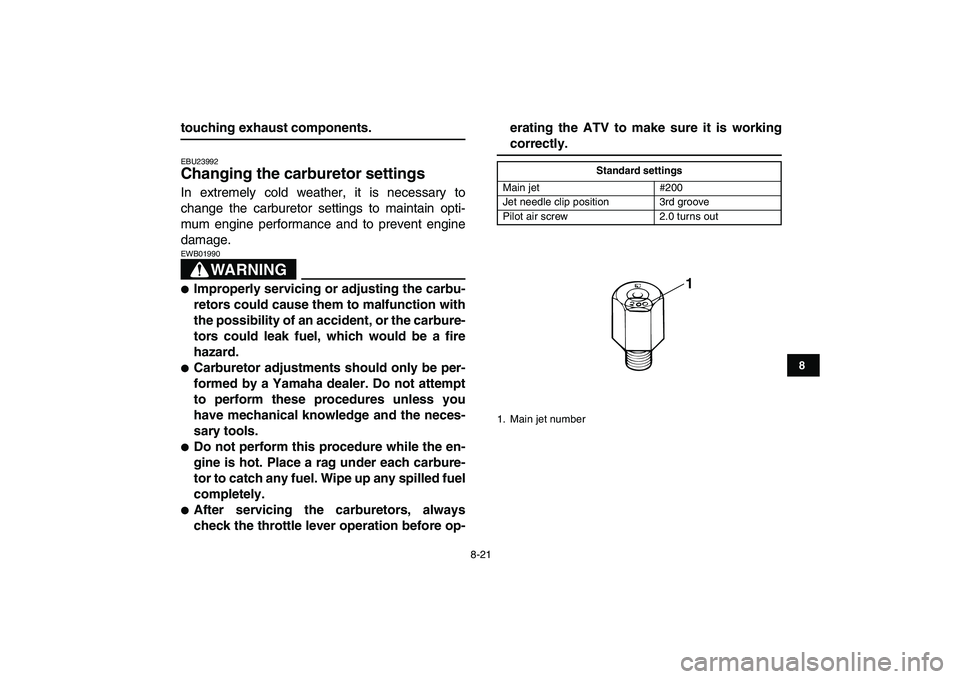

1. Main jet number
1

8-22
1
2
3
4
5
6
78
9
10
11

Carburetor setting chart
1. Standard position: Groove 3
1

TemperatureAltitude
0
–1500 m (5000 ft) Above 1500 m (5000 ft)
Main jet Jet needle Pilot air screw Main jet Jet needle Pilot air screw

Above 0°C (32°F) #200 3rd groove 2.0 turns out #190 3rd groove 2 1/2 turns out
from +5 °C (41 °F) to
–15 °C (5 °F)#220 3rd groove 1 1/2 turns out #200 3rd groove 2.0 turns out
from –10 °C (14 °F) to
–30 °C (–22 °F)#240 4th groove 1 1/2 turns out #220 3rd groove 1 1/2 turns out

8-23
1
2
3
4
5
6
78
9
10
11

Changing the settings of the carburetors
To change the settings of the carburetors, you
need to disassemble and remove them. Follow the
procedures for both carburetors.
Disassembling and removing the carburetors
1. Turn the fuel cock to the “OFF” position.
2. Turn out the carburetor drain screw to drain
the fuel.
3. Remove the seat.
4. Remove the radiator cover and side cover by
removing the screws.5. Disconnect the fuel hoses.
6. Remove the fuel tank by removing the bolts.
7. Remove the air filter case cover by unhooking
the holders.

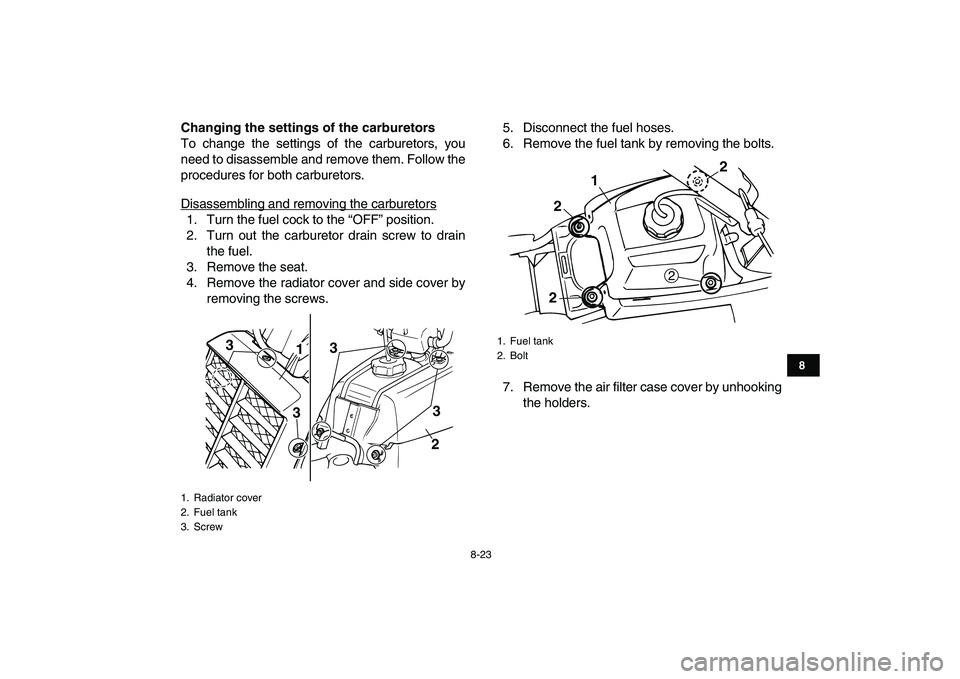

1. Radiator cover
2. Fuel tank
3. Screw
1
2 3 3
3
3

1. Fuel tank
2. Bolt
2
1
2
22

8-24
1
2
3
4
5
6
78
9
10
11

8. Remove the mixing chamber cap securing
plate by removing the screw.9. Loosen the carburetor joint screws.

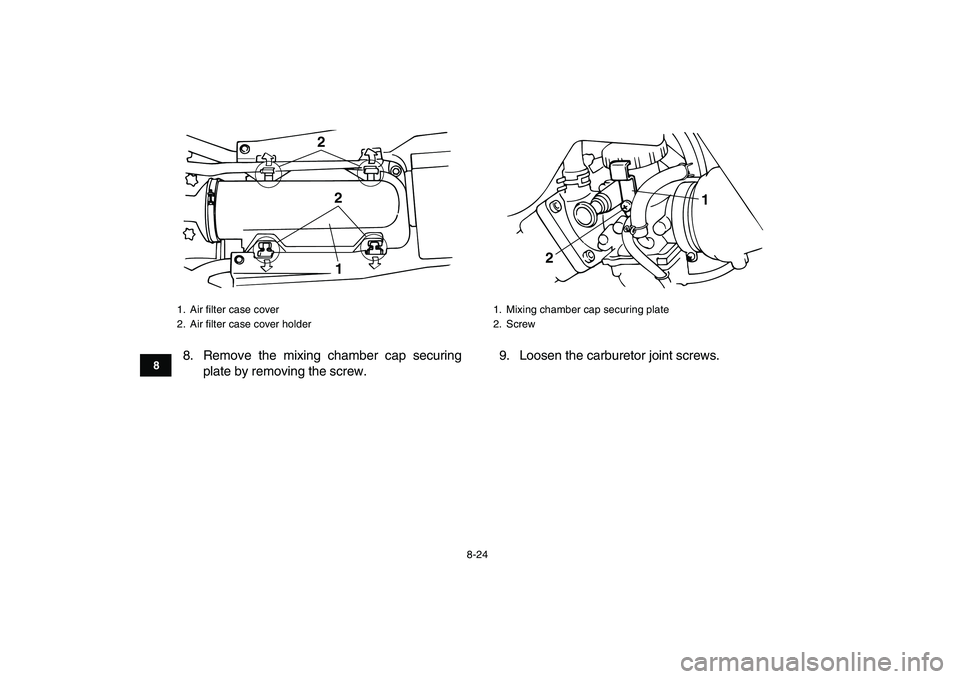

1. Air filter case cover
2. Air filter case cover holder
1 2 2

1. Mixing chamber cap securing plate
2. Screw
21
