WARNING

EWB02110
Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:

Make sure the brakes operate smoothly and
that the brake pedal position is correct.

Make sure the brakes do not drag.

Make sure the brakes are not spongy. All air
must be bled from the brake system.
Replacement of brake components requires
professional knowledge. These procedures
should be performed by a Yamaha dealer.
EBU24670

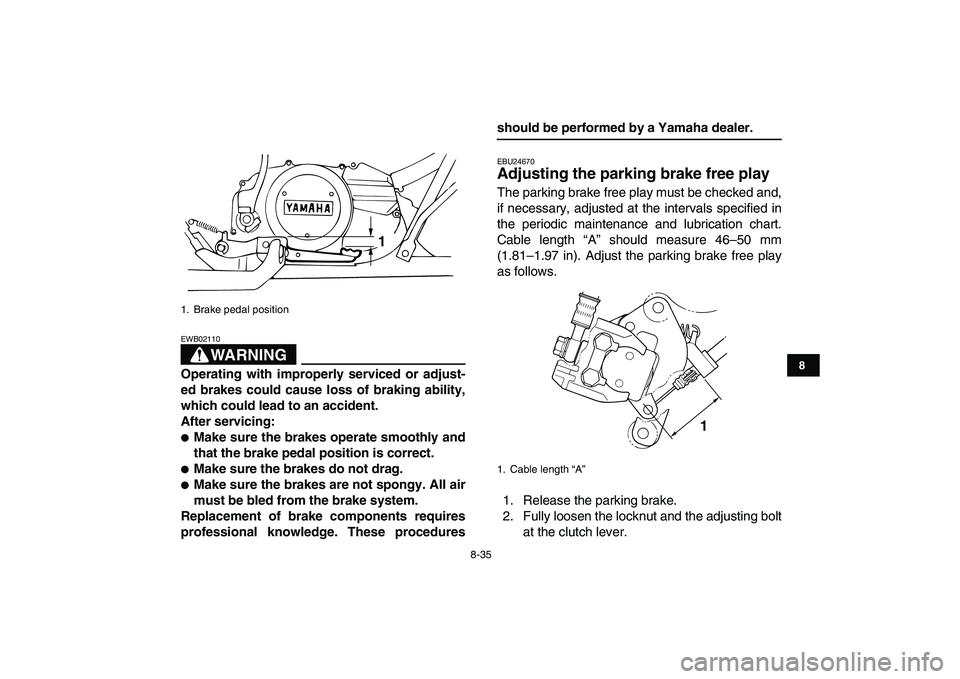

Adjusting the parking brake free play
The parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
Cable length “A” should measure 46–50 mm
(1.81–1.97 in). Adjust the parking brake free play
as follows.
1. Release the parking brake.
2. Fully loosen the locknut and the adjusting bolt
at the clutch lever.
1. Brake pedal position
1

1. Cable length “A”
1

8-36
1
2
3
4
5
6
78
9
10
11

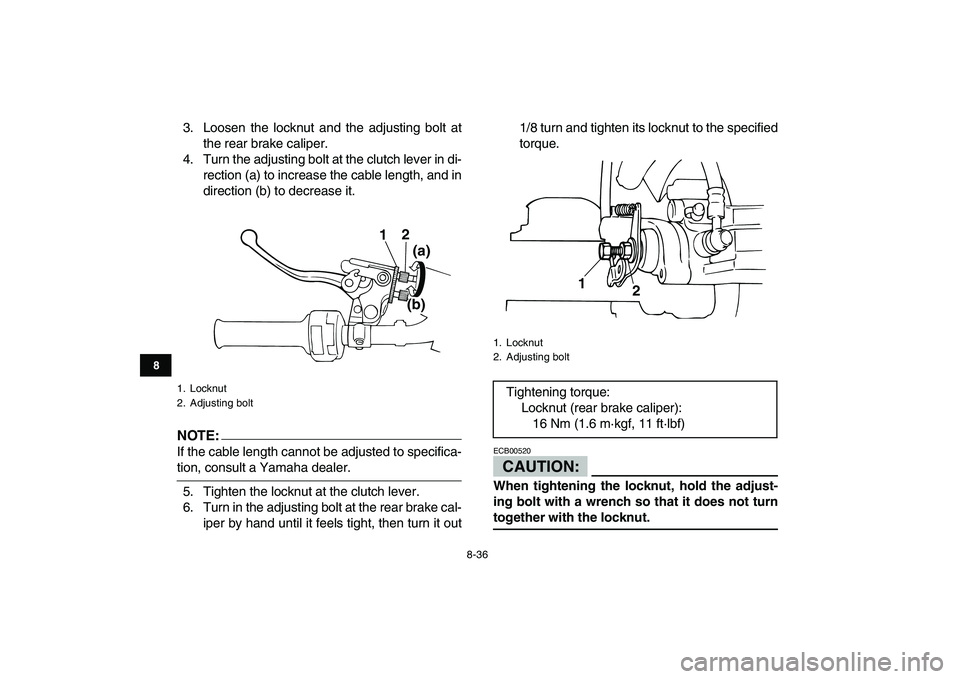

3. Loosen the locknut and the adjusting bolt at
the rear brake caliper.
4. Turn the adjusting bolt at the clutch lever in di-
rection (a) to increase the cable length, and in
direction (b) to decrease it.
NOTE:

If the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.
5. Tighten the locknut at the clutch lever.
6. Turn in the adjusting bolt at the rear brake cal-
iper by hand until it feels tight, then turn it out1/8 turn and tighten its locknut to the specified
torque.CAUTION:
ECB00520
When tightening the locknut, hold the adjust-
ing bolt with a wrench so that it does not turn
together with the locknut.
1. Locknut
2. Adjusting bolt
12
(a)
(b)

1. Locknut
2. Adjusting bolt
Tightening torque:
Locknut (rear brake caliper):
16 Nm (1.6 m·kgf, 11 ft·lbf)
1
2

8-37
1
2
3
4
5
6
78
9
10
11
WARNING

EWB02090
Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.
EBU24740
Brake light switches
The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
NOTE:

The brake light switch is properly adjusted when
the brake light comes on just before braking takes
effect.

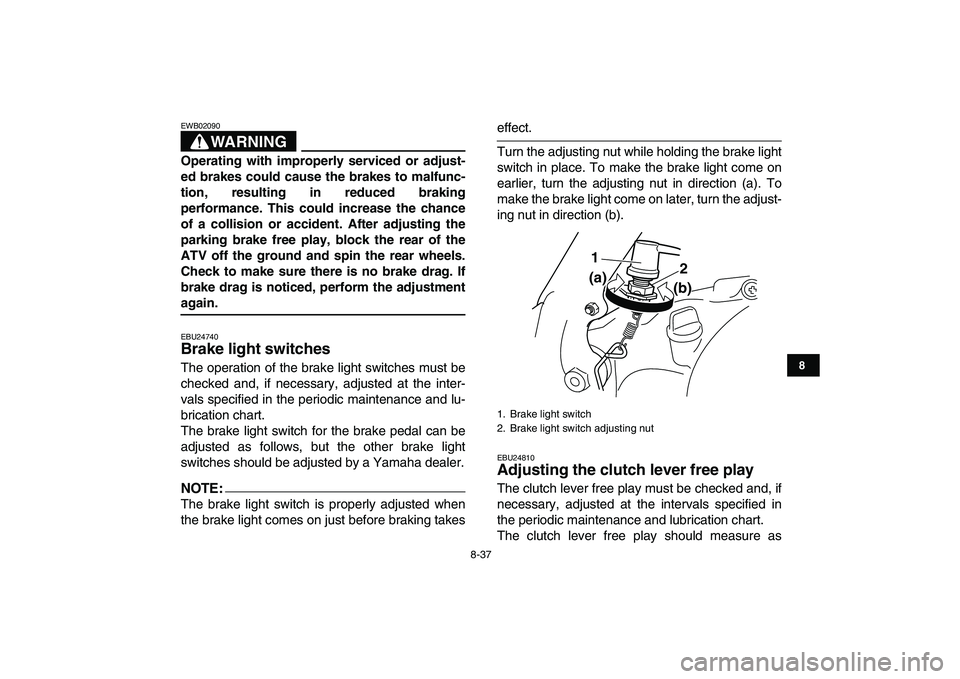

Turn the adjusting nut while holding the brake light
switch in place. To make the brake light come on
earlier, turn the adjusting nut in direction (a). To
make the brake light come on later, turn the adjust-
ing nut in direction (b).
EBU24810
Adjusting the clutch lever free play
The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The clutch lever free play should measure as
1. Brake light switch
2. Brake light switch adjusting nut
1
2
(a)
(b)

8-38
1
2
3
4
5
6
78
9
10
11

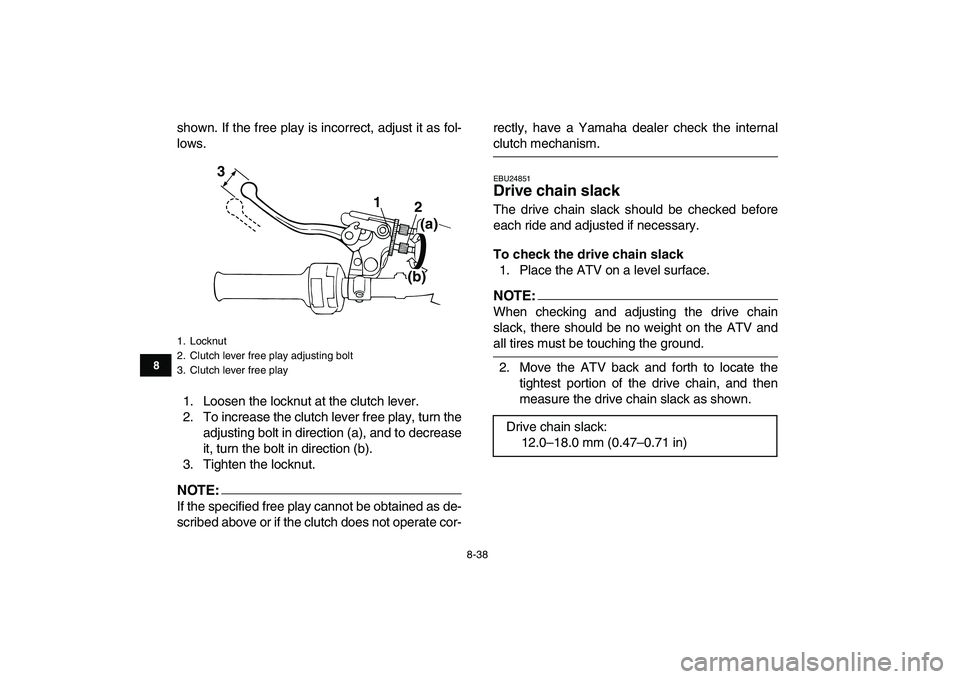

shown. If the free play is incorrect, adjust it as fol-
lows.
1. Loosen the locknut at the clutch lever.
2. To increase the clutch lever free play, turn the
adjusting bolt in direction (a), and to decrease
it, turn the bolt in direction (b).
3. Tighten the locknut.
NOTE:

If the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate cor-rectly, have a Yamaha dealer check the internal
clutch mechanism.
EBU24851
Drive chain slack
The drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack
1. Place the ATV on a level surface.
NOTE:

When checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.
2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.
1. Locknut
2. Clutch lever free play adjusting bolt
3. Clutch lever free play
1
2 3
(a)
(b)

Drive chain slack:
12.0–18.0 mm (0.47–0.71 in)

8-39
1
2
3
4
5
6
78
9
10
11

3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Loosen the axle holding nuts.2. Loosen the locknut on each side of the swing-
arm. To tighten the drive chain, turn the ad-
justing bolts in direction (a). To loosen the
drive chain, turn the adjusting bolts in direction
(b) and push the wheels forward. Turn each
adjusting bolt exactly the same amount to
maintain correct axle alignment.NOTE:
There are alignment marks on each side of the
swingarm and on the wheel hubs. Use them to
check for proper wheel axle alignment.
1. Drive chain slack
1

1. Axle holding nut (upper)
2. Axle holding nut (lower)
1
2

8-40
1
2
3
4
5
6
78
9
10
11
CAUTION:

ECB00541
Improper drive chain slack will overload the en-
gine as well as other vital parts of the ATV and
can lead to drive chain slippage or breakage.
To prevent this from occurring, keep the drive
chain slack within the specified limits.

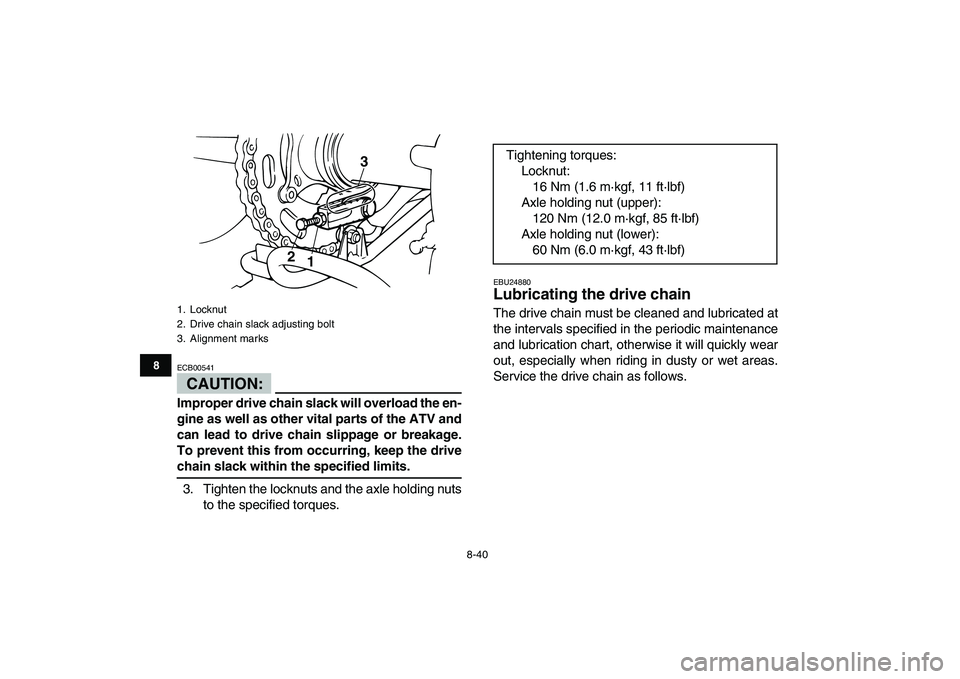

3. Tighten the locknuts and the axle holding nuts
to the specified torques.
EBU24880
Lubricating the drive chain
The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.
1. Locknut
2. Drive chain slack adjusting bolt
3. Alignment marks
1 23

Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle holding nut (upper):
120 Nm (12.0 m·kgf, 85 ft·lbf)
Axle holding nut (lower):
60 Nm (6.0 m·kgf, 43 ft·lbf)

8-41
1
2
3
4
5
6
78
9
10
11
CAUTION:

ECB00560
The drive chain must be lubricated after wash-
ing the ATV or riding in the rain.

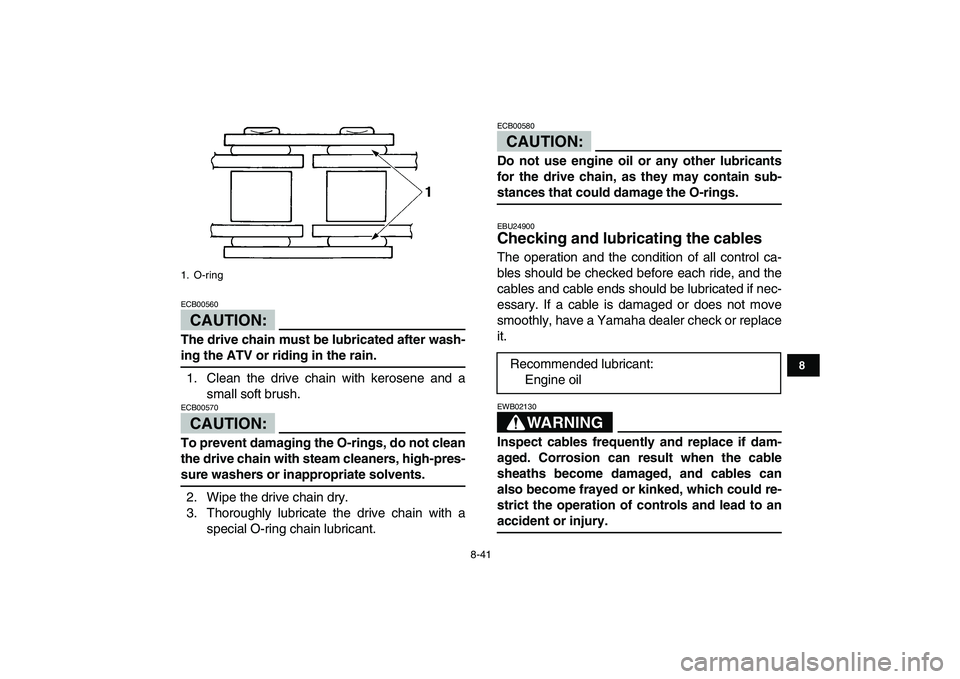

1. Clean the drive chain with kerosene and a
small soft brush.
CAUTION:

ECB00570
To prevent damaging the O-rings, do not clean
the drive chain with steam cleaners, high-pres-
sure washers or inappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant.CAUTION:

ECB00580
Do not use engine oil or any other lubricants
for the drive chain, as they may contain sub-
stances that could damage the O-rings.
EBU24900
Checking and lubricating the cables
The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING

EWB02130
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to an
accident or injury.
1. O-ring
Recommended lubricant:
Engine oil

8-42
1
2
3
4
5
6
78
9
10
11

EBU24920

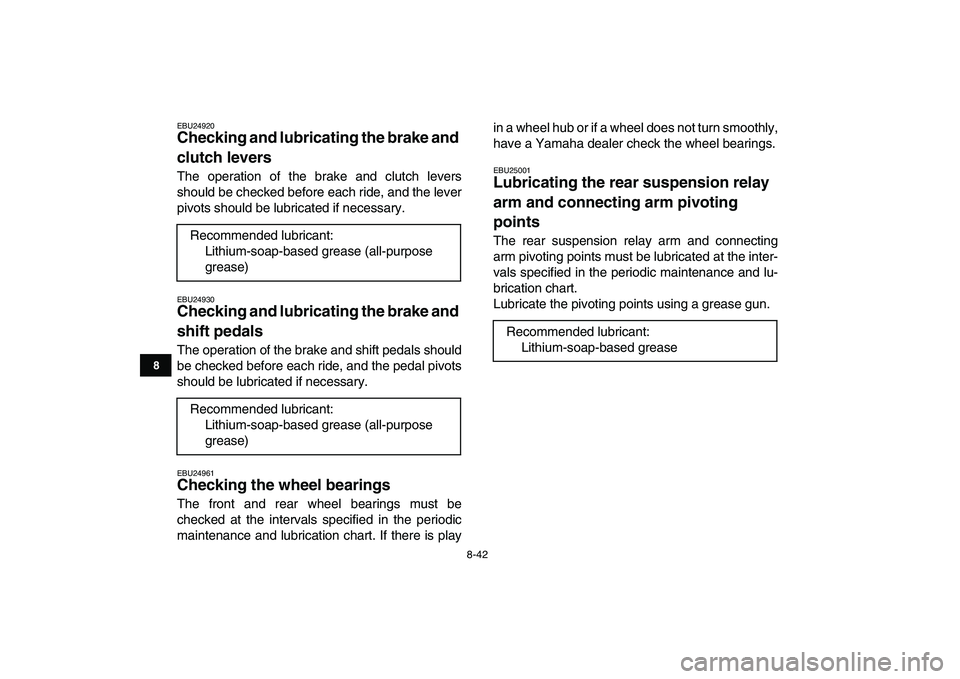

Checking and lubricating the brake and
clutch levers
The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
EBU24930
Checking and lubricating the brake and
shift pedals
The operation of the brake and shift pedals should
be checked before each ride, and the pedal pivots
should be lubricated if necessary.
EBU24961
Checking the wheel bearings
The front and rear wheel bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is playin a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel bearings.
EBU25001
Lubricating the rear suspension relay
arm and connecting arm pivoting
points
The rear suspension relay arm and connecting
arm pivoting points must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
Lubricate the pivoting points using a grease gun. Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)
Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)
Recommended lubricant:
Lithium-soap-based grease

8-43
1
2
3
4
5
6
78
9
10
11

EBU25030
Lubricating the upper and lower arm
pivots
The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.
Lubricate the pivoting points using a grease gun.
Left side
1. Grease nipple
1. Grease nipple
1
1

Recommended lubricant:
Lithium-soap-based grease
1. Grease nipple
1

8-44
1
2
3
4
5
6
78
9
10
11
Right side

EBU26881

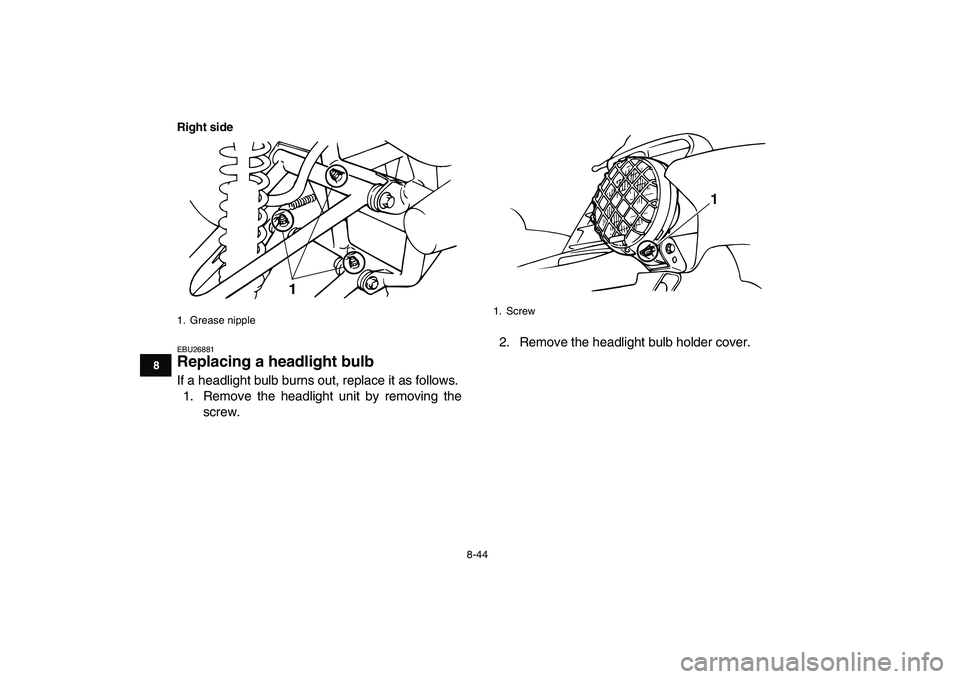

Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing the
screw.2. Remove the headlight bulb holder cover.
1. Grease nipple
1

1. Screw
1
