of gasoline or higher octane grade.
CAUTION:
ECB00060
Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the piston rings, as well
as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.
EBU18830

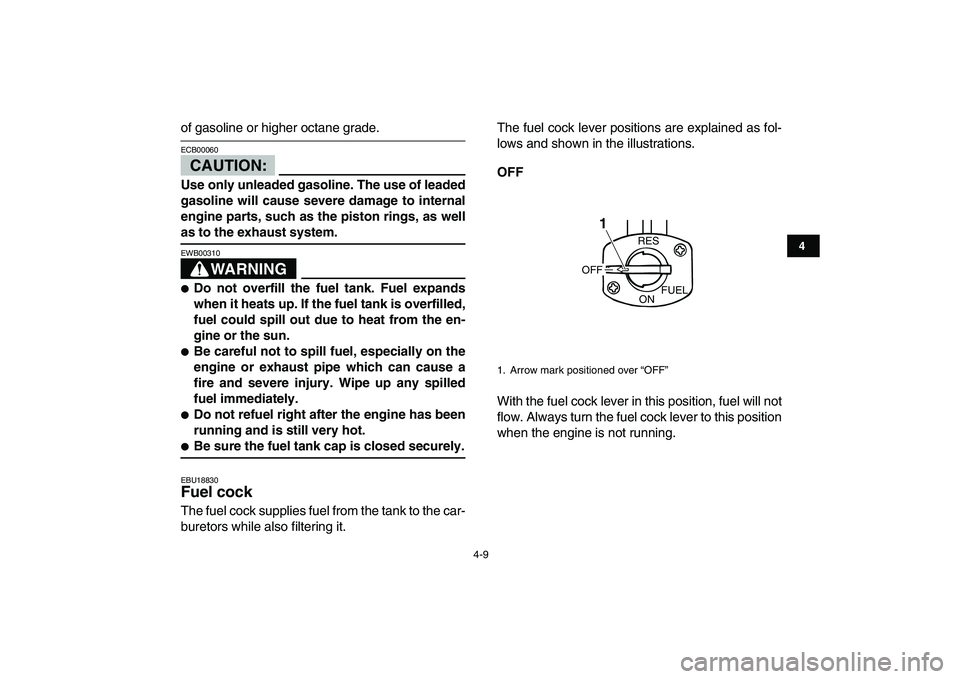

Fuel cock
The fuel cock supplies fuel from the tank to the car-
buretors while also filtering it.The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.
OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark positioned over “OFF”
RES
ONFUEL
OFF
1
Page 32 of 140
4-10
1
2
34
5
6
7
8
9
10
11

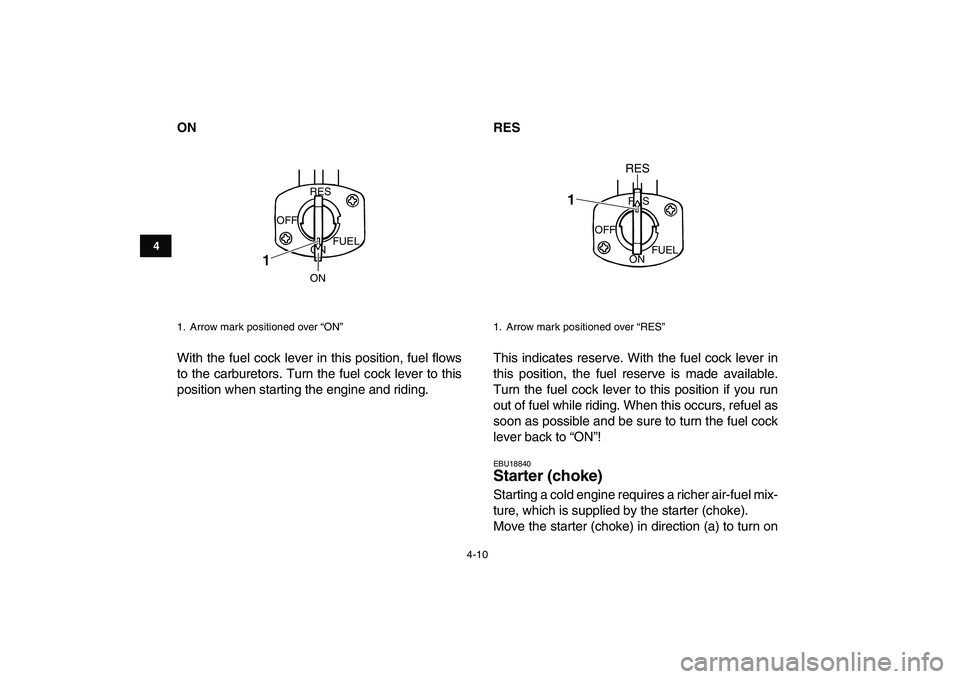

ON
With the fuel cock lever in this position, fuel flows
to the carburetors. Turn the fuel cock lever to this
position when starting the engine and riding.
RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18840
Starter (choke)
Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
1. Arrow mark positioned over “ON”
ON
FUEL
RES
OFF
ON
1
1. Arrow mark positioned over “RES”
OFF
ONFUEL RES
RES
1
Page 33 of 140
4-11
1
2
34
5
6
7
8
9
10
11

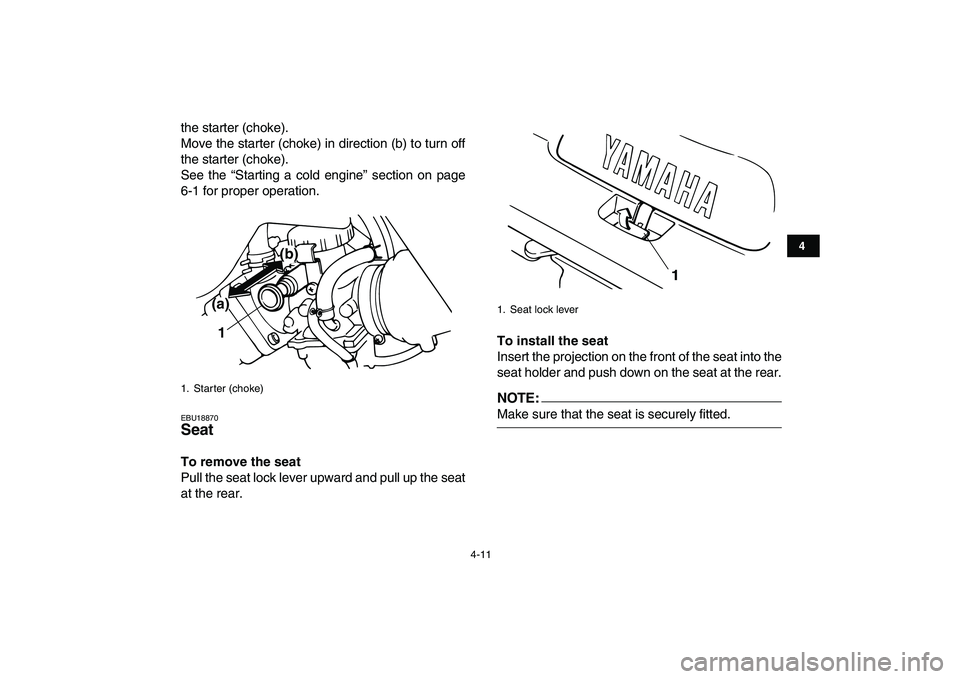

the starter (choke).
Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18870
Seat
To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.
To install the seat
Insert the projection on the front of the seat into the
seat holder and push down on the seat at the rear.NOTE:
Make sure that the seat is securely fitted.
1. Starter (choke)
1 (a)(b)
1. Seat lock lever
1
Page 34 of 140
4-12
1
2
34
5
6
7
8
9
10
11
EBU18990

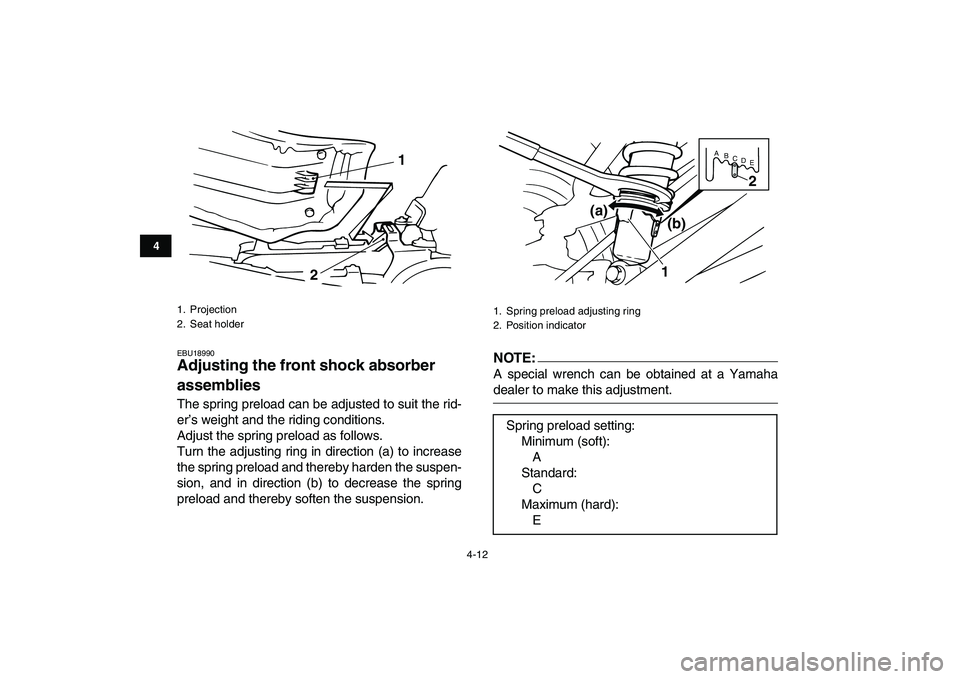

Adjusting the front shock absorber
assemblies
The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
Adjust the spring preload as follows.
Turn the adjusting ring in direction (a) to increase
the spring preload and thereby harden the suspen-
sion, and in direction (b) to decrease the spring
preload and thereby soften the suspension.NOTE:
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
1. Projection
2. Seat holder
1
2
1. Spring preload adjusting ring
2. Position indicator
Spring preload setting:
Minimum (soft):
A
Standard:
C
Maximum (hard):
E
A
B
C
D
E
12
(a)
(b)
Page 35 of 140
4-13
1
2
34
5
6
7
8
9
10
11

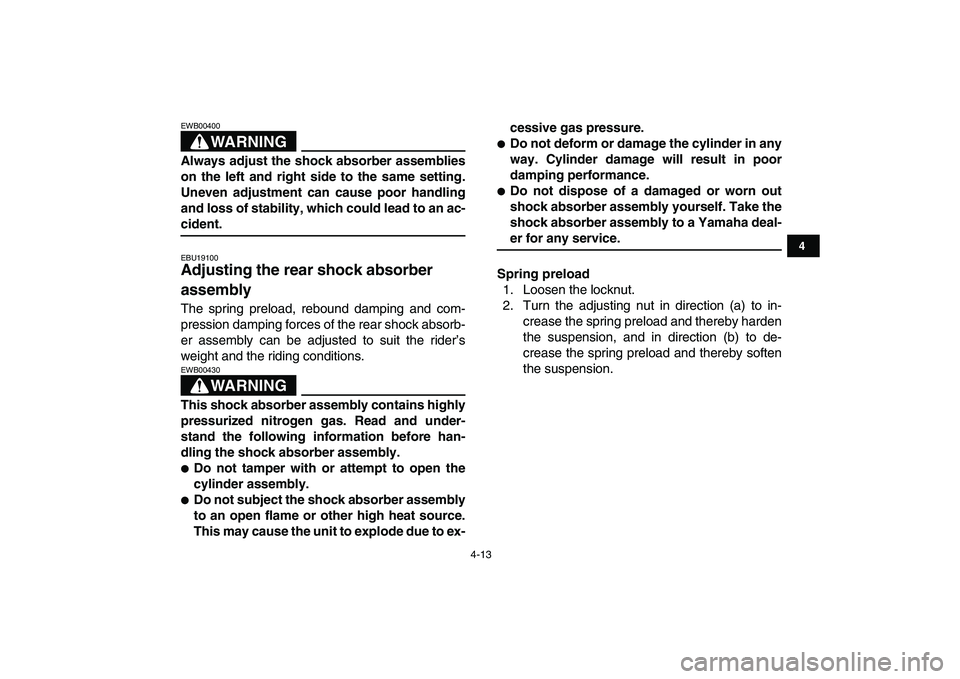

WARNING
EWB00400
Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident.
EBU19100
Adjusting the rear shock absorber
assembly
The spring preload, rebound damping and com-
pression damping forces of the rear shock absorb-
er assembly can be adjusted to suit the rider’s
weight and the riding conditions.
WARNING
EWB00430
This shock absorber assembly contains highly
pressurized nitrogen gas. Read and under-
stand the following information before han-
dling the shock absorber assembly.
Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat source.
This may cause the unit to explode due to ex-cessive gas pressure.
Do not deform or damage the cylinder in any
way. Cylinder damage will result in poor
damping performance.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
Spring preload
1. Loosen the locknut.
2. Turn the adjusting nut in direction (a) to in-
crease the spring preload and thereby harden
the suspension, and in direction (b) to de-
crease the spring preload and thereby soften
the suspension.
Page 36 of 140
4-14
1
2
34
5
6
7
8
9
10
11
NOTE:
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).3. Tighten the locknut to the specified torque.
1. Locknut
2. Spring preload adjusting nut
1
2
(a)(b)
1. Distance A
Spring preload setting:
Minimum (hard):
Distance A = 213.5 mm (8.4 in)
Standard:
Distance A = 220.5 mm (8.7 in)
Maximum (soft):
Distance A = 228.5 mm (9.0 in)
Tightening torque:
Locknut:
54 Nm (5.4 m·kgf, 39 ft·lbf)
1
Page 37 of 140
4-15
1
2
34
5
6
7
8
9
10
11
CAUTION:
ECB00080
Always tighten the locknut against the adjust-
ing nut, and then tighten it to the specified
torque.
Rebound damping force
Turn the adjusting dial in direction (a) to increase
the rebound damping force and thereby harden
the damping, and in direction (b) to decrease the
rebound damping force and thereby soften the
damping.
Compression damping force
Turn the adjusting knob in direction (a) to increase
the compression damping force and thereby hard-
en the damping, and in direction (b) to decrease
the compression damping force and thereby soft-
en the damping.

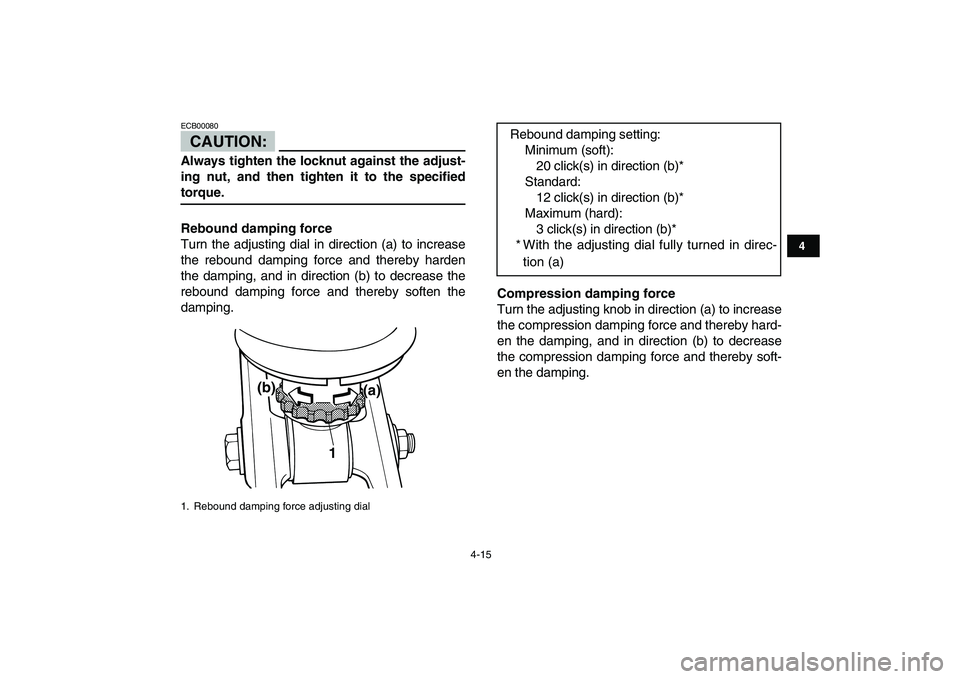

1. Rebound damping force adjusting dial
1(a) (b)
Rebound damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
3 click(s) in direction (b)*
* With the adjusting dial fully turned in direc-
tion (a)
Page 38 of 140
4-16
1
2
34
5
6
7
8
9
10
11
CAUTION:
ECB00090
Never turn an adjusting mechanism beyond
the minimum and maximum settings.NOTE:
Although the total number of clicks of a damping
force adjusting mechanism may not exactly match
the above specifications due to small differences in
production, the actual number of clicks always rep-
resents the entire adjusting range. To obtain a pre-
cise adjustment, it would be advisable to check the
number of clicks of each damping force adjusting
mechanism and to modify the specifications as
necessary.WARNING
EWB00460
Suspension components become hot during
operation. Never touch the compression
damping force adjusting knob, the rebound
damping force adjusting dial or the oil reser-
voir with your bare hand or skin until suspen-
sion components have cooled.

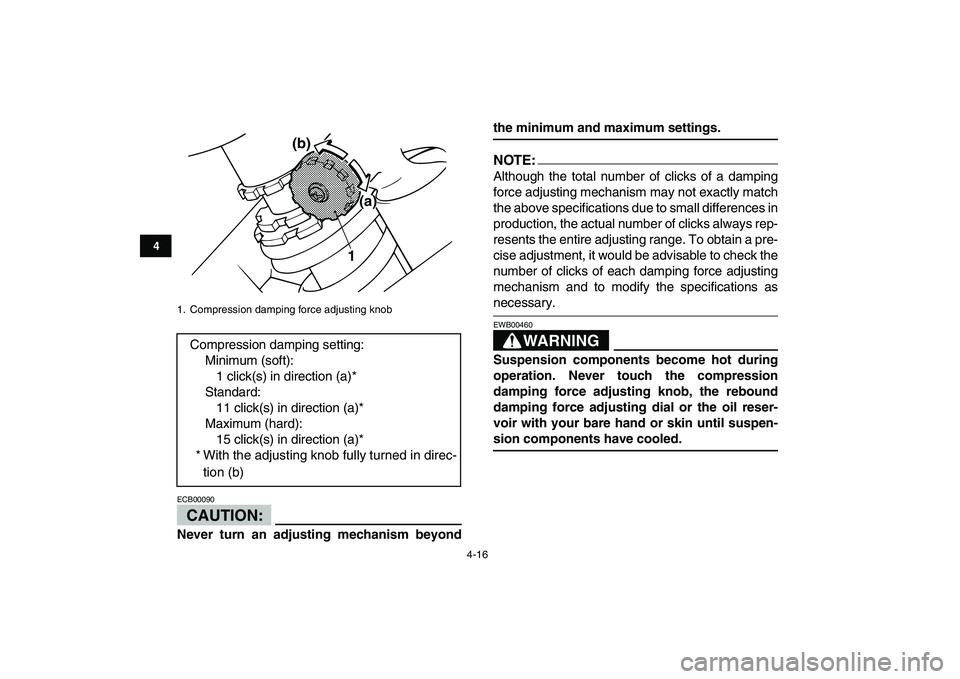

1. Compression damping force adjusting knob
Compression damping setting:
Minimum (soft):
1 click(s) in direction (a)*
Standard:
11 click(s) in direction (a)*
Maximum (hard):
15 click(s) in direction (a)*
* With the adjusting knob fully turned in direc-
tion (b)
1(a) (b)
Page 39 of 140
5-1
1
2
3
45
6
7
8
9
10
11
EBU19200

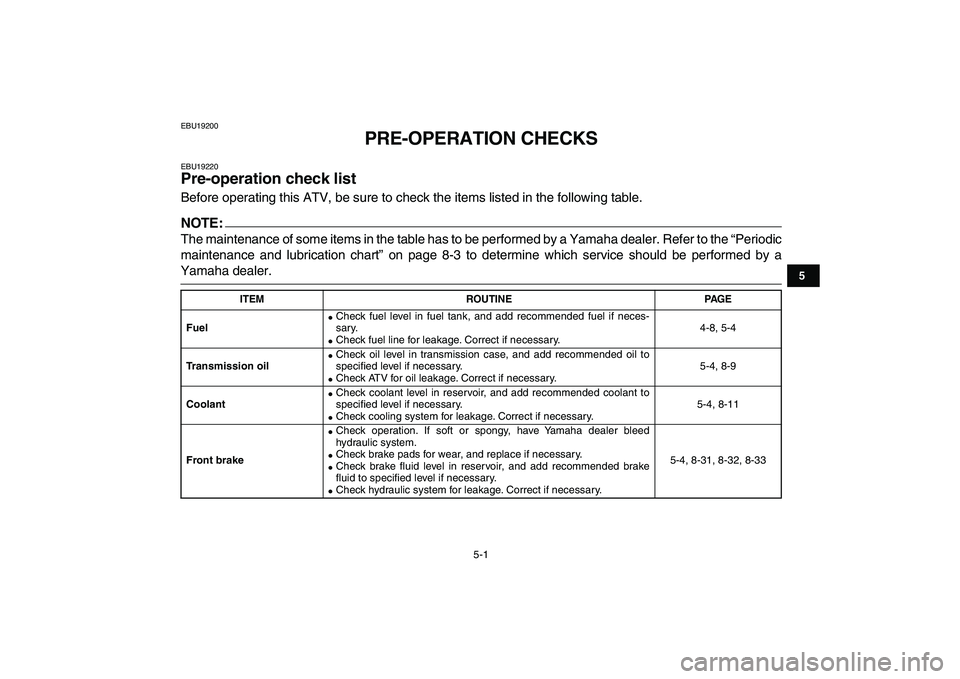

PRE-OPERATION CHECKS
EBU19220
Pre-operation check list
Before operating this ATV, be sure to check the items listed in the following table.
NOTE:
The maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the “Periodic
maintenance and lubrication chart” on page 8-3 to determine which service should be performed by a
Yamaha dealer.
ITEM ROUTINE PAGE
Fuel
Check fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-8, 5-4
Transmission oil
Check oil level in transmission case, and add recommended oil to
specified level if necessary.
Check ATV for oil leakage. Correct if necessary.5-4, 8-9
Coolant
Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
Check cooling system for leakage. Correct if necessary.5-4, 8-11
Front brake
Check operation. If soft or spongy, have Yamaha dealer bleed
hydraulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-4, 8-31, 8-32, 8-33
Page 40 of 140
5-2
1
2
3
45
6
7
8
9
10
11

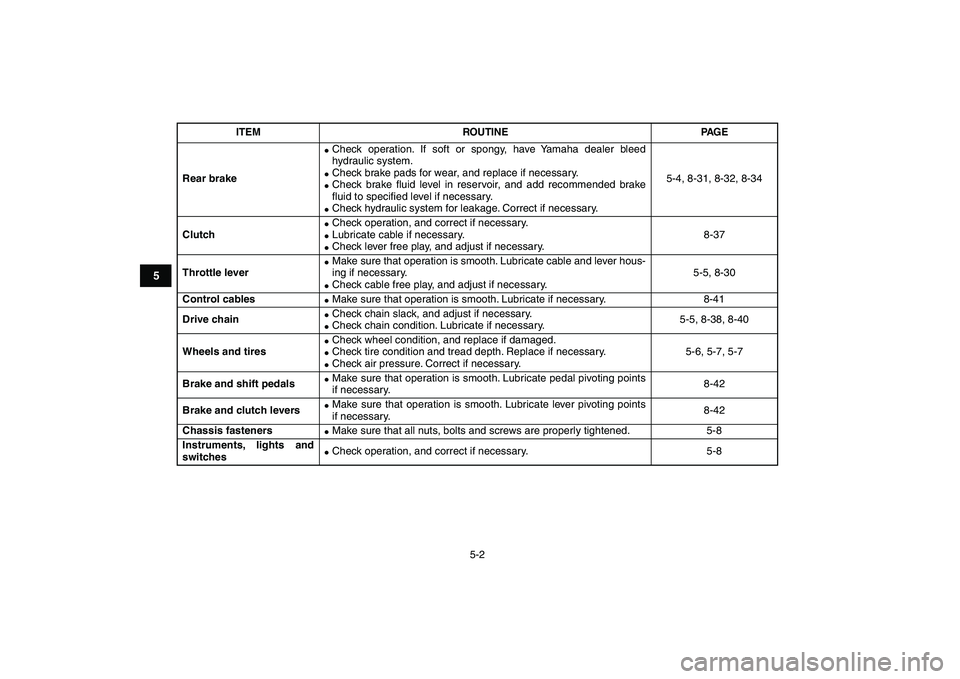

Rear brake
Check operation. If soft or spongy, have Yamaha dealer bleed
hydraulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-4, 8-31, 8-32, 8-34
Clutch
Check operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.8-37
Throttle lever
Make sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check cable free play, and adjust if necessary.5-5, 8-30
Control cables
Make sure that operation is smooth. Lubricate if necessary. 8-41
Drive chain
Check chain slack, and adjust if necessary.
Check chain condition. Lubricate if necessary.5-5, 8-38, 8-40
Wheels and tires
Check wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary.5-6, 5-7, 5-7
Brake and shift pedals
Make sure that operation is smooth. Lubricate pedal pivoting points
if necessary.8-42
Brake and clutch levers
Make sure that operation is smooth. Lubricate lever pivoting points
if necessary.8-42
Chassis fasteners
Make sure that all nuts, bolts and screws are properly tightened. 5-8
Instruments, lights and
switches
Check operation, and correct if necessary. 5-8
ITEM ROUTINE PAGE
