YAMAHA BANSHEE 350 2007 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2007, Model line: BANSHEE 350, Model: YAMAHA BANSHEE 350 2007Pages: 140, PDF Size: 4.42 MB
Page 21 of 140
3-1
1
23
4
5
6
7
8
9
10
11

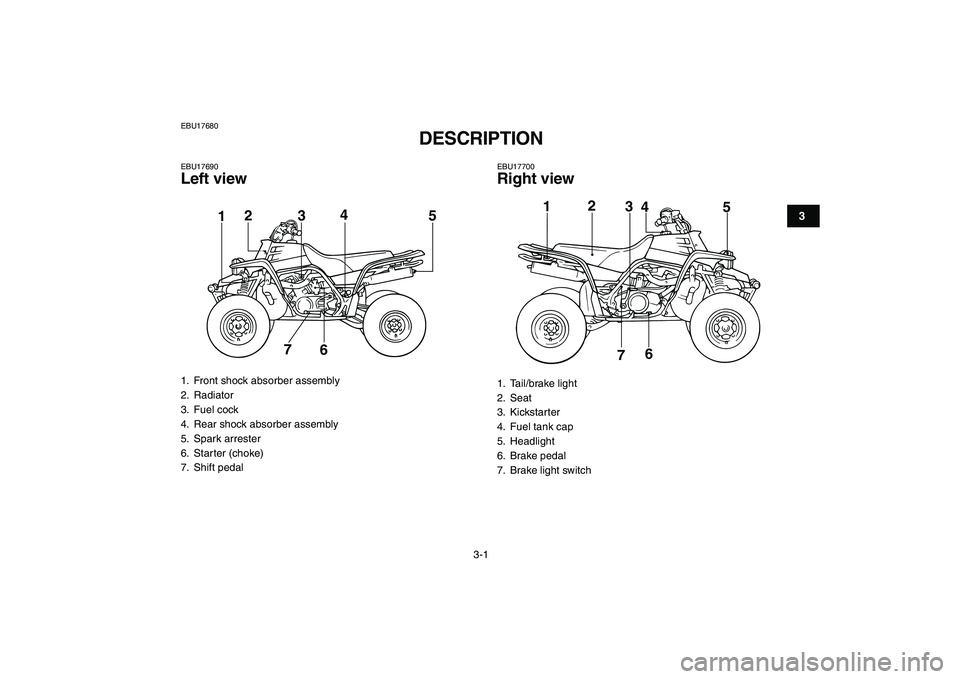

EBU17680
DESCRIPTION
EBU17690
Left view
EBU17700
Right view
1. Front shock absorber assembly
2. Radiator
3. Fuel cock
4. Rear shock absorber assembly
5. Spark arrester
6. Starter (choke)
7. Shift pedal
12
34
5
7
6
1. Tail/brake light
2. Seat
3. Kickstarter
4. Fuel tank cap
5. Headlight
6. Brake pedal
7. Brake light switch
12
3
45
6
7
Page 22 of 140
3-2
1
23
4
5
6
7
8
9
10
11

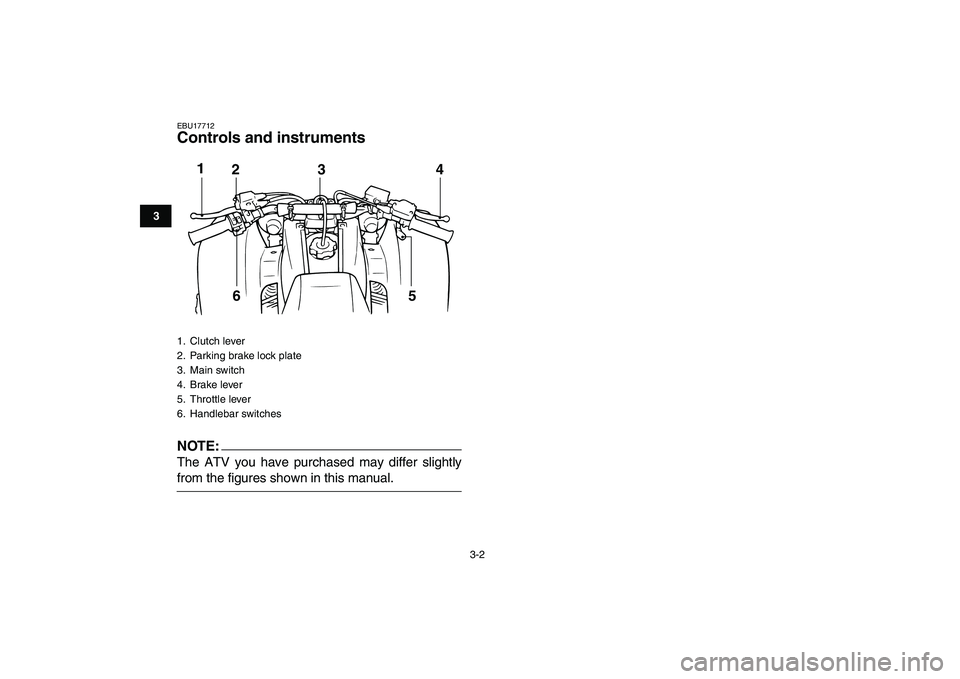

EBU17712
Controls and instruments
NOTE:
The ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Clutch lever
2. Parking brake lock plate
3. Main switch
4. Brake lever
5. Throttle lever
6. Handlebar switches
1
23 4
65
Page 23 of 140
4-1
1
2
34
5
6
7
8
9
10
11

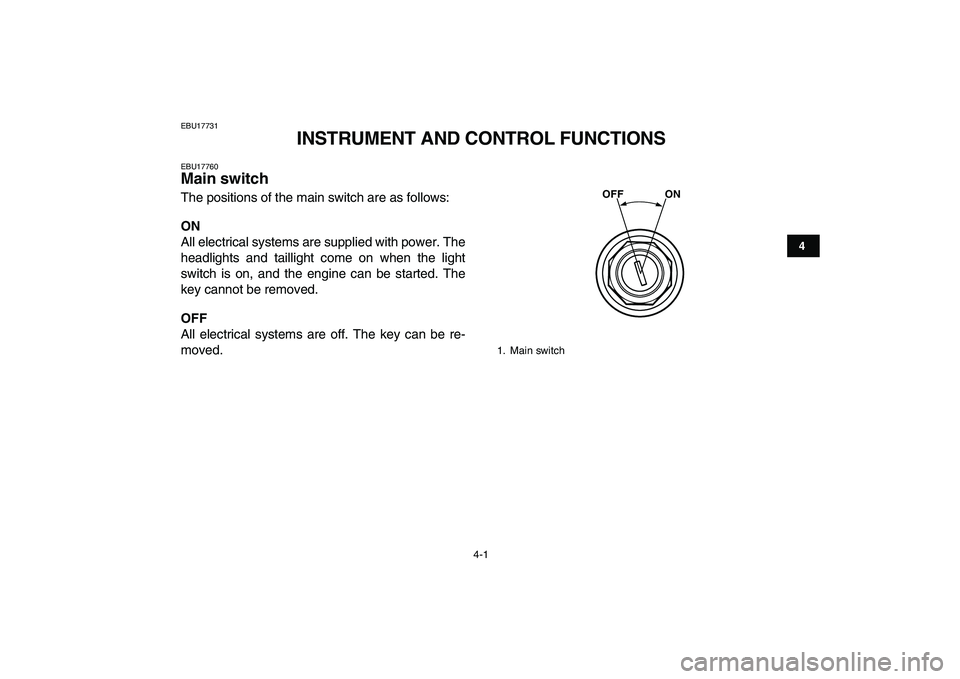

EBU17731
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760
Main switch
The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
OFF ON
Page 24 of 140
4-2
1
2
34
5
6
7
8
9
10
11

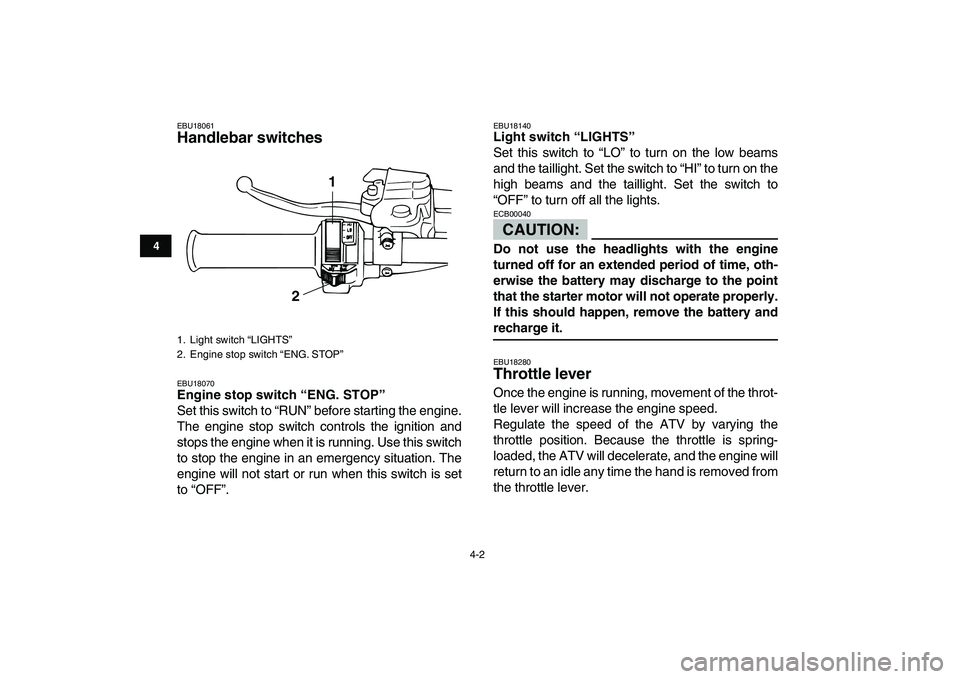

EBU18061
Handlebar switches
EBU18070
Engine stop switch “ENG. STOP”
Set this switch to “RUN” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “OFF”.
EBU18140
Light switch “LIGHTS”
Set this switch to “LO” to turn on the low beams
and the taillight. Set the switch to “HI” to turn on the
high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.CAUTION:
ECB00040
Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it.
EBU18280
Throttle lever
Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
1
2
Page 25 of 140
4-3
1
2
34
5
6
7
8
9
10
11

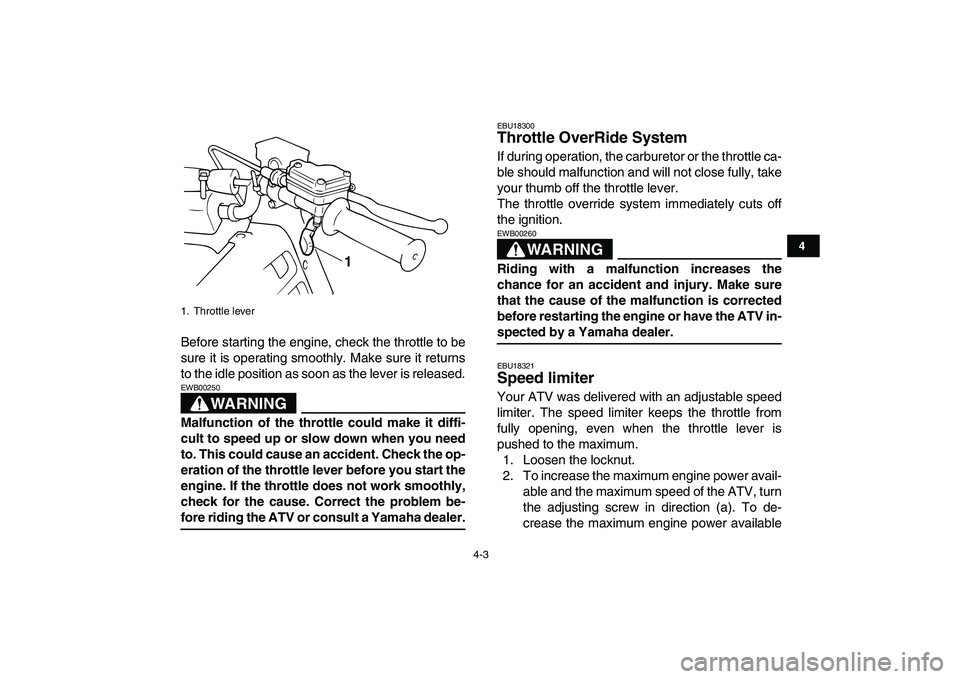

Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
EWB00250
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-
eration of the throttle lever before you start the
engine. If the throttle does not work smoothly,
check for the cause. Correct the problem be-
fore riding the ATV or consult a Yamaha dealer.
EBU18300
Throttle OverRide System
If during operation, the carburetor or the throttle ca-
ble should malfunction and will not close fully, take
your thumb off the throttle lever.
The throttle override system immediately cuts off
the ignition.
WARNING
EWB00260
Riding with a malfunction increases the
chance for an accident and injury. Make sure
that the cause of the malfunction is corrected
before restarting the engine or have the ATV in-
spected by a Yamaha dealer.
EBU18321
Speed limiter
Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
1. Throttle lever
1
Page 26 of 140
4-4
1
2
34
5
6
7
8
9
10
11

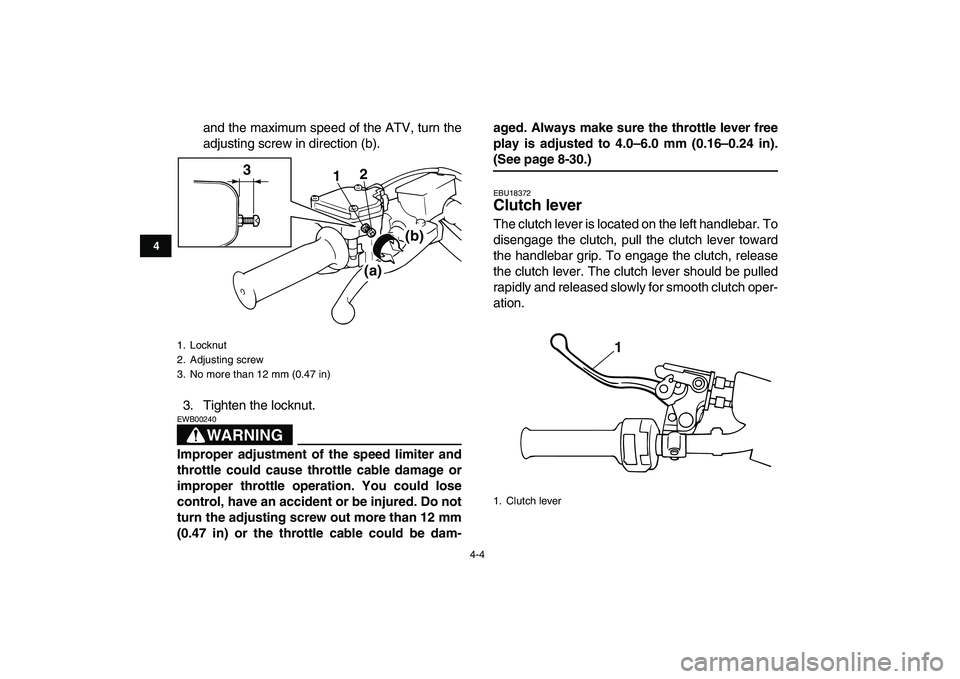

and the maximum speed of the ATV, turn the
adjusting screw in direction (b).
3. Tighten the locknut.
WARNING
EWB00240
Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-aged. Always make sure the throttle lever free
play is adjusted to 4.0–6.0 mm (0.16–0.24 in).
(See page 8-30.)
EBU18372
Clutch lever
The clutch lever is located on the left handlebar. To
disengage the clutch, pull the clutch lever toward
the handlebar grip. To engage the clutch, release
the clutch lever. The clutch lever should be pulled
rapidly and released slowly for smooth clutch oper-
ation.
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
(a)
(b)
3
12
1. Clutch lever
1
Page 27 of 140
4-5
1
2
34
5
6
7
8
9
10
11

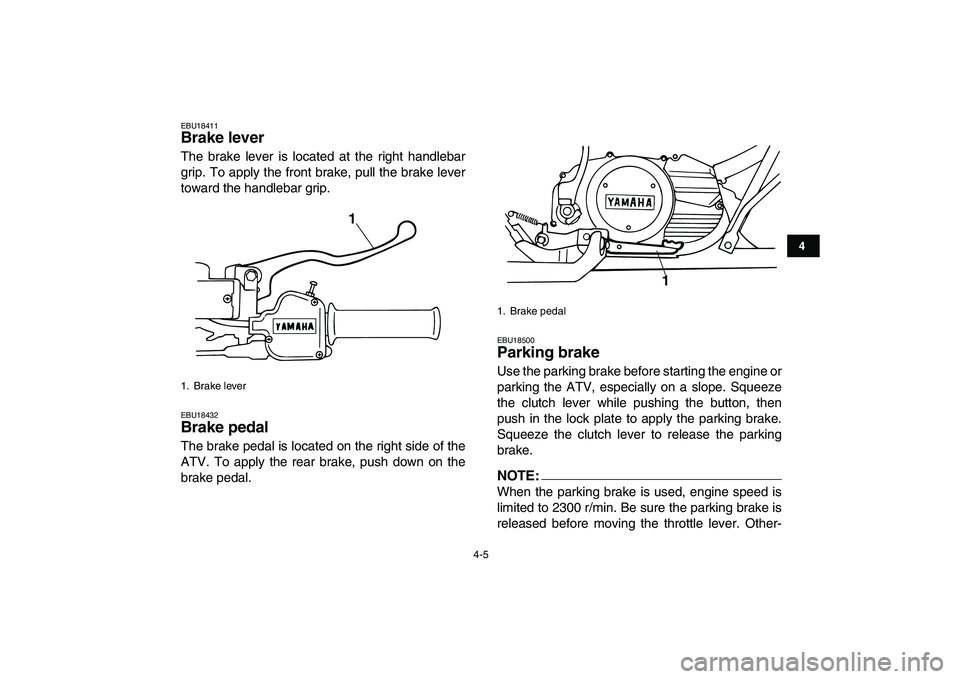

EBU18411
Brake lever
The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.
EBU18432
Brake pedal
The brake pedal is located on the right side of the
ATV. To apply the rear brake, push down on the
brake pedal.
EBU18500
Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Squeeze
the clutch lever while pushing the button, then
push in the lock plate to apply the parking brake.
Squeeze the clutch lever to release the parking
brake.NOTE:
When the parking brake is used, engine speed is
limited to 2300 r/min. Be sure the parking brake is
released before moving the throttle lever. Other-
1. Brake lever
1
1. Brake pedal
1
Page 28 of 140
4-6
1
2
34
5
6
7
8
9
10
11

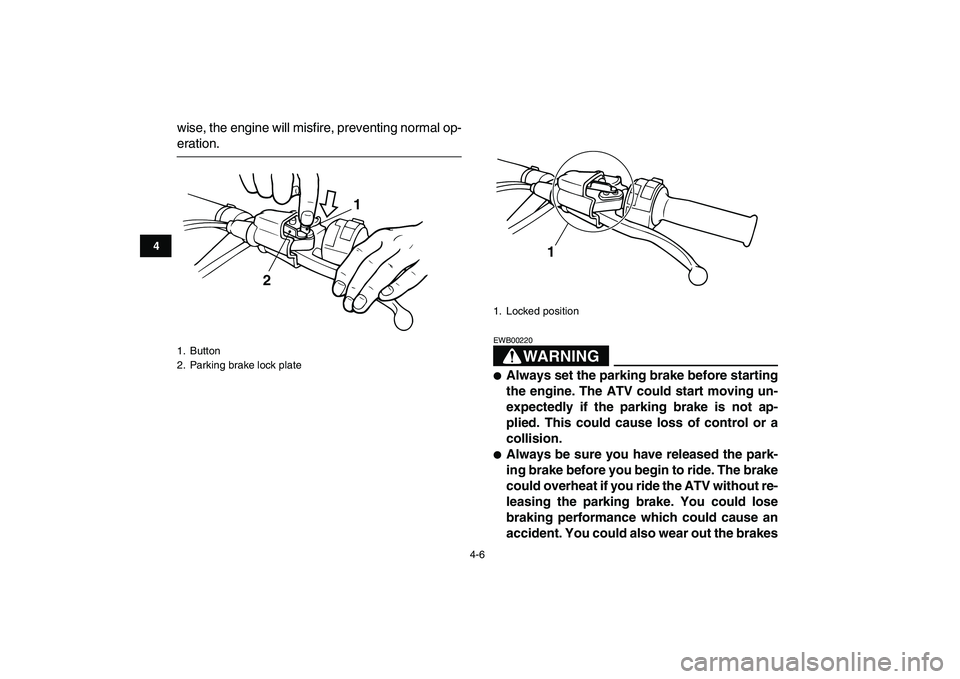

wise, the engine will misfire, preventing normal op-
eration.
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.
Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakes
1. Button
2. Parking brake lock plate
1
2
1. Locked position
1
Page 29 of 140
4-7
1
2
34
5
6
7
8
9
10
11

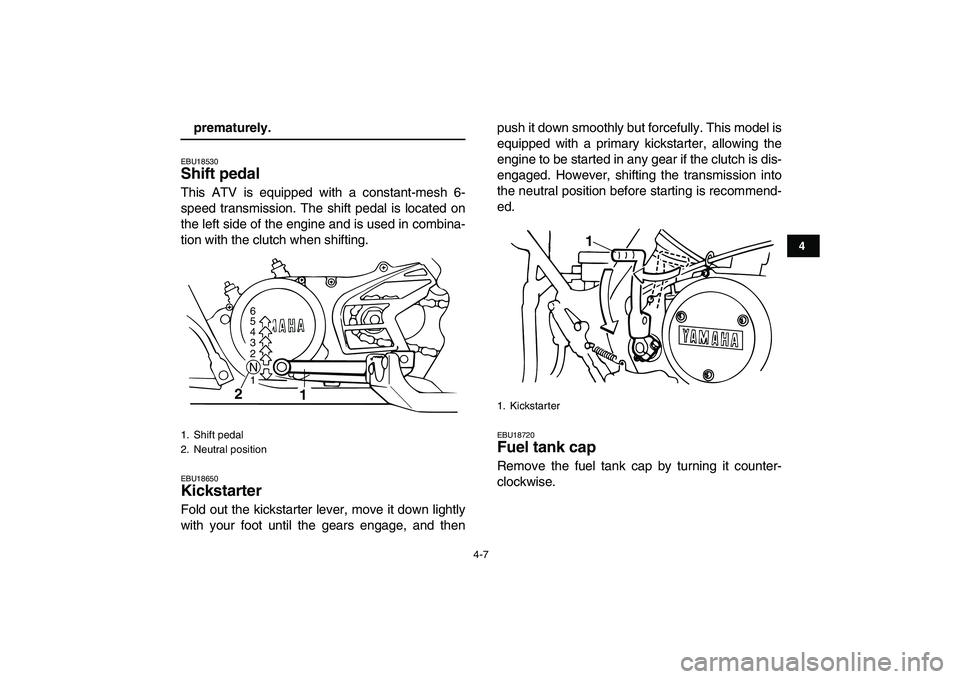

prematurely.
EBU18530
Shift pedal
This ATV is equipped with a constant-mesh 6-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
EBU18650
Kickstarter
Fold out the kickstarter lever, move it down lightly
with your foot until the gears engage, and thenpush it down smoothly but forcefully. This model is
equipped with a primary kickstarter, allowing the
engine to be started in any gear if the clutch is dis-
engaged. However, shifting the transmission into
the neutral position before starting is recommend-
ed.
EBU18720
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
1. Shift pedal
2. Neutral position
6
5
4
1 2 3N
12
1. Kickstarter
1
Page 30 of 140
4-8
1
2
34
5
6
7
8
9
10
11

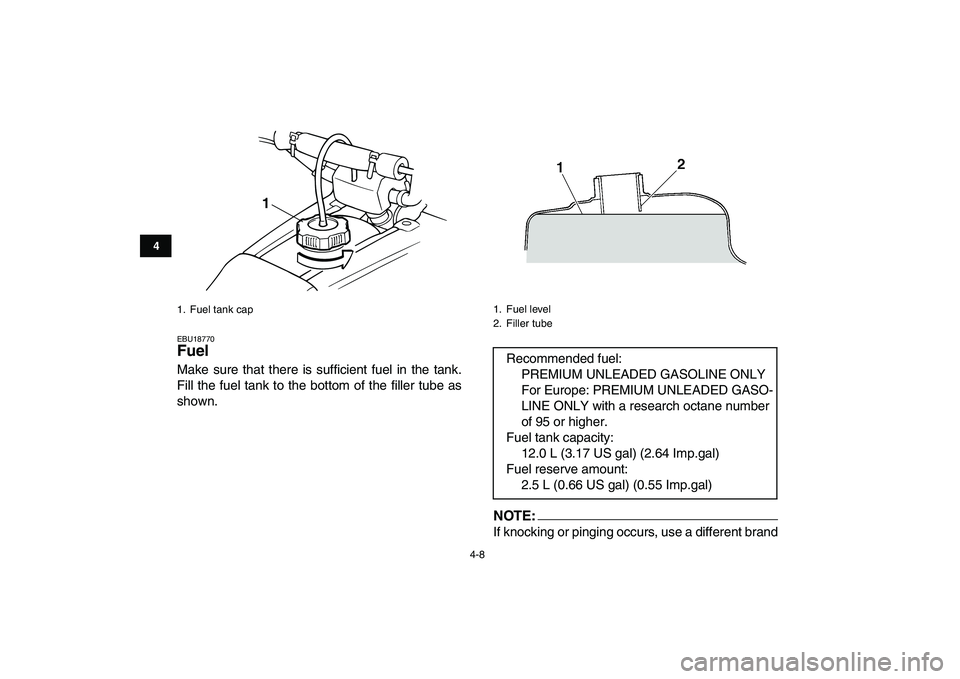

EBU18770
Fuel
Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.NOTE:
If knocking or pinging occurs, use a different brand
1. Fuel tank cap
1
1. Fuel level
2. Filler tube
Recommended fuel:
PREMIUM UNLEADED GASOLINE ONLY
For Europe: PREMIUM UNLEADED GASO-
LINE ONLY with a research octane number
of 95 or higher.
Fuel tank capacity:
12.0 L (3.17 US gal) (2.64 Imp.gal)
Fuel reserve amount:
2.5 L (0.66 US gal) (0.55 Imp.gal)
