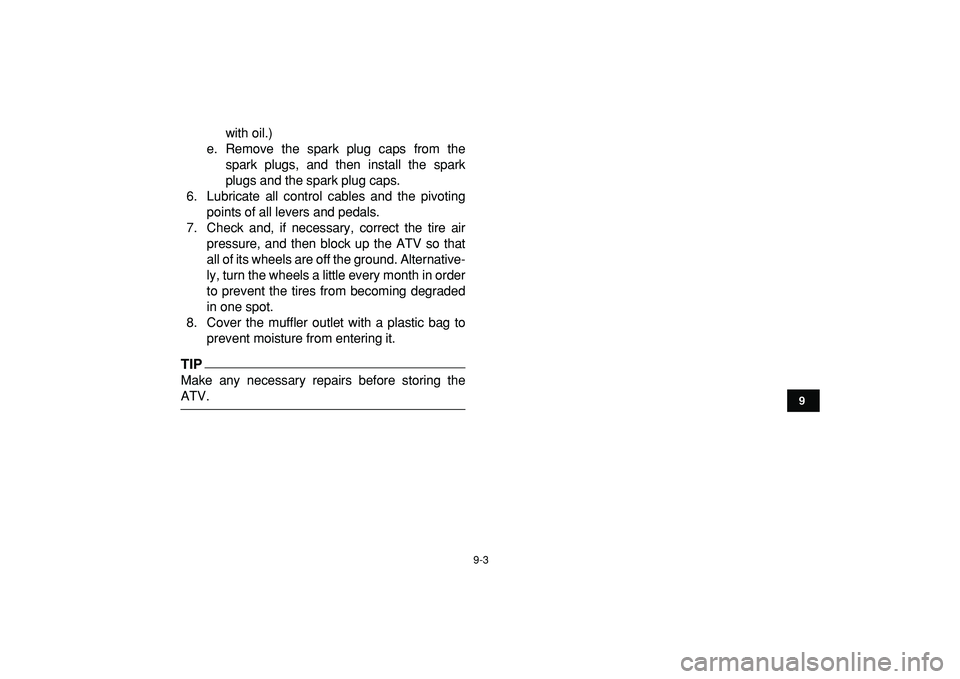

with oil.)
e. Remove the spark plug caps from the
spark plugs, and then install the spark
plugs and the spark plug caps.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
TIP

Make any necessary repairs before storing the
ATV.

10-1
1
2
3
4
5
6
7
8
910
11

EBU25960

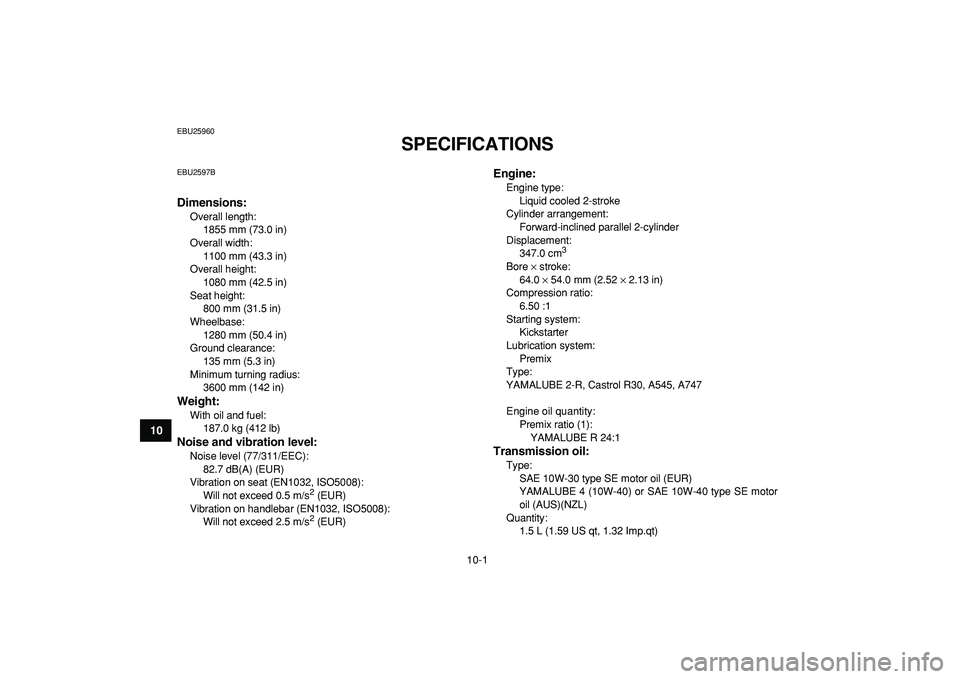

SPECIFICATIONS
EBU2597B
Dimensions:
Overall length:
1855 mm (73.0 in)
Overall width:
1100 mm (43.3 in)
Overall height:
1080 mm (42.5 in)
Seat height:
800 mm (31.5 in)
Wheelbase:
1280 mm (50.4 in)
Ground clearance:
135 mm (5.3 in)
Minimum turning radius:
3600 mm (142 in)
Weight:
With oil and fuel:
187.0 kg (412 lb)
Noise and vibration level:
Noise level (77/311/EEC):
82.7 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s
2

(EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s
2

(EUR)
Engine:
Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
347.0 cm
3

Bore
×
stroke:
64.0
×
54.0 mm (2.52
×
2.13 in)
Compression ratio:
6.50 :1
Starting system:
Kickstarter
Lubrication system:
Premix
Type:
YAMALUBE 2-R, Castrol R30, A545, A747
Engine oil quantity:
Premix ratio (1):
YAMALUBE R 24:1

Transmission oil:
Type:
SAE 10W-30 type SE motor oil (EUR)
YAMALUBE 4 (10W-40) or SAE 10W-40 type SE motor
oil (AUS)(NZL)
Quantity:
1.5 L (1.59 US qt, 1.32 Imp.qt)

10-2
1
2
3
4
5
6
7
8
910
11

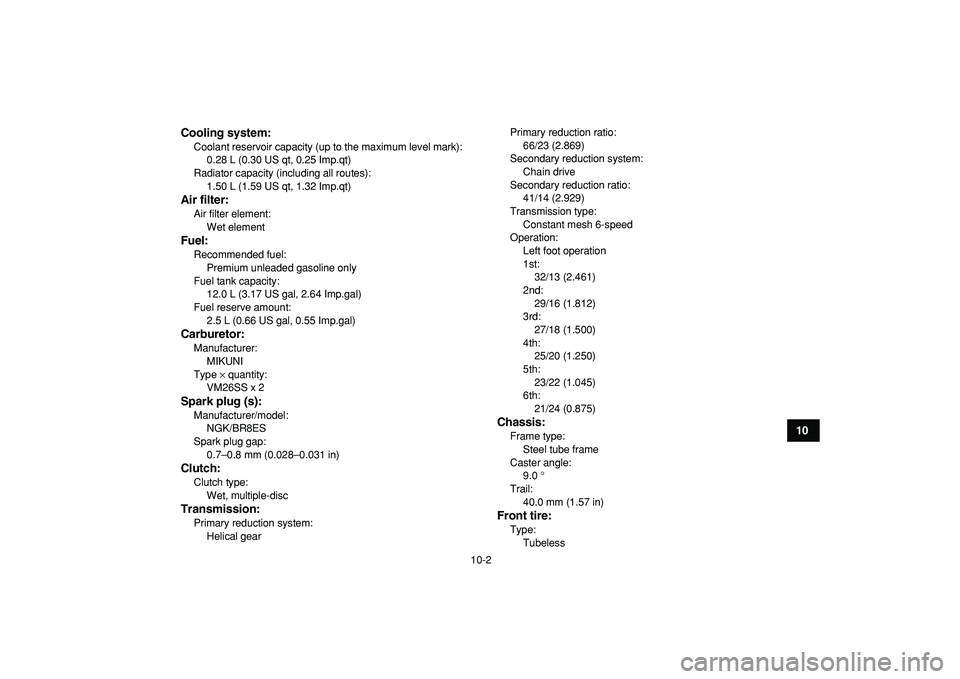

Cooling system:

Coolant reservoir capacity (up to the maximum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator capacity (including all routes):
1.50 L (1.59 US qt, 1.32 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
2.5 L (0.66 US gal, 0.55 Imp.gal)
Carburetor:
Manufacturer:
MIKUNI
Type
×
quantity:
VM26SS x 2
Spark plug (s):
Manufacturer/model:
NGK/BR8ES
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Helical gearPrimary reduction ratio:
66/23 (2.869)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
41/14 (2.929)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
1st:
32/13 (2.461)
2nd:
29/16 (1.812)
3rd:
27/18 (1.500)
4th:
25/20 (1.250)
5th:
23/22 (1.045)
6th:
21/24 (0.875)
Chassis:
Frame type:
Steel tube frame
Caster angle:
9.0 °
Trail:
40.0 mm (1.57 in)
Front tire:
Type:
Tubeless

10-3
1
2
3
4
5
6
7
8
910
11

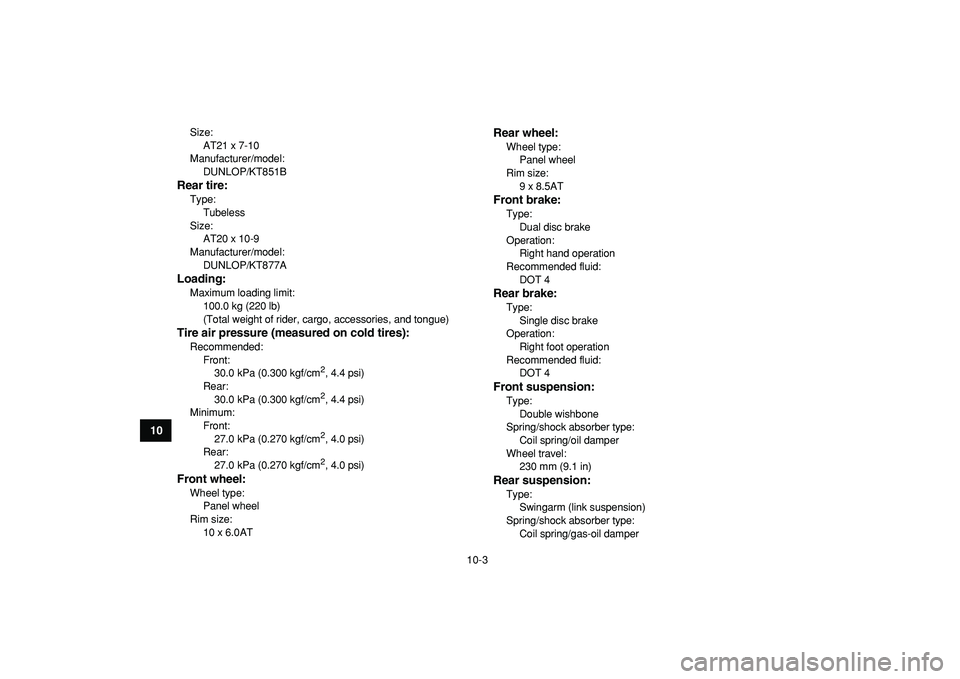

Size:
AT21 x 7-10
Manufacturer/model:
DUNLOP/KT851B
Rear tire:
Type:
Tubeless
Size:
AT20 x 10-9
Manufacturer/model:
DUNLOP/KT877A
Loading:
Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):
Recommended:
Front:
30.0 kPa (0.300 kgf/cm
2

, 4.4 psi)
Rear:
30.0 kPa (0.300 kgf/cm
2

, 4.4 psi)
Minimum:
Front:
27.0 kPa (0.270 kgf/cm
2

, 4.0 psi)
Rear:
27.0 kPa (0.270 kgf/cm
2

, 4.0 psi)
Front wheel:
Wheel type:
Panel wheel
Rim size:
10 x 6.0AT
Rear wheel:
Wheel type:
Panel wheel
Rim size:
9 x 8.5AT
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
230 mm (9.1 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper

10-4
1
2
3
4
5
6
7
8
910
11

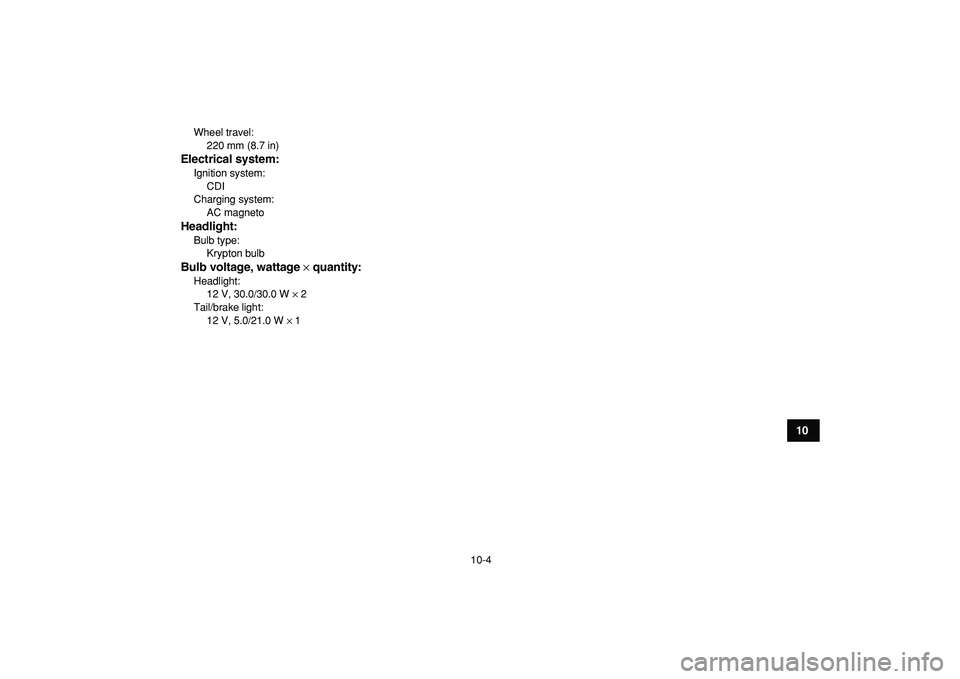

Wheel travel:
220 mm (8.7 in)
Electrical system:
Ignition system:
CDI
Charging system:
AC magneto
Headlight:
Bulb type:
Krypton bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 30.0/30.0 W
×
2
Tail/brake light:
12 V, 5.0/21.0 W
×
1

11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000
CONSUMER INFORMATION
EBU26011
Identification numbers

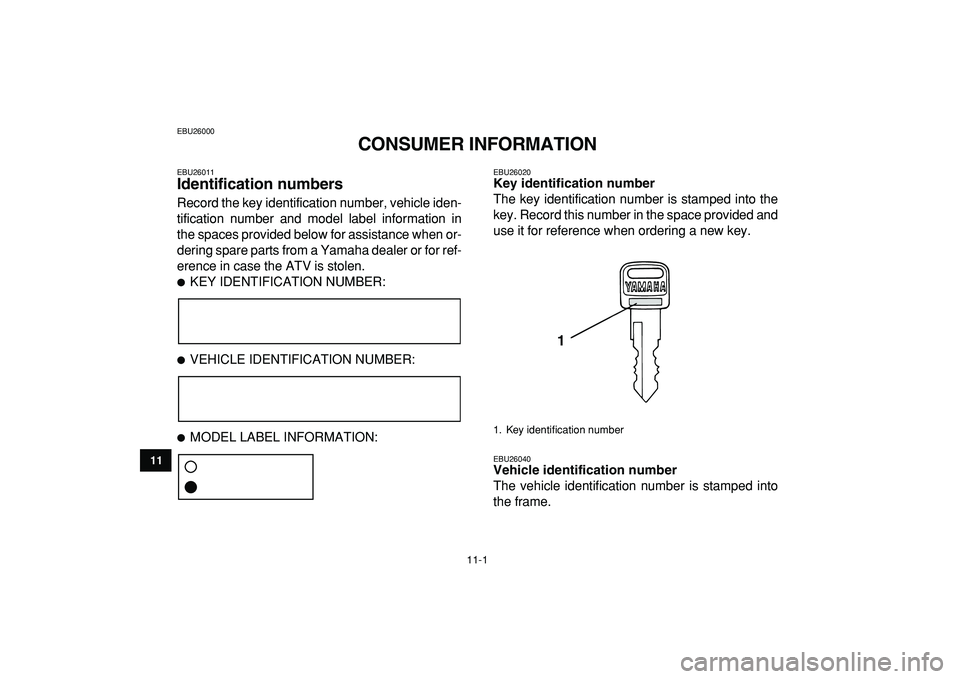

Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.

KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER:

MODEL LABEL INFORMATION:
EBU26020
Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
EBU26040
Vehicle identification number
The vehicle identification number is stamped into
the frame.
1. Key identification number1

11-2
1
2
3
4
5
6
7
8
9
1011

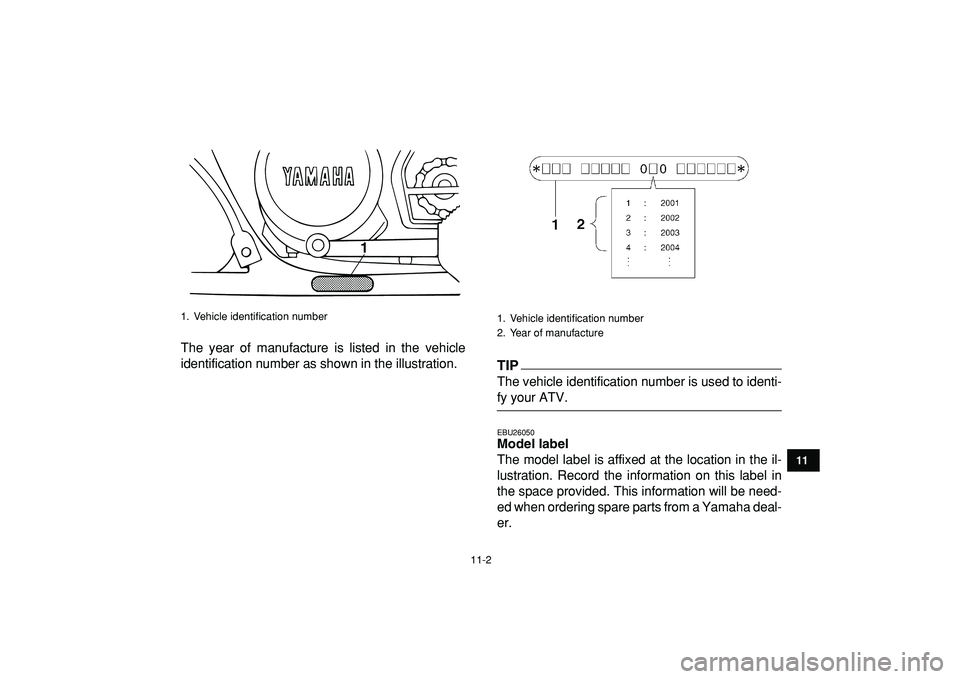

The year of manufacture is listed in the vehicle
identification number as shown in the illustration.TIP
The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
1

1. Vehicle identification number
2. Year of manufacture

11-3
1
2
3
4
5
6
7
8
9
1011

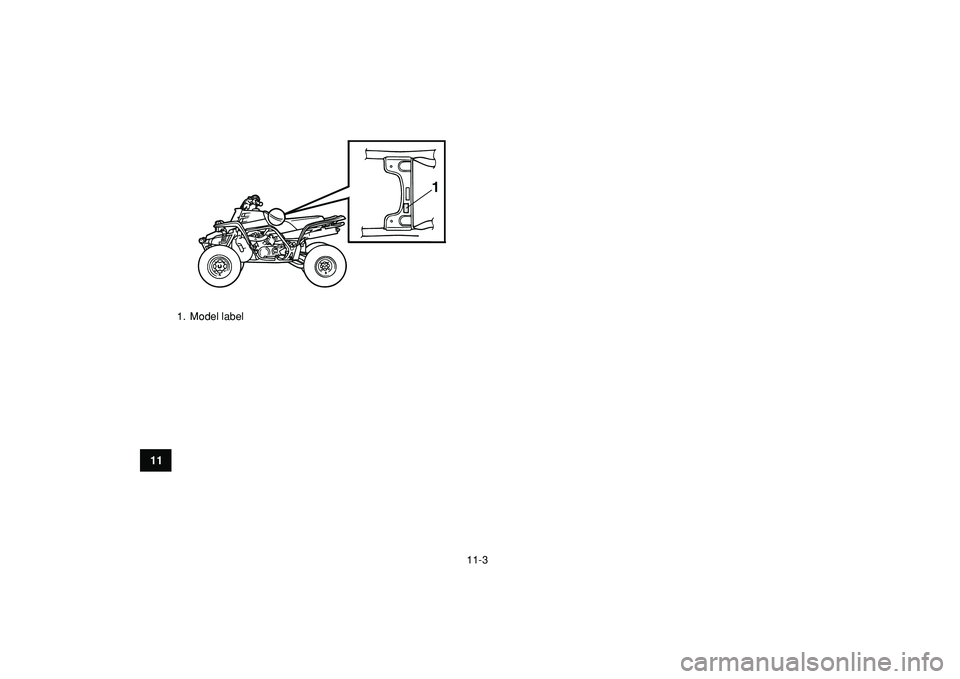

1. Model label
1

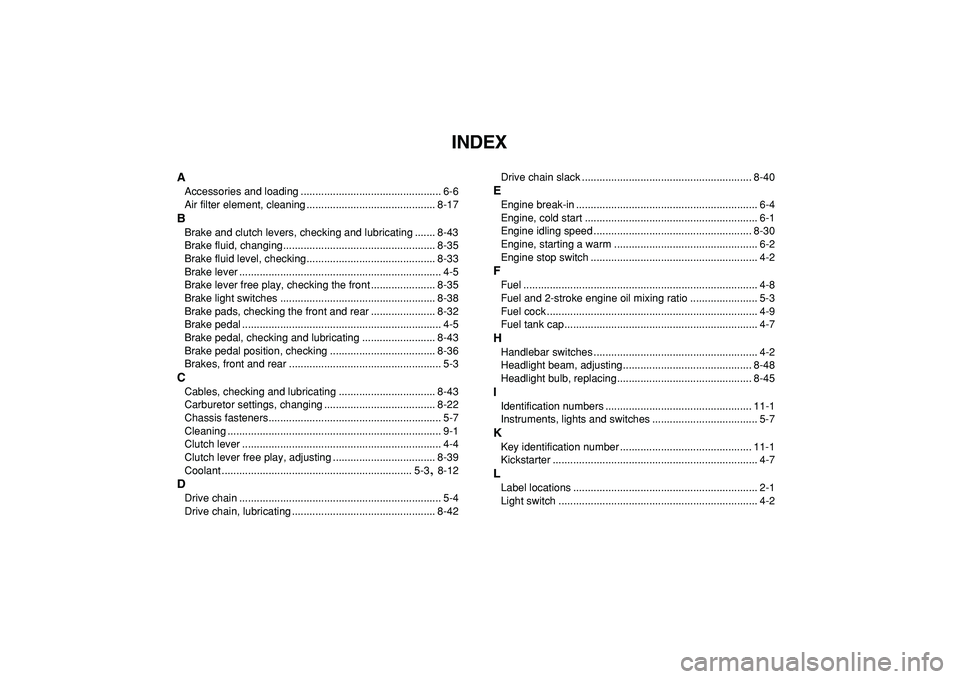

INDEX
A
Accessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-17
B
Brake and clutch levers, checking and lubricating ....... 8-43
Brake fluid, changing.................................................... 8-35
Brake fluid level, checking............................................ 8-33
Brake lever ..................................................................... 4-5
Brake lever free play, checking the front ...................... 8-35
Brake light switches ..................................................... 8-38
Brake pads, checking the front and rear ...................... 8-32
Brake pedal .................................................................... 4-5
Brake pedal, checking and lubricating ......................... 8-43
Brake pedal position, checking .................................... 8-36
Brakes, front and rear .................................................... 5-3
C
Cables, checking and lubricating ................................. 8-43
Carburetor settings, changing ...................................... 8-22
Chassis fasteners........................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-4
Clutch lever free play, adjusting ................................... 8-39
Coolant ................................................................. 5-3
,
8-12
D
Drive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-42Drive chain slack .......................................................... 8-40
E
Engine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-30
Engine, starting a warm ................................................. 6-2
Engine stop switch ......................................................... 4-2
F
Fuel ................................................................................ 4-8
Fuel and 2-stroke engine oil mixing ratio ....................... 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap.................................................................. 4-7
H
Handlebar switches ........................................................ 4-2
Headlight beam, adjusting............................................ 8-48
Headlight bulb, replacing.............................................. 8-45
I
Identification numbers .................................................. 11-1
Instruments, lights and switches .................................... 5-7
K
Key identification number ............................................. 11-1
Kickstarter ...................................................................... 4-7
L
Label locations ............................................................... 2-1
Light switch .................................................................... 4-2

M
Main switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
O
Owner’s manual and tool kit ........................................... 8-1
P
Parking ........................................................................... 6-5
Parking brake ................................................................. 4-5
Parking brake free play, adjusting ................................ 8-37
Parking on a slope ......................................................... 6-6
Part locations ................................................................. 3-1
Pre-operation check list.................................................. 5-1
R
Riding your ATV ............................................................. 7-1
S
Safety information .......................................................... 1-1
Seat .............................................................................. 4-11
Shifting ........................................................................... 6-3
Shift pedal ...................................................................... 4-7
Shift pedal, checking .................................................... 8-43
Shock absorber assemblies, adjusting the front .......... 4-12
Shock absorber assembly, adjusting the rear .............. 4-13
Spark arrester, cleaning ............................................... 8-21
Spark plugs, checking .................................................... 8-8
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-3
Starter (choke) ............................................................. 4-10
Steering shaft, lubricating............................................. 8-45
Storage........................................................................... 9-2Suspension, lubricating the upper and lower arm
pivots.......................................................................... 8-45
Suspension relay arm and connecting arm pivoting
points, lubricating the rear.......................................... 8-44
T
Tail/brake light bulb, replacing ..................................... 8-49
Throttle cable free play, adjusting ................................ 8-32
Throttle lever .......................................................... 4-2
,
5-4
Throttle OverRide System .............................................. 4-3
Tire pressure, measuring ............................................... 5-6
Tires ............................................................................... 5-5
Tire wear limit ................................................................. 5-6
Transmission oil ................................................... 5-3
,
8-10
Troubleshooting ........................................................... 8-51
Troubleshooting charts................................................. 8-52
V
Vehicle identification number ....................................... 11-1
W
Wheel hub bearings, checking ..................................... 8-44
Wheel, installing ........................................................... 8-50
Wheel, removing .......................................................... 8-49
