8-6
1
2
3
4
5
6
78
9
10
11

9
*

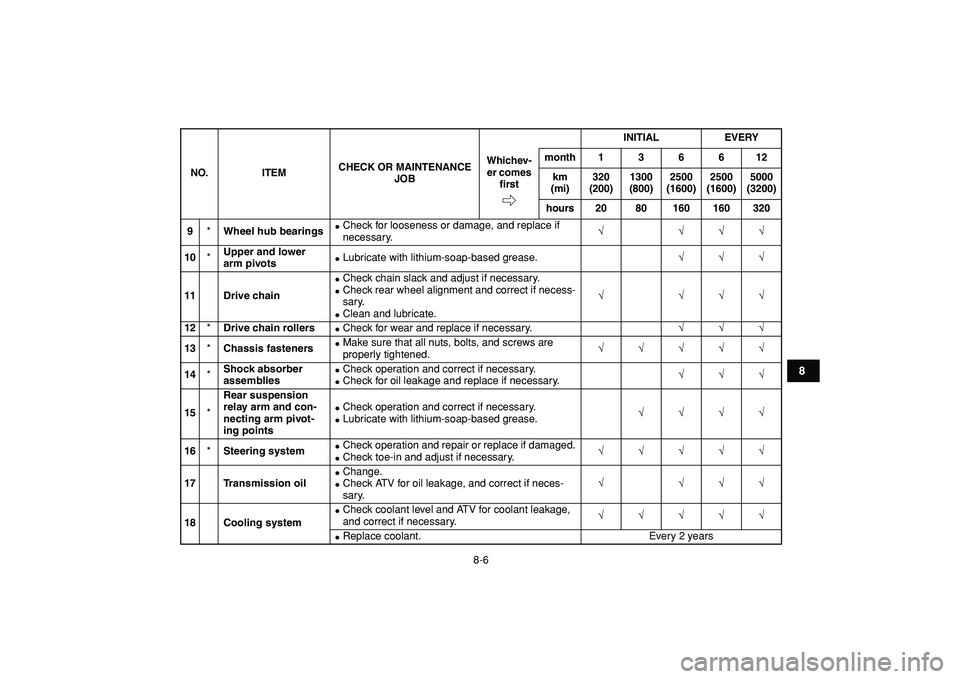

Wheel hub bearings

Check for looseness or damage, and replace if
necessary.
√ √√√
10
*
Upper and lower
arm pivots

Lubricate with lithium-soap-based grease.
√√√
11 Drive chain

Check chain slack and adjust if necessary.

Check rear wheel alignment and correct if necess-
sary.

Clean and lubricate.
√ √√√
12
*
Drive chain rollers


Check for wear and replace if necessary.
√√√
13
*
Chassis fasteners


Make sure that all nuts, bolts, and screws are
properly tightened.
√√√√√
14
*
Shock absorber
assemblies


Check operation and correct if necessary.

Check for oil leakage and replace if necessary.
√√√
15
*
Rear suspension
relay arm and con-
necting arm pivot-
ing points


Check operation and correct if necessary.

Lubricate with lithium-soap-based grease.
√√√√
16
*
Steering system


Check operation and repair or replace if damaged.

Check toe-in and adjust if necessary.
√√√√√
17 Transmission oil

Change.

Check ATV for oil leakage, and correct if neces-
sary.
√ √√√
18 Cooling system

Check coolant level and ATV for coolant leakage,
and correct if necessary.
√√√√√

Replace coolant. Every 2 years
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320

8-7
1
2
3
4
5
6
78
9
10
11

EBU23070

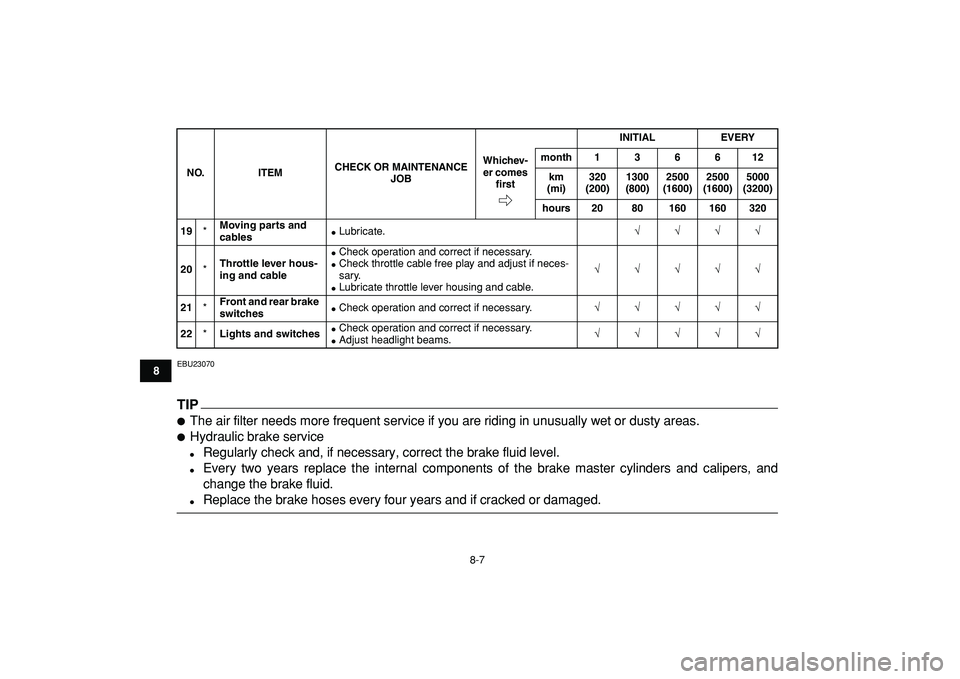

TIP


The air filter needs more frequent service if you are riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, if necessary, correct the brake fluid level.

Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.

Replace the brake hoses every four years and if cracked or damaged.
19
*
Moving parts and
cables

Lubricate.
√√√√
20
*
Throttle lever hous-
ing and cable


Check operation and correct if necessary.

Check throttle cable free play and adjust if neces-
sary.

Lubricate throttle lever housing and cable.
√√√√√
21
*
Front and rear brake
switches


Check operation and correct if necessary.
√√√√√
22
*
Lights and switches


Check operation and correct if necessary.

Adjust headlight beams.
√√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth 1 3 6 6 12
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320

8-8
1
2
3
4
5
6
78
9
10
11

EBU28320

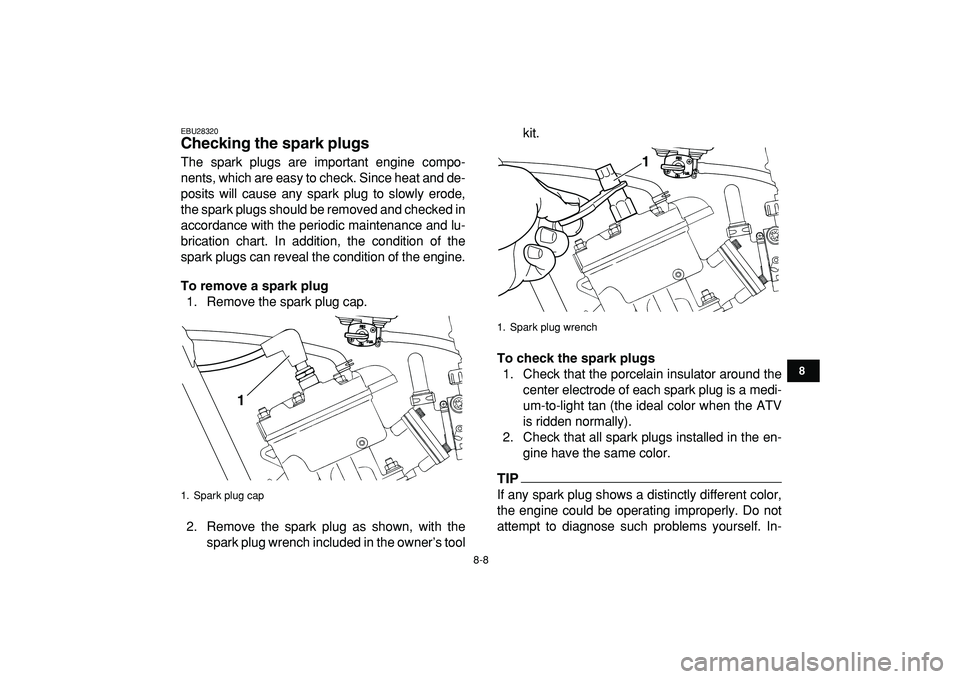

Checking the spark plugs
The spark plugs are important engine compo-
nents, which are easy to check. Since heat and de-
posits will cause any spark plug to slowly erode,
the spark plugs should be removed and checked in
accordance with the periodic maintenance and lu-
brication chart. In addition, the condition of the
spark plugs can reveal the condition of the engine.
To remove a spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s toolkit.
To check the spark plugs
1. Check that the porcelain insulator around the
center electrode of each spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
2. Check that all spark plugs installed in the en-
gine have the same color.TIP

If any spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
1. Spark plug cap
1

1. Spark plug wrench
1

8-9
1
2
3
4
5
6
78
9
10
11

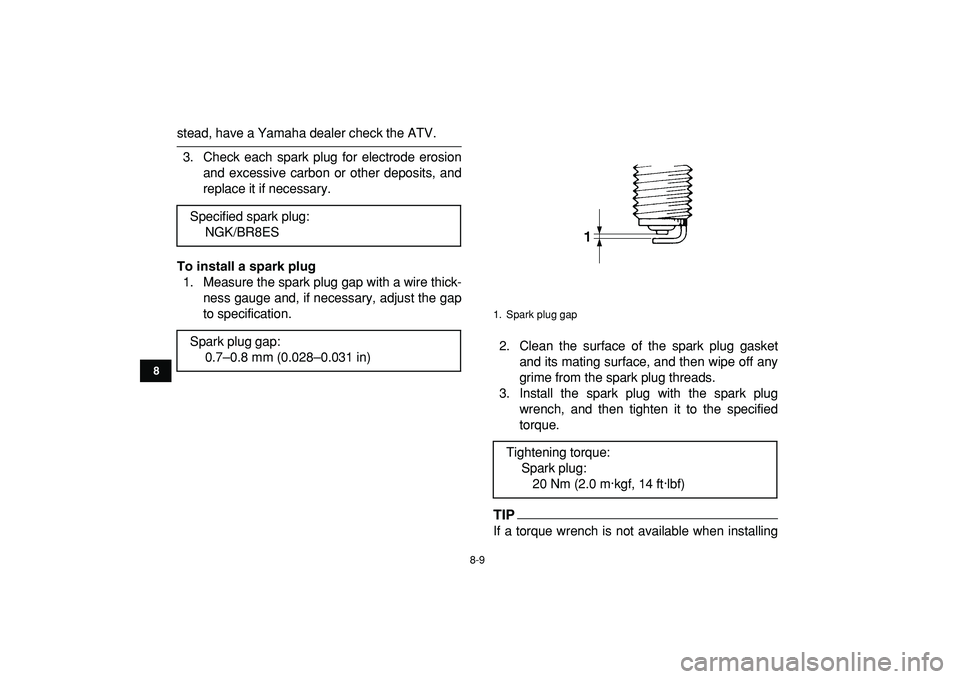

stead, have a Yamaha dealer check the ATV.
3. Check each spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
To install a spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
2. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.TIP

If a torque wrench is not available when installing Specified spark plug:
NGK/BR8ES
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
1. Spark plug gap
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14 ft·lbf)

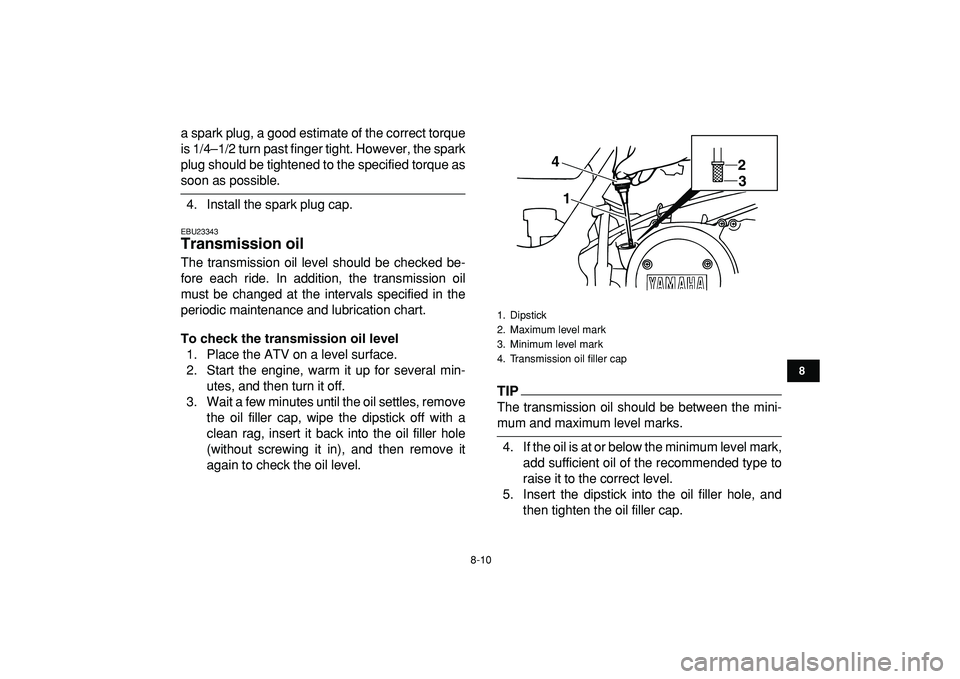

8-10
1
2
3
4
5
6
78
9
10
11

a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque as
soon as possible.
4. Install the spark plug cap.
EBU23343
Transmission oil
The transmission oil level should be checked be-
fore each ride. In addition, the transmission oil
must be changed at the intervals specified in the
periodic maintenance and lubrication chart.
To check the transmission oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles, remove
the oil filler cap, wipe the dipstick off with a
clean rag, insert it back into the oil filler hole
(without screwing it in), and then remove it
again to check the oil level.
TIP

The transmission oil should be between the mini-
mum and maximum level marks.
4. If the oil is at or below the minimum level mark,
add sufficient oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
1. Dipstick
2. Maximum level mark
3. Minimum level mark
4. Transmission oil filler cap
12
34

8-11
1
2
3
4
5
6
78
9
10
11

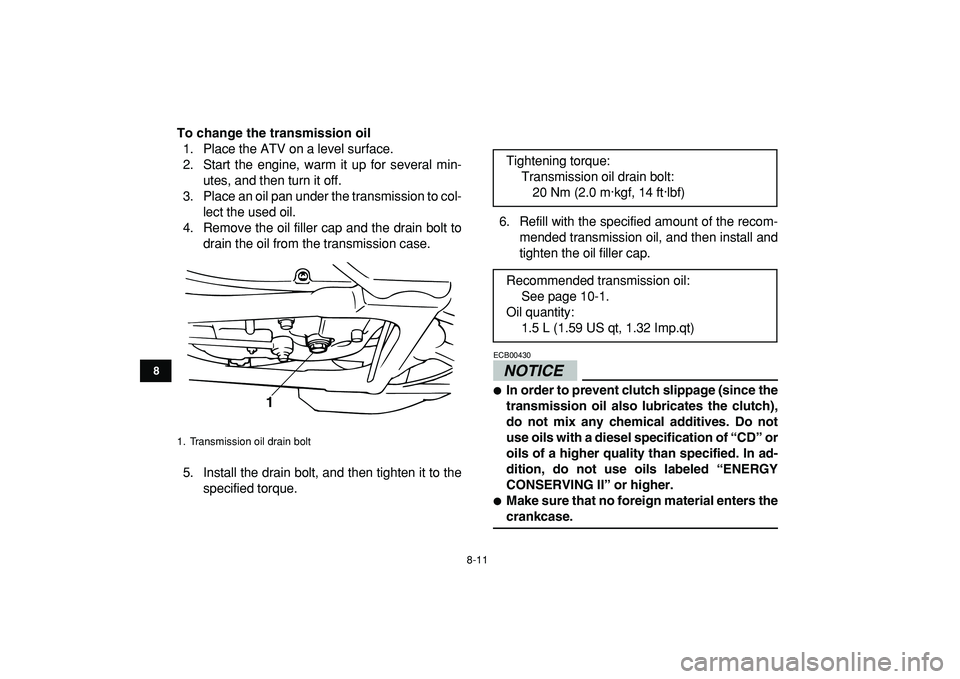

To change the transmission oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the transmission to col-
lect the used oil.
4. Remove the oil filler cap and the drain bolt to
drain the oil from the transmission case.
5. Install the drain bolt, and then tighten it to the
specified torque.6. Refill with the specified amount of the recom-
mended transmission oil, and then install and
tighten the oil filler cap.NOTICE

ECB00430

In order to prevent clutch slippage (since the
transmission oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD” or
oils of a higher quality than specified. In ad-
dition, do not use oils labeled “ENERGY
CONSERVING II” or higher.

Make sure that no foreign material enters the
crankcase.
1. Transmission oil drain bolt
1

Tightening torque:
Transmission oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended transmission oil:
See page 10-1.
Oil quantity:
1.5 L (1.59 US qt, 1.32 Imp.qt)

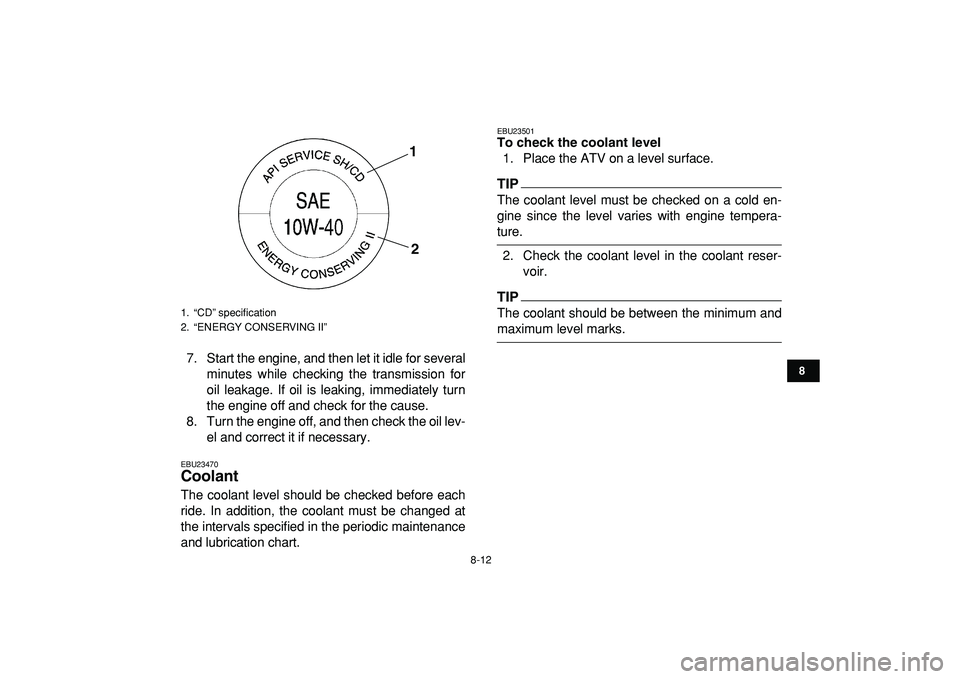

8-12
1
2
3
4
5
6
78
9
10
11

7. Start the engine, and then let it idle for several
minutes while checking the transmission for
oil leakage. If oil is leaking, immediately turn
the engine off and check for the cause.
8. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
EBU23470
Coolant
The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
EBU23501
To check the coolant level
1. Place the ATV on a level surface.
TIP

The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.
2. Check the coolant level in the coolant reser-
voir.
TIP

The coolant should be between the minimum and
maximum level marks.
1. “CD” specification
2. “ENERGY CONSERVING II”
1
2

8-13
1
2
3
4
5
6
78
9
10
11

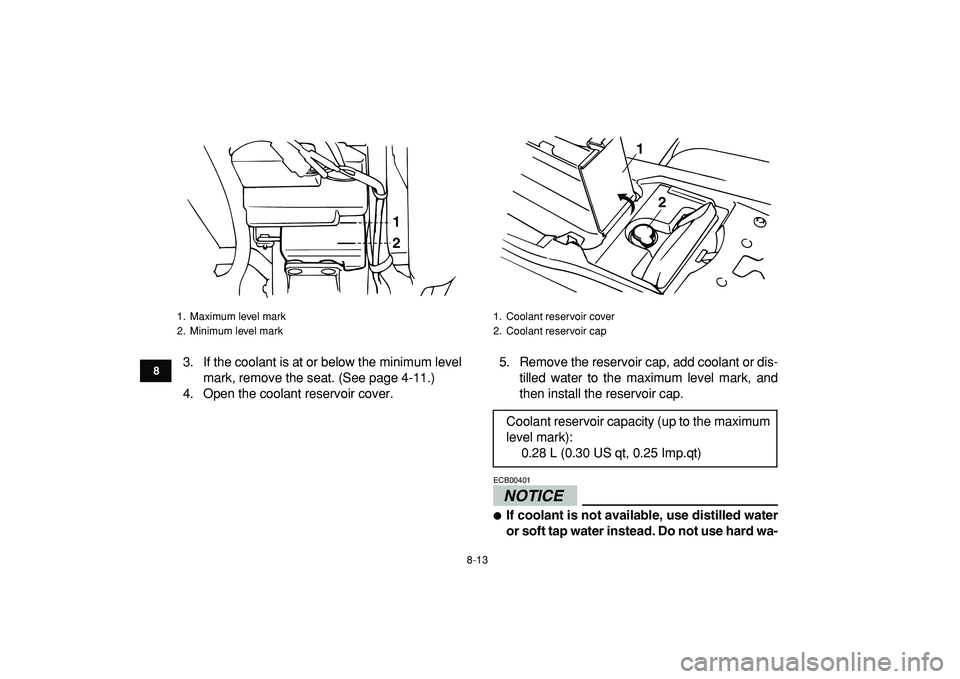

3. If the coolant is at or below the minimum level
mark, remove the seat. (See page 4-11.)
4. Open the coolant reservoir cover.5. Remove the reservoir cap, add coolant or dis-
tilled water to the maximum level mark, and
then install the reservoir cap.NOTICE
ECB00401

If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
1. Maximum level mark
2. Minimum level mark
1
2

1. Coolant reservoir cover
2. Coolant reservoir cap
Coolant reservoir capacity (up to the maximum
level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
1
2

8-14
1
2
3
4
5
6
78
9
10
11

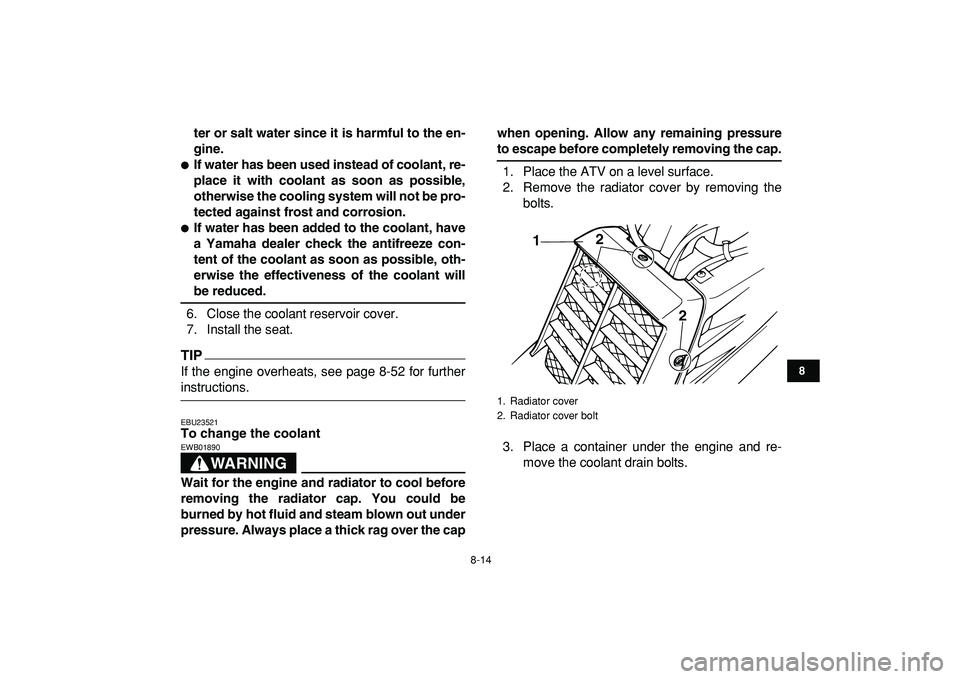

ter or salt water since it is harmful to the en-
gine.

If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant will
be reduced.
6. Close the coolant reservoir cover.
7. Install the seat.
TIP

If the engine overheats, see page 8-52 for further
instructions.
EBU23521
To change the coolant
WARNING

EWB01890
Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the capwhen opening. Allow any remaining pressure
to escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove the radiator cover by removing the
bolts.
3. Place a container under the engine and re-
move the coolant drain bolts.
1. Radiator cover
2. Radiator cover bolt
12
2

8-15
1
2
3
4
5
6
78
9
10
11

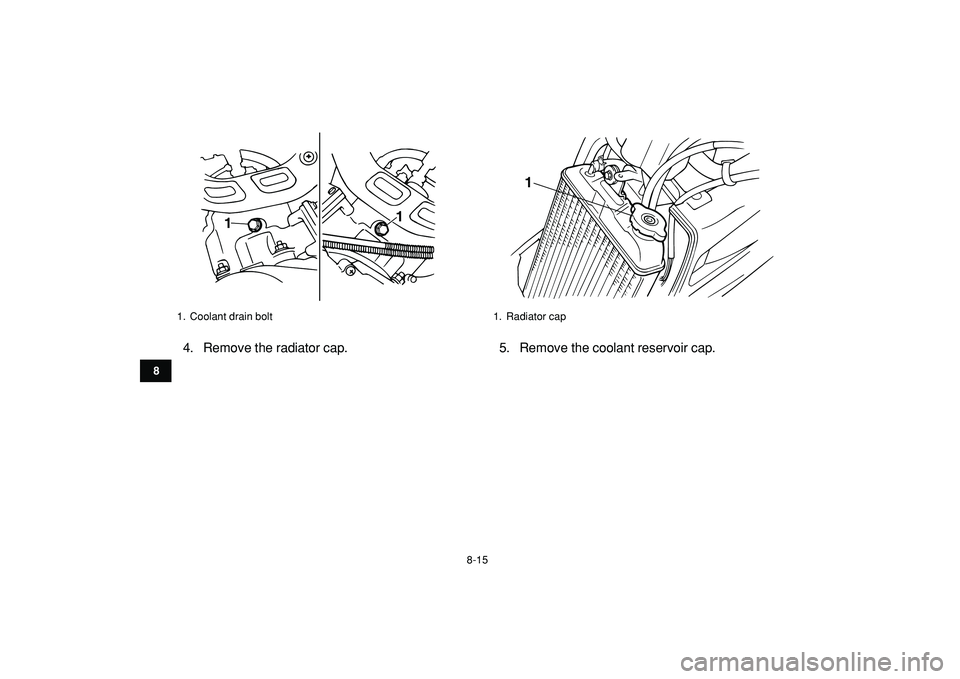

4. Remove the radiator cap. 5. Remove the coolant reservoir cap.
1. Coolant drain bolt
11

1. Radiator cap1
