1-1
1
2
3
4
5
6
7
8
9
10
11

EBU29680

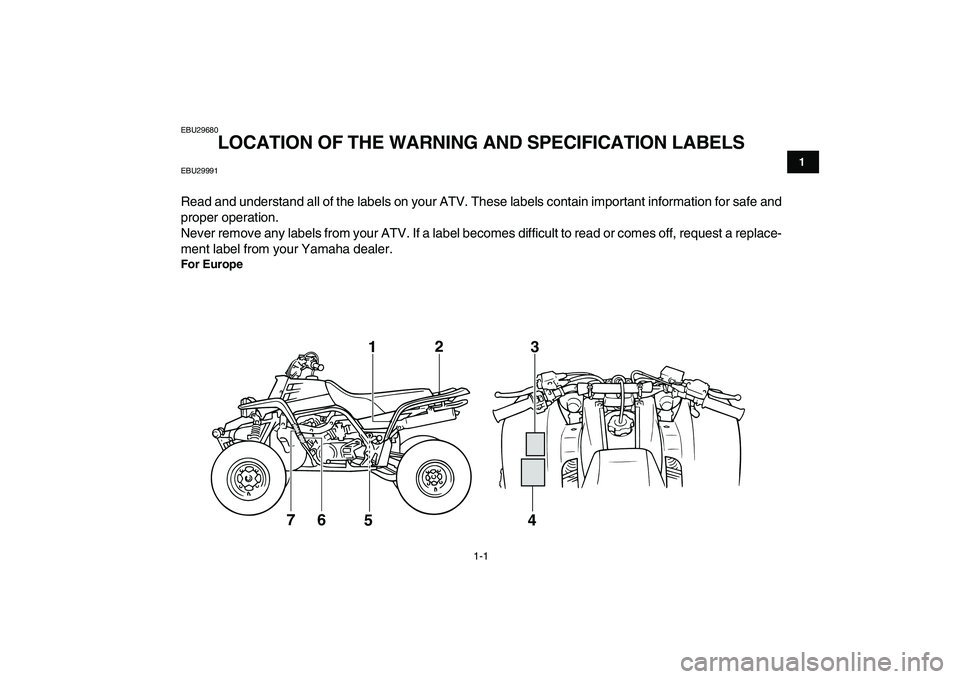

LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU29991
Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
For Europe
12
53
4
6 7

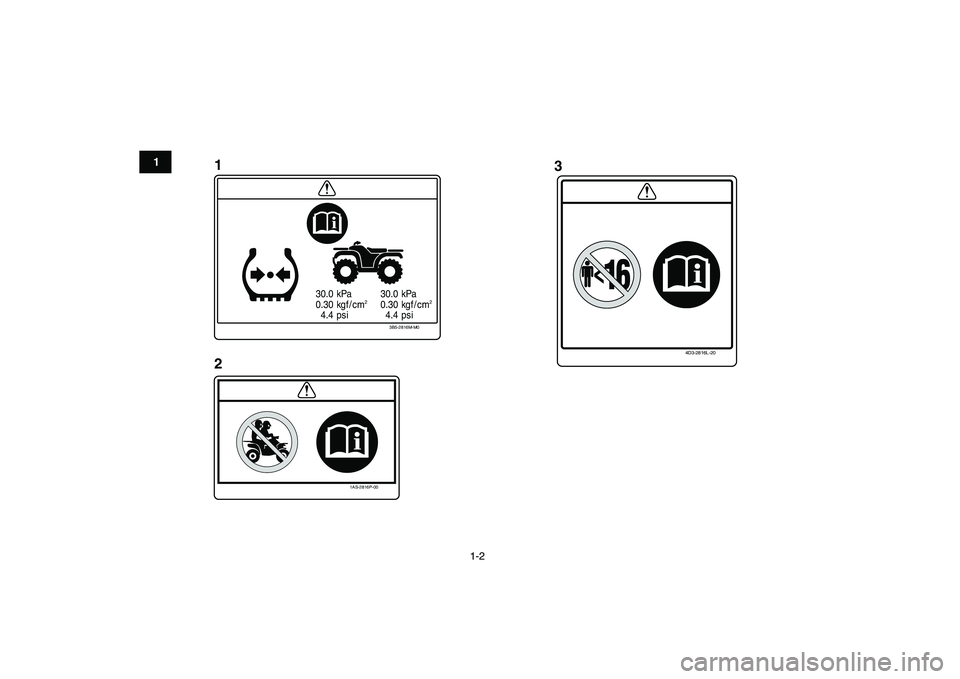

1-2
1
2
3
4
5
6
7
8
9
10
11
4D3-2816L-20
3 1
3B5-2816M-M0
kPa
kgf / cm
2
psi 30.0
0.30
4.4kPa
kgf / cm
2
psi 30.0
0.30
4.4
2
1AS-2816P-00

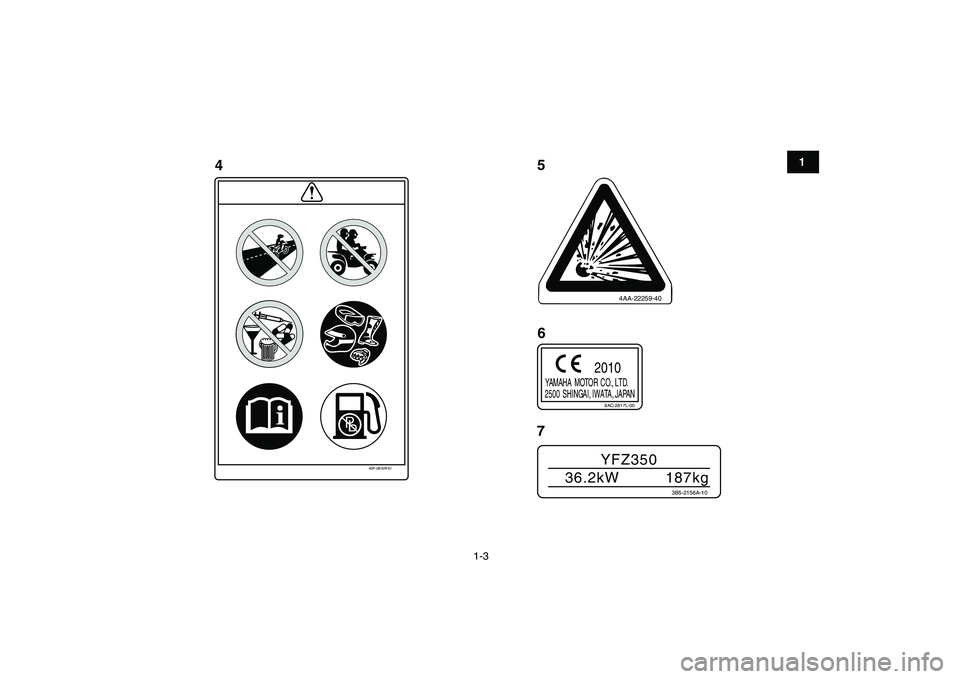

1-3
1
2
3
4
5
6
7
8
9
10
11
4
4AA-22259-40
43P-2816R-01
5
6
8AC-2817L-00
YAMAHA MOTOR CO., LT D.
2500 SHINGAI, IWATA, JAPAN
2010
7
YFZ350
36.2kW 187kg
3B5-2156A-10

1-4
1
2
3
4
5
6
7
8
9
10
11

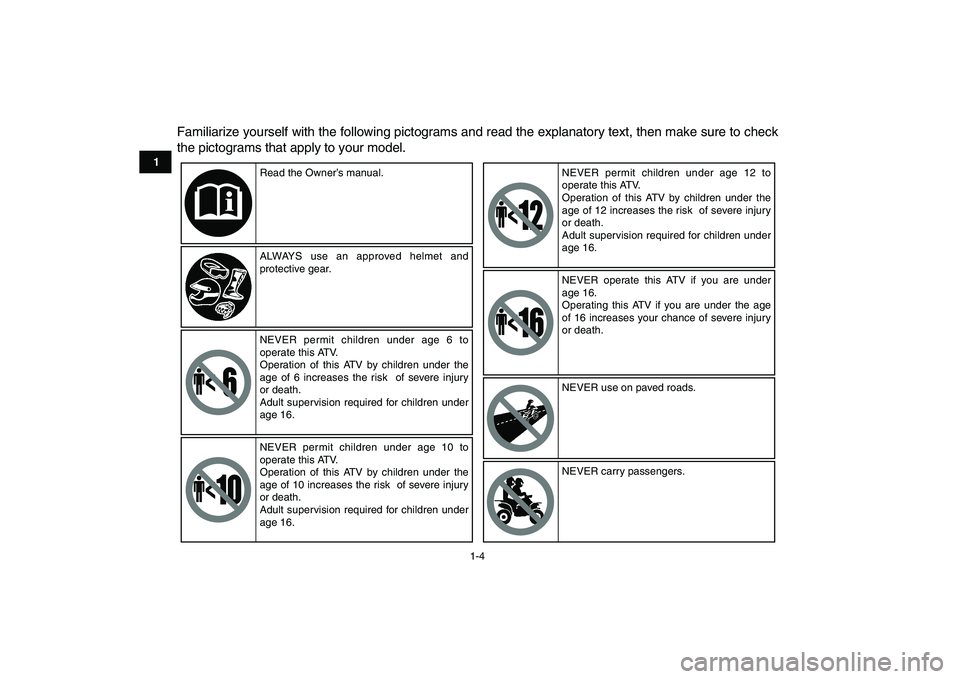

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
NEVER permit children under age 6 to
operate this ATV.
Operation of this ATV by children under the
age of 6 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER permit children under age 10 to
operate this ATV.
Operation of this ATV by children under the
age of 10 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.NEVER permit children under age 12 to
operate this ATV.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER operate this ATV if you are under
age 16.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER use on paved roads.
NEVER carry passengers.

1-5
1
2
3
4
5
6
7
8
9
10
11
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi

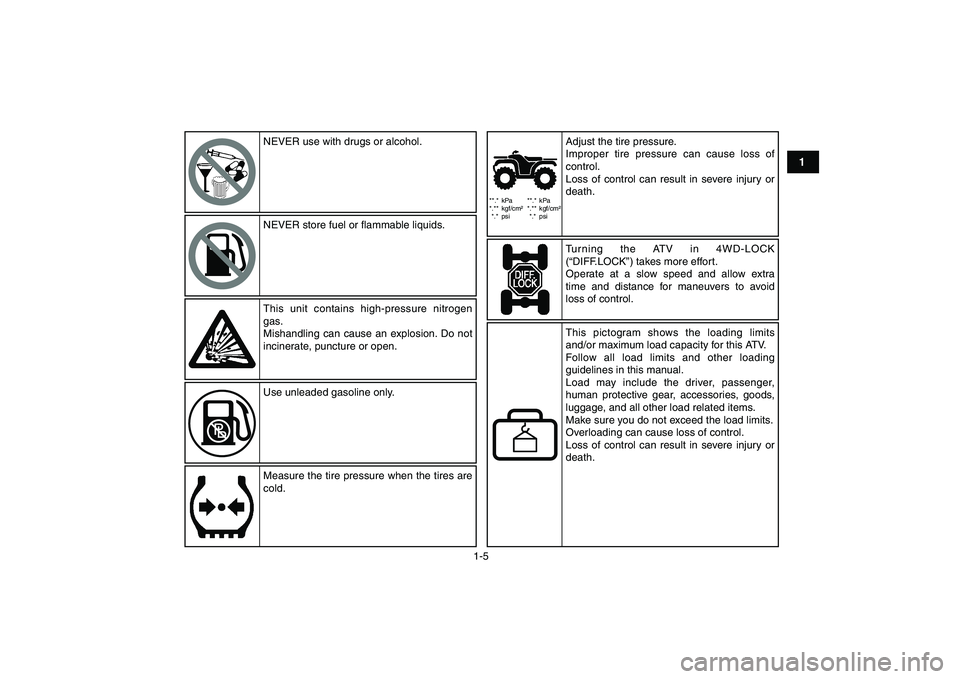

NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold.Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.

1-6
1
2
3
4
5
6
7
8
9
10
11
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN

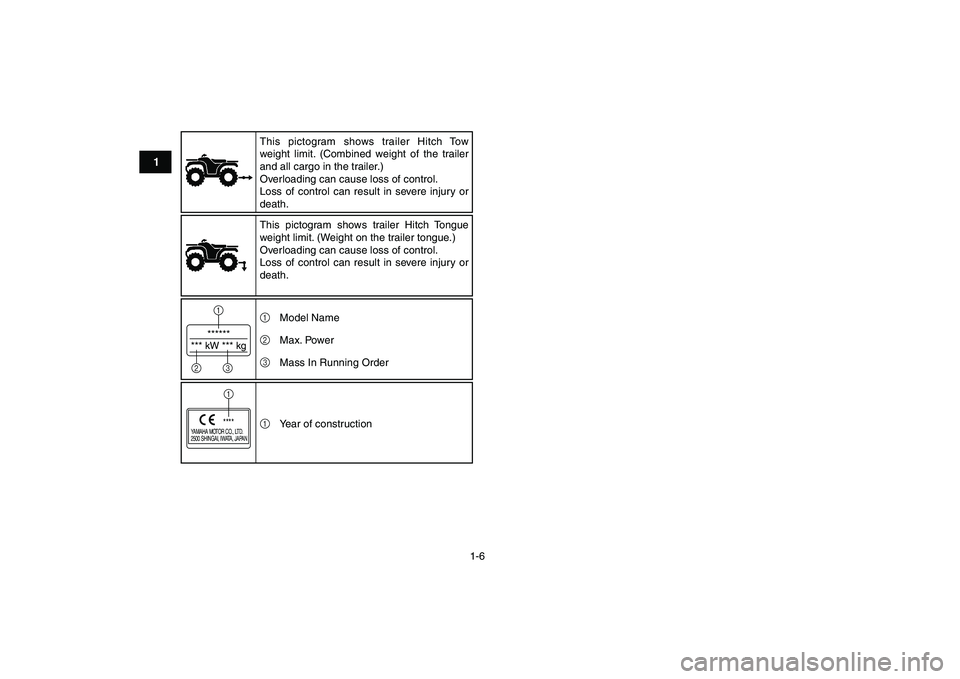

****1This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
1
2
3Model Name
Max. Power
Mass In Running Order
1
Year of construction

1-7
1
2
3
4
5
6
7
8
9
10
11

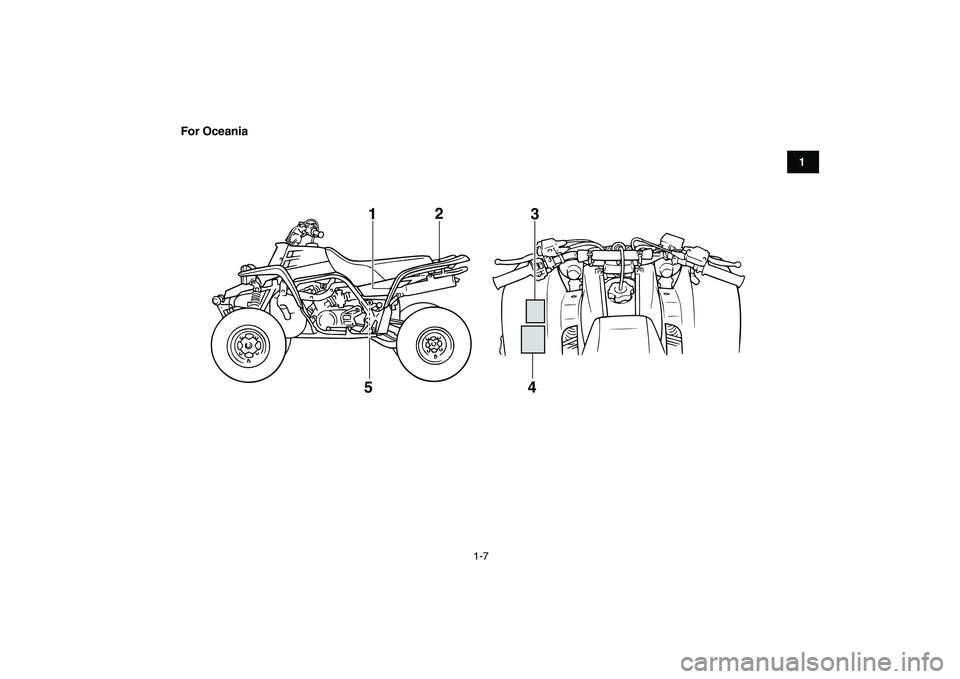

For Oceania
12
53
4

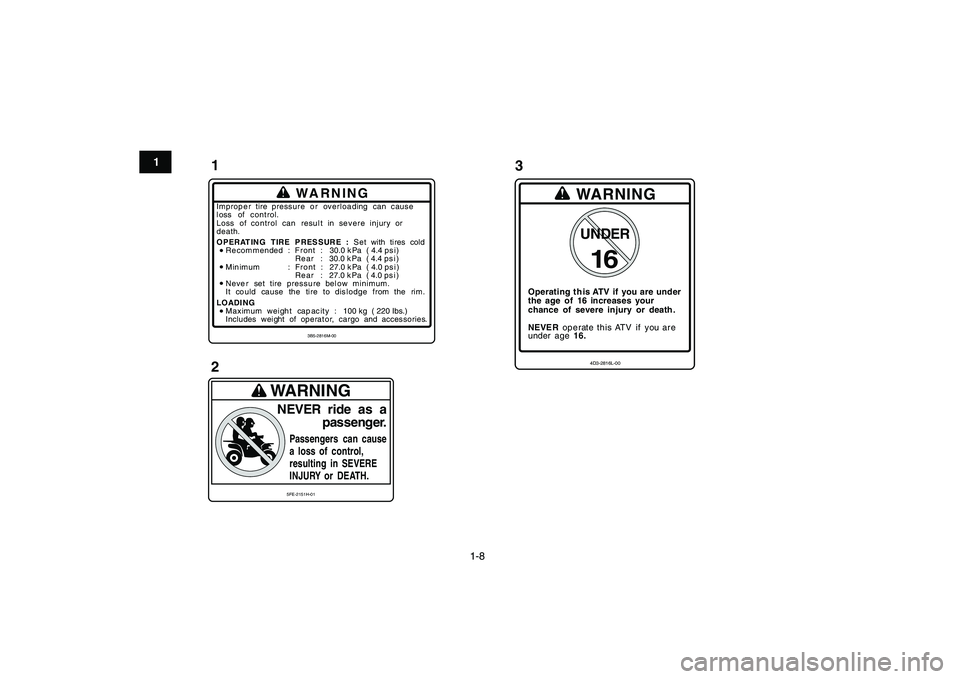

1-8
1
2
3
4
5
6
7
8
9
10
11
1
2
WA RN ING
Imprope r tire pressure o r over loa ding can cause
loss of cont rol.
Loss of control can result in severe injury or
death.
OPERATING TIRE PRESSURE : Set with tires cold
LO ADI NGRe com m ended : F r o nt : 30.0 k Pa ( 4.4 ps i )
Re ar : 30.0 k Pa ( 4.4 ps i )
Min imum : F r o nt : 27.0 k Pa ( 4.0 ps i )
Re ar : 27.0 k Pa ( 4.0 ps i )
Neve r set tire pressure below minimum.
It could cause the tire to dislodge from the rim.
Ma ximu m weigh t cap ac it y : 100 kg ( 220 Ibs.)
Inclu des weight of operat or, cargo and accessories.
3B5-2816M-00
WARNINGNEVER ride as a
passenger.Passengers can cause
a loss of control,
resulting in SEVERE
INJURY or DEATH.5FE-2151H-01
3
Operating t his ATV if you are under
the age of 16 increases your
chance of severe injury or death.
WARNING
NEVE R operate this ATV if you are
under age 16.
UNDER16 4D3-2816L-00

1-9
1
2
3
4
5
6
7
8
9
10
11

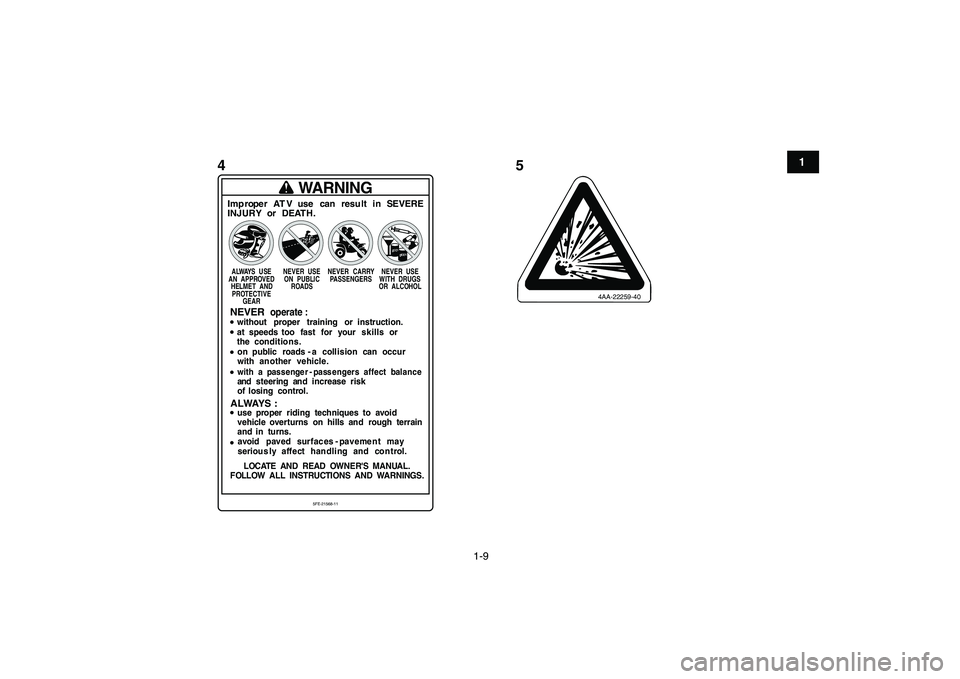

45
WARNING
Imp roper AT V use can resu lt in SEVERE
INJUR Y or DEAT H. ALWAYS USE
AN APPROVED
HELMET AND
PROTECTIVE
GEARNEVER USE
ON PUBLIC
ROADSNEVER CARRY
PASSENGERSNEVER USE
WITH DRUGS
OR ALCOHOLNEVER
operate :

ALWAYS :
LOCATE AND READ OWNER'S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.without proper training or instruction.
on public roads - a coll ision can occur
with an other vehicle.with a passenger - passengers affect balanceand steering and increase risk
of losing control.
use proper riding techniques to avoid
vehicle overturns on hills and rough terrain
and in turns.
avoid pav ed sur fac es - pave me n t may
seriou s ly affect handling and co n trol. at speeds too fast for your skills or
the conditions.
5FE-21568-11
4AA-22259-40

2-1
12
3
4
5
6
7
8
9
10
11

EBU17431

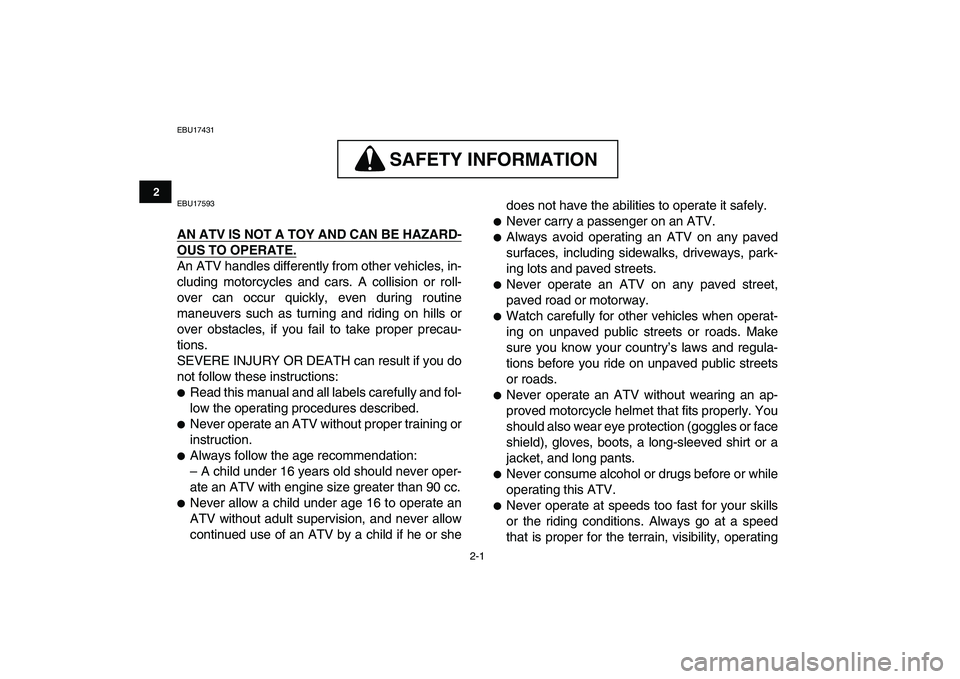

SAFETY INFORMATION

SAFETY INFORMATION
EBU17593
AN ATV IS NOT A TOY AND CAN BE HAZARD-
OUS TO OPERATE.

An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:

Read this manual and all labels carefully and fol-
low the operating procedures described.

Never operate an ATV without proper training or
instruction.

Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.

Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or shedoes not have the abilities to operate it safely.

Never carry a passenger on an ATV.

Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.

Never operate an ATV on any paved street,
paved road or motorway.

Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.

Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.

Never consume alcohol or drugs before or while
operating this ATV.

Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
