YAMAHA BANSHEE 350 2011 Owners Manual

10-3
1
2
3
4
5
6
7
8
910
11

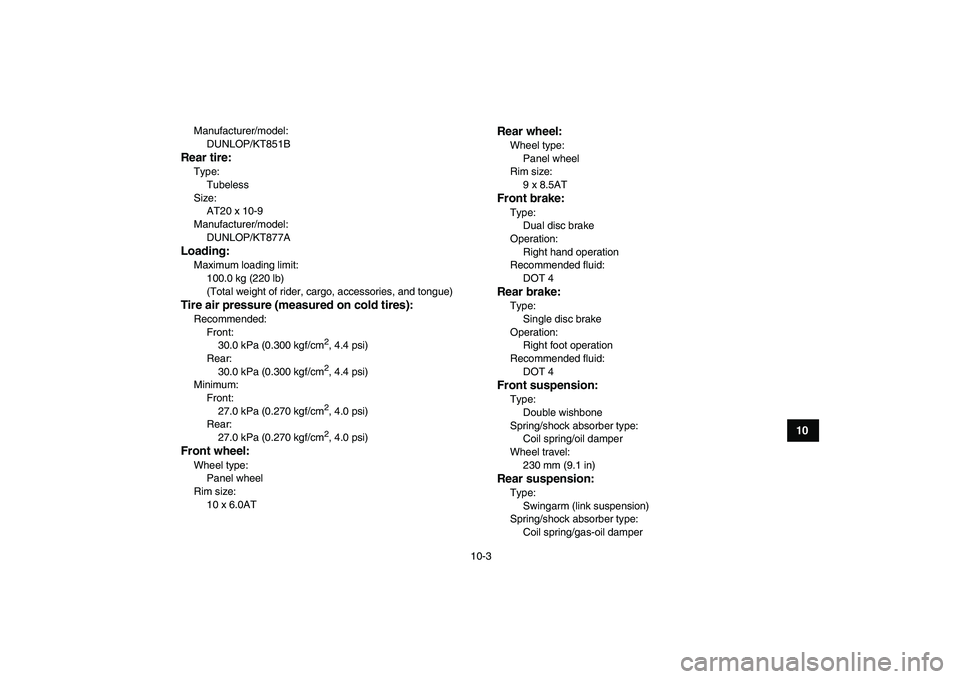

Manufacturer/model:
DUNLOP/KT851B
Rear tire:
Type:
Tubeless
Size:
AT20 x 10-9
Manufacturer/model:
DUNLOP/KT877A
Loading:
Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):
Recommended:
Front:
30.0 kPa (0.300 kgf/cm
2

, 4.4 psi)
Rear:
30.0 kPa (0.300 kgf/cm
2

, 4.4 psi)
Minimum:
Front:
27.0 kPa (0.270 kgf/cm
2

, 4.0 psi)
Rear:
27.0 kPa (0.270 kgf/cm
2

, 4.0 psi)
Front wheel:
Wheel type:
Panel wheel
Rim size:
10 x 6.0AT
Rear wheel:
Wheel type:
Panel wheel
Rim size:
9 x 8.5AT
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
230 mm (9.1 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper

10-4
1
2
3
4
5
6
7
8
910
11

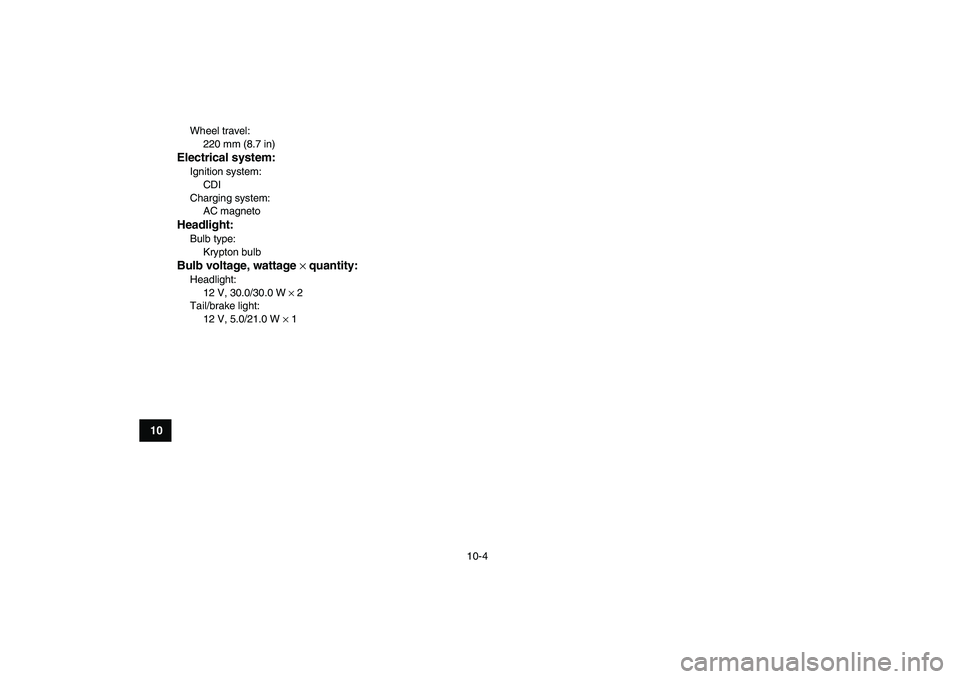

Wheel travel:
220 mm (8.7 in)
Electrical system:
Ignition system:
CDI
Charging system:
AC magneto
Headlight:
Bulb type:
Krypton bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 30.0/30.0 W
×
2
Tail/brake light:
12 V, 5.0/21.0 W
×
1

11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000

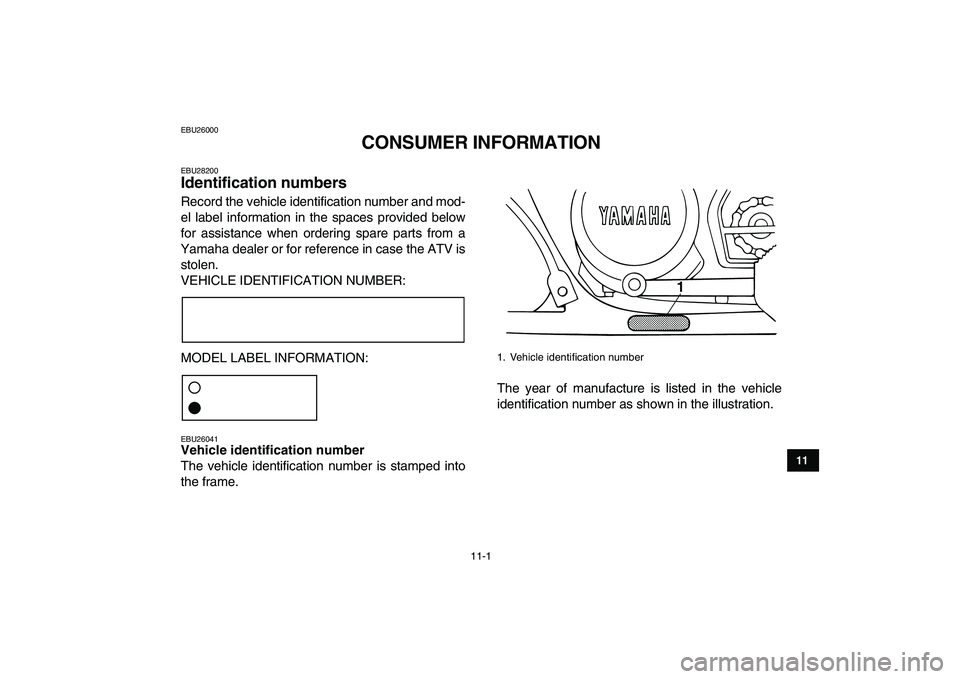

CONSUMER INFORMATION
EBU28200
Identification numbers
Record the vehicle identification number and mod-
el label information in the spaces provided below
for assistance when ordering spare parts from a
Yamaha dealer or for reference in case the ATV is
stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26041
Vehicle identification number
The vehicle identification number is stamped into
the frame.The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
1. Vehicle identification number
1

11-2
1
2
3
4
5
6
7
8
9
1011

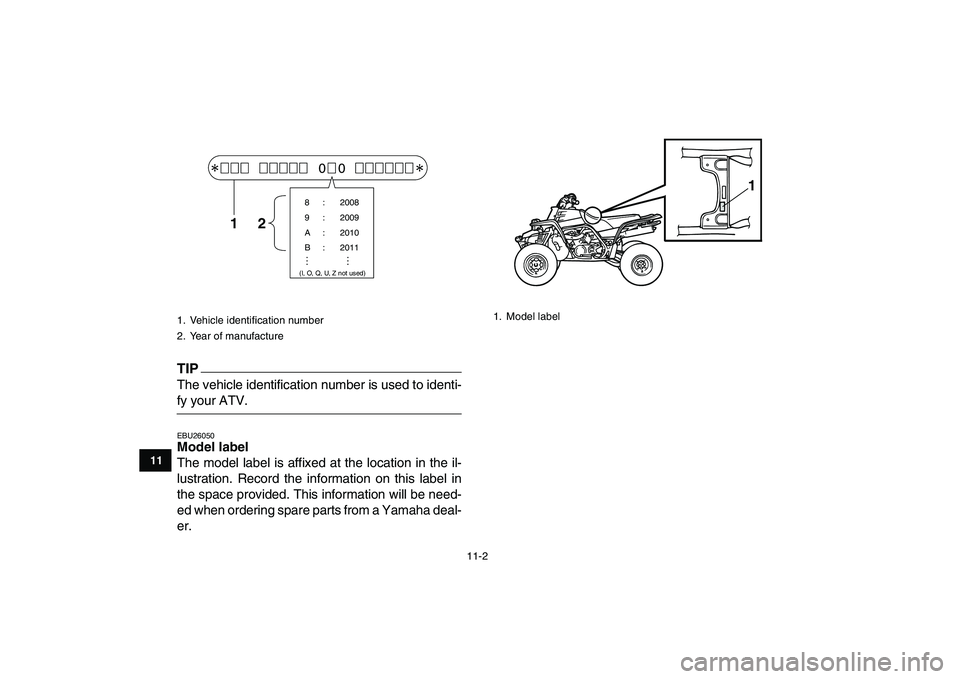

TIP

The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12

1. Model label
1

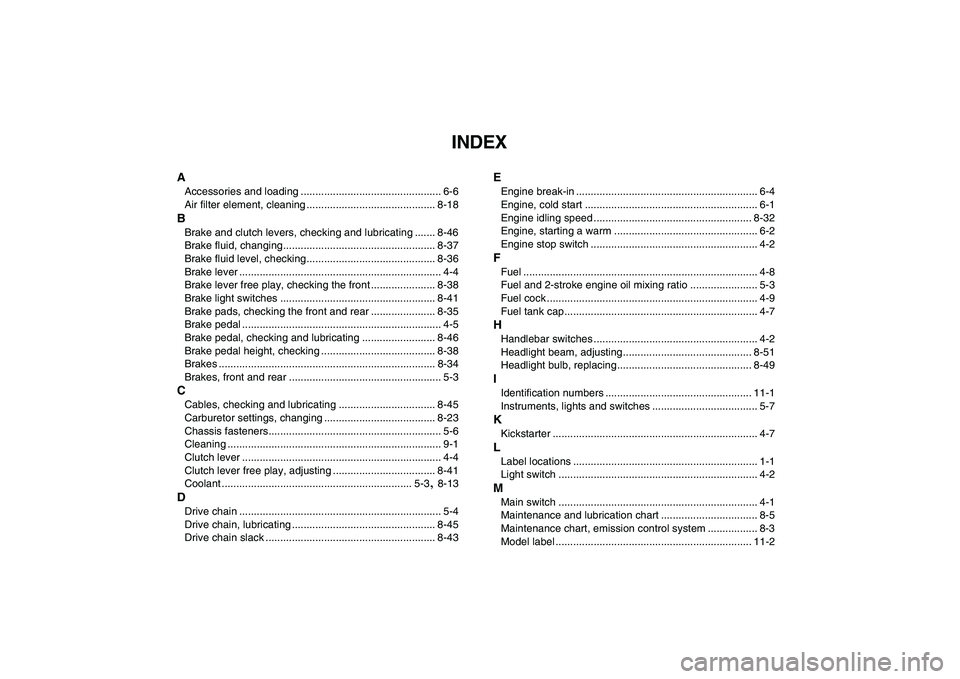

INDEX
A
Accessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-18
B
Brake and clutch levers, checking and lubricating ....... 8-46
Brake fluid, changing.................................................... 8-37
Brake fluid level, checking............................................ 8-36
Brake lever ..................................................................... 4-4
Brake lever free play, checking the front ...................... 8-38
Brake light switches ..................................................... 8-41
Brake pads, checking the front and rear ...................... 8-35
Brake pedal .................................................................... 4-5
Brake pedal, checking and lubricating ......................... 8-46
Brake pedal height, checking ....................................... 8-38
Brakes .......................................................................... 8-34
Brakes, front and rear .................................................... 5-3
C
Cables, checking and lubricating ................................. 8-45
Carburetor settings, changing ...................................... 8-23
Chassis fasteners........................................................... 5-6
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-4
Clutch lever free play, adjusting ................................... 8-41
Coolant ................................................................. 5-3
,
8-13
D
Drive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-45
Drive chain slack .......................................................... 8-43
E
Engine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-32
Engine, starting a warm ................................................. 6-2
Engine stop switch ......................................................... 4-2
F
Fuel ................................................................................ 4-8
Fuel and 2-stroke engine oil mixing ratio ....................... 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap.................................................................. 4-7
H
Handlebar switches ........................................................ 4-2
Headlight beam, adjusting............................................ 8-51
Headlight bulb, replacing.............................................. 8-49
I
Identification numbers .................................................. 11-1
Instruments, lights and switches .................................... 5-7
K
Kickstarter ...................................................................... 4-7
L
Label locations ............................................................... 1-1
Light switch .................................................................... 4-2
M
Main switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2

O
Owner’s manual and tool kit ........................................... 8-1

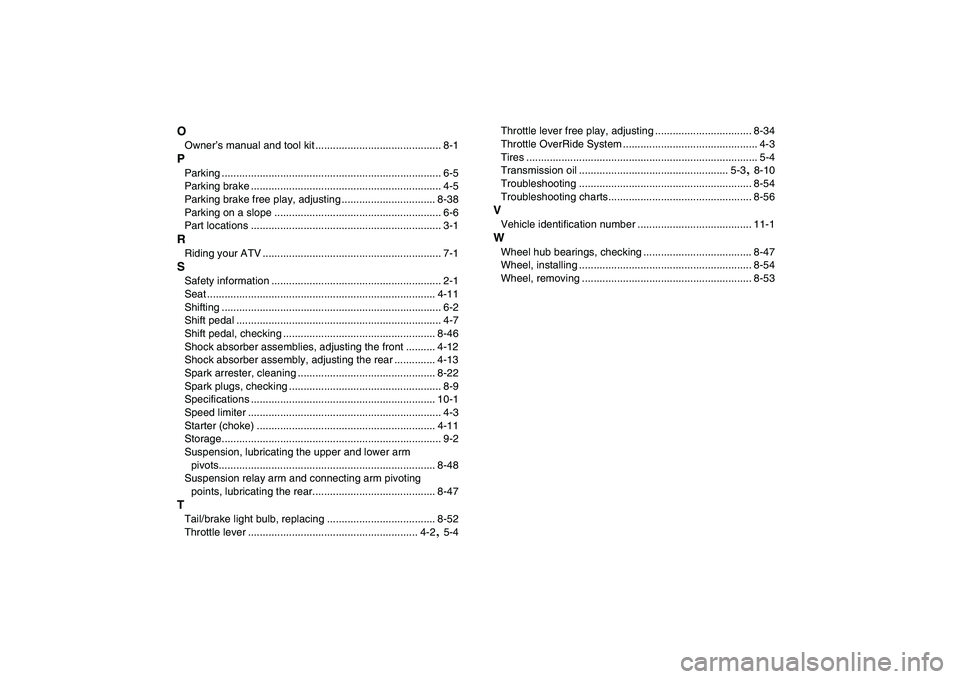

P
Parking ........................................................................... 6-5
Parking brake ................................................................. 4-5
Parking brake free play, adjusting ................................ 8-38
Parking on a slope ......................................................... 6-6
Part locations ................................................................. 3-1
R
Riding your ATV ............................................................. 7-1
S
Safety information .......................................................... 2-1
Seat .............................................................................. 4-11
Shifting ........................................................................... 6-2
Shift pedal ...................................................................... 4-7
Shift pedal, checking .................................................... 8-46
Shock absorber assemblies, adjusting the front .......... 4-12
Shock absorber assembly, adjusting the rear .............. 4-13
Spark arrester, cleaning ............................................... 8-22
Spark plugs, checking .................................................... 8-9
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-3
Starter (choke) ............................................................. 4-11
Storage........................................................................... 9-2
Suspension, lubricating the upper and lower arm
pivots.......................................................................... 8-48
Suspension relay arm and connecting arm pivoting
points, lubricating the rear.......................................... 8-47
T
Tail/brake light bulb, replacing ..................................... 8-52
Throttle lever .......................................................... 4-2
,
5-4Throttle lever free play, adjusting ................................. 8-34
Throttle OverRide System .............................................. 4-3
Tires ............................................................................... 5-4
Transmission oil ................................................... 5-3
,
8-10
Troubleshooting ........................................................... 8-54
Troubleshooting charts................................................. 8-56
V
Vehicle identification number ....................................... 11-1
W
Wheel hub bearings, checking ..................................... 8-47
Wheel, installing ........................................................... 8-54
Wheel, removing .......................................................... 8-53

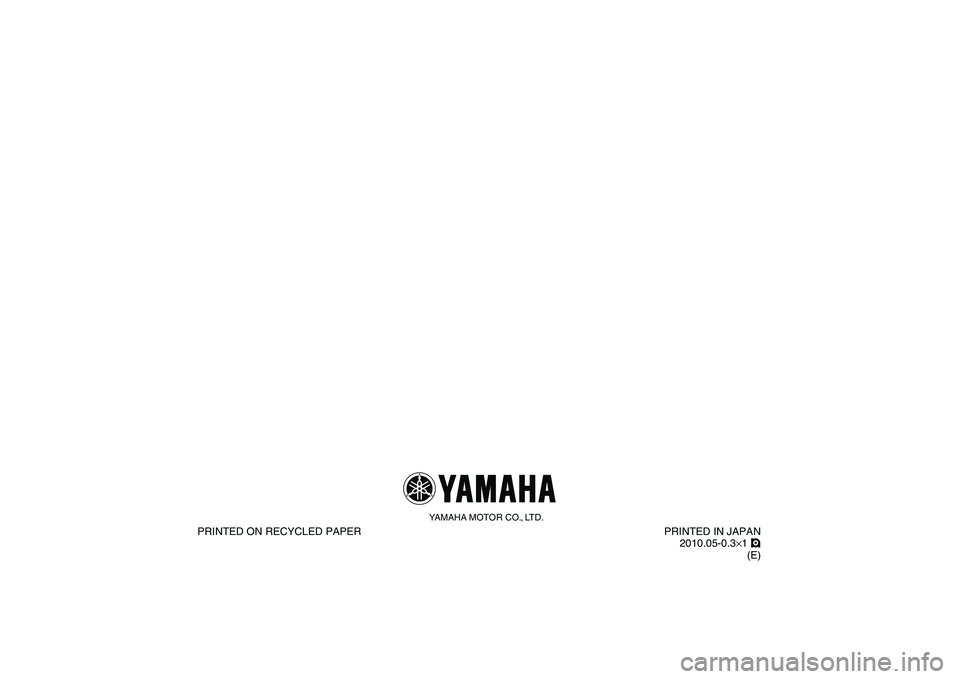

YAMAHA MOTOR CO., LTD.

PRINTED ON RECYCLED PAPER PRINTED IN JAPAN
2010.05-0.3
×
1
!
(E)
