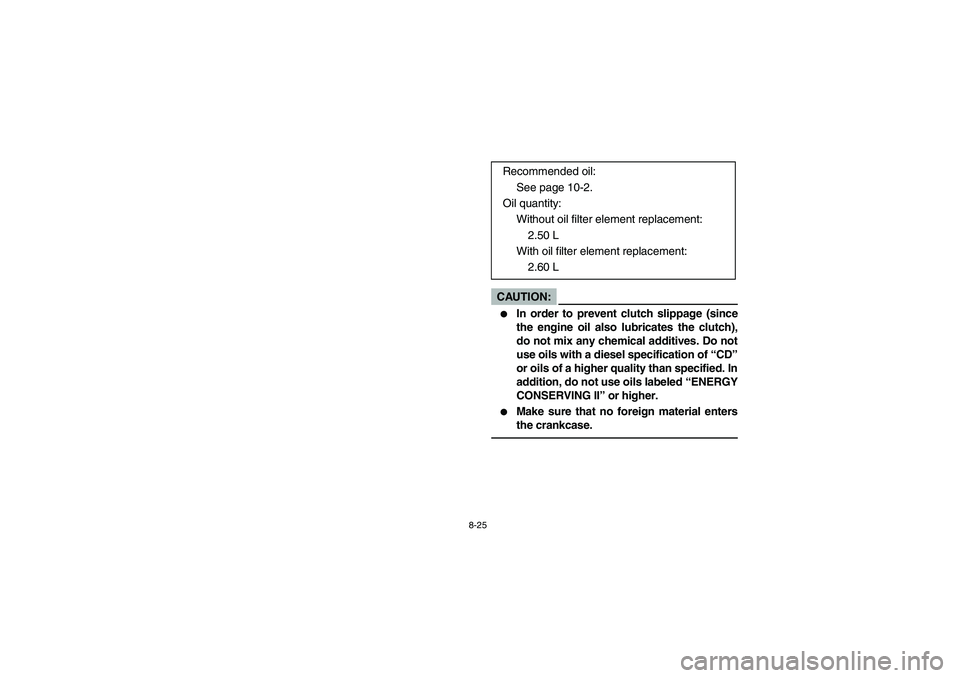

8-25
CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD”
or oils of a higher quality than specified. In
addition, do not use oils labeled “ENERGY
CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_Recommended oil:
See page 10-2.
Oil quantity:
Without oil filter element replacement:
2.50 L
With oil filter element replacement:
2.60 L
U5YT62.book Page 25 Wednesday, March 30, 2005 1:29 PM

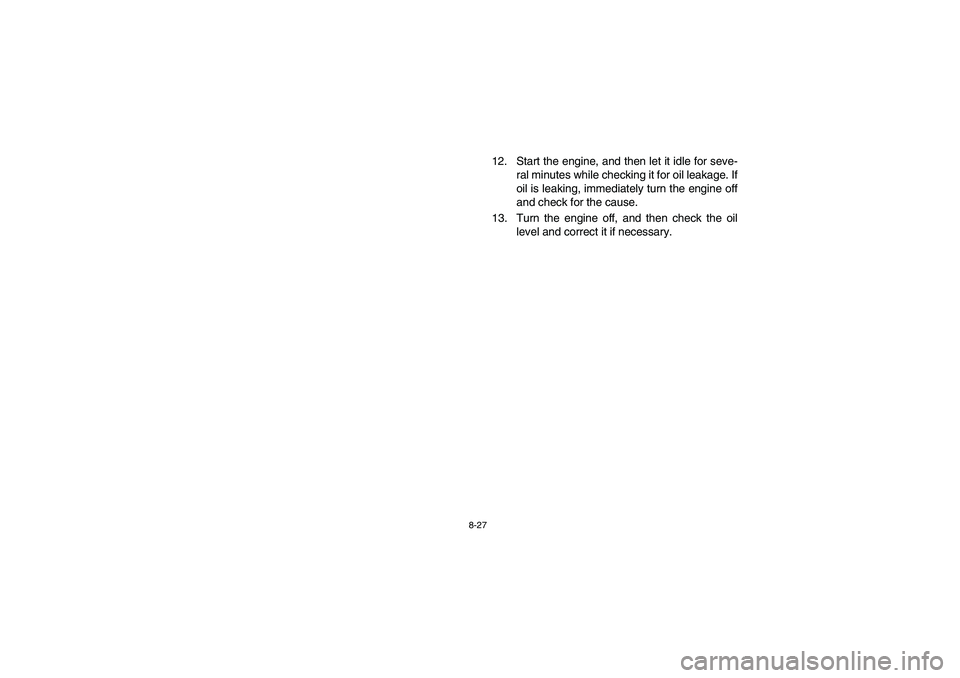

8-27
12. Start the engine, and then let it idle for seve-
ral minutes while checking it for oil leakage. If
oil is leaking, immediately turn the engine off
and check for the cause.
13. Turn the engine off, and then check the oil
level and correct it if necessary.
U5YT62.book Page 27 Wednesday, March 30, 2005 1:29 PM

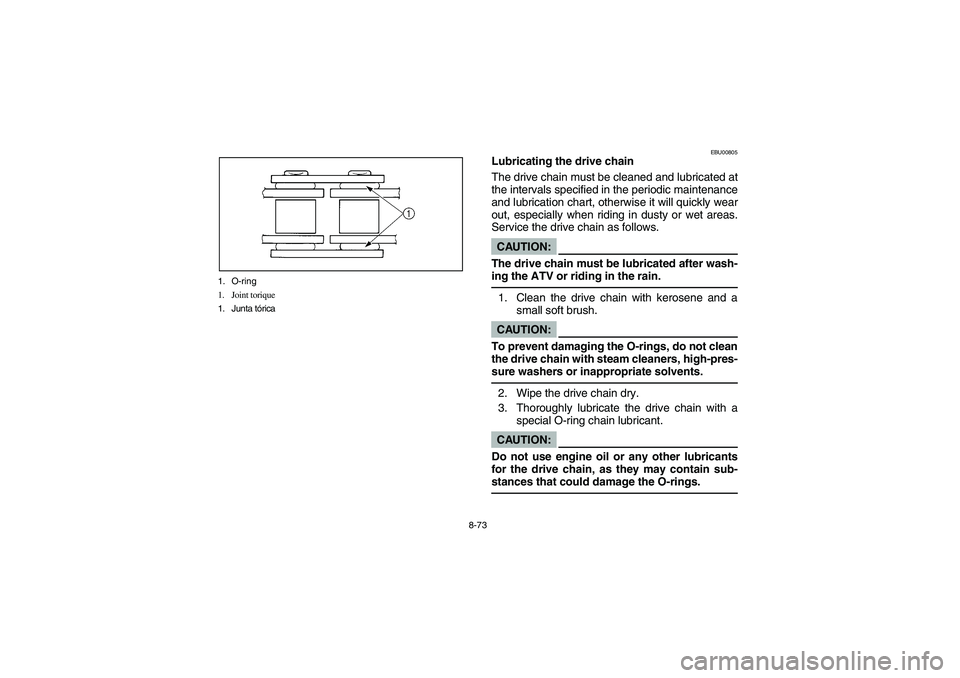

8-73 1. O-ring
1. Joint torique
1. Junta tórica
EBU00805
Lubricating the drive chain
The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.CAUTION:_ The drive chain must be lubricated after wash-
ing the ATV or riding in the rain. _1. Clean the drive chain with kerosene and a
small soft brush.CAUTION:_ To prevent damaging the O-rings, do not clean
the drive chain with steam cleaners, high-pres-
sure washers or inappropriate solvents. _2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant.CAUTION:_ Do not use engine oil or any other lubricants
for the drive chain, as they may contain sub-
stances that could damage the O-rings. _
U5YT62.book Page 73 Wednesday, March 30, 2005 1:29 PM

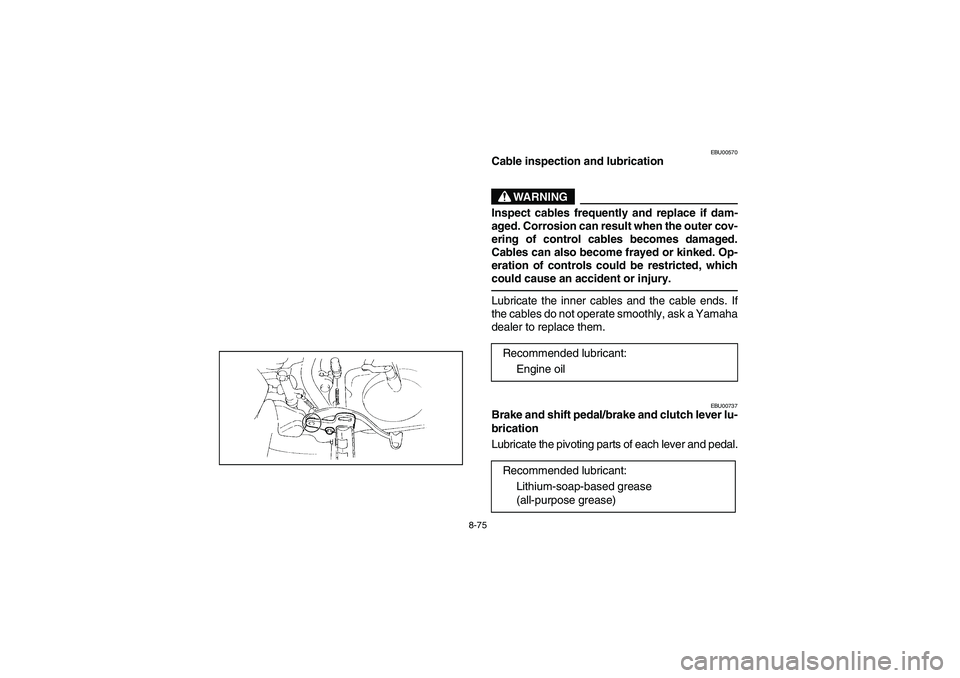

8-75
EBU00570
Cable inspection and lubrication
WARNING
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the outer cov-
ering of control cables becomes damaged.
Cables can also become frayed or kinked. Op-
eration of controls could be restricted, which
could cause an accident or injury.Lubricate the inner cables and the cable ends. If
the cables do not operate smoothly, ask a Yamaha
dealer to replace them.
EBU00737
Brake and shift pedal/brake and clutch lever lu-
brication
Lubricate the pivoting parts of each lever and pedal.Recommended lubricant:
Engine oil
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
U5YT62.book Page 75 Wednesday, March 30, 2005 1:29 PM

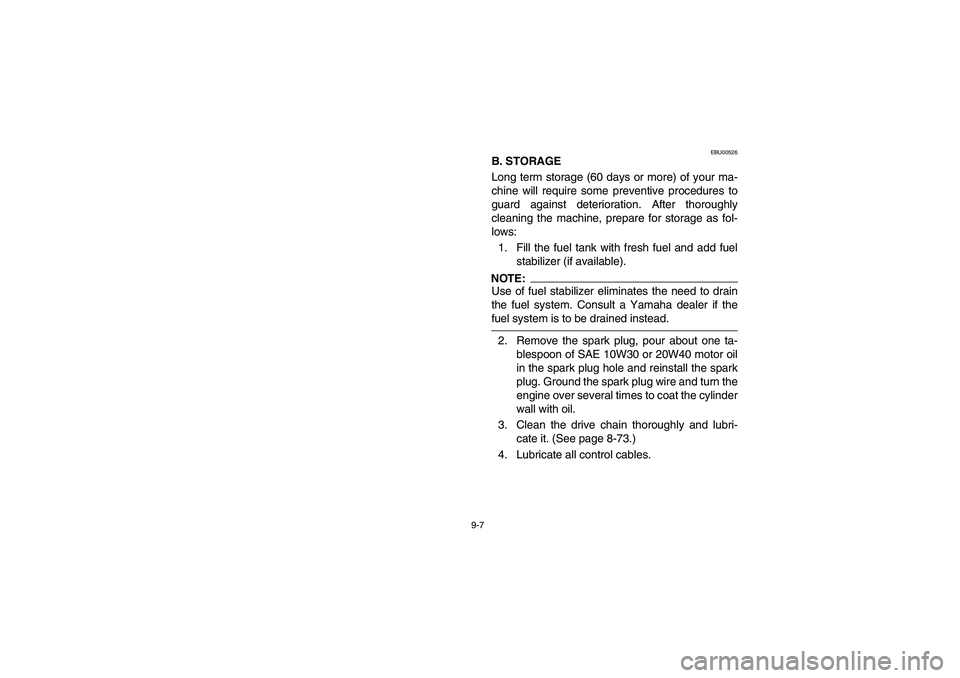

9-7
EBU00526
B. STORAGE
Long term storage (60 days or more) of your ma-
chine will require some preventive procedures to
guard against deterioration. After thoroughly
cleaning the machine, prepare for storage as fol-
lows:
1. Fill the fuel tank with fresh fuel and add fuel
stabilizer (if available).NOTE:Use of fuel stabilizer eliminates the need to drain
the fuel system. Consult a Yamaha dealer if the
fuel system is to be drained instead.2. Remove the spark plug, pour about one ta-
blespoon of SAE 10W30 or 20W40 motor oil
in the spark plug hole and reinstall the spark
plug. Ground the spark plug wire and turn the
engine over several times to coat the cylinder
wall with oil.
3. Clean the drive chain thoroughly and lubri-
cate it. (See page 8-73.)
4. Lubricate all control cables.
U5YT62.book Page 7 Wednesday, March 30, 2005 1:29 PM

10-1
EBU00428
SPECIFICATIONS
MODEL YFM350R
Dimension:
Overall length
Overall width
Overall height
Seat height
Wheel base
Ground clearance
Minimum turning radius1,770 mm
1,095 mm
1,080 mm
820 mm
1,210 mm
115 mm
3,100 mm
Basic weight:
With oil and full fuel tank 180.0 kg
Engine:
Type
Cylinder arrangement
Displacement
Bore
× Stroke
Compression ratio
Starting system
Lubrication systemAir-cooled, 4-stroke, SOHC
Forward inclined single cylinder
349.0 cm
3
83.0
× 64.5 mm
9.20 : 1
Electric starter
Wet sump
U5YT62.book Page 1 Wednesday, March 30, 2005 1:29 PM

10-2
10
Engine oil:
Type
Recommended engine oil classification API Service SE, SF, SG type or higherMODEL YFM350R
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
CAUTION:
In order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives. Do not use oils with a diesel
specification of “CD” or oils of a higher quality
than specified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or higher.
