EBU00015
1 -CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-5
Model label ........................................... 3-7
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Handlebar switches .............................. 4-5
Start switch .......................................... 4-7
Throttle lever ........................................ 4-9
Speed limiter ...................................... 4-11
Clutch lever ........................................ 4-13
Brake lever ......................................... 4-13
Brake pedal ........................................ 4-15
Parking brake lever ............................ 4-17
Shift pedal .......................................... 4-21
1234
Drive select lever ............................... 4-21
Fuel tank cap ..................................... 4-23
Fuel cock............................................ 4-23
Starter (choke) .................................. 4-27
Seat.................................................... 4-29
Front shock absorber adjustment ...... 4-31
Rear shock absorber adjustment ....... 4-33
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Chain.................................................. 5-13
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-15
Lights ................................................. 5-15
Switches............................................. 5-15
Tires ................................................... 5-17
How to measure tire pressure ............ 5-21
Tire wear limit..................................... 5-23
5
U5YT62.book Page 1 Wednesday, March 30, 2005 1:29 PM

OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Shifting ................................................6-15
To start out and accelerate .................6-17
To decelerate ......................................6-21
Engine break-in ...................................6-23
Parking ................................................6-27
Parking on a slope ..............................6-27
Accessories and loading .....................6-31
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-41
Climbing uphill.....................................7-47
Riding downhill ....................................7-57
Crossing a slope .................................7-61
Crossing through shallow water ..........7-65
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Engine oil and oil filter element........... 8-17
Spark plug inspection ......................... 8-29
Air filter element cleaning ................... 8-33
Carburetor adjustment ........................ 8-41
Idle speed adjustment ........................ 8-43
Throttle lever adjustment .................... 8-45
Valve clearance adjustment ............... 8-45
Front brake pad inspection ................. 8-47
Rear brake pad inspection.................. 8-47
Brake fluid level check ........................ 8-49
Brake fluid replacement ...................... 8-53
Front brake lever free play.................. 8-55
Brake pedal height adjustment ........... 8-57
Parking brake adjustment ................... 8-59
Adjusting the rear brake light switch ... 8-65
Clutch lever free play adjustment ....... 8-67
Drive chain slack check ...................... 8-69
Drive chain slack adjustment .............. 8-71
Lubricating the drive chain.................. 8-73
Cable inspection and lubrication......... 8-75
Brake and shift pedal/brake and
clutch lever lubrication ...................... 8-75
8
U5YT62.book Page 2 Wednesday, March 30, 2005 1:29 PM

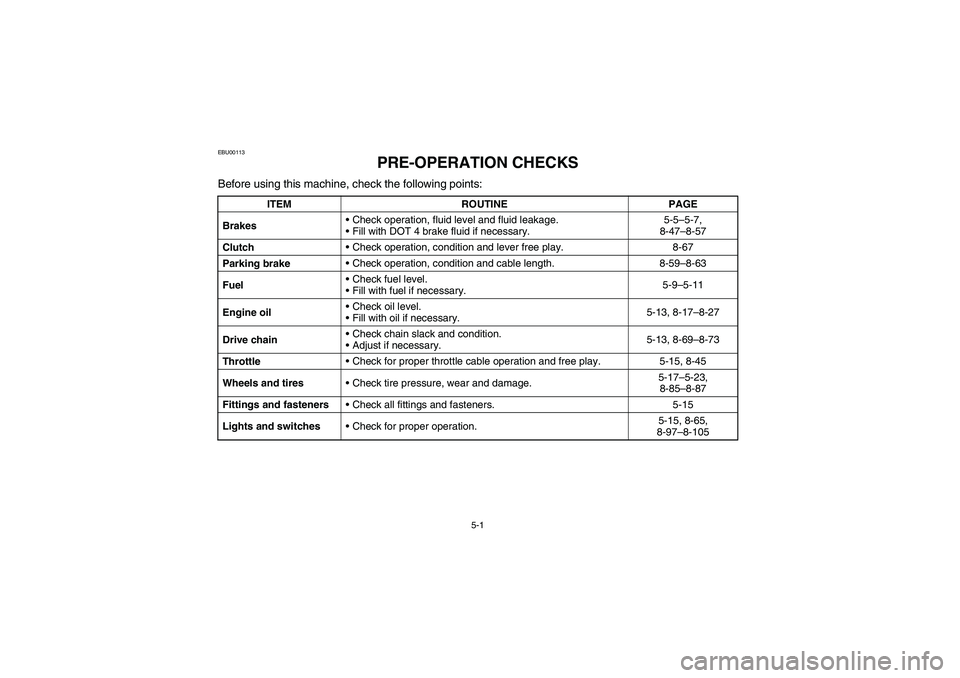

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-47–8-57
ClutchCheck operation, condition and lever free play. 8-67
Parking brakeCheck operation, condition and cable length. 8-59–8-63
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-17–8-27
Drive chainCheck chain slack and condition.
Adjust if necessary.5-13, 8-69–8-73
ThrottleCheck for proper throttle cable operation and free play. 5-15, 8-45
Wheels and tiresCheck tire pressure, wear and damage.5-17–5-23,
8-85–8-87
Fittings and fastenersCheck all fittings and fasteners. 5-15
Lights and switchesCheck for proper operation.5-15, 8-65,
8-97–8-105
U5YT62.book Page 1 Wednesday, March 30, 2005 1:29 PM

5-13
EBU10842
Engine oil
Make sure the engine oil is at the specified level.
Add oil as necessary. (See pages 8-17–8-27.)CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD”
or oils of a higher quality than specified. In
addition, do not use oils labeled “ENERGY
CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_
EBU00498
Chain
Check the general condition of the chain and
check the chain slack before every ride. Lubricate
and adjust the chain as necessary. (See pages
8-69–8-73 for details.) Recommended engine oil type and quantity:
See page 10-2.
U5YT62.book Page 13 Wednesday, March 30, 2005 1:29 PM

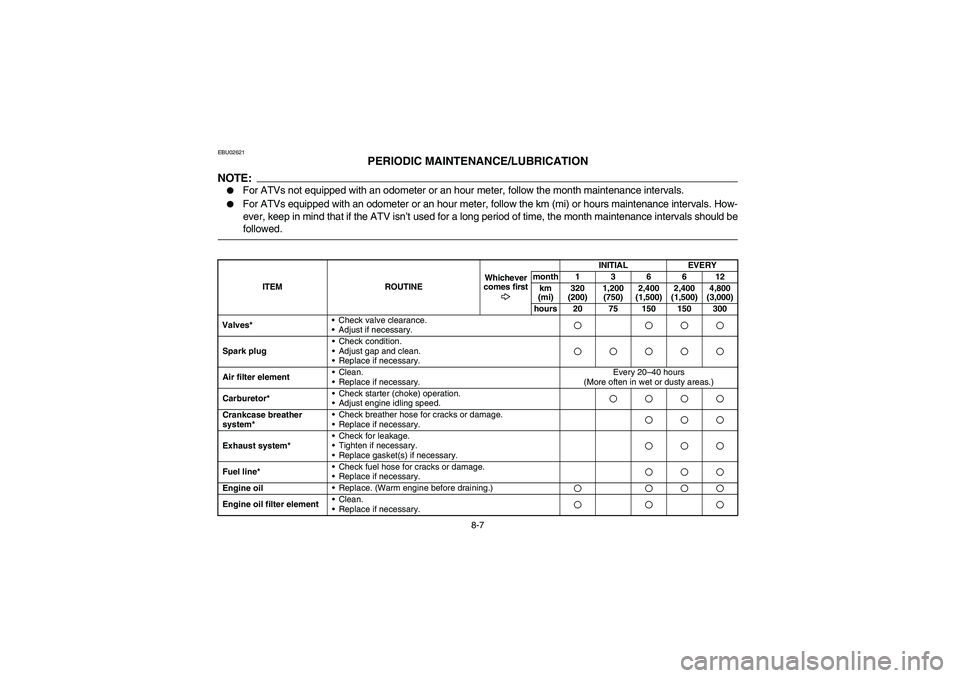

8-7
EBU02621
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check starter (choke) operation.
Adjust engine idling speed.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oilReplace. (Warm engine before draining.)Engine oil filter elementClean.
Replace if necessary.U5YT62.book Page 7 Wednesday, March 30, 2005 1:29 PM

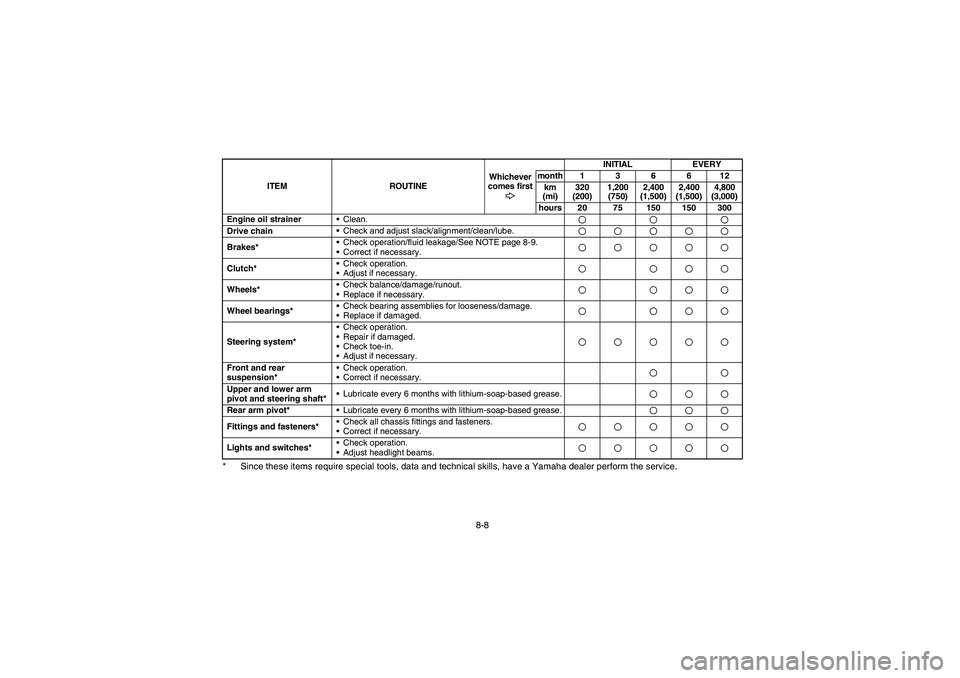

8-8 * Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
Engine oil strainerClean.Drive chainCheck and adjust slack/alignment/clean/lube.Brakes*Check operation/fluid leakage/See NOTE page 8-9.
Correct if necessary.Clutch*Check operation.
Adjust if necessary.Wheels*Check balance/damage/runout.
Replace if necessary.Wheel bearings*Check bearing assemblies for looseness/damage.
Replace if damaged.Steering system*Check operation.
Repair if damaged.
Check toe-in.
Adjust if necessary.Front and rear
suspension*Check operation.
Correct if necessary.Upper and lower arm
pivot and steering shaft*Lubricate every 6 months with lithium-soap-based grease.Rear arm pivot*Lubricate every 6 months with lithium-soap-based grease.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beams.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U5YT62.book Page 8 Wednesday, March 30, 2005 1:29 PM

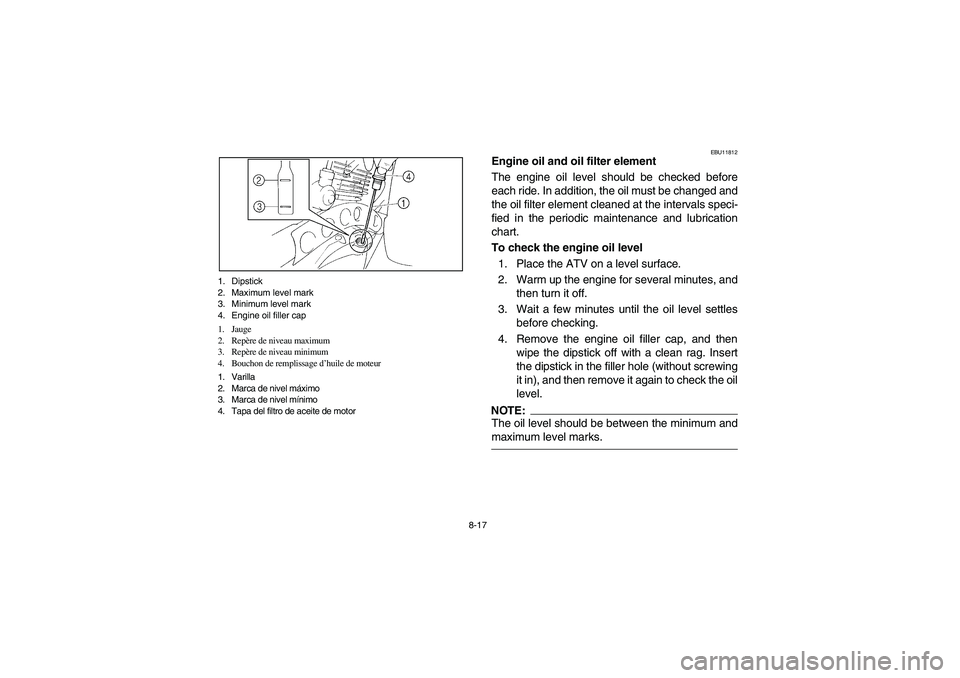

8-17 1. Dipstick
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
1. Jauge
2. Repère de niveau maximum
3. Repère de niveau minimum
4. Bouchon de remplissage d’huile de moteur
1. Varilla
2. Marca de nivel máximo
3. Marca de nivel mínimo
4. Tapa del filtro de aceite de motor
EBU11812
Engine oil and oil filter element
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Warm up the engine for several minutes, and
then turn it off.
3. Wait a few minutes until the oil level settles
before checking.
4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag. Insert
the dipstick in the filler hole (without screwing
it in), and then remove it again to check the oil
level.NOTE:_ The oil level should be between the minimum and
maximum level marks. _
U5YT62.book Page 17 Wednesday, March 30, 2005 1:29 PM

8-19 1. Engine oil drain bolt 2. O-ring
3. Compression spring 4. Engine oil strainer
1. Boulon de vidange de l’huile moteur
2. Joint torique
3. Ressort de compression
4. Crépine à huile de moteur
1. Perno de drenaje del aceite de motor
2. Junta tórica
3. Muelle de compresión
4. Tamiz de aceite de motor
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.CAUTION:_ Be sure no foreign material enters the crank-
case. _6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
To change the engine oil (with or without oil fil-
ter element cleaning)
1. Place the ATV on a level surface.
2. Warm up the engine for several minutes, and
then turn it off.
3. Place a container under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase.CAUTION:_ When removing the engine oil drain bolt, the
compression spring, oil strainer and O-ring
will fall out. Take care not to lose these parts. _
U5YT62.book Page 19 Wednesday, March 30, 2005 1:29 PM

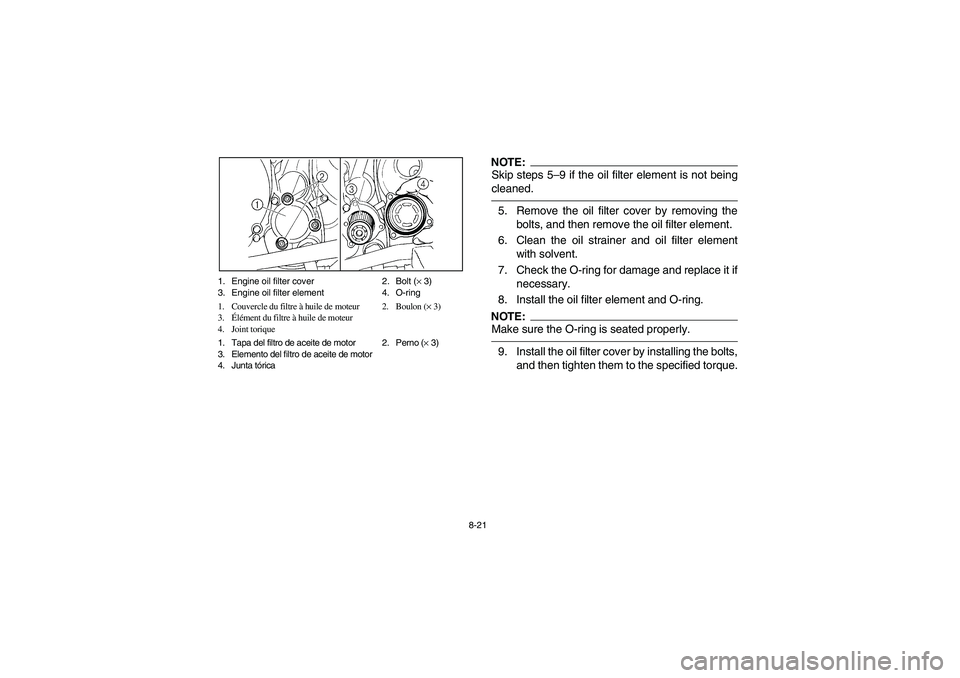

8-21 1. Engine oil filter cover 2. Bolt (× 3)
3. Engine oil filter element 4. O-ring
1. Couvercle du filtre à huile de moteur 2. Boulon (× 3)
3.Élément du filtre à huile de moteur
4. Joint torique
1. Tapa del filtro de aceite de motor 2. Perno (× 3)
3. Elemento del filtro de aceite de motor
4. Junta tórica
NOTE:_ Skip steps 5–9 if the oil filter element is not being
cleaned. _5. Remove the oil filter cover by removing the
bolts, and then remove the oil filter element.
6. Clean the oil strainer and oil filter element
with solvent.
7. Check the O-ring for damage and replace it if
necessary.
8. Install the oil filter element and O-ring.NOTE:_ Make sure the O-ring is seated properly. _9. Install the oil filter cover by installing the bolts,
and then tighten them to the specified torque.
U5YT62.book Page 21 Wednesday, March 30, 2005 1:29 PM

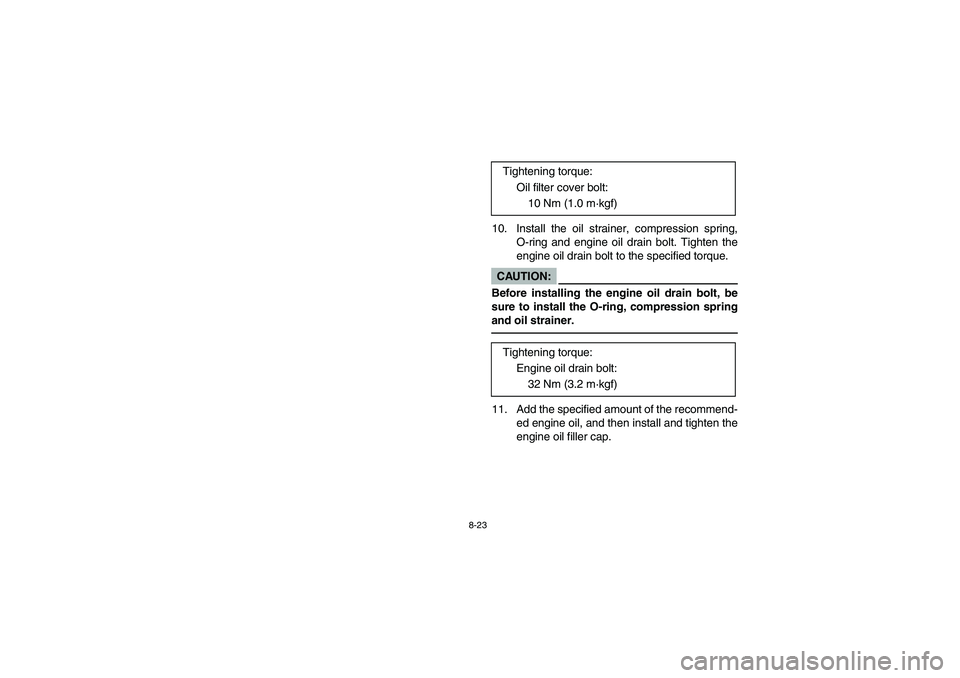

8-23
10. Install the oil strainer, compression spring,
O-ring and engine oil drain bolt. Tighten the
engine oil drain bolt to the specified torque.CAUTION:_ Before installing the engine oil drain bolt, be
sure to install the O-ring, compression spring
and oil strainer. _11. Add the specified amount of the recommend-
ed engine oil, and then install and tighten the
engine oil filler cap. Tightening torque:
Oil filter cover bolt:
10 Nm (1.0 m·kgf)
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m·kgf)
U5YT62.book Page 23 Wednesday, March 30, 2005 1:29 PM
