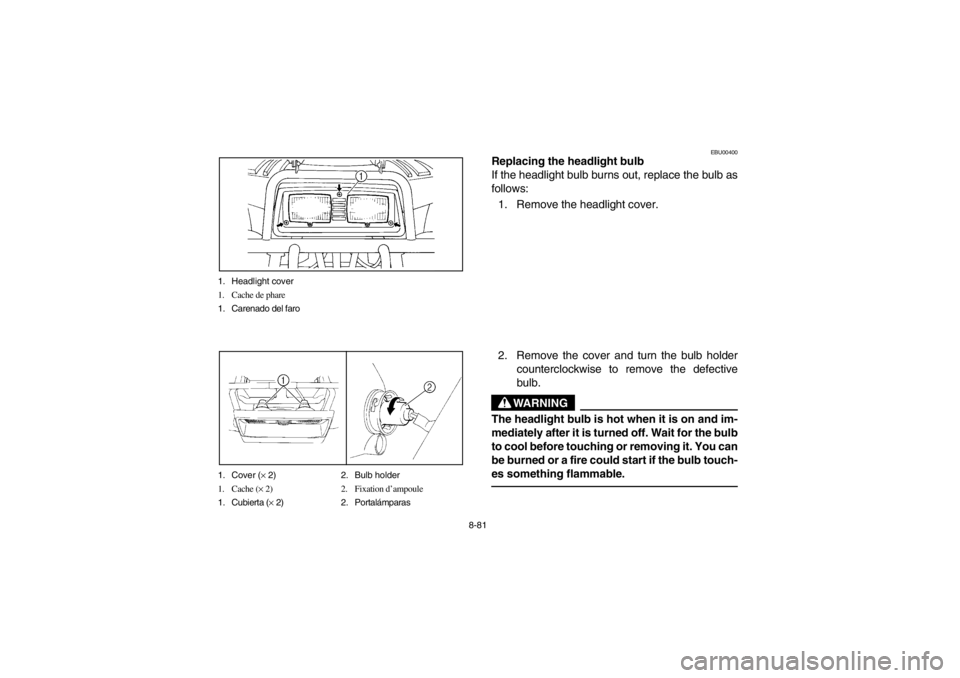

8-81 1. Headlight cover
1. Cache de phare
1. Carenado del faro
1. Cover (× 2) 2. Bulb holder
1. Cache (× 2) 2. Fixation d’ampoule
1. Cubierta (× 2) 2. Portalámparas
EBU00400
Replacing the headlight bulb
If the headlight bulb burns out, replace the bulb as
follows:
1. Remove the headlight cover.
2. Remove the cover and turn the bulb holder
counterclockwise to remove the defective
bulb.
WARNING
The headlight bulb is hot when it is on and im-
mediately after it is turned off. Wait for the bulb
to cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable.
EE.book Page 81 Monday, June 25, 2001 2:27 PM

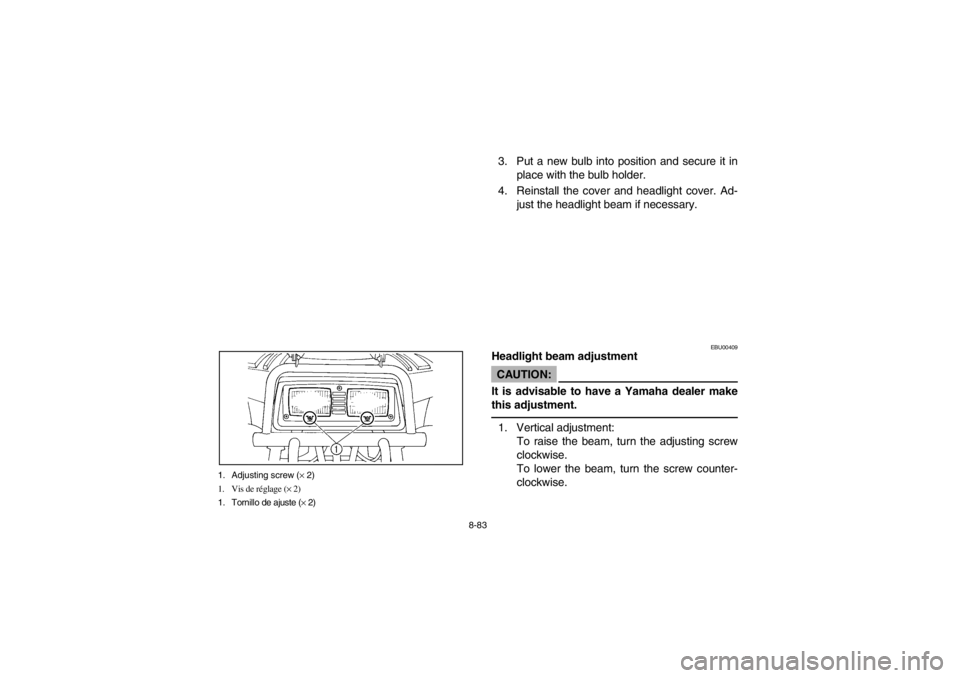

8-83 1. Adjusting screw (× 2)
1. Vis de réglage (× 2)
1. Tornillo de ajuste (× 2)
3. Put a new bulb into position and secure it in
place with the bulb holder.
4. Reinstall the cover and headlight cover. Ad-
just the headlight beam if necessary.
EBU00409
Headlight beam adjustmentCAUTION:
It is advisable to have a Yamaha dealer make
this adjustment.1. Vertical adjustment:
To raise the beam, turn the adjusting screw
clockwise.
To lower the beam, turn the screw counter-
clockwise.
EE.book Page 83 Monday, June 25, 2001 2:27 PM
10-6
Electrical:
Ignition system DC, C.D.I.
Generator system AC magneto
Battery type / voltage, capacity GM14AZ-4A/12V, 14Ah
Headlight type: Bulb type
Bulb voltage, wattage
× quantity:
Headlight 12 V, 25 W / 25 W
× 2
Tail/brake light 12 V, 5 W/21 W
× 1
Indicator light:
Neutral 12 V, 1.7 W
× 1
Reverse 12 V, 1.7 W × 1 Model YFM250X
