2-15

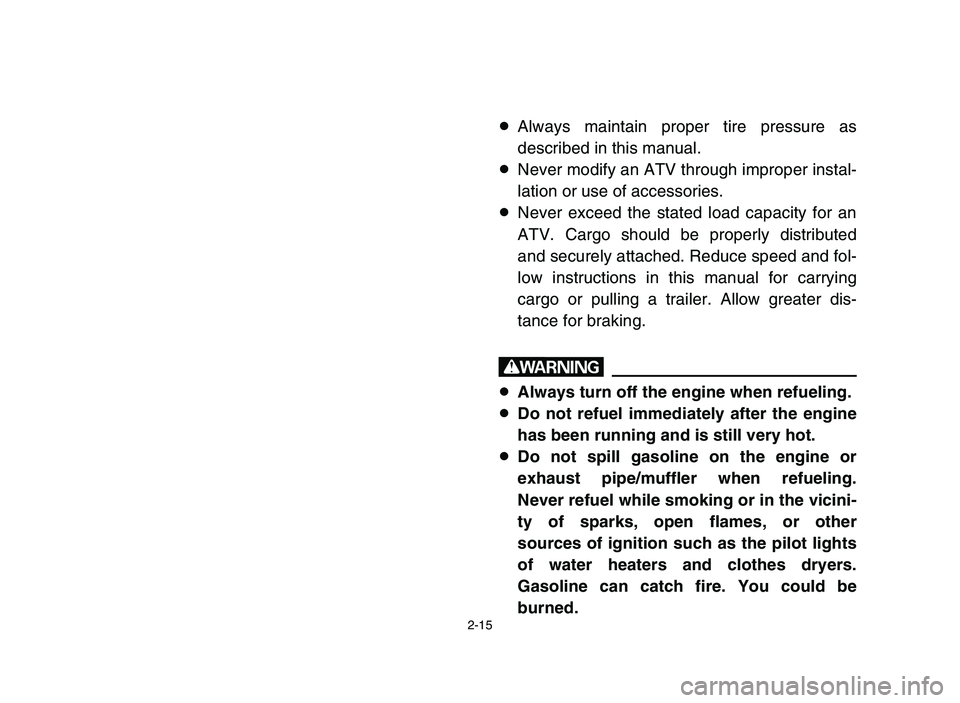

8Always maintain proper tire pressure as
described in this manual.
8Never modify an ATV through improper instal-
lation or use of accessories.
8Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed
and securely attached. Reduce speed and fol-
low instructions in this manual for carrying
cargo or pulling a trailer. Allow greater dis-
tance for braking.
w
8Always turn off the engine when refueling.
8Do not refuel immediately after the engine
has been running and is still very hot.
8Do not spill gasoline on the engine or
exhaust pipe/muffler when refueling.
Never refuel while smoking or in the vicini-
ty of sparks, open flames, or other
sources of ignition such as the pilot lights
of water heaters and clothes dryers.
Gasoline can catch fire. You could be
burned.
5VM-9-63-01 3/29/05 4:00 PM Page 50

4-9
EBU00053

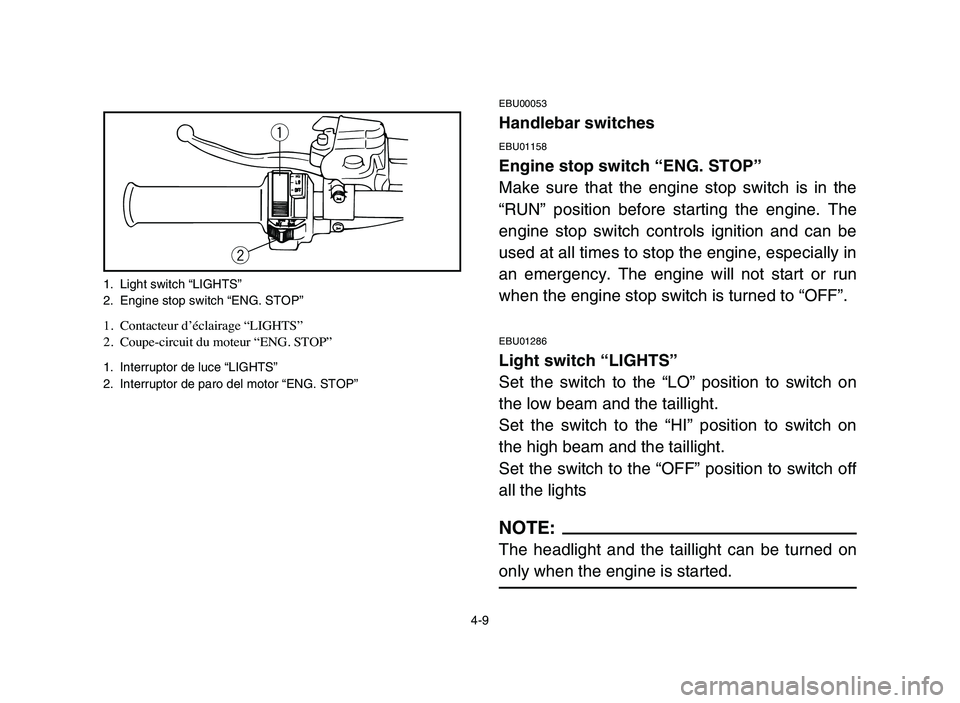

Handlebar switches
EBU01158
Engine stop switch “ENG. STOP”
Make sure that the engine stop switch is in the
“RUN” position before starting the engine. The
engine stop switch controls ignition and can be
used at all times to stop the engine, especially in
an emergency. The engine will not start or run
when the engine stop switch is turned to “OFF”.
EBU01286
Light switch “LIGHTS”
Set the switch to the “LO” position to switch on
the low beam and the taillight.
Set the switch to the “HI” position to switch on
the high beam and the taillight.
Set the switch to the “OFF” position to switch off
all the lights
NOTE:
The headlight and the taillight can be turned on
only when the engine is started.
q
w
1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
1. Contacteur d’éclairage “LIGHTS”
2. Coupe-circuit du moteur “ENG. STOP”
1. Interruptor de luce “LIGHTS”
2. Interruptor de paro del motor “ENG. STOP”
5VM-9-63-02 3/29/05 4:01 PM Page 10

4-13
EBU00065

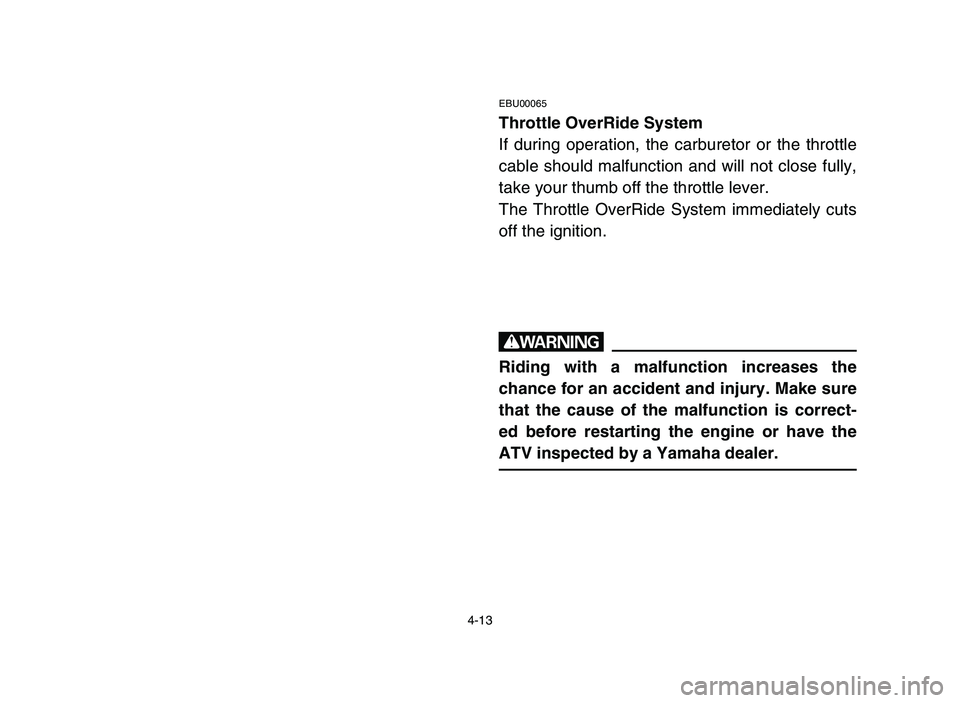

Throttle OverRide System
If during operation, the carburetor or the throttle
cable should malfunction and will not close fully,
take your thumb off the throttle lever.
The Throttle OverRide System immediately cuts
off the ignition.
w
Riding with a malfunction increases the
chance for an accident and injury. Make sure
that the cause of the malfunction is correct-
ed before restarting the engine or have the
ATV inspected by a Yamaha dealer.
5VM-9-63-02 3/29/05 4:01 PM Page 14

8-101
EBU00413

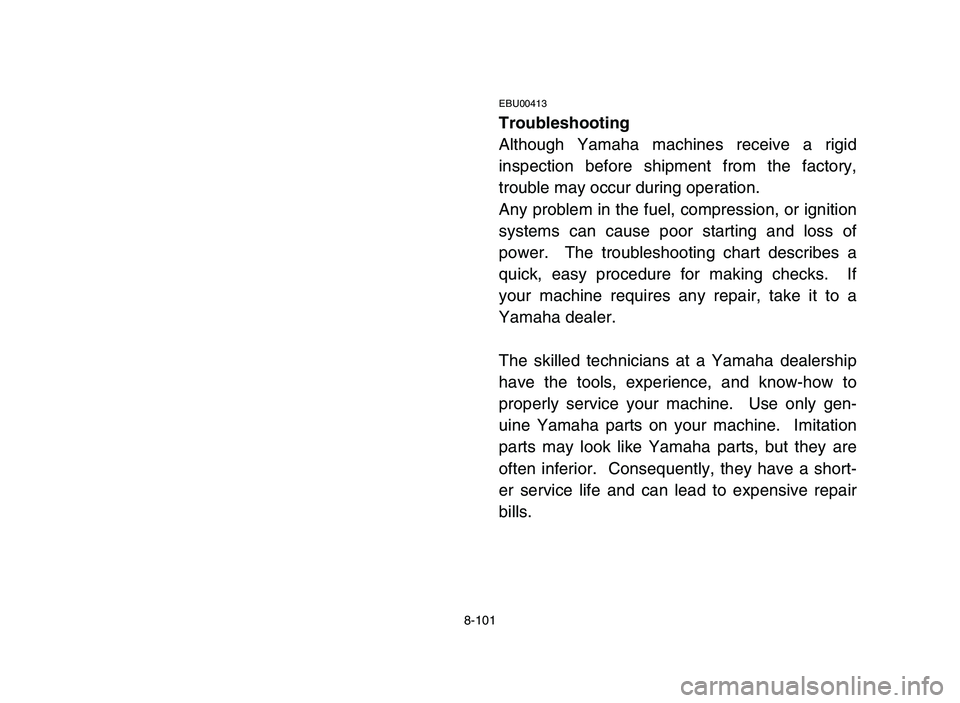

Troubleshooting
Although Yamaha machines receive a rigid
inspection before shipment from the factory,
trouble may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of
power. The troubleshooting chart describes a
quick, easy procedure for making checks. If
your machine requires any repair, take it to a
Yamaha dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to
properly service your machine. Use only gen-
uine Yamaha parts on your machine. Imitation
parts may look like Yamaha parts, but they are
often inferior. Consequently, they have a short-
er service life and can lead to expensive repair
bills.
5VM-9-63-05 3/29/05 4:04 PM Page 102

8-105
EBU00440

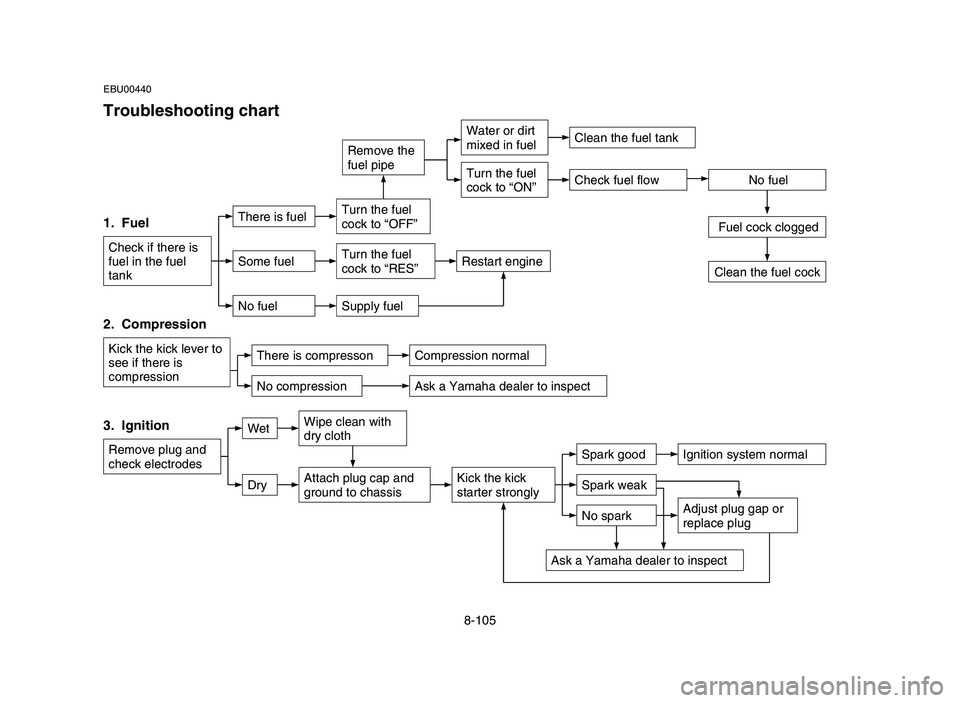

Troubleshooting chart
Check fuel flow
1. Fuel
Check if there is
fuel in the fuel
tank
2. Compression
Kick the kick lever to
see if there is
compression
3. Ignition
Remove plug and
check electrodes
WetWipe clean with
dry cloth
DryAttach plug cap and
ground to chassisKick the kick
starter stronglySpark weak
Spark goodIgnition system normal
No spark
Ask a Yamaha dealer to inspect
Adjust plug gap or
replace plug
There is compressonCompression normal
Ask a Yamaha dealer to inspectNo compression
There is fuelTurn the fuel
cock to “OFF”
Remove the
fuel pipe
Water or dirt
mixed in fuel
No fuel
Fuel cock clogged
Some fuelTurn the fuel
cock to “RES”Restart engine
No fuelSupply fuel
Clean the fuel tank
Turn the fuel
cock to “ON”
Clean the fuel cock
5VM-9-63-05 3/29/05 4:04 PM Page 106

10-5

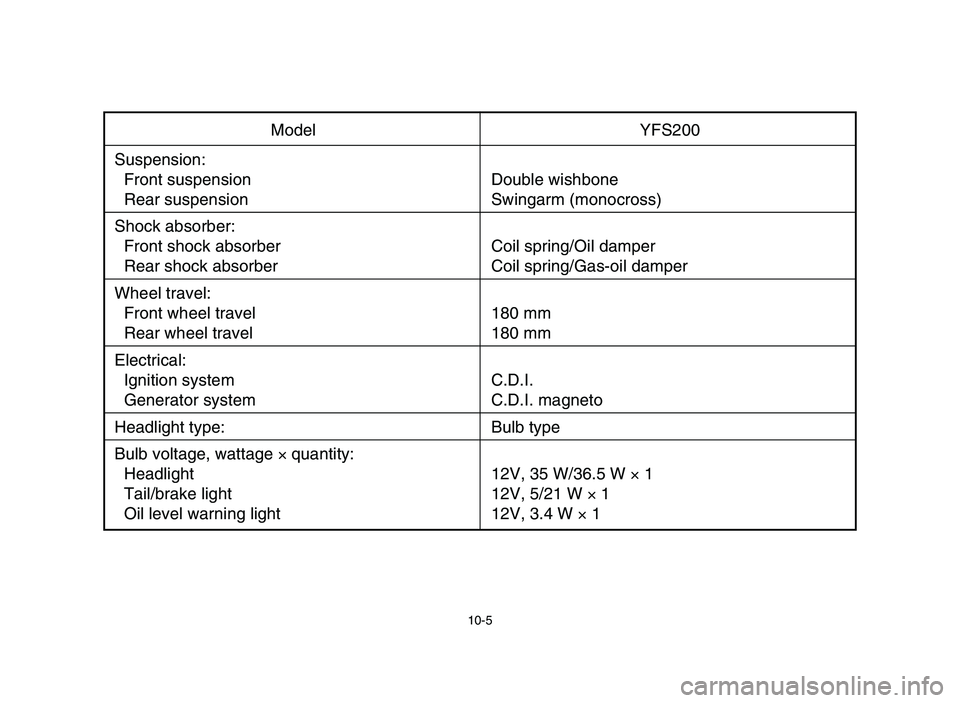

Model YFS200
Suspension:
Front suspension Double wishbone
Rear suspension Swingarm (monocross)
Shock absorber:
Front shock absorber Coil spring/Oil damper
Rear shock absorber Coil spring/Gas-oil damper
Wheel travel:
Front wheel travel 180 mm
Rear wheel travel 180 mm
Electrical:
Ignition system C.D.I.
Generator system C.D.I. magneto
Headlight type: Bulb type
Bulb voltage, wattage ×quantity:
Headlight 12V, 35 W/36.5 W ×1
Tail/brake light 12V, 5/21 W ×1
Oil level warning light 12V, 3.4 W ×1
5VM-9-63-06 3/29/05 4:04 PM Page 16
