Page 16 of 400
EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer ...................................... 4-11
Handlebar switches ............................ 4-13
Throttle lever ...................................... 4-19
Speed limiter ...................................... 4-21
Front brake lever ................................ 4-23
Brake pedal and rear brake lever ....... 4-25
Parking brake ..................................... 4-27
Drive select lever ................................ 4-29
Recoil starter ...................................... 4-31
1234
Fuel tank cap ..................................... 4-31
Fuel cock............................................ 4-33
Starter (choke) .................................. 4-35
Seat.................................................... 4-37
Storage box........................................ 4-39
Front carrier ....................................... 4-41
Rear carrier ........................................ 4-41
Front shock absorber adjustment ...... 4-43
Rear shock absorber adjustment ....... 4-45
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Differential gear oil ............................. 5-17
Throttle lever ...................................... 5-17
Fittings and fasteners......................... 5-19
Lights ................................................. 5-19
Switches............................................. 5-19
Tires ................................................... 5-21
How to measure tire pressure ............ 5-25
Tire wear limit..................................... 5-27
5
U5UH61.book Page 1 Tuesday, April 20, 2004 10:10 AM
Page 18 of 400
Adjusting the rear brake light switch... 8-87
Cable inspection and lubrication ........ 8-89
Lubricating the brake levers and
brake pedal ...................................... 8-91
Wheel removal ................................... 8-93
Wheel installation ............................... 8-95
Battery ................................................ 8-97
Battery maintenance ........................ 8-101
Fuse replacement............................. 8-103
Replacing a headlight bulb ............... 8-107
Headlight beam adjustment.............. 8-111
Tail/brake light bulb replacement ..... 8-111
Troubleshooting................................ 8-113
Troubleshooting chart....................... 8-115
CLEANING AND STORAGE .................. 9-1
A. Cleaning ........................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS ................................ 10-1
CONVERSION TABLE .......................... 11-1
91011U5UH61.book Page 3 Tuesday, April 20, 2004 10:10 AM
Page 52 of 400
2-15
WARNING
_
Always turn off the engine when refueling.
Do not refuel immediately after the engine
has been running and is still very hot.
Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or in the vicinity of
sparks, open flames, or other sources of
ignition such as the pilot lights of water
heaters and clothes dryers. Gasoline can
catch fire and you could be burned.
When transporting the ATV in another ve-
hicle, be sure it is kept upright and that the
fuel cock is in the “OFF” position. Other-
wise, fuel may leak out of the carburetor or
fuel tank.
Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gaso-
line vapor, or get some gasoline in your
eyes, see your doctor immediately. If gaso-
line spills on your skin, wash with soap
and water. If gasoline spills on your cloth-
ing, change your clothes.
_
U5UH61.book Page 15 Tuesday, April 20, 2004 10:10 AM
Page 56 of 400
3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Front shock absorber
assembly spring preload
adjusting ring
5. Brake pedal
6. V-belt case
7. Fuel cock
8. Air filter case
9. Fuses
10. Tail/brake light
11. Front shock absorber
assembly spring preload
adjusting ring
12. V-belt cooling duct check
hose
13. Oil filter cartridge14. Engine oil dipstick
15. Rear brake lever
16. Left handlebar switches
17. Starter (choke)
18. Horn switch
19. Drive select lever
20. Speedometer
21. Main switch
22. Fuel tank cap
23. Right handlebar
switch
24. Throttle lever
25. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5UH61.book Page 1 Tuesday, April 20, 2004 10:10 AM
Page 66 of 400
4-1 1. Main switch
1. Contacteur à clé
1. Interruptor principal
EBU00040
CONTROL FUNCTIONS
EBU12490
Main switch
Functions of the respective switch positions are as
follows:
ON:
The engine can be started only at this position and
the headlights, taillight and meter lighting come on
when the light switch is on.
OFF:
All electrical circuits are switched off. The key can
be removed in this position.
U5UH61.book Page 1 Tuesday, April 20, 2004 10:10 AM
Page 68 of 400
4-3 1. Reverse indicator light “REVERSE”
2. Neutral indicator light “NEUTRAL”
3. Four-wheel-drive indicator light “”
4. Oil temperature warning light “”
1. Témoin de marche arrière “REVERSE”
2. Témoin de point mort “NEUTRAL”
3. Témoin 4x4 “”
4. Témoin d’avertissement de la température d’huile “”
1. Luz indicadora de marcha atrás “REVERSE”
2. Luz de control de punto muerto “NEUTRAL”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de aviso de la temperatura del aceite “”
EBU08020
Indicator and warning lights
EBU14530
Reverse indicator light “REVERSE”
This indicator light comes on when the drive select
lever is in reverse.
EBU14630
Neutral indicator light “NEUTRAL”
This indicator light comes on when the drive select
lever is in neutral.
EBU00605
Four-wheel-drive indicator light “”
This indicator light comes on when the 2WD/4WD
switch is in the 4WD position.NOTE:_ Due to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving. _
U5UH61.book Page 3 Tuesday, April 20, 2004 10:10 AM
Page 70 of 400
4-5 1. Reverse indicator light “REVERSE”
2. Neutral indicator light “NEUTRAL”
3. Four-wheel-drive indicator light “”
4. Oil temperature warning light “”
1. Témoin de marche arrière “REVERSE”
2. Témoin de point mort “NEUTRAL”
3. Témoin 4x4 “”
4. Témoin d’avertissement de la température d’huile “”
1. Luz indicadora de marcha atrás “REVERSE”
2. Luz de control de punto muerto “NEUTRAL”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de aviso de la temperatura del aceite “”
EBU11400
Oil temperature warning light “”
When the oil temperature reaches a specified lev-
el, this light comes on to warn that the engine oil
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.CAUTION:_
The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.
Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
U5UH61.book Page 5 Tuesday, April 20, 2004 10:10 AM
Page 72 of 400
4-7
EBU07330
Oil temperature warning light checking method
ACB-10E
Turn the main switch to “ON” and the
engine stop switch to “”.
Oil temperature warning
light does not come on.
Oil temperature warning
light comes on.
Check engine oil temperature.
Oil temperature warning
light does not come on.
Engine oil temperature and
electrical circuit are OK. Go
ahead with riding.
Push start switch with the
transmission in neutral.
Ask a Yamaha dealer to
inspect the electrical circuit.
Oil tempera-
ture is low.
Allow to cool.
Oil tempera-
ture is high.
Oil temperature
warning light comes
on momentarily.
U5UH61.book Page 7 Tuesday, April 20, 2004 10:10 AM
Page 78 of 400

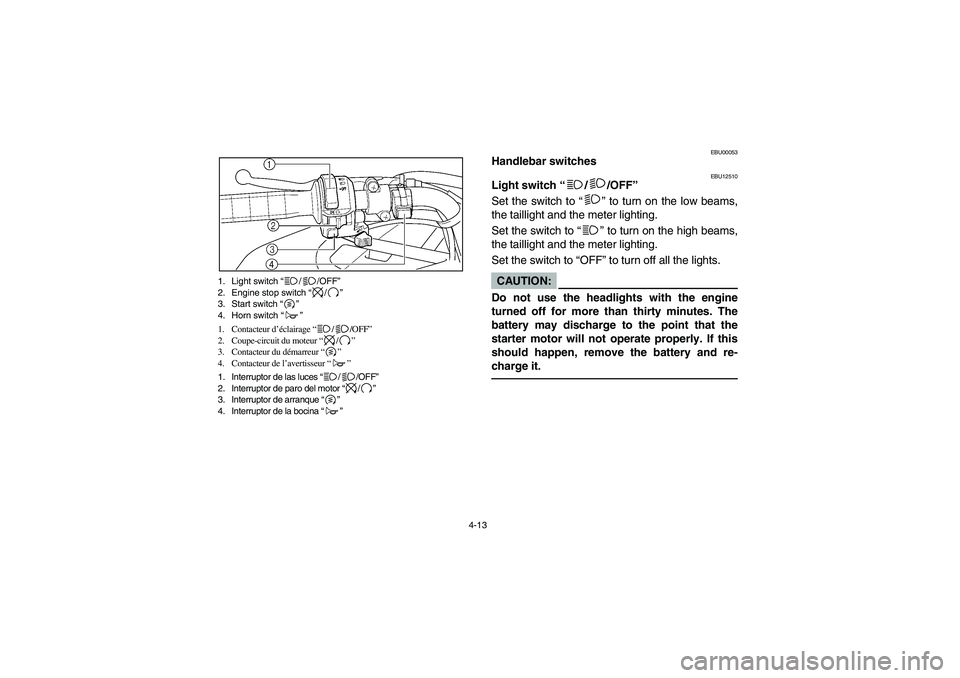

4-13 1. Light switch “//OFF”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
4. Contacteur de l’avertisseur “”
1. Interruptor de las luces “//OFF”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
4. Interruptor de la bocina “”
EBU00053
Handlebar switches
EBU12510
Light switch “/ /OFF”
Set the switch to “” to turn on the low beams,
the taillight and the meter lighting.
Set the switch to “” to turn on the high beams,
the taillight and the meter lighting.
Set the switch to “OFF” to turn off all the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
U5UH61.book Page 13 Tuesday, April 20, 2004 10:10 AM
Page 80 of 400
4-15 1. Light switch “//OFF”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
4. Contacteur de l’avertisseur “”
1. Interruptor de las luces “//OFF”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
4. Interruptor de la bocina “”
EBU01205
Engine stop switch “/”
Make sure that the engine stop switch is set to
“” before starting the engine. The engine stop
switch controls ignition and can be used at all
times to stop the engine, especially in an emer-
gency. The engine will not start or run when the
engine stop switch is set to “”.
EBU00607
Start switch “”
The starter motor cranks the engine when this
switch is pushed.CAUTION:
See starting instructions prior to starting the
engine. (See page 6-3 for details.)
EBU00059
Horn switch “”
Press the switch to sound the horn.
U5UH61.book Page 15 Tuesday, April 20, 2004 10:10 AM
