OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-15
Parking ................................................6-17
Parking on a slope ..............................6-19
Accessories and loading .....................6-21
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-17
Engine oil and oil filter cartridge ......... 8-21
Final gear oil ....................................... 8-31
Differential gear oil replacement ......... 8-39
Axle boots ........................................... 8-45
Spark plug inspection ......................... 8-47
Air filter element cleaning ................... 8-53
V-belt cooling duct check hose ........... 8-61
V-belt case drain plug ......................... 8-61
Carburetor adjustment ........................ 8-63
Idle speed adjustment ........................ 8-65
Valve clearance adjustment ............... 8-67
Select lever safety system cable
adjustment ........................................ 8-67
Throttle lever adjustment .................... 8-69
Front brake pad check ........................ 8-71
Rear brake shoe inspection ................ 8-71
Brake fluid level check ........................ 8-73
Brake fluid replacement ...................... 8-77
Front brake lever free play.................. 8-79
Rear brake pedal and lever
adjustment ........................................ 8-81
8
U5UH62.book Page 2 Tuesday, April 5, 2005 6:57 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Front shock absorber
assembly spring preload
adjusting ring
5. Brake pedal
6. V-belt case
7. Fuel cock
8. Air filter case
9. Fuses
10. Tail/brake light
11. V-belt cooling duct check
hose12. Oil filter cartridge
13. Engine oil dipstick
14. Rear brake lever
15. Left handlebar switches
16. Starter (choke)
17. Horn switch
18. Drive select lever
19. Speedometer
20. Main switch
21. Fuel tank cap
22. On-Command four-wheel
drive switch
23. Throttle lever
24. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5UH62.book Page 1 Tuesday, April 5, 2005 6:57 PM

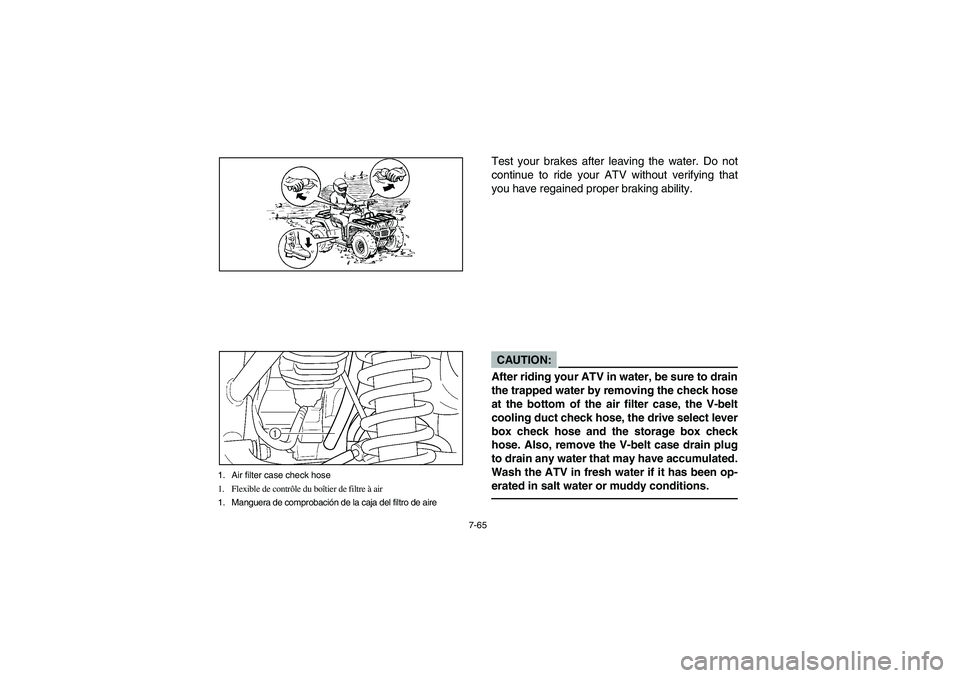

7-65
1. Air filter case check hose
1. Flexible de contrôle du boîtier de filtre à air
1. Manguera de comprobación de la caja del filtro de aire
Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that
you have regained proper braking ability.CAUTION:_ After riding your ATV in water, be sure to drain
the trapped water by removing the check hose
at the bottom of the air filter case, the V-belt
cooling duct check hose, the drive select lever
box check hose and the storage box check
hose. Also, remove the V-belt case drain plug
to drain any water that may have accumulated.
Wash the ATV in fresh water if it has been op-
erated in salt water or muddy conditions. _
U5UH62.book Page 65 Tuesday, April 5, 2005 6:57 PM

8-7
EBU02622
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check and adjust idle speed/starter operation.
Adjust if necessary.Cylinder head cover
breather system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace. (Warm engine before draining.)U5UH62.book Page 7 Tuesday, April 5, 2005 6:57 PM

8-8
Engine oil filter cartridge
Replace.Final gear oil
Check oil level/oil leakage.
Replace every 12 months.Differential gear oil
Front brake*Check operation/fluid leakage. (See NOTE page 8-9.)
Correct if necessary.Rear brakeCheck operation.
Adjust if necessary.Select lever safety system
cable*Check operation.
Adjust if necessary.V-belt*Check operation.
Check for cracks or damage.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearing*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation.
Correct if necessary.Steering system*Check operation./Replace if damaged.
Check toe-in./Adjust if necessary.Drive shaft universal
joint*Lubricate with lithium-soap-based grease.Axle boots*Check operation.
Replace if damaged.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beams.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U5UH62.book Page 8 Tuesday, April 5, 2005 6:57 PM

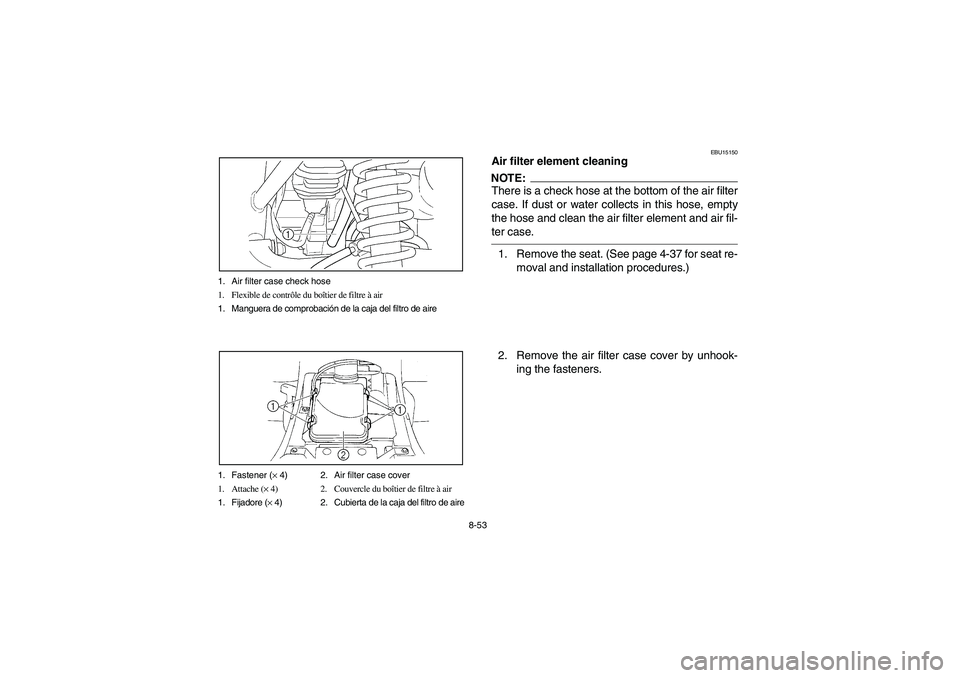

8-53 1. Air filter case check hose
1. Flexible de contrôle du boîtier de filtre à air
1. Manguera de comprobación de la caja del filtro de aire
1. Fastener (× 4) 2. Air filter case cover
1. Attache (× 4) 2. Couvercle du boîtier de filtre à air
1. Fijadore (× 4) 2. Cubierta de la caja del filtro de aire
EBU15150
Air filter element cleaningNOTE:_ There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. _1. Remove the seat. (See page 4-37 for seat re-
moval and installation procedures.)
2. Remove the air filter case cover by unhook-
ing the fasteners.
U5UH62.book Page 53 Tuesday, April 5, 2005 6:57 PM

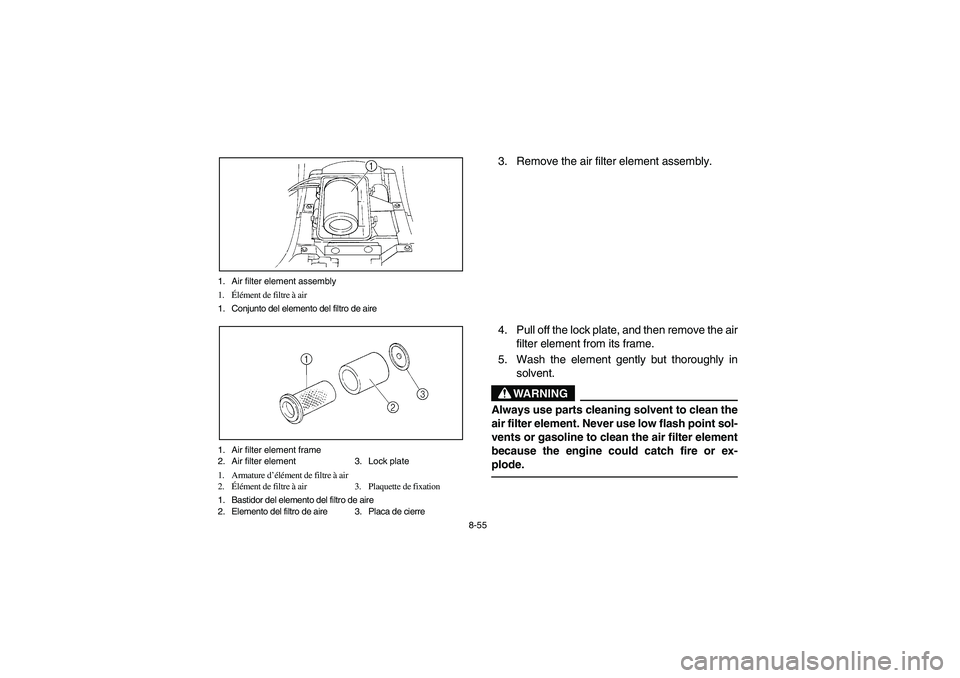

8-55 1. Air filter element assembly
1.Élément de filtre à air
1. Conjunto del elemento del filtro de aire
1. Air filter element frame
2. Air filter element 3. Lock plate
1. Armature d’élément de filtre à air
2.Élément de filtre à air 3. Plaquette de fixation
1. Bastidor del elemento del filtro de aire
2. Elemento del filtro de aire 3. Placa de cierre
3. Remove the air filter element assembly.
4. Pull off the lock plate, and then remove the air
filter element from its frame.
5. Wash the element gently but thoroughly in
solvent.
WARNING
_ Always use parts cleaning solvent to clean the
air filter element. Never use low flash point sol-
vents or gasoline to clean the air filter element
because the engine could catch fire or ex-
plode. _
U5UH62.book Page 55 Tuesday, April 5, 2005 6:57 PM

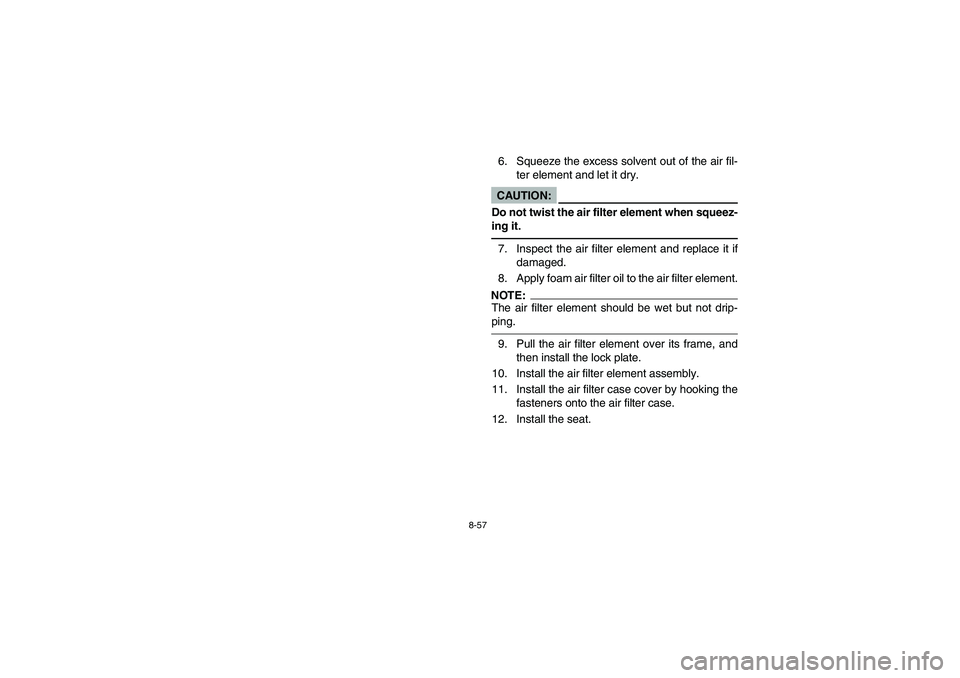

8-57
6. Squeeze the excess solvent out of the air fil-
ter element and let it dry.CAUTION:_ Do not twist the air filter element when squeez-
ing it. _7. Inspect the air filter element and replace it if
damaged.
8. Apply foam air filter oil to the air filter element.NOTE:_ The air filter element should be wet but not drip-
ping. _9. Pull the air filter element over its frame, and
then install the lock plate.
10. Install the air filter element assembly.
11. Install the air filter case cover by hooking the
fasteners onto the air filter case.
12. Install the seat.
U5UH62.book Page 57 Tuesday, April 5, 2005 6:57 PM

8-59
NOTE:_ The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the machine is operated in extremely dusty
areas. Each time the air filter element mainte-
nance is performed, check the air inlet to the filter
case for obstructions. Check the air filter case rub-
ber joint to the carburetor and manifold fittings for
an airtight seal. Tighten all fittings securely to
avoid the possibility of unfiltered air entering the
engine. _CAUTION:_ Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter, causing rapid engine wear and possible
engine damage. Additionally, operation with-
out the air filter element will affect carburetor
jetting with subsequent poor performance and
possible engine overheating. _
U5UH62.book Page 59 Tuesday, April 5, 2005 6:57 PM

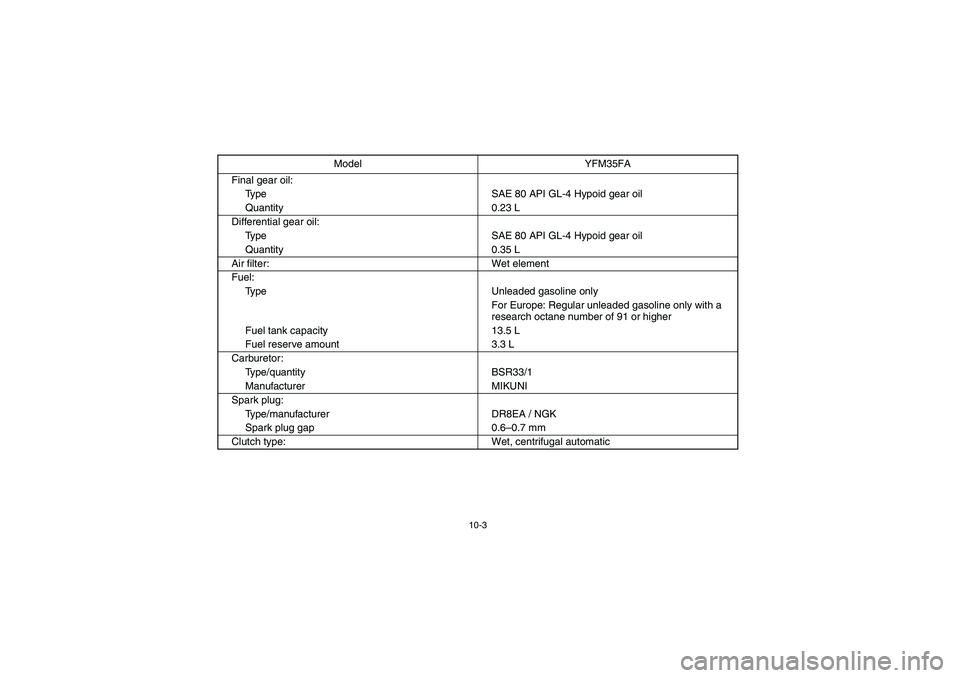

10-3
Final gear oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity 0.23 L
Differential gear oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity 0.35 L
Air filter: Wet element
Fuel:
Type Unleaded gasoline only
For Europe: Regular unleaded gasoline only with a
research octane number of 91 or higher
Fuel tank capacity 13.5 L
Fuel reserve amount 3.3 L
Carburetor:
Type/quantity BSR33/1
Manufacturer MIKUNI
Spark plug:
Type/manufacturer DR8EA / NGK
Spark plug gap 0.6–0.7 mm
Clutch type: Wet, centrifugal automaticModel YFM35FA
