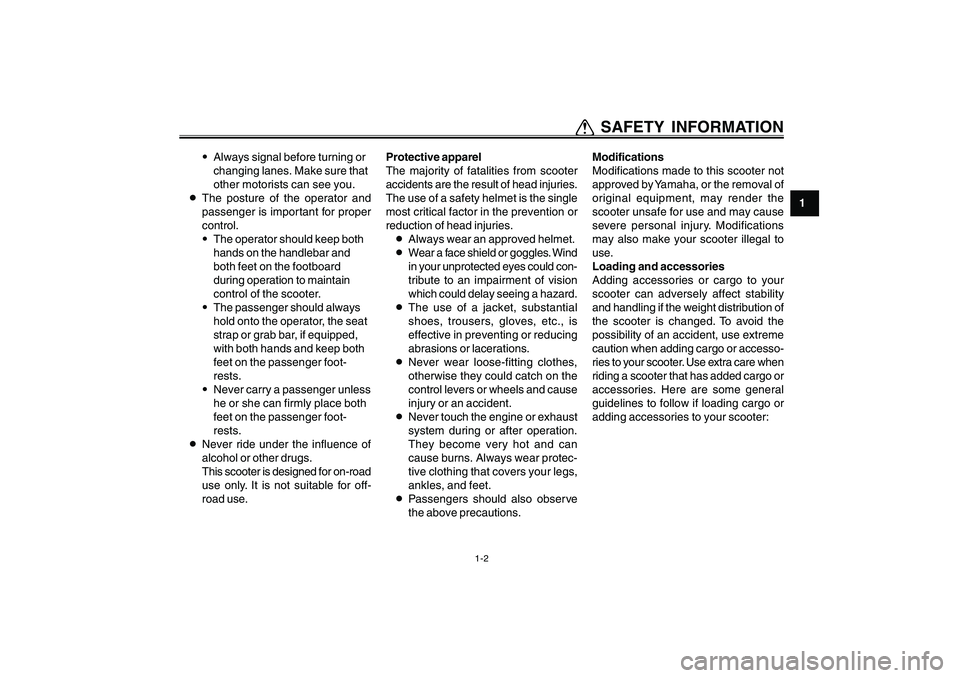

Q SAFETY INFORMATION
9Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
8The posture of the operator and
passenger is important for proper
control.
9The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
9The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foot-
rests.
9Never carry a passenger unless
he or she can firmly place both
feet on the passenger foot-
rests.
8Never ride under the influence of
alcohol or other drugs.
This scooter is designed for on-road
use only. It is not suitable for off-
road use.Protective apparel
The majority of fatalities from scooter
accidents are the result of head injuries.
The use of a safety helmet is the single
most critical factor in the prevention or
reduction of head injuries.
8Always wear an approved helmet.
8Wear a face shield or goggles. Wind
in your unprotected eyes could con-
tribute to an impairment of vision
which could delay seeing a hazard.
8The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or reducing
abrasions or lacerations.
8Never wear loose-fitting clothes,
otherwise they could catch on the
control levers or wheels and cause
injury or an accident.
8Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
8Passengers should also observe
the above precautions.Modifications
Modifications made to this scooter not
approved by Yamaha, or the removal of
original equipment, may render the
scooter unsafe for use and may cause
severe personal injury. Modifications
may also make your scooter illegal to
use.
Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso-
ries to your scooter. Use extra care when
riding a scooter that has added cargo or
accessories. Here are some general
guidelines to follow if loading cargo or
adding accessories to your scooter:
5ML-F8199-E0ch1re.pmd2003/12/12, 16:02 2

1-3
1
2
3
4
5
6
7
8
9
Q QQ Q
Q SAFETY INFORMATIONLoading
The total weight of the operator, passen-
ger, accessories and cargo must not ex-
ceed the maximum load limit of 170 kg
(374 lb). When loading within this weight
limit, keep the following in mind:
8Cargo and accessory weight should
be kept as low and close to the
scooter as possible. Make sure to
distribute the weight as evenly as
possible on both sides of the
scooter to minimize imbalance or
instability.
8Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the scooter before riding.
Check accessory mounts and
cargo restraints frequently.
8Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can cre-
ate unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot test
all other accessories that may be avail-
able, you must personally be responsible
for the proper selection, installation and
use of non-Yamaha accessories. Use
extreme caution when selecting and in-
stalling any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
8Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before us-
ing it to make sure that it does not
in any way reduce ground clear-
ance or cornering clearance, limit
suspension travel, steering travel
or control operation, or obscure
lights or reflectors.
9Accessories fitted to the
handlebar or the front fork area
can create instability due to
improper weight distribution or
aerodynamic changes. Ifaccessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
9Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to
lift the scooter, or the scooter
may become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.
9Certain accessories can
displace the operator from his
or her normal riding position.
This improper position limits
the freedom of movement of
the operator and may limit
control ability, therefore, such
accessories are not recom-
mended.
8Use caution when adding electrical
accessories. If electrical accesso-
ries exceed the capacity of the
scooter’s electrical system an elec-
5ML-F8199-E0ch1re.pmd2003/12/12, 16:02 3

6-15
1
2
3
4
5
6
7
8
9

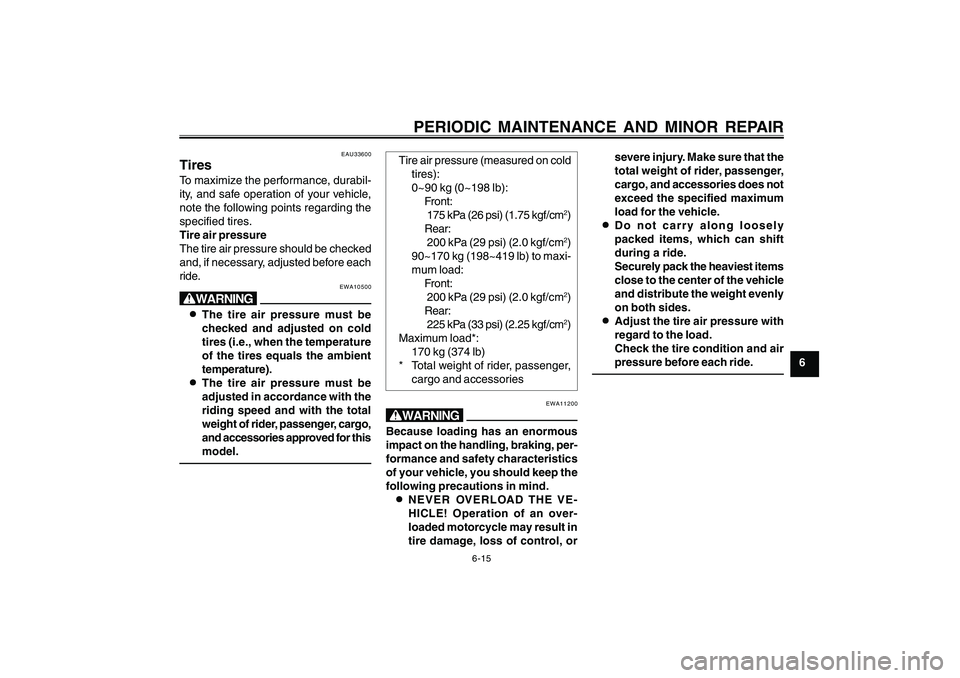

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU33600
TiresTo maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
EWA10500
w8 88 8
8The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
8 88 8
8The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, cargo,
and accessories approved for this
model.
Tire air pressure (measured on cold
tires):
0~90 kg (0~198 lb):
Front:
175 kPa (26 psi) (1.75 kgf/cm
2)
Rear:
200 kPa (29 psi) (2.0 kgf/cm2)
90~170 kg (198~419 lb) to maxi-
mum load:
Front:
200 kPa (29 psi) (2.0 kgf/cm2)
Rear:
225 kPa (33 psi) (2.25 kgf/cm2)
Maximum load*:
170 kg (374 lb)
* Total weight of rider, passenger,
cargo and accessories
EWA11200
wBecause loading has an enormous
impact on the handling, braking, per-
formance and safety characteristics
of your vehicle, you should keep the
following precautions in mind.
8 88 8
8NEVER OVERLOAD THE VE-
HICLE! Operation of an over-
loaded motorcycle may result in
tire damage, loss of control, orsevere injury. Make sure that the
total weight of rider, passenger,
cargo, and accessories does not
exceed the specified maximum
load for the vehicle.
8 88 8
8Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest items
close to the center of the vehicle
and distribute the weight evenly
on both sides.
8 88 8
8Adjust the tire air pressure with
regard to the load.
Check the tire condition and air
pressure before each ride.
5ML-F8199-E0ch6re.pmd2003/12/12, 16:04 15

8-1
1
2
3
4
5
6
7
8
9
SPECIFICATIONS
-20˚ -10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚
SAE 10W-30SAE 10W-40
SAE 20W-40SAE 20W-50
ZAUM00**
EAU26320
SPECIFICATIONS
EAU26335
DimensionsOverall length
1855 mm
Overall width
685 mm
Overall height
1110 mm
Seat height
770 mm
Wheelbase
1295 mm
Ground clearance
110 mm
Minimum turning radius
1900 mmWeightWith oil and fuel
121.0 kgEngineEngine type
Forced air cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
124.0 cm
3
Bore & stroke
52.4 x 57.9 mm
Compression ratio
10.00 :1
Starting system
Electric starter and kickstarter
Lubrication system
Wet sump
Engine oilType
SAE20W40
Recommended engine oil grade
API service SE, SF, SG type or higher
Engine oil quantity
Periodic oil change
0.90 L
Without oil filter element removal
0.90 LFinal transmission oilType
SAE10W30 type SE motor oil
Quantity
0.13 LAir filterAir filter element
Oil-coated paper elementFuelRecommended fuel
Regular unleaded gasoline only
Fuel tank capacity
7.1 L
CarburetorManufacturer
Taiwan KEI HIN
Type x quantity
CVK24 x 1Spark plug(s)Manufacturer/model
NGK / CR7E
Spark plug gap
0.6-0.7 mmClutchClutch type
Dry, centrifugal automaticTransmissionPrimary reduction system
Helical gear
Primary reduction ratio
38/13 (2.923)
Secondary reduction system
Helical gear
Secondary reduction ratio
40 / 12 (3.333)
Transmission type
V-belt automatic
Operation
Centrifugal automatic typeChassisFrame type
Steel tube underbone
Caster angle
27.00 degree
Trail
90.0 mm
5ML-F8199-E0ch8re.pmd2003/12/12, 16:04 1

8-2
1
2
3
4
5
6
7
8
9

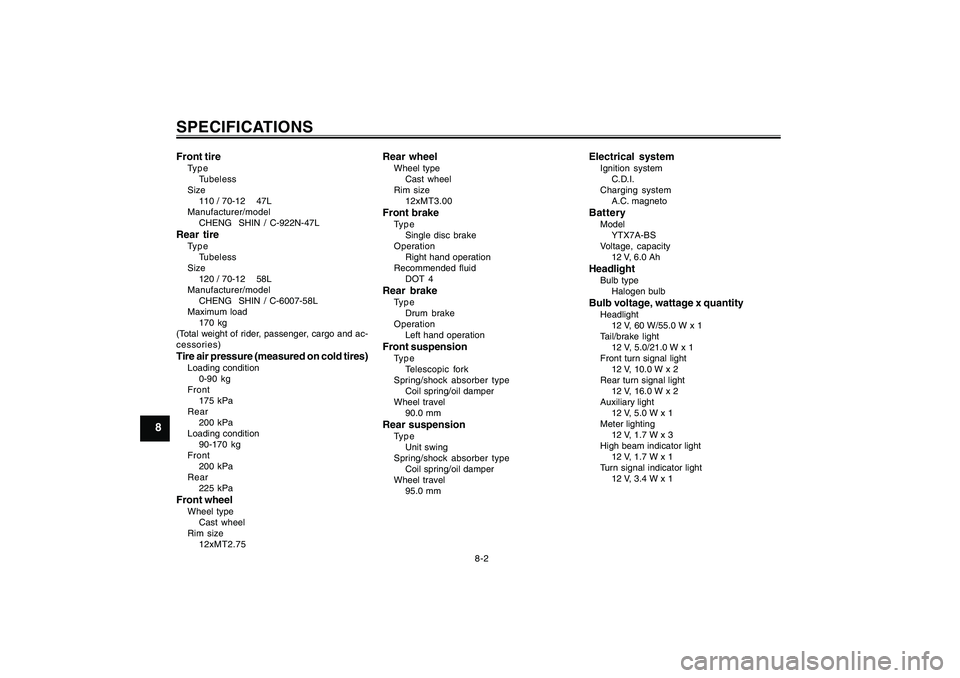

SPECIFICATIONSFront tireType
Tubeless
Size
110 / 70-12 47L
Manufacturer/model
CHENG SHIN / C-922N-47LRear tireType
Tubeless
Size
120 / 70-12 58L
Manufacturer/model
CHENG SHIN / C-6007-58L
Maximum load
170 kg
(Total weight of rider, passenger, cargo and ac-
cessories)Tire air pressure (measured on cold tires)Loading condition
0-90 kg
Front
175 kPa
Rear
200 kPa
Loading condition
90-170 kg
Front
200 kPa
Rear
225 kPaFront wheelWheel type
Cast wheel
Rim size
12xMT2.75
Rear wheelWheel type
Cast wheel
Rim size
12xMT3.00Front brakeType
Single disc brake
Operation
Right hand operation
Recommended fluid
DOT 4Rear brakeType
Drum brake
Operation
Left hand operationFront suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
90.0 mmRear suspensionType
Unit swing
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
95.0 mm
Electrical systemIgnition system
C.D.I.
Charging system
A.C. magnetoBatteryModel
YTX7A-BS
Voltage, capacity
12 V, 6.0 AhHeadlightBulb type
Halogen bulbBulb voltage, wattage x quantityHeadlight
12 V, 60 W/55.0 W x 1
Tail/brake light
12 V, 5.0/21.0 W x 1
Front turn signal light
12 V, 10.0 W x 2
Rear turn signal light
12 V, 16.0 W x 2
Auxiliary light
12 V, 5.0 W x 1
Meter lighting
12 V, 1.7 W x 3
High beam indicator light
12 V, 1.7 W x 1
Turn signal indicator light
12 V, 3.4 W x 1
5ML-F8199-E0ch8re.pmd2003/12/12, 16:04 2
