fuse box YAMAHA CYGNUS 125 2005 Owners Manual

2-2
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10420
Right view1. Front turn signal light(Page6-28)
2. Main fuse(Page:6-25)
3. Headlight(Page:6-26)
4. Centerstand(Page:6-21)
5. Fuse box(Page:6-25)
1
2
3
45
5ML-F8199-E1ch2.pmd2004/10/04, 20:07 2

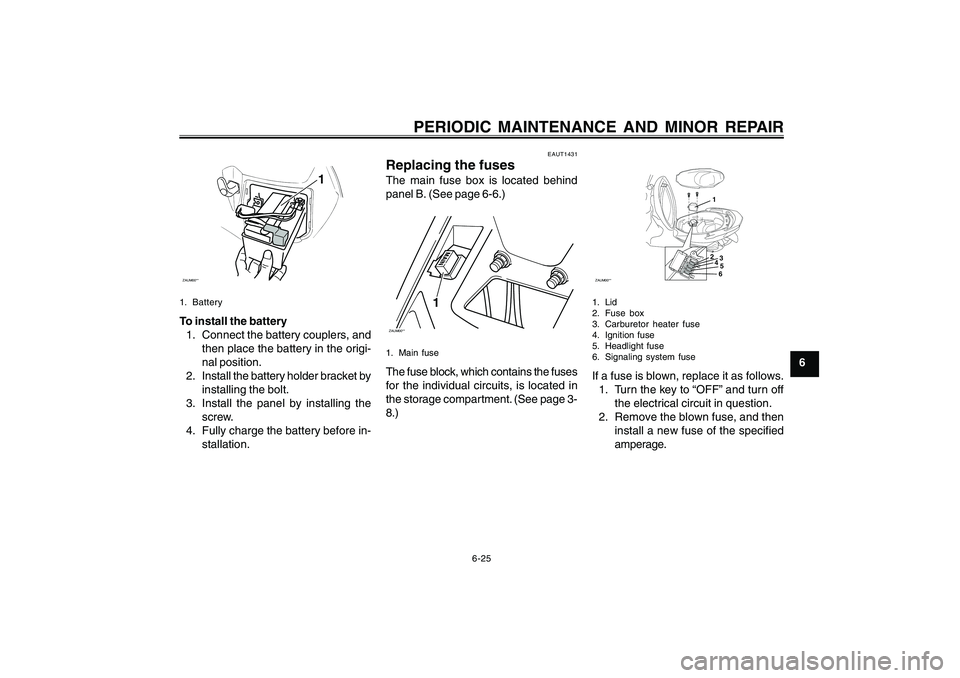

6-25
1
2
3
4
5
6
7
8
9
PERIODIC MAINTENANCE AND MINOR REPAIR
ZAUM00**
1
1. BatteryTo install the battery
1. Connect the battery couplers, and
then place the battery in the origi-
nal position.
2. Install the battery holder bracket by
installing the bolt.
3. Install the panel by installing the
screw.
4. Fully charge the battery before in-
stallation.
EAUT1431
Replacing the fusesThe main fuse box is located behind
panel B. (See page 6-6.)ZAUM00**
1
1. Main fuseThe fuse block, which contains the fuses
for the individual circuits, is located in
the storage compartment. (See page 3-
8.)
ZAUM00**
1
2
3
4
5
6
1. Lid
2. Fuse box
3. Carburetor heater fuse
4. Ignition fuse
5. Headlight fuse
6. Signaling system fuseIf a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
5ML-F8199-E1ch6.pmd2004/10/04, 20:08 25
