YAMAHA CYGNUS 125 2007 User Guide

SAFETY INFORMATION
1-4
1

Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade-
quate ventilation.

Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:

The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes-
trians or children are not likely to
touch these hot areas.

Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.

Do not park the scooter near a
flammable source (e.g., a kero-sene heater, or near an open
flame), otherwise it could catch
fire.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.
EAU10371
Further safe-riding points

Be sure to signal clearly when
making turns.
Left turn
Right turn

Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
ZAUM00**ZAUM00**

SAFETY INFORMATION
1-5
1
Apply the brakes slowly when
stopping on a wet surface.

Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.

Be careful when passing parked
cars. A driver might not see you
and open a door in your path.

Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.

The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.

Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a bright colored jacket.

Do not carry too much luggage on
the scooter. An overloaded scoot-
er is unstable.

SAFETY INFORMATION
1-6
1

2-1
1
2
3
4
5
6
7
8
9

DESCRIPTION
EAU10410

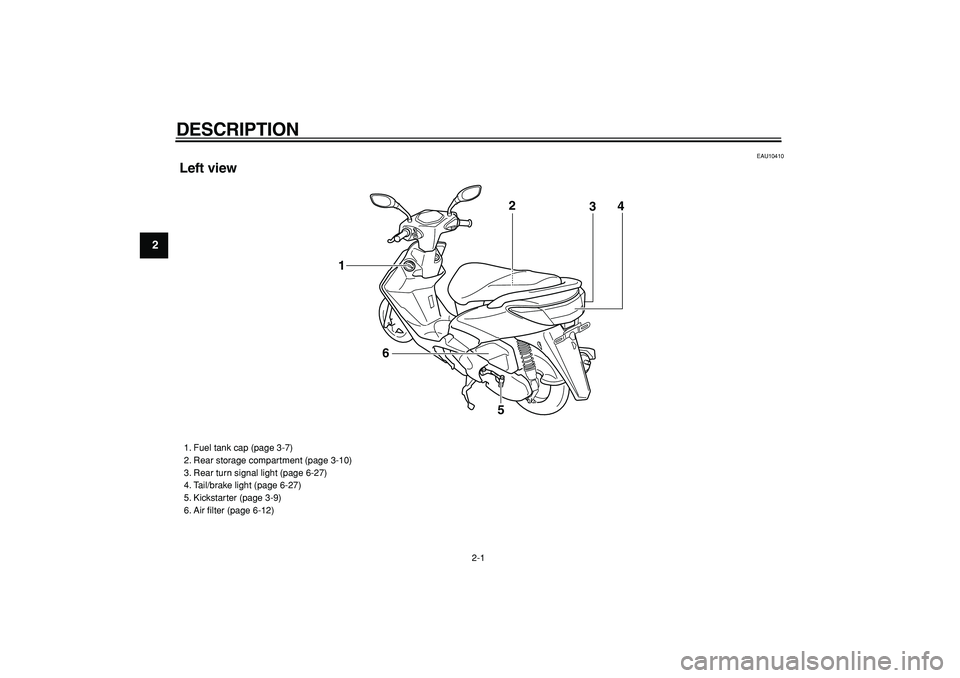

Left view
4
3 2
1
6
5

1. Fuel tank cap (page 3-7)
2. Rear storage compartment (page 3-10)
3. Rear turn signal light (page 6-27)
4. Tail/brake light (page 6-27)
5. Kickstarter (page 3-9)
6. Air filter (page 6-12)

DESCRIPTION
2-2
2
3
4
5
6
7
8
9

EAU10420

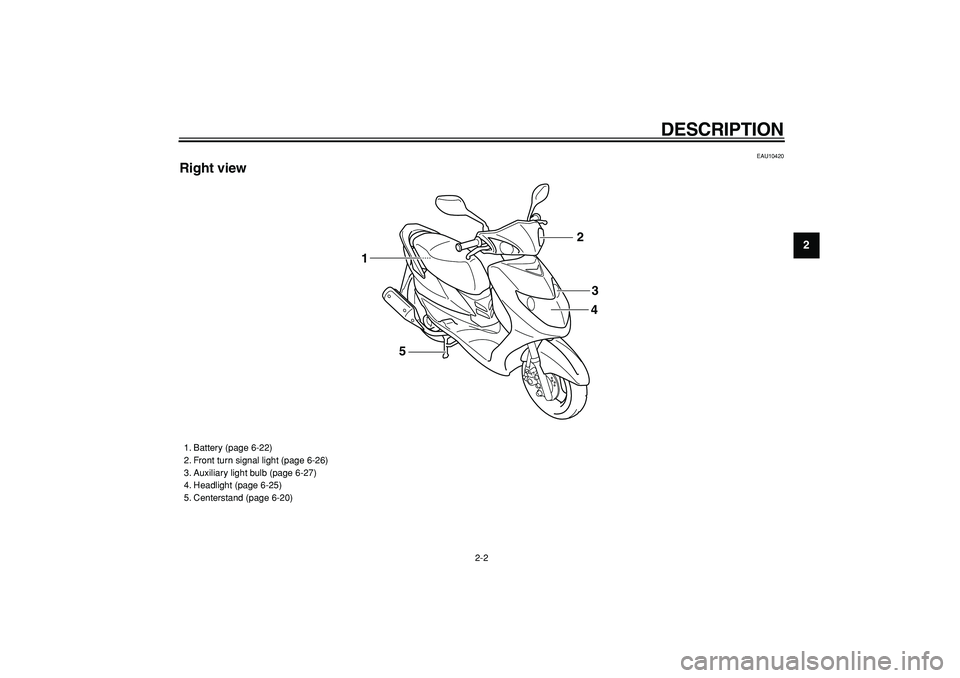

Right view
43 2
1
5

1. Battery (page 6-22)
2. Front turn signal light (page 6-26)
3. Auxiliary light bulb (page 6-27)
4. Headlight (page 6-25)
5. Centerstand (page 6-20)

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430
Controls and instruments
4 3
2
1
5
67

1. Rear brake lever (page 3-7)
2. Left handlebar switches (page 3-5)
3. Speedometer (page 3-3)
4. Multi-function display (page 3-3)
5. Front brake lever (page 3-6)
6. Right handlebar switch (page 3-5)
7. Main switch (page 3-1)

3-1
2
34
5
6
7
8
9

INSTRUMENT AND CONTROL FUNCTIONS
EAUU0061
Main switch
The main switch controls the ignition
and lighting systems. The various main
switch positions are described below.
NOTE:

The main switch is equipped with a key-
hole cover. (See page 3-2.)
EAUT1971
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, and
auxiliary lights come on, and the engine
can be started. The key cannot be re-
moved.
NOTE:

The headlight comes on automaticallywhen the engine is started and stays on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way tothe left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
ZAUM00**

1. Push.
ZAUM00**
1

1. Turn.
2. Release.
12
ZAUM00**

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9sure that the vehicle is stopped be-
fore turning the key to “OFF” or

“LOCK”.
EAUT2111
Keyhole cover
To open the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to the right to open the cover.
To close the keyhole cover
Push the keyhole cover lever inward
and the keyhole cover will close.

EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Keyhole cover lever
ZAUM00**
1

1. High beam indicator light “ ”
2. Turn signal indicator light “ ”
3. Engine trouble warning light “ ”
ZAUM00**
RESET
SELECT
1
2
3

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9

EAUT1930
Engine trouble warning light “”
This warning light flashes when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11601
Speedometer
The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAUT1952
Multi-function display
WARNING

EWA14430
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)
1. Speedometer
ZAUM00**
RESET
SELECT
1
1. Tripmeter
2. Oil change indicator “ ”
3. Odometer
4. Fuel meter
5. “RESET” button
6. “SELECT” button
7. Clock
ZAUM00**
RESET
SELECT
1
2
3
4
5
6
7

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9


a tripmeter (which shows the dis-
tance traveled since it was last set
to zero)

an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)

an oil change indicator (which
flashes when the engine oil should
be changed)

a clock

a fuel meter
NOTE:


When the key is turned to “ON”, all
segments of the display come on
for a few seconds. During this
time, the multi-function display is
performing a self-test.

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
Odometer, tripmeter and oil change
tripmeter modes
Pushing the “SELECT” button switches
the display among the odometer mode
“ODO”, the tripmeter mode “TRIP” and
the oil change tripmeter “OIL CHANGE
TRIP” in the following order:ODO
→
TRIP
→
OIL CHANGE TRIP
→
ODO
Odometer
NOTE:

If the odometer indicates “-----”, have a
Yamaha dealer check the multi-func-
tion display, as it may be faulty.
Tripmeter
To reset the tripmeter, select it by push-
ing the “SELECT” button until “TRIP” is
displayed, and then push the “RESET”
button at least 1 second.
NOTE:

If the tripmeter indicates “-----”, have a
Yamaha dealer check the multi-func-
tion display, as it may be faulty.
Oil change tripmeter
To reset the oil change tripmeter, select
it by pushing the “SELECT” button until
“OIL CHANGE TRIP” is displayed, and
then push the “RESET” button at least
3 seconds. After resetting the oil
change tripmeter, “ODO” will be dis-
played.
NOTE:

If the “SELECT” button is pushed again
or the “SELECT” button hasn’t been
pushed within 10 seconds, the oil
change tripmeter will keep counting
and “ODO” will be displayed.
Oil change indicator
Oil change indicator “”
This indicator flashes at the initial 1000
km (600 mi), then at every 3000 km
(1800 mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset the
oil change tripmeter.
If the engine oil is changed before the
oil change indicator flashes (i.e. before
the periodic oil change interval has
been reached), the oil change tripmeter
must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
NOTE:


If the oil change tripmeter is reset
before the initial 1000 km (600 mi),
the next periodic oil change inter-
