YAMAHA CYGNUS 125 2007 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2007, Model line: CYGNUS 125, Model: YAMAHA CYGNUS 125 2007Pages: 76, PDF Size: 1.38 MB
Page 21 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
val will be at every 3000 km (1800
mi) thereafter.
If the oil change tripmeter indicates
“-----”, have a Yamaha dealer
check the multi-function display,
as it may be faulty.
Clock
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “SELECT” button to set
the hours.
3. Push the “RESET” button, and the
first minute digit will start flashing.
4. Push the “SELECT” button to set
the first minute digit.
5. Push the “RESET” button and the
second minute digit will start flash-
ing.
6. Push the “SELECT” button to set
the second minute digit.
7. Push the “RESET” button and then
release it to start the clock.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When “ ” starts flashing,
refuel as soon as possible. When the
key is turned to “ON”, all of the display
segments of the fuel meter will appear
for a few seconds, and then shown ac-
tual fuel level.
EAU12347
Handlebar switches
Left
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
ZAUM00**
3 1
2

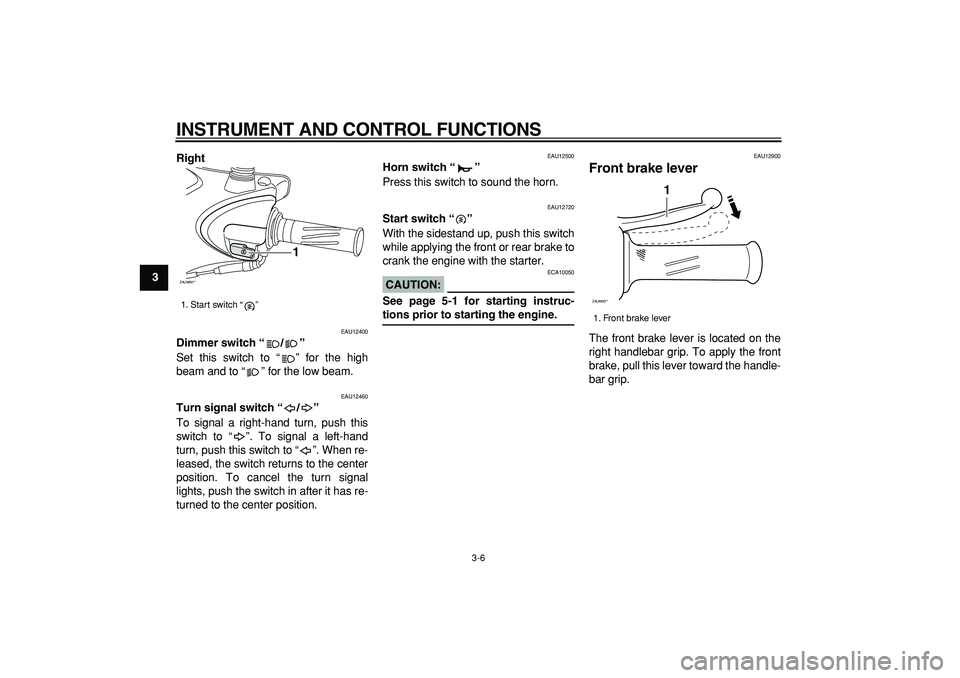

Page 22 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9Right
EAU12400
Dimmer switch “/”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12720
Start switch “”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.
CAUTION:
ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12900
Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
1. Start switch “ ”
ZAUM00**
1
1. Front brake lever
ZAUM00**
1
Page 23 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
EAU12950
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAU13071
Fuel tank cap
To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
NOTE:
The fuel tank cap cannot be closed un-less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11090
Make sure that the fuel tank cap is
properly closed before riding.
1. Rear brake lever
ZAUM00**
1
1. Fuel tank cap lock cover
ZAUM00**
1

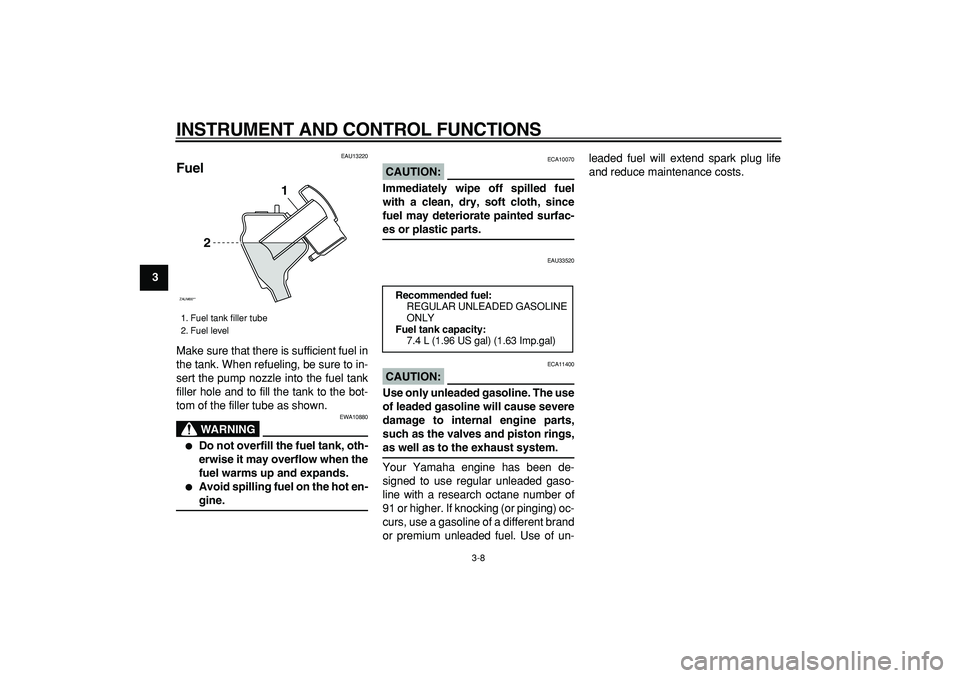

Page 24 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
EAU13220
Fuel
Make sure that there is sufficient fuel in
the tank. When refueling, be sure to in-
sert the pump nozzle into the fuel tank
filler hole and to fill the tank to the bot-
tom of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-
gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts.
EAU33520
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-leaded fuel will extend spark plug life
and reduce maintenance costs.
1. Fuel tank filler tube
2. Fuel level
ZAUM00**
1
2
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
7.4 L (1.96 US gal) (1.63 Imp.gal)
Page 25 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8
9
EAU13441
Catalytic converter
This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idle
too long.
EAU13680
Kickstarter
To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully.
EAUT1502
Seat
To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise
to the first “OPEN” position. If the
main switch is in the “LOCK” posi-
tion, turn the key counterclockwise
to the second “OPEN” position.
NOTE:
Do not push inward when turning the
key from “OFF” to “OPEN” or from
“LOCK” to “OPEN”.
3. Fold the seat up.
1. Kickstarter
ZAUM00**
1
ZAUM00**
Page 26 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.
NOTE:
Make sure that the seat is properly se-
cured before riding.
EAUT1711
Storage compartments
Front storage compartment
WARNING
EWA11190
Do not exceed the load limit of
1.5 kg (3.3 lb) for the front stor-
age compartment.
Do not exceed the maximum
load of 172 kg (379 lb) for the ve-
hicle.Rear storage compartment
The rear storage compartment is locat-
ed under the seat. (See page 3-9.)
CAUTION:
ECAT1030
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compartment
accumulates heat when ex-
posed to the sun, do not store
anything susceptible to heat in-
side it.
To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
1. Front storage compartment
ZAUM00**
1
1. Rear storage compartment
ZAUM00**
1
Page 27 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9 in the compartment.
Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.
Do not keep anything valuable
or breakable in the storage com-
partment.
WARNING
EWAT1050
Do not exceed the load limit of
5 kg (11 lb) for the rear storage
compartment.
Do not exceed the maximum
load of 172 kg (379 lb) for the ve-
hicle.
EAU15301
Sidestand
The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
below and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
1. Sidestand
ZAUM00**
1
Page 28 of 76
INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9
EAUT1091
Sidestand switch operation
check
Check the operation of the sidestand
switch against the information below.
WARNING
EWA10260
The vehicle must be placed on
the centerstand during this in-
spection.
If a malfunction is noted, have a
Yamaha dealer check the sys-
tem before riding.
Turn the key on.
Put the sidestand up.Push the start switch while applying
either of the brake levers. The engine will
start.Put the sidestand down.
If the engine stalls:
The sidestand switch is OK.
Page 29 of 76
4-1
2
3
45
6
7
8
9
PRE-OPERATION CHECKS
EAU15591
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
NOTE:
Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very short
time; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the vehicle.
Page 30 of 76
PRE-OPERATION CHECKS
4-2
1
2
3
4
5
6
7
8
9
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
Fuel
Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-8
Engine oil
Check oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
Final transmission oil
Check vehicle for oil leakage. 6-11
Front brake
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
Rear brake
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-16, 6-17
Throttle grip
Make sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-14, 6-20
Wheels and tires
Check for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-14, 6-16
Brake levers
Make sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-20
