6-8
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
Panel C
To remove the panel
Remove the screws, and then take
the panel off.ZAUM00**
2(✕4)
1
1. Panel C
2. ScrewTo install the panel
Place the panel in the original posi-
tion, and then install the screws.Panel D
To remove the panel
1. Open the seat. (See page 3-10.)
ZAUM00**
2
1
1. Panel D
2. Screw2. Remove the quick fasteners by
pushing in the center pin, and
then take the panel off.
To install the panel
Place the panel in the original posi-
tion, and then install quick fasteners.
EAUT1835
Checking the spark plugThe spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the pe-
riodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Place the vehicle on the center-
stand.
2. Remove panel C. (See page 6-8.)
3. Remove the spark plug cap.
4. Remove the spark plug as
shown, with the spark plug
wrench included in the owner’s
tool kit.
4P9-F8199-E5_CS.indd 6-84P9-F8199-E5_CS.indd 6-8
2011/09/06 14:18:402011/09/06 14:18:40
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-9
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENTZAUM00**
1
1. Spark plug wrenchTo check the spark plug
1. Check that the porcelain insula-
tor around the center electrode
of the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).TIPIf the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for elec-
trode erosion and excessive carbon or other deposits, and re-
place it if necessary.
Speci ed spark plug:
CR7E (NGK)To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to
specifi cation.ZAUM00**
1
1. Spark plug gapSpark plug gap:
0.7 ~ 0.8 mm (0.028 ~ 0.031 in)2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specifi ed torque.Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4 ~
1/2 turn past fi nger tight. However, the
spark plug should be tightened to the
specifi ed torque as soon as possible.
4. Install the spark plug cap.
5. Install the panel.
4P9-F8199-E5_CS.indd 6-94P9-F8199-E5_CS.indd 6-9
2011/09/06 14:18:402011/09/06 14:18:40
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-10
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAUT1352
Engine oil and oil strainerThe engine oil level should be
checked before each ride. In addition,
the oil must be changed and the oil
strainer cleaned at the intervals speci-
fied in the periodic maintenance and
lubrication chart. The engine oil must
also be changed at the initial 1000 km
(600 mi) and when the oil change indi-
cator fl ashes. The oil change tripmeter
must be reset after the initial 1000 km
(600 mi). (See page 3-3 for reset pro-
cedures.)
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil
settles, remove the oil filler cap,
wipe the dipstick clean, insert it
back into the oil fi ller hole (without
screwing it in), and then remove it
again to check the oil level.
TIPThe engine oil should be between the
minimum and maximum level marks.ZAUM00**
12
1. Maximum level mark
2. Minimum level mark4. If the engine oil is below the mini-
mum level mark, add suffi cient oil
of the recommended type to raise
it to the correct level.
5. Insert the dipstick into the oil fi ller
hole, and then tighten the oil fi ller
cap.
To change the engine oil and clean
the oil strainer
1. Start the engine, warm it up for
several minutes, and then turn it off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolts to drain the oil
from the crankcase.
NOTICE:

When removing the engine oil
drain bolt, the O-ring, spring,
and oil strainer will fall out.
Take care not to lose these
parts.
[ECA10411]
ZAUM00**
1
1. Oil fi ller cap
4P9-F8199-E5_CS.indd 6-104P9-F8199-E5_CS.indd 6-10
2011/09/06 14:18:402011/09/06 14:18:40
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-11
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENTZAUM00**
1
1. Engine oil drain bolt AZAUM00**
1
1. Engine oil drain bolt B4. Clean the oil strainer with solvent,
and then check it for damage and
replace it if necessary.
5. Check the O-ring for damage and
replace it if necessary.
6. Install the oil strainer, spring,
O-ring and engine oil drain bolts,
and then tighten the drain bolts to
the specifi ed torque.Tightening torque:
Engine oil drain bolt A:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
Engine oil drain bolt B:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)TIPMake sure that the O-ring is properly
seated.
7. Refi ll with the specifi ed amount of
the recommended engine oil, and
then install and tighten the engine
oil fi ller cap.Recommended engine oil:
See page 8-1.
Oil change quantity:
0.9 L (0.95 US qt, 0.79 Imp.qt)
ECA11670
NOTICE● Do not use oils with a diesel
speci cation of “CD” or oils of
a higher quality than speci ed.
In addition, do not use oils la-
beled “ENERGY CONSERVING
II” or higher.
● Be sure no foreign material en-
ters the crankcase.
8. Start the engine, and then let
it idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the en-
gine off and check for the cause.
9. Turn the engine off, and then
check the oil level and correct it if
necessary.
10. Reset the oil change tripmeter.
(See page 3-3 for reset proce-
dures.)
TIPIf the engine oil is changed before
the oil change indicator flashes (i.e.
before the periodic oil change interval
has been reached), the oil change
tripmeter must be reset after the
oil change for the next periodic oil
change to be indicated at the correct
time.
4P9-F8199-E5_CS.indd 6-114P9-F8199-E5_CS.indd 6-11
2011/09/06 14:18:402011/09/06 14:18:40
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-12
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU20065
Final transmission oilThe final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the fi nal transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm up the fi -
nal transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
ZAUM00**
1
1. Final transmission oil fi ller cap4. Remove the fi nal transmission oil
filler cap and its O-ring from the
fi nal transmission case.
5. Remove the fi nal transmission oil
drain bolt and its gasket to drain
the oil from the fi nal transmission
case.
ZAUM00**
1
1. Final transmission oil drain bolt6. Install the final transmission oil
drain bolt and its new gasket, and
then tighten the bolt to the speci-
fi ed torque.Tightening torque:
Final transmission oil drain bolt:
23 Nm (2.3 m·kgf, 16.6 ft·lbf)7. Refi ll with the specifi ed amount of
the recommended fi nal transmis-
sion oil. WARNING! Make sure
that no foreign material enters
the final transmission case.
Make sure that no oil gets on
the tire or wheel.
[EWA11311]
4P9-F8199-E5_CS.indd 6-124P9-F8199-E5_CS.indd 6-12
2011/09/06 14:18:402011/09/06 14:18:40
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-13
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENTRecommended final transmission
oil:
See page 8-1.
Oil quantity:
0.11 L (0.12 US qt, 0.10 Imp.qt)8. Install the final transmission oil
fi ller cap and its new O-ring, and
then tighten the oil fi ller cap.
9. Check the fi nal transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAUT3120
Air filter and V-belt case air
lter elementsThe air filter and V-belt case air filter
elements should be cleaned at the in-
tervals specifi ed in the periodic main-
tenance and lubrication chart. Check
both filter elements more frequently
if you are riding in unusually wet or
dusty areas. The air fi lter check hoses
must be frequently checked and
cleaned if necessary.
Replacing the air lter element
1. Place the scooter on the center-
stand.2. Remove the air filter case cover
by removing the screws.
ZAUM00**
1
2(✕6)
1. Air fi lter case cover
2. Screw3. Pull the air fi lter element out.
4. Insert a new air fi lter element into
the air fi lter case.
NOTICE:
Make
sure that the air filter element
is properly seated in the air
filter case. The engine should
never be operated without
the air filter element installed,
otherwise the piston(s) and/or
cylinder(s) may become exces-
sively worn.
[ECA10481]
5. Install the air fi lter case cover by
installing the screws.
4P9-F8199-E5_CS.indd 6-134P9-F8199-E5_CS.indd 6-13
2011/09/06 14:18:402011/09/06 14:18:40
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-15
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENTTIPThe air filter element should be wet
but not dripping.Recommended oil:
Yamaha foam air filter oil or other
quality foam air fi lter oil5. Insert the element into the air fi l-
ter case.
6. Install the fi lter element holder by
installing the screw.
7. Install the V-belt air filter case
cover by installing the screws.
EAU21401
Valve clearanceThe valve clearance changes with
use, resulting in improper air-fuel mix-
ture and/or engine noise. To prevent
this from occurring, the valve clear-
ance must be adjusted by a Yamaha
dealer at the intervals specifi ed in the
periodic maintenance and lubrication
chart.
EAU21384
Checking the throttle grip
free playThe throttle grip free play should mea-
sure 3 ~ 5 mm (0.12 ~ 0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha
dealer adjust it.ZAUM00**
1
1. Throttle cable free play
4P9-F8199-E5_CS.indd 6-154P9-F8199-E5_CS.indd 6-15
2011/09/06 14:18:412011/09/06 14:18:41
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-21
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU43641
Lubricating the front and rear
brake leversZAUM00**ZAUM00**
The pivoting points of the front and
rear brake levers must be lubricated
at the intervals specifi ed in the period-
ic maintenance and lubrication chart.
EAU23095
Checking and lubricating the
cablesThe operation of all control cables
and the condition of the cables should
be checked before each ride, and
the cables and cable ends should be
lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it.
WARNING! Damage to the outer
housing of cables may result in
internal rusting and cause inter-
ference with cable movement.
Replace damaged cables as soon
as possible to prevent unsafe
conditions.
[EWA10711]
Recommended lubricant:
Yamaha Chain and Cable Lube or
engine oil
EAU23114
Checking and lubricating the
throttle grip and cableThe operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated by a Yamaha dealer at the inter-
vals specified in the periodic mainte-
nance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cov-
er is securely installed. Even though
the cover is installed correctly, it does
not completely protect the cable from
water entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
4P9-F8199-E5_CS.indd 6-214P9-F8199-E5_CS.indd 6-21
2011/09/06 14:18:412011/09/06 14:18:41
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-31
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAUT1982

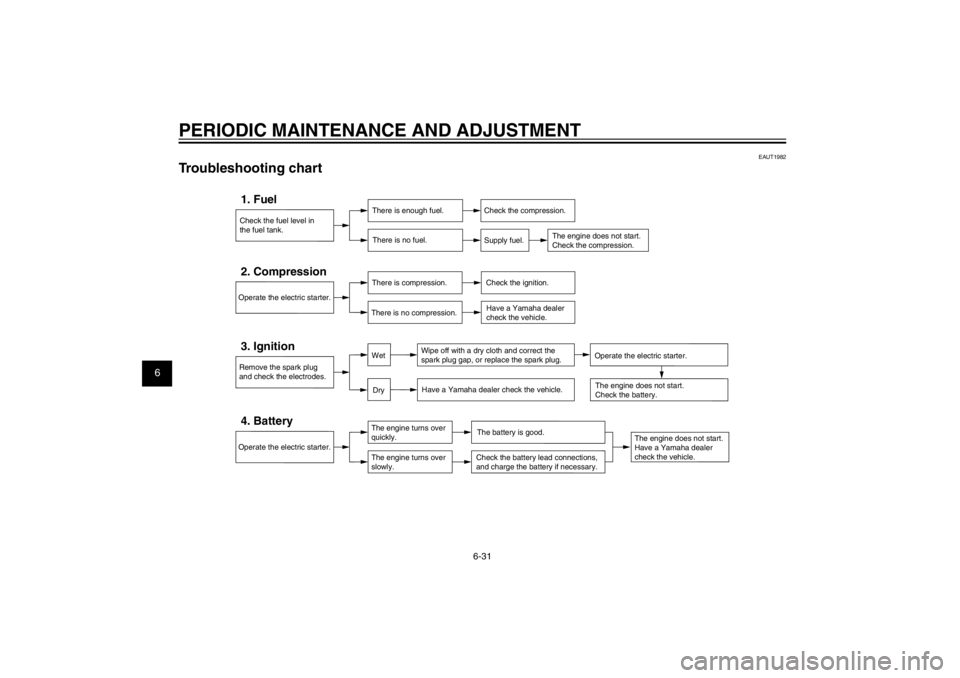

Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
4P9-F8199-E5_CS.indd 6-314P9-F8199-E5_CS.indd 6-31
2011/09/06 14:18:412011/09/06 14:18:41
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
7-4
EAU25991
SCOOTER CARE AND STORAGE
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING!
To prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-gine over.
[EWA10951]
4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then
lift the scooter so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degraded
in one spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool,
dry place and charge it once a
month. Do not store the battery
in an excessively cold or warm
place [less than 0 °C (30 °F) or
more than 30 °C (90 °F)]. For
more information on storing the
battery, see page 6-24.
EAU36563
StorageShort-term
Always store your scooter in a cool,
dry place and, if necessary, protect
it against dust with a porous cover.
Be sure the engine and the exhaust
system are cool before covering the
scooter.
ECA10820
NOTICE● Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.● To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for several
months:
1. Follow all the instructions in the
“Care” section of this chapter.
4P9-F8199-E5_CS.indd 7-44P9-F8199-E5_CS.indd 7-4
2011/09/06 14:18:412011/09/06 14:18:41
Process BlackProcess Black
