EC-03 FEATURES
EAU50470
Features The features of the EC-03 are follow-
ing:
The driving power source is only
electricity and there is no need for
fuel supply or engine oil change.

High performance motor with
greatly reduced noise and vibra-
tion providing a pleasant ride.

Charging the vehicle can be done
via a grounded electrical outlet
with residual-current device (RCD)
protection.
EAU53920
Traveling distance TIPThe distance that can be traveled on a
single charge varies according to the
riding and road conditions.
These conditions include the number of
starts and stops, vehicle load, the
steepness of slopes, road conditions,
wind direction and velocity, ambient
temperature, charging status, de-
creased battery performance, and lowtire air pressure.
Distance traveled on a single
charge
The data in the following chart was
measured at Yamaha Motor Co., Ltd. It
was measured when traveling with a
new battery at an ambient temperature
and vehicle load (total weight of rider
and luggage) as shown below on a dry
road surface in the absence of wind.
TIPThe maximum slope ascending capac-
ity is a gradient of approximately 16%(about 9 degrees).
Because of the battery character,
the riding distance might be re-
1CB-9-EA.book 1 ページ ２０１２年４月１１日　水曜日　午前９時３４分

4-1
1
2
34
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU49983
Beeper The EC-03 informs you of the following
operations and status of the vehicle us-
ing the beeper.
Key in “ON” position

Standby mode (See page 7-2.)

A control button is pushed

Security lock unlocked

Security lock unlock failed

Enters the riding mode (see page
4-6).

Turn signals in use

Battery level is approx. 10% (See
page 3-4.)

Battery charging started
EAU10461
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU50000
ON
All electrical systems are supplied with
power, and the headlight, meter lighting
and taillight come on. The key cannot
be removed.TIPTo protect the battery, the EC-03 is
equipped with an auto-off function. The
power stops automatically if the vehicle
is stopped for more than five minutes.
To cancel the auto-off function, turn the key to “OFF” and then back to “ON”
again.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU10684
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
ON
OFF
LOCK
1CB-9-EA.book 1 ページ ２０１２年４月１１日　水曜日　午前９時３４分

INSTRUMENT AND CONTROL FUNCTIONS
4-4
2
345
6
7
8
9
TIPWhen the vehicle is in the riding mode,
the beeper sounds. The beeper stops
when either brake lever is squeezed orthe vehicle starts moving.
Control buttons
Button 1 “POWER”
Button 2 “SET”
Button 3 “SELECT”
The following operations and settings
are made using these buttons.
Changing from the standby mode
to the riding mode

Switching between the odometer
and the tripmeter

Resetting the tripmeter

Registering or changing the secu-
rity number

Locking and unlocking the security
lock
Speedometer
The speedometer shows the riding
speed.
Tripmeter “Trip”
The tripmeter shows the distance trav- eled since it was last set to zero. To re-
set the tripmeter, push and hold button
3 “SELECT” for a few seconds until
“0.0” is displayed.
Odometer “Odo”
Push button 3 “SELECT” for at least
one second to switch the display to the
odometer.
The odometer shows the total distance
traveled. Use the odometer as a refer-
ence for the intervals between perform-
ing periodic maintenance.
Push button 3 for at least one second to
switch the display to the tripmeter.
Temperature warning display
“HEAT”/“COOL”
The EC-03 is equipped with a tempera-
ture protection function to protect the
battery and control unit.
If a problem is detected, the tripmeter/
odometer display is canceled and
“COOL” or “HEAT” flash.

When the temperature of the bat-
tery or control unit exceeds a spec-
ified temperature, “HEAT” flashes.

When the temperature of the bat-
tery falls below a specified temper-ature, “COOL” flashes.
TIP
When the temperature of the bat-
tery exceeds a specified tempera-
ture, “HEAT” flashes and the
driving power is reduced to limit
the electric output from the battery,
but this is normal.

When the temperature of the bat-
tery falls below a specified temper-
ature, “COOL” flashes and the
driving power is reduced to limit
the electric output from the battery,
but this is normal.

If the vehicle is ridden for an ex-
tended period in high tempera-
tures, “HEAT” may flash and the
riding speed may be reduced.

If the vehicle is ridden after it has
been left in a hot place or under di-
rect sunlight, “HEAT” may flash
and the riding speed may be re-
duced.

If the vehicle is ridden after it has
been left in an excessively cold
place (less than 0
C), “COOL”
may flash and the riding speed
may be reduced.
1CB-9-EA.book 4 ページ ２０１２年４月１１日　水曜日　午前９時３４分

INSTRUMENT AND CONTROL FUNCTIONS
4-8
2
345
6
7
8
9
The display shows that the vehicle
is in the riding mode.
TIP
When the security lock is locked,
after changing to the riding mode,
enter the security number to un- lock the security lock. (See page
7-1 for more information about un-
locking the security lock.)

When the vehicle enters the riding
mode, the beeper sounds. The
beeper stops sounding when ei-
ther brake lever is squeezed or thevehicle starts moving.
3. Press buttons 2 and 3 simulta- neously.
The display changes to the securi-
ty lock registration mode.
Registering the security numberfor the first timeProceed to step 5.
Changing the security number“OLD” and “– – – – –” are dis-
played. 4. Use the buttons to enter the regis-
tered security number.
Proceed to step 5 if the correct se-
curity number is entered.
If an incorrect number is entered,
the beeper sounds, “NG” flashes
1. Button 1 “POWER”
2. Button 2 “SET”
3. Button 3 “SELECT”
12
3
1. Input number indicator “– – – – –”
2. Registered number indicator “OLD”
2
1
1CB-9-EA.book 8 ページ ２０１２年４月１１日　水曜日　午前９時３４分

CHARGING THE BATTERY
6-6
1
2
3
4
56
7
8
9indicator level appears in the dis-
play and the beeper sounds. All in-
dicator segments appear for a few
seconds, and the charging
progress status is shown.
TIP
The battery may be above the
maximum 50 
C suitable for charg-
ing immediately after riding. In this
case, the charger enters a waiting
mode and “HEAT” flashes until the
battery and battery charger reach
the specified temperature. Charg-
ing then starts automatically.

If ambient temperature is below –5
 C, “COOL” flashes and the vehi-
cle enters a waiting mode until the
battery and battery charger reach
the specified temperature. Charg-
ing then starts automatically.

If the battery is already fully
charged when the charging plug is
plugged in, the display will show
the fully charged status for a few
minutes and then go off. The bat-
tery charger will not charge thebattery further.
10. The battery charging status can be checked in the display. (See page
6-9 for more information about the
charging status display.)
11. Charging can be stopped or re- started by unplugging or plugging
in the charging plug.
TIP
Only the battery level indicator ap-
1. Temperature indicator “HEAT”
1
1. Temperature indicator “COOL”
1
1CB-9-EA.book 6 ページ ２０１２年４月１１日　水曜日　午前９時３４分

OPERATION AND IMPORTANT RIDING POINTS
7-2
1
2
3
4
5
67
8

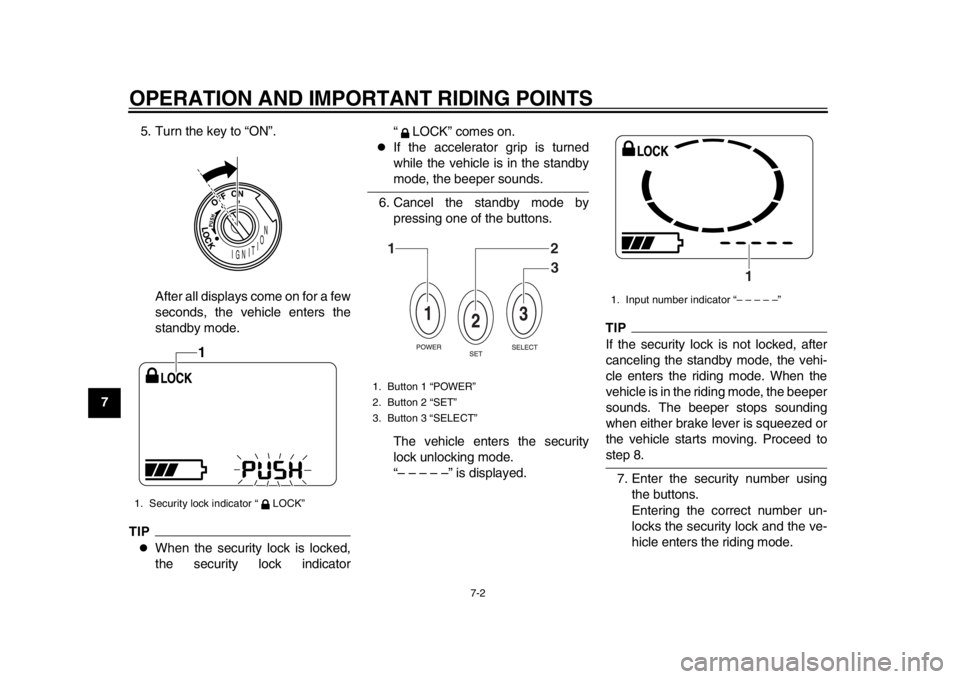

95. Turn the key to “ON”.
After all displays come on for a few
seconds, the vehicle enters the
standby mode.
TIP
When the security lock is locked,
the security lock indicator “ LOCK” comes on.

If the accelerator grip is turned
while the vehicle is in the standbymode, the beeper sounds.
6. Cancel the standby mode by pressing one of the buttons.
The vehicle enters the security
lock unlocking mode.
“– – – – –” is displayed.
TIPIf the security lock is not locked, after
canceling the standby mode, the vehi-
cle enters the riding mode. When the
vehicle is in the riding mode, the beeper
sounds. The beeper stops sounding
when either brake lever is squeezed or
the vehicle starts moving. Proceed tostep 8.
7. Enter the security number using the buttons.
Entering the correct number un-
locks the security lock and the ve-
hicle enters the riding mode.
1. Security lock indicator “ LOCK”
1
1. Button 1 “POWER”
2. Button 2 “SET”
3. Button 3 “SELECT”
12
3
1. Input number indicator “– – – – –”
1
1CB-9-EA.book 2 ページ ２０１２年４月１１日　水曜日　午前９時３４分

OPERATION AND IMPORTANT RIDING POINTS
7-3
2
3
4
5
678
9
TIPWhen the vehicle enters the riding
mode, the beeper sounds. The beeper
stops sounding when either brake lever
is squeezed or the vehicle starts mov-ing.

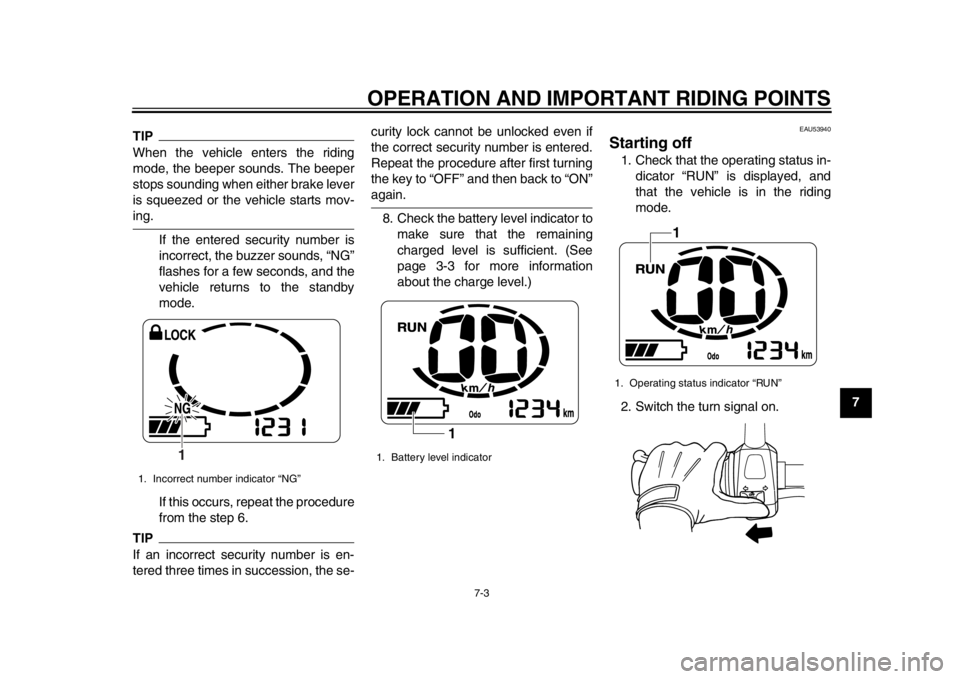

If the entered security number is
incorrect, the buzzer sounds, “NG”
flashes for a few seconds, and the
vehicle returns to the standby
mode.
If this occurs, repeat the procedure
from the step 6.TIPIf an incorrect security number is en-
tered three times in succession, the se- curity lock cannot be unlocked even if
the correct security number is entered.
Repeat the procedure after first turning
the key to “OFF” and then back to “ON”
again.
8. Check the battery level indicator to make sure that the remaining
charged level is sufficient. (See
page 3-3 for more information
about the charge level.)
EAU53940
Starting off 1. Check that the operating status in-dicator “RUN” is displayed, and
that the vehicle is in the riding
mode.
2. Switch the turn signal on.
1. Incorrect number indicator “NG”
1
1. Battery level indicator
1
1. Operating status indicator “RUN”
1
1CB-9-EA.book 3 ページ ２０１２年４月１１日　水曜日　午前９時３４分

OPERATION AND IMPORTANT RIDING POINTS
7-4
1
2
3
4
5
67
8
9
TIPThe beeper sounds while the turn sig-nal switch is signaling.3. Check in front of and behind the vehicle to make sure that it is safe
to start off.
4. Release the rear brake lever.
5. Check for oncoming traffic, and then slowly turn the accelerator
grip in order to start off.
6. Push the turn signal switch to can- cel the turn signals.TIPTo protect the battery, the EC-03 is
equipped with an auto-off function. The
power stops automatically if the vehicle
is stopped for more than five minutes. To restart the vehicle after the vehicle
has been stopped for more than five
minutes, turn the key to “OFF” and then
back to “ON” again.
EAU50111

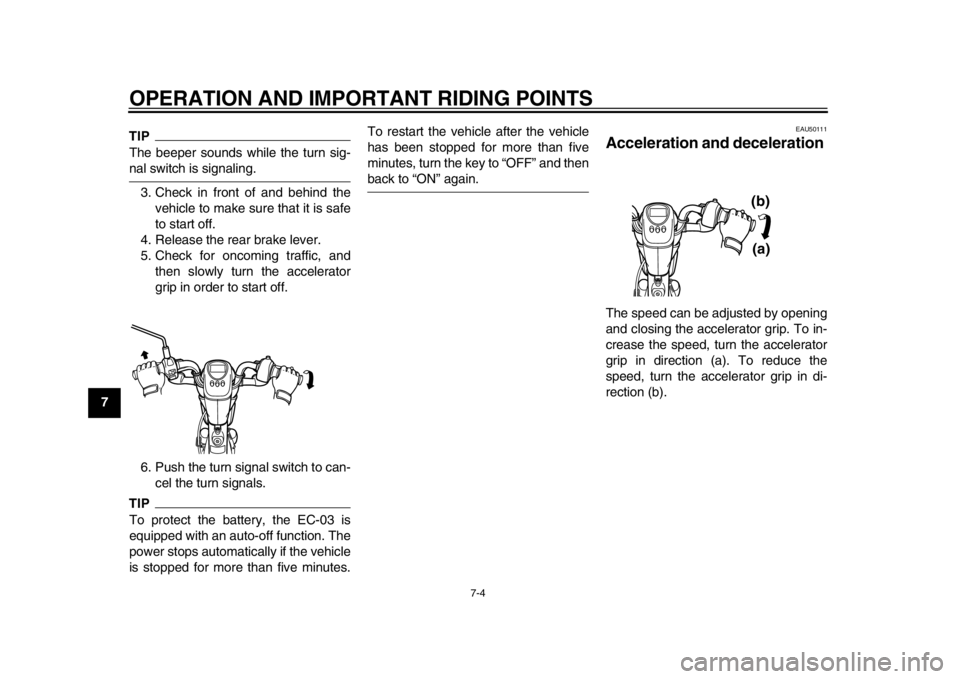

Acceleration and deceleration The speed can be adjusted by opening
and closing the accelerator grip. To in-
crease the speed, turn the accelerator
grip in direction (a). To reduce the
speed, turn the accelerator grip in di-
rection (b).
(a)
(b)
1CB-9-EA.book 4 ページ ２０１２年４月１１日　水曜日　午前９時３４分

PERIODIC MAINTENANCE AND ADJUSTMENT
8-16
2
3
4
5
6
789
NOTICE
ECA11982
Do not use a bulb of a wattage other
than specified to avoid causing ex-
tensive damage to the electrical sys-tem and possibly a fire.
The motor stops while riding
Check the following:1. Is the battery sufficiently charged? Check the battery level indicator. If
the remaining charge is insuffi-
cient, charge the battery before
continuing to ride.
2. Is “HEAT” flashing and did “RUN” go off?
The temperature protection func- tion has been activated. Turn the
key to “OFF”, and allow the vehicle
to cool down before continuing to
ride.
After checking the above, if the motor
still does not run, have a Yamaha deal-
er check the vehicle.
WARNING
EWA15631
Before pushing or moving the
EC-03, be sure to turn the key to
“OFF”. The vehicle may suddenly
start to move if the accelerator grip
is turned while the key is turned to“ON”.
The display and headlight go off
when the key is turned to “ON”
Check the following: 1. Has the vehicle been stopped for more than five minutes?
To protect the battery, the EC-03 is
equipped with an auto-off function.
If the vehicle has been stopped for
more than five minutes, the power
is cut to save the battery charge.
2. Is the battery sufficiently charged? If the remaining charge is insuffi- cient, charge the battery before
continuing to ride.
After checking the above, turn the key
to “ON” again. If the display and head-
light do not come on, have a Yamaha
dealer check the vehicle.
WARNING
EWA15631
Before pushing or moving the
EC-03, be sure to turn the key to
“OFF”. The vehicle may suddenly
start to move if the accelerator grip
is turned while the key is turned to“ON”.
The security lock cannot be un-
locked
If an incorrect security number is en-
tered three times in succession, the se-
curity lock cannot be unlocked even if
the correct security number is entered
after that.
Turn the key to “OFF” and then back to
“ON”, then try entering the correct se-
curity number again.
1. Temperature indicator “HEAT”
1
1CB-9-EA.book 16 ページ ２０１２年４月１１日　水曜日　午前９時３４分

PERIODIC MAINTENANCE AND ADJUSTMENT
8-17
1
2
3
4
5
6
78
9The warning light comes on, and
“CHG” and the warning mark “ ”
flash during charging
If a problem occurs during charging, the
charging automatically stops. The
warning light comes on and both “CHG”
and the warning mark “ ” flash.
TIPIf this continues for five minutes, the
warning light goes off, along with all in-dicators in the display.
Unplug the charging plug from the out-
let to stop charging, and then start
charging again after waiting a few min- utes. If charging automatically stops
again, there may be a malfunction with
the vehicle. Stop charging and have a
Yamaha dealer check the vehicle.
When the key is turned to “ON”, the
warning light comes on and both
“CHG” and the warning mark “ ”
flash in the display
The battery is not charged properly.
Turn the key “OFF” and then back to
“ON” in order to reset charging. Turn
the key to “OFF” and then charge the
battery again.
After charging, if the above still occurs,there may be a malfunction with the ve-
hicle. Have a Yamaha dealer check the
vehicle.
“– – – – –” flashes in the display
during charging
If the battery voltage is below the spec-
ified level, the display shows this indi-
cator. Continue charging.
If the warning light comes on and both
“CHG” and “ ” flash in the display af-
ter charging for one hour, there may be
a malfunction with the vehicle. Have a
Yamaha dealer check the vehicle.1. Warning light
2. Battery condition indicator “CHG”
3. Warning mark “ ”
3
2
1
1. Warning light
2. Battery condition indicator “CHG”
3. Warning mark “ ”
3
2
1
1. Charging error indicator “– – – – –”
1
1CB-9-EA.book 17 ページ ２０１２年４月１１日　水曜日　午前９時３４分
