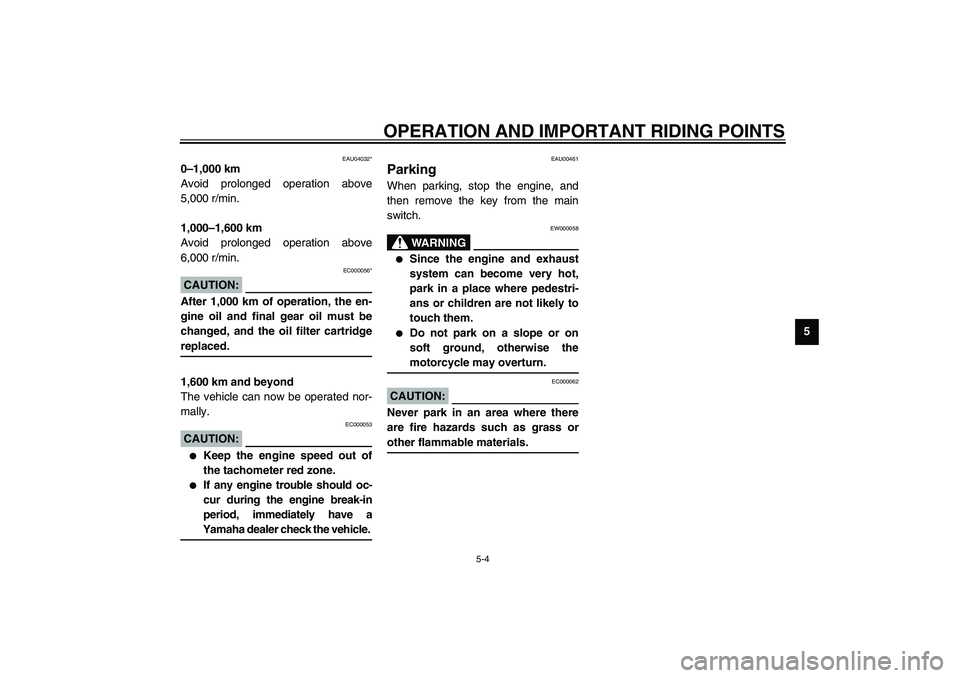

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU04032*
0–1,000 km
Avoid prolonged operation above
5,000 r/min.
1,000–1,600 km
Avoid prolonged operation above
6,000 r/min.
EC000056*
CAUTION:_ After 1,000 km of operation, the en-
gine oil and final gear oil must be
changed, and the oil filter cartridge
replaced. _1,600 km and beyond
The vehicle can now be operated nor-
mally.
EC000053
CAUTION:_

Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehicle.
_
EAU00461
Parking When parking, stop the engine, and
then remove the key from the main
switch.
EW000058
WARNING
_

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on
soft ground, otherwise the
motorcycle may overturn.
_
EC000062
CAUTION:_ Never park in an area where there
are fire hazards such as grass or
other flammable materials. _
U5JWE2.book Page 4 Wednesday, November 6, 2002 3:32 PM

U5JWE2.book Page 5 Wednesday, November 6, 2002 3:32 PM

6

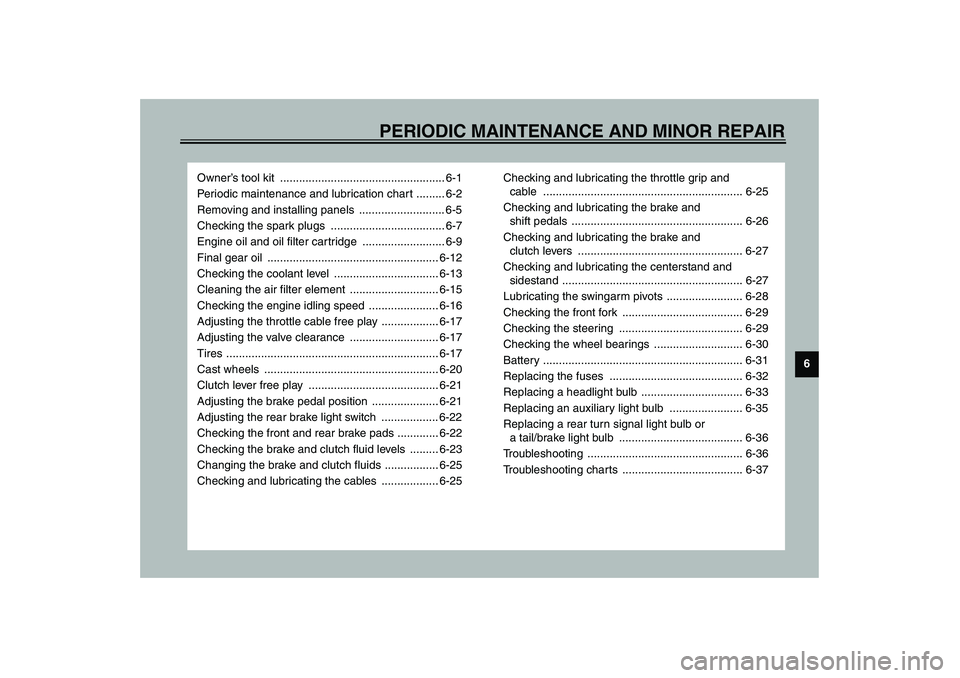

PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing panels ........................... 6-5
Checking the spark plugs .................................... 6-7
Engine oil and oil filter cartridge .......................... 6-9
Final gear oil ...................................................... 6-12
Checking the coolant level ................................. 6-13
Cleaning the air filter element ............................ 6-15
Checking the engine idling speed ...................... 6-16
Adjusting the throttle cable free play .................. 6-17
Adjusting the valve clearance ............................ 6-17
Tires ................................................................... 6-17
Cast wheels ....................................................... 6-20
Clutch lever free play ......................................... 6-21
Adjusting the brake pedal position ..................... 6-21
Adjusting the rear brake light switch .................. 6-22
Checking the front and rear brake pads ............. 6-22
Checking the brake and clutch fluid levels ......... 6-23
Changing the brake and clutch fluids ................. 6-25
Checking and lubricating the cables .................. 6-25Checking and lubricating the throttle grip and
cable ............................................................... 6-25
Checking and lubricating the brake and
shift pedals ...................................................... 6-26
Checking and lubricating the brake and
clutch levers .................................................... 6-27
Checking and lubricating the centerstand and
sidestand ......................................................... 6-27
Lubricating the swingarm pivots ........................ 6-28
Checking the front fork ...................................... 6-29
Checking the steering ....................................... 6-29
Checking the wheel bearings ............................ 6-30
Battery ............................................................... 6-31
Replacing the fuses .......................................... 6-32
Replacing a headlight bulb ................................ 6-33
Replacing an auxiliary light bulb ....................... 6-35
Replacing a rear turn signal light bulb or
a tail/brake light bulb ....................................... 6-36
Troubleshooting ................................................. 6-36
Troubleshooting charts ...................................... 6-37
U5JWE2.book Page 1 Wednesday, November 6, 2002 3:32 PM

6-1
6
EAU00462

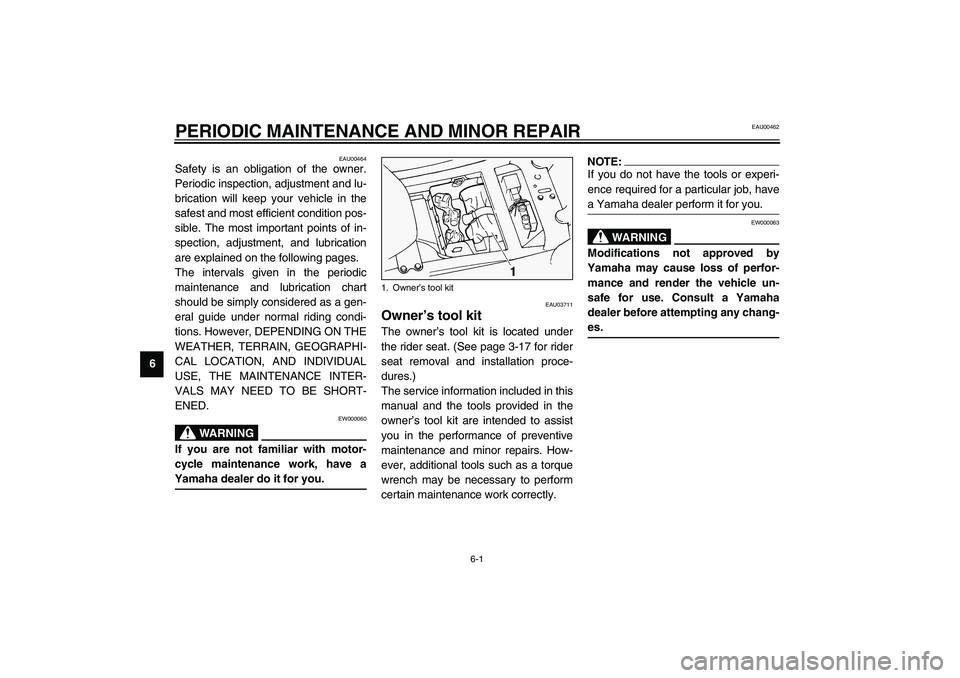

6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
EW000060
WARNING
_ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. _
EAU03711
Owner’s tool kit The owner’s tool kit is located under
the rider seat. (See page 3-17 for rider
seat removal and installation proce-
dures.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:_ If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you. _
EW000063
WARNING
_ Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es. _
1. Owner’s tool kit
U5JWE2.book Page 1 Wednesday, November 6, 2002 3:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685

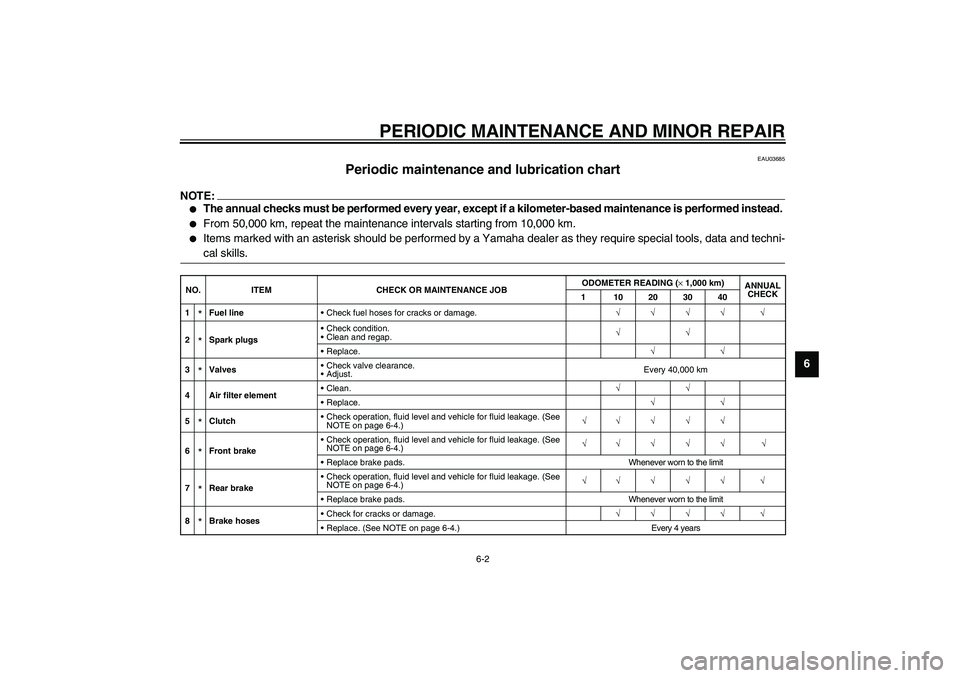

Periodic maintenance and lubrication chart
NOTE:_

The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.


From 50,000 km, repeat the maintenance intervals starting from 10,000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×
1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line
Check fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40,000 km
4 Air filter elementClean.√√
Replace.√√
5*ClutchCheck operation, fluid level and vehicle for fluid leakage. (See
NOTE on page 6-4.)√√ √ √ √
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage. (See
NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage. (See
NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. (See NOTE on page 6-4.) Every 4 years
U5JWE2.book Page 2 Wednesday, November 6, 2002 3:32 PM

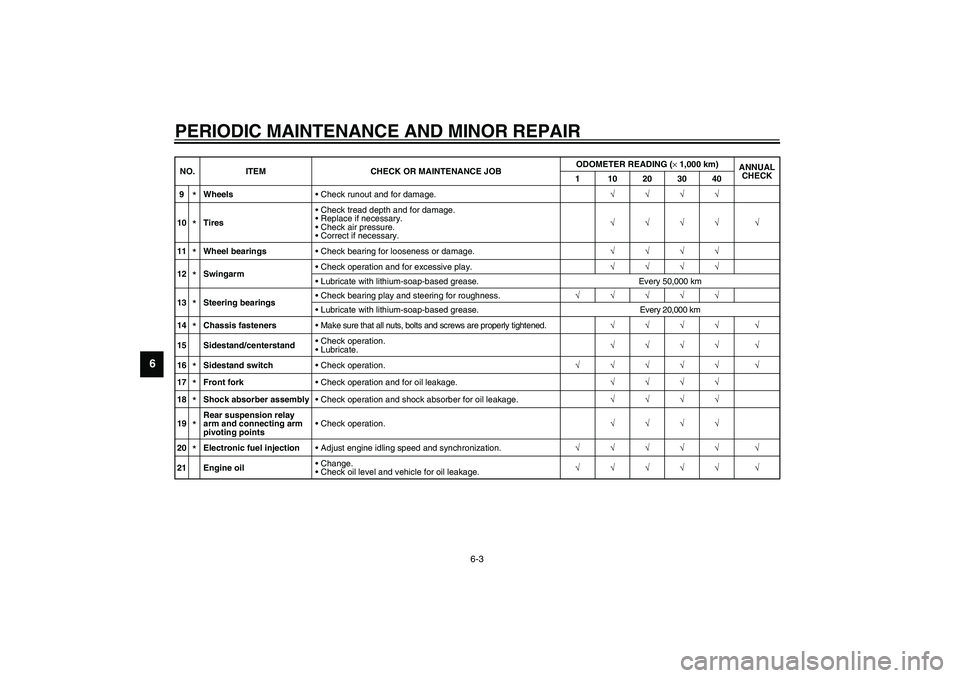

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
9
*Wheels
Check runout and for damage.√√√√
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearings
Check bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
13*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20,000 km
14*Chassis fasteners
Make sure that all nuts, bolts and screws are properly tightened.√√√√ √
15 Sidestand/centerstandCheck operation.
Lubricate.√√√√ √
16*Sidestand switch
Check operation.√√√√√ √
17*Front fork
Check operation and for oil leakage.√√√√
18*Shock absorber assembly
Check operation and shock absorber for oil leakage.√√√√
19*Rear suspension relay
arm and connecting arm
pivoting pointsCheck operation.√√√√
20*Electronic fuel injection
Adjust engine idling speed and synchronization.√√√√√ √
21 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×
1,000 km)
ANNUAL
CHECK
1 10203040
U5JWE2.book Page 3 Wednesday, November 6, 2002 3:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU04408

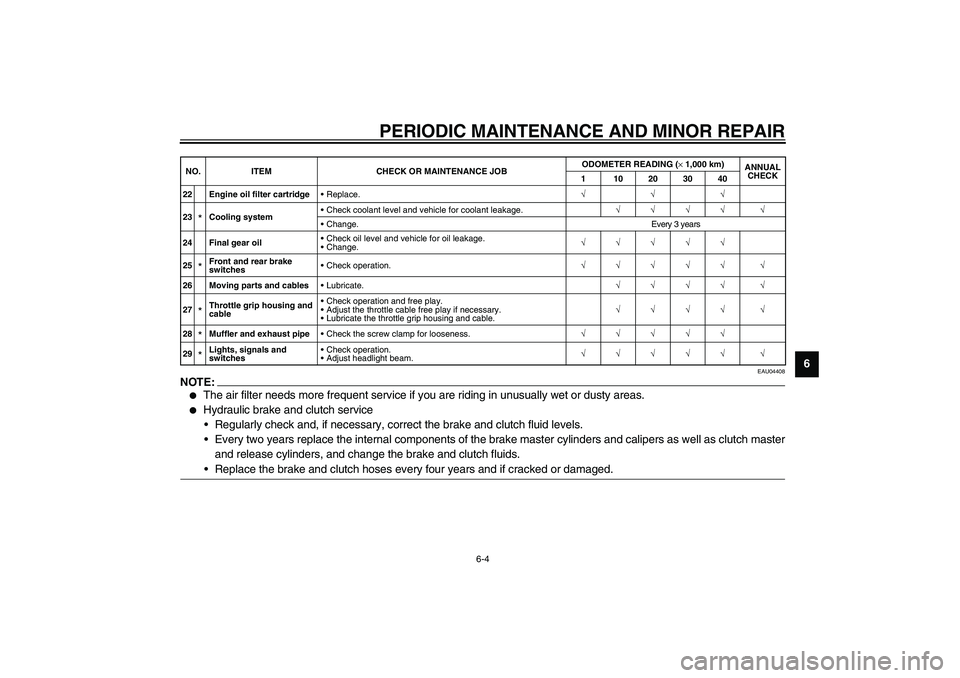

NOTE:_

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.
Replace the brake and clutch hoses every four years and if cracked or damaged.
_22 Engine oil filter cartridge
Replace.√√√
23
*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change.Every 3 years
24 Final gear oilCheck oil level and vehicle for oil leakage.
Change.√√√√√
25*Front and rear brake
switchesCheck operation.√√√√√ √
26 Moving parts and cables
Lubricate.√√√√ √
27*Throttle grip housing and
cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
28*Muffler and exhaust pipe
Check the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×
1,000 km)
ANNUAL
CHECK
1 10203040
U5JWE2.book Page 4 Wednesday, November 6, 2002 3:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU01122

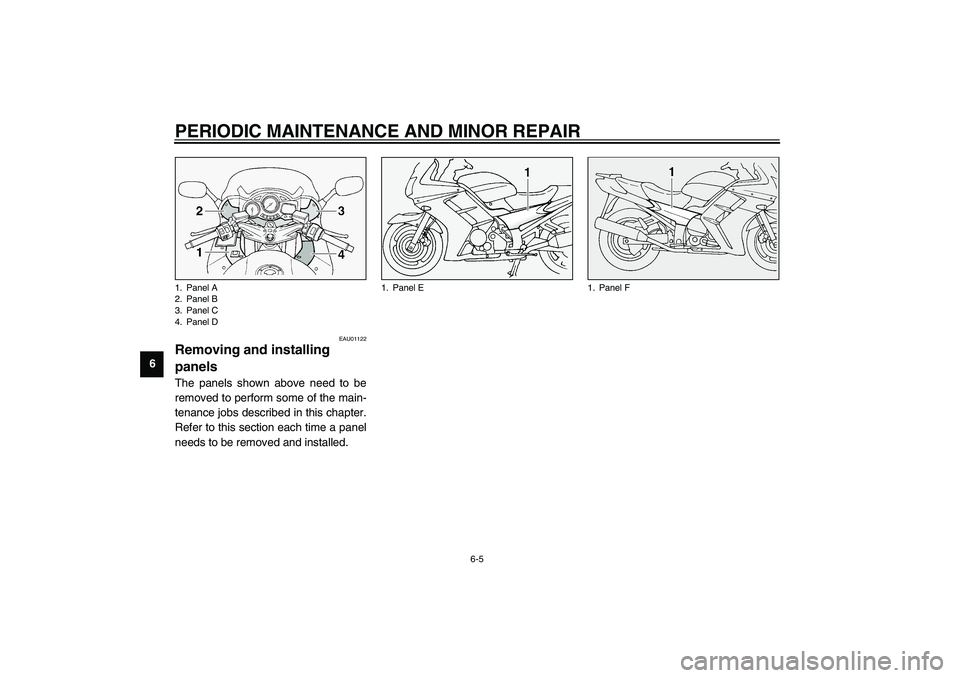

Removing and installing
panels The panels shown above need to be
removed to perform some of the main-
tenance jobs described in this chapter.
Refer to this section each time a panel
needs to be removed and installed.1. Panel A
2. Panel B
3. Panel C
4. Panel D
1. Panel E
1. Panel F
U5JWE2.book Page 5 Wednesday, November 6, 2002 3:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU04061

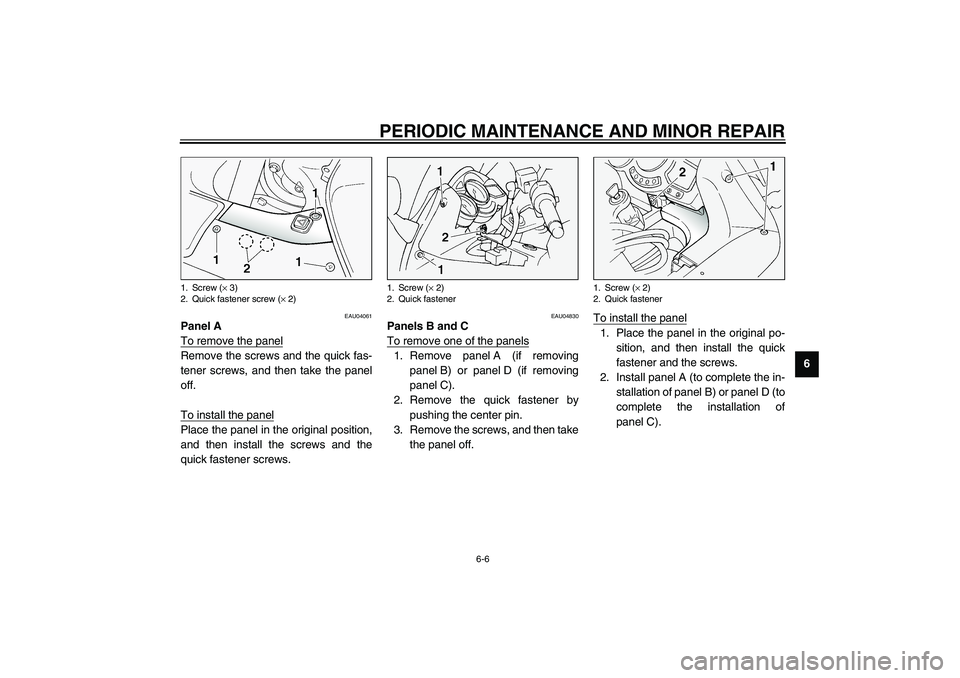

Panel A
To remove the panelRemove the screws and the quick fas-
tener screws, and then take the panel
off.
To install the panelPlace the panel in the original position,
and then install the screws and the
quick fastener screws.
EAU04830
Panels B and C
To remove one of the panels1. Remove panel A (if removing
panel B) or panel D (if removing
panel C).
2. Remove the quick fastener by
pushing the center pin.
3. Remove the screws, and then take
the panel off.To install the panel
1. Place the panel in the original po-
sition, and then install the quick
fastener and the screws.
2. Install panel A (to complete the in-
stallation of panel B) or panel D (to
complete the installation of
panel C).
1. Screw (× 3)
2. Quick fastener screw (× 2)
1. Screw (× 2)
2. Quick fastener
1. Screw (× 2)
2. Quick fastener
U5JWE2.book Page 6 Wednesday, November 6, 2002 3:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU01315

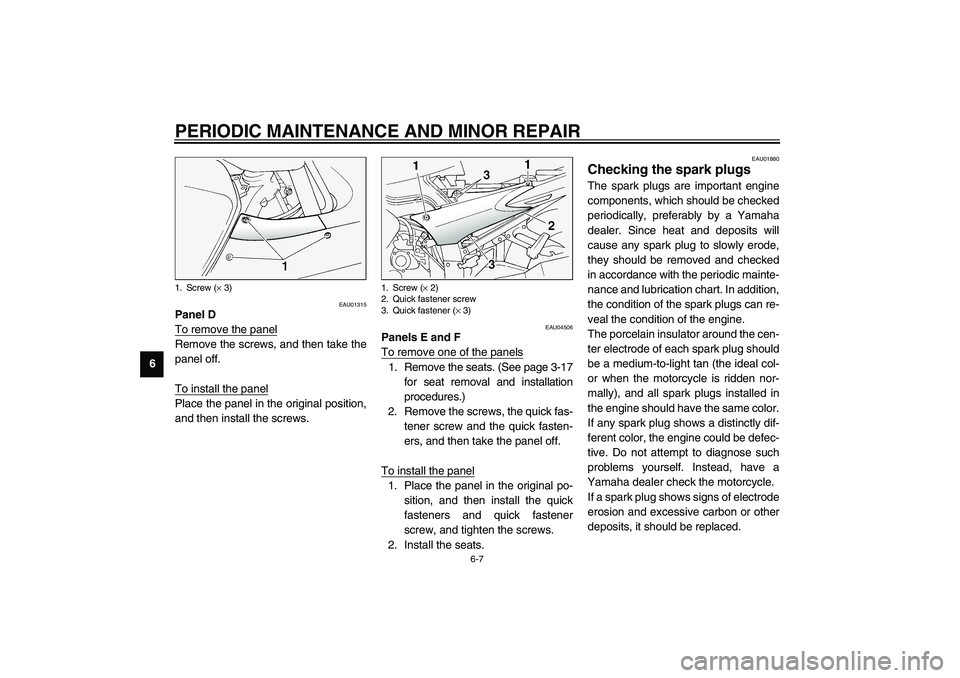

Panel D
To remove the panelRemove the screws, and then take the
panel off.
To install the panelPlace the panel in the original position,
and then install the screws.
EAU04506
Panels E and F
To remove one of the panels1. Remove the seats. (See page 3-17
for seat removal and installation
procedures.)
2. Remove the screws, the quick fas-
tener screw and the quick fasten-
ers, and then take the panel off.
To install the panel1. Place the panel in the original po-
sition, and then install the quick
fasteners and quick fastener
screw, and tighten the screws.
2. Install the seats.
EAU01880
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal col-
or when the motorcycle is ridden nor-
mally), and all spark plugs installed in
the engine should have the same color.
If any spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the motorcycle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Screw (× 3)
1. Screw (× 2)
2. Quick fastener screw
3. Quick fastener (× 3)
U5JWE2.book Page 7 Wednesday, November 6, 2002 3:32 PM
