INSTRUMENT AND CONTROL FUNCTIONS
3-7

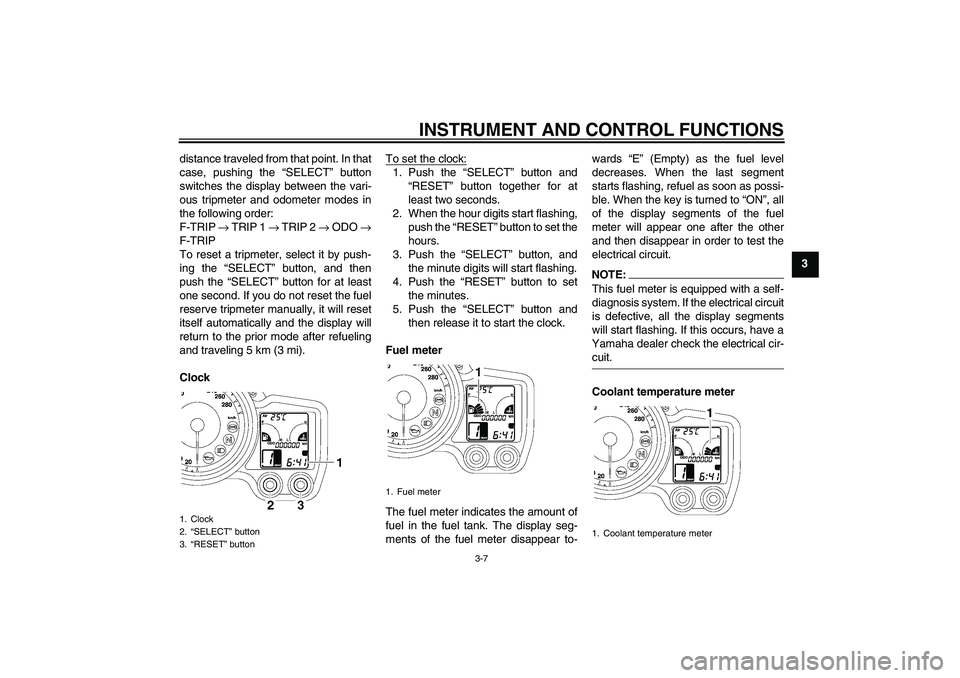

3 distance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
F-TRIP → TRIP 1 → TRIP 2 → ODO →
F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “SELECT” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
ClockTo set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble. When the key is turned to “ON”, all
of the display segments of the fuel
meter will appear one after the other
and then disappear in order to test the
electrical circuit.
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, all the display segments
will start flashing. If this occurs, have a
Yamaha dealer check the electrical cir-cuit.
Coolant temperature meter
1. Clock
2.“SELECT” button
3.“RESET” button
1. Fuel meter
1. Coolant temperature meter
U3P6E0E0.book Page 7 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8

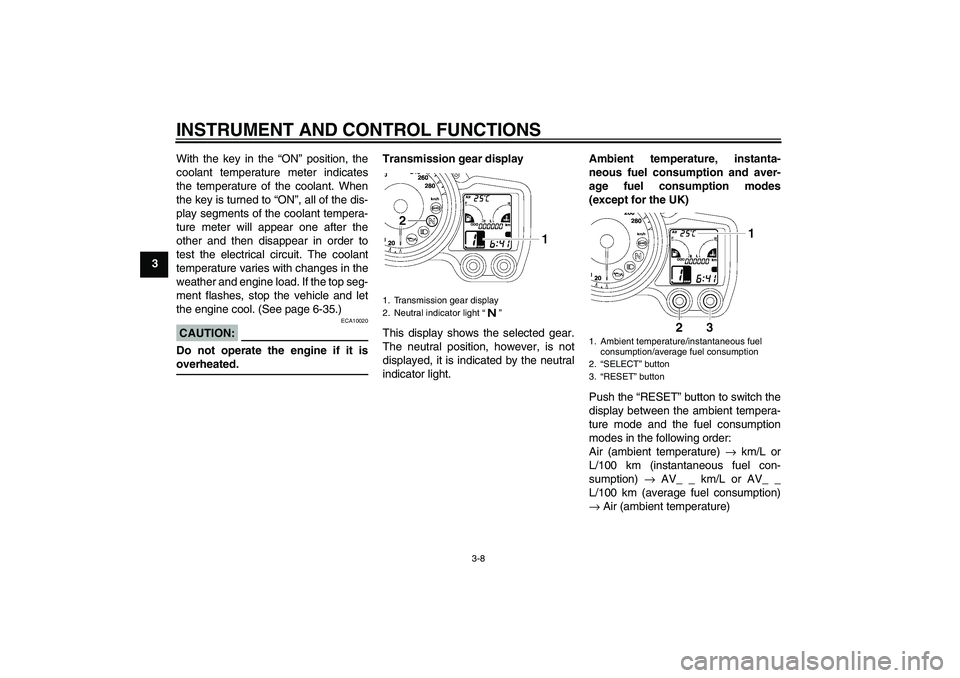

3With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. When
the key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-35.)
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the “RESET” button to switch the
display between the ambient tempera-
ture mode and the fuel consumption
modes in the following order:
Air (ambient temperature) → km/L or
L/100 km (instantaneous fuel con-
sumption) → AV_ _ km/L or AV_ _
L/100 km (average fuel consumption)
→ Air (ambient temperature)
1. Transmission gear display
2. Neutral indicator light “”
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2.“SELECT” button
3.“RESET” button
U3P6E0E0.book Page 8 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9

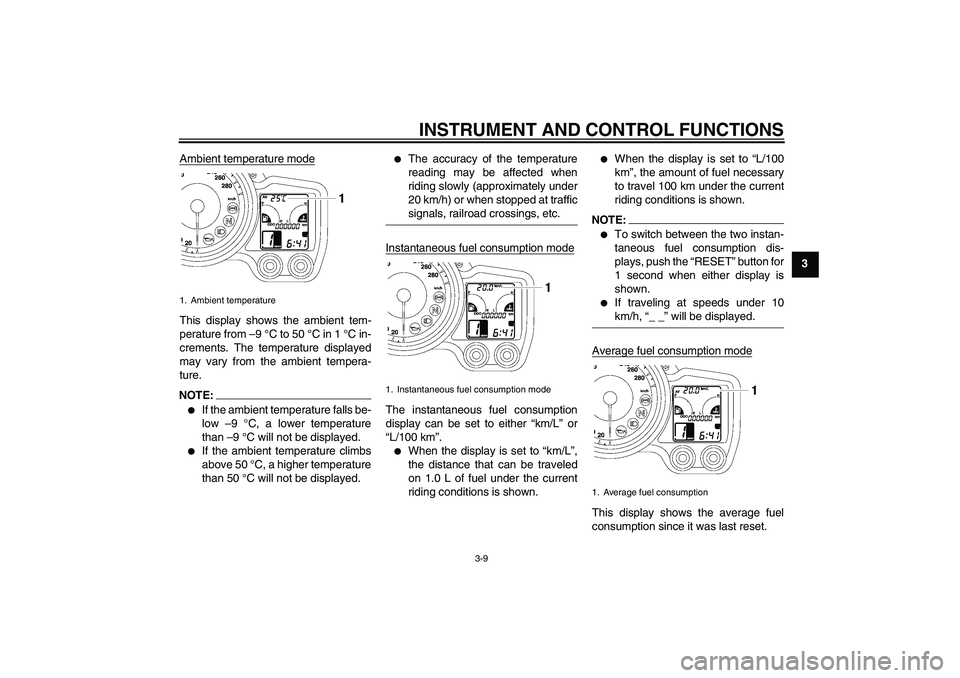

3 Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.NOTE:

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at trafficsignals, railroad crossings, etc.
Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”.

When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.


When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
NOTE:

To switch between the two instan-
taneous fuel consumption dis-
plays, push the “RESET” button for
1 second when either display is
shown.


If traveling at speeds under 10km/h, “_ _” will be displayed.
Average fuel consumption mode
This display shows the average fuel
consumption since it was last reset.
1. Ambient temperature
1. Instantaneous fuel consumption mode
1. Average fuel consumption
U3P6E0E0.book Page 9 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10

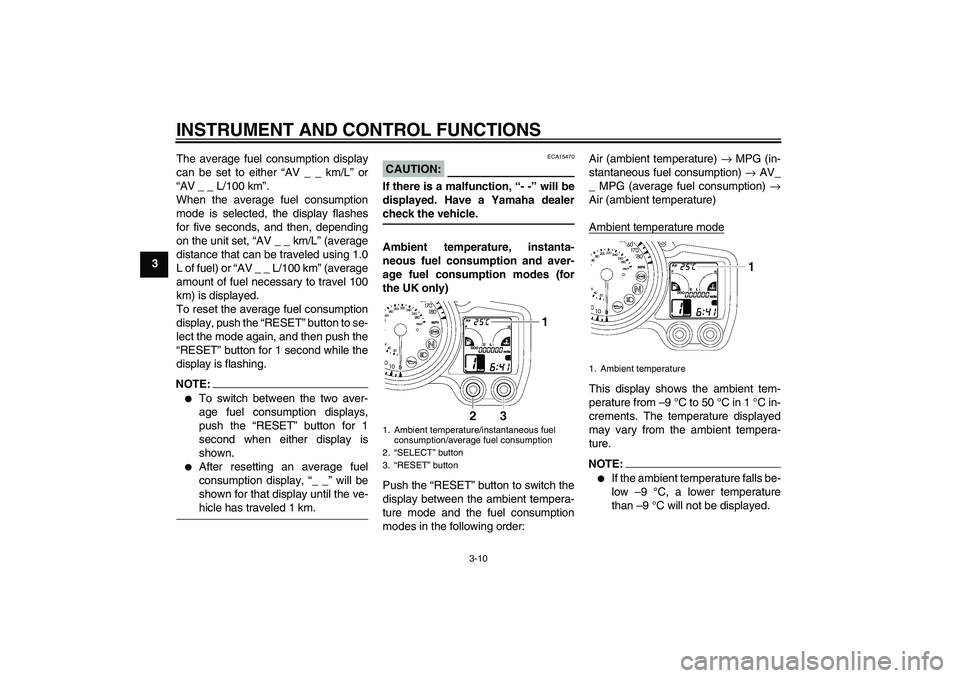

3The average fuel consumption display
can be set to either “AV _ _ km/L” or
“AV _ _ L/100 km”.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then, depending
on the unit set, “AV _ _ km/L” (average
distance that can be traveled using 1.0
L of fuel) or “AV _ _ L/100 km” (average
amount of fuel necessary to travel 100
km) is displayed.
To reset the average fuel consumption
display, push the “RESET” button to se-
lect the mode again, and then push the
“RESET” button for 1 second while the
display is flashing.
NOTE:

To switch between the two aver-
age fuel consumption displays,
push the “RESET” button for 1
second when either display is
shown.


After resetting an average fuel
consumption display, “_ _” will be
shown for that display until the ve-hicle has traveled 1 km.
CAUTION:
ECA15470
If there is a malfunction, “- -” will be
displayed. Have a Yamaha dealercheck the vehicle.
Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes (for
the UK only)
Push the “RESET” button to switch the
display between the ambient tempera-
ture mode and the fuel consumption
modes in the following order:Air (ambient temperature) → MPG (in-
stantaneous fuel consumption) → AV_
_ MPG (average fuel consumption) →
Air (ambient temperature)
Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.NOTE:

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2.“SELECT” button
3.“RESET” button
1. Ambient temperature
U3P6E0E0.book Page 10 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3

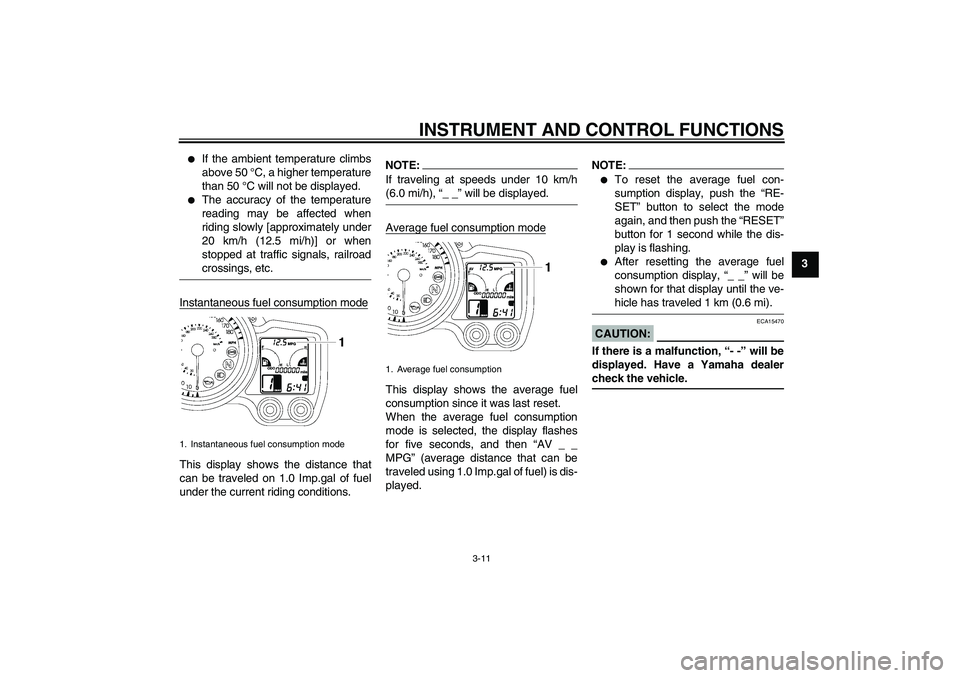

If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly [approximately under
20 km/h (12.5 mi/h)] or when
stopped at traffic signals, railroadcrossings, etc.
Instantaneous fuel consumption mode
This display shows the distance that
can be traveled on 1.0 Imp.gal of fuel
under the current riding conditions.
NOTE:If traveling at speeds under 10 km/h(6.0 mi/h), “_ _” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV _ _
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is dis-
played.
NOTE:

To reset the average fuel con-
sumption display, push the “RE-
SET” button to select the mode
again, and then push the “RESET”
button for 1 second while the dis-
play is flashing.


After resetting the average fuel
consumption display, “_ _” will be
shown for that display until the ve-hicle has traveled 1 km (0.6 mi).
CAUTION:
ECA15470
If there is a malfunction, “- -” will be
displayed. Have a Yamaha dealercheck the vehicle.
1. Instantaneous fuel consumption mode
1. Average fuel consumption
U3P6E0E0.book Page 11 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12

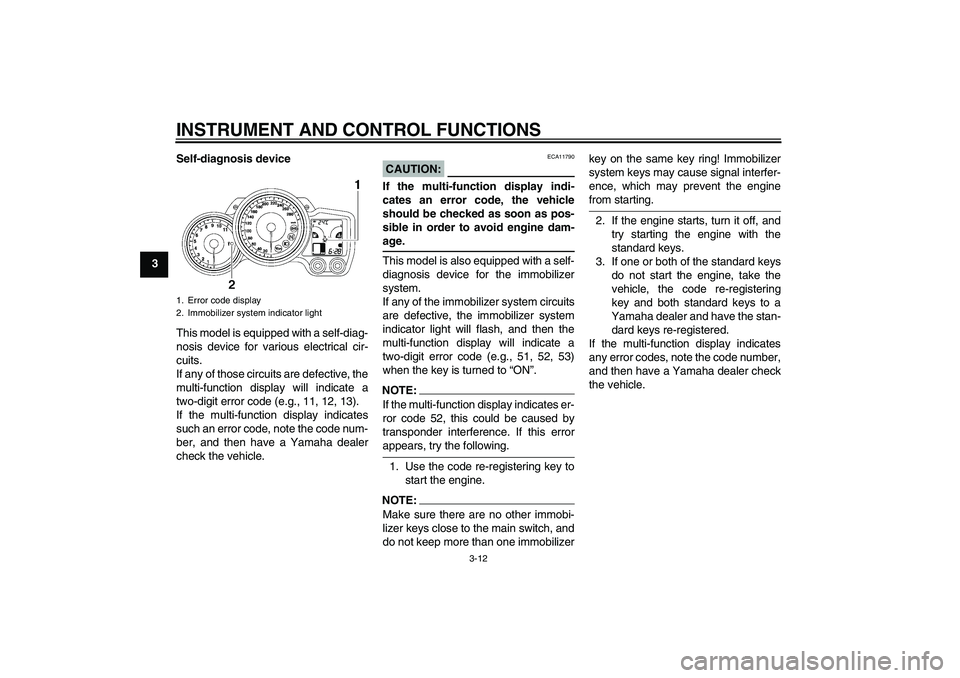

3Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code (e.g., 11, 12, 13).
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code (e.g., 51, 52, 53)
when the key is turned to “ON”.NOTE:If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizerkey on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
1. Error code display
2. Immobilizer system indicator lightU3P6E0E0.book Page 12 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12344
Handlebar switches LeftRight
EAU12380
Pass switch “”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
1. Pass switch “”
2. Windshield position adjusting switch “”
3. Dimmer switch “/”
4. Turn signal switch “/”
5. Horn switch “”
1. Engine stop switch “/”
2. Hazard switch “”
3. Start switch “”
U3P6E0E0.book Page 13 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14

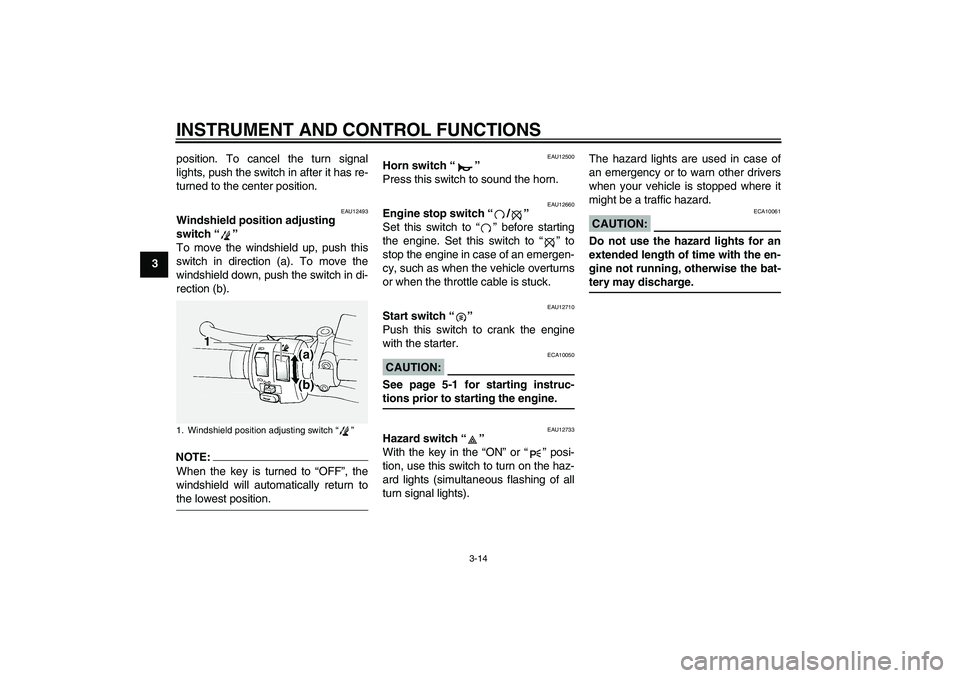

3position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch “”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).NOTE:When the key is turned to “OFF”, the
windshield will automatically return tothe lowest position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
1. Windshield position adjusting switch “”U3P6E0E0.book Page 14 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12830

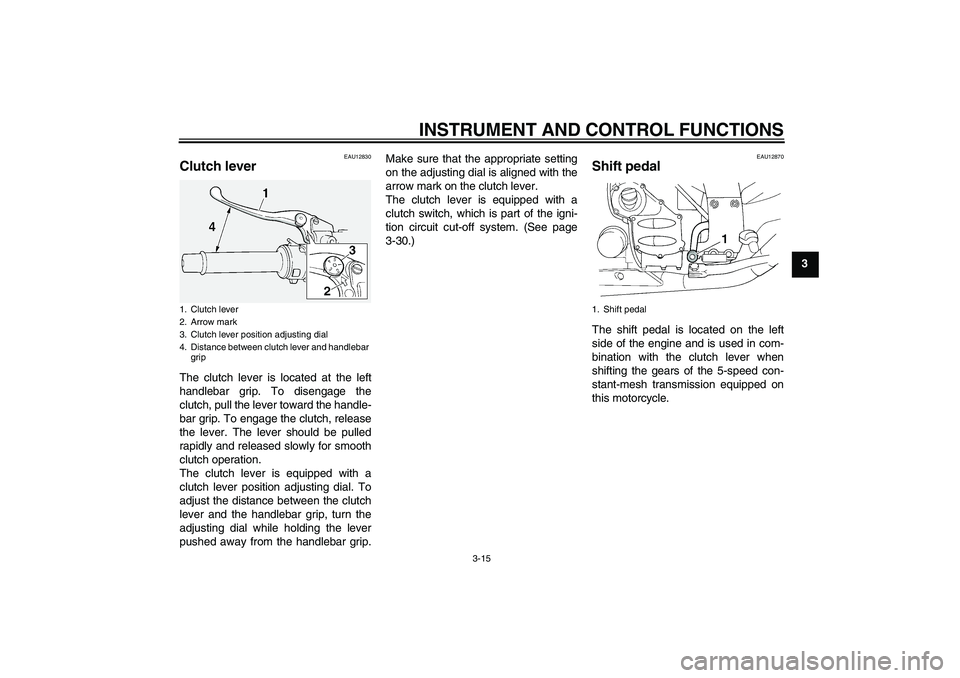

Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-30.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Clutch lever
2. Arrow mark
3. Clutch lever position adjusting dial
4. Distance between clutch lever and handlebar
grip
1. Shift pedal
U3P6E0E0.book Page 15 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU26822

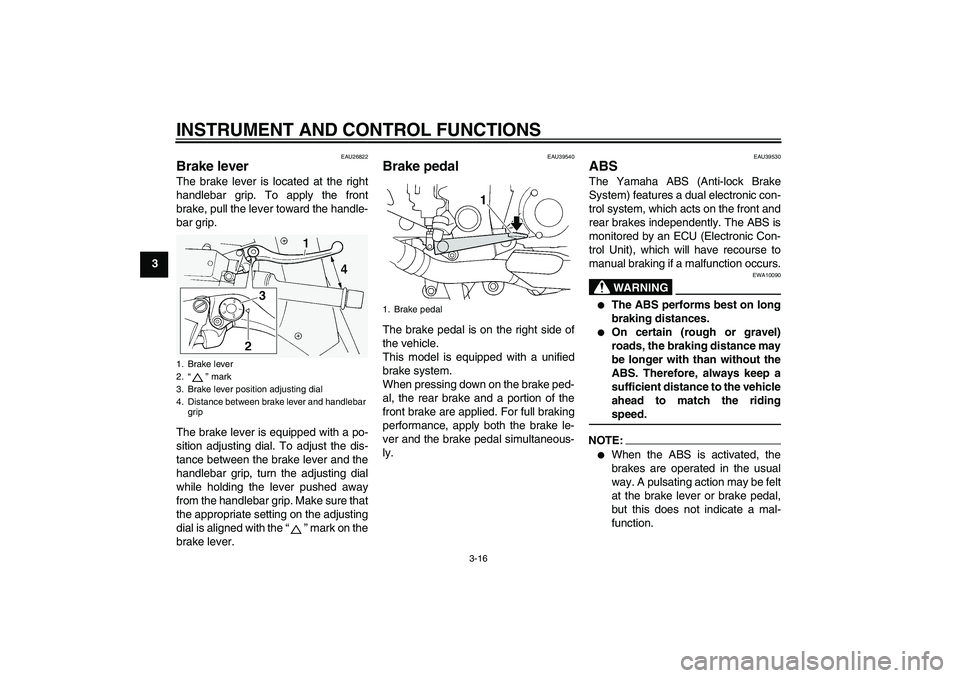

Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the “” mark on the
brake lever.
EAU39540
Brake pedal The brake pedal is on the right side of
the vehicle.
This model is equipped with a unified
brake system.
When pressing down on the brake ped-
al, the rear brake and a portion of the
front brake are applied. For full braking
performance, apply both the brake le-
ver and the brake pedal simultaneous-
ly.
EAU39530
ABS The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently. The ABS is
monitored by an ECU (Electronic Con-
trol Unit), which will have recourse to
manual braking if a malfunction occurs.
WARNING
EWA10090


The ABS performs best on long
braking distances.


On certain (rough or gravel)
roads, the braking distance may
be longer with than without the
ABS. Therefore, always keep a
sufficient distance to the vehicle
ahead to match the ridingspeed.
NOTE:

When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake lever or brake pedal,
but this does not indicate a mal-
function.
1. Brake lever
2.“” mark
3. Brake lever position adjusting dial
4. Distance between brake lever and handlebar
grip
1. Brake pedal
U3P6E0E0.book Page 16 Tuesday, January 24, 2006 10:46 AM
