INSTRUMENT AND CONTROL FUNCTIONS

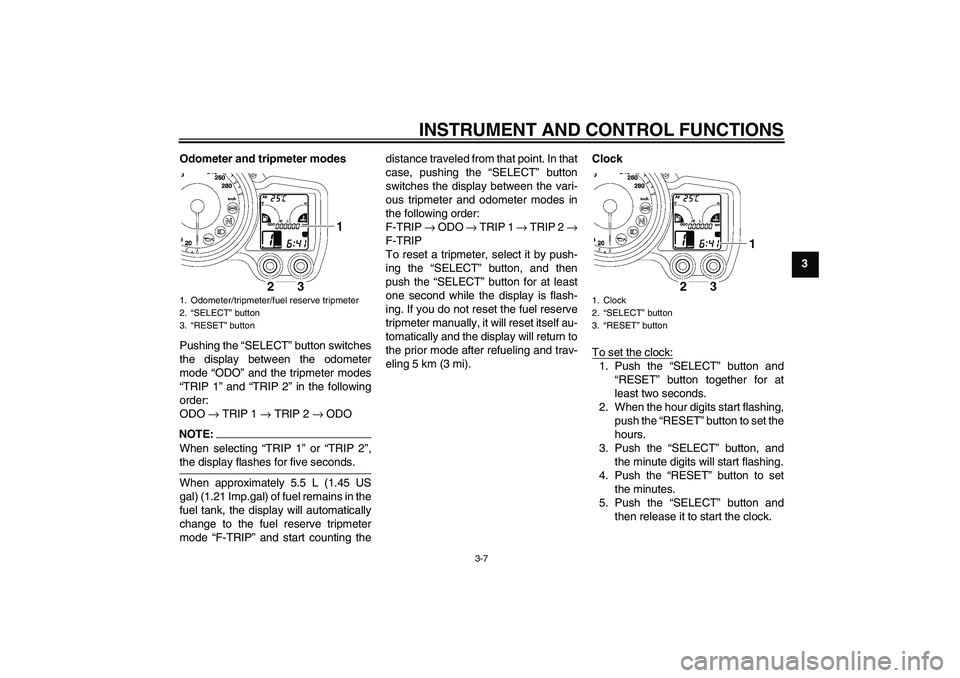

3-7
3 Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
NOTE:When selecting “TRIP 1” or “TRIP 2”,the display flashes for five seconds.
When approximately 5.5 L (1.45 US
gal) (1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “F-TRIP” and start counting thedistance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
F-TRIP → ODO → TRIP 1 → TRIP 2 →
F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “SELECT” button for at least
one second while the display is flash-
ing. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).Clock
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
1. Odometer/tripmeter/fuel reserve tripmeter
2.“SELECT” button
3.“RESET” button
1. Clock
2.“SELECT” button
3.“RESET” button
U3P6E1E0.book Page 7 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble. When the key is turned to “ON”, all
of the display segments of the fuel
meter will appear one after the other
and then disappear in order to test the
electrical circuit.
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, all the display segmentswill start flashing. If this occurs, have a
Yamaha dealer check the electrical cir-
cuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. When
the key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-32.)
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
1. Fuel meter
1. Coolant temperature meter
1. Transmission gear display
2. Neutral indicator light “”
U3P6E1E0.book Page 8 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9

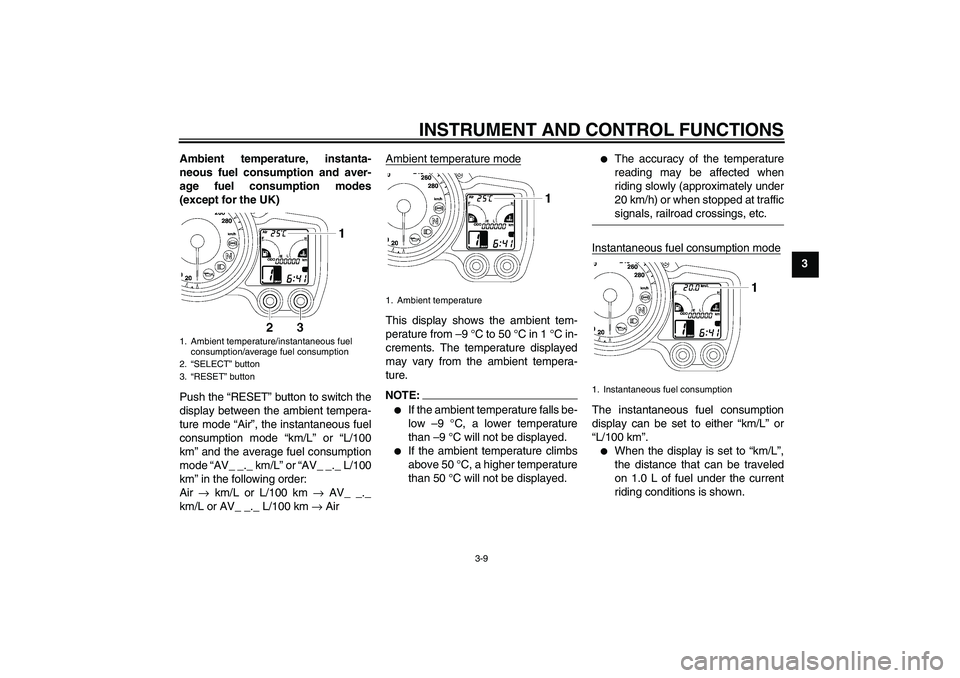

3 Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the “RESET” button to switch the
display between the ambient tempera-
ture mode “Air”, the instantaneous fuel
consumption mode “km/L” or “L/100
km” and the average fuel consumption
mode “AV_ _._ km/L” or “AV_ _._ L/100
km” in the following order:
Air → km/L or L/100 km → AV_ _._
km/L or AV_ _._ L/100 km → AirAmbient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.NOTE:

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at trafficsignals, railroad crossings, etc.
Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”.

When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2.“SELECT” button
3.“RESET” button
1. Ambient temperature
1. Instantaneous fuel consumption
U3P6E1E0.book Page 9 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3


When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
NOTE:

To switch between the two instan-
taneous fuel consumption dis-
plays, push the “RESET” button for
1 second when either display is
shown.


If traveling at speeds under 10km/h, “_ _._” will be displayed.

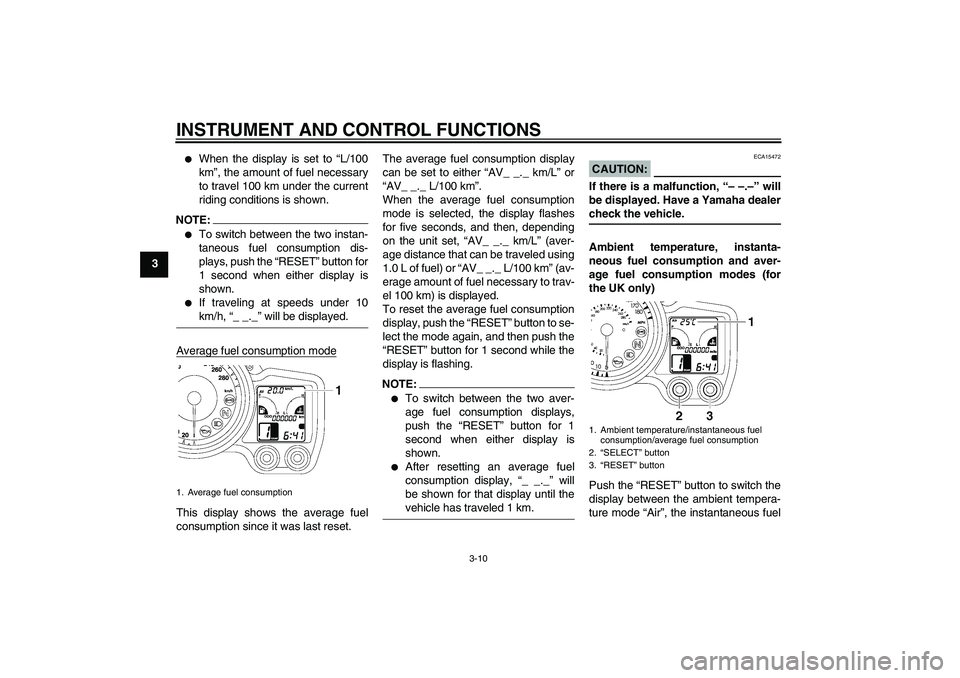

Average fuel consumption mode
This display shows the average fuel
consumption since it was last reset.The average fuel consumption display
can be set to either “AV_ _._ km/L” or
“AV_ _._ L/100 km”.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then, depending
on the unit set, “AV_ _._ km/L” (aver-
age distance that can be traveled using
1.0 L of fuel) or “AV_ _._ L/100 km” (av-
erage amount of fuel necessary to trav-
el 100 km) is displayed.
To reset the average fuel consumption
display, push the “RESET” button to se-
lect the mode again, and then push the
“RESET” button for 1 second while the
display is flashing.
NOTE:

To switch between the two aver-
age fuel consumption displays,
push the “RESET” button for 1
second when either display is
shown.


After resetting an average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km.
CAUTION:
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.
Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes (for
the UK only)
Push the “RESET” button to switch the
display between the ambient tempera-
ture mode “Air”, the instantaneous fuel
1. Average fuel consumption
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2.“SELECT” button
3.“RESET” button
U3P6E1E0.book Page 10 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 consumption mode “MPG” and the av-
erage fuel consumption mode “AV_ _._
MPG” in the following order:
Air → MPG → AV_ _._ MPG → Air

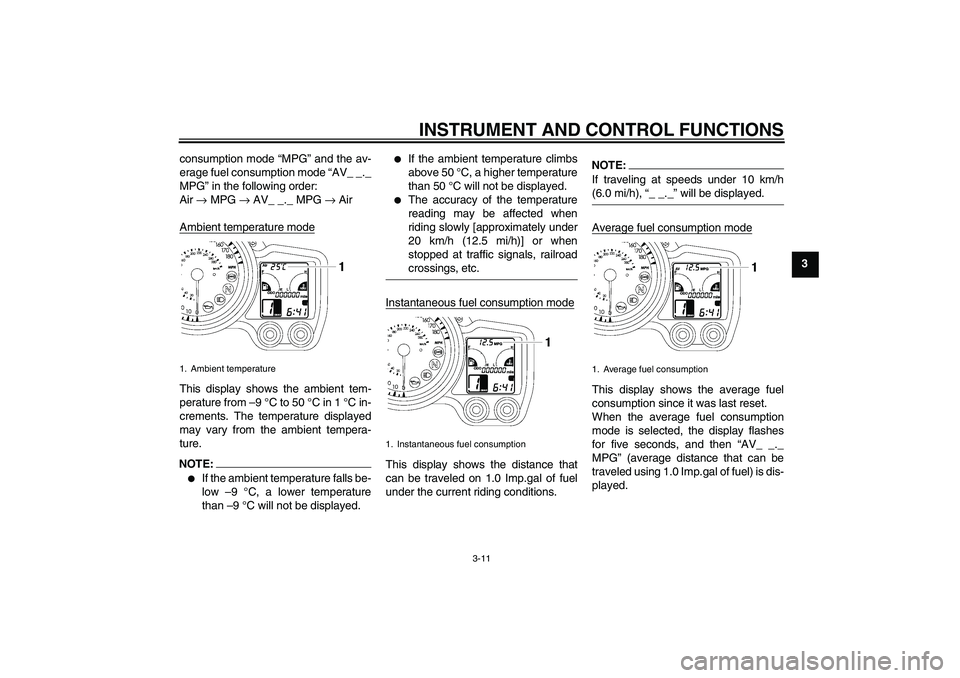

Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.NOTE:

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly [approximately under
20 km/h (12.5 mi/h)] or when
stopped at traffic signals, railroadcrossings, etc.
Instantaneous fuel consumption mode
This display shows the distance that
can be traveled on 1.0 Imp.gal of fuel
under the current riding conditions.
NOTE:If traveling at speeds under 10 km/h(6.0 mi/h), “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV_ _._
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is dis-
played.
1. Ambient temperature
1. Instantaneous fuel consumption
1. Average fuel consumption
U3P6E1E0.book Page 11 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
NOTE:

To reset the average fuel con-
sumption display, push the “RE-
SET” button to select the mode
again, and then push the “RESET”
button for 1 second while the dis-
play is flashing.


After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km (0.6 mi).
CAUTION:
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.NOTE:If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
1. Error code display
2. Immobilizer system indicator light
U3P6E1E0.book Page 12 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3 key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347

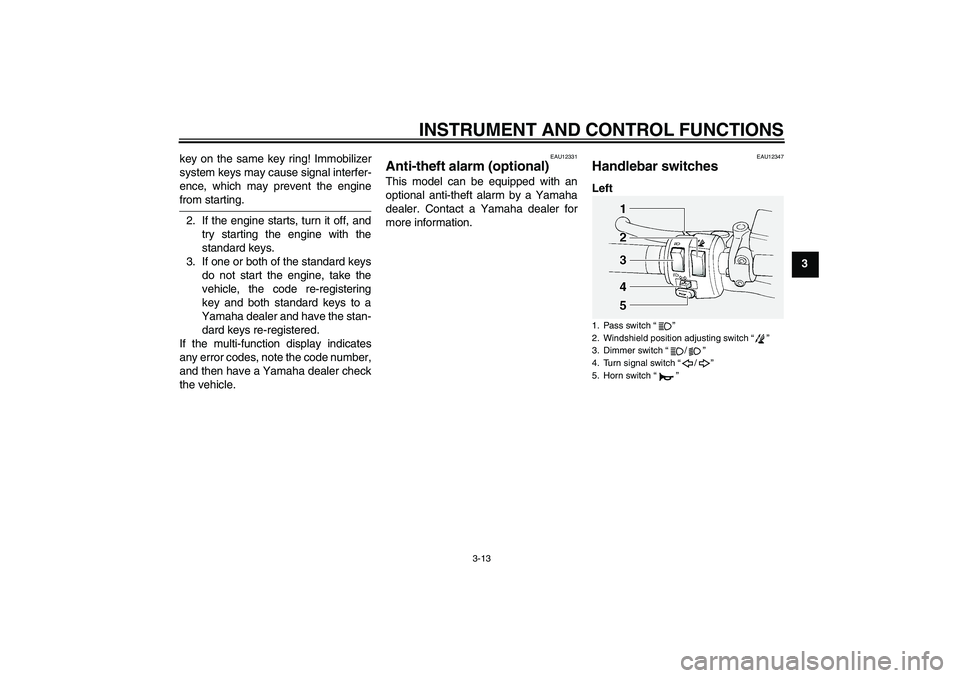

Handlebar switches Left1. Pass switch “”
2. Windshield position adjusting switch “”
3. Dimmer switch “/”
4. Turn signal switch “/”
5. Horn switch “”
U3P6E1E0.book Page 13 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14

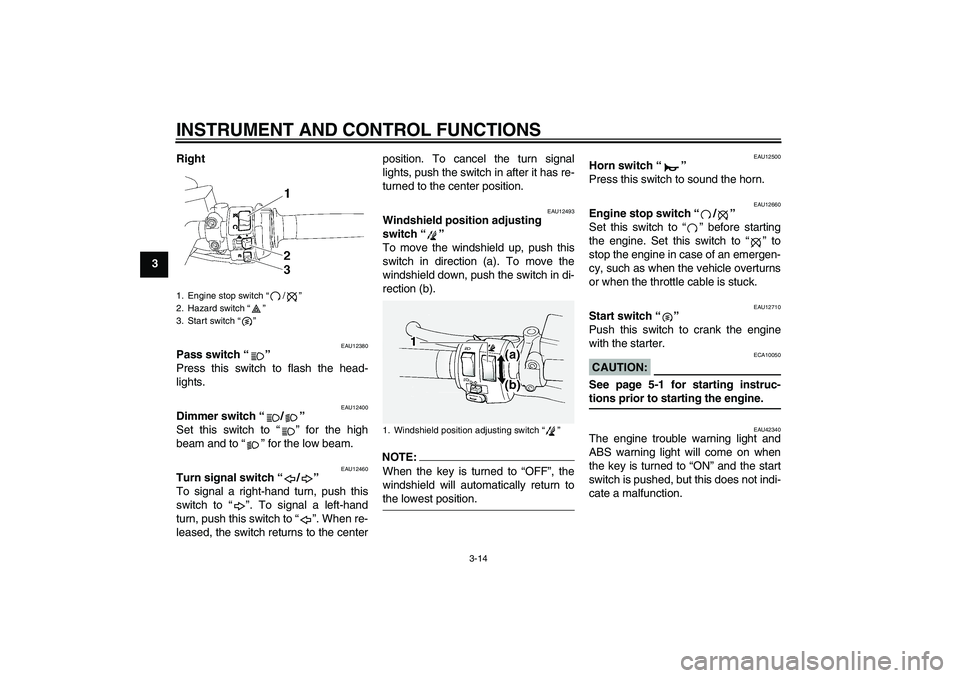

3Right
EAU12380
Pass switch “”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch “”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).NOTE:When the key is turned to “OFF”, the
windshield will automatically return tothe lowest position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
1. Engine stop switch “/”
2. Hazard switch “”
3. Start switch “”
1. Windshield position adjusting switch “”
U3P6E1E0.book Page 14 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12733

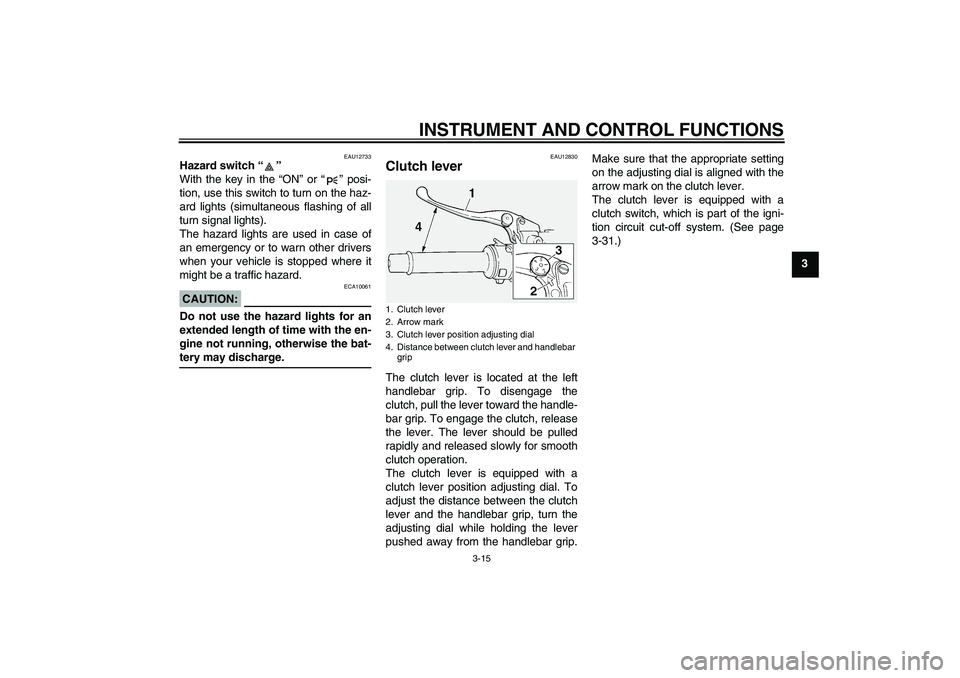

Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU12830
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-31.)1. Clutch lever
2. Arrow mark
3. Clutch lever position adjusting dial
4. Distance between clutch lever and handlebar
grip
U3P6E1E0.book Page 15 Thursday, October 5, 2006 10:13 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU12870

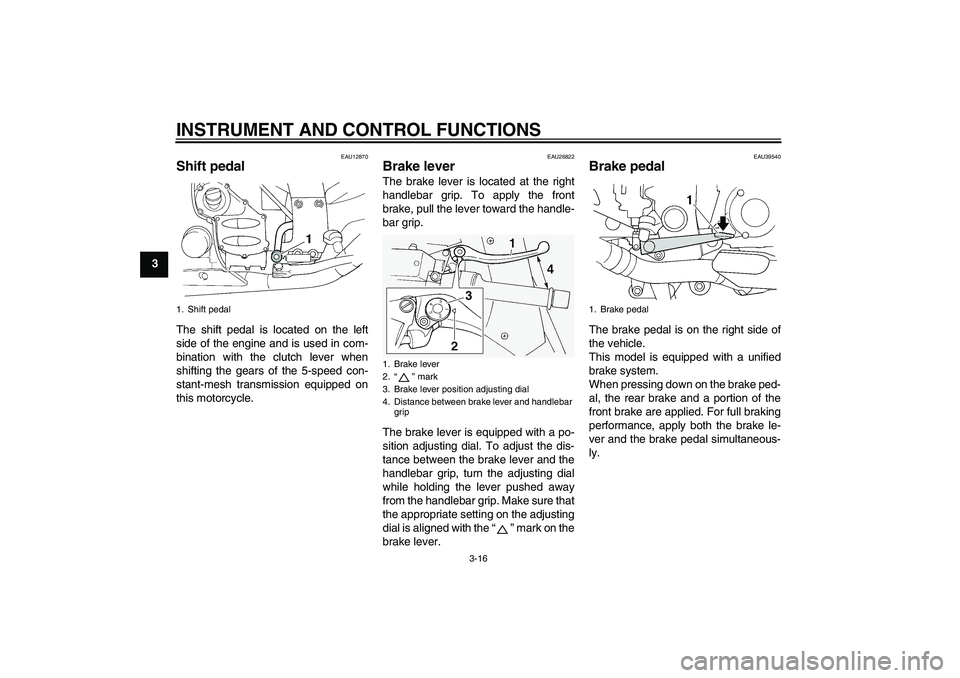

Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU26822
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the “” mark on the
brake lever.
EAU39540
Brake pedal The brake pedal is on the right side of
the vehicle.
This model is equipped with a unified
brake system.
When pressing down on the brake ped-
al, the rear brake and a portion of the
front brake are applied. For full braking
performance, apply both the brake le-
ver and the brake pedal simultaneous-
ly.
1. Shift pedal
1. Brake lever
2.“” mark
3. Brake lever position adjusting dial
4. Distance between brake lever and handlebar
grip
1. Brake pedal
U3P6E1E0.book Page 16 Thursday, October 5, 2006 10:13 AM
