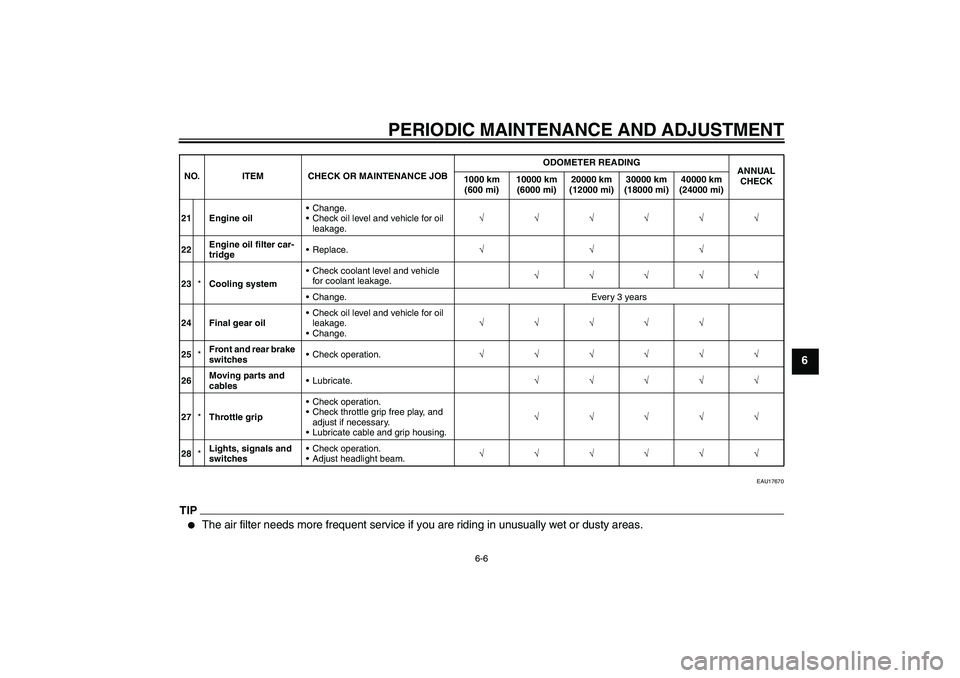

YAMAHA FJR1300A 2011 Repair Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU17670
TIP

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
21 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
22Engine oil filter car-
tridgeReplace.√√√
23*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years
24 Final gear oilCheck oil level and vehicle for oil
leakage.
Change.√√√√√
25*Front and rear brake
switchesCheck operation.√√√√√√
26Moving parts and
cablesLubricate.√√√√√
27*Throttle gripCheck operation.
Check throttle grip free play, and
adjust if necessary.
Lubricate cable and grip housing.√√√√√
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U1CYE1E0.book Page 6 Tuesday, July 20, 2010 10:17 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6

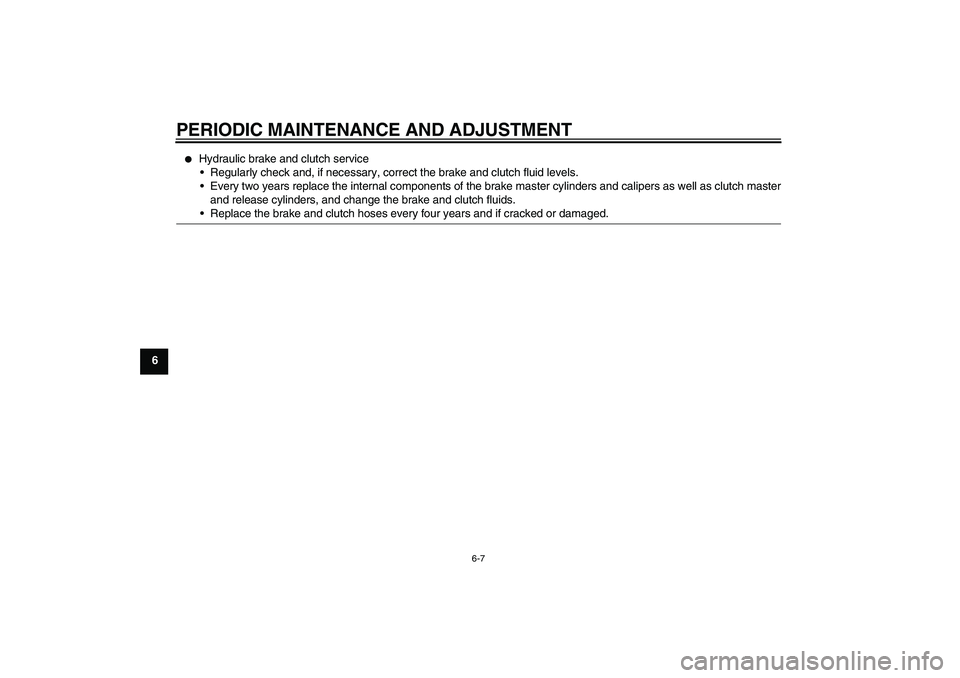

Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.
Replace the brake and clutch hoses every four years and if cracked or damaged.
U1CYE1E0.book Page 7 Tuesday, July 20, 2010 10:17 AM

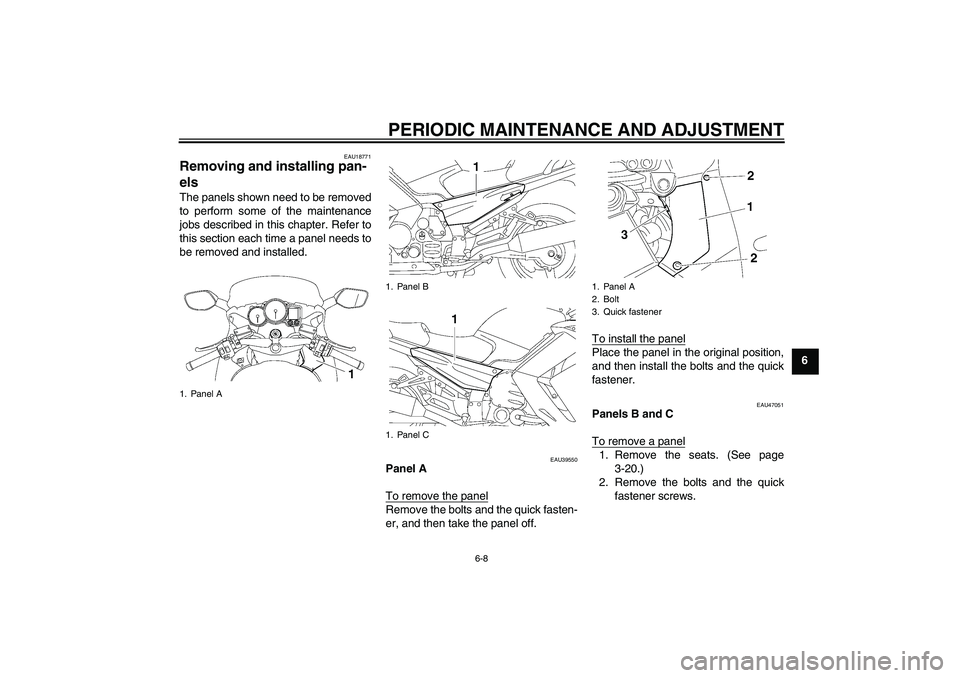

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18771
Removing and installing pan-
els The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU39550
Panel A
To remove the panelRemove the bolts and the quick fasten-
er, and then take the panel off.To install the panel
Place the panel in the original position,
and then install the bolts and the quick
fastener.
EAU47051
Panels B and C
To remove a panel1. Remove the seats. (See page
3-20.)
2. Remove the bolts and the quick
fastener screws.
1. Panel A
1. Panel B
1. Panel C
1. Panel A
2. Bolt
3. Quick fastener
U1CYE1E0.book Page 8 Tuesday, July 20, 2010 10:17 AM

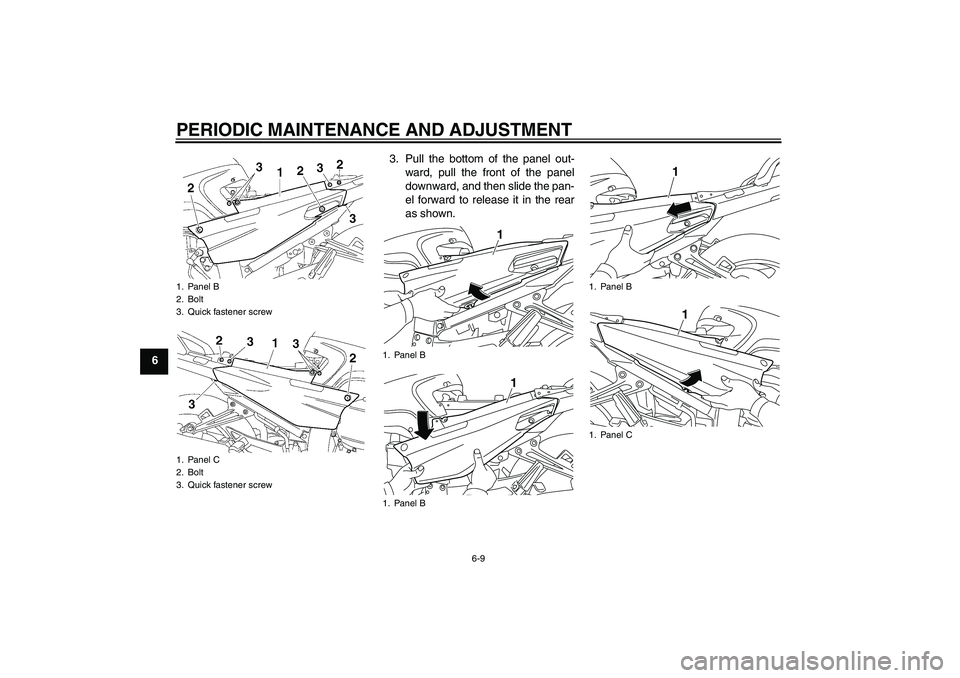

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
63. Pull the bottom of the panel out-
ward, pull the front of the panel
downward, and then slide the pan-
el forward to release it in the rear
as shown.
1. Panel B
2. Bolt
3. Quick fastener screw
1. Panel C
2. Bolt
3. Quick fastener screw
1. Panel B
1. Panel B
1
1
1. Panel B
1. Panel C
11
U1CYE1E0.book Page 9 Tuesday, July 20, 2010 10:17 AM

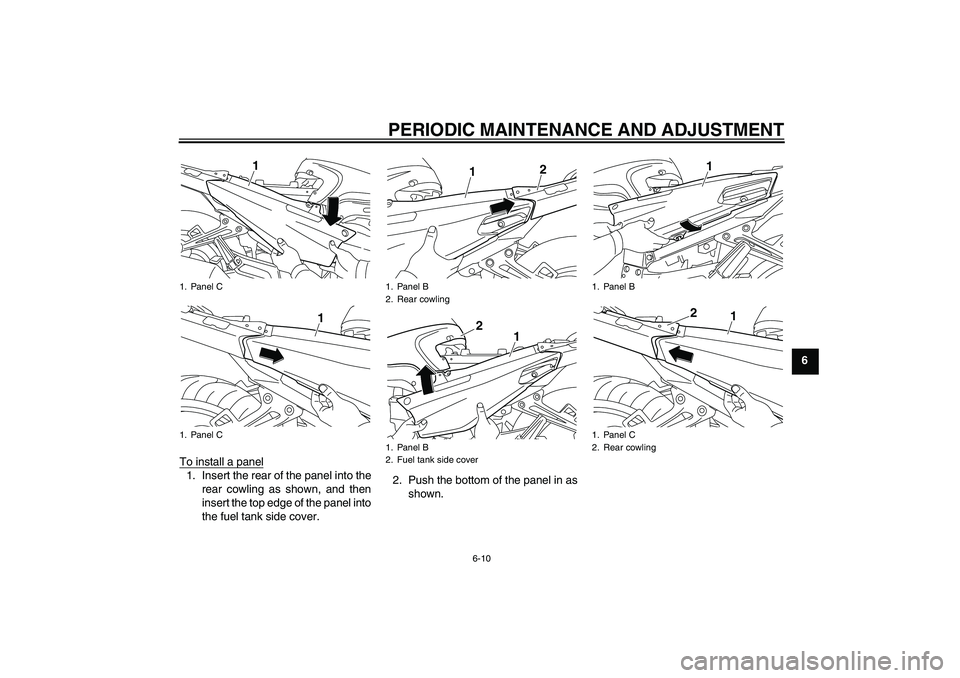

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
To install a panel
1. Insert the rear of the panel into the
rear cowling as shown, and then
insert the top edge of the panel into
the fuel tank side cover.2. Push the bottom of the panel in as
shown.1. Panel C
1. Panel C
1
1
1. Panel B
2. Rear cowling
1. Panel B
2. Fuel tank side cover
1
2
1
2
1. Panel B
1. Panel C
2. Rear cowling
1
1
2
U1CYE1E0.book Page 10 Tuesday, July 20, 2010 10:17 AM

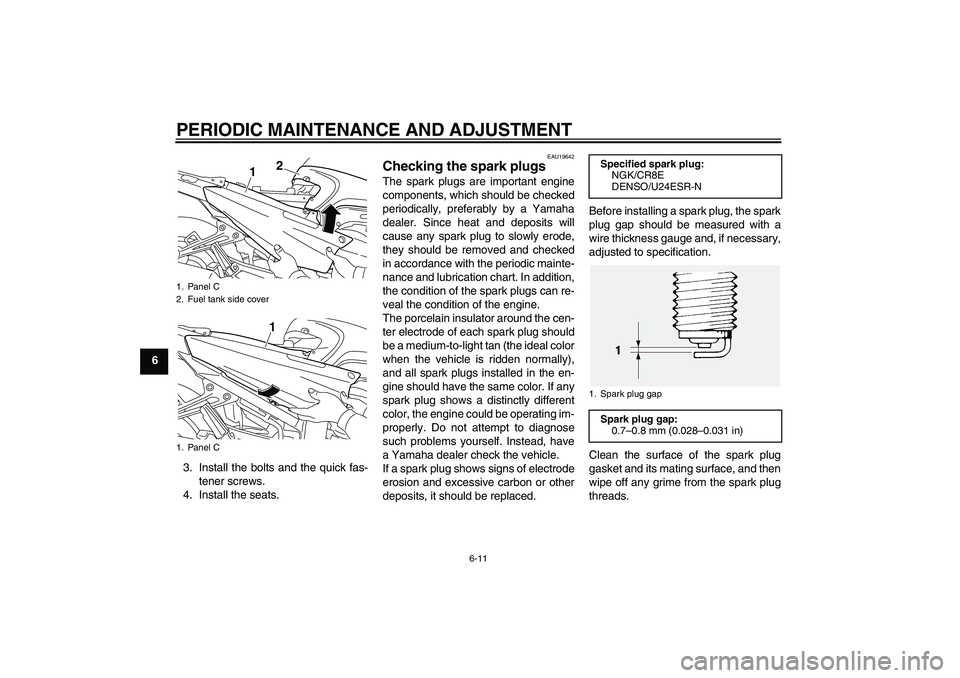

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
3. Install the bolts and the quick fas-
tener screws.
4. Install the seats.
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
1. Panel C
2. Fuel tank side cover
1. Panel C
1
21
Specified spark plug:
NGK/CR8E
DENSO/U24ESR-N1. Spark plug gapSpark plug gap:
0.7–0.8 mm (0.028–0.031 in)
U1CYE1E0.book Page 11 Tuesday, July 20, 2010 10:17 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6

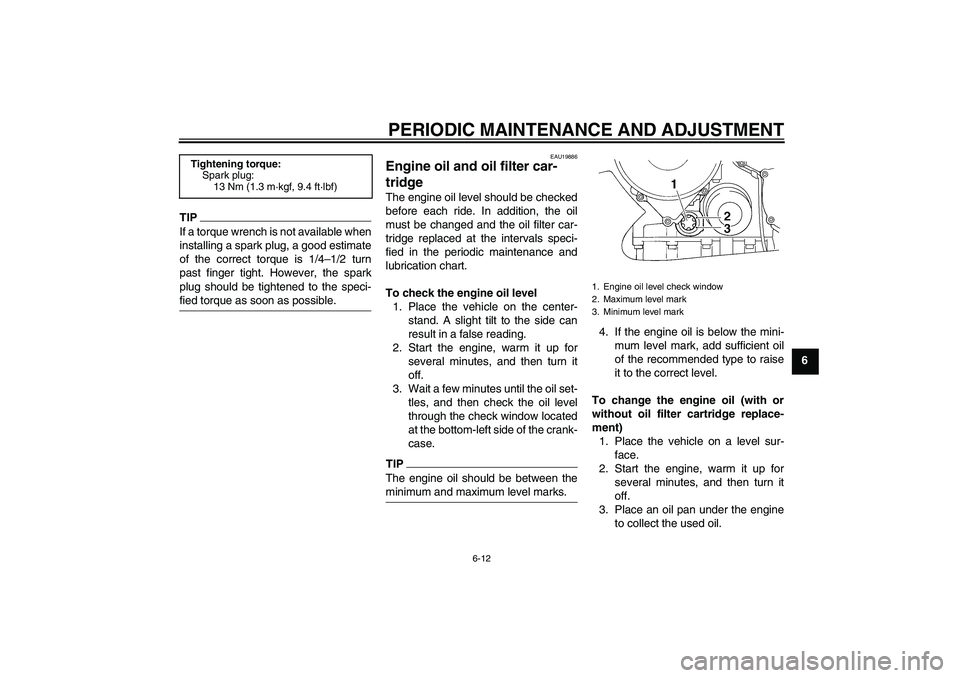

TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU19886
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
U1CYE1E0.book Page 12 Tuesday, July 20, 2010 10:17 AM

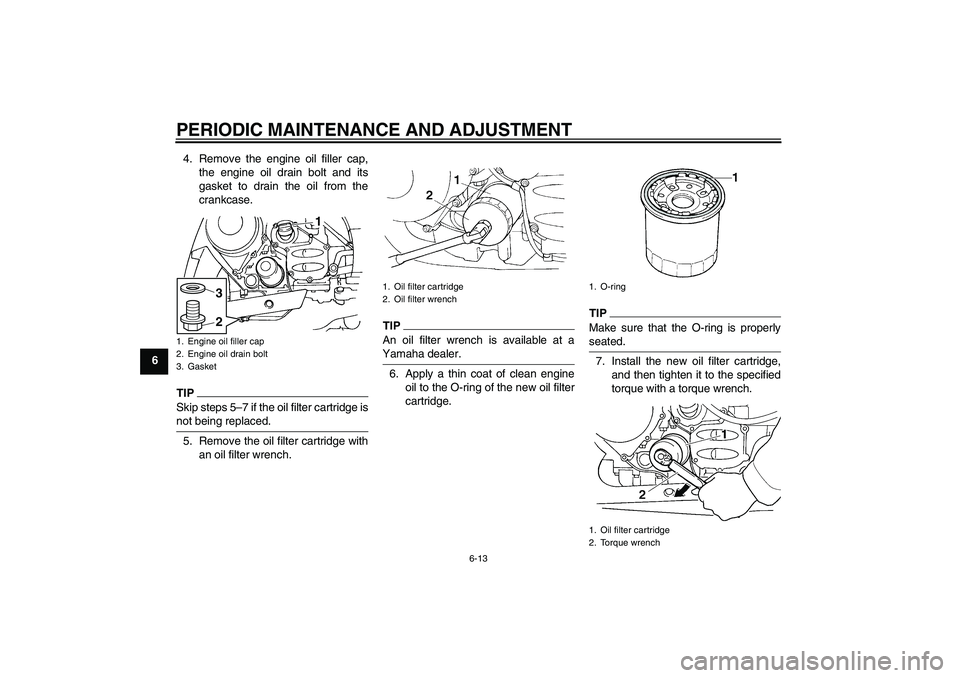

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
64. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 5–7 if the oil filter cartridge is
not being replaced.5. Remove the oil filter cartridge with
an oil filter wrench.
TIPAn oil filter wrench is available at a
Yamaha dealer.6. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
TIPMake sure that the O-ring is properly
seated.7. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.
1. Engine oil filler cap
2. Engine oil drain bolt
3. Gasket
1
2
3
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
1. Oil filter cartridge
2. Torque wrench
U1CYE1E0.book Page 13 Tuesday, July 20, 2010 10:17 AM

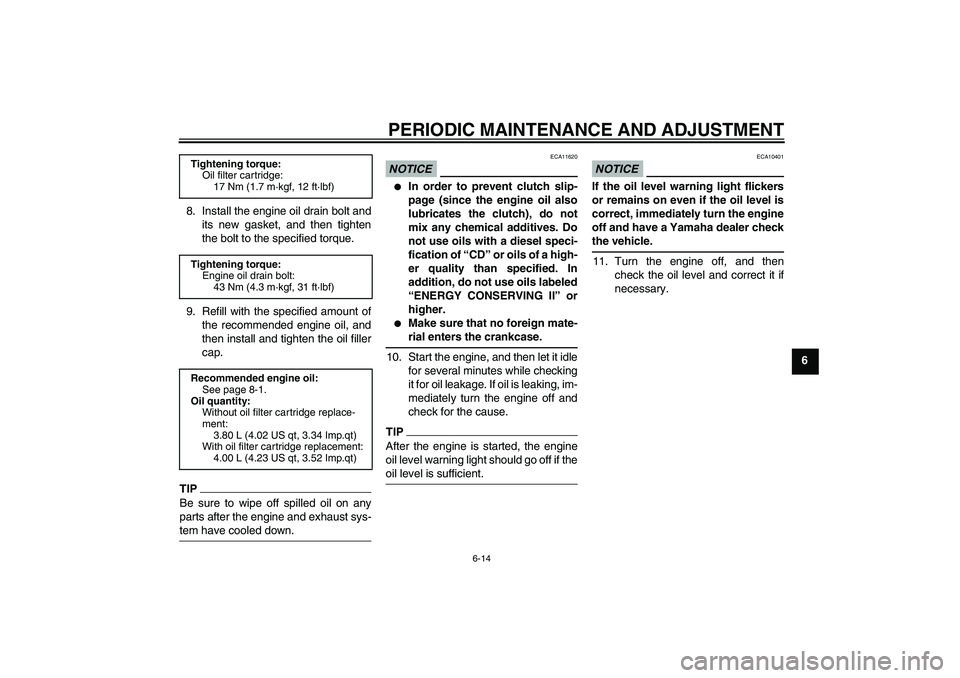

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6 8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
NOTICE
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the crankcase.
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.TIPAfter the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient.
NOTICE
ECA10401
If the oil level warning light flickers
or remains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer check
the vehicle.11. Turn the engine off, and then
check the oil level and correct it if
necessary.
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)
U1CYE1E0.book Page 14 Tuesday, July 20, 2010 10:17 AM

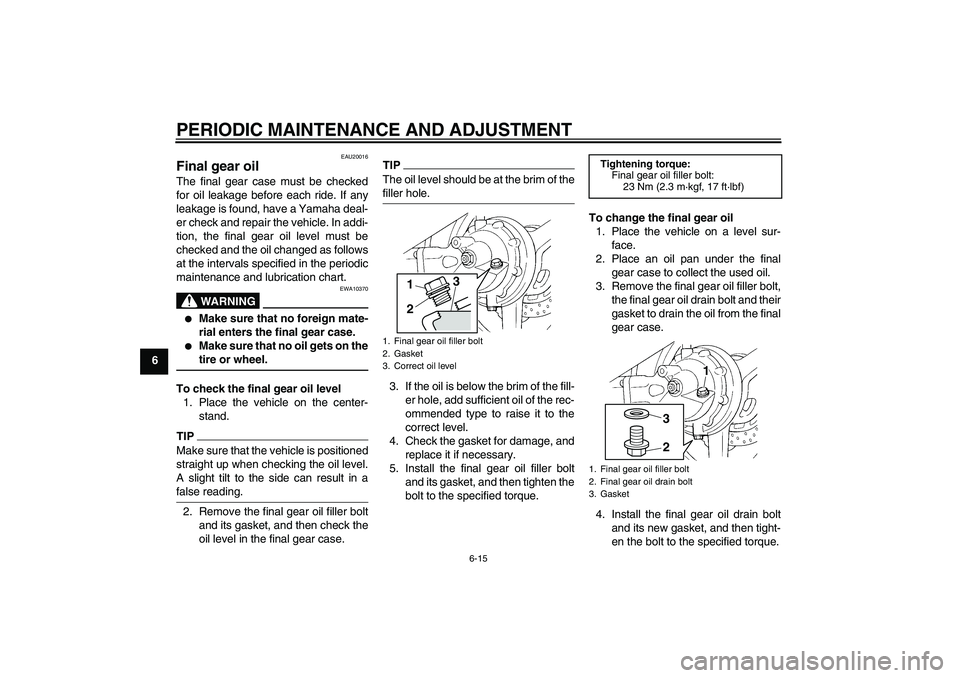

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
EAU20016
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the vehicle. In addi-
tion, the final gear oil level must be
checked and the oil changed as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING
EWA10370


Make sure that no foreign mate-
rial enters the final gear case.


Make sure that no oil gets on the
tire or wheel.
To check the final gear oil level
1. Place the vehicle on the center-
stand.TIPMake sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in a
false reading.2. Remove the final gear oil filler bolt
and its gasket, and then check the
oil level in the final gear case.
TIPThe oil level should be at the brim of the
filler hole.3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.
4. Check the gasket for damage, and
replace it if necessary.
5. Install the final gear oil filler bolt
and its gasket, and then tighten the
bolt to the specified torque.To change the final gear oil
1. Place the vehicle on a level sur-
face.
2. Place an oil pan under the final
gear case to collect the used oil.
3. Remove the final gear oil filler bolt,
the final gear oil drain bolt and their
gasket to drain the oil from the final
gear case.
4. Install the final gear oil drain bolt
and its new gasket, and then tight-
en the bolt to the specified torque.1. Final gear oil filler bolt
2. Gasket
3. Correct oil level
3
21
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)1. Final gear oil filler bolt
2. Final gear oil drain bolt
3. Gasket
11
2
3
