YAMAHA FJR1300A 2014 Owners Manual

SPECIFICATIONS
8-1
8
Dimensions:Overall length:2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height: 1325/1455 mm (52.2/57.3 in)
Seat height: 805/825 mm (31.7/32.5 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance: 130 mm (5.12 in)
Minimum turning radius: 3100 mm (122.0 in)Wei ght:Curb weight:
289 kg (637 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 4-cylinder
Displacement: 1298 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio: 10.80 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil exclusive to FJR1300/VMAX
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolin g system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 2.60 L (2.75 US qt, 2.29 Imp.qt)Air filter:Air filter element:Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity: 25.0 L (6.61 US gal, 5.50 Imp.gal)
Fuel reserve amount: 5.5 L (1.45 US gal, 1.21 Imp.gal)Fuel injection:Throttle body:ID mark:
1MC1 00Spark plu g(s):Manufacturer/model:
NGK/CPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:1.563 (75/48)
Final drive: Shaft
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U1MCE1E0.book Page 1 Thursday, August 8, 2013 9:03 AM

SPECIFICATIONS
8-2
8
Secondary reduction ratio:2.698 (35/37 x 21/27 x 33/9)
Transmission type: Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio: 1st:
2.529 (43/17)
2nd: 1.773 (39/22)
3rd: 1.348 (31/23)
4th:
1.077 (28/26)
5th: 0.929 (26/28)Chassis:Frame type:
Diamond
Caster angle: 26.00 °
Trail: 109 mm (4.3 in)Front tire:Type:Tubeless
Size: 120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT023F F
Manufacturer/model: METZELER/Roadtec Z8
Rear tire:Type:Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model: BRIDGESTONE/BT023R F
Manufacturer/model: METZELER/Roadtec Z8 CLoa din g:Maximum load:
215 kg (474 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Loading condition: 90–215 kg (198–474 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding: Front: 250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Front wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT5.50Unifie d b rake system:Operation:
Activated by rear brakeFront brake:Type:
Dual disc brake
Operation: Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Specified brake fluid: DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 135.0 mm (5.31 in)
U1MCE1E0.book Page 2 Thursday, August 8, 2013 9:03 AM

SPECIFICATIONS
8-3
8
Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 125.0 mm (4.92 in)Electrical system:Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
GT14B-4
Voltage, capacity: 12 V, 12.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 60.0 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light: LED
Rear turn signal light: 12 V, 21.0 W × 2
Auxiliary light:
LED
License plate light: 12 V, 5.0 W × 1 Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil level warning light: LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light: LED
Traction control system indicator/warning
light: LED
Fuses:Main fuse 1:
50.0 A
Main fuse 2: 30.0 A
Headlight fuse: 25.0 A
Brake light fuse:
1.0 A
Signaling system fuse: 10.0 A Ignition fuse:
20.0 A
Radiator fan fuse: 10.0 A × 2
Hazard fuse:
7.5 A
Fuel injection system fuse: 15.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse: 20.0 A
Cruise control fuse: 1.0 A
Auxiliary DC jack fuse:
3.0 A
Backup fuse: 7.5 A
Windshield motor fuse: 20.0 A
Electronic throttle valve fuse:
7.5 A
U1MCE1E0.book Page 3 Thursday, August 8, 2013 9:03 AM

CONSUMER INFORMATION
9-1
9
EAU48613

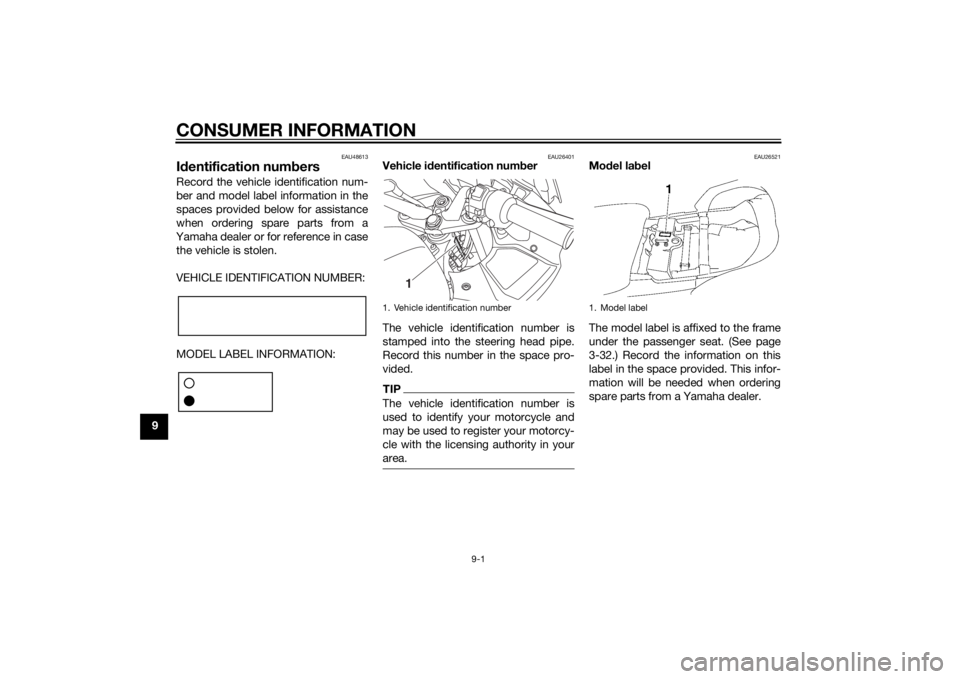

Id entification num bersRecord the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26521
Mo del la bel
The model label is affixed to the frame
under the passenger seat. (See page
3-32.) Record the information on this
label in the space provided. This infor-
mation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
U1MCE1E0.book Page 1 Thursday, August 8, 2013 9:03 AM

10-1
10
INDEX
AABS....................................................... 3-27
ABS warning light ................................... 3-5
Accessory box ...................................... 3-36
Air filter element, cleaning .................... 6-17
Auxiliary DC jack .................................. 3-45
Auxiliary light ........................................ 6-36BBattery .................................................. 6-31
Brake and clutch fluid levels, checking ............................................. 6-24
Brake and clutch fluids , changing ........ 6-26
Brake and clutch levers, checking and lubricating .................... 6-27
Brake and shift pedals,
checking and lubricating .................... 6-27
Brake lever............................................ 3-26
Brake lever free play, checking ............ 6-23
Brake light switches ............................. 6-23
Brake pedal .......................................... 3-26CCables, checking and lubricating ......... 6-26
Care ........................................................ 7-1
Catalytic converters.............................. 3-31
Centerstand and sidestand, checking and lubricating .................... 6-28
Clutch lever.................................. 3-25, 6-22
Coolant ................................................. 6-16
Cowling vents, opening and closing .... 3-37
Cruise control indicator lights................. 3-4
Cruise control switches ........................ 3-24
Cruise control system............................. 3-6DDimmer/Pass switch............................. 3-24 D-mode (drive mode) ........................... 3-23
EEngine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-18
Engine oil and oil filter cartridge........... 6-12
Engine trouble warning light .................. 3-5FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-24
Front fork, adjusting ............................. 3-39
Front fork, checking ............................. 6-29
Front turn signal light ........................... 6-34
Fuel ...................................................... 3-30
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather/overflow hose ........ 3-31
Fuel tank cap........................................ 3-29
Fuses, replacing ................................... 6-32HHandlebar position, adjusting .............. 3-37
Handlebar switches ............................. 3-23
Hazard switch ...................................... 3-24
Headlight beams, adjusting ................. 3-37
Headlight bulb ...................................... 6-34
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-24IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-43
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-6
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-35
MMain switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution................................ 7-1
Menu switch ......................................... 3-24
Model label ............................................. 9-1
Multi-function meter unit ...................... 3-10NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking.................................................... 5-4
Part locations.......................................... 2-1RRear suspension, lubricating ................ 6-29
Rear view mirrors .................................. 3-39
Rider seat height, adjusting .................. 3-33SSafety information................................... 1-1
Seats ..................................................... 3-32
Select switch ........................................ 3-25
Shifting.................................................... 5-2
Shift pedal............................................. 3-26
Shock absorber assembly, adjusting ... 3-41
Sidestand.............................................. 3-42
Spark plugs, checking .......................... 6-11
Specifications ......................................... 8-1
Start/Engine stop switch ...................... 3-24
Starting the engine ................................. 5-1
Steering, checking ................................ 6-30
U1MCE1E0.book Page 1 Thursday, August 8, 2013 9:03 AM

INDEX
10-2
10
Storage ................................................... 7-4
Storage compartments ......................... 3-35
Swingarm pivots, lubricating ................ 6-29TThrottle grip and cable, checking and lubricating .................... 6-26
Throttle grip free play, checking ........... 6-19
Tires ...................................................... 6-19
Tool kit .................................................... 6-2
Traction control system ........................ 3-28
Traction control system indicator/ warning light ......................................... 3-5
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator lights...................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-34
Turn signal switch ................................. 3-24VValve clearance..................................... 6-19
Vehicle identification number ................. 9-1WWheel bearings, checking .................... 6-30
Wheels .................................................. 6-22
U1MCE1E0.book Page 2 Thursday, August 8, 2013 9:03 AM

U1MCE1E0.book Page 3 Thursday, August 8, 2013 9:03 AM

PRINTED IN JAPAN2013.09-0.3×1 CR (E)
DIC183
PRINTED ON RECYCLED PAPER
Original instructions
