YAMAHA FJR1300A 2018 Owners Manual

Specifications
8-2
8
2nd:1.722 (31/18)
3rd: 1.350 (27/20)
4th:
1.111 (30/27)
5th: 0.963 (26/27)
6th: 0.846 (22/26)
Chassis:
Frame type:Diamond
Caster angle: 26.0 °
Trail: 109 mm (4.3 in)
Front tire:
Type:Tubeless
Size: 120/70ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT023F F
Rear tire:
Type:Tubeless
Size:
180/55ZR17M/C(73W)
Manufacturer/model: BRIDGESTONE/BT023R F
Loa din g:
Maximum load:
215 kg (474 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measure d on col d
tires):
1 person:
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
2 persons: Front: 250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Front wheel:
Wheel type:Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:
Wheel type:Cast wheel
Rim size:
17M/C x MT5.50
Unifie d b rake system:
Operation:
Activated by rear brake
Front brake:
Type:
Hydraulic dual disc brake
Specified brake fluid: DOT 4
Rear brake:
Type:
Hydraulic single disc brake
Specified brake fluid: DOT 4
Front suspension:
Type:
Telescopic fork
Spring: Coil spring
Shock absorber: Hydraulic damper
Wheel travel:
135 mm (5.3 in)
Rear suspension:
Type:Swingarm (link suspension)
Spring:
Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel: 125 mm (4.9 in)
Electrical system:
System voltage:12 V
Ignition system: TCI
Charging system:
AC magneto
UB88E1E0.book Page 2 Monday, July 10, 2017 2:46 PM

Specifications
8-3
8
Battery:
Model:GT14B-4
Voltage, capacity:
12 V, 12.0 Ah (10 HR)
Bul b watta ge:
Headlight:
LED
Brake/tail light:
LED
Front turn signal light: LED
Rear turn signal light: LED
Auxiliary light: LED
License plate light:
LED
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil level warning light: LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light: LED
Traction control system indicator light: LED
Fuse(s):
Main fuse:50.0 A
Main fuse 2: 30.0 A
Terminal fuse 1:
3.0 A
Headlight fuse: 7.5 A Brake light fuse:
1.0 A
Signaling system fuse: 7.5 A
Ignition fuse:
20.0 A
Radiator fan motor fuse: 10.0 A × 2
Hazard fuse: 7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse: 20.0 A
Cruise control fuse:
1.0 A
Backup fuse: 7.5 A
Windshield motor fuse: 20.0 A
Electronic throttle valve fuse:
7.5 A
UB88E1E0.book Page 3 Monday, July 10, 2017 2:46 PM

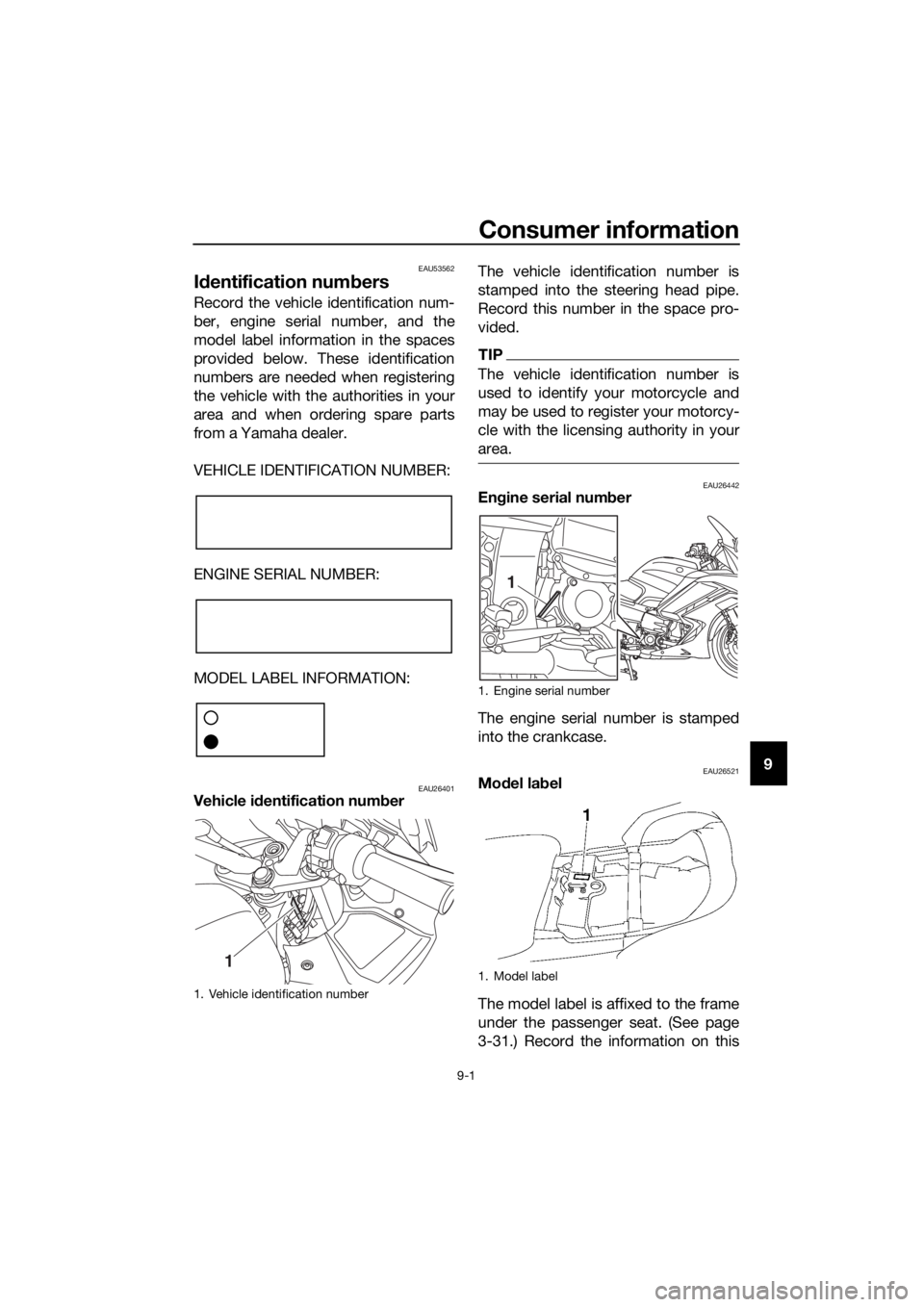

Consumer information
9-1
9
EAU53562
Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle i dentification num ber The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26521Mo del la bel
The model label is affixed to the frame
under the passenger seat. (See page
3-31.) Record the information on this
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
UB88E1E0.book Page 1 Monday, July 10, 2017 2:46 PM

Consumer information
9-2
9label in the space provided. This infor-
mation will be needed when ordering
spare parts from a Yamaha dealer.
EAU69910
Dia
gnostic connector
The diagnostic connector is located as
shown.
1. Diagnostic connector
1
UB88E1E0.book Page 2 Monday, July 10, 2017 2:46 PM

10-1
10
Index
A
ABS ...................................................... 3-25
ABS warning light ................................... 3-5
Accessory box...................................... 3-35
Air filter element, cleaning .................... 6-17
Auxiliary DC jack .................................. 3-45
B
Battery .................................................. 6-33
Brake and clutch fluid levels,
checking............................................. 6-26
Brake and clutch fluids, changing ........ 6-27
Brake and clutch levers, checking
and lubricating ................................... 6-29
Brake and shift pedals, checking
and lubricating ................................... 6-29
Brake lever ........................................... 3-24
Brake lever free play, checking ............ 6-24
Brake light switches ............................. 6-24
Brake pedal .......................................... 3-25
C
Cables, checking and lubricating ......... 6-28
Canister ................................................ 6-11
Care ........................................................ 7-1
Catalytic converters ............................. 3-30
Centerstand and sidestand, checking
and lubricating ................................... 6-30
Clutch lever ................................. 3-23, 6-23
Coolant ................................................. 6-16
Cowling vents, opening and closing .... 3-37
Cruise control indicator lights ................ 3-4
Cruise control switches ........................ 3-23
Cruise control system ............................ 3-6
D
Diagnostic connector ............................. 9-2
Dimmer/Pass switch ............................ 3-22
D-mode (drive mode) ........................... 3-21
E
Engine break-in ...................................... 5-4
Engine idling speed, checking ............. 6-19
Engine oil and oil filter cartridge ........... 6-11
Engine serial number.............................. 9-1
Engine trouble warning light................... 3-4
F
Final gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-25
Front fork, adjusting ............................. 3-39
Front fork, checking ............................. 6-31
Fuel....................................................... 3-28
Fuel consumption, tips for reducing ...... 5-4
Fuel tank cap........................................ 3-28 Fuel tank overflow hose ........................ 3-30
Fuses, replacing.................................... 6-34
H
Handlebar position, adjusting ............... 3-37
Handlebar switches .............................. 3-22
Hazard switch ....................................... 3-22
Headlight beams, adjusting .................. 3-36
High beam indicator light........................ 3-4
Horn switch........................................... 3-22
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-43
Immobilizer system ................................. 3-1
Immobilizer system indicator light .......... 3-5
Indicator lights and warning lights .......... 3-4
M
Main switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution ................................ 7-1
Menu switch ......................................... 3-23
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-9
N
Neutral indicator light.............................. 3-4
O
Oil level warning light .............................. 3-4
P
Panels, removing and installing .............. 6-7
Parking .................................................... 5-5
Part locations .......................................... 2-1
R
Rear suspension, lubricating ................ 6-30
Rear view mirrors .................................. 3-39
Rider seat height, adjusting .................. 3-32
S
Safety information................................... 1-1
Seats ..................................................... 3-31
Select switch ........................................ 3-23
Shifting .................................................... 5-3
Shift pedal............................................. 3-24
Shock absorber assembly, adjusting ... 3-41
Sidestand .............................................. 3-43
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Starting the engine.................................. 5-2
Steering, checking ................................ 6-32
Stop/Run/Start switch .......................... 3-22
Storage ................................................... 7-4
UB88E1E0.book Page 1 Monday, July 10, 2017 2:46 PM

Index
10-2
10
Storage compartments ......................... 3-34
Swingarm pivots, lubricating ................ 6-31
T
Throttle grip and cable, checking and
lubricating ........................................... 6-28
Throttle grip free play, checking ........... 6-19
Tires ...................................................... 6-20
Tool kit .................................................... 6-2
Traction control system ........................ 3-26
Traction control system indicator light ... 3-5
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator lights ...................... 3-4
Turn signal switch ................................. 3-22
V
Valve clearance..................................... 6-20
Vehicle identification number ................. 9-1
Vehicle lights ......................................... 6-36
W
Wheel bearings, checking..................... 6-32
Wheels .................................................. 6-23
UB88E1E0.book Page 2 Monday, July 10, 2017 2:46 PM

UB88E1E0.book Page 3 Monday, July 10, 2017 2:46 PM

DIC183
Original instructions
PRINTED ON RECYCLED PAPERPRINTED IN JAPAN
2017.07-0.3×1 CR (E)
