Periodic maintenance an d a djustment
6-15
6
3. If the oil is below the brim of the
filler hole, add sufficient oil of the
recommended type to raise it to
the correct level.
4. Check the gasket for damage, and replace it if necessary.
5. Install the final gear oil filler bolt and its gasket, and then tighten
the bolt to the specified torque.
To chan ge the final gear oil
1. Place the vehicle on a level surfa- ce.
2. Place an oil pan under the final gear case to collect the used oil.
3. Remove the final gear oil filler bolt, the final gear oil drain bolt and
their gasket to drain the oil from
the final gear case. 4. Install the final gear oil drain bolt
and its new gasket, and then tight-
en the bolt to the specified torque.
5. Refill with the recommended final gear oil to the brim of the filler
hole.
6. Check the oil filler bolt gasket for damage, and replace it if neces-
sary.
7. Install the oil filler bolt and its gas- ket, and then tighten the bolt to
the specified torque.
8. Check the final gear case for oil leakage. If oil is leaking, check for
the cause.
1. Final gear oil filler bolt
2. Gasket
3. Correct oil level
Tightening torque:
Final gear oil filler bolt:
23 N·m (2.3 kgf·m, 17 lb·ft)
3
2
1
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil drain bolt
Tightenin g torque:
Final gear oil drain bolt:
23 N·m (2.3 kgf·m, 17 lb·ft)
Recommen ded final gear oil:
Yamaha genuine shaft drive gear oil
SAE 80W-90 API GL-5
Oil quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
Ti ghtenin g torque:
Final gear oil filler bolt: 23 N·m (2.3 kgf·m, 17 lb·ft)
1
2
32
UB88E1E0.book Page 15 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-16
6
EAUS1203
Coolant
The coolant level should be checked
regularly. In addition, the coolant must
be changed at the intervals specified in
the periodic maintenance chart.
TIP
If genuine Yamaha coolant is not avail-
able, use an ethylene glycol antifreeze
containing corrosion inhibitors for alu-
minum engines and mix with distilled
water at a 1:1 ratio.
EAU54164To check the coolant level
1. Wait for the engine to cool. The coolant level will vary with engine
temperature.
2. Place the vehicle on the center- stand.
3. Remove the left cowling vent pan- el. (See page 3-37.)
4. Look at the coolant reservoir. 5. If the coolant is at or below the mi-
nimum level mark, remove the
coolant reservoir cap. WARNING!
Remove only the coolant reser-
voir cap. Never attempt to re-
move the ra diator cap when the
en gine is hot.
[EWA15162]
6. Add coolant or distilled water to
raise the coolant to the maximum
level mark, and install the coolant
reservoir cap. NOTICE: If coolant
is not availab le, use distille d wa-
ter or soft tap water instea d. Do
not use har d water or salt water
since it is harmful to the en gine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possi ble, other-
wise the coolin g system will not
b e protecte d a gainst frost an d
corrosion. If water has b een
a dde d to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possi ble, otherwise the
effectiveness of the coolant will
b e red uced.
[ECA10473]
7. Install the panel.
Recommen ded coolant:
YAMALUBE coolant
Coolant quantity: Coolant reservoir (max level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 2.60 L (2.75 US qt, 2.29 Imp.qt)
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
2
1 3
1. Coolant reservoir cap
1
UB88E1E0.book Page 16 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-17
6
EAU33032Chan gin g the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove the ra diator cap when the en gine is
hot.
[EWA10382] EAU72990
Cleanin
g the air filter element
The air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas.
1. Remove panel B. (See page 6-7.)
2. Remove the intake air shroud by removing the screw and the quick
fastener screws.
3. Remove the air filter case cover by removing the screws.
4. Pull the air filter element out.
1. Intake air shroud
2. Quick fastener screw
3. Screw
1. Air filter case cover
2. Screw
1
3
2
2
2 1
UB88E1E0.book Page 17 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-18
6 5. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as
shown. If the air filter element is
damaged, replace it.
6. Insert the air filter element into the air filter case. NOTICE: Make
sure that the air filter element is
properly seate d in the air filter
case. The en gine shoul d never
b e operated without the air filter
element installe d, otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
7. Install the air filter case cover by
installing the screws. NOTICE:
Make sure that the fuel tank
overflow hose is not pinched .
[ECA23280]
8. Install the intake air shroud by in-
stalling the screw and the quick
fastener screws.
9. Install the panel.
1. Air filter element
1
1. Fuel tank overflow hose
1
UB88E1E0.book Page 18 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-19
6
EAU44735
Checkin g the eng ine idlin g
spee d
Check the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
EAU21386
Checkin g the throttle grip free
play
Measure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
En gine i dlin g spee d:
1000–1100 r/min
1. Throttle grip free play
Throttle grip free play:
1.0–3.0 mm (0.04–0.12 in)
1
UB88E1E0.book Page 19 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-20
6
EAU21403
Valve clearance
The valves are an important engine
component, and since valve clearance
changes with use, they must be
checked and adjusted at the intervals
specified in the periodic maintenance
chart. Unadjusted valves can result in
improper air-fuel mixture, engine
noise, and eventually engine damage.
To prevent this from occurring, have
your Yamaha dealer check and adjust
the valve clearance at regular intervals.
TIP
This service must be performed when
the engine is cold.
EAU64410
Tires
Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control.  The tire air pressure must be
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
 The tire air pressure must be
a d juste d in accor dance with the
ri din g speed and with the total
wei ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
UB88E1E0.book Page 20 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-21
6
WARNING
EWA10512
Never overloa d your vehicle. Opera-
tion of an overloa ded vehicle coul d
cause an acci dent.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
TIP
The tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
WARNING
EWA10472
 Have a Yamaha dealer replace
excessively worn tires. Besi des
b ein g ille gal, operatin g the vehi-
cle with excessively worn tires
d ecreases ri din g sta bility an d
can lead to loss of control.
 The replacement of all wheel
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha dealer, who has the
necessary professional knowl-
e dg e an d experience to d o so.
 Ride at mo derate spee ds after
chan gin g a tire since the tire
surface must first b e “broken
in” for it to develop its optimal
characteristics.
Tire information
Tire air pressure (measure d on col d
tires): 1 person:Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
2 persons: Front:250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Maximum load *:
215 kg (474 lb)
* Total weight of rider, passenger, car- go and accessories

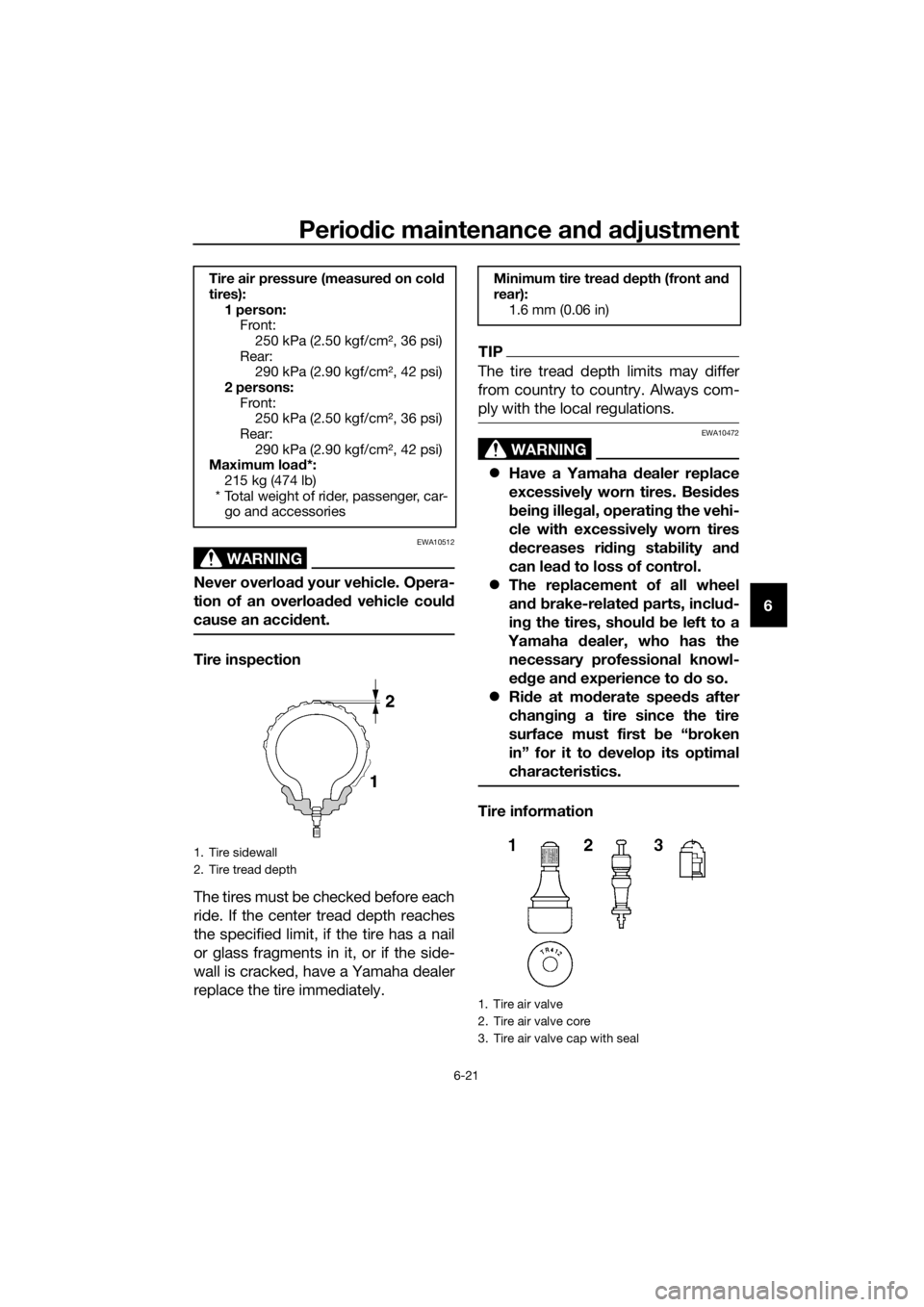

1. Tire sidewall
2. Tire tread depth
Minimum tire trea d d epth (front an d
rear): 1.6 mm (0.06 in)
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
UB88E1E0.book Page 21 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-22
6 This model is equipped with tubeless
tires and tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10902

The front an d rear tires shoul d
b e of the same make an d d e-
si gn, otherwise the han dlin g
characteristics of the motorcy-
cle may be different, which
coul d lea d to an acci dent.
 Always make sure that the valve
caps are securely installe d to
prevent air pressure leaka ge.
 Use only the tire valves an d
valve cores liste d below to
avoi d tire d eflation durin g a ri de.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha.
WARNING
EWA10601
This motorcycle is fitte d with super-
hi gh-spee d tires. Note the followin g
points in or der to make the most ef-
ficient use of these tires.  Use only the specified replace-
ment tires. Other tires may run
the dan ger of bursting at super
hi gh spee ds.
 Bran d-new tires can have a rel-
atively poor g rip on certain roa d
surfaces until they have been
“ b roken in”. Therefore, it is a d-
visa ble before doin g any hi gh-
speed ridin g to ri de conserva-
tively for approximately 100 km
(60 mi) after installin g a new tire.
 The tires must be warmed up
b efore a hi gh-spee d run.
 Always a djust the tire air pres-
sure accor din g to the operatin g
con ditions.
Front tire:
Size:
120/70ZR17M/C (58W)
Manufacturer/model: BRIDGESTONE/BT023F F
Rear tire: Size:180/55ZR17M/C(73W)
Manufacturer/model: BRIDGESTONE/BT023R F
FRONT an d REAR:
Tire air valve: TR412
Valve core:
#9100 (original)
UB88E1E0.book Page 22 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-23
6
EAU21963
Cast wheels
To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
 The wheel rims should be
checked for cracks, bends, warp-
age or other damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.
 The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU22075
Clutch lever
Since this model is equipped with a hy-
draulic clutch, adjusting the clutch le-
ver free play is not needed. However, it
is necessary to check the clutch fluid
level and check the hydraulic system
for leakage. (See page 6-26.)
TIP
If clutch lever free play become exces-
sive, shifting becomes rough, or clutch
slippage occurs, there may be air in the
clutch system. Have a Yamaha dealer
bleed or replace the hydraulic clutch
fluid.
UB88E1E0.book Page 23 Monday, July 10, 2017 2:46 PM

Periodic maintenance an d a djustment
6-24
6
EAU37914
Checkin g the brake lever free
play
There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spon gy feelin g in the b rake
lever can in dicate the presence of
air in the hy draulic system. If there is
air in the hy draulic system, have a
Yamaha dealer blee d the system be-
fore operatin g the vehicle. Air in the
hy draulic system will diminish the
b rakin g performance, which may re-
sult in loss of control and an acci-
d ent.
EAU36505
Brake li ght switches
The brake light should come on just
before braking takes effect. The brake
light is activated by switches connect-
ed to the brake lever and brake pedal.
Since the brake light switches are
components of the anti-lock brake sys-
tem, they should only be serviced by a
Yamaha dealer.
1. No brake lever free play
1
UB88E1E0.book Page 24 Monday, July 10, 2017 2:46 PM
