MOTORCYCLE CARE AND STORAGE7-4
7
EAU26244
StorageShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the mo-
torcycle.NOTICE
ECA10811
 Storin g the motorcycle in a
poorly ventilate d room or cover-
in g it with a tarp, while it is still
wet, will allow water an d humi d-
ity to seep in an d cause rust.
 To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are stored .Long-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter. 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then
place the spark plugs on the
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plastic bags to prevent moisture
from entering them.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
U2PDE0E0.book Page 4 Monday, July 15, 2013 9:43 AM

MOTORCYCLE CARE AND STORAGE
7-5
7
TIPMake any necessary repairs before
storing the motorcycle.U2PDE0E0.book Page 5 Monday, July 15, 2013 9:43 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height: 1325/1455 mm (52.2/57.3 in)
Seat height: 805/825 mm (31.7/32.5 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance: 123 mm (4.84 in)
Minimum turning radius: 3200 mm (126.0 in)Wei ght:Curb weight:
292 kg (644 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 4-cylinder
Displacement: 1298 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio: 10.80 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil exclusive to FJR1300/VMAX
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolin g system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 2.60 L (2.75 US qt, 2.29 Imp.qt)Air filter:Air filter element:Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity: 25.0 L (6.61 US gal, 5.50 Imp.gal)
Fuel reserve amount: 5.5 L (1.45 US gal, 1.21 Imp.gal)Fuel injection:Throttle body:ID mark:
1MC1 00Spark plu g(s):Manufacturer/model:
NGK/CPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:1.563 (75/48)
Final drive: Shaft
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U2PDE0E0.book Page 1 Monday, July 15, 2013 9:43 AM

SPECIFICATIONS
8-2
8
Secondary reduction ratio:2.698 (35/37 x 21/27 x 33/9)
Transmission type: Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio: 1st:
2.529 (43/17)
2nd: 1.773 (39/22)
3rd: 1.348 (31/23)
4th:
1.077 (28/26)
5th: 0.929 (26/28)Chassis:Frame type:
Diamond
Caster angle: 26.00 °
Trail: 109 mm (4.3 in)Front tire:Type:Tubeless
Size: 120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT023F ERear tire:Type:Tubeless Size:
180/55 ZR17M/C (73W)
Manufacturer/model: BRIDGESTONE/BT023R E
Loa din g:Maximum load:
212 kg (467 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Loading condition: 90–212 kg (198–467 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding: Front: 250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT3.50
Rear wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT5.50Unifie d b rake system:Operation:
Activated by rear brakeFront brake:Type:
Dual disc brake
Operation: Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Specified brake fluid: DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 135.0 mm (5.31 in)Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
U2PDE0E0.book Page 2 Monday, July 15, 2013 9:43 AM

SPECIFICATIONS
8-3
8
Wheel travel:125.0 mm (4.92 in)Electrical system:Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
GT14B-4
Voltage, capacity: 12 V, 12.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 60.0 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light: LED
Rear turn signal light: 12 V, 21.0 W × 2
Auxiliary light:
LED
License plate light: 12 V, 5.0 W × 1
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED Oil level warning light:
LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light: LED
Traction control system indicator/warning
light: LED
Suspension warning light: LED
Fuses:Main fuse 1:50.0 A
Main fuse 2: 30.0 A
Headlight fuse:
25.0 A
Brake light fuse: 1.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
20.0 A
Radiator fan fuse: 10.0 A × 2 Hazard fuse:
7.5 A
Fuel injection system fuse: 15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse: 20.0 A
Suspension fuse:
15.0 A
Cruise control fuse: 1.0 A
Auxiliary DC jack fuse: 3.0 A
Backup fuse:
7.5 A
Windshield motor fuse: 20.0 A
Electronic throttle valve fuse: 7.5 A
U2PDE0E0.book Page 3 Monday, July 15, 2013 9:43 AM

CONSUMER INFORMATION
9-1
9
EAU48613

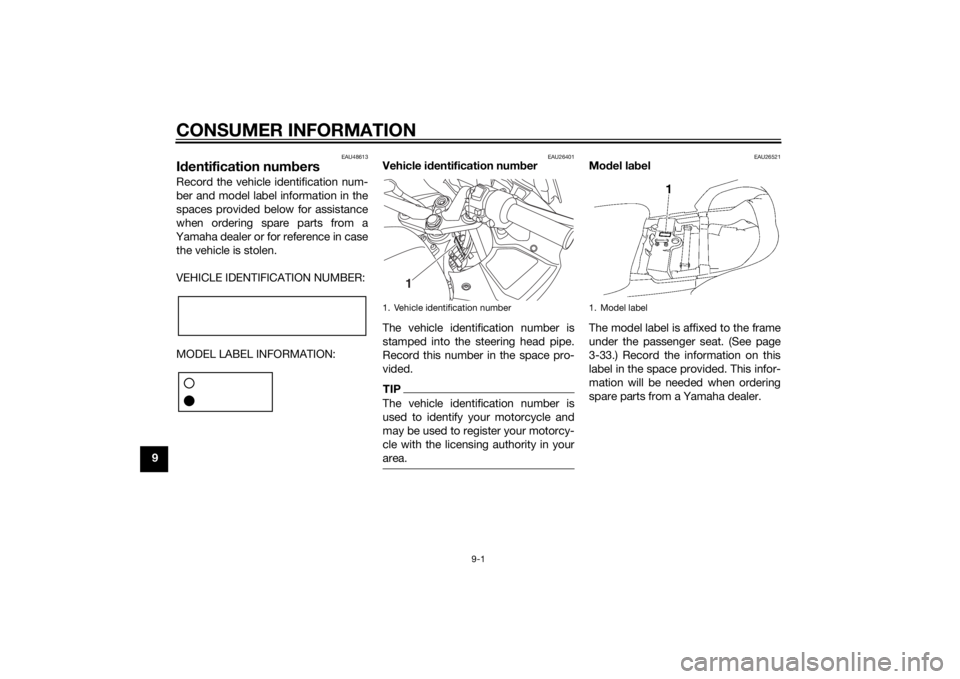

Id entification num bersRecord the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26521
Mo del la bel
The model label is affixed to the frame
under the passenger seat. (See page
3-33.) Record the information on this
label in the space provided. This infor-
mation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
U2PDE0E0.book Page 1 Monday, July 15, 2013 9:43 AM

INDEX
AABS....................................................... 3-28
ABS warning light ................................... 3-5
Accessory box ...................................... 3-37
Air filter element, cleaning .................... 6-17
Auxiliary DC jack .................................. 3-47
Auxiliary light ........................................ 6-36BBattery .................................................. 6-31
Brake and clutch fluid levels, checking ............................................. 6-24
Brake and clutch fluids , changing ........ 6-26
Brake and clutch levers, checking and lubricating .................... 6-27
Brake and shift pedals,
checking and lubricating .................... 6-27
Brake lever............................................ 3-27
Brake lever free play, checking ............ 6-23
Brake light switches ............................. 6-23
Brake pedal .......................................... 3-27CCables, checking and lubricating ......... 6-26
Care ........................................................ 7-1
Catalytic converters.............................. 3-32
Centerstand and sidestand, checking and lubricating .................... 6-28
Clutch lever.................................. 3-26, 6-22
Coolant ................................................. 6-16
Cowling vents, opening and closing .... 3-38
Cruise control indicator lights................. 3-4
Cruise control switches ........................ 3-25
Cruise control system............................. 3-7DDimmer/Pass switch............................. 3-25 D-mode (drive mode) ........................... 3-24
EElectronically adjustable suspension
system warning light ............................ 3-6
Engine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-18
Engine oil and oil filter cartridge........... 6-12
Engine trouble warning light .................. 3-5FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-24
Front fork, checking ............................. 6-29
Front turn signal light ........................... 6-34
Fuel ...................................................... 3-31
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather/overflow hose ........ 3-32
Fuel tank cap........................................ 3-30
Fuses, replacing ................................... 6-32HHandlebar position, adjusting .............. 3-38
Handlebar switches ............................. 3-24
Hazard switch ...................................... 3-25
Headlight beams, adjusting ................. 3-38
Headlight bulb ...................................... 6-34
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-25IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-45
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-6
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-35
MMain switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control system .................................................. 6-3
Matte color, caution................................ 7-1
Menu switch ......................................... 3-25
Model label ............................................. 9-1
Multi-function meter unit ...................... 3-10NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking.................................................... 5-4
Part locations.......................................... 2-1RRear suspension, lubricating ................ 6-29
Rear view mirrors .................................. 3-40
Rider seat height, adjusting .................. 3-34SSafety information................................... 1-1
Seats ..................................................... 3-33
Select switch ........................................ 3-26
Shifting.................................................... 5-2
Shift pedal............................................. 3-27
Sidestand.............................................. 3-44
Spark plugs, checking .......................... 6-11
Specifications ......................................... 8-1
Start/Engine stop switch ...................... 3-25
Starting the engine ................................. 5-1
Steering, checking ................................ 6-30
Storage ................................................... 7-4
U2PDE0E0.book Page 1 Monday, July 15, 2013 9:43 AM

INDEXStorage compartments ......................... 3-36
Suspension, adjusting the front and rear ..................................................... 3-40
Swingarm pivots, lubricating ................ 6-29TThrottle grip and cable, checking and lubricating ........................................... 6-26
Throttle grip free play, checking ........... 6-19
Tires ...................................................... 6-19
Tool kit .................................................... 6-2
Traction control system ........................ 3-29
Traction control system indicator/ warning light ......................................... 3-5
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake light bulb, replacing ............................................. 6-34
Turn signal switch ................................. 3-25VValve clearance..................................... 6-19
Vehicle identification number ................. 9-1WWheel bearings, checking..................... 6-30
Wheels .................................................. 6-22
U2PDE0E0.book Page 2 Monday, July 15, 2013 9:43 AM

U2PDE0E0.book Page 3 Monday, July 15, 2013 9:43 AM

DIC183
PRINTED ON RECYCLED PAPER
Original instructions
PRINTED IN JAPAN2015.05-0.3×1 CR (E)
