Safety information
1-5
1 operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. See page 6-21
for tire specifications and for informa-
tion on servicing and replacing your
tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.
Remove all loose items from the
motorcycle.
Check that the fuel cock (if
equipped) is in the off position and
that there are no fuel leaks.
Shift the transmission into gear
(for models with a manual trans-
mission).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mountedhandlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce exces-
sively during transport.
UB96E2E0.book Page 5 Wednesday, September 18, 2019 10:21 AM

Description
2-1
2
EAU63371

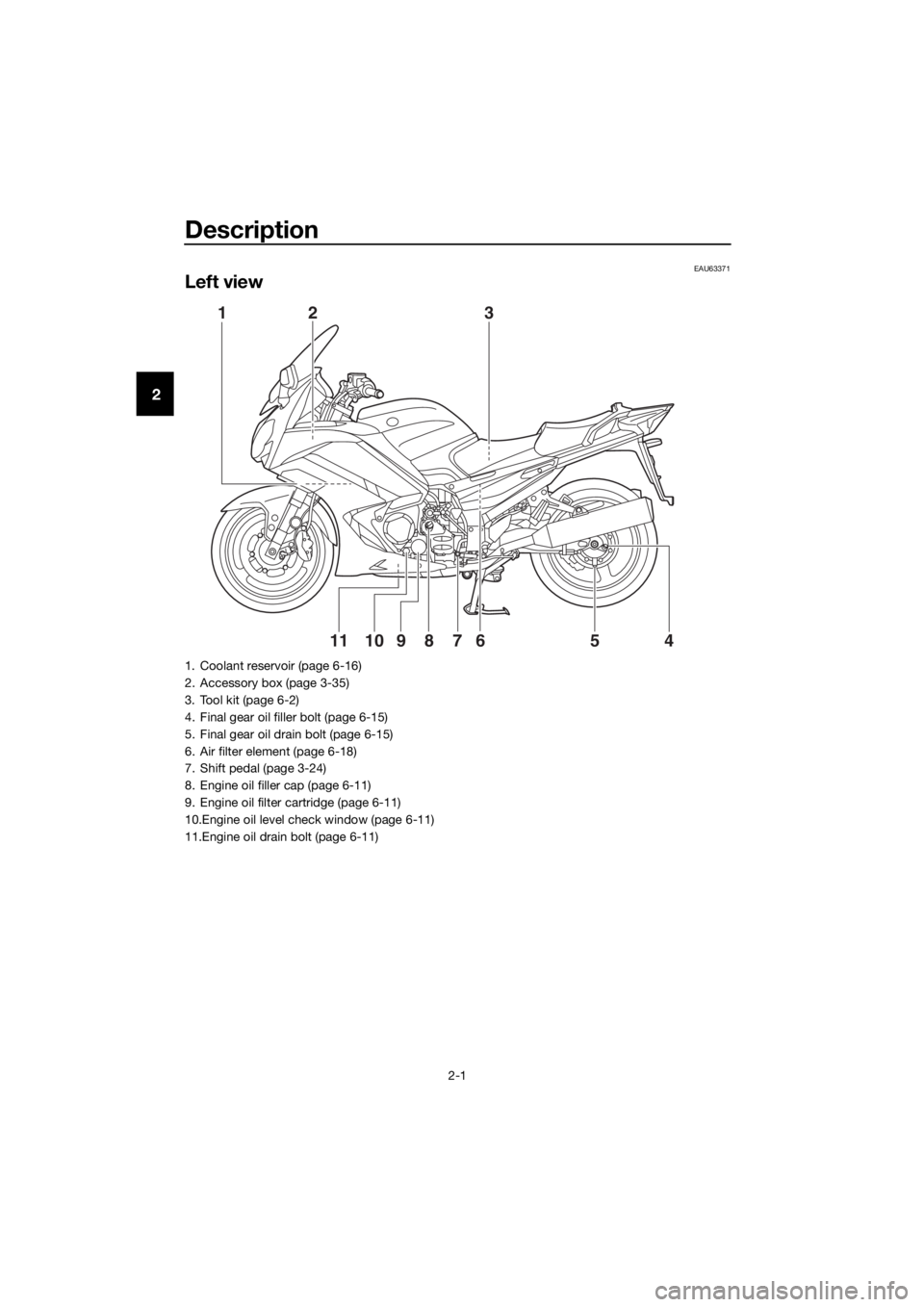

Left view
12
3
4 5
6 7 8 9 10 11
1. Coolant reservoir (page 6-16)
2. Accessory box (page 3-35)
3. Tool kit (page 6-2)
4. Final gear oil filler bolt (page 6-15)
5. Final gear oil drain bolt (page 6-15)
6. Air filter element (page 6-18)
7. Shift pedal (page 3-24)
8. Engine oil filler cap (page 6-11)
9. Engine oil filter cartridge (page 6-11)
10.Engine oil level check window (page 6-11)
11.Engine oil drain bolt (page 6-11)
UB96E2E0.book Page 1 Wednesday, September 18, 2019 10:21 AM

Description
2-2
2
EAU63391

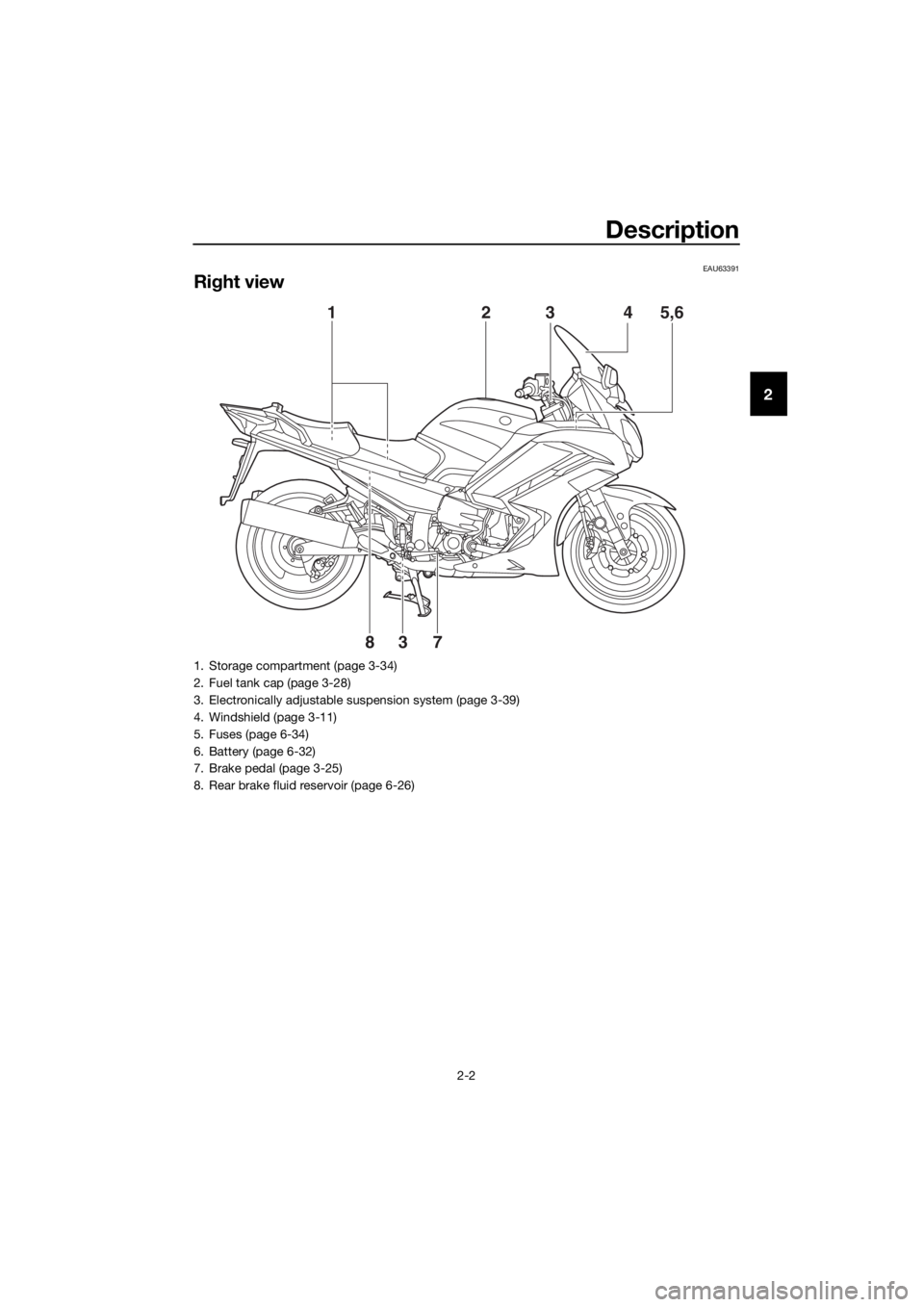

Right view
7 85,6
4 3 2 1
3
1. Storage compartment (page 3-34)
2. Fuel tank cap (page 3-28)
3. Electronically adjustable suspension system (page 3-39)
4. Windshield (page 3-11)
5. Fuses (page 6-34)
6. Battery (page 6-32)
7. Brake pedal (page 3-25)
8. Rear brake fluid reservoir (page 6-26)
UB96E2E0.book Page 2 Wednesday, September 18, 2019 10:21 AM

Description
2-3
2
EAU63401

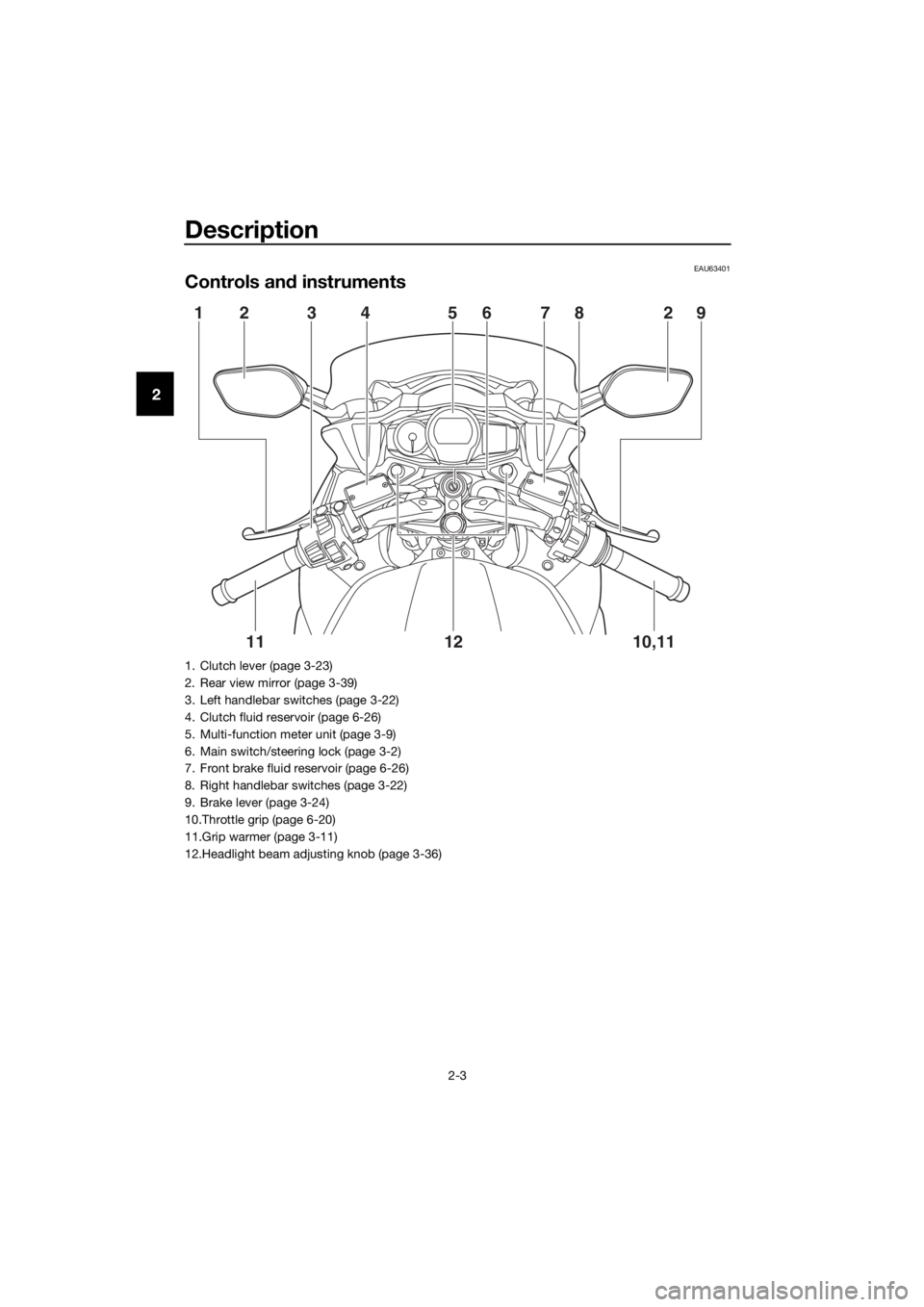

Controls and instruments
12 3 4 5678 29
10,11 12
11
1. Clutch lever (page 3-23)
2. Rear view mirror (page 3-39)
3. Left handlebar switches (page 3-22)
4. Clutch fluid reservoir (page 6-26)
5. Multi-function meter unit (page 3-9)
6. Main switch/steering lock (page 3-2)
7. Front brake fluid reservoir (page 6-26)
8. Right handlebar switches (page 3-22)
9. Brake lever (page 3-24)
10.Throttle grip (page 6-20)
11.Grip warmer (page 3-11)
12.Headlight beam adjusting knob (page 3-36)
UB96E2E0.book Page 3 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-1
3
EAU1097A
Immobilizer system
This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing:
a code re-registering key
two standard keys
a transponder (in each key)
an immobilizer unit (on the vehicle)
an ECU (on the vehicle)
a system indicator light (page 3-5)
About the keys
The code re-registering key acts like a
master key. It is used to register codes
in each standard key. Store the code
re-registering key in a safe place. Use
a standard key for daily operation.
When key replacement or re-register-
ing is necessary, bring the vehicle and
the master key along with any remain-
ing standard keys to a Yamaha dealer
to have them re-registered.
TIP
Keep the standard keys as well as
keys of other immobilizer systems
away from the code re-registering
key.Keep other immobilizer system
keys away from the main switch
as they may cause signal interfer-
ence.
NOTICE
ECA11823
DO NOT LOSE THE CODE RE-REG-
ISTERING KEY! CONTACT YOUR
DEALER IMMEDIATELY IF IT IS
LOST! If the code re-registering key
is lost, the existing standard keys
can still be used to start the vehicle.
However, registering a new stan-
dard key is impossible. If all keys
have been lost or damaged, the en-
tire immobilizer system must be re-
placed. Therefore, handle the keys
carefully.
Do not submerse in water.
Do not expose to high tempera-
tures.
Do not place near magnets.
Do not place near items that
transmit electrical signals.
Do not handle roughly.
Do not grind or alter.
Do not disassemble.
Do not put two keys of any im-
mobilizer system on the same
key ring.

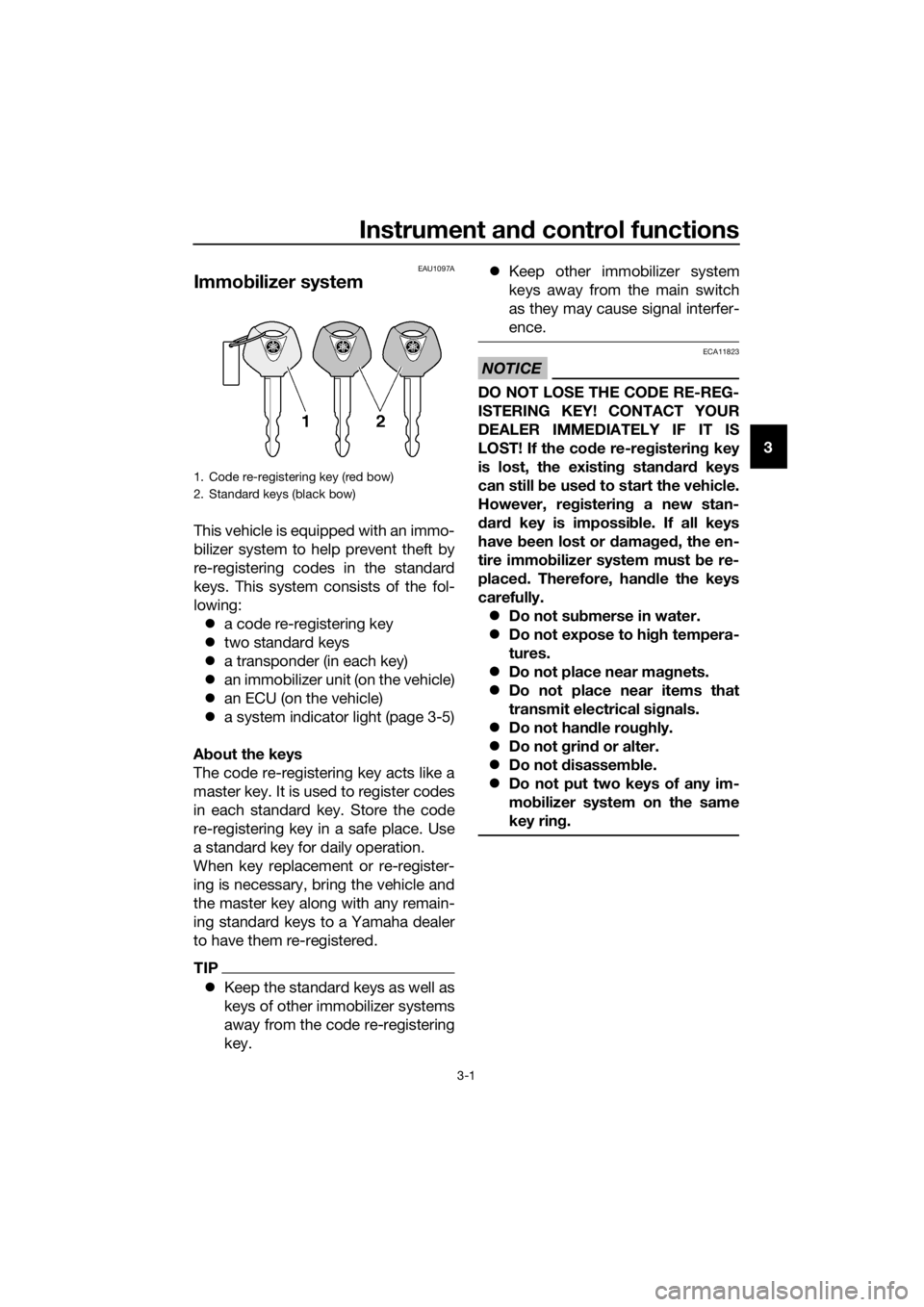

1. Code re-registering key (red bow)
2. Standard keys (black bow)
UB96E2E0.book Page 1 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-2
3
EAU10474

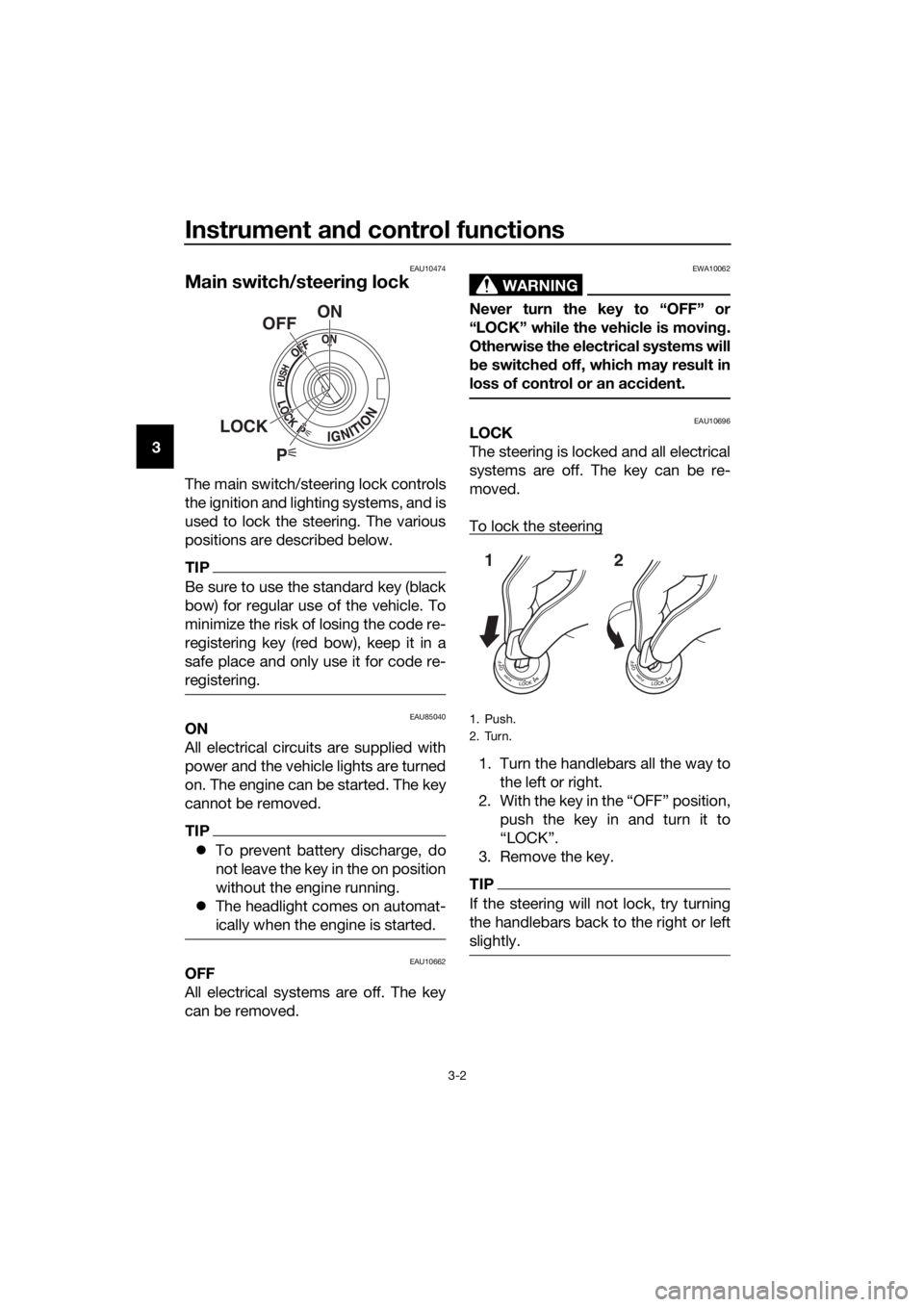

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
TIP
Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
EAU85040ON
All electrical circuits are supplied with
power and the vehicle lights are turned
on. The engine can be started. The key
cannot be removed.
TIP
To prevent battery discharge, do
not leave the key in the on position
without the engine running.
The headlight comes on automat-
ically when the engine is started.
EAU10662OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10696LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. With the key in the “OFF” position,
push the key in and turn it to
“LOCK”.
3. Remove the key.
TIP
If the steering will not lock, try turning
the handlebars back to the right or left
slightly.
P
ON
OFF
LOCK
1. Push.
2. Turn.
12
UB96E2E0.book Page 2 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-3

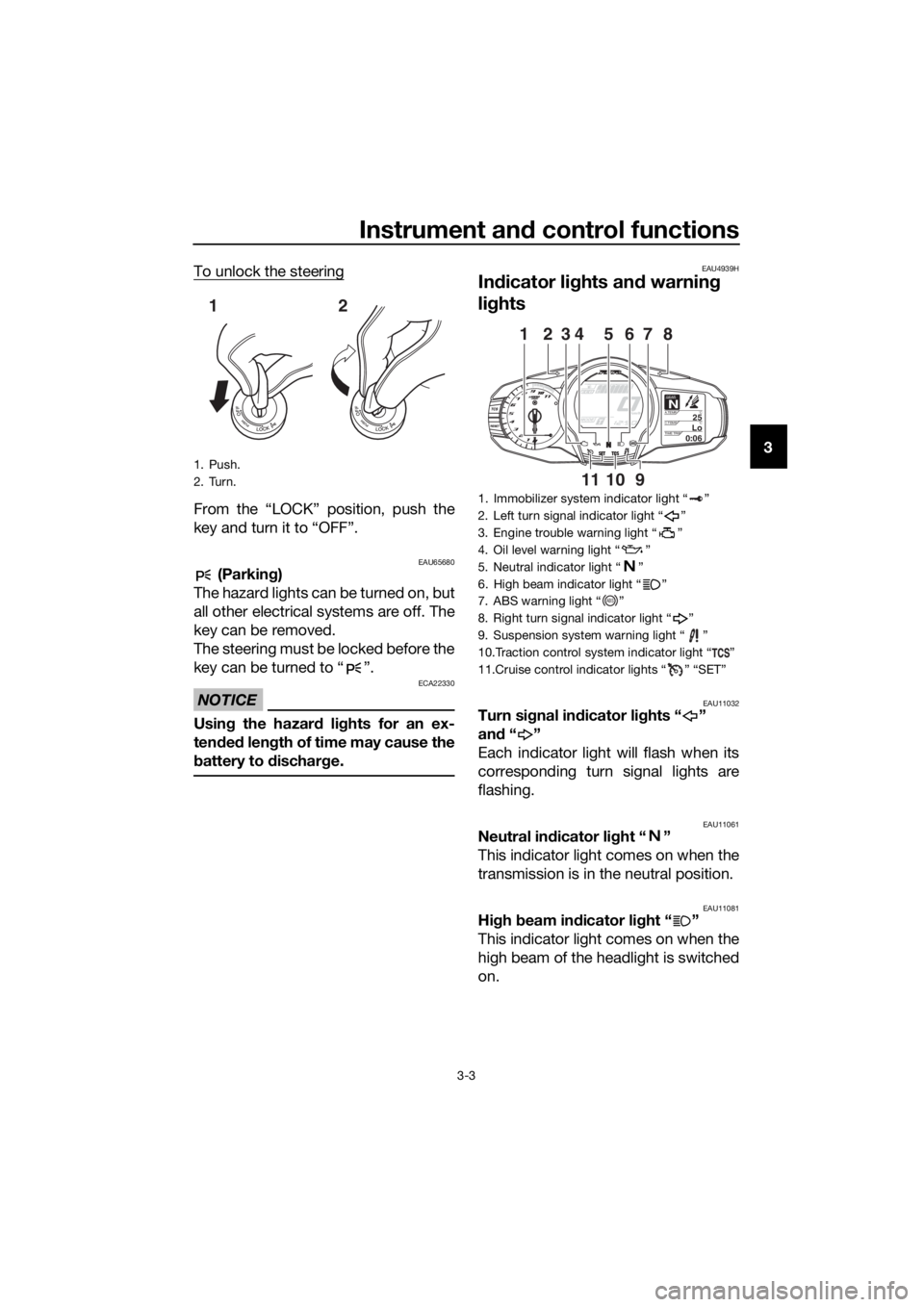

3 To unlock the steering
From the “LOCK” position, push the
key and turn it to “OFF”.
EAU65680 (Parking)
The hazard lights can be turned on, but
all other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE
ECA22330
Using the hazard lights for an ex-
tended length of time may cause the
battery to discharge.
EAU4939H
Indicator lights and warning
lights
EAU11032Turn signal indicator lights “ ”
and“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11061Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Push.
2. Turn.
12
1. Immobilizer system indicator light Ž
2. Left turn signal indicator light Ž
3. Engine trouble warning light Ž
4. Oil level warning light Ž
5. Neutral indicator light Ž
6. High beam indicator light Ž
7. ABS warning light Ž
8. Right turn signal indicator light Ž
9. Suspension system warning light Ž
10.Traction control system indicator light Ž
11.Cruise control indicator lights
GEARN25A.TEMP ˚C
LoC.TEMP ˚C
0:06TIME TRIP
128374
1011
65
9
ABS
UB96E2E0.book Page 3 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-4
3
EAU11125Oil level warning light “ ”
This warning light comes on when the
engine oil level is low. To prevent en-
gine damage, replenish the engine oil
as soon as possible.
Even if the oil level is sufficient, the
warning light may flicker when riding
on a slope or during sudden accelera-
tion or deceleration, but this is not a
malfunction.
TIP
When the vehicle is turned on, this light
will come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on after con-
firming that the oil level is correct (see
page 6-11), have a Yamaha dealer
check the vehicle.
EAU58402Cruise control indicator lights “ ”
and “SET”
These indicator lights come on when
the cruise control system is activated.
(See page 3-6.)
TIP
When the vehicle is turned on, these
lights should come on for a few sec-
onds and then go off. If the lights do
not come on, have a Yamaha dealer
check the vehicle.
EAU73172Engine trouble warning light “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system.
TIP
When the vehicle is turned on, the light
will come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
EAU69895ABS warning light “ ”
This warning light comes on when the
vehicle is first turned on, and goes off
after starting riding. If the warning light
comes on while riding, the anti-lock
brake system may not work correctly.
WARNING
EWA16043
If the ABS warning light does not
turn off after reaching 10 km/h (6
mi/h), or if the warning light comes
on while riding:
Use extra caution to avoid pos-
sible wheel lock during emer-
gency braking.
Have a Yamaha dealer check
the vehicle as soon as possible.
EAU86020Traction control system indicator
light “ ”
This indicator light will flash when trac-
tion control has engaged.
If the traction control system is turned
off, this indicator light will come on.
TIP
When the vehicle is turned on, the light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
ABS
UB96E2E0.book Page 4 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-5
3
EAU55393Suspension system warning
light “ ”
This warning light comes on if a prob-
lem is detected in the electronically ad-
justable suspension system.
TIP
When the vehicle is turned on, the light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
EAU73121Immobilizer system indicator
light “ ”
When the main switch is turned off and
30 seconds have passed, the indicator
light will flash steadily to indicate the
immobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
TIP
When the vehicle is turned on, this light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
Transponder interference
If the immobilizer system indicator light
flashes in the pattern, slowly 5 times
then quickly 2 times, this could be
caused by transponder interference. If
this occurs, try the following.
1. Make sure there are no other im-
mobilizer keys close to the main
switch.
2. Use the code re-registering key to
start the engine.3. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
4. If one or both of the standard keys
do not start the engine, take the
vehicle and all 3 keys to a Yamaha
dealer to have the standard keys
re-registered.
UB96E2E0.book Page 5 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-6
3
EAU54193
Cruise control system
This model is equipped with a cruise
control system designed to maintain a
set cruising speed.
The cruise control system operates
only when riding in 3rd gear at speeds
between about 50 km/h (31 mi/h) and
160 km/h (100 mi/h), 4th or 5th gear at
speeds between about 50 km/h (31
mi/h) and 180 km/h (112 mi/h), or 6th
gear at speeds between about 55 km/h
(34 mi/h) and 180 km/h (112 mi/h).
WARNING
EWA16341
Improper use of the cruise con-
trol system may result in loss of
control, which could lead to an
accident. Do not activate the
cruise control system in heavy
traffic, poor weather conditions,
or among winding, slippery,
hilly, rough or gravel roads.
When traveling uphill or down-
hill, the cruise control system
may not be able to maintain the
set cruising speed.
To prevent accidentally activat-
ing the cruise control system,
turn it off when not in use. Make
sure that the cruise control sys-
tem indicator light “ ” is off.
Activating and setting the cruise
control system
1. Push the cruise control power
switch “ ” located on the left
handlebar. The cruise control sys-
tem indicator light “ ” will come
on.

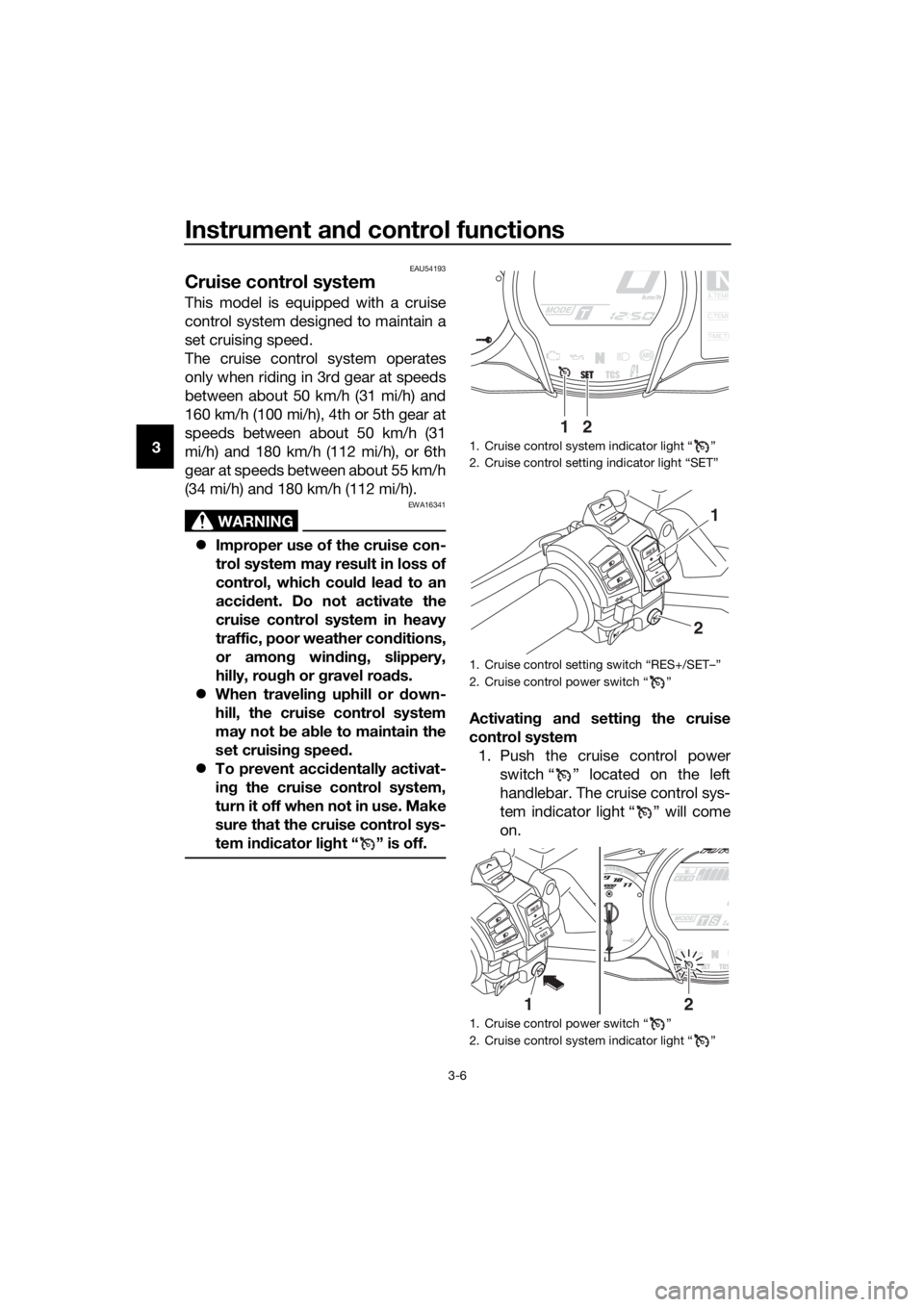

1. Cruise control system indicator light “ ”
2. Cruise control setting indicator light “SET”
1. Cruise control setting switch “RES+/SET–”
2. Cruise control power switch “ ”
1. Cruise control power switch “ ”
2. Cruise control system indicator light “ ”
NA.TEMP
C.TEMP
TIME TR
21
RES
SETPA SS
1
2
RES
SETPAS
S
21
UB96E2E0.book Page 6 Wednesday, September 18, 2019 10:21 AM
