Instrument and control functions
3-27
3 Turning TCS off or on
When the vehicle is turned on, the trac-
tion control system automatically turns
on.
To turn off the traction control system,
stop the vehicle and push the traction
control system button for 2 seconds.
The TCS indicator light will come on.
To turn traction control back on, push
the TCS button again. The TCS indica-
tor light will turn off.
TIP
Turn off traction control to help free the
rear wheel if stuck in mud, sand, or
other situation.
Notes on usage
The traction control system will dis-
abled if:
either wheel comes off the
ground.
excessive rear wheel spin is de-
tected.
either wheel is forcibly rotated
(such as when performing mainte-
nance).
TIP
If the traction control system is dis-
abled, both the TCS indicator light and
the engine trouble warning light will
come on.
NOTICE
ECA16801
Use only the specified tires. (See
page 6-21.) Using different sized
tires will prevent the traction control
system from controlling tire rotation
accurately.
To reset the traction control system
1. Turn the vehicle off and wait a few
seconds.
2. Turn the vehicle on and start the
engine.
3. After traveling at least 20 km/h (12
mph), the TCS indicator light
should turn off and the system be
enabled.
4. Have a Yamaha dealer check the
vehicle and turn off the engine
trouble warning light.
TIP
If the TCS indicator light or engine trou-
ble warning light remain on after reset-
ting, ride cautiously and have a
Yamaha dealer check the vehicle as
soon as possible.
1.
2. Engine trouble warning light Ž
3. Traction control system indicator light Ž
132
UB96E2E0.book Page 27 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-28
3
EAU13077

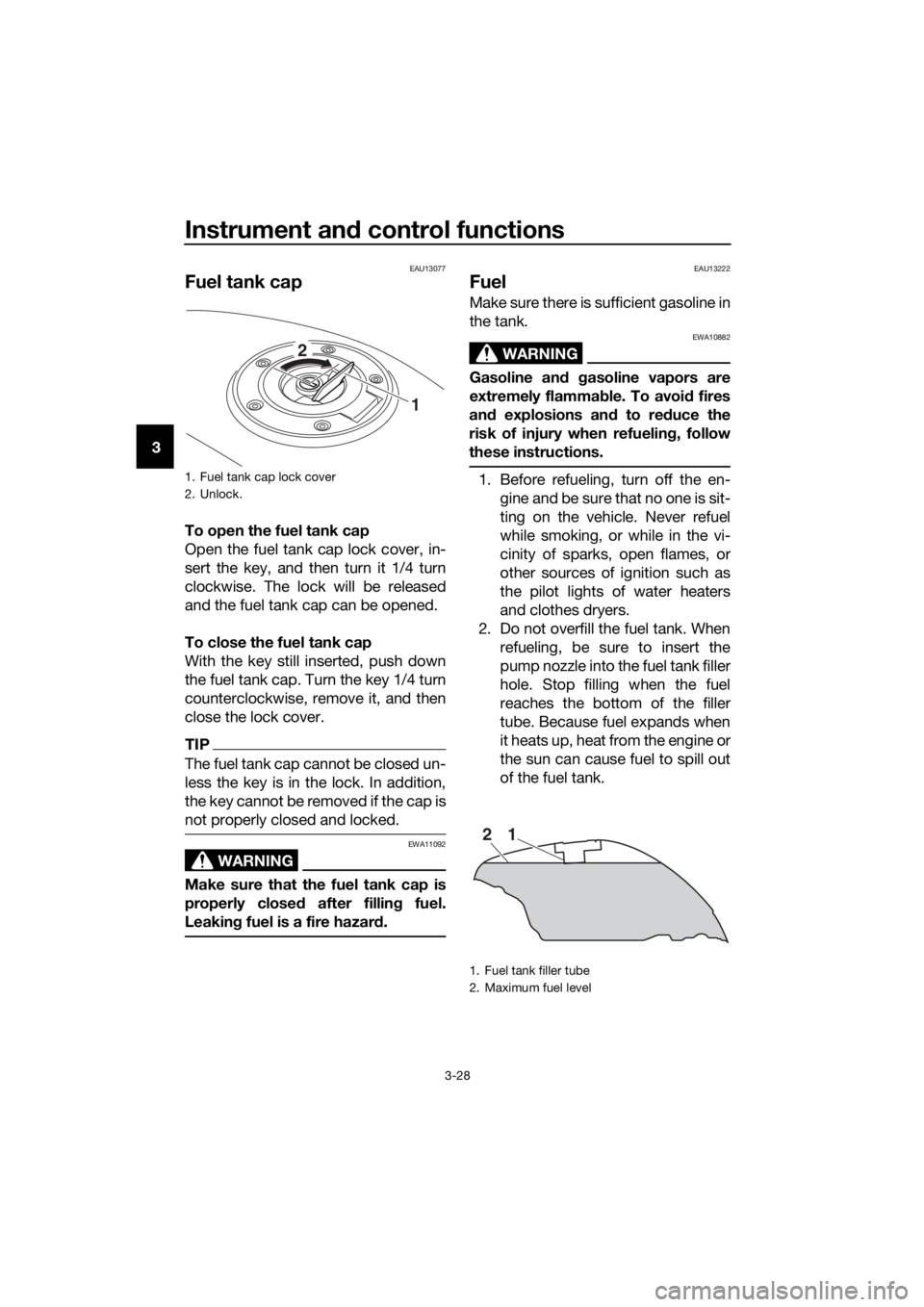

Fuel tank cap
To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be opened.
To close the fuel tank cap
With the key still inserted, push down
the fuel tank cap. Turn the key 1/4 turn
counterclockwise, remove it, and then
close the lock cover.
TIP
The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13222
Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.1. Fuel tank cap lock cover
2. Unlock.
1 2
1. Fuel tank filler tube
2. Maximum fuel level
21
UB96E2E0.book Page 28 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-29
3 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spilled fuel with a clean,
dry, soft cloth, since fuel may
deteriorate painted surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15152
Gasoline is poisonous and can cau-
se injury or death. Handle gasoline
with care. Never siphon gasoline by
mouth. If you should swallow some
gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your
eyes, see your doctor immediately. If
gasoline spills on your skin, wash
with soap and water. If gasoline
spills on your clothing, change your
clothes.
EAU86072
Your Yamaha engine was designed to
use unleaded gasoline with a research
octane number of 90 or higher. If en-
gine knocking or pinging occurs, use a
gasoline of a different brand or higher
octane rating.
TIP
This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
Confirm the gasoline pump nozzle
has the same fuel identification
mark.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Recommended fuel:
Unleaded gasoline (E10 acceptable)
Octane number (RON):
90
Fuel tank capacity:
25 L (6.6 US gal, 5.5 Imp.gal)
Fuel tank reserve:
5.5 L (1.45 US gal, 1.21 Imp.gal)
E5E10
UB96E2E0.book Page 29 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-30
3
EAU86160
Fuel tank overflow hose
The overflow hose drains excess gaso-
line and directs it safely away from the
vehicle.
Before operating the vehicle:
Check the fuel tank overflow hose
connection.
Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
Make sure that the fuel tank over-
flow hose is not blocked, and
clean it if necessary.
Make sure that the fuel tank over-
flow hose is positioned as shown.
TIP
See page 6-11 for canister information.
EAU13435
Catalytic converter
The exhaust system contains catalytic
converter(s) to reduce harmful exhaust
emissions.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust sys-
tem has cooled down before
doing any maintenance work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
1. Fuel tank overflow hose
2. Clamp
2
1
UB96E2E0.book Page 30 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-31
3
EAU39496

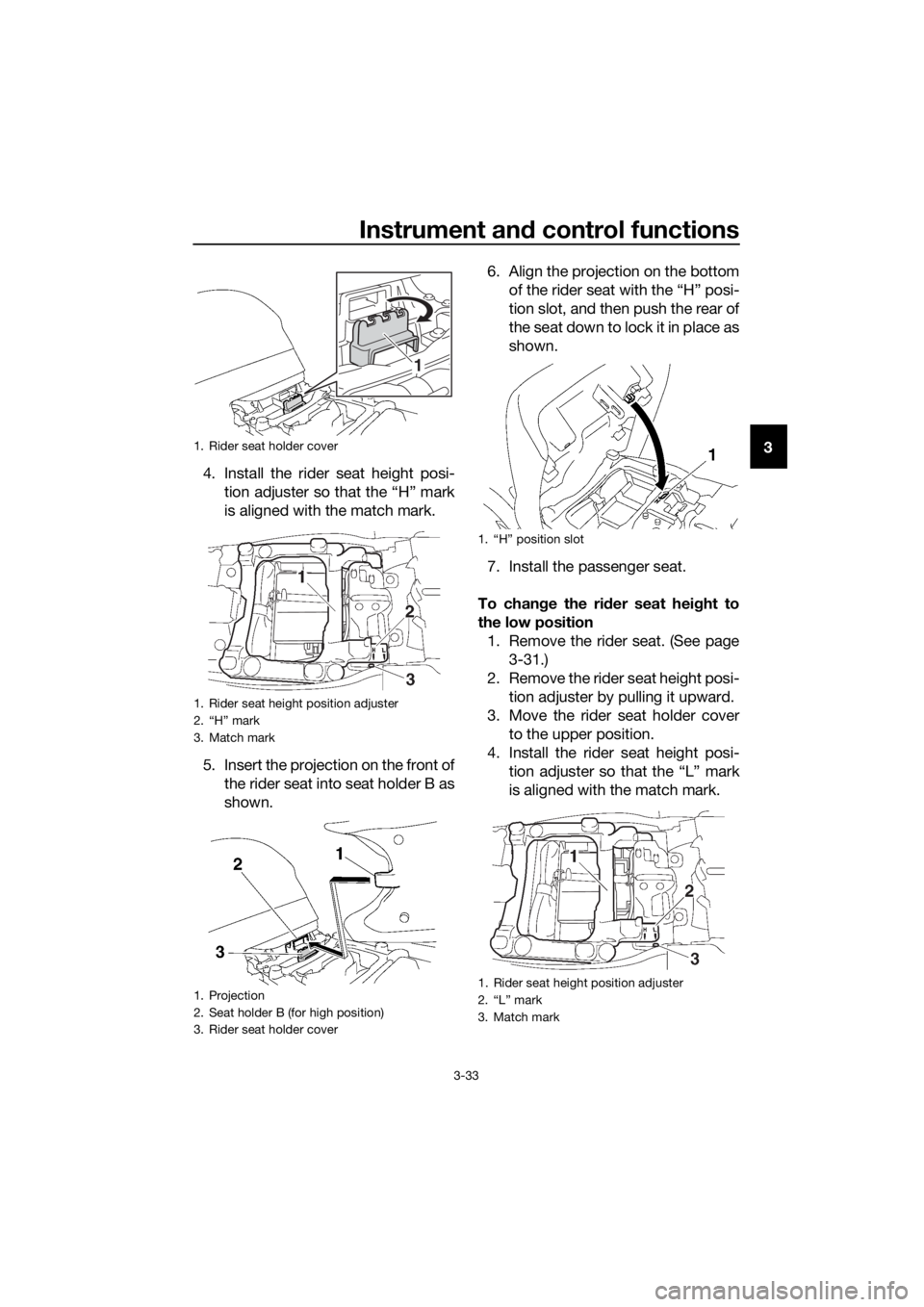

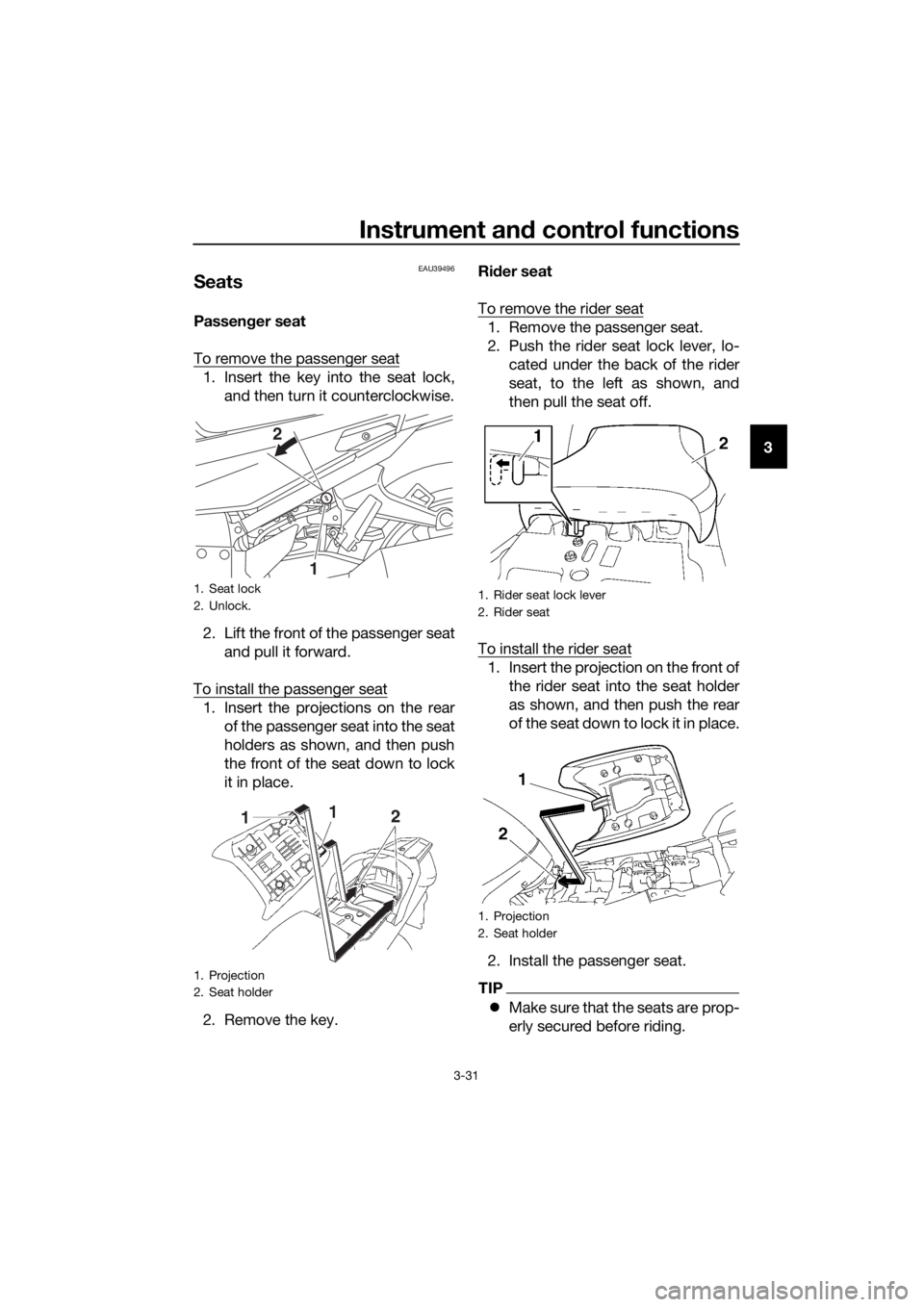

Seats
Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. Lift the front of the passenger seat
and pull it forward.
To install the passenger seat
1. Insert the projections on the rear
of the passenger seat into the seat
holders as shown, and then push
the front of the seat down to lock
it in place.
2. Remove the key.Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Push the rider seat lock lever, lo-
cated under the back of the rider
seat, to the left as shown, and
then pull the seat off.
To install the rider seat
1. Insert the projection on the front of
the rider seat into the seat holder
as shown, and then push the rear
of the seat down to lock it in place.
2. Install the passenger seat.
TIP
Make sure that the seats are prop-
erly secured before riding.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1 2
1. Rider seat lock lever
2. Rider seat
1. Projection
2. Seat holder
UB96E2E0.book Page 31 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-32
3The rider seat height can be ad-
justed to change the riding posi-
tion. (See the following section.)

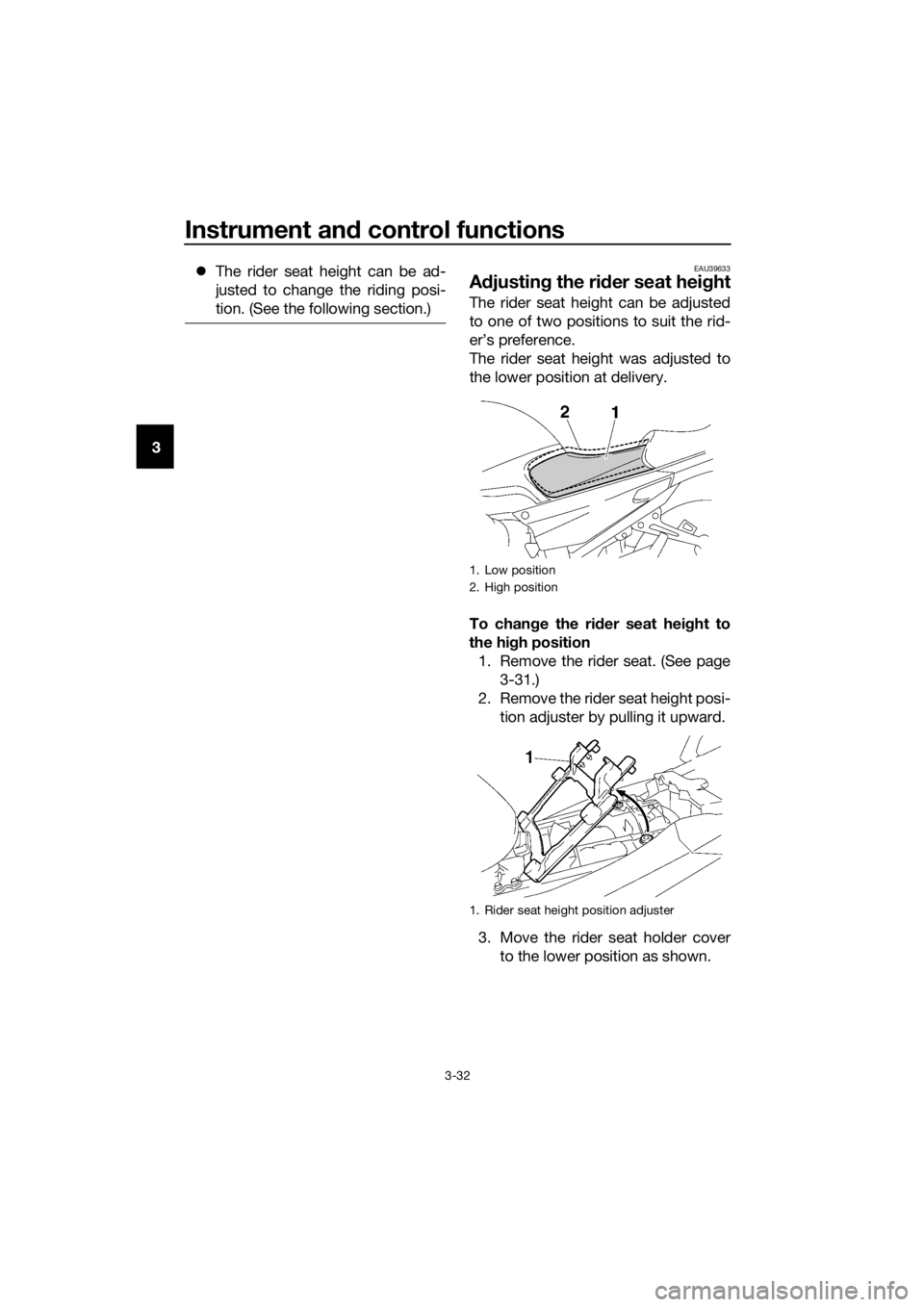

EAU39633
Adjusting the rider seat height
The rider seat height can be adjusted
to one of two positions to suit the rid-
er’s preference.
The rider seat height was adjusted to
the lower position at delivery.
To change the rider seat height to
the high position
1. Remove the rider seat. (See page
3-31.)
2. Remove the rider seat height posi-
tion adjuster by pulling it upward.
3. Move the rider seat holder cover
to the lower position as shown.
1. Low position
2. High position
1. Rider seat height position adjuster
UB96E2E0.book Page 32 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-33
3
4. Install the rider seat height posi-
tion adjuster so that the “H” mark
is aligned with the match mark.
5. Insert the projection on the front of
the rider seat into seat holder B as
shown.6. Align the projection on the bottom
of the rider seat with the “H” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
To change the rider seat height to
the low position
1. Remove the rider seat. (See page
3-31.)
2. Remove the rider seat height posi-
tion adjuster by pulling it upward.
3. Move the rider seat holder cover
to the upper position.
4. Install the rider seat height posi-
tion adjuster so that the “L” mark
is aligned with the match mark.1. Rider seat holder cover
1. Rider seat height position adjuster
2. “H” mark
3. Match mark
1. Projection
2. Seat holder B (for high position)
3. Rider seat holder cover
1
1.
1. Rider seat height position adjuster
2.
3. Match mark
UB96E2E0.book Page 33 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-34
35. Insert the projection on the front of
the rider seat into seat holder A as
shown.
6. Align the projection on the bottom
of the rider seat with the “L” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
TIP
Make sure that the seats are properly
secured before riding.

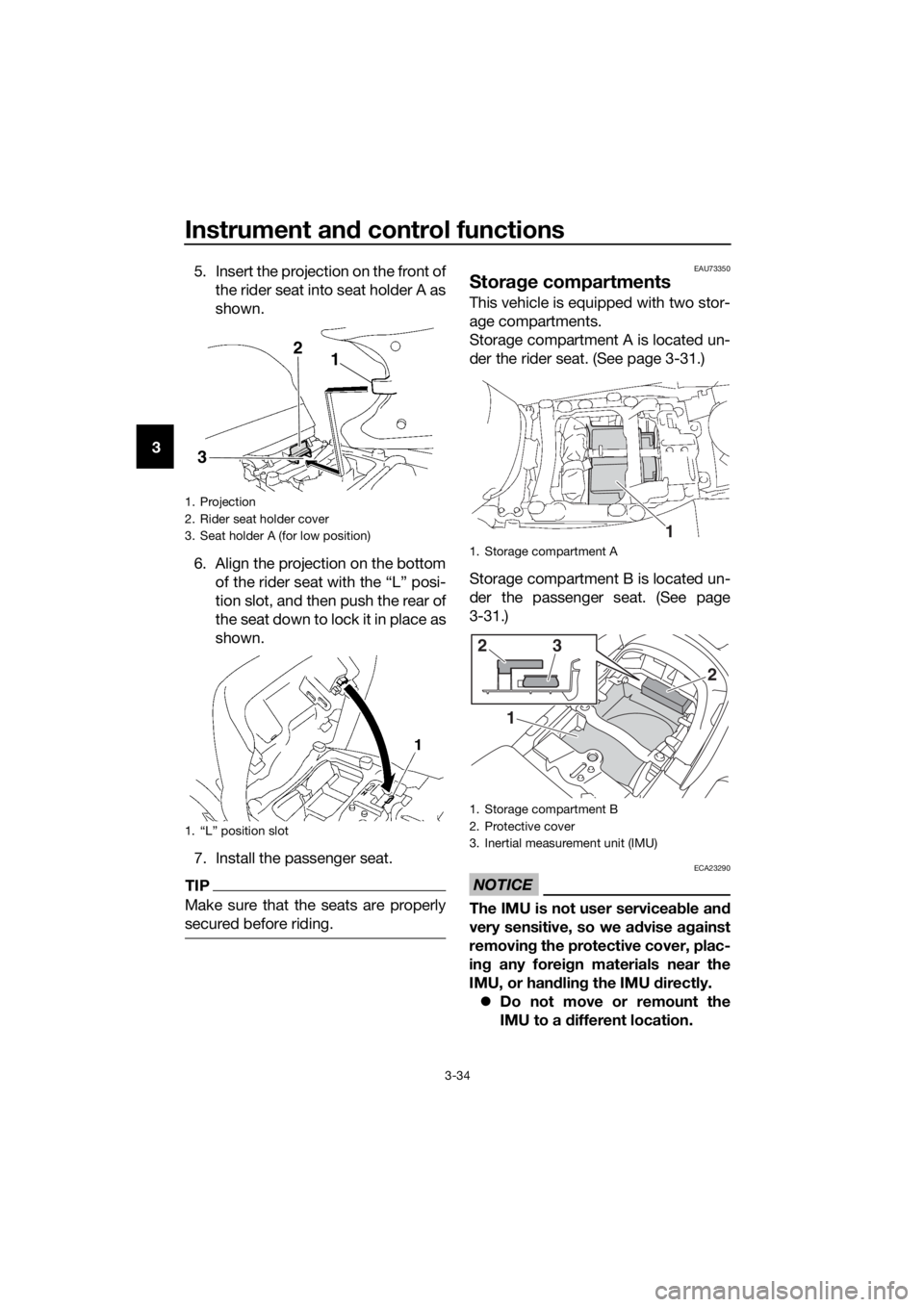

EAU73350
Storage compartments
This vehicle is equipped with two stor-
age compartments.
Storage compartment A is located un-
der the rider seat. (See page 3-31.)
Storage compartment B is located un-
der the passenger seat. (See page
3-31.)
NOTICE
ECA23290
The IMU is not user serviceable and
very sensitive, so we advise against
removing the protective cover, plac-
ing any foreign materials near the
IMU, or handling the IMU directly.
Do not move or remount the
IMU to a different location.
1. Projection
2. Rider seat holder cover
3. Seat holder A (for low position)
1. “L” position slot
12
3
1. Storage compartment A
1. Storage compartment B
2. Protective cover
3. Inertial measurement unit (IMU)
1
1
2
23
UB96E2E0.book Page 34 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-35
3 Do not subject the IMU to
strong shocks or moisture.
Do not obstruct the IMU breath-
er hole and do not clean it with
compressed air.
When storing documents or other
items in a storage compartment, be
sure to wrap them in a plastic bag so
that they will not get wet. When wash-
ing the vehicle, be careful not to let any
water enter a storage compartment.
WARNING
EWA14421
Do not exceed the load limit of 1
kg (2 lb) for storage compart-
ment A.
Do not exceed the load limit of 3
kg (7 lb) for storage compart-
ment B.
Do not exceed the maximum
load of 212 kg (467 lb) for the ve-
hicle.
EAU39482

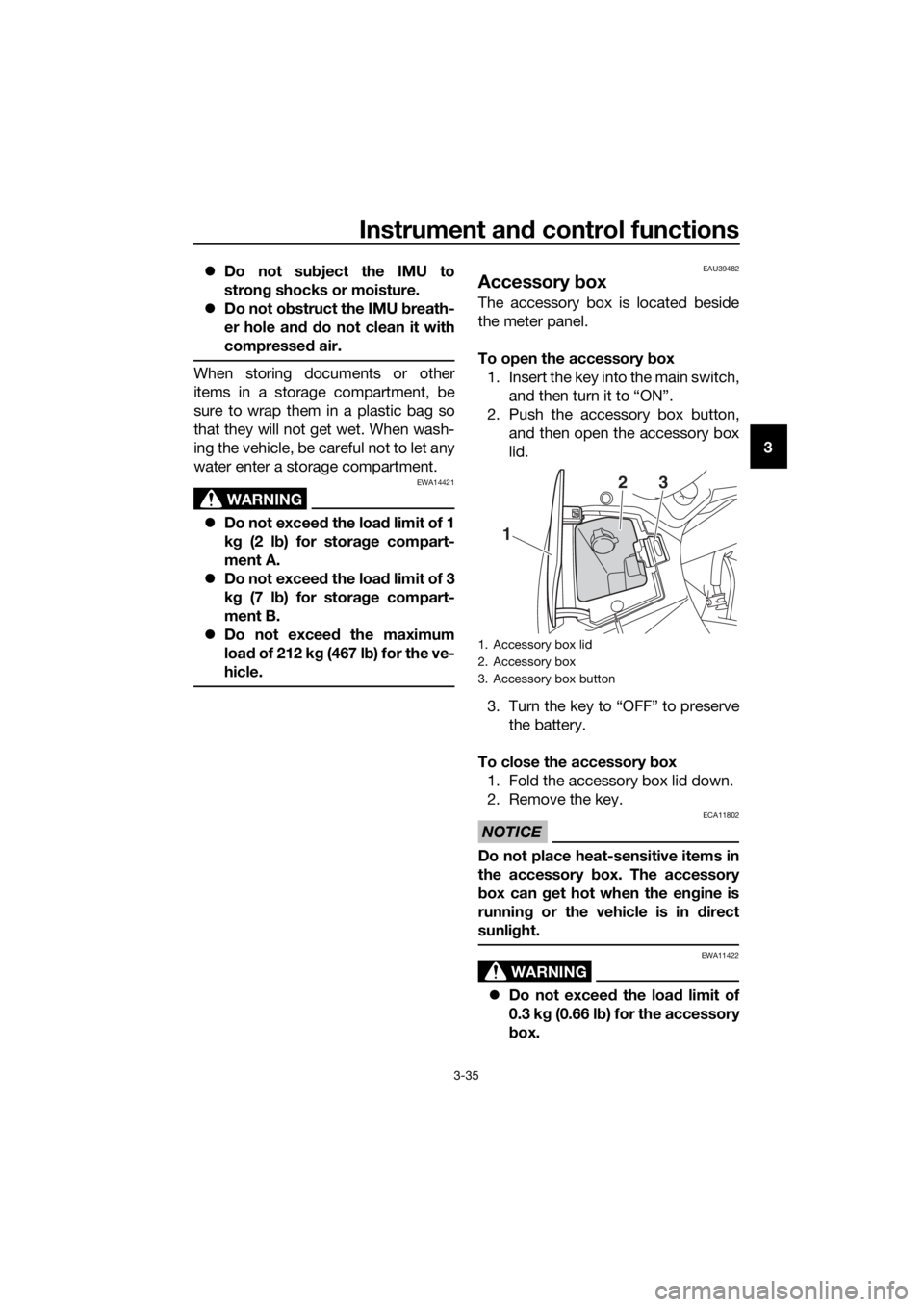

Accessory box
The accessory box is located beside
the meter panel.
To open the accessory box
1. Insert the key into the main switch,
and then turn it to “ON”.
2. Push the accessory box button,
and then open the accessory box
lid.
3. Turn the key to “OFF” to preserve
the battery.
To close the accessory box
1. Fold the accessory box lid down.
2. Remove the key.
NOTICE
ECA11802
Do not place heat-sensitive items in
the accessory box. The accessory
box can get hot when the engine is
running or the vehicle is in direct
sunlight.
WARNING
EWA11422
Do not exceed the load limit of
0.3 kg (0.66 lb) for the accessory
box.
1. Accessory box lid
2. Accessory box
3. Accessory box button
1
23
UB96E2E0.book Page 35 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-36
3Do not exceed the maximum
load of 212 kg (467 lb) for the ve-
hicle.
EAU39612

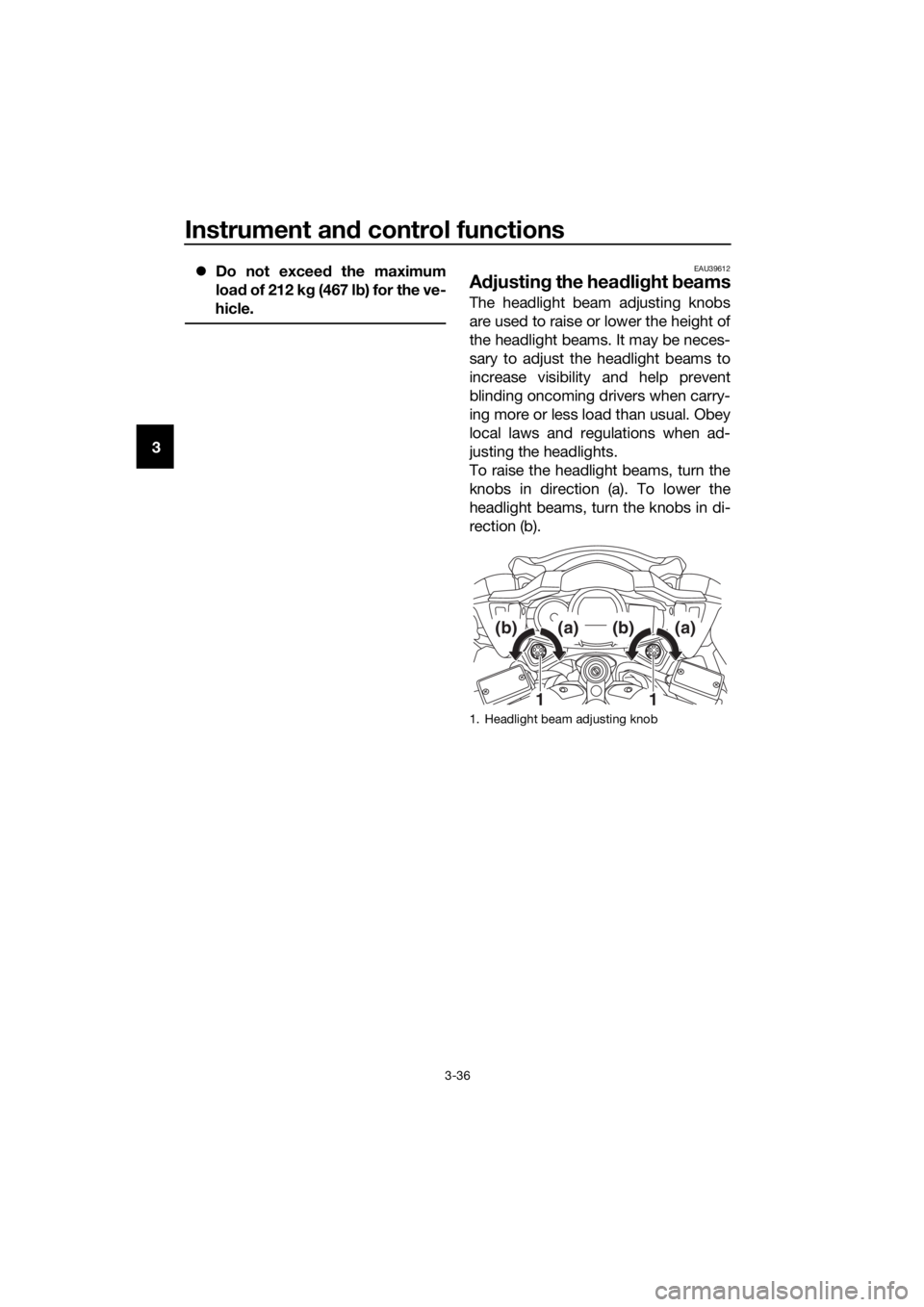

Adjusting the headlight beams
The headlight beam adjusting knobs
are used to raise or lower the height of
the headlight beams. It may be neces-
sary to adjust the headlight beams to
increase visibility and help prevent
blinding oncoming drivers when carry-
ing more or less load than usual. Obey
local laws and regulations when ad-
justing the headlights.
To raise the headlight beams, turn the
knobs in direction (a). To lower the
headlight beams, turn the knobs in di-
rection (b).
1. Headlight beam adjusting knob
11
(b)(a)(b)(a)
UB96E2E0.book Page 36 Wednesday, September 18, 2019 10:21 AM
