YAMAHA FJR1300AS 2009 Owners Manual
Manufacturer: YAMAHA, Model Year: 2009, Model line: FJR1300AS, Model: YAMAHA FJR1300AS 2009Pages: 108, PDF Size: 3.78 MB
Page 101 of 108

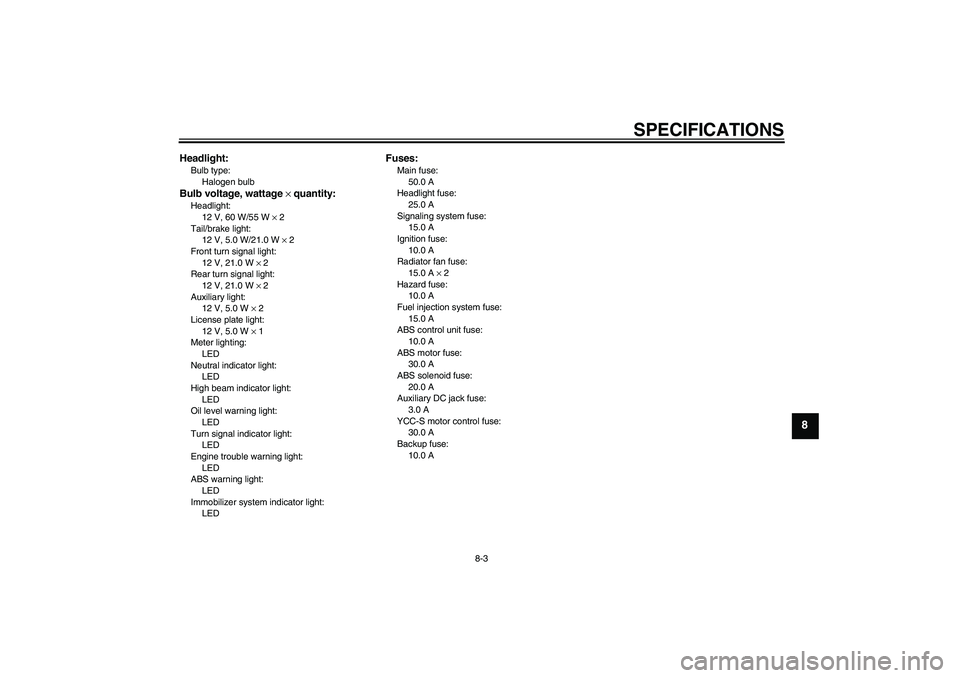

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
10.0 A
U2D2E3E0.book Page 3 Friday, September 26, 2008 3:51 PM
Page 102 of 108
CONSUMER INFORMATION
9-1
9
EAU26351

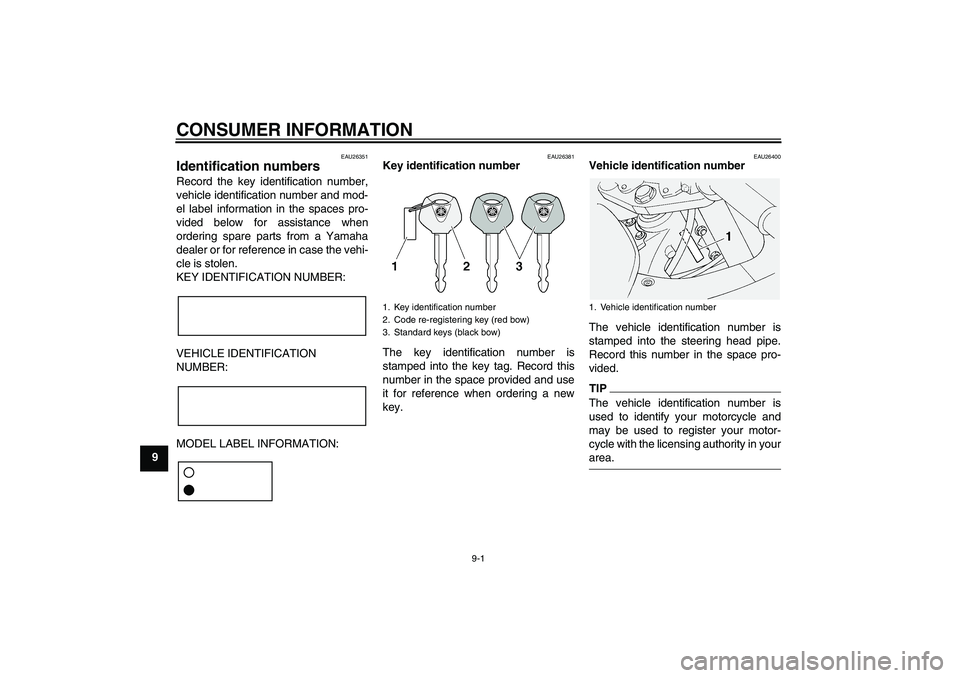

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U2D2E3E0.book Page 1 Friday, September 26, 2008 3:51 PM
Page 103 of 108
CONSUMER INFORMATION
9-2
9
EAU26520

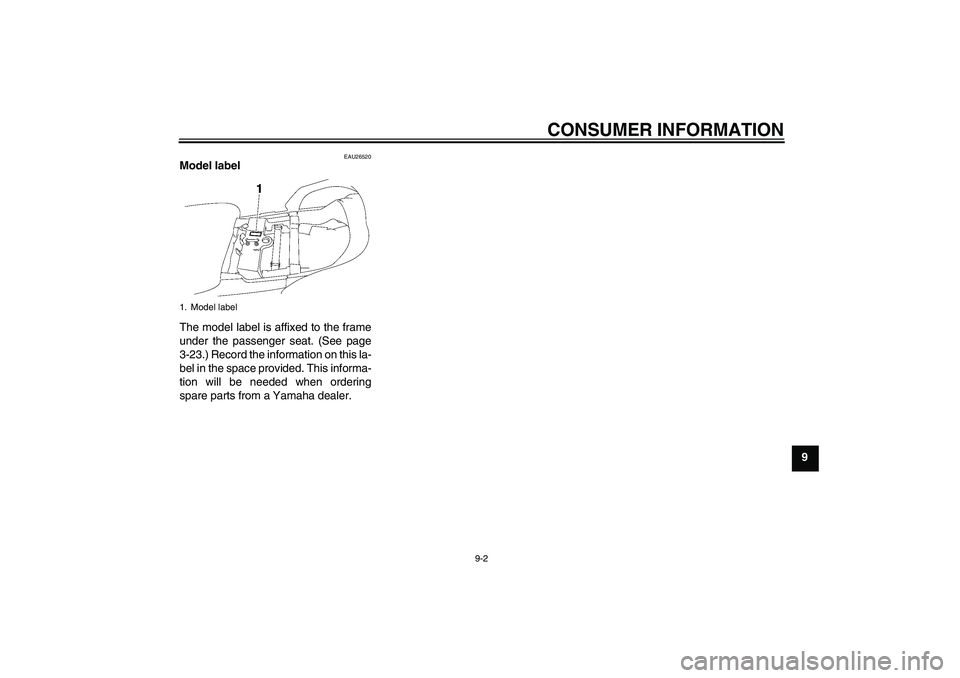

Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-23.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.1. Model label
U2D2E3E0.book Page 2 Friday, September 26, 2008 3:51 PM
Page 104 of 108

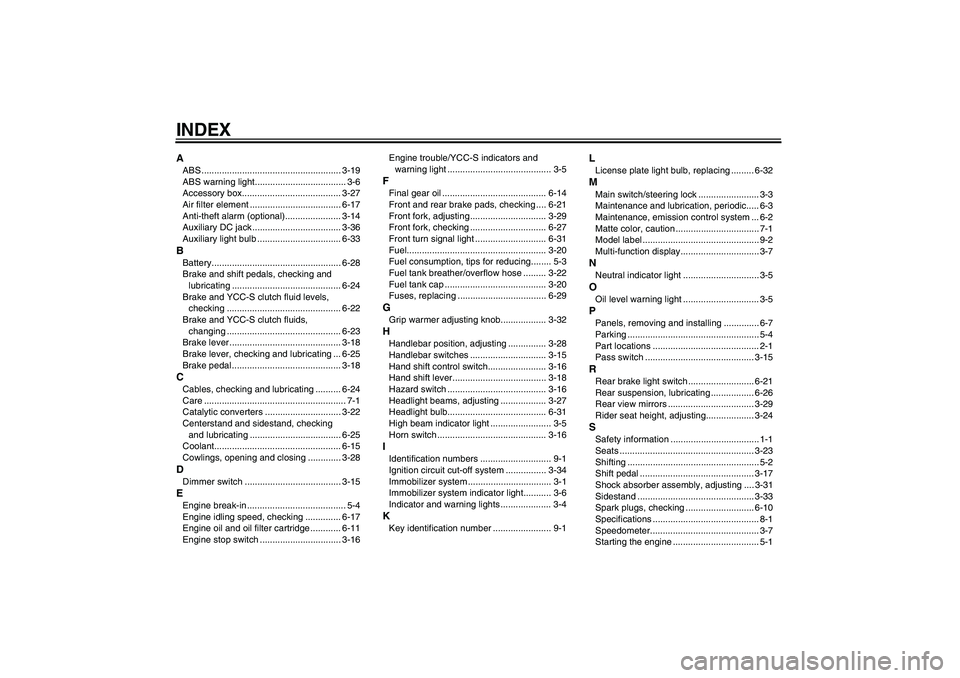

INDEXAABS ....................................................... 3-19
ABS warning light.................................... 3-6
Accessory box....................................... 3-27
Air filter element .................................... 6-17
Anti-theft alarm (optional)...................... 3-14
Auxiliary DC jack ................................... 3-36
Auxiliary light bulb ................................. 6-33BBattery................................................... 6-28
Brake and shift pedals, checking and
lubricating ........................................... 6-24
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-22
Brake and YCC-S clutch fluids,
changing ............................................. 6-23
Brake lever ............................................ 3-18
Brake lever, checking and lubricating ... 6-25
Brake pedal ........................................... 3-18CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converters .............................. 3-22
Centerstand and sidestand, checking
and lubricating .................................... 6-25
Coolant.................................................. 6-15
Cowlings, opening and closing ............. 3-28DDimmer switch ...................................... 3-15EEngine break-in ....................................... 5-4
Engine idling speed, checking .............. 6-17
Engine oil and oil filter cartridge ............ 6-11
Engine stop switch ................................ 3-16Engine trouble/YCC-S indicators and
warning light ......................................... 3-5
FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking .... 6-21
Front fork, adjusting .............................. 3-29
Front fork, checking .............................. 6-27
Front turn signal light ............................ 6-31
Fuel....................................................... 3-20
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather/overflow hose ......... 3-22
Fuel tank cap ........................................ 3-20
Fuses, replacing ................................... 6-29GGrip warmer adjusting knob.................. 3-32HHandlebar position, adjusting ............... 3-28
Handlebar switches .............................. 3-15
Hand shift control switch....................... 3-16
Hand shift lever..................................... 3-18
Hazard switch ....................................... 3-16
Headlight beams, adjusting .................. 3-27
Headlight bulb....................................... 6-31
High beam indicator light ........................ 3-5
Horn switch ........................................... 3-16IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-34
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-6
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1
LLicense plate light bulb, replacing ......... 6-32MMain switch/steering lock ........................ 3-3
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution ................................. 7-1
Model label .............................................. 9-2
Multi-function display............................... 3-7NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PPanels, removing and installing .............. 6-7
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-15RRear brake light switch .......................... 6-21
Rear suspension, lubricating ................. 6-26
Rear view mirrors .................................. 3-29
Rider seat height, adjusting................... 3-24SSafety information ................................... 1-1
Seats ..................................................... 3-23
Shifting .................................................... 5-2
Shift pedal ............................................. 3-17
Shock absorber assembly, adjusting .... 3-31
Sidestand .............................................. 3-33
Spark plugs, checking ........................... 6-10
Specifications .......................................... 8-1
Speedometer........................................... 3-7
Starting the engine .................................. 5-1
U2D2E3E0.book Page 1 Friday, September 26, 2008 3:51 PM
Page 105 of 108

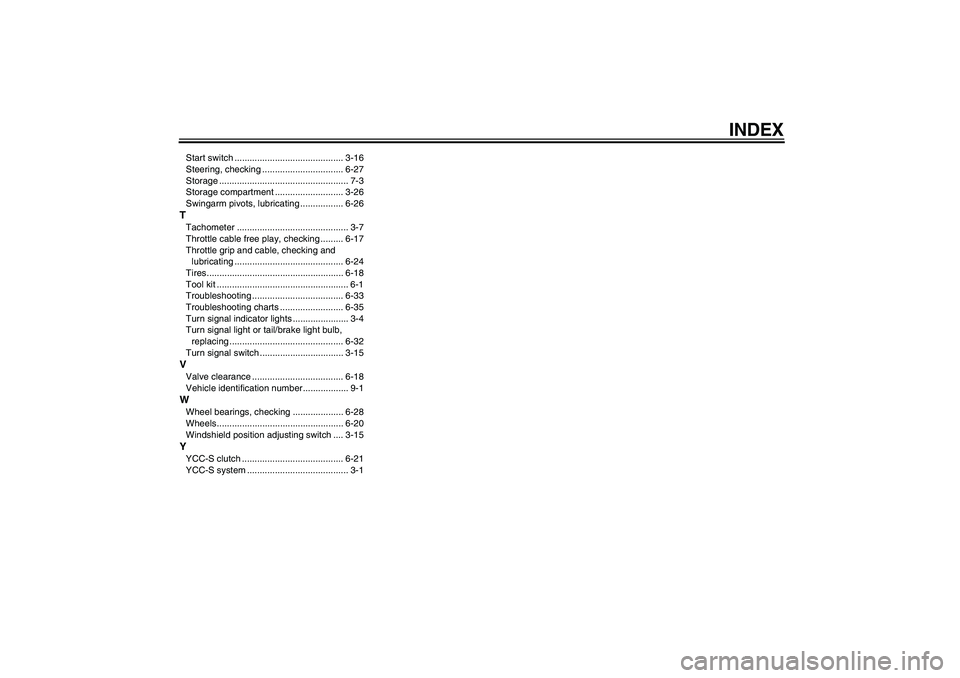

INDEX
Start switch ........................................... 3-16
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Storage compartment ........................... 3-26
Swingarm pivots, lubricating ................. 6-26TTachometer ............................................ 3-7
Throttle cable free play, checking ......... 6-17
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires...................................................... 6-18
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-33
Troubleshooting charts ......................... 6-35
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-32
Turn signal switch ................................. 3-15VValve clearance .................................... 6-18
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-28
Wheels.................................................. 6-20
Windshield position adjusting switch .... 3-15YYCC-S clutch ........................................ 6-21
YCC-S system ........................................ 3-1
U2D2E3E0.book Page 2 Friday, September 26, 2008 3:51 PM
Page 106 of 108
A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM
Page 107 of 108
A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM
Page 108 of 108
PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2008.10-0.3×1 CR
(E)
DIC183
