YAMAHA FJR1300AS 2009 Repair Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU1770B

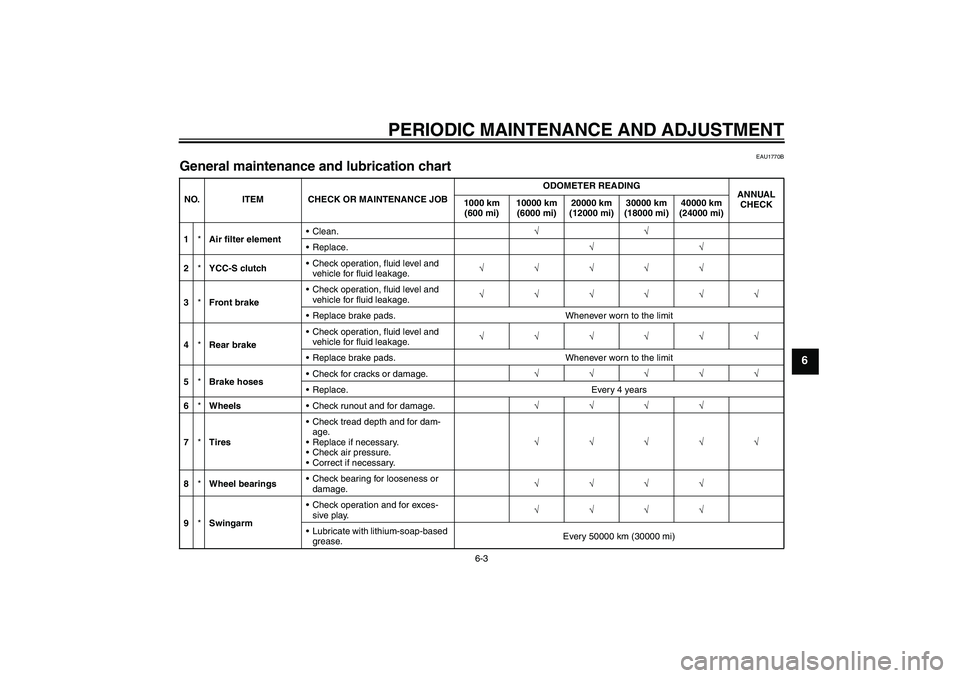

General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Air filter elementClean.√√
Replace.√√
2*YCC-S clutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
3*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
4*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
5*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
6*WheelsCheck runout and for damage.√√√√
7*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
8*Wheel bearingsCheck bearing for looseness or
damage.√√√√
9*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
U2D2E3E0.book Page 3 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6

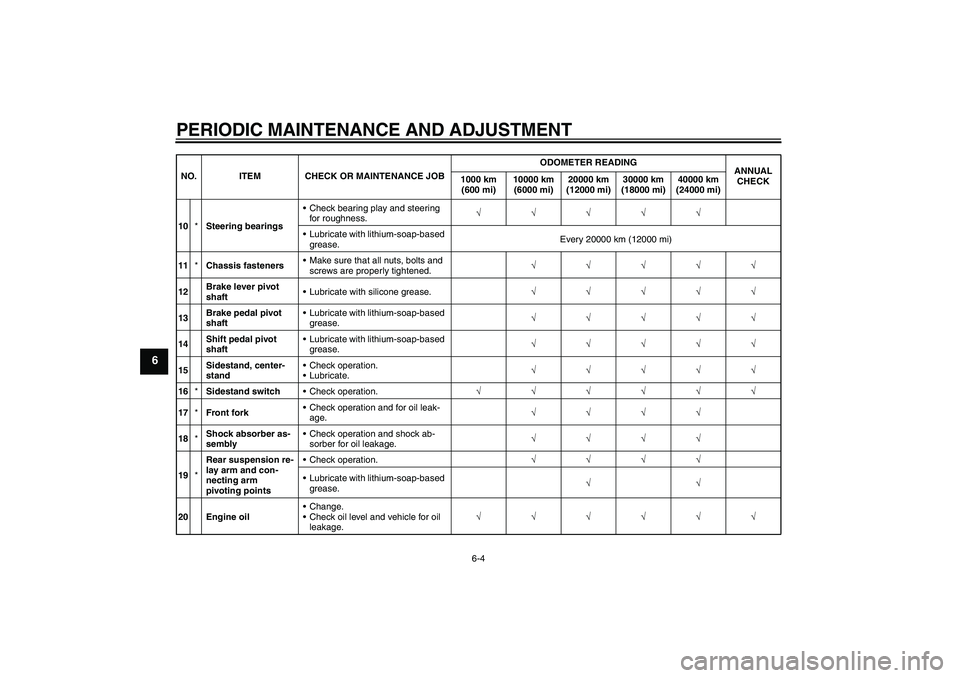

10*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
11*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
12Brake lever pivot
shaftLubricate with silicone grease.√√√√√
13Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
14Shift pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
15Sidestand, center-
standCheck operation.
Lubricate.√√√√√
16*Sidestand switchCheck operation.√√√√√√
17*Front forkCheck operation and for oil leak-
age.√√√√
18*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
19*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based
grease.√√
20 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U2D2E3E0.book Page 4 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU40550
TIP

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and YCC-S clutch service
Regularly check and, if necessary, correct the brake and YCC-S clutch fluid levels.

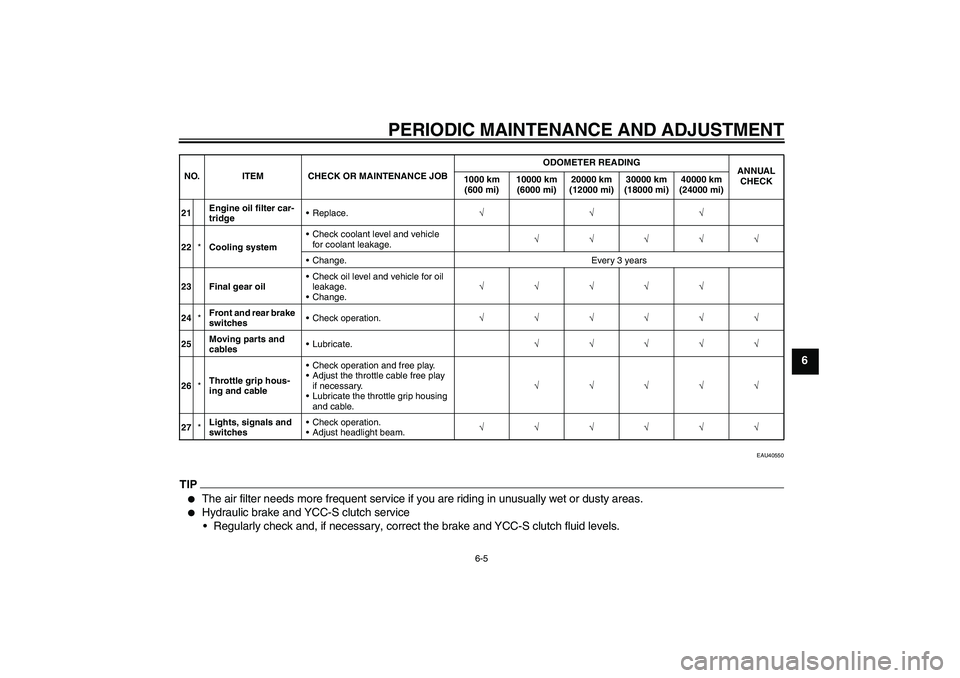

21Engine oil filter car-
tridgeReplace.√√√
22*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years
23 Final gear oilCheck oil level and vehicle for oil
leakage.
Change.√√√√√
24*Front and rear brake
switchesCheck operation.√√√√√√
25Moving parts and
cablesLubricate.√√√√√
26*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D2E3E0.book Page 5 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6

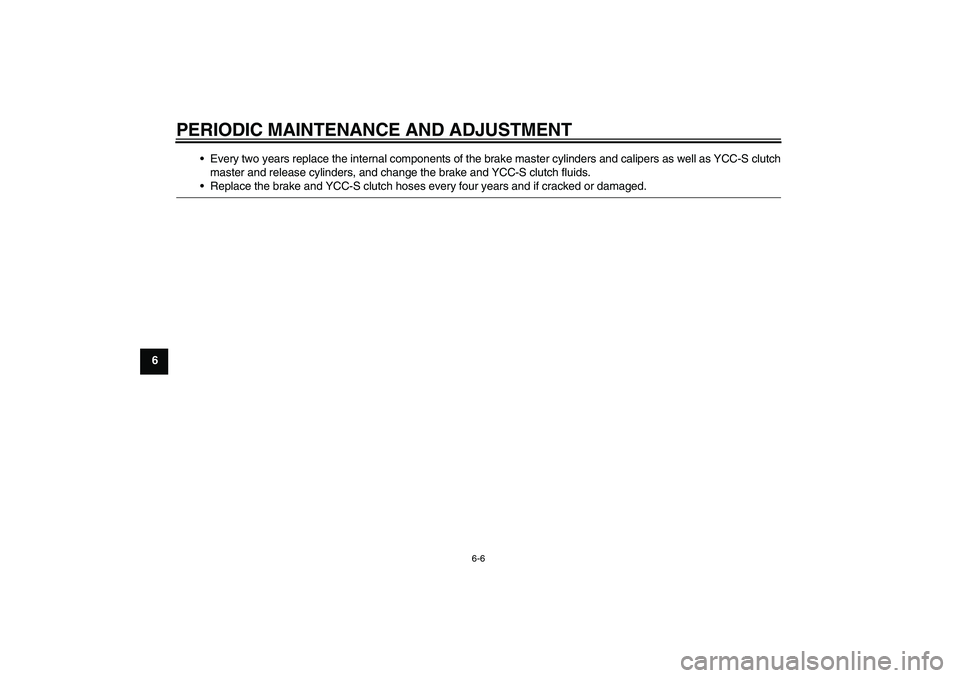

6Every two years replace the internal components of the brake master cylinders and calipers as well as YCC-S clutch
master and release cylinders, and change the brake and YCC-S clutch fluids.
Replace the brake and YCC-S clutch hoses every four years and if cracked or damaged.
U2D2E3E0.book Page 6 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU18771

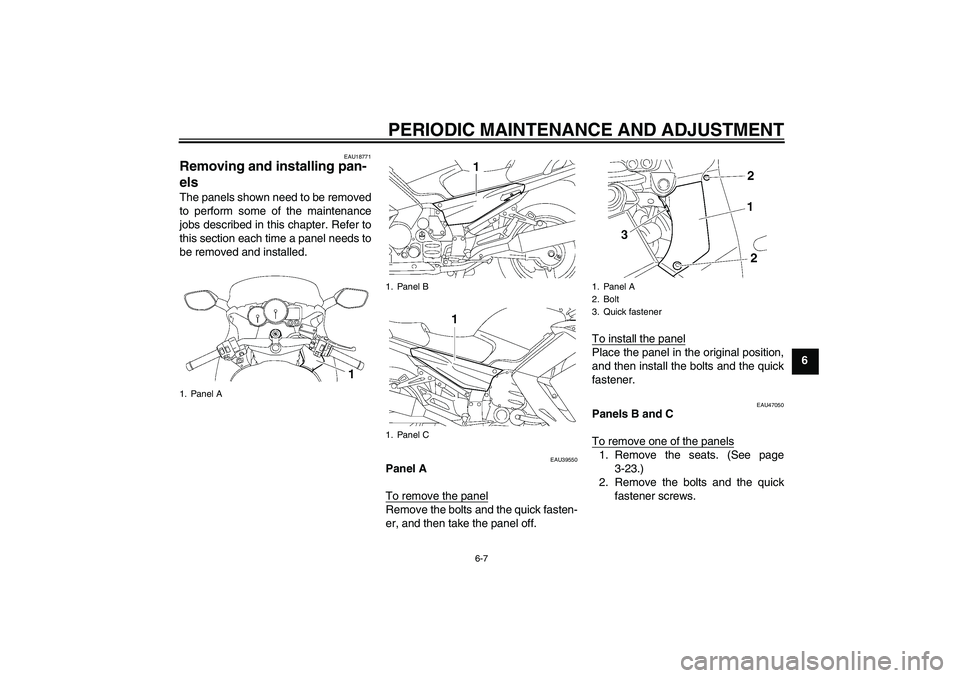

Removing and installing pan-
els The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU39550
Panel A
To remove the panelRemove the bolts and the quick fasten-
er, and then take the panel off.To install the panel
Place the panel in the original position,
and then install the bolts and the quick
fastener.
EAU47050
Panels B and C
To remove one of the panels1. Remove the seats. (See page
3-23.)
2. Remove the bolts and the quick
fastener screws.
1. Panel A
1. Panel B
1. Panel C
1. Panel A
2. Bolt
3. Quick fastener
U2D2E3E0.book Page 7 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8

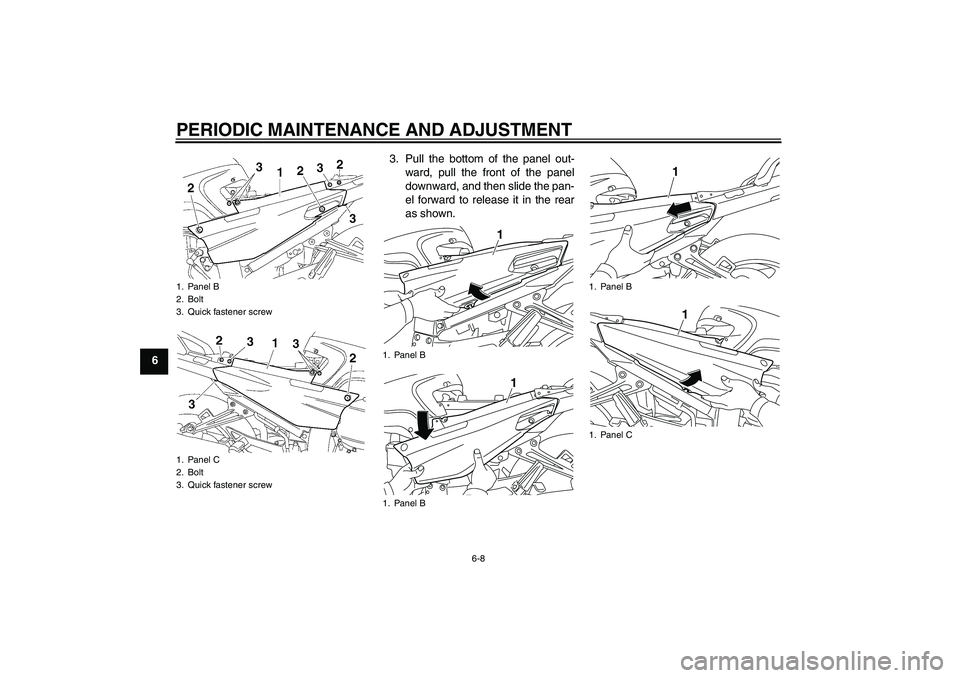

63. Pull the bottom of the panel out-
ward, pull the front of the panel
downward, and then slide the pan-
el forward to release it in the rear
as shown.
1. Panel B
2. Bolt
3. Quick fastener screw
1. Panel C
2. Bolt
3. Quick fastener screw
1. Panel B
1. Panel B
1
1
1. Panel B
1. Panel C
11
U2D2E3E0.book Page 8 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6

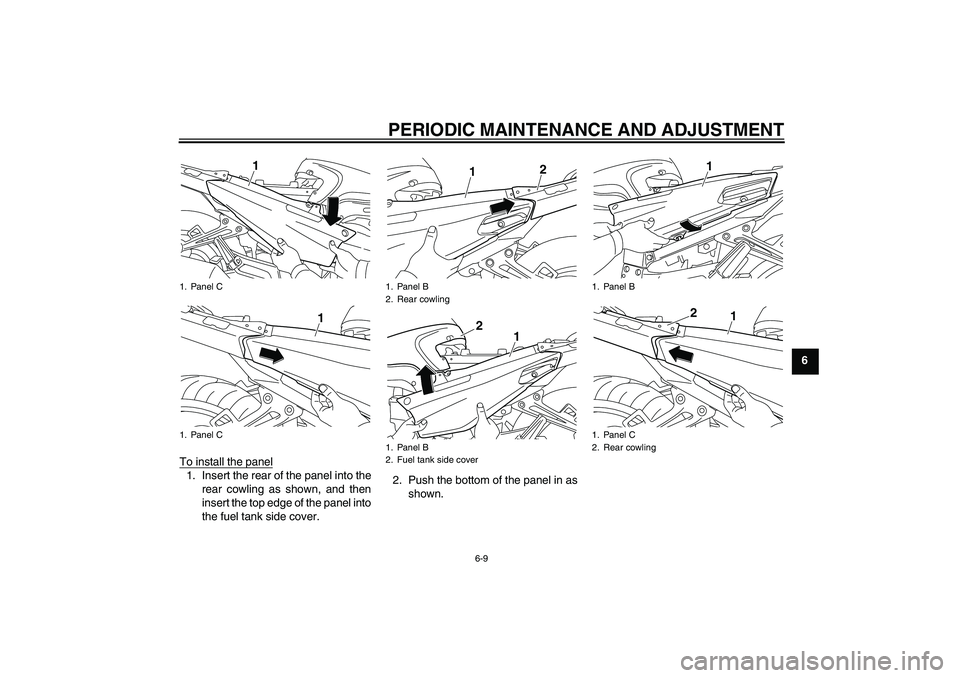

To install the panel
1. Insert the rear of the panel into the
rear cowling as shown, and then
insert the top edge of the panel into
the fuel tank side cover.2. Push the bottom of the panel in as
shown.1. Panel C
1. Panel C
1
1
1. Panel B
2. Rear cowling
1. Panel B
2. Fuel tank side cover
1
2
1
2
1. Panel B
1. Panel C
2. Rear cowling
1
1
2
U2D2E3E0.book Page 9 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
3. Install the bolts and the quick fas-
tener screws.
4. Install the seats.
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
1. Panel C
2. Fuel tank side cover
1. Panel C
1
21
Specified spark plug:
NGK/CR8E
DENSO/U24ESR-N1. Spark plug gapSpark plug gap:
0.7–0.8 mm (0.028–0.031 in)
U2D2E3E0.book Page 10 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
EAU19885
Engine oil and oil filter car-

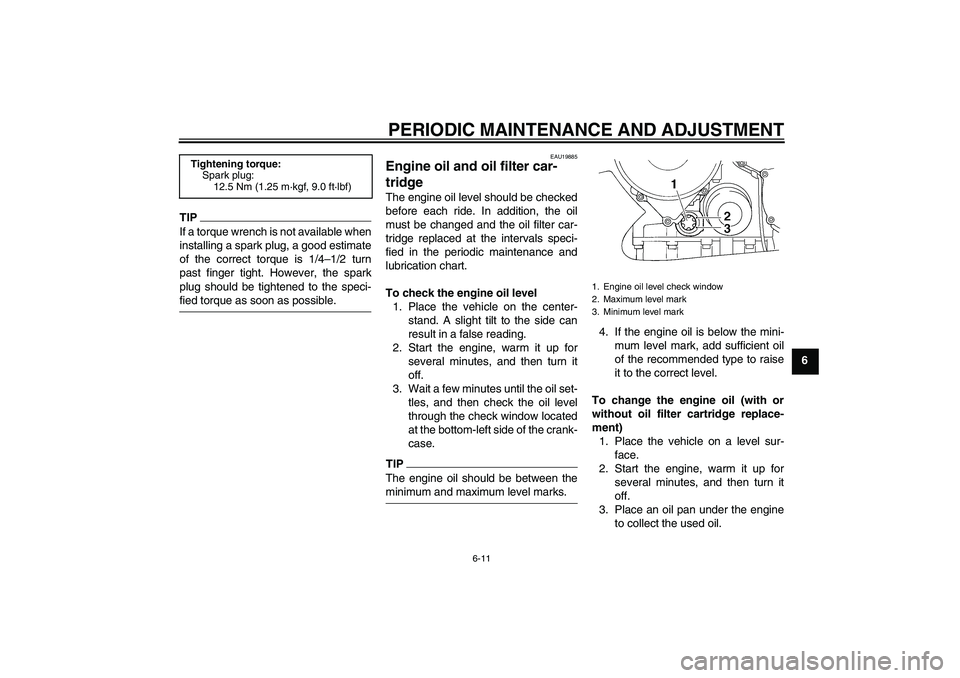

tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.TIPThe engine oil should be between theminimum and maximum level marks.4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
U2D2E3E0.book Page 11 Friday, September 26, 2008 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12

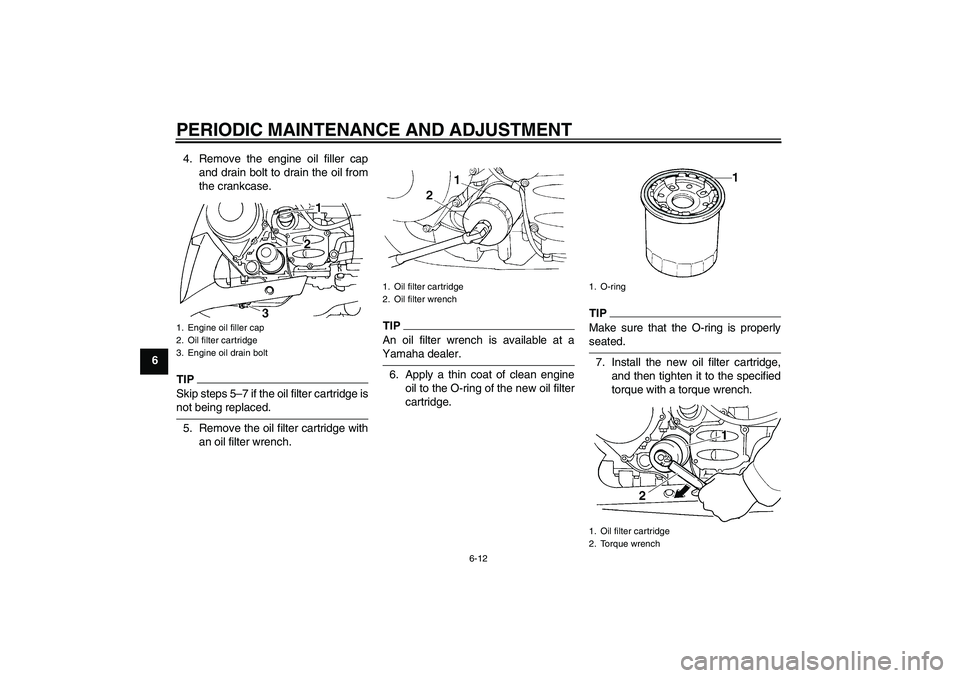

64. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
TIPSkip steps 5–7 if the oil filter cartridge isnot being replaced.
5. Remove the oil filter cartridge with
an oil filter wrench.
TIPAn oil filter wrench is available at aYamaha dealer.
6. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
TIPMake sure that the O-ring is properlyseated.
7. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.
1. Engine oil filler cap
2. Oil filter cartridge
3. Engine oil drain bolt
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
1. Oil filter cartridge
2. Torque wrench
