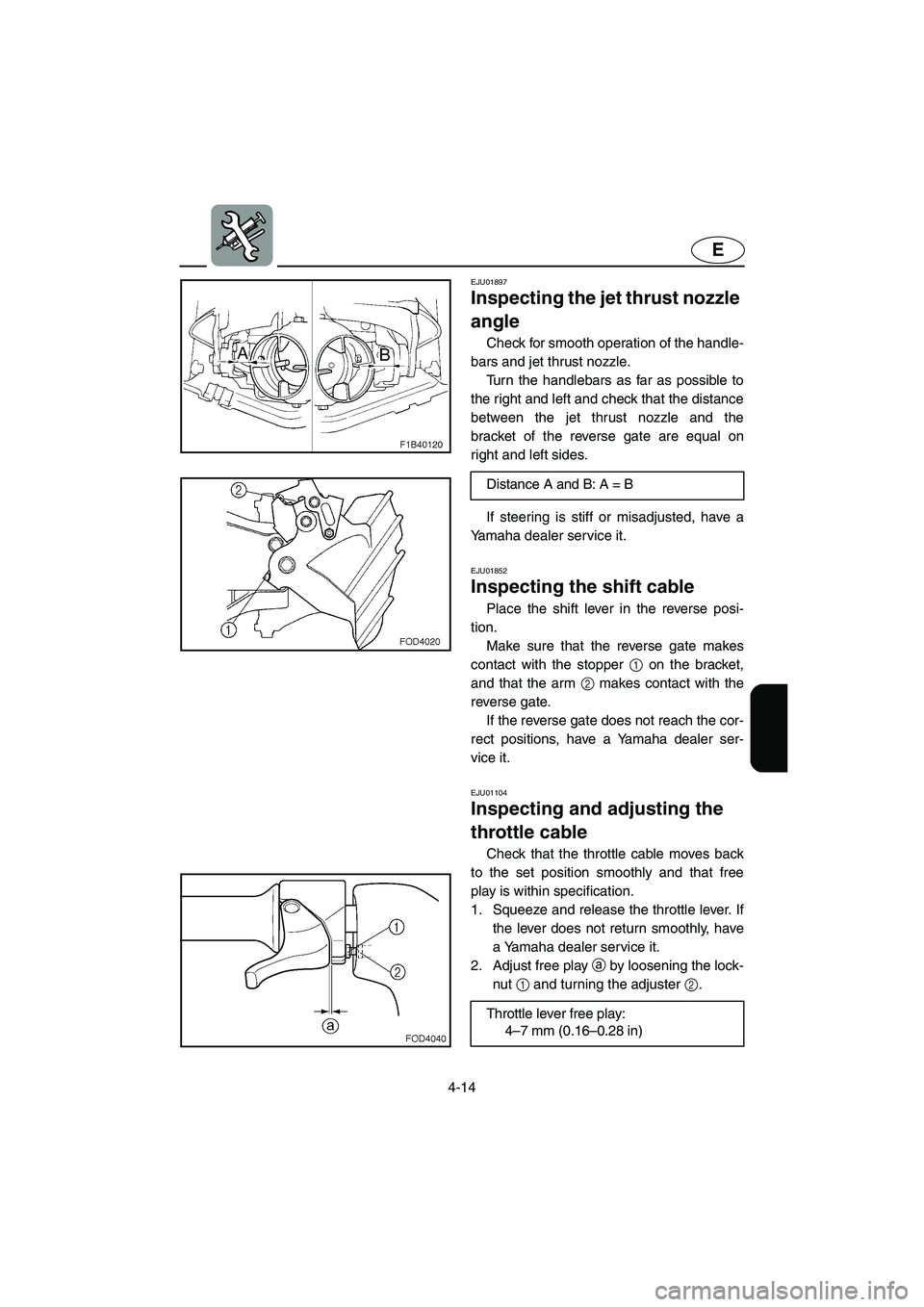

Inspecting the jet thrust nozzle
angle
Check for smooth operation of the handle-
bars and jet thrust nozzle.
Turn the handlebars as far as possible to
the right and left and check that the distance
between the jet thrust nozzle and the
bracket of the reverse gate are equal on
right and left sides.
If steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU01852
Inspecting the shift cable
Place the shift lever in the reverse posi-
tion.
Make sure that the reverse gate makes
contact with the stopper 1 on the bracket,
and that the arm 2 makes contact with the
reverse gate.
If the reverse gate does not reach the cor-
rect positions, have a Yamaha dealer ser-
vice it.
EJU01104
Inspecting and adjusting the
throttle cable
Check that the throttle cable moves back
to the set position smoothly and that free
play is within specification.
1. Squeeze and release the throttle lever. If
the lever does not return smoothly, have
a Yamaha dealer service it.
2. Adjust free play a by loosening the lock-
nut 1 and turning the adjuster 2. Distance A and B: A = B
Throttle lever free play:
4–7 mm (0.16–0.28 in)
UF1B71.book Page 14 Tuesday, November 12, 2002 4:17 PM

4-15
E
EJU01842

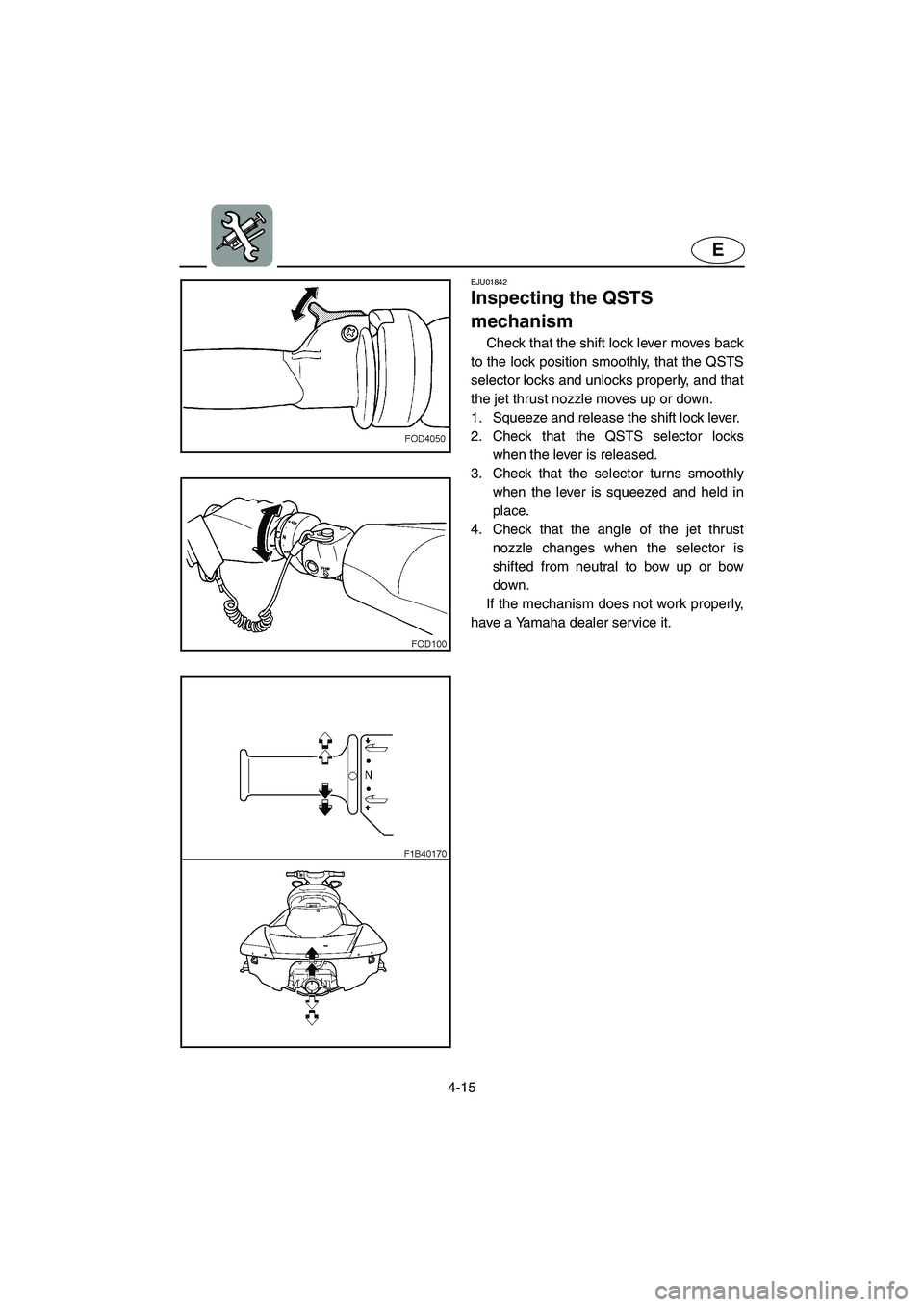

Inspecting the QSTS
mechanism
Check that the shift lock lever moves back
to the lock position smoothly, that the QSTS
selector locks and unlocks properly, and that
the jet thrust nozzle moves up or down.
1. Squeeze and release the shift lock lever.
2. Check that the QSTS selector locks
when the lever is released.
3. Check that the selector turns smoothly
when the lever is squeezed and held in
place.
4. Check that the angle of the jet thrust
nozzle changes when the selector is
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
UF1B71.book Page 15 Tuesday, November 12, 2002 4:17 PM

4-16
E
EJU18201
Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if one spark plug shows a distinctly
different color, the engine could be defec-
tive. Do not attempt to diagnose any prob-
lems yourself. Have a Yamaha dealer
service the watercraft.
Remove and inspect the spark plug peri-
odically; heat and deposits will cause the
spark plug to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Removing a spark plug:
1. Remove the air filter case cover and air
filter element. (See page 4-13 for air filter
removal and installation procedures.)
2. Remove the spark plug.
Measure the spark plug gap a with a
wire thickness gauge. Replace the spark
plugs or adjust the gap to specification if
necessary.Specified spark plug: NGK CR9EB
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
UF1B71.book Page 16 Tuesday, November 12, 2002 4:17 PM

4-17
E

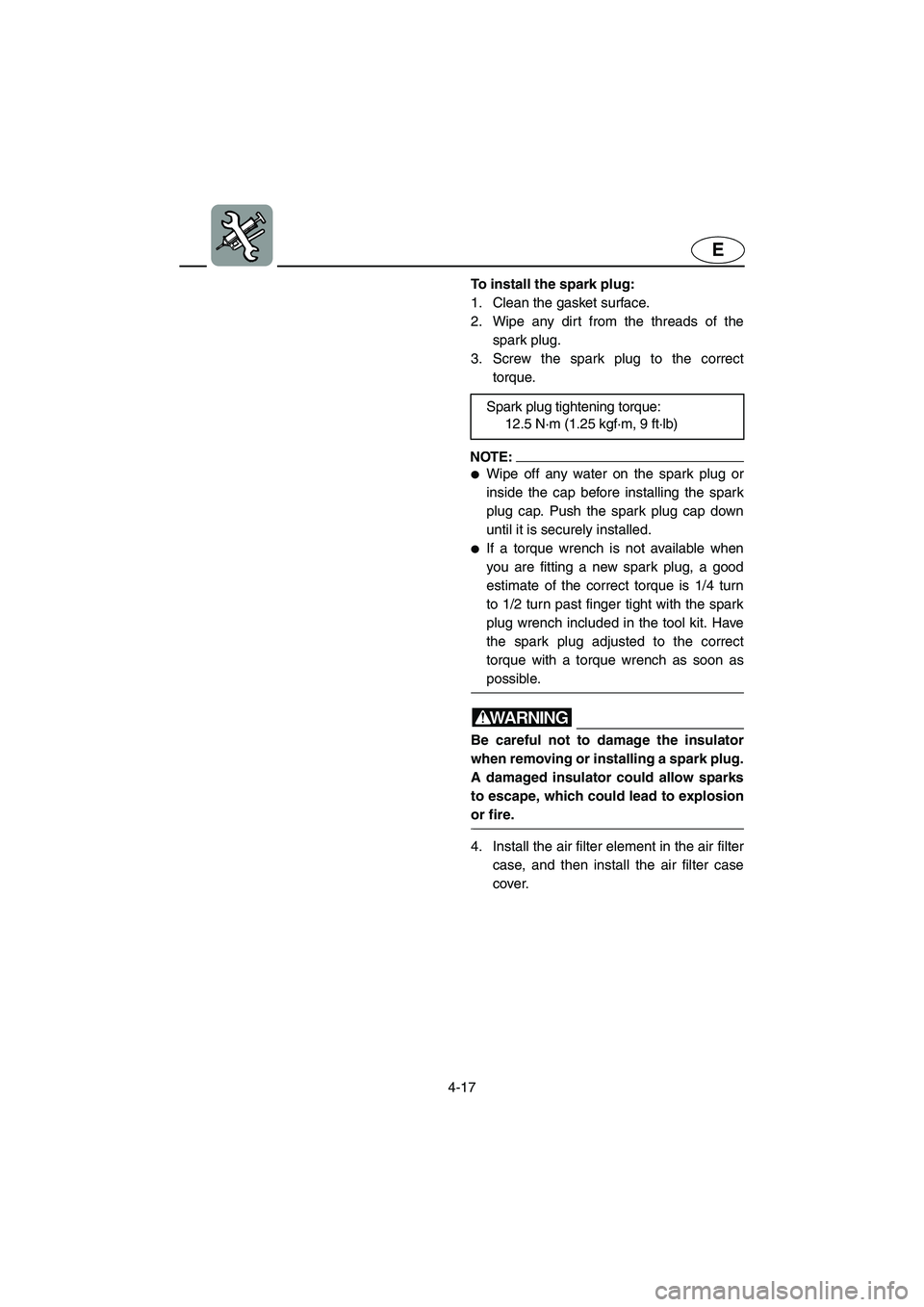

To install the spark plug:
1. Clean the gasket surface.
2. Wipe any dirt from the threads of the
spark plug.
3. Screw the spark plug to the correct
torque.
NOTE:@
Wipe off any water on the spark plug or
inside the cap before installing the spark
plug cap. Push the spark plug cap down
until it is securely installed.

If a torque wrench is not available when
you are fitting a new spark plug, a good
estimate of the correct torque is 1/4 turn
to 1/2 turn past finger tight with the spark
plug wrench included in the tool kit. Have
the spark plug adjusted to the correct
torque with a torque wrench as soon as
possible.
@
WARNING@ Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks
to escape, which could lead to explosion
or fire.
@
4. Install the air filter element in the air filter
case, and then install the air filter case
cover. Spark plug tightening torque:
12.5 N·m (1.25 kgf·m, 9 ft·lb)
UF1B71.book Page 17 Tuesday, November 12, 2002 4:17 PM

4-18
E
EJU01822

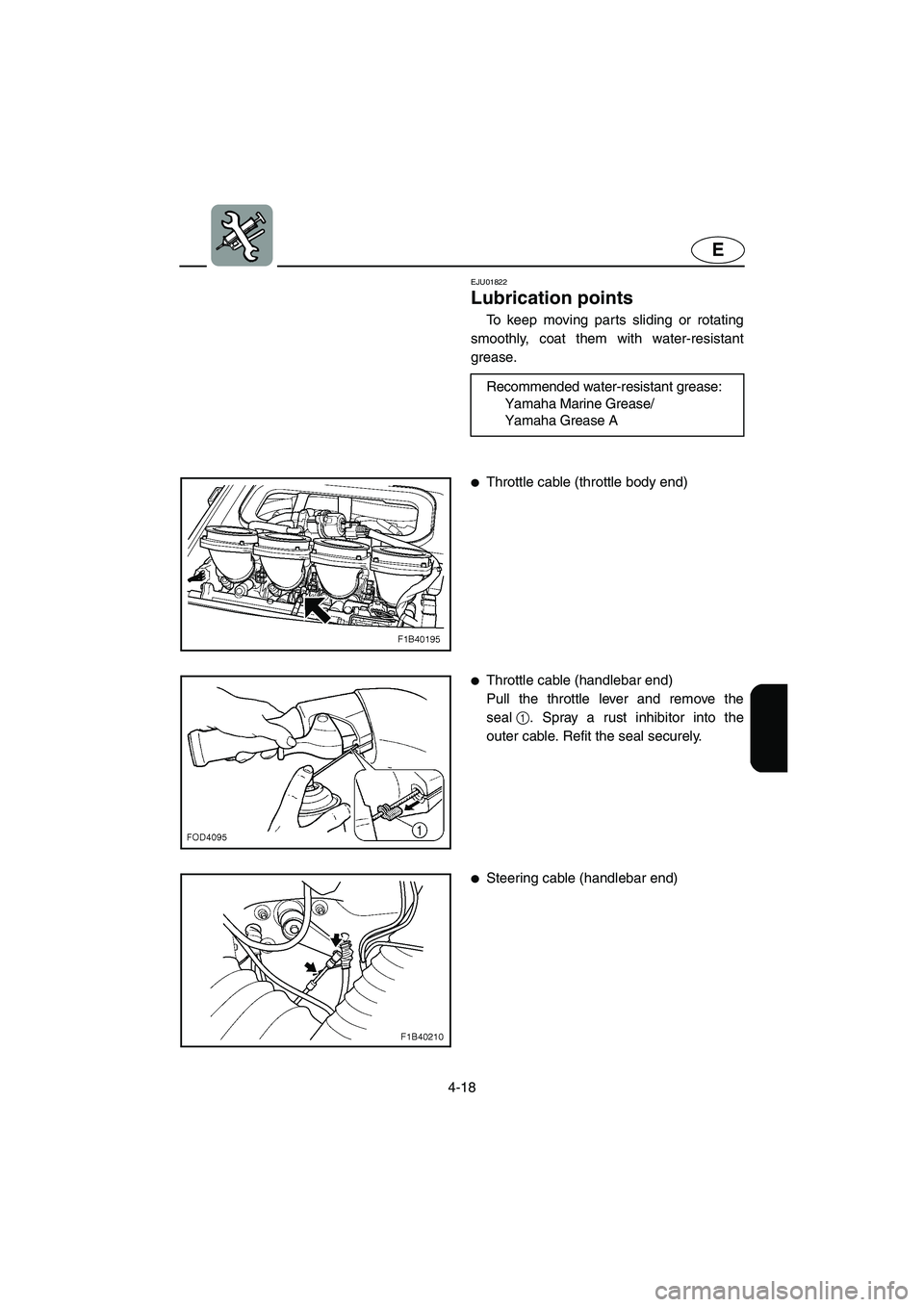

Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (throttle body end)

Throttle cable (handlebar end)
Pull the throttle lever and remove the
seal1. Spray a rust inhibitor into the
outer cable. Refit the seal securely.

Steering cable (handlebar end)
UF1B71.book Page 18 Tuesday, November 12, 2002 4:17 PM

4-19
E

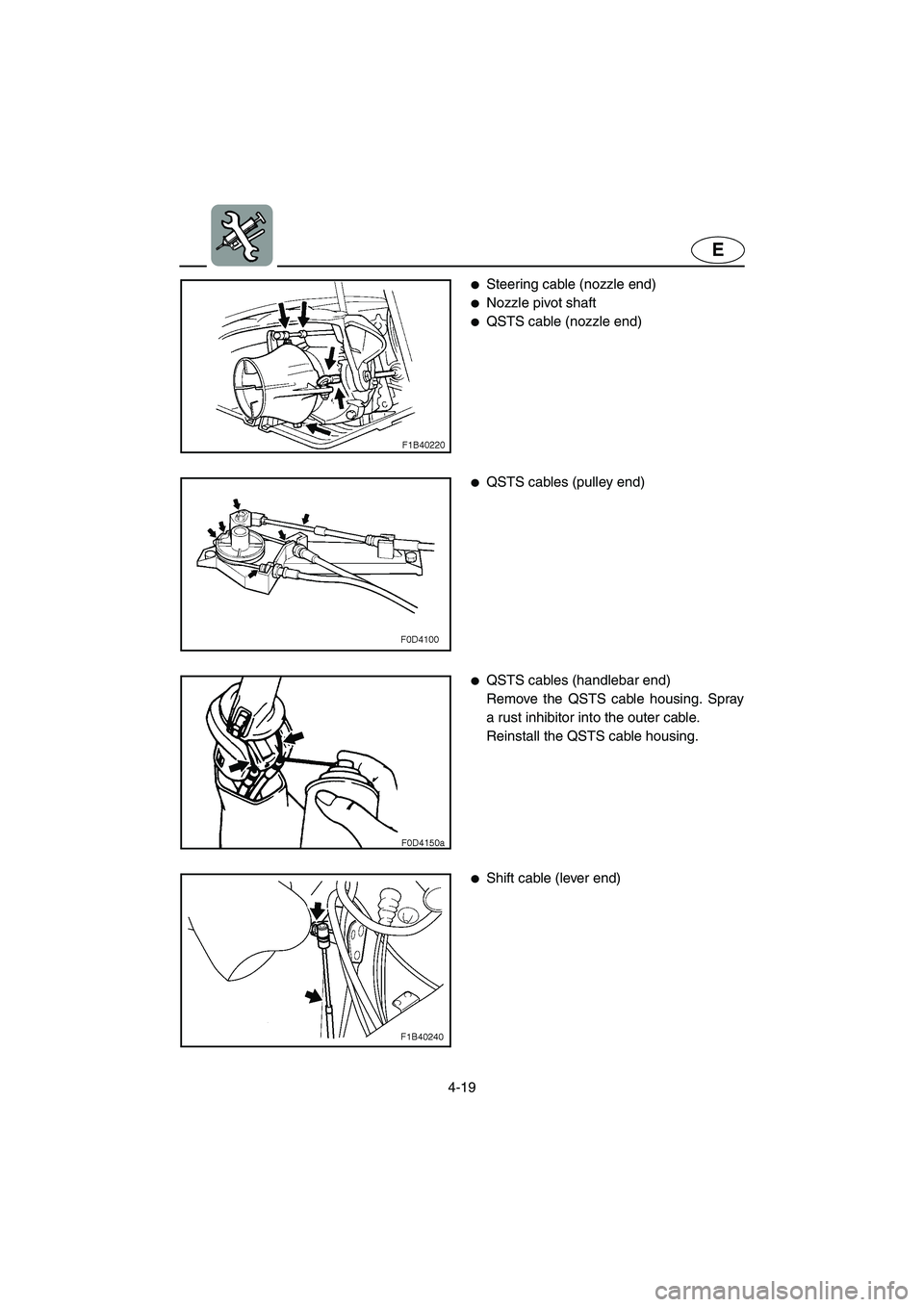

Steering cable (nozzle end)

Nozzle pivot shaft

QSTS cable (nozzle end)

QSTS cables (pulley end)

QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray
a rust inhibitor into the outer cable.
Reinstall the QSTS cable housing.

Shift cable (lever end)
UF1B71.book Page 19 Tuesday, November 12, 2002 4:17 PM

4-20
E

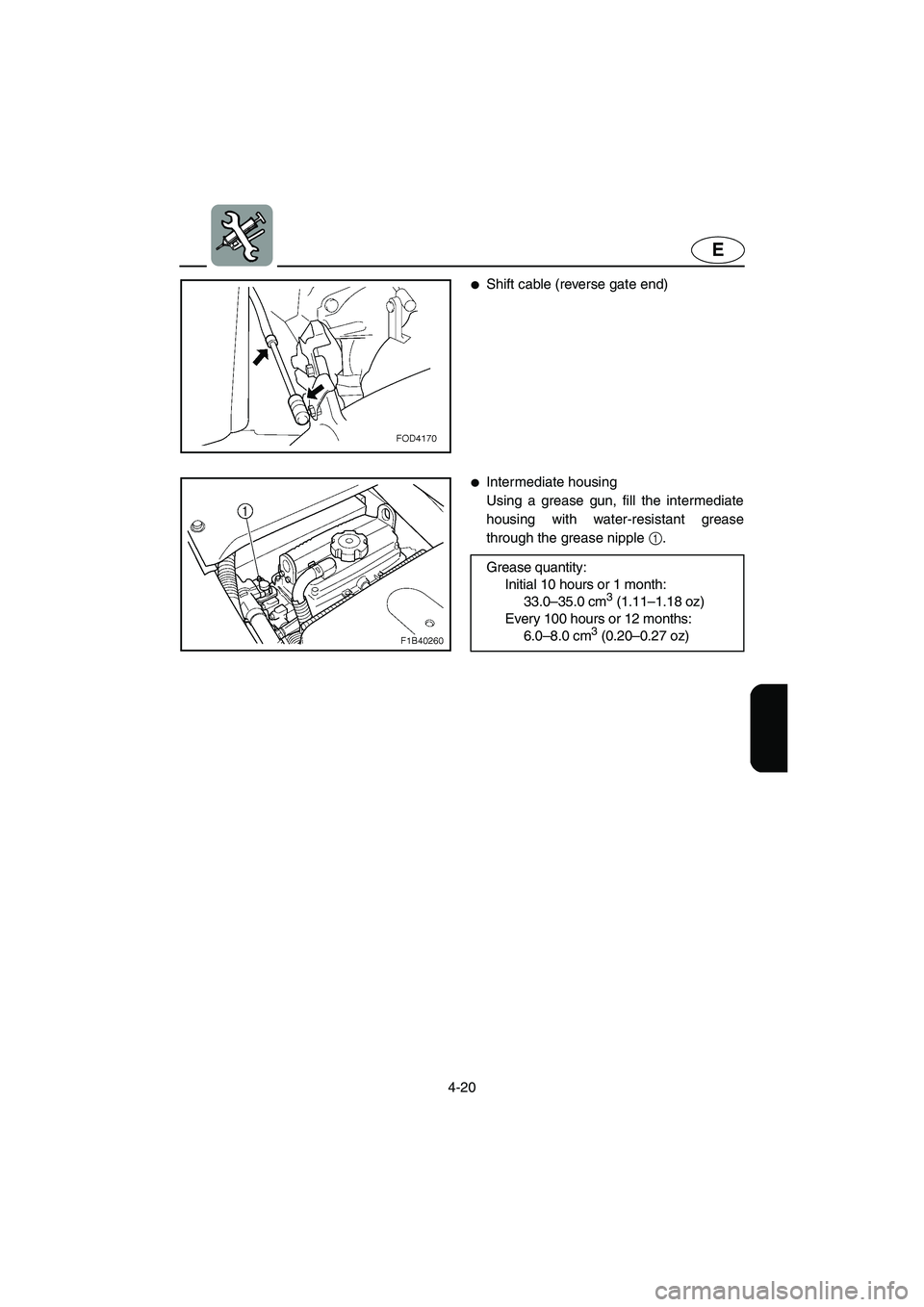

Shift cable (reverse gate end)

Intermediate housing
Using a grease gun, fill the intermediate
housing with water-resistant grease
through the grease nipple 1.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm
3 (1.11–1.18 oz)
Every 100 hours or 12 months:
6.0–8.0 cm
3 (0.20–0.27 oz)
UF1B71.book Page 20 Tuesday, November 12, 2002 4:17 PM

4-21
E
EJU01971

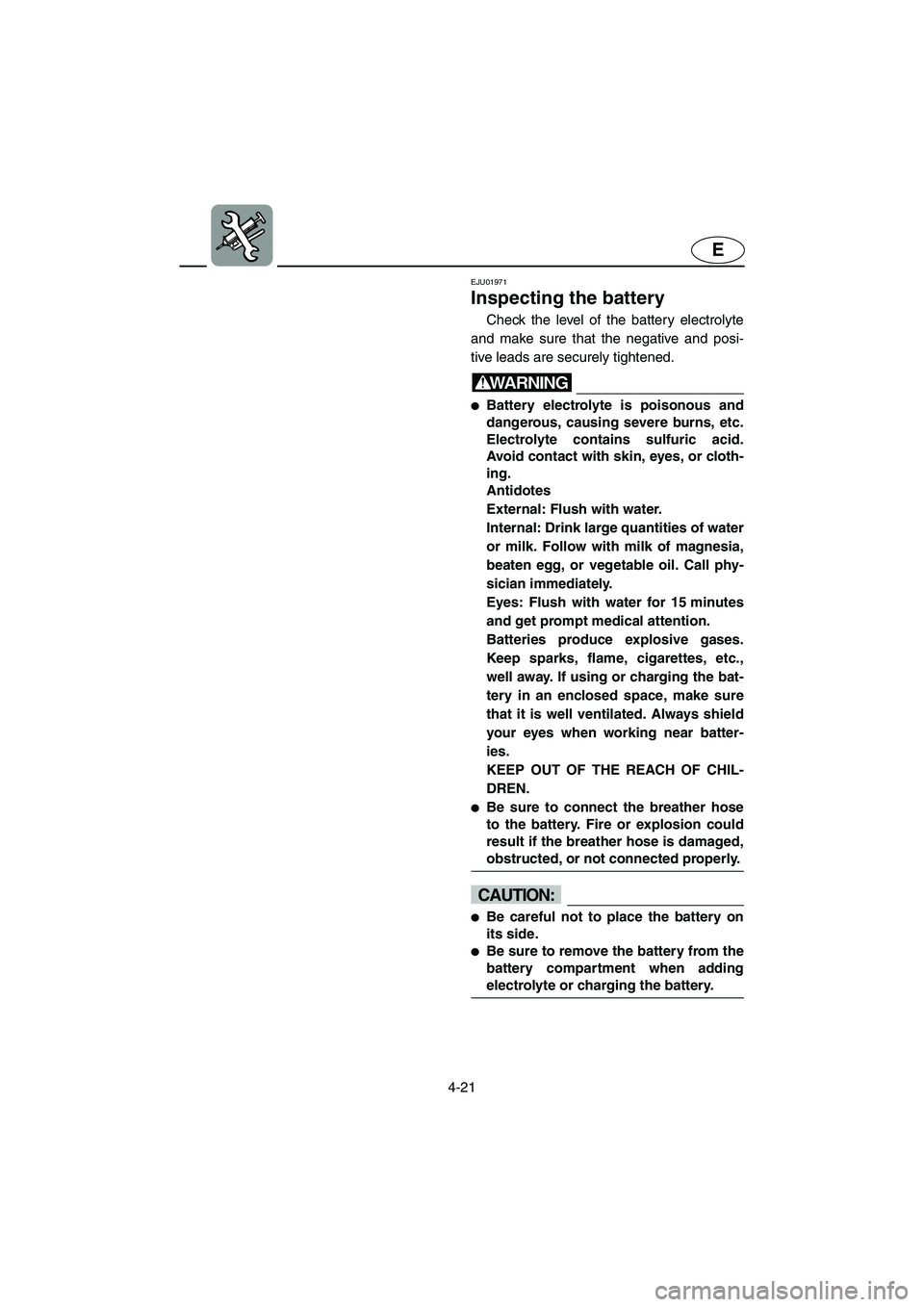

Inspecting the battery
Check the level of the battery electrolyte
and make sure that the negative and posi-
tive leads are securely tightened.
WARNING@
Battery electrolyte is poisonous and
dangerous, causing severe burns, etc.
Electrolyte contains sulfuric acid.
Avoid contact with skin, eyes, or cloth-
ing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call phy-
sician immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases.
Keep sparks, flame, cigarettes, etc.,
well away. If using or charging the bat-
tery in an enclosed space, make sure
that it is well ventilated. Always shield
your eyes when working near batter-
ies.
KEEP OUT OF THE REACH OF CHIL-
DREN.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@
Be careful not to place the battery on
its side.

Be sure to remove the battery from the
battery compartment when adding
electrolyte or charging the battery.
@
UF1B71.book Page 21 Tuesday, November 12, 2002 4:17 PM

4-22
E

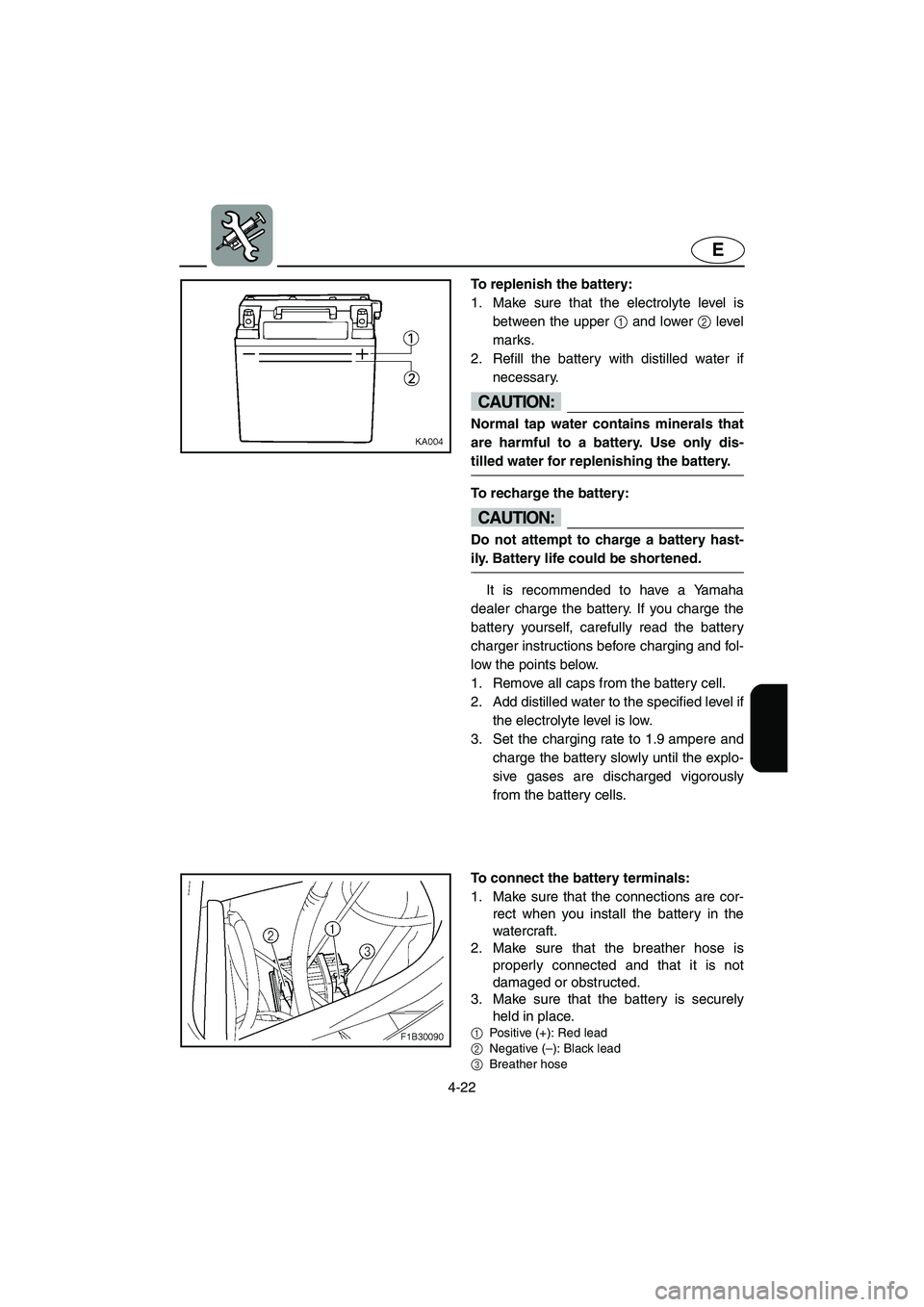

To replenish the battery:
1. Make sure that the electrolyte level is
between the upper 1 and lower 2 level
marks.
2. Refill the battery with distilled water if
necessary.
CAUTION:@ Normal tap water contains minerals that
are harmful to a battery. Use only dis-
tilled water for replenishing the battery.
@
To recharge the battery:
CAUTION:@ Do not attempt to charge a battery hast-
ily. Battery life could be shortened.
@
It is recommended to have a Yamaha
dealer charge the battery. If you charge the
battery yourself, carefully read the battery
charger instructions before charging and fol-
low the points below.
1. Remove all caps from the battery cell.
2. Add distilled water to the specified level if
the electrolyte level is low.
3. Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases are discharged vigorously
from the battery cells.
To connect the battery terminals:
1. Make sure that the connections are cor-
rect when you install the battery in the
watercraft.
2. Make sure that the breather hose is
properly connected and that it is not
damaged or obstructed.
3. Make sure that the battery is securely
held in place.
1Positive (+): Red lead
2Negative (–): Black lead
3Breather hose
UF1B71.book Page 22 Tuesday, November 12, 2002 4:17 PM

4-23
E
EJU18231

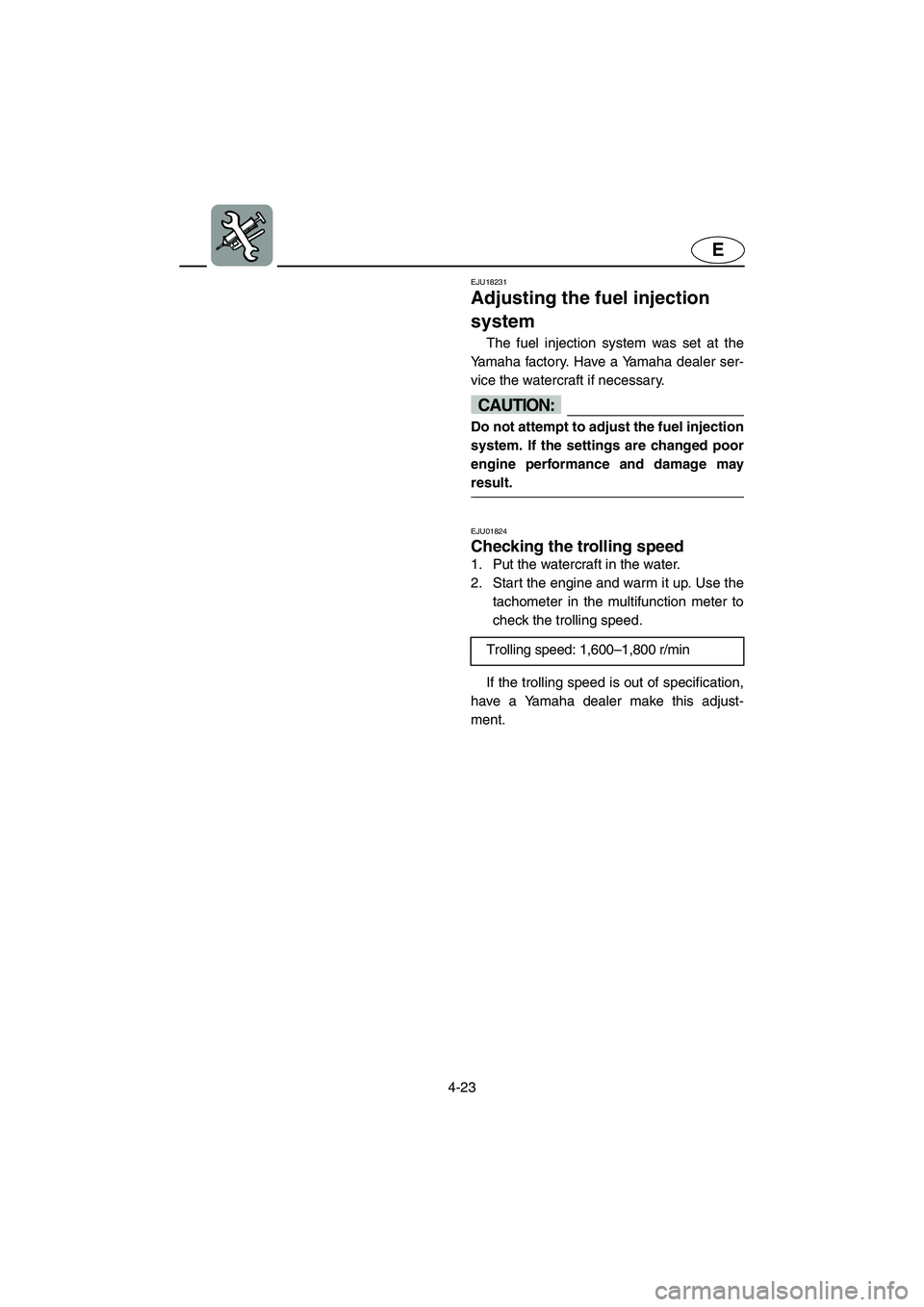

Adjusting the fuel injection
system
The fuel injection system was set at the
Yamaha factory. Have a Yamaha dealer ser-
vice the watercraft if necessary.
CAUTION:@ Do not attempt to adjust the fuel injection
system. If the settings are changed poor
engine performance and damage may
result.
@
EJU01824
Checking the trolling speed
1. Put the watercraft in the water.
2. Start the engine and warm it up. Use the
tachometer in the multifunction meter to
check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer make this adjust-
ment.Trolling speed: 1,600–1,800 r/min
