YAMAHA FX CRUISER 2006 Owners Manual

4-24
E
EJU01825
Replacing the fuse
The fuse is in the electrical box 1.
To replace the fuse:
1. Remove the cap 2.
2. Replace the fuse 4 with the spare
fuse5 of the correct amperage by using
the special tool 3 on the reverse side of
the cap.
WARNING@ Do not use fuses of higher amperage
than those recommended. Substitution
of a fuse of improper rating can cause
extensive electrical system damage and
possible fire.
Fuse amperage:
20 A (main)
3 A (meter)
3 A (bilge pump)
E_F1Y-70.book Page 24 Friday, August 26, 2005 9:47 AM

4-25
E
EJU01359
Specifications
MODEL
ITEMUnit FX/FX Cruiser
WATERCRAFT CAPACITY
Maximum people on board Number of people 3
Maximum load capacity kg (lb) 240 (530)
DIMENSIONS
Length mm (in) 3,340 (131.5)
Width mm (in) 1,230 (48.4)
Height mm (in) 1,160 (45.7)/1,240 (48.8)
Dry weight kg (lb) 384 (847)/392 (864)
PERFORMANCE
Maximum output kW (PS) @ r/min 103.0 (140)@ 10,000
Maximum fuel consumption L/h (US gal/h, Imp gal/h) 44 (11.6, 9.7)
Cruising range at full throttle hr. 1.59
Trolling speed r/min 1,600–1,700
ENGINE
Engine type 4-stroke
Number of cylinders 4
Engine displacement
cm
3 (cu in)998 (60.9)
Bore & stroke mm (in) 74 ×
58 (2.91 ×
2.28)
Compression ratio 11.4:1
Valve clearance (cold)
Intake mm (in) 0.11–0.20 (0.0043–0.0079)
Exhaust mm (in) 0.25–0.34 (0.0098–0.0134)
Lubrication system Dry sump
Cooling system Water cooled
Starting system Electric starter
Ignition system TCI
Spark plug CR9EB (NGK)
Spark plug gap mm (in) 0.7–0.8 (0.028–0.031)
Battery capacity V-AH 12-19
Charging system Flywheel magneto
E_F1Y-70.book Page 25 Friday, August 26, 2005 9:47 AM

4-26
E
DRIVE UNIT
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise (viewed from rear)
Jet thrust nozzle horizontal angle Degree 24 + 24
Jet thrust nozzle trim angle Degree -10, -5, 0, 5, 10
FUEL AND OIL
Recommended fuel Regular unleaded gasoline
Minimum octane rating PON
RON86
90
Recommended engine oil SAE 10W-30
API SE, SF, SG, SH, SJ, SL
Fuel tank capacity
Total L (US gal, Imp gal) 70 (18.5, 15.5)
Engine oil quantity
With oil filter replacement L (US qt, Imp qt) 2.2 (2.3, 1.9)
Without oil filter replacement L (US qt, Imp qt) 2.0 (2.1, 1.8)
Total amount L (US qt, Imp qt) 4.3 (4.5, 3.8)MODEL
ITEMUnit FX/FX Cruiser
E_F1Y-70.book Page 26 Friday, August 26, 2005 9:47 AM

E

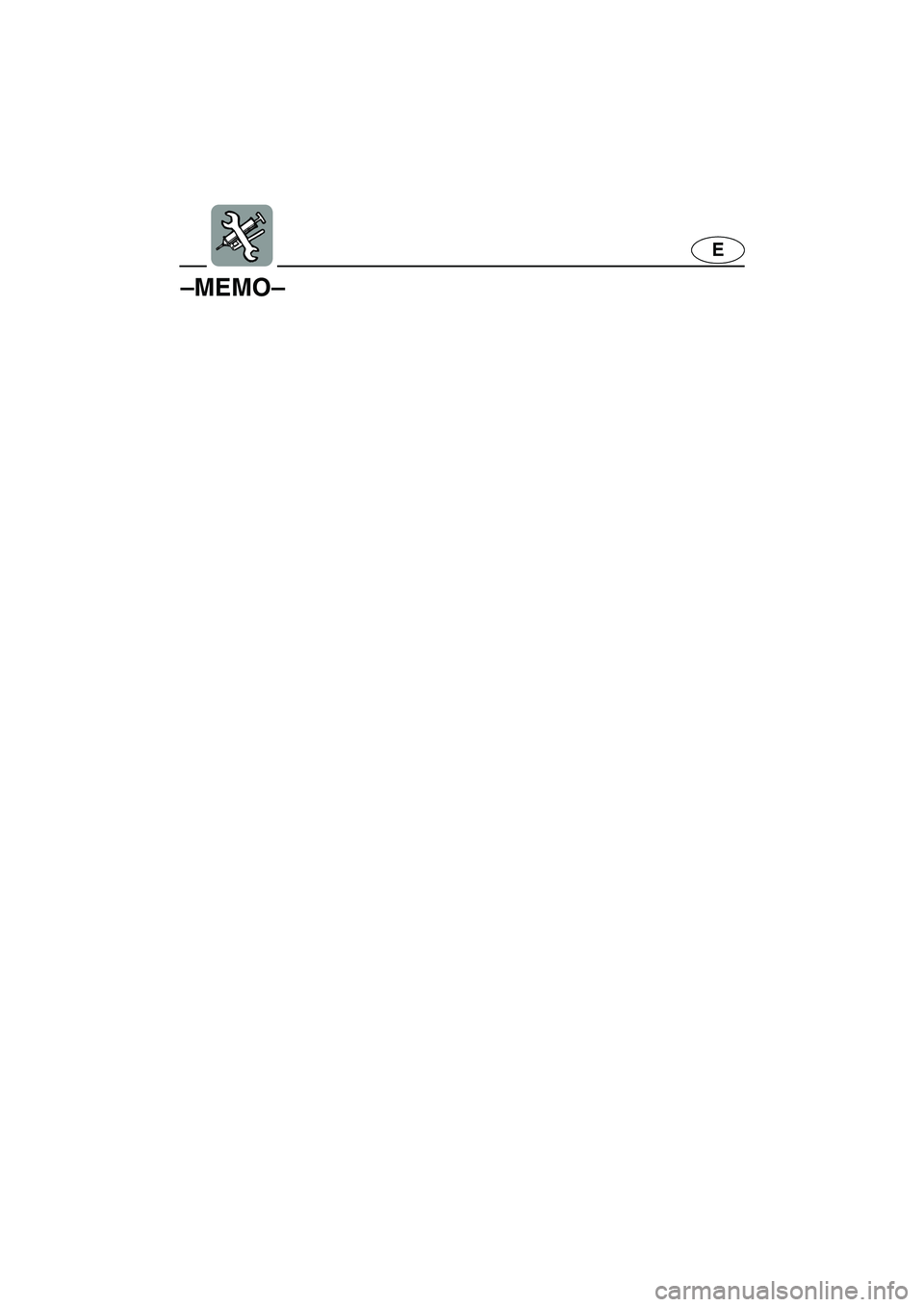

–MEMO–
E_F1Y-70.book Page 27 Friday, August 26, 2005 9:47 AM

E

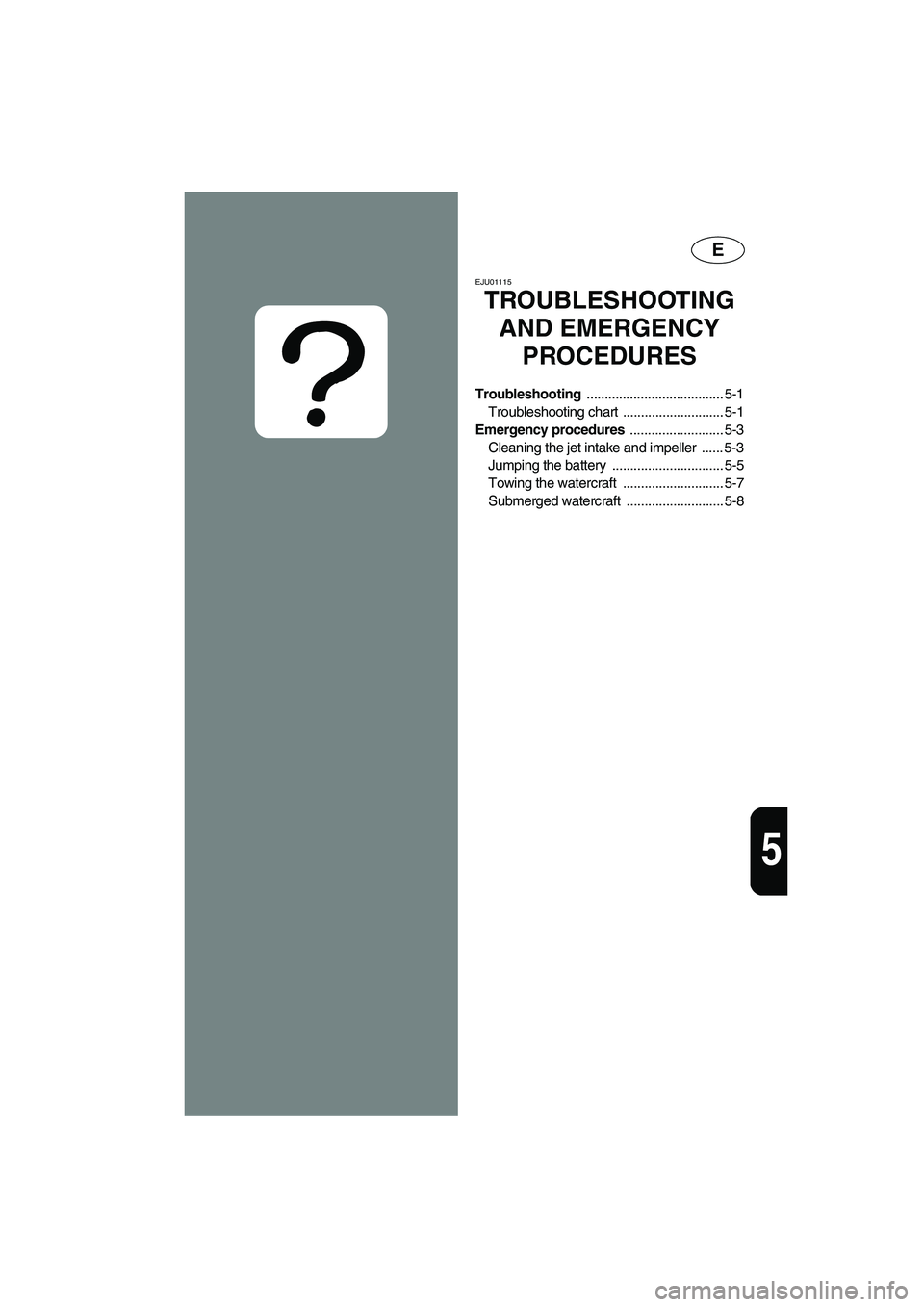

5
EJU01115
TROUBLESHOOTING
AND EMERGENCY
PROCEDURES
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................ 5-1
Emergency procedures .......................... 5-3
Cleaning the jet intake and impeller ...... 5-3
Jumping the battery ............................... 5-5
Towing the watercraft ............................ 5-7
Submerged watercraft ........................... 5-8
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM

5-1
E
EJU01116
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible
cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described
in this Owner’s/Operator’s Manual, have a Yamaha dealer perform the necessary service.
EJU01367
Troubleshooting chart
TBC-F0P7ETROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
startStarter motor does not turn over
Engine shut-
off switchClip not in place Install clip
2-8
Fuse Burned out Replace the fuse and
check wiring4-24
Battery Run down Recharge 4-21
Poor terminal connec-
tionsTighten as required
4-21
Terminal corroded Clean 4-5
Starter motor Faulty Have serviced by
Yamaha dealer—
Starter motor turns over
Throttle lever Squeezed Release 2-8
Fuel Empty Refill as soon as possi-
ble3-4
Stale or contaminated Have serviced by
Yamaha dealer4-11
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-11
Spark plug Fouled or defective Clean or replace 4-16
Spark plug cap Not connected or loose Connect properly 4-16
Connected to wrong
cylinderConnect properly
4-16
Fuel injection
systemFuel pump faulty Have serviced by
Yamaha dealer—
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM

5-2
E
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as possi-
ble3-4
Stale or contaminated Have serviced by
Yamaha dealer4-11
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-11
Spark plug Fouled or defective Replace 4-16
Incorrect heat range Replace 4-16
Gap incorrect Adjust 4-16
Spark plug cap Loose Connect properly 4-16
Cracked, torn, or dam-
agedReplace
—
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel injection
systemJet nozzle clogged Have serviced by
Yamaha dealer—
Warning light or
indicator blinksFuel level Empty Refill as soon as possi-
ble3-4
Engine over-
heatedJet intake clogged Clean
5-3
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer—
Wate rcr af t slow or
loses powerCavitation Jet intake clogged Clean 5-3
Impeller damaged or
wornHave serviced by
Yamaha dealer—
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine2-24
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
2-23
Spark plug Fouled or defective Replace 4-16
Incorrect heat range Replace 4-16
Gap incorrect Adjust 4-16
Spark plug
capsLoose Connect properly
4-16
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel Stale or contaminated Have serviced by
Yamaha dealer4-11
Air filter Clogged Clean or replace 4-14
Oil buildup Replace 4-14 TROUBLE POSSIBLE CAUSE REMEDY PAGE
E_F1Y-70.book Page 2 Friday, August 26, 2005 9:47 AM

5-3
E
EJU01118
Emergency procedures
EJU21602
Cleaning the jet intake and
impeller
If weeds or debris get caught in the intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine
speed rises. If this condition is allowed to
continue, the engine will overheat and may
seize. If there is any sign that the jet intake
or impeller is clogged with weeds or debris,
return to shore and check the intake and
impeller. Always stop the engine before
beaching the watercraft.
WARNING@ Before attempting to remove weeds or
debris from the jet intake or impeller
area, shut the engine off and remove the
clip from the engine shut-off switch.
Severe injury or death could result from
coming in contact with the rotating parts
of the jet pump.
@
CAUTION:@ If weeds or debris get caught in the
intake, do not operate the watercraft
above trolling speed until they have been
removed.
@
1. Turn the watercraft on its side as shown.
CAUTION:@
Place a suitable clean cloth or carpet-
ing underneath the watercraft to pro-
tect it from abrasions and scratches.

Always turn the watercraft over onto
its port (left) side.

When turning the watercraft on its
side, support the bow so the handle-
bars cannot be bent or damaged.
@
E_F1Y-70.book Page 3 Friday, August 26, 2005 9:47 AM

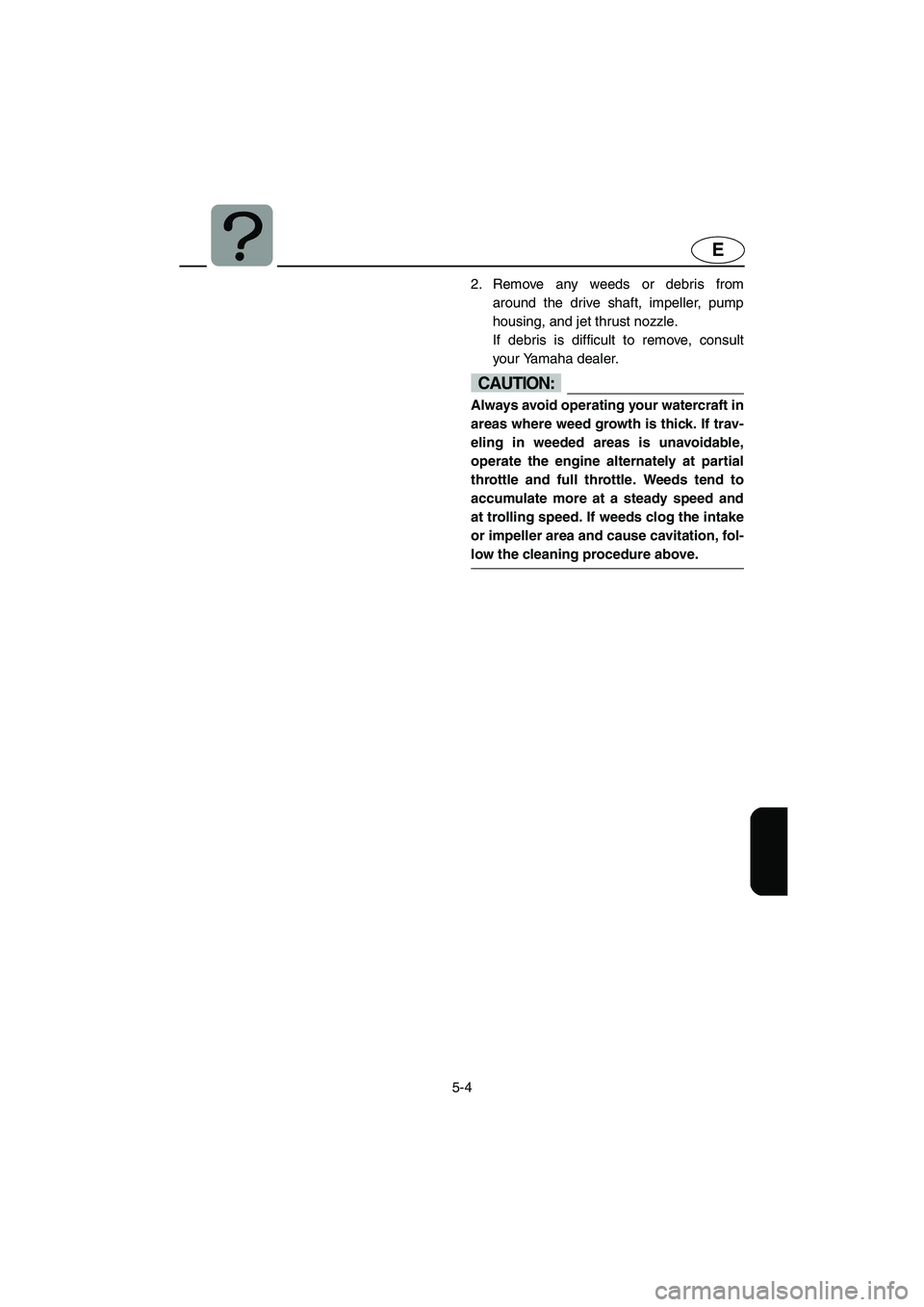

5-4
E
2. Remove any weeds or debris from
around the drive shaft, impeller, pump
housing, and jet thrust nozzle.
If debris is difficult to remove, consult
your Yamaha dealer.
CAUTION:@ Always avoid operating your watercraft in
areas where weed growth is thick. If trav-
eling in weeded areas is unavoidable,
operate the engine alternately at partial
throttle and full throttle. Weeds tend to
accumulate more at a steady speed and
at trolling speed. If weeds clog the intake
or impeller area and cause cavitation, fol-
low the cleaning procedure above.
@
E_F1Y-70.book Page 4 Friday, August 26, 2005 9:47 AM

5-5
E
EJU01844
Jumping the battery
If the watercraft battery has run down, the
engine can be started using a 12-volt bat-
tery and jumper cables.
WARNING@ Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg or vegetable oil. Call physi-
cian immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc. well away.
If using or charging the battery in an
enclosed space, make sure that it is well
ventilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
E_F1Y-70.book Page 5 Friday, August 26, 2005 9:47 AM
