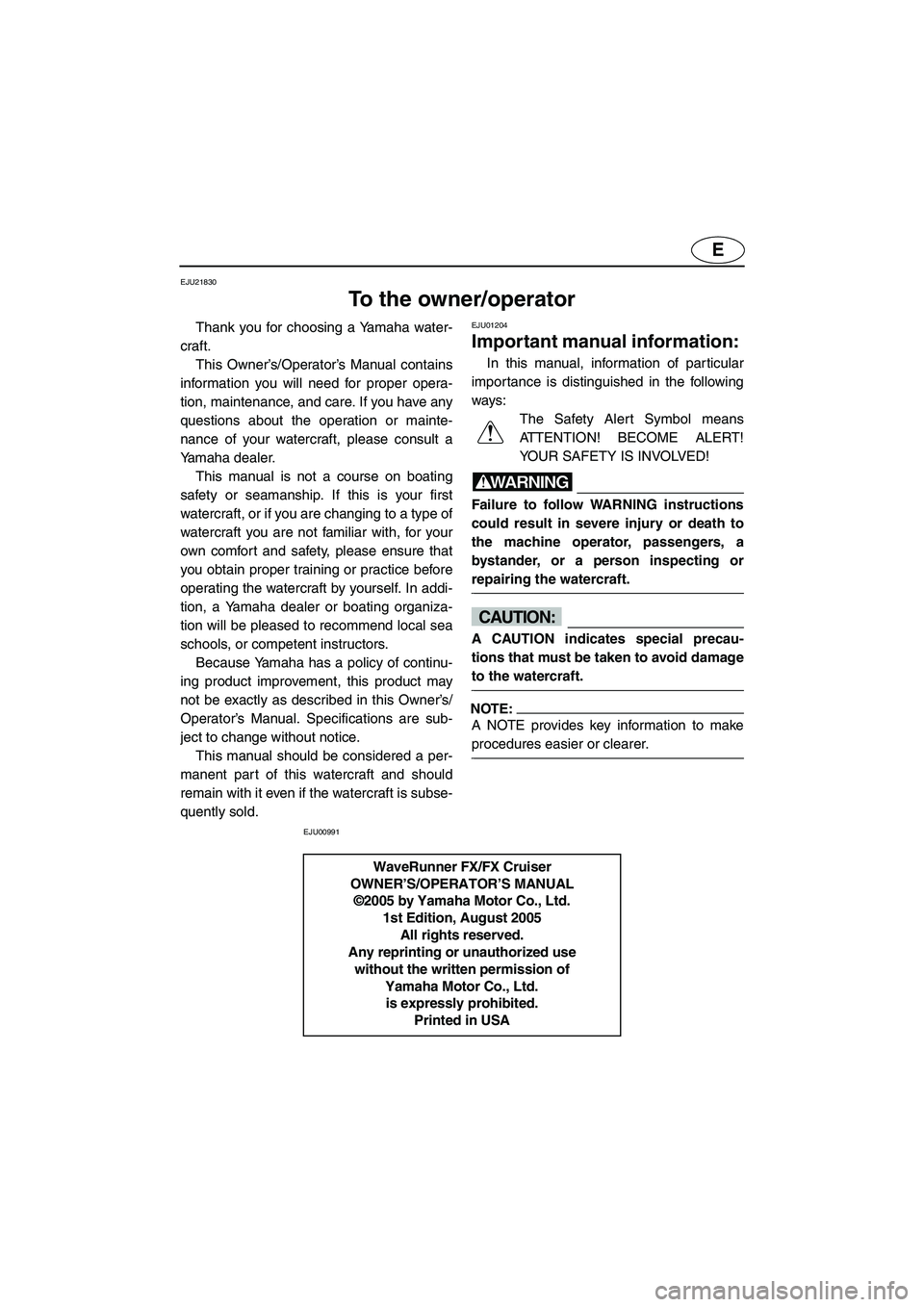

To the owner/operator
Thank you for choosing a Yamaha water-
craft.
This Owner’s/Operator’s Manual contains
information you will need for proper opera-
tion, maintenance, and care. If you have any
questions about the operation or mainte-
nance of your watercraft, please consult a
Yamaha dealer.
This manual is not a course on boating
safety or seamanship. If this is your first
watercraft, or if you are changing to a type of
watercraft you are not familiar with, for your
own comfort and safety, please ensure that
you obtain proper training or practice before
operating the watercraft by yourself. In addi-
tion, a Yamaha dealer or boating organiza-
tion will be pleased to recommend local sea
schools, or competent instructors.
Because Yamaha has a policy of continu-
ing product improvement, this product may
not be exactly as described in this Owner’s/
Operator’s Manual. Specifications are sub-
ject to change without notice.
This manual should be considered a per-
manent part of this watercraft and should
remain with it even if the watercraft is subse-
quently sold. EJU01204
Important manual information:
In this manual, information of particular
importance is distinguished in the following
ways:
The Safety Alert Symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
WARNING@ Failure to follow WARNING instructions
could result in severe injury or death to
the machine operator, passengers, a
bystander, or a person inspecting or
repairing the watercraft.
@
CAUTION:@ A CAUTION indicates special precau-
tions that must be taken to avoid damage
to the watercraft.
@
NOTE:@ A NOTE provides key information to make
procedures easier or clearer.
@
EJU00991
WaveRunner FX/FX Cruiser
OWNER’S/OPERATOR’S MANUAL
©2005 by Yamaha Motor Co., Ltd.
1st Edition, August 2005
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in USA
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM
Page 5 of 140
EEJU00992

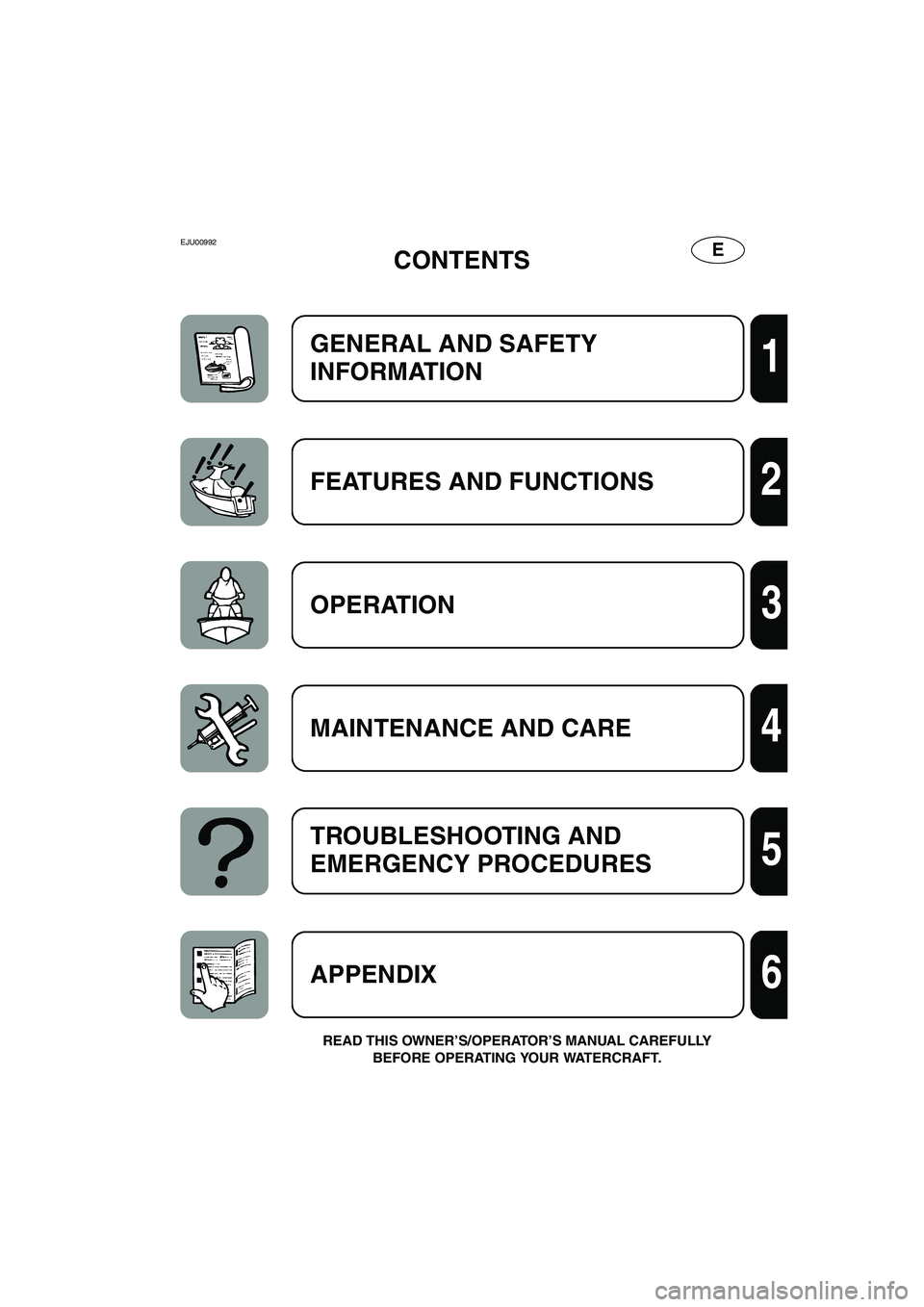

CONTENTS
READ THIS OWNER’S/OPERATOR’S MANUAL CAREFULLY
BEFORE OPERATING YOUR WATERCRAFT.
GENERAL AND SAFETY
INFORMATION
1
FEATURES AND FUNCTIONS 2
OPERATION3
MAINTENANCE AND CARE4
TROUBLESHOOTING AND
EMERGENCY PROCEDURES
5
APPENDIX6
E_F1Y-70.book Page 2 Friday, August 26, 2005 9:47 AM
Page 6 of 140
E_F1Y-70.book Page 3 Friday, August 26, 2005 9:47 AM
Page 7 of 140
E
1
EJU00993
GENERAL AND
SAFETY
INFORMATION

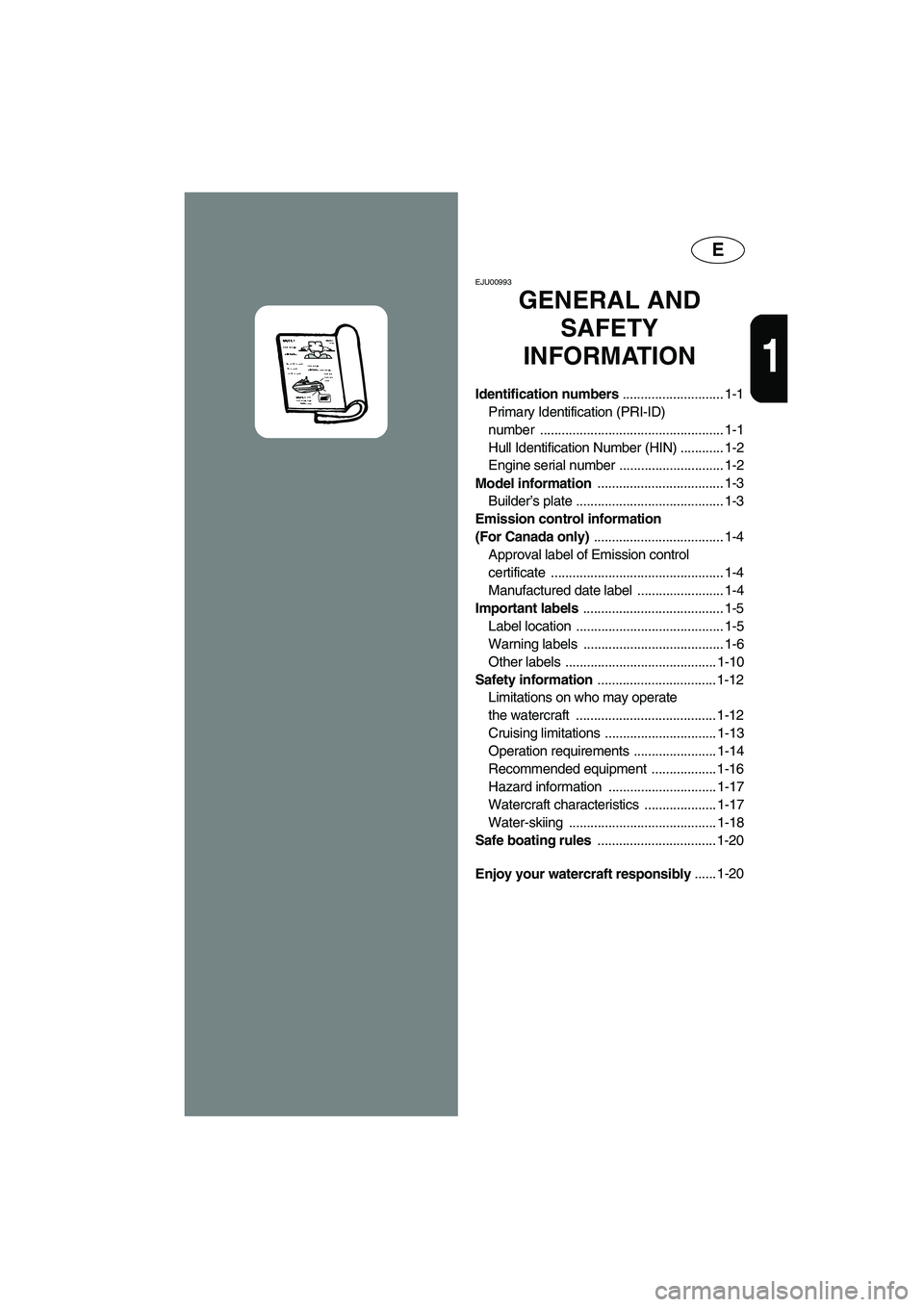

Identification numbers ............................ 1-1
Primary Identification (PRI-ID)
number ................................................... 1-1
Hull Identification Number (HIN) ............ 1-2
Engine serial number ............................. 1-2
Model information ................................... 1-3
Builder’s plate ......................................... 1-3
Emission control information
(For Canada only) .................................... 1-4
Approval label of Emission control
certificate ................................................ 1-4
Manufactured date label ........................ 1-4
Important labels ....................................... 1-5
Label location ......................................... 1-5
Warning labels ....................................... 1-6
Other labels .......................................... 1-10
Safety information ................................. 1-12
Limitations on who may operate
the watercraft ....................................... 1-12
Cruising limitations ............................... 1-13
Operation requirements ....................... 1-14
Recommended equipment .................. 1-16
Hazard information .............................. 1-17
Watercraft characteristics .................... 1-17
Water-skiing ......................................... 1-18
Safe boating rules ................................. 1-20
Enjoy your watercraft responsibly ...... 1-20
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM
Page 8 of 140
1-1
E
EJU01830

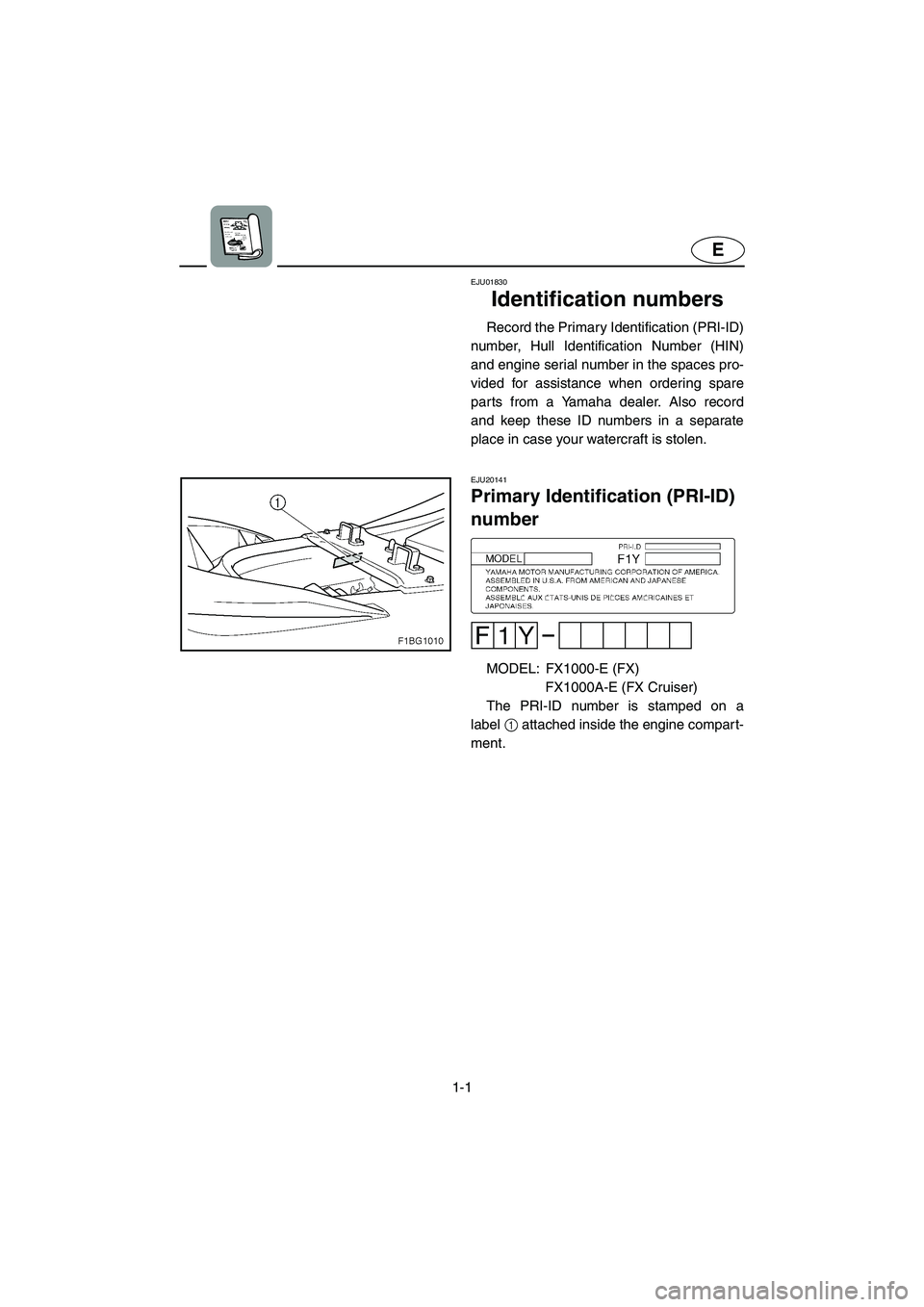

Identification numbers
Record the Primary Identification (PRI-ID)
number, Hull Identification Number (HIN)
and engine serial number in the spaces pro-
vided for assistance when ordering spare
parts from a Yamaha dealer. Also record
and keep these ID numbers in a separate
place in case your watercraft is stolen.
EJU20141
Primary Identification (PRI-ID)
number
MODEL: FX1000-E (FX)
FX1000A-E (FX Cruiser)
The PRI-ID number is stamped on a
label1 attached inside the engine compart-
ment.
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM
Page 9 of 140
1-2
E
EJU12051

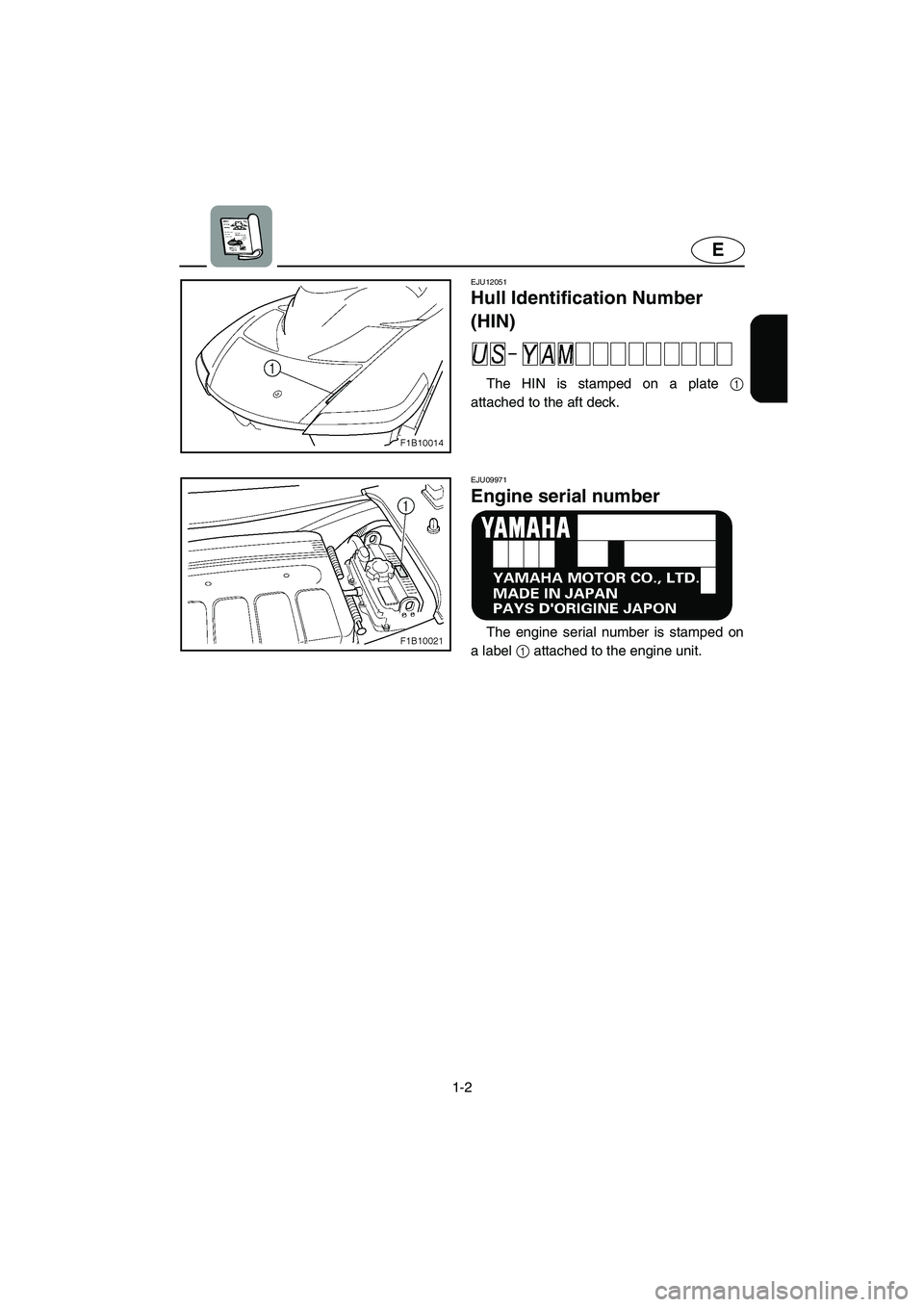

Hull Identification Number
(HIN)
The HIN is stamped on a plate 1
attached to the aft deck.
EJU09971
Engine serial number
The engine serial number is stamped on
a label 1 attached to the engine unit.
E_F1Y-70.book Page 2 Friday, August 26, 2005 9:47 AM
Page 10 of 140
1-3
E
EJU21700
Model information
EJU21710

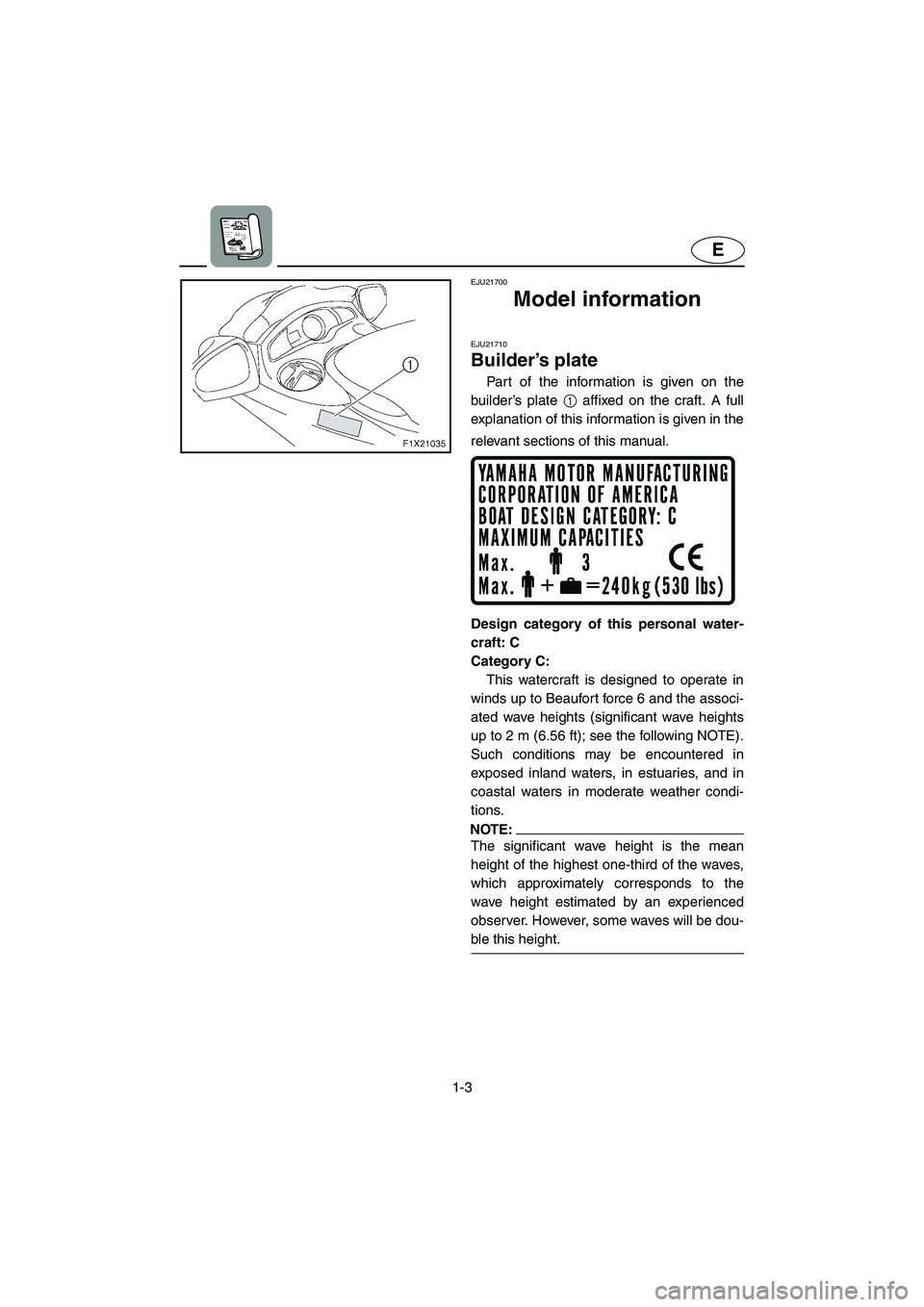

Builder’s plate
Part of the information is given on the
builder’s plate 1 affixed on the craft. A full
explanation of this information is given in the
relevant sections of this manual.
Design category of this personal water-
craft: C
Category C:
This watercraft is designed to operate in
winds up to Beaufort force 6 and the associ-
ated wave heights (significant wave heights
up to 2 m (6.56 ft); see the following NOTE).
Such conditions may be encountered in
exposed inland waters, in estuaries, and in
coastal waters in moderate weather condi-
tions.
NOTE:@ The significant wave height is the mean
height of the highest one-third of the waves,
which approximately corresponds to the
wave height estimated by an experienced
observer. However, some waves will be dou-
ble this height.
@
E_F1Y-70.book Page 3 Friday, August 26, 2005 9:47 AM
