Maintenance and care
81

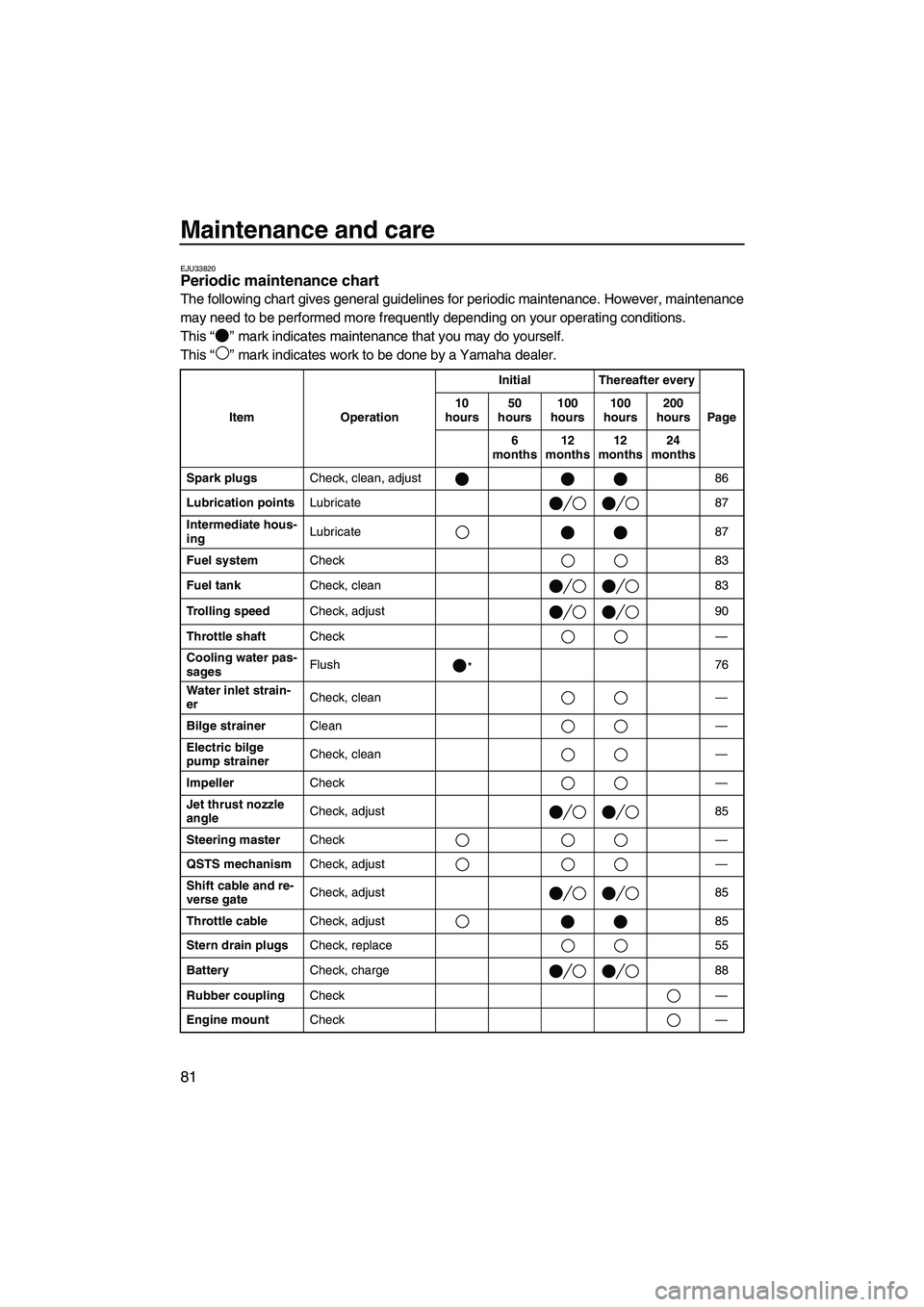

EJU33820Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “” mark indicates maintenance that you may do yourself.
This “” mark indicates work to be done by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 86
Lubrication pointsLubricate 87
Intermediate hous-
ingLubricate 87
Fuel systemCheck 83
Fuel tankCheck, clean 83
Trolling speedCheck, adjust 90
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*76
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
Electric bilge
pump strainerCheck, clean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 85
Steering masterCheck—
QSTS mechanismCheck, adjust—
Shift cable and re-
verse gateCheck, adjust 85
Throttle cableCheck, adjust 85
Stern drain plugsCheck, replace 55
BatteryCheck, charge 88
Rubber couplingCheck—
Engine mountCheck—
UF1X71E0.book Page 81 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
86

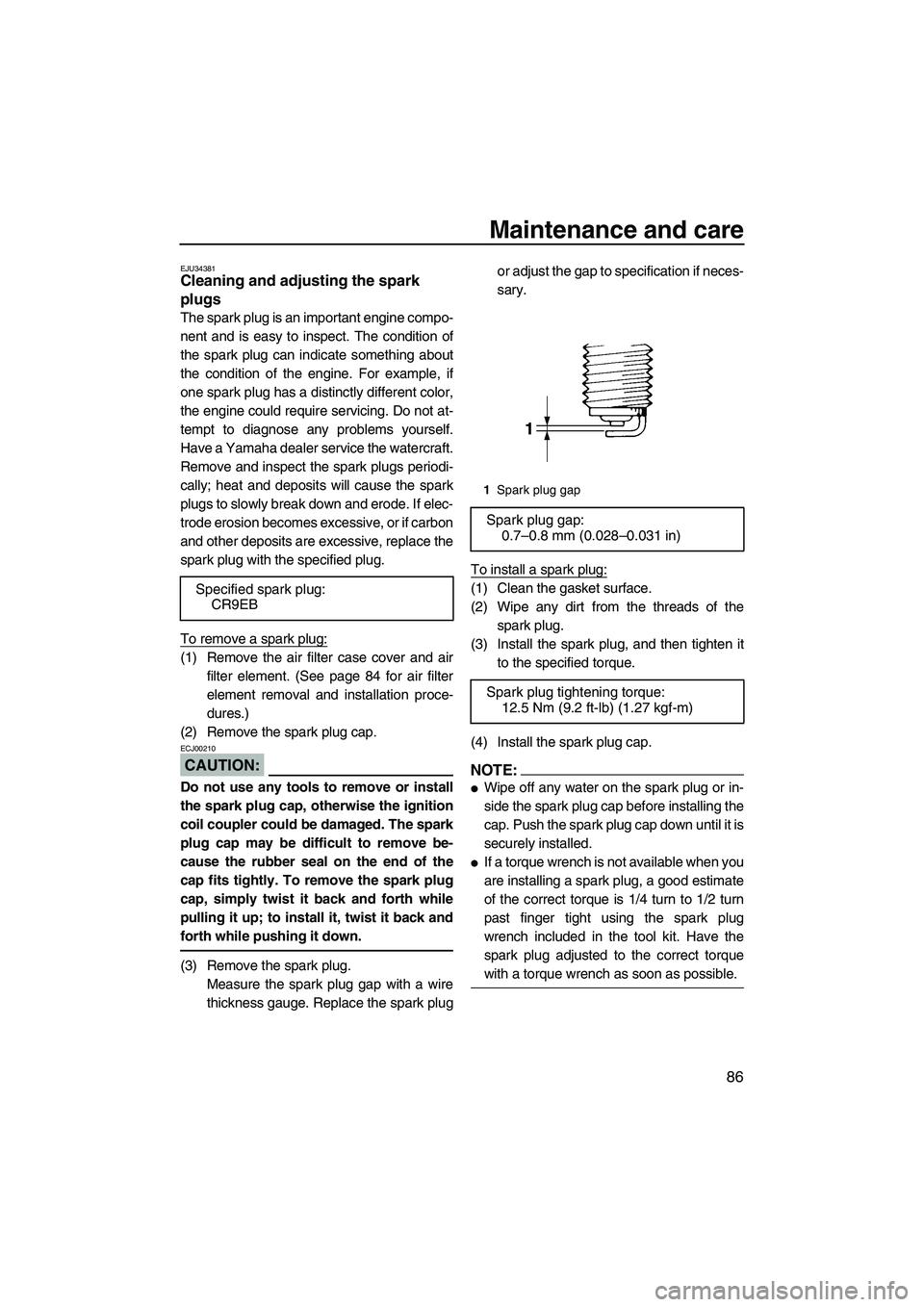

EJU34381Cleaning and adjusting the spark
plugs
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
To remove a spark plug:
(1) Remove the air filter case cover and air
filter element. (See page 84 for air filter
element removal and installation proce-
dures.)
(2) Remove the spark plug cap.
CAUTION:
ECJ00210
Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler could be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the
cap fits tightly. To remove the spark plug
cap, simply twist it back and forth while
pulling it up; to install it, twist it back and
forth while pushing it down.
(3) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plugor adjust the gap to specification if neces-
sary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.
(3) Install the spark plug, and then tighten it
to the specified torque.
(4) Install the spark plug cap.
NOTE:

Wipe off any water on the spark plug or in-
side the spark plug cap before installing the
cap. Push the spark plug cap down until it is
securely installed.

If a torque wrench is not available when you
are installing a spark plug, a good estimate
of the correct torque is 1/4 turn to 1/2 turn
past finger tight using the spark plug
wrench included in the tool kit. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
Specified spark plug:
CR9EB
1Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Spark plug tightening torque:
12.5 Nm (9.2 ft-lb) (1.27 kgf-m)
