YAMAHA FX HO CRUISER 2021 Service Manual

Watercraft operation
34
EJU40002
Watercraft operation modes
EJU45061Reverse assist
The reverse assist is a function for temporar-
ily increasing the engine speed when moving
in reverse, such as to enter the water
smoothly when launching the watercraft from
a trailer.
This function operates after the engine is
started and only if the watercraft is not shifted
into forward.
TIP:
Once the watercraft is shifted into forward af-
ter the engine is started, the reverse assist
cannot be operated.
Activating and deactivating the reverse
assist
The activation of the reverse assist can be
confirmed by the reverse assist indicator on
the multifunction information center.
To activate the reverse assist:
(1) Start the engine.
(2) Squeeze the RiDE lever to the fully openposition, and then push the “SPEED
CONTROL” up switch. Once the beeper
sounds once and the reverse assist indi-
cator is displayed, the engine speed will increase. The engine speed can be ad-
justed to two levels: +1 and +2.
To deactivate the reverse assist:
Perform one of the following operations. The
beeper sounds two times and the reverse as-
sist indicator disappears when the reverse
assist is deactivated.
Relax your grip on the RiDE lever.
Push the “SPEED CONTROL” down switch
when the reverse assist level is set to +1.
Squeeze the throttle lever.EJU45071T.D.E. (thrust directional enhancer)
The T.D.E. is a function for slightly lifting or
lowering the reverse gate from the neutral po-
sition to operate the watercraft at very low
speeds when the engine is running at idling
speed.
1 Reverse assist indicator
2 Reverse assist level
0
R13.6Vx100
RPM
100%Rever se Assist +2
km/h
21
1RiDE lever
1 “SPEED CONTROL” up switch
2 “SPEED CONTROL” down switch
1
1
2
UF3V72E0.book Page 34 Tuesday, June 16, 2020 2:29 PM

Watercraft operation
35
This function can be used only when the wa-
tercraft is in neutral.
TIP:
While the watercraft is shifted into forward,
the “TRIM/T.D.E.” switches control the elec-
tric trim system. (See page 32 for information
on the electric trim system.)
Activating and deactivating the T.D.E.
The activation of the T.D.E. can be confirmed
by the T.D.E. indicator on the multifunction
information center.
To activate the T.D.E.:
(1) Shift into neutral.
(2) Push the “TRIM/T.D.E.” up switch tomove forward at a very low speed or
push the “TRIM/T.D.E.” down switch to
move in reverse at a very low speed.
TIP:
While the T.D.E. is activated, the “N” (neutral)
shift indicator will be displayed and “0” will be
displayed on the speedometer.
To deactivate the T.D.E.:
Perform one of the following operations. The
T.D.E. indicator disappears and the T.D.E. is
deactivated.
Squeeze the throttle lever.
Squeeze the RiDE lever.
Push and hold the “NO-WAKE MODE”
switch.
While moving forward at a very low speed,
push the “TRIM/T.D.E.” down switch.
While moving in reverse at a very low
speed, push the “TRIM/T.D.E.” up switch.
TIP:
The T.D.E. is also deactivated when the en-
gine is stopped.
EJU45051No-wake mode
The no-wake mode is a function that main-
tains the engine speed at a fixed setting for
operating the watercraft at low speeds. While
the watercraft is operating in no-wake mode,
the engine speed can be adjusted to one en-
gine speed each above and below the initial
engine speed.
This function can be used only when the wa-
tercraft is in neutral, or when the watercraft is
shifted into forward and the engine is operat-
ing at idling speed.
TIP:
If the no-wake mode is activated when the
watercraft is in neutral, the watercraft will au-
tomatically shift into forward and the water-
craft will start moving at a low speed.
1T.D.E. indicator
2 Forward operation at a very low speed
3 Reverse operation at a very low speed
1 “TRIM/T.D.E.” up switch
2 “TRIM/T.D.E.” down switch
0
N13.6Vx100
RPM
100%T.D.E. FORWARD
km/h
T.D.E. REVERSE T.D.E. FORWARD3
2
1
1
2
UF3V72E0.book Page 35 Tuesday, June 16, 2020 2:29 PM

Watercraft operation
36

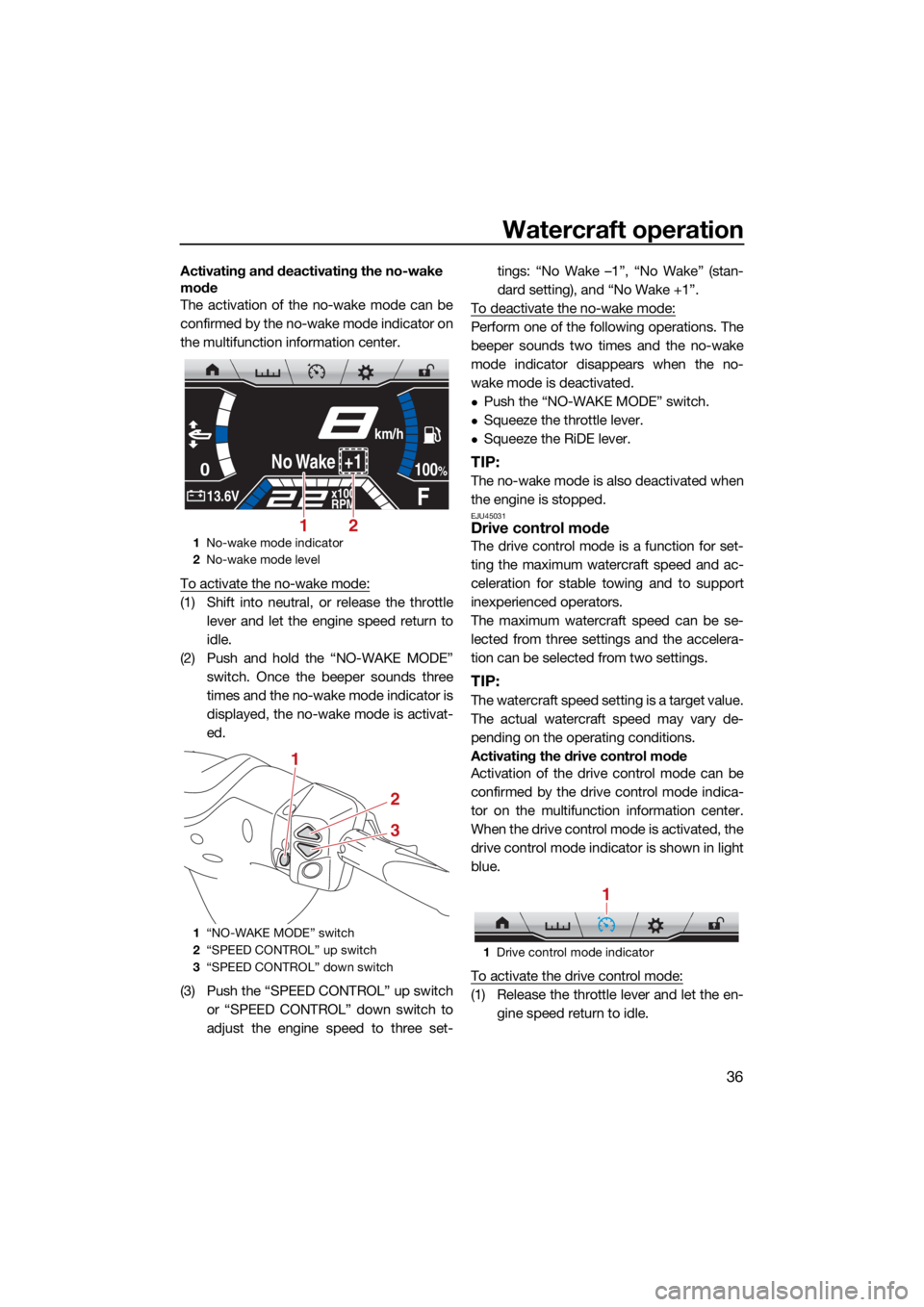

Activating and deactivating the no-wake
mode
The activation of the no-wake mode can be
confirmed by the no-wake mode indicator on
the multifunction information center.
To activate the no-wake mode:
(1) Shift into neutral, or release the throttlelever and let the engine speed return to
idle.
(2) Push and hold the “NO-WAKE MODE” switch. Once the beeper sounds three
times and the no-wake mode indicator is
displayed, the no-wake mode is activat-
ed.
(3) Push the “SPEED CONTROL” up switch or “SPEED CONTROL” down switch to
adjust the engine speed to three set- tings: “No Wake –1”, “No Wake” (stan-
dard setting), and “No Wake +1”.
To deactivate the no-wake mode:
Perform one of the following operations. The
beeper sounds two times and the no-wake
mode indicator disappears when the no-
wake mode is deactivated.
Push the “NO-WAKE MODE” switch.
Squeeze the throttle lever.
Squeeze the RiDE lever.
TIP:
The no-wake mode is also deactivated when
the engine is stopped.
EJU45031Drive control mode
The drive control mode is a function for set-
ting the maximum watercraft speed and ac-
celeration for stable towing and to support
inexperienced operators.
The maximum watercraft speed can be se-
lected from three settings and the accelera-
tion can be selected from two settings.
TIP:
The watercraft speed setting is a target value.
The actual watercraft speed may vary de-
pending on the operating conditions.
Activating the drive control mode
Activation of the drive control mode can be
confirmed by the drive control mode indica-
tor on the multifunction information center.
When the drive control mode is activated, the
drive control mode indicator is shown in light
blue.
To activate the drive control mode:
(1) Release the throttle lever and let the en- gine speed return to idle.
1No-wake mode indicator
2 No-wake mode level
1 “NO-WAKE MODE” switch
2 “SPEED CONTROL” up switch
3 “SPEED CONTROL” down switch
0
F13.6Vx100
RPM
100%No Wake +1
km/h
21
1
2
3
1Drive control mode indicator
1
UF3V72E0.book Page 36 Tuesday, June 16, 2020 2:29 PM

Watercraft operation
37

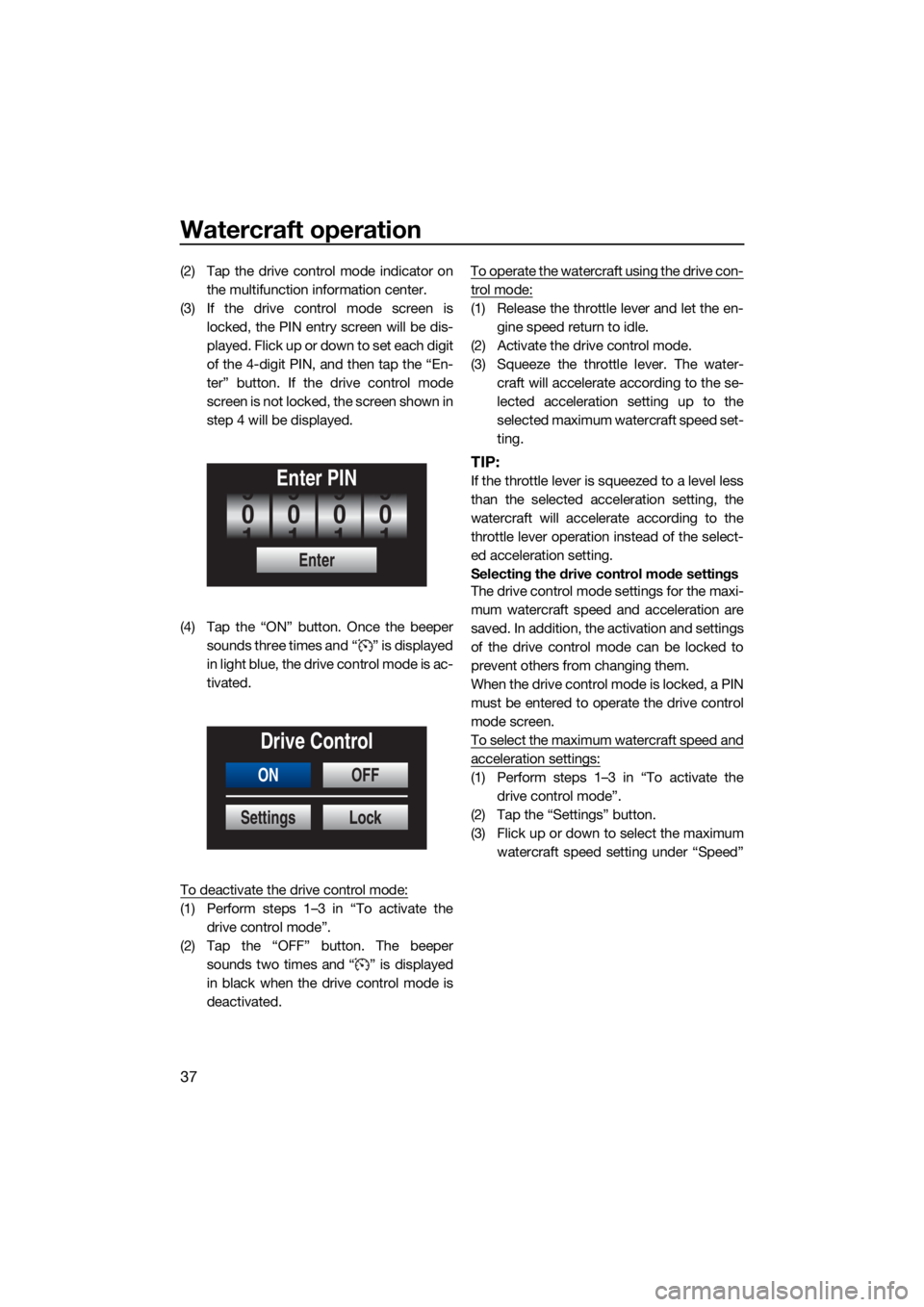

(2) Tap the drive control mode indicator onthe multifunction information center.
(3) If the drive control mode screen is locked, the PIN entry screen will be dis-
played. F lick up o r down to set each digit
of the 4-digit PIN, and then tap the “En-
ter” button. If the drive control mode
screen is not locked, the screen shown in
step 4 will be displayed.
(4) Tap the “ON” button. Once the beeper sounds three times and “ ” is displayed
in light blue, the drive control mode is ac-
tivated.
To deactivate the drive control mode:
(1) Perform steps 1–3 in “To activate the drive control mode”.
(2) Tap the “OFF” button. The beeper sounds two times and “ ” is displayed
in black when the drive control mode is
deactivated. To operate the watercraft using the drive con-
trol mode:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Activate the drive control mode.
(3) Squeeze the throttle lever. The water- craft will accelerate according to the se-
lected acceleration setting up to the
selected maximum watercraft speed set-
ting.
TIP:
If the throttle lever is squeezed to a level less
than the selected acceleration setting, the
watercraft will accelerate according to the
throttle lever operation instead of the select-
ed acceleration setting.
Selecting the drive control mode settings
The drive control mode settings for the maxi-
mum watercraft speed and acceleration are
saved. In addition, the activation and settings
of the drive control mode can be locked to
prevent others from changing them.
When the drive control mode is locked, a PIN
must be entered to operate the drive control
mode screen.

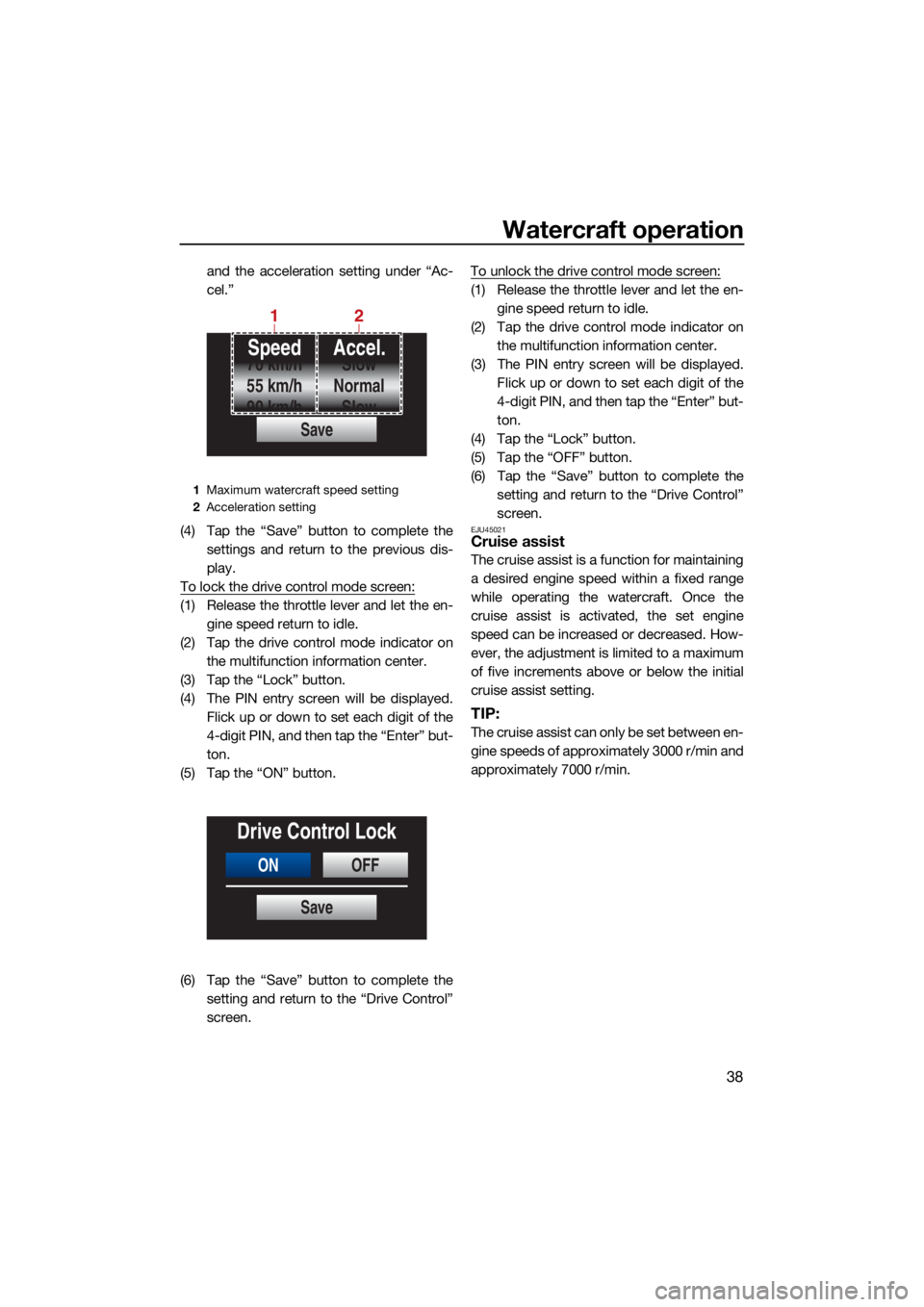

To select the maximum watercraft speed and
acceleration settings:
(1) Perform steps 1–3 in “To activate thedrive control mode”.
(2) Tap the “Settings” button.
(3) Flick up or down to select the maximum watercraft speed setting under “Speed”
Enter
Enter PIN
0
9
1
0
9
1
0
9
1
0
9
1
ON
Settings
OFF
Lock
Drive Control
UF3V72E0.book Page 37 Tuesday, June 16, 2020 2:29 PM

Watercraft operation
38
and the acceleration setting under “Ac-
cel.”
(4) Tap the “Save” button to complete the settings and return to the previous dis-
play.
To lock the drive control mode screen:
(1) Release the throttle lever and let the en- gine speed return to idle.
(2) Tap the drive control mode indicator on the multifunction information center.
(3) Tap the “Lock” button.
(4) The PIN entry screen will be displayed. Flick up or down to set each digit of the
4-digit PIN, and then tap the “Enter” but-
ton.
(5) Tap the “ON” button.
(6) Tap the “Save” button to complete the setting and return to the “Drive Control”
screen. To unlock the drive control mode screen:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Tap the drive control mode indicator on the multifunction information center.
(3) The PIN entry screen will be displayed. Flick up or down to set each digit of the
4-digit PIN, and then tap the “Enter” but-
ton.
(4) Tap the “Lock” button.
(5) Tap the “OFF” button.
(6) Tap the “Save” button to complete the setting and return to the “Drive Control”
screen.
EJU45021Cruise assist
The cruise assist is a function for maintaining
a desired engine speed within a fixed range
while operating the watercraft. Once the
cruise assist is activated, the set engine
speed can be increased or decreased. How-
ever, the adjustment is limited to a maximum
of five increments above or below the initial
cruise assist setting.
TIP:
The cruise assist can only be set between en-
gine speeds of approximately 3000 r/min and
approximately 7000 r/min.
1Maximum watercraft speed setting
2 Acceleration setting
Save
Speed
55 km/h
70 km/h
90 km/hAccel.
Normal
Slow
Slow
12
ONOFF
Drive Control Lock
Save
UF3V72E0.book Page 38 Tuesday, June 16, 2020 2:29 PM

Watercraft operation
39

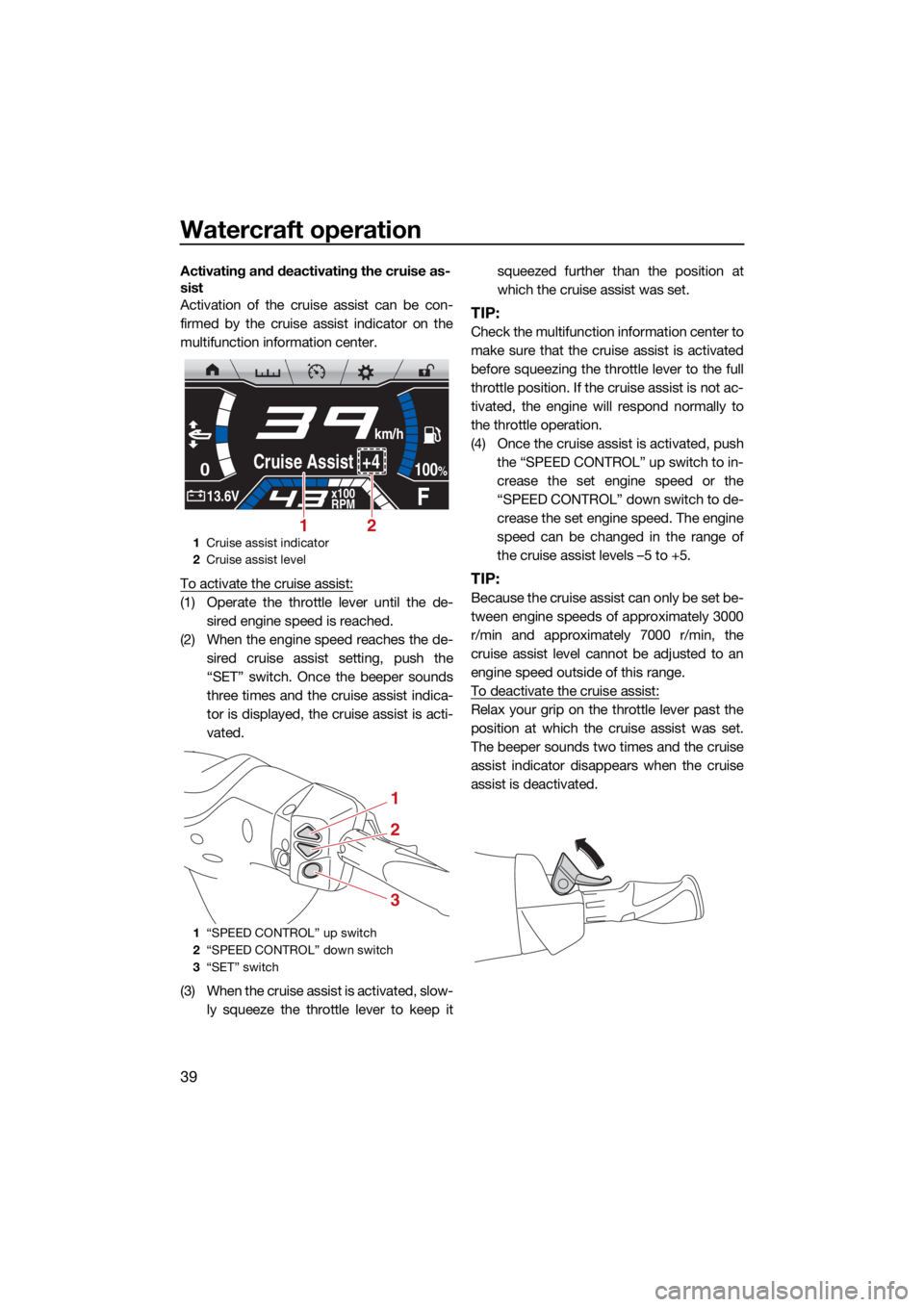

Activating and deactivating the cruise as-
sist
Activation of the cruise assist can be con-
firmed by the cruise assist indicator on the
multifunction information center.
To activate the cruise assist:
(1) Operate the throttle lever until the de-sired engine speed is reached.
(2) When the engine speed reaches the de- sired cruise assist setting, push the
“SET” switch. Once the beeper sounds
three times and the cruise assist indica-
tor is displayed, the cruise assist is acti-
vated.
(3) When the cruise assist is activated, slow- ly squeeze the throttle lever to keep it squeezed further than the position at
which the cruise assist was set.
TIP:
Check the multifunction information center to
make sure that the cruise assist is activated
before squeezing the throttle lever to the full
throttle position. If the cruise assist is not ac-
tivated, the engine will respond normally to
the throttle operation.
(4) Once the cruise assist is activated, push
the “SPEED CONTROL” up switch to in-
crease the set engine speed or the
“SPEED CONTROL” down switch to de-
crease the set engine speed. The engine
speed can be changed in the range of
the cruise assist levels –5 to +5.
TIP:
Because the cruise assist can only be set be-
tween engine speeds of approximately 3000
r/min and approximately 7000 r/min, the
cruise assist level cannot be adjusted to an
engine speed outside of this range.
To deactivate the cruise assist:
Relax your grip on the throttle lever past the
position at which the cruise assist was set.
The beeper sounds two times and the cruise
assist indicator disappears when the cruise
assist is deactivated.
1Cruise assist indicator
2 Cruise assist level
1 “SPEED CONTROL” up switch
2 “SPEED CONTROL” down switch
3 “SET” switch
0
F13.6Vx100
RPM
100%Cruise Assist +4
km/h
21
1
2
3
UF3V72E0.book Page 39 Tuesday, June 16, 2020 2:29 PM

Instrument operation
40
EJU45110
Multifunction information center
The multifunction information center displays
various watercraft information.
The multifunction information center is a
touch screen that you can touch directly to
turn the various functions on or off or change
settings.
In addition, the language and display units
shown can be changed. (See page 44 for in-
formation on changing the language and dis-
play units.) In the illustrations in this manual,
English is used for the language and US units
are used for the display units.
EWJ01980
For safety, do not touch the multifunction
information center while the watercraft is
moving. Otherwise, you could lose control
of the watercraft, which may lead to an ac-
cident.
TIP:
The multifunction information center does not
receive operation input while the watercraft is
moving. Before operating the multifunction
information center, stop the watercraft and
check the area around you to make sure it is
safe to operate the center.
Turning on the multifunction information
center
When the start switch is pushed, the multi-
function information center turns on. After the
logo display appears for a few seconds, the
home screen is displayed and the touch
screen can be operated by touching it.
TIP:
Perform one of the following operations to
turn on the multifunction information center
without starting the engine.
Push the start switch briefly.
While pushing the engine stop switch,
push the start switch.
Turning off the multifunction information
center
If the multifunction information center does
not receive any operation input within 25 sec-
onds after the engine stops or if 3 minutes
has elapsed after the engine stops, the center
turns off.
TIP:
The multifunction information center turns off
3 minutes after the engine stops even if there
is operation input.

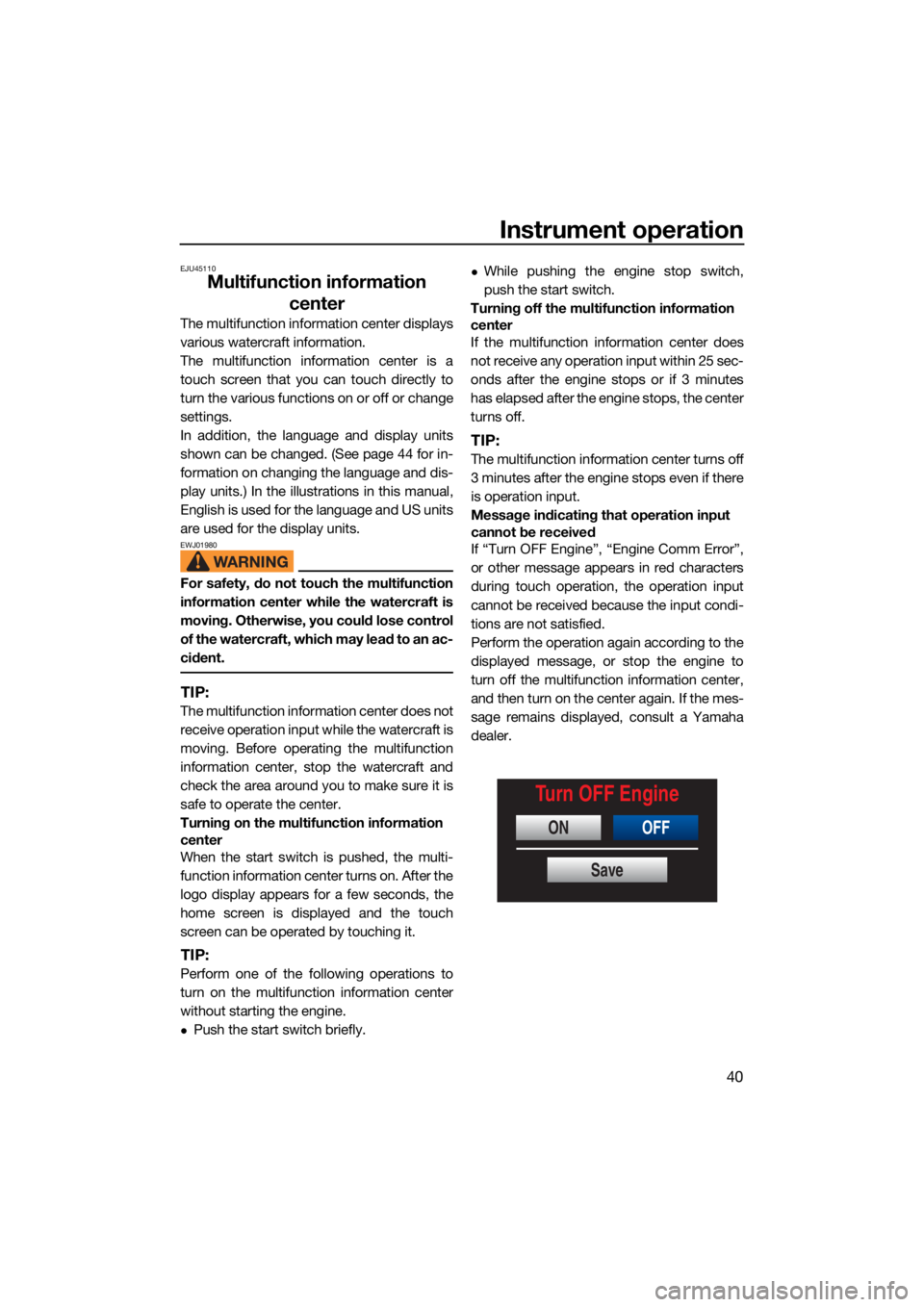

Message indicating that operation input
cannot be received
If “Turn OFF Engine”, “Engine Comm Error”,
or other message appears in red characters
during touch operation, the operation input
cannot be received because the input condi-
tions are not satisfied.
Perform the operation again according to the
displayed message, or stop the engine to
turn off the multifunction information center,
and then turn on the center again. If the mes-
sage remains displayed, consult a Yamaha
dealer.
ONOFF
Turn OFF Engine
Save
UF3V72E0.book Page 40 Tuesday, June 16, 2020 2:29 PM

Instrument operation
41

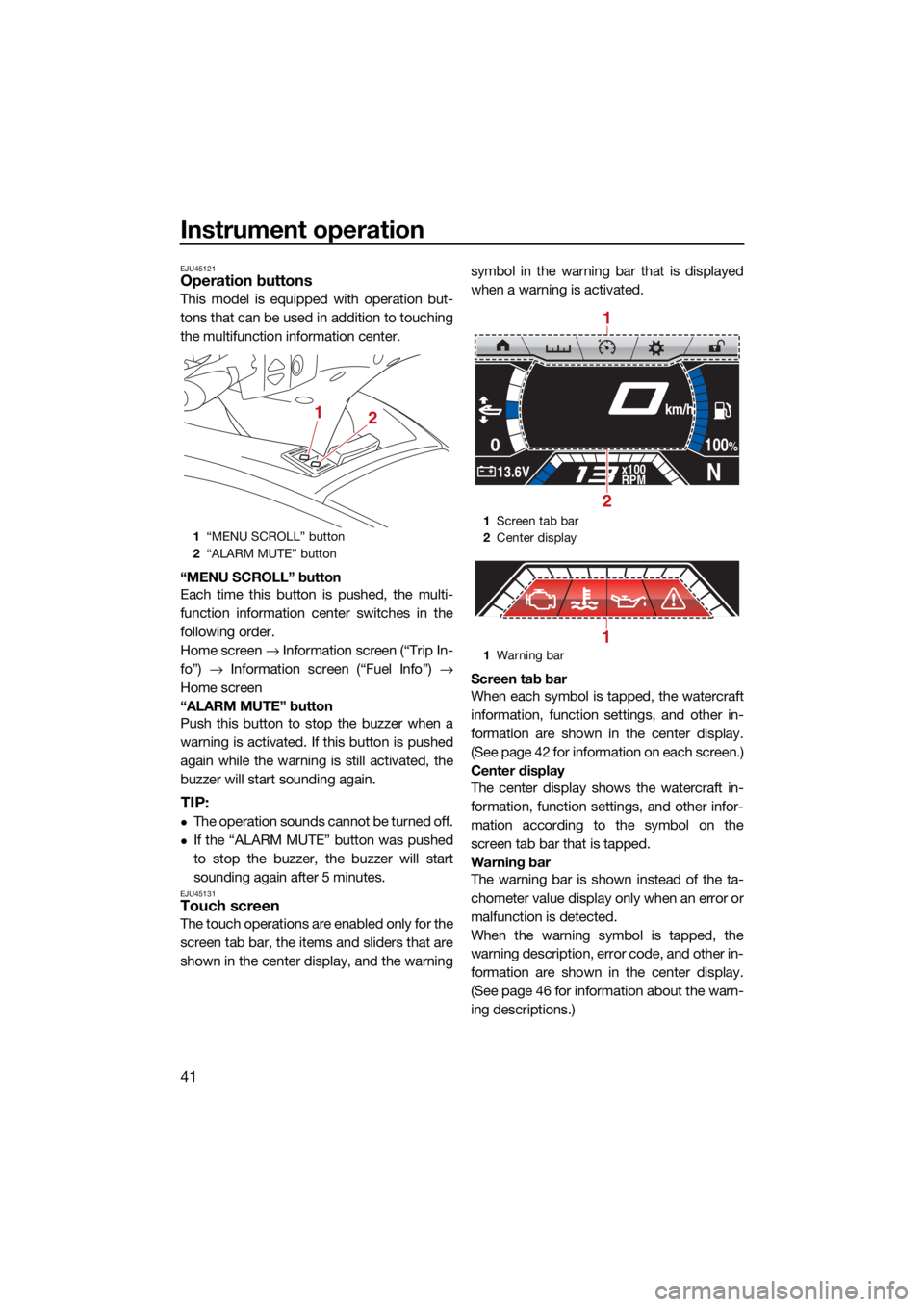

EJU45121Operation buttons
This model is equipped with operation but-
tons that can be used in addition to touching
the multifunction information center.
“MENU SCROLL” button
Each time this button is pushed, the multi-
function information center switches in the
following order.
Home screen → Information screen (“Trip In-
fo”) → Information screen (“Fuel Info”) →
Home screen
“ALARM MUTE” button
Push this button to stop the buzzer when a
warning is activated. If this button is pushed
again while the warning is still activated, the
buzzer will start sounding again.
TIP:
The operation sounds cannot be turned off.
If the “ALARM MUTE” button was pushed
to stop the buzzer, the buzzer will start
sounding again after 5 minutes.
EJU45131Touch screen
The touch operations are enabled only for the
screen tab bar, the items and sliders that are
shown in the center display, and the warning symbol in the warning bar that is displayed
when a warning is activated.
Screen tab bar
When each symbol is tapped, the watercraft
information, function settings, and other in-
formation are shown in the center display.
(See page 42 for information on each screen.)
Center display
The center display shows the watercraft in-
formation, function settings, and other infor-
mation according to the symbol on the
screen tab bar that is tapped.
Warning bar
The warning bar is shown instead of the ta-
chometer value display only when an error or
malfunction is detected.
When the warning symbol is tapped, the
warning description, error code, and other in-
formation are shown in the center display.
(See page 46 for information about the warn-
ing descriptions.)
1
“MENU SCROLL” button
2 “ALARM MUTE” button
12
1Screen tab bar
2 Center display
1 Warning bar
0
N13.6Vx100
RPM
100%
km/h
1
2
1
UF3V72E0.book Page 41 Tuesday, June 16, 2020 2:29 PM

Instrument operation
42
EJU45141Status area
The areas on the left and right sides of the
multifunction information center that show
the watercraft information and the tachome-
ter at the bottom of the multifunction informa-
tion center do not respond to touch
operation.
Trim setting indicator
The position of this indicator and the trim set-
ting level indicate the trim setting of the jet
thrust nozzle. (See page 32 for information on
the trim setting.)
Voltmeter
The voltmeter shows the battery voltage.
When the battery voltage is normal, the volt-
meter displays approximately 14 volts.
If the battery voltage has dropped or risen
significantly, the battery voltage warning will
activate and the voltage display will blink.
(See page 47 for information on the battery
voltage warning.)
Tachometer
The tachometer shows the engine speed us-
ing the large number ×100 RPM (r/min) and
the number of display segments.
TIP:
If a warning is activated or a malfunction is
detected, the warning bar will be displayed
instead of the tachometer number display.
Shift indicator
This indicator shows the reverse gate shift
positions: “F” (forward), “N” (neutral), and “R”
(reverse). (See page 30 for shifting proce-
dures.)
Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank using the number of
display segments and a percentage value.
If the amount of remaining fuel is less than
10%, the fuel level warning will activate and
the percentage display will change to “Low”.
(See page 47 for information on the fuel level
warning.)
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
EJU45151Home screen “ ”
The center display of the home screen shows
the speedometer and the indicators for the
operation modes. (See page 34 for informa-
tion on the functions of the various modes.)
TIP:
If the engine speed increases while the drive
control mode screen, setting menu screen, or
engine lock screen is displayed, the multi-
1 Trim setting indicator
2 Vo l t m et e r
3 Tachometer
4 Shift indicator
5 Fuel level meter
0
N13.6Vx100
RPM
100%
km/h
15
423
UF3V72E0.book Page 42 Tuesday, June 16, 2020 2:29 PM

Instrument operation
43
function information center will automatically
switch to the home screen.

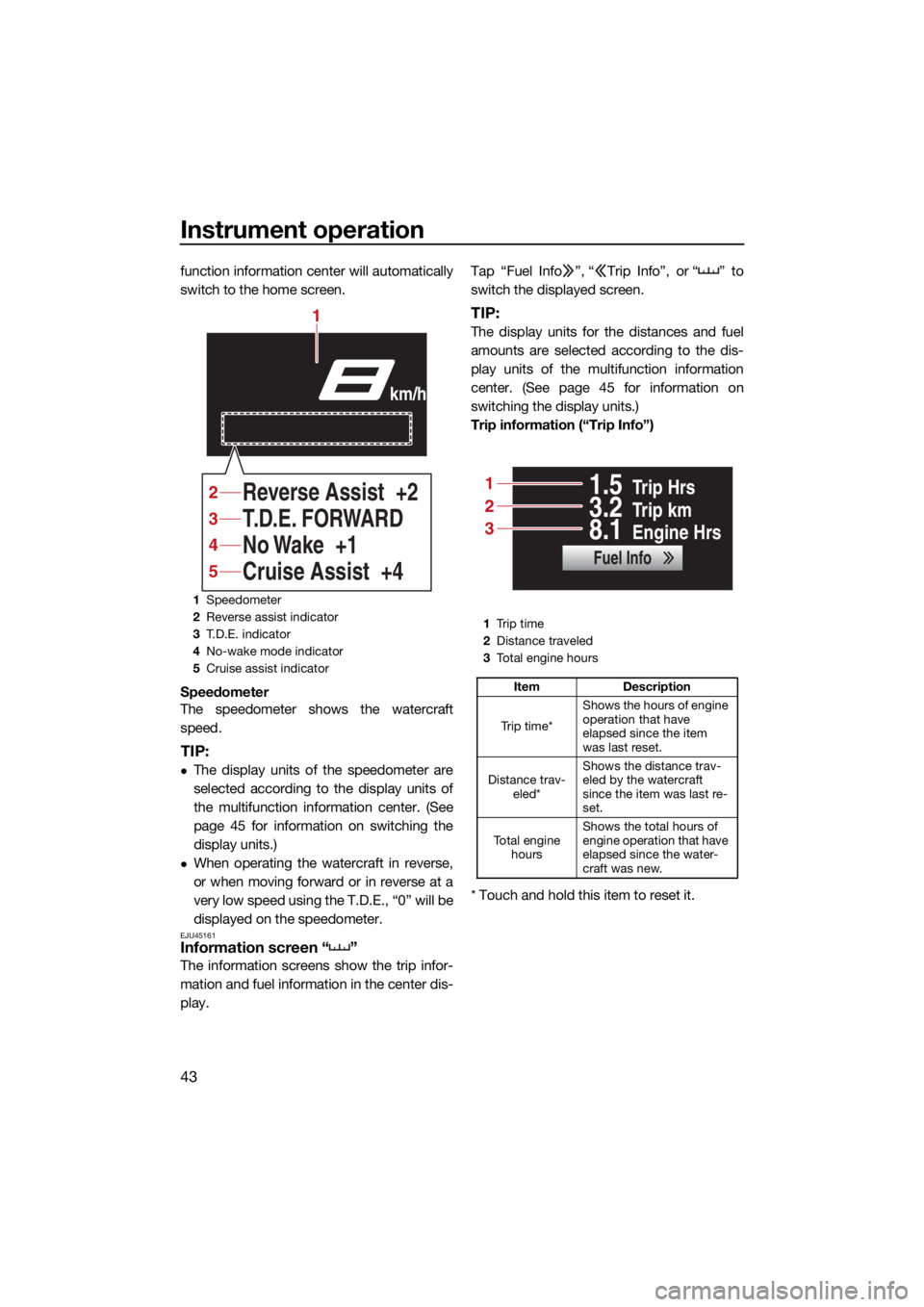

Speedometer
The speedometer shows the watercraft
speed.
TIP:
The display units of the speedometer are
selected according to the display units of
the multifunction information center. (See
page 45 for information on switching the
display units.)
When operating the watercraft in reverse,
or when moving forward or in reverse at a
very low speed using the T.D.E., “0” will be
displayed on the speedometer.
EJU45161Information screen “ ”
The information screens show the trip infor-
mation and fuel information in the center dis-
play.Tap “Fuel Info ”, “ Trip Info”, or “ ” to
switch the displayed screen.
TIP:
The display units for the distances and fuel
amounts are selected according to the dis-
play units of the multifunction information
center. (See page 45 for information on
switching the display units.)
Trip information (“Trip Info”)
* Touch and hold this item to reset it.
1
Speedometer
2 Reverse assist indicator
3 T.D.E. indicator
4 No-wake mode indicator
5 Cruise assist indicator
T.D.E. FORWARD
km/h
No Wake +1 T.D.E. FORWARD
Cruise Assist +4
Rever
se Assist +2
1
4
3
5
2
1Tr i p t i m e
2 Distance traveled
3 Total engine hours
Item Description
Tr i p t i m e * Shows the hours of engine
operation that have
elapsed since the item
was last reset.
Distance trav- eled* Shows the distance trav-
eled by the watercraft
since the item was last re-
set.
To t a l e n g i n e hours Shows the total hours of
engine operation that have
elapsed since the water-
craft was new.
Trip Hr
s1.5
Trip km3.2
Engine Hr s8.1
Fuel Info
1
2
3
UF3V72E0.book Page 43 Tuesday, June 16, 2020 2:29 PM
