YAMAHA FX HO CRUISER 2021 Owner's Guide
Manufacturer: YAMAHA, Model Year: 2021, Model line: FX HO CRUISER, Model: YAMAHA FX HO CRUISER 2021Pages: 116, PDF Size: 4.91 MB
Page 31 of 116
Description
24
Engine compartment
12
5
7
8
9106
43
1Dipstick (page 59)
2 Engine oil filler cap (page 59)
3 Electrical box
4 Battery (page 67)
5 Removable watertight storage compart-
ment (page 54)
6 Spark plug/Ignition coil
7 Fuel tank
8 Water separator (page 29)
9 Air filter case
10 Engine cover
UF3V72E0.book Page 24 Tuesday, June 16, 2020 2:29 PM
Page 32 of 116
Control function operation
25
EJU31026
Watercraft control functionsEJU45090Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system can be selected using the
engine lock screen of the multifunction infor-
mation center. The engine cannot be started
if the lock mode of the security system is se-
lected. The engine can only be started if the
unlock mode is selected.
TIP:
The Yamaha Security System setting can
only be selected while the engine is stopped.
EJU45100Yamaha Security System settingThe Yamaha Security System setting can be
confirmed by the lock or unlock mode indica-
tor on the multifunction information center.
To select the lock or unlock mode of the
Yamaha Security System:
(1) Stop the engine.
TIP:
If the multifunction information center is
turned off because the engine is stopped,
perform one of the following operations to
turn on the center without starting the engine.
Push the start switch briefly.
While pushing the engine stop switch,
push the start switch. (2) Tap the lock or unlock mode indicator on
the multifunction information center.
(3) Flick up or down to set each digit of the 4-digit PIN, and then tap the “Enter” but-
ton.
TIP:
The default setting for the PIN is “1234”. The
PIN can also be changed. (See page 44 for in-
formation on changing the PIN.)
(4) Tap “ON” to select the lock mode of theYamaha Security System or tap “OFF” toselect the unlock mode, and then tap
“Save”.
(5) The beeper sounds once when the lock mode of the Yamaha Security System is
selected and two times when the unlock
mode is selected, and the multifunction
information center returns to the home
screen.
1Lock mode indicator
2 Unlock mode indicator
1
2
Enter
Enter PIN
0
9
1
0
9
1
0
9
1
0
9
1
ONOFF
Engine Lock
Save
UF3V72E0.book Page 25 Tuesday, June 16, 2020 2:29 PM
Page 33 of 116
Control function operation
26
EJU31153Engine stop switch “ ”
The engine stop switch (red button) stops the
engine when the switch is pushed.
EJU31164Engine shut-off switch “ ”
The engine shut-off switch automatically
stops the engine when the clip, on the end of
the engine shut-off cord (lanyard), is removed
from the switch, such as if the operator falls
off the watercraft.
Insert the clip under the engine shut-off
switch before starting the engine.
When the engine is not running, remove the
clip from the engine shut-off switch to pre-vent accidental starting or unauthorized op-
eration by children or others.
EJU42323Start switch “ ”ECJ01311
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
The start switch (green button) starts the en-
gine when the switch is pushed.
Release the start switch as soon as the en-
gine starts to run. If the engine does not start
in 5 seconds, release the start switch, wait 15
seconds, and then try again.
NOTICE: Never
push the start switch while the engine is
running. Do not operate the start switch
for more than 5 seconds, otherwise the
battery will be discharged and the engine
1 Engine stop switch
1 Engine shut-off switch
2 Clip
3 Engine shut-off cord (lanyard)
1
1
2
3
UF3V72E0.book Page 26 Tuesday, June 16, 2020 2:29 PM
Page 34 of 116
Control function operation
27
will not start. Also, the starter motor could
be damaged.
[ECJ01041]
The engine will not start under any of the fol-
lowing conditions:
Lock mode of the Yamaha Security System
has been selected. (See page 25 for
Yamaha Security System setting proce- dures.)
Clip is removed from the engine shut-off
switch.
Throttle lever is squeezed.
Throttle lever is malfunctioning.
RiDE lever is squeezed.
RiDE lever is malfunctioning.EJU31212Throttle lever
The throttle lever increases the engine speed
when the lever is squeezed.
The throttle lever returns automatically to its
fully closed (idle) position when released.
EJU43342RiDE lever
When the RiDE lever is squeezed, the reverse
gate lowers and the watercraft starts moving
in reverse. If the watercraft is moving forward,
the watercraft gradually slows down until it
stops, and then the watercraft starts moving
in reverse.
When the RiDE lever is released, it automati-
cally returns to its fully closed (idle) position
and the reverse gate moves to the neutral po-
sition.
EJU31262Steering system
By turning the handlebars in the direction you
wish to travel, the angle of the jet thrust noz-
1 Start switch
1 Throttle lever
1
1
1RiDE lever
1
UF3V72E0.book Page 27 Tuesday, June 16, 2020 2:29 PM
Page 35 of 116
Control function operation
28
zle is changed, and the direction of the water-
craft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn,
except at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but you
can turn more sharply if you apply throttle
while turning the handlebars. The OTS sys-
tem does not function below planing speeds
or when the engine is off. Once the engine
slows down, the watercraft will no longer turn
in response to handlebar input until you apply
throttle again or you reach trolling speed.EJU31294Adjustable tilt steering system
The position of the handlebars can be adjust-
ed back and forth by operating the tilt lever.
To adjust the handlebar position:
(1) Pull the tilt lever up to disengage the han-dlebar lock, and then move the handle-
bars back or forth to the desired position.
WARNING! Never pull the tilt lever dur- ing operation, otherwise the handle-
bars may suddenly change position,
which may lead to an accident.
[EWJ00042]
1 Handlebar
2 Jet thrust nozzle
1
2
1Tilt lever
1
UF3V72E0.book Page 28 Tuesday, June 16, 2020 2:29 PM
Page 36 of 116
Control function operation
29
(2) Make sure that the tilt lever returns to itsoriginal position and that the handlebars
are securely locked in place.
EJU35975Cooling water pilot outlet
When the engine is running, some of the
cooling water that is circulated in the engine
is discharged from the cooling water pilot
outlet.
There is a cooling water pilot outlet on the
port (left) side of the watercraft. To check for
proper operation of the cooling system, make
sure that water is being discharged from the
cooling water pilot outlet. If water is not being
discharged from the outlet, stop the engine
and check the jet intake for clogging. (See
page 100 for information on the jet intake.)
TIP:
It will take about 60 seconds for the water
to reach the outlet after the engine is start-
ed.
Water discharge may not be constant
when the engine is running at idling speed.
If this occurs, apply a little throttle to make
sure that water discharges properly.
EJU40323Water separator
The water separator prevents water from en-
tering the fuel tank by collecting any water
that has entered the fuel tank breather hose if
the watercraft was capsized.
If water has collected in the water separator,
drain it by loosening the drain screw.
To drain water from the water separator:
(1) Place a drain pan or dry cloth under thewater separator.
(2) Gradually loosen the drain screw to drain the water. Catch the draining water in the
drain pan or soak it up with the dry cloth
so that it does not spill into the engine
compartment. If any water spills into the
watercraft, be sure to wipe it up with a
dry cloth.
(3) Securely tighten the drain screw until it stops.1Cooling water pilot outlet
1
1Water separator
2 Drain screw
2
1
UF3V72E0.book Page 29 Tuesday, June 16, 2020 2:29 PM
Page 37 of 116
Watercraft operation
30
EJU40014
Watercraft operation functions
EJU43154Shift system EWJ01773
Make sure that there are no obstacles or
people behind you before shifting into
reverse.
Do not touch the reverse gate while the
RiDE lever is being operated, otherwise
you could be pinched.
If the RiDE lever and throttle lever are
being operated at the same time, do not
release only the RiDE lever. Otherwise,
the watercraft could accelerate more
quickly than expected, which may lead
to an accident.
The RiDE lever and throttle lever can be oper-
ated to change the forward or rearward
movement of the watercraft only when the
engine is running. When the RiDE lever is
squeezed, the reverse gate lowers and de-
flects the water jet being discharged from the
jet thrust nozzle so that the watercraft moves
in reverse or is in neutral. When the throttle le-
ver is squeezed, the reverse gate rises and
the watercraft moves forward.
TIP:
This model is equipped with a function
which limits the engine speed in reverse.
When the engine is started, the reverse
gate automatically moves to the neutral po-
sition.
To shift into reverse:
(1) Release the throttle lever.
(2) Squeeze the RiDE lever. The reverse gate will lower, the engine speed will in-
crease, the watercraft will start moving in reverse, and the “R” (reverse) shift indi-
cator will be displayed.
To shift into neutral from reverse:
Release the RiDE lever. The reverse gate will
automatically return to the neutral position
1 RiDE lever
1 Reverse gate
2 Reverse position
1 “R” (Reverse position)
1
2
1
0
R13.6Vx100
RPM
100%
km/h
1
UF3V72E0.book Page 30 Tuesday, June 16, 2020 2:29 PM
Page 38 of 116
Watercraft operation
31
and the “N” (neutral) shift indicator will be dis-
played.
TIP:
Although the neutral position helps keep the
watercraft from moving even when the en-
gine is running, some movement may occur.To shift into forward:
(1) Release the RiDE lever.
(2) Squeeze the throttle lever. The reverse
gate will rise completely, the engine
speed will increase, the watercraft will
start moving forward, and the “F” (for-
ward) shift indicator will be displayed.
1RiDE lever
1 Reverse gate
2 Neutral position
1 “N” (Neutral position)
1
2
1
0
N13.6Vx100
RPM
100%
km/h
1
1Throttle lever
1 Reverse gate
2 Forward position
1 “F” (Forward position)
1
2
1
0
F13.6Vx100
RPM
100%
km/h
1
UF3V72E0.book Page 31 Tuesday, June 16, 2020 2:29 PM
Page 39 of 116
Watercraft operation
32
TIP:
If the RiDE lever is squeezed while the throttle
lever is squeezed, the watercraft will slow
down, and once stopped, move in reverse.
To shift into neutral from forward:
(1) Release the throttle lever.
(2) Lightly squeeze and release the RiDE le-ver. The “N” (neutral) shift indicator will
be displayed.
TIP:
If the RiDE lever is squeezed continuously,
the reverse gate will move to the reverse po-
sition.
EJU45041Electric trim system
The electric trim system is a function for
changing the vertical angle of the jet thrust
nozzle to change the trim angle and perfor-
mance characteristics of the watercraft. This function can be used only for forward
operation of the watercraft.
TIP:
When the watercraft is moving in reverse or
is in neutral, the jet thrust nozzle will auto-
matically change to the neutral trim setting.
When the watercraft is shifted into forward,
the jet thrust nozzle will automatically
change to the selected trim setting.
While the watercraft is in neutral, the
“TRIM/T.D.E.” switches control the forward
and reverse operation of the T.D.E. (thrust
direction enhancer). (See page 34 for infor-
mation on the T.D.E.)
The watercraft perfor
mance characteristics
according to the trim angle change de-
pending on the operating conditions.
Confirming the trim setting
The trim setting can be confirmed by the trim
setting indicator and trim setting level on the
multifunction information center.
To change the trim setting:
(1) Shift into forward.
(2) Push the “TRIM/T.D.E.” up switch to in- crease the trim setting and raise the bow,
or push the “TRIM/T.D.E.” down switch
to decrease the trim setting and lower
1“N” (Neutral position)
0
N13.6Vx100
RPM
100%
km/h
1
1Trim setting indicator
2 Trim setting level
+2
F13.6Vx100
RPM
100%
km/h
12
UF3V72E0.book Page 32 Tuesday, June 16, 2020 2:29 PM
Page 40 of 116
Watercraft operation
33

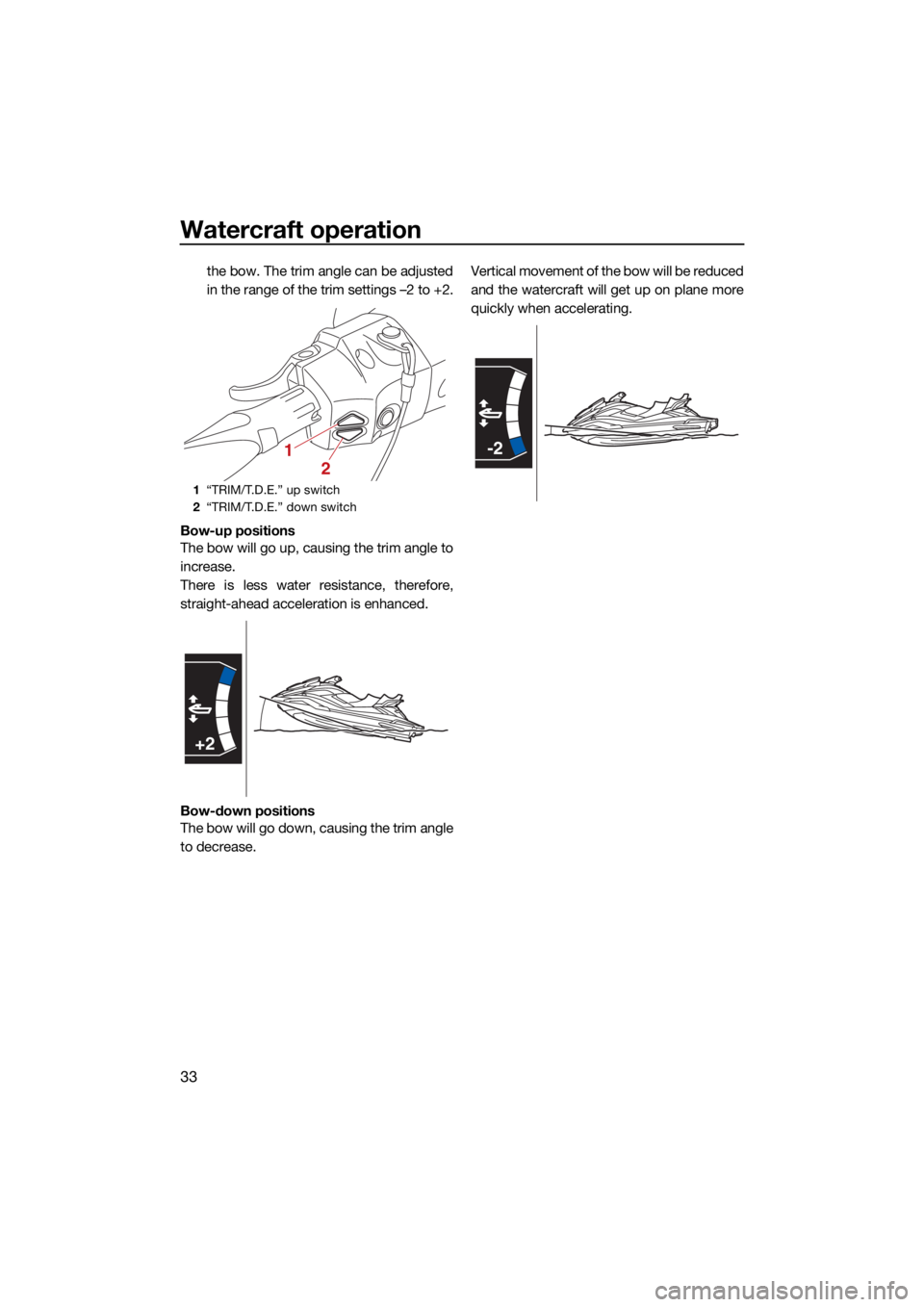

the bow. The trim angle can be adjusted
in the range of the trim settings –2 to +2.
Bow-up positions
The bow will go up, causing the trim angle to
increase.
There is less water resistance, therefore,
straight-ahead acceleration is enhanced.
Bow-down positions
The bow will go down, causing the trim angle
to decrease. Vertical movement of the bow will be reduced
and the watercraft will get up on plane more
quickly when accelerating.
1
“TRIM/T.D.E.” up switch
2 “TRIM/T.D.E.” down switch
1
2
+2
-2
UF3V72E0.book Page 33 Tuesday, June 16, 2020 2:29 PM
