Control function operation
24
EJU31027
Watercraft control functionsEJU45092Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system can be selected using the
engine lock screen of the multifunction infor-
mation center. The engine cannot be started
if the lock mode of the security system is se-
lected. The engine can only be started if the
unlock mode is selected.
TIP
The Yamaha Security System setting can
only be selected while the engine is stopped.
EJU46970Yamaha Security System settingThe Yamaha Security System setting can be
confirmed by the lock or unlock mode indica-
tor on the multifunction information center.
To select the lock or unlock mode of the
Yamaha Security System:
(1) Stop the engine.
TIP
The multifunction information center is turned
on, even if the engine start/stop switch is also
pushed briefly.
(2) Select the lock or unlock mode indicator
on the multifunction information center.
(3) Input each digit of the 4-digit PIN, and then select “ ”.
TIP
The default setting for the PIN is “1234”. The
PIN can also be changed. (See page 54 for in-
formation on changing the PIN.)
(4) To select the lock mode of the YamahaSecurity System, select “Lock”. To se-
lect the unlock mode, select “Unlock”.
(5) The beeper sounds once when the lock mode of the Yamaha Security System is
selected, and two times when the unlock
mode is selected.
EJU46113Engine start/stop switch “ / ”ECJ01311
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
1Lock mode indicator
2 Unlock mode indicator
2
1
123
456
789
Cancel0
Enter PIN Code
CancelLock
Engine Lock
CancelUnlock
Engine is Locked
UF3V73E0.book Page 24 Friday, October 8, 2021 1:30 PM

Control function operation
25
than 15 seconds without supplying water,
otherwise the engine could overheat.

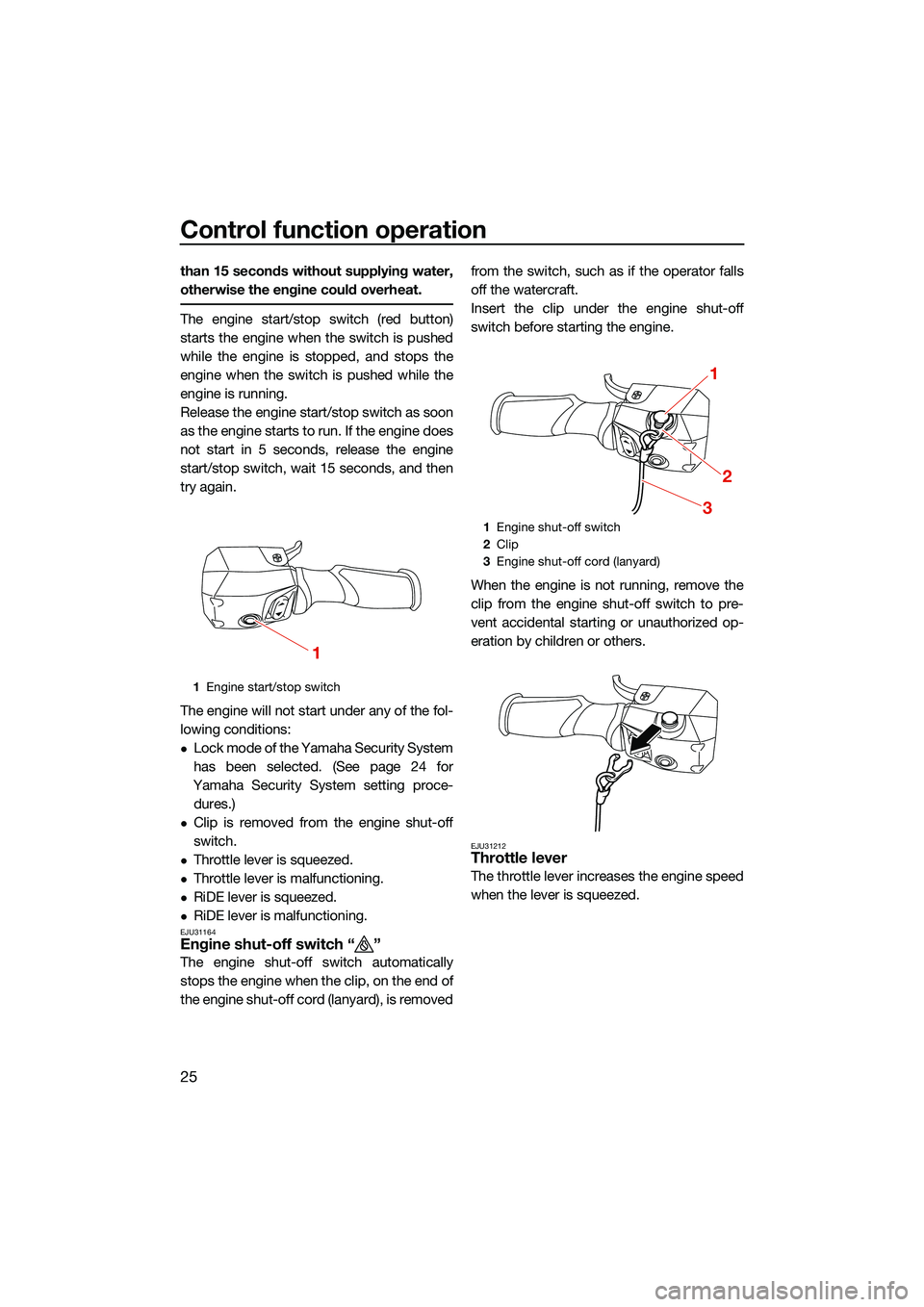

The engine start/stop switch (red button)
starts the engine when the switch is pushed
while the engine is stopped, and stops the
engine when the switch is pushed while the
engine is running.
Release the engine start/stop switch as soon
as the engine starts to run. If the engine does
not start in 5 seconds, release the engine
start/stop switch, wait 15 seconds, and then
try again.
The engine will not start under any of the fol-
lowing conditions:
Lock mode of the Yamaha Security System
has been selected. (See page 24 for
Yamaha Security System setting proce- dures.)
Clip is removed from the engine shut-off
switch.
Throttle lever is squeezed.
Throttle lever is malfunctioning.
RiDE lever is squeezed.
RiDE lever is malfunctioning.EJU31164Engine shut-off switch “ ”
The engine shut-off switch automatically
stops the engine when the clip, on the end of
the engine shut-off cord (lanyard), is removed from the switch, such as if the operator falls
off the watercraft.
Insert the clip under the engine shut-off
switch before starting the engine.
When the engine is not running, remove the
clip from the engine shut-off switch to pre-
vent accidental starting or unauthorized op-
eration by children or others.
EJU31212Throttle lever
The throttle lever increases the engine speed
when the lever is squeezed.
1
Engine start/stop switch
1
1Engine shut-off switch
2 Clip
3 Engine shut-off cord (lanyard)
1
2
3
UF3V73E0.book Page 25 Friday, October 8, 2021 1:30 PM

Control function operation
27
To adjust the handlebar position:
(1) Pull the tilt lever up to disengage the han-dlebar lock, and then move the handle-
bars back or forth to the desired position.
WARNING! Never pull the tilt lever dur- ing operation, otherwise the handle-
bars may suddenly change position,
which may lead to an accident.
[EWJ00042]
(2) Make sure that the tilt lever returns to its original position and that the handlebars
are securely locked in place.
EJU35975Cooling water pilot outlet
When the engine is running, some of the
cooling water that is circulated in the engine
is discharged from the cooling water pilot
outlet.
There is a cooling water pilot outlet on the
port (left) side of the watercraft. To check for
proper operation of the cooling system, make
sure that water is being discharged from the
cooling water pilot outlet. If water is not being
discharged from the outlet, stop the engine
and check the jet intake for clogging. (See
page 120 for information on the jet intake.)
TIP
It will take about 60 seconds for the water
to reach the outlet after the engine is start-
ed.
Water discharge may not be constant
when the engine is running at idling speed.
1Tilt lever
1
1Cooling water pilot outlet
1
UF3V73E0.book Page 27 Friday, October 8, 2021 1:30 PM

Control function operation
28
If this occurs, apply a little throttle to make
sure that water discharges properly.
EJU40323Water separator
The water separator prevents water from en-
tering the fuel tank by collecting any water
that has entered the fuel tank breather hose if
the watercraft was capsized.
If water has collected in the water separator,
drain it by loosening the drain screw.
To drain water from the water separator:
(1) Place a drain pan or dry cloth under thewater separator.
(2) Gradually loosen the drain screw to drain the water. Catch the draining water in the
drain pan or soak it up with the dry cloth
so that it does not spill into the engine
compartment. If any water spills into the
watercraft, be sure to wipe it up with a
dry cloth.
(3) Securely tighten the drain screw until it stops.
1Water separator
2 Drain screw
2
1
UF3V73E0.book Page 28 Friday, October 8, 2021 1:30 PM

Equipment operation
69
EJU40337
EquipmentEJU45210Seats
The front and rear seats are removable.
Remove the seats to access the engine com-
partment and removable watertight storage
compartment.
To remove the rear seat:
(1) Pull the rear seat latch up, and then lift upthe rear of the seat.
(2) Pull the seat rearward and remove it.
To install the rear seat:
(1) Insert the projections on the front of the seat into the stays on the deck. (2) Push the rear of the seat down to secure-
ly lock it in place.
To remove the front seat:
(1) Remove the rear seat.
(2) Pull the front seat latch up, and then liftup the rear of the seat.
(3) Pull the seat rearward and remove it.
1 Seat latch
1
1Seat latch
1
UF3V73E0.book Page 69 Friday, October 8, 2021 1:30 PM

Equipment operation
70
To install the front seat:
(1) Insert the projection on the front of theseat into the space under the glove com-
partment as shown.
(2) Push the rear of the seat down to secure- ly lock it in place.
(3) Securely install the rear seat in its original position.
EJU31365Handgrip
The handgrip is used when boarding the wa-
tercraft from the water and when the spotter
is facing rearward. WARNING! Do not use
the handgrip to lift the watercraft. The
handgrip is not designed to support the
watercraft’s weight. If the handgrip
breaks, the watercraft could fall, which
could result in severe injury.
[EWJ00022]
EJU37383
Reboarding grip
The reboarding grip is used when boarding
the watercraft from the water.
EJU34867Reboarding step
The reboarding step is used to assist in re-
boarding the watercraft from the water.
When boarding the watercraft, push the re-
boarding step down until it stops. The step
returns automatically to its original position
1Handgrip
1 Reboarding grip
1
1
UF3V73E0.book Page 70 Friday, October 8, 2021 1:30 PM

Equipment operation
72
EJU46960Dual Rope Hooks
The dual rope hooks are used to attach a
rope to the watercraft when transporting or
mooring it.
EJU35148Storage compartments
This watercraft is equipped with the following
storage compartments.
Only the securely closed watertight storage
compartment is waterproof. If you carry ob-
jects that must be kept dry, put them in a wa-
terproof bag.
Make sure that the storage compartments
are closed securely before operating the wa-
tercraft.
EJU45250Bow storage compartment
The bow storage compartment is located un-
der the hood.
To open the bow storage compartment:
Pull the hood latch rearward, and then lift up
the rear of the hood.
To close the bow storage compartment:
Push the rear of the hood down to securely
lock it in place.
1Cleat
1 Dual Rope Hooks
1
11
1Hood latch
1 Bow storage compartment
Bow storage compartment:
Capacity: 130.0 L (34.3 US gal, 28.6 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
UF3V73E0.book Page 72 Friday, October 8, 2021 1:30 PM

Equipment operation
73
EJU45080Glove compartment
The glove compartment is located in front of
the seat.
To open the glove compartment:
Unhook the glove compartment latch, and
then lift up the lid.
To close the glove compartment:
Lower the lid, and then hook the glove com-
partment latch.
To drain water from the glove compart-
ment:
(1) Remove the drain plugs on the bottom ofthe glove compartment to drain the wa-
ter.
(2) Securely install the drain plugs in their original positions.
EJU45220Stern storage compartment
The stern storage compartment is located in
front of the boarding platform.
1Glove compartment latch
1 Glove compartment
1
1
Glove compartment:
Capacity:
17.0 L (4.5 US gal, 3.7 Imp.gal)
Load limit: 1.0 kg (2 lb)
1Drain plug
1
UF3V73E0.book Page 73 Friday, October 8, 2021 1:30 PM

Equipment operation
74
To open the stern storage compartment:
Unhook the stern storage compartment latch
on both sides, and then open the lid.
To close the stern storage compartment:
Close the lid, and then hook the stern storage
compartment latch on both sides.
TIP
The ski rope slot in the stern storage com-
partment lid can be used to store the rope in
the stern storage compartment while the
rope is attached to the cleat.
EJU35176Beverage holder
The beverage holder is located near the mul-
tifunction information center.
Do not place any items in the beverage hold-
er while riding. Otherwise, the items may fall
out of the beverage holder.
EJU37235Removable watertight storage compart-
ment
The removable watertight storage compart-
ment is located under the rear seat.
The compartment is watertight when the cap
is closed securely.
To open the removable watertight stor-
age compartment:
(1) Remove the rear seat. (See page 69 forseat removal and installation proce-
dures.)
(2) Loosen the cap and remove it.
1 Stern storage compartment latch
1 Stern storage compartment lid
2 Stern storage compartment
Stern storage compartment:
Capacity:
11.0 L (2.9 US gal, 2.4 Imp.gal)
Load limit: 1.5 kg (3 lb)
1
1
2
1Ski rope slot
1 Beverage holder
1
1
UF3V73E0.book Page 74 Friday, October 8, 2021 1:30 PM
