Page 6 of 108
Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 3
Warning labels ................................... 4
Other labels ....................................... 8
Safety information ........................... 10
Limitations on who may operate
the watercraft ............................ 10
Cruising limitations ....................... 11
Operation requirements ............... 12
Recommended equipment ........... 14
Hazard information ....................... 15
Watercraft characteristics ............. 15
Water-skiing ................................. 17
Safe boating rules ........................ 19
Enjoy your watercraft
responsibly ................................ 19
Features and functions ................... 21
Location of main components ...... 21
Operation of controls and other
functions .................................... 25
Seats ............................................... 25
Hood ................................................ 26
Fuel tank filler cap ........................... 26
Remote control transmitter .............. 26
Engine stop switch .......................... 27
Engine shut-off switch ..................... 27
Start switch ...................................... 28
Right handlebar switches ................ 28
Throttle lever ................................... 29
Cooling water pilot outlets ............... 29
Steering system ............................... 30
Tilt lever ........................................... 30
Shift lever ........................................ 31Quick Shift Trim System (QSTS)
selector ........................................ 31
Handgrip .......................................... 33
Reboarding step .............................. 33
Bow eye ........................................... 33
Stern eyes ....................................... 34
Pull-up cleats
(for FX Cruiser SHO) ................... 34
Yamaha Engine Management
System (YEMS) ........................... 34
Yamaha Security System ................ 34
No-wake mode ................................ 36
Cruise assist .................................... 37
Multifunction information center ...... 39
Storage compartments .................... 49
Operation ......................................... 52
Fuel and oil .................................. 52
Fuel ................................................. 52
Engine oil ......................................... 53
Pre-operation checks ................... 54
Pre-operation check list ................... 54
Pre-operation check points .............. 56
Operation ..................................... 64
Engine break-in ............................... 64
Launching the watercraft ................. 64
Starting the engine .......................... 64
Stopping the engine ........................ 65
Shifting ............................................ 66
Leaving the watercraft ..................... 66
Operating your watercraft ............ 67
Getting to know your watercraft ....... 67
Learning to operate your
watercraft ..................................... 67
Riding with passengers ................... 68
Starting the watercraft ..................... 68
Boarding and starting in deep
water ............................................ 69
Capsized watercraft ......................... 72
Turning the watercraft ..................... 73
Stopping the watercraft ................... 74
Beaching the watercraft ................... 75
Docking the watercraft ..................... 75
Reverse on waterways .................... 75
UF1W71E0.book Page 1 Tuesday, June 24, 2008 11:46 AM
Page 7 of 108
Table of contents
Operating in weeded areas ............. 76
Post-operation care ...................... 76
Transporting ................................. 77
Maintenance and care ..................... 78
Storage ......................................... 78
Flushing the cooling system ............ 78
Lubrication ....................................... 79
Battery ............................................. 79
Cleaning the watercraft ................... 79
Maintenance and adjustments ..... 80
Owner’s/operator’s manual and
tool kit ........................................... 80
Periodic maintenance chart ............. 81
Checking the fuel system ................ 83
Engine oil and oil filter ..................... 83
Air filter element .............................. 83
Checking the jet thrust nozzle
angle ............................................ 83
Checking the shift cable .................. 84
Checking and adjusting the throttle
cable ............................................ 84
Cleaning and adjusting the spark
plugs ............................................ 86
Lubrication points ............................ 87
Checking the battery ....................... 89
Fuel injection system ....................... 90
Specifications .................................. 91
Specifications ................................ 91
Trouble recovery ............................. 92
Troubleshooting ........................... 92
Troubleshooting chart ...................... 92
Emergency procedures ................ 95
Cleaning the jet intake and
impeller ........................................ 95
Jumping the battery ......................... 96
Replacing the fuses ......................... 96
Towing the watercraft ...................... 98
Submerged watercraft ..................... 98
UF1W71E0.book Page 2 Tuesday, June 24, 2008 11:46 AM

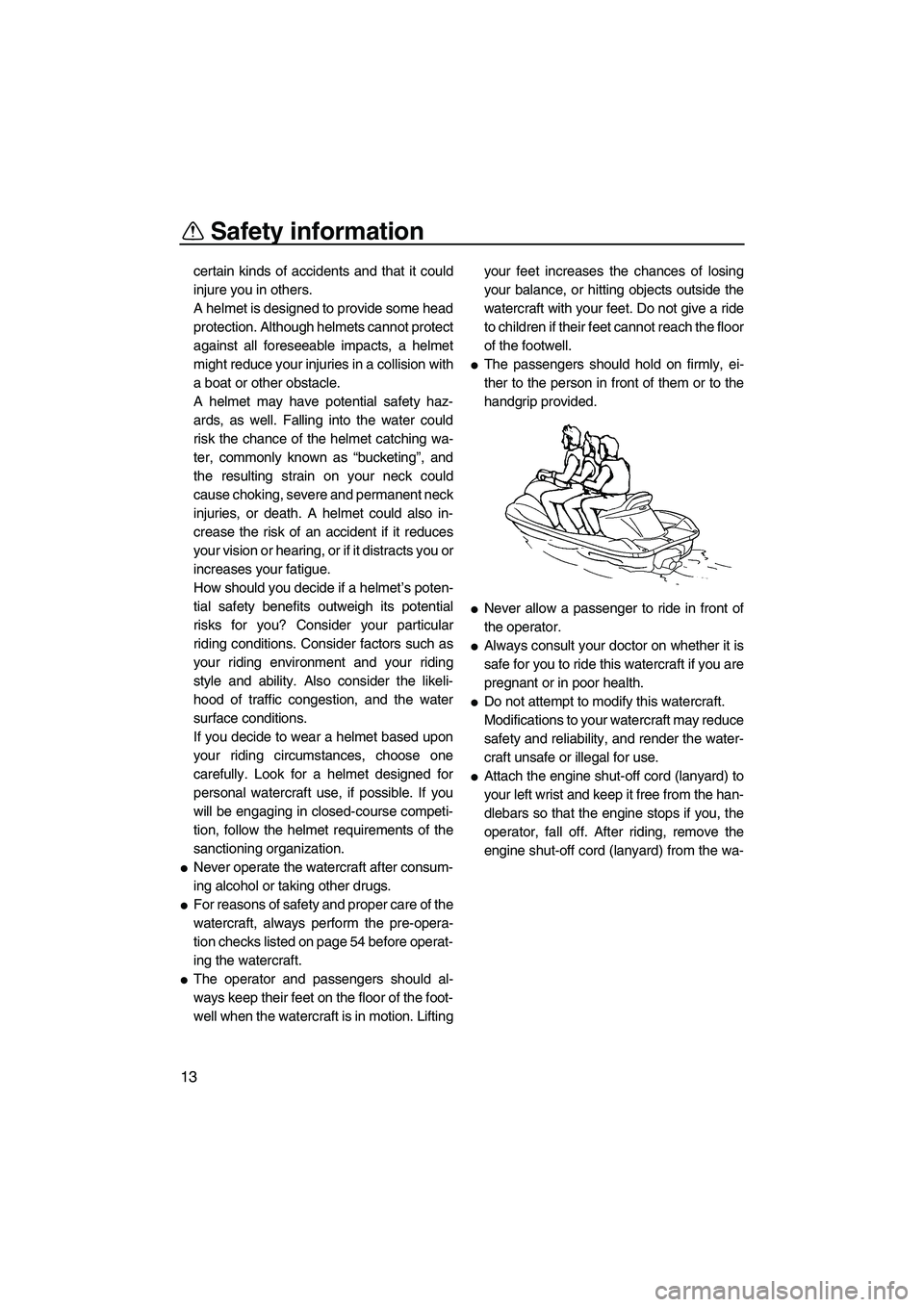

Page 20 of 108
Safety information
13
certain kinds of accidents and that it could
injure you in others.
A helmet is designed to provide some head
protection. Although helmets cannot protect
against all foreseeable impacts, a helmet
might reduce your injuries in a collision with
a boat or other obstacle.
A helmet may have potential safety haz-
ards, as well. Falling into the water could
risk the chance of the helmet catching wa-
ter, commonly known as “bucketing”, and
the resulting strain on your neck could
cause choking, severe and permanent neck
injuries, or death. A helmet could also in-
crease the risk of an accident if it reduces
your vision or hearing, or if it distracts you or
increases your fatigue.
How should you decide if a helmet’s poten-
tial safety benefits outweigh its potential
risks for you? Consider your particular
riding conditions. Consider factors such as
your riding environment and your riding
style and ability. Also consider the likeli-
hood of traffic congestion, and the water
surface conditions.
If you decide to wear a helmet based upon
your riding circumstances, choose one
carefully. Look for a helmet designed for
personal watercraft use, if possible. If you
will be engaging in closed-course competi-
tion, follow the helmet requirements of the
sanctioning organization.
Never operate the watercraft after consum-
ing alcohol or taking other drugs.
For reasons of safety and proper care of the
watercraft, always perform the pre-opera-
tion checks listed on page 54 before operat-
ing the watercraft.
The operator and passengers should al-
ways keep their feet on the floor of the foot-
well when the watercraft is in motion. Liftingyour feet increases the chances of losing
your balance, or hitting objects outside the
watercraft with your feet. Do not give a ride
to children if their feet cannot reach the floor
of the footwell.
The passengers should hold on firmly, ei-
ther to the person in front of them or to the
handgrip provided.
Never allow a passenger to ride in front of
the operator.
Always consult your doctor on whether it is
safe for you to ride this watercraft if you are
pregnant or in poor health.
Do not attempt to modify this watercraft.
Modifications to your watercraft may reduce
safety and reliability, and render the water-
craft unsafe or illegal for use.
Attach the engine shut-off cord (lanyard) to
your left wrist and keep it free from the han-
dlebars so that the engine stops if you, the
operator, fall off. After riding, remove the
engine shut-off cord (lanyard) from the wa-
UF1W71E0.book Page 13 Tuesday, June 24, 2008 11:46 AM
Page 34 of 108
Features and functions
27
System ” on page 34 for information on using
the remote control transmitter.)
The Yamaha Security System and low-RPM
mode settings can only be selected using the
remote control transmitter.
Store the remote control transmitter carefully
so it will not be lost. When operating the wa-
tercraft, store the transmitter in the transmitter
holder provided in the watertight compart-
ment.
NOTICE
ECJ00751
The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.
Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.
Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.
Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.
Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer.
TIP:
While the engine is running, input from the
remote control transmitter is not received.
If you accidentally lose your remote control
transmitter, contact a Yamaha dealer.
EJU31150Engine stop switch
Push the engine stop switch (red button) to
stop the engine normally.
EJU31161Engine shut-off switch
Attach one end of the engine shut-off cord
(lanyard) to your left wrist, and then insert the
clip on the other end under the engine shut-off
switch (black button). The engine will stop au-
tomatically when the clip is removed from the
1Transmitter holder
1
1Engine stop switch
1
UF1W71E0.book Page 27 Tuesday, June 24, 2008 11:46 AM

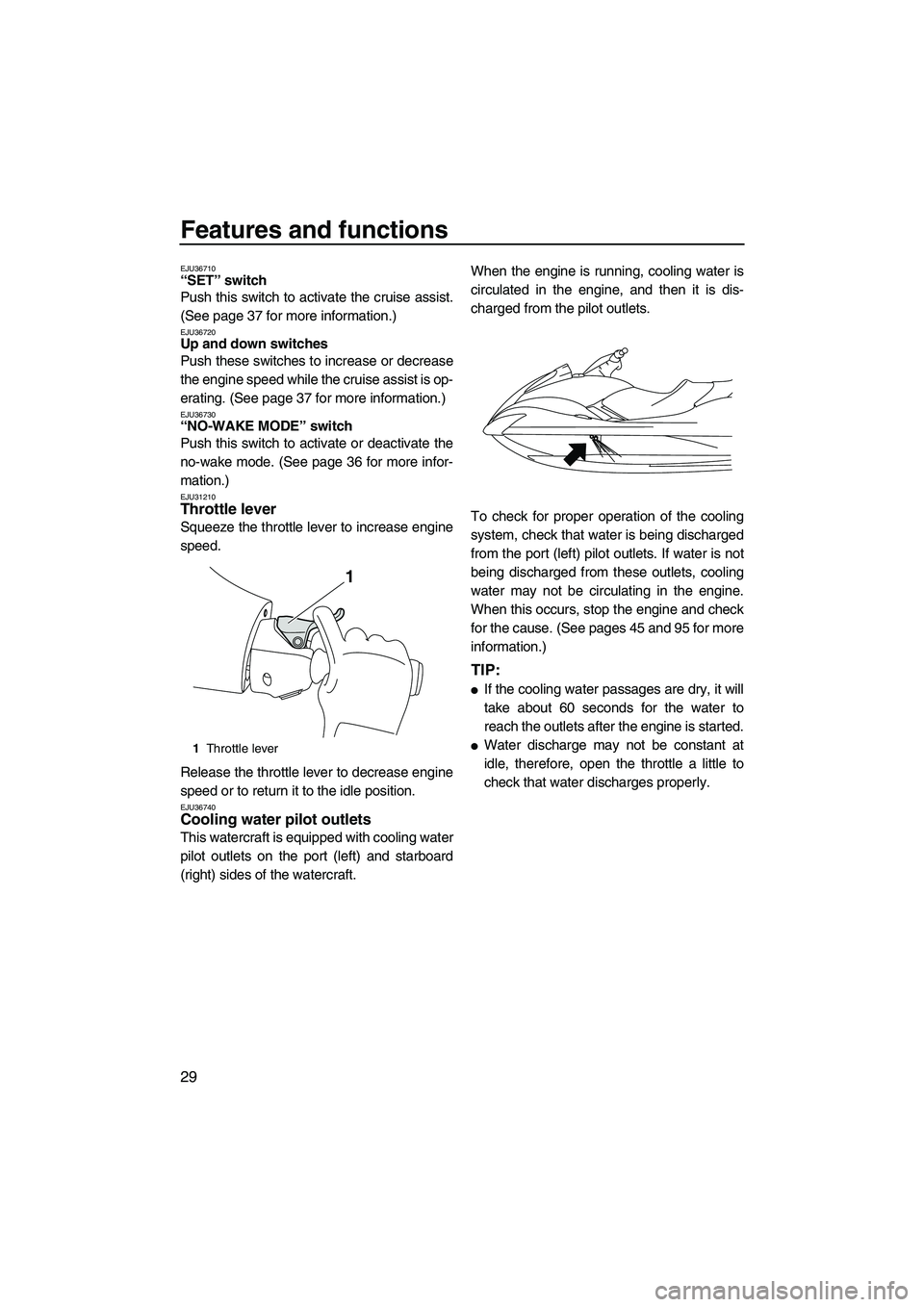

Page 36 of 108
Features and functions
29
EJU36710“SET” switch
Push this switch to activate the cruise assist.
(See page 37 for more information.)
EJU36720Up and down switches
Push these switches to increase or decrease
the engine speed while the cruise assist is op-
erating. (See page 37 for more information.)
EJU36730“NO-WAKE MODE” switch
Push this switch to activate or deactivate the
no-wake mode. (See page 36 for more infor-
mation.)
EJU31210Throttle lever
Squeeze the throttle lever to increase engine
speed.
Release the throttle lever to decrease engine
speed or to return it to the idle position.
EJU36740Cooling water pilot outlets
This watercraft is equipped with cooling water
pilot outlets on the port (left) and starboard
(right) sides of the watercraft.When the engine is running, cooling water is
circulated in the engine, and then it is dis-
charged from the pilot outlets.
To check for proper operation of the cooling
system, check that water is being discharged
from the port (left) pilot outlets. If water is not
being discharged from these outlets, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and check
for the cause. (See pages 45 and 95 for more
information.)
TIP:
If the cooling water passages are dry, it will
take about 60 seconds for the water to
reach the outlets after the engine is started.
Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.1Throttle lever
1
UF1W71E0.book Page 29 Tuesday, June 24, 2008 11:46 AM
Page 44 of 108

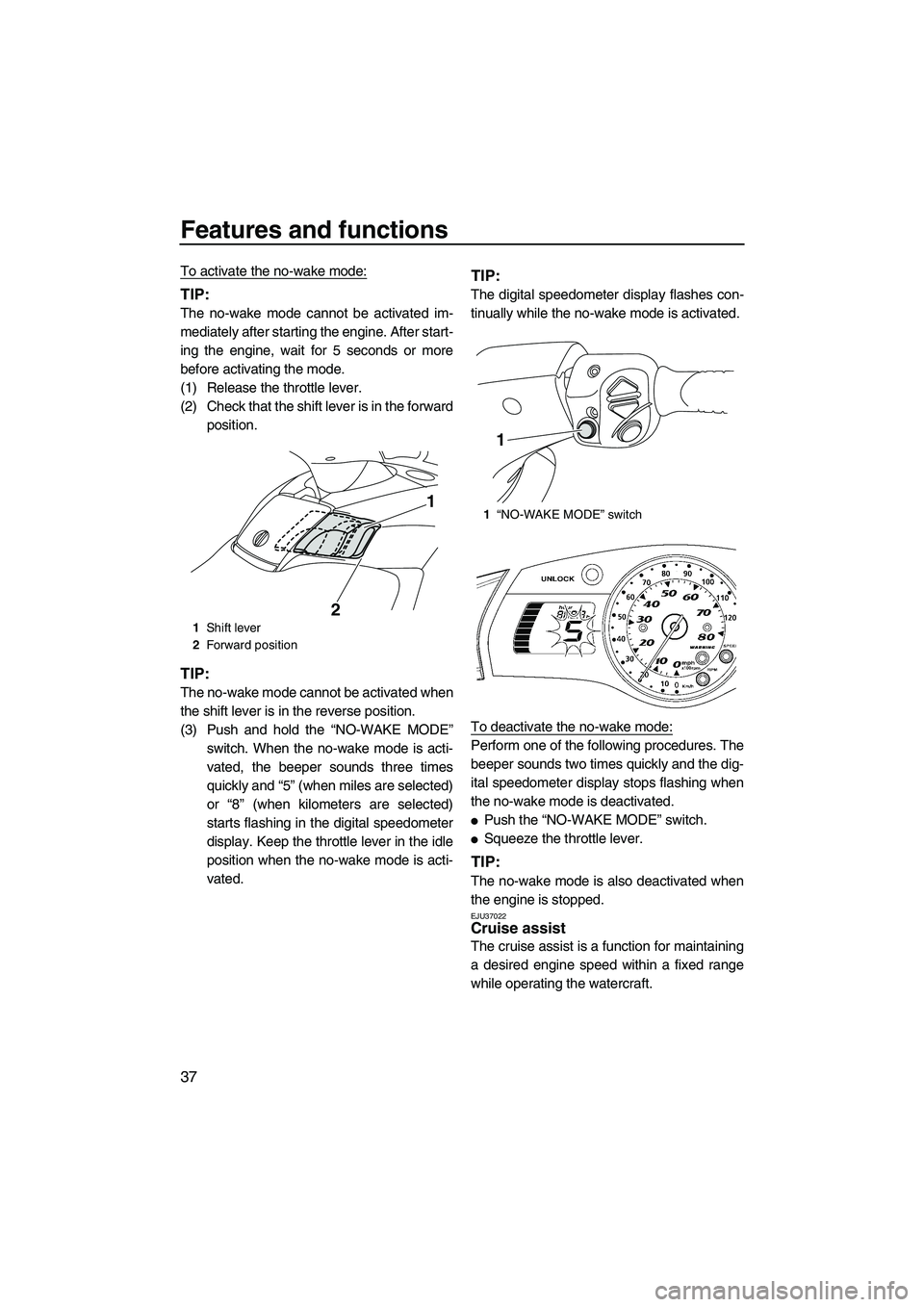

Features and functions
37
To activate the no-wake mode:
TIP:
The no-wake mode cannot be activated im-
mediately after starting the engine. After start-
ing the engine, wait for 5 seconds or more
before activating the mode.
(1) Release the throttle lever.
(2) Check that the shift lever is in the forward
position.
TIP:
The no-wake mode cannot be activated when
the shift lever is in the reverse position.
(3) Push and hold the “NO-WAKE MODE”
switch. When the no-wake mode is acti-
vated, the beeper sounds three times
quickly and “5” (when miles are selected)
or “8” (when kilometers are selected)
starts flashing in the digital speedometer
display. Keep the throttle lever in the idle
position when the no-wake mode is acti-
vated.
TIP:
The digital speedometer display flashes con-
tinually while the no-wake mode is activated.
To deactivate the no-wake mode:
Perform one of the following procedures. The
beeper sounds two times quickly and the dig-
ital speedometer display stops flashing when
the no-wake mode is deactivated.
Push the “NO-WAKE MODE” switch.
Squeeze the throttle lever.
TIP:
The no-wake mode is also deactivated when
the engine is stopped.
EJU37022Cruise assist
The cruise assist is a function for maintaining
a desired engine speed within a fixed range
while operating the watercraft.
1Shift lever
2Forward position
1
21“NO-WAKE MODE” sw itch
1
UF1W71E0.book Page 37 Tuesday, June 24, 2008 11:46 AM
Page 49 of 108
Features and functions
42
EJU34980“WARNING” indicator light
The “WARNING” indicator light blinks or
comes on, together with a warning indicator,
when a malfunction has occurred.
EJU34990“UNLOCK” indicator light
The “UNLOCK” indicator light comes on when
the unlock mode of the Yamaha Security Sys-
tem is selected. The watercraft can be ridden
normally when this light is on. (See page 35
for more information.)
EJU35010“L-MODE” indicator light
The “L-MODE” indicator light comes on when
the low-RPM mode is selected. (See page 36
for more information.)
EJU35021Left multifunction display and operation
buttons
The left multifunction display is equipped with
the following functions.
1“WARNING” indicator light
1“UNLOCK” indicator light1“L-MODE” indicator light
1Fuel level meter
2Fuel level warning indicator
3Hour meter/voltmeter
4Digital speedometer
5Oil pressure warning indicator
6Check engine warning indicator
7Engine overheat warning indicator
UF1W71E0.book Page 42 Tuesday, June 24, 2008 11:46 AM
Page 51 of 108
Features and functions
44
level meter disappear two at a time as the fuel
level decreases.
TIP:
The fuel level is most accurate when the wa-
tercraft is sitting level on a trailer or in the wa-
ter.
EJU35061Hour meter/voltmeter
To switch the display between the hour meter
and the voltmeter, push the “Volt/Hour” button
for at least 1 second after the meter is dis-
played for more than 10 seconds.
Hour meter
The hour meter is provided to make it easy to
follow the maintenance schedule.
The meter shows the hours of engine opera-
tion that have elapsed since the watercraft
was new.Voltmeter
The voltmeter is provided to display the volt-
age of the battery.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage is less than 8.0 volts,
“LO” is displayed on the voltmeter and if the
voltage is above 18.1 volts, “HI” is displayed
on the voltmeter. If “HI” or “LO” is displayed,
return to shore and, if necessary, have a
Yamaha dealer check the charging system
and the battery.
EJU36811Fuel level warning indicator
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est two fuel level segments, the fuel level
warning indicator, and the “WARNING” indi-
cator light begin to blink. The buzzer also
starts sounding intermittently.
If this occurs, refill the fuel tank as soon as
possible.
The warning signals will be cleared when the
engine is restarted after the fuel tank is re-
filled.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35122Oil pressure warning indicator
If the oil pressure does not rise to specifica-
tion, the “WARNING” indicator light and the oil
1Fuel level meter
1Hour meter/voltmeter
2“Volt/Hour” button
1
UF1W71E0.book Page 44 Tuesday, June 24, 2008 11:46 AM
Page 52 of 108
Features and functions
45
pressure warning indicator begin to blink, and
the buzzer sounds intermittently. At the same
time, the engine speed is limited to help pre-
vent damage.
If this occurs, reduce the engine speed, return
to shore, and then check the engine oil level.
(See page 56 for engine oil level checking
procedures.) If the oil level is low, add enough
engine oil to raise it to the proper level. If the
oil level is sufficient, have a Yamaha dealer
check the watercraft.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU36821Engine overheat warning indicator
This model is equipped with an engine over-
heat warning system.
If the engine starts to overheat, the “WARN-
ING” indicator light and the engine overheat
warning indicator blink, and then come on.
The buzzer also begins to sound intermittent-
ly, and then it sounds continuously. After the
light and indicator start to blink and the buzzersounds, the engine speed is limited to help
prevent damage.
If this occurs, immediately reduce the engine
speed, return to shore, and then check for wa-
ter discharge at the port (left) cooling water pi-
lot outlets while the engine is running. If there
is no discharge of water, shut the engine off,
and then check the intake grate and impeller
for clogging. (See page 95 for more informa-
tion.) NOTICE: If you cannot locate and
correct the cause of the overheating, con-
sult a Yamaha dealer. Continuing to oper-
ate at higher speeds could result in severe
engine damage.
[ECJ00041]
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35131Check engine warning indicator
If a sensor malfunction or a short circuit is de-
tected, the “WARNING” indicator light and the
UF1W71E0.book Page 45 Tuesday, June 24, 2008 11:46 AM
Page 53 of 108
Features and functions
46
check engine warning indicator begin to blink,
and the buzzer sounds intermittently.
If this occurs, reduce the engine speed, return
to shore, and have a Yamaha dealer check
the engine.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35034Right multifunction display and operation
buttons (for FX Cruiser SHO)
The right multifunction display shows the fol-
lowing information.
Compass
Average speed
Tripmeter
Trip timer
Fuel consumption per hour
Fuel consumption per kilometer/mile
Water temperature
Air temperatureThe following operation buttons are on the
right side of the multifunction information cen-
ter.
To switch the display mode, push the
“Mode/Reset” button for less than 1 second.
The display mode changes in the following or-
der.
Compass → Average speed → Tripmeter →
Trip timer → Fuel consumption per hour →
Fuel consumption per kilometer/mile → Water
temperature → Air temperature
To switch the display units between kilome-
ters/liters/degrees Celsius and miles/gal-
lons/degrees Fahrenheit, push the
“Volt/Hour” button for at least 1 second, within
10 seconds after the multifunction information
center starts operating.
The “SPEED” indicator light blinks three times
if miles/gallons/degrees Fahrenheit are se-
lected as the display units when the multifunc-
tion information center starts operating, or if
1“Mode/Reset” button
2“Start/Stop” button
UF1W71E0.book Page 46 Tuesday, June 24, 2008 11:46 AM
