Trouble recovery
105
(7) Securely install the seats in their original
positions.
If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU41821Replacing the bilge pump fuse
If the fuse is blown, replace it with the proper
fuse.
To replace the fuse:
(1) Remove the seats and engine cover.
(See page 49 for seat removal and instal-
lation procedures and page 94 for engine
cover removal and installation proce-
dures.)
(2) Remove the plastic ties that are securing
the corrugated tube and bilge pump fuse
leads.
TIP:
Be careful not to drop the plastic ties into the
engine compartment.
(3) Pull out the bilge pump fuse holder from
the rubber cover, and then remove the
fuse cover.
(4) Replace the blown fuse with the spare
fuse of the correct amperage.
WARNING! Do not use fuses of a dif-
ferent amperage than recommended.
Substitution with a fuse that has an
improper rating can cause extensive
electrical system damage and possi-
ble fire.
[EWJ00802]
TIP:
If the fuse is difficult to remove, use the fuse
puller on the reverse side of the electrical box

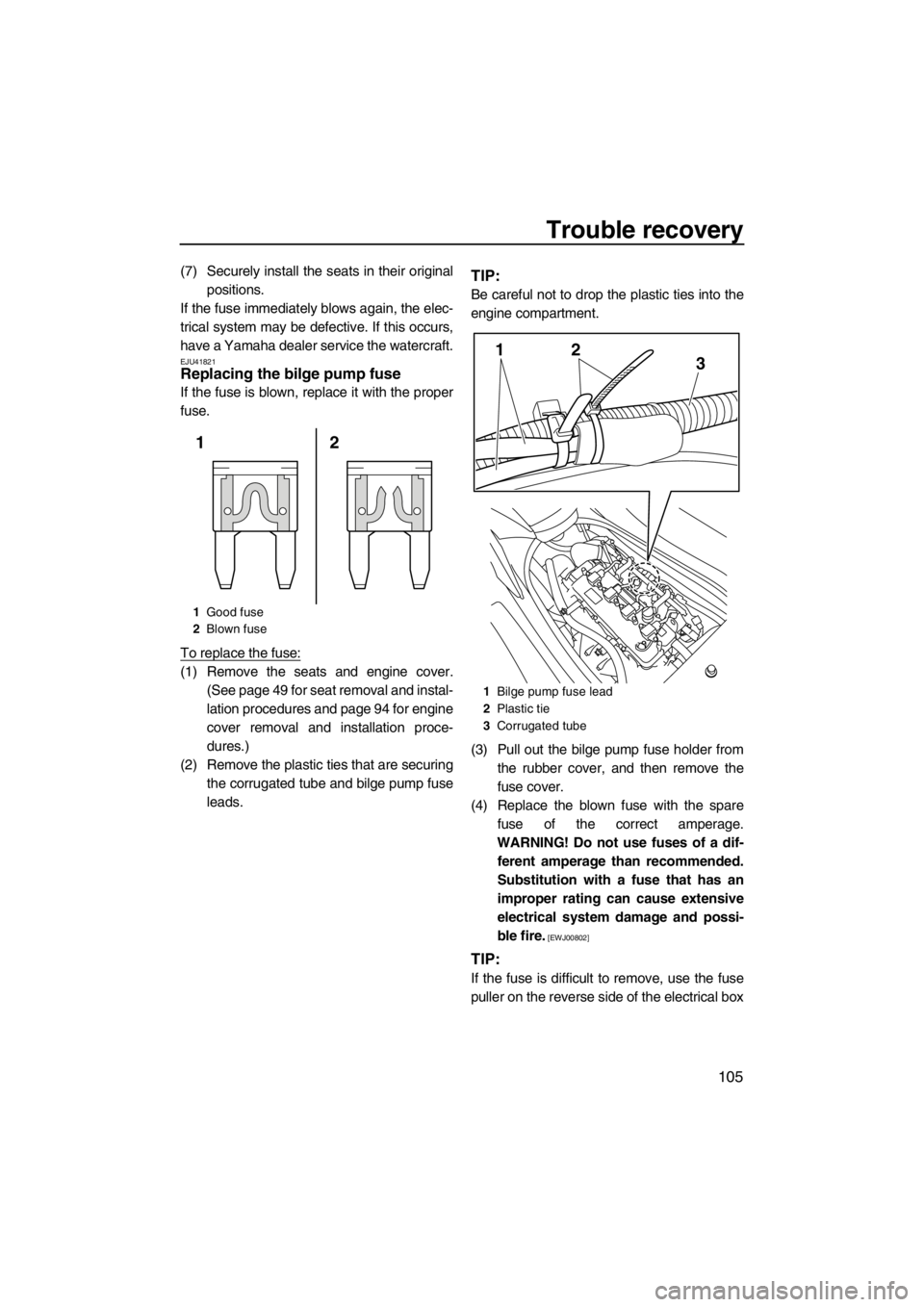

1Good fuse
2Blown fuse
2 1
1Bilge pump fuse lead
2Plastic tie
3Corrugated tube
213
UF2S70E0.book Page 105 Wednesday, December 7, 2011 3:56 PM

Trouble recovery
106
cap. (See page 103 for information on the
fuse puller.)
(5) Securely install the fuse cover, and then
fit the bilge pump fuse holder into the rub-
ber cover.
(6) Secure the bilge pump fuse leads and
corrugated tube with the plastic ties.
(7) Securely install the engine cover and
seats in their original positions.If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU34715Towing the watercraft
WARNING
EWJ00811
●The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the operator on the watercraft.
●The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the combined
length of the towing boat and the watercraft.
(1) Securely attach the towline to the bow
eye of the watercraft being towed.
(2) Sit astride the seat and hold on to the
handlebars in order to balance the water-
craft. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow back
into the engine, causing severe en-
gine damage.
[ECJ01330]

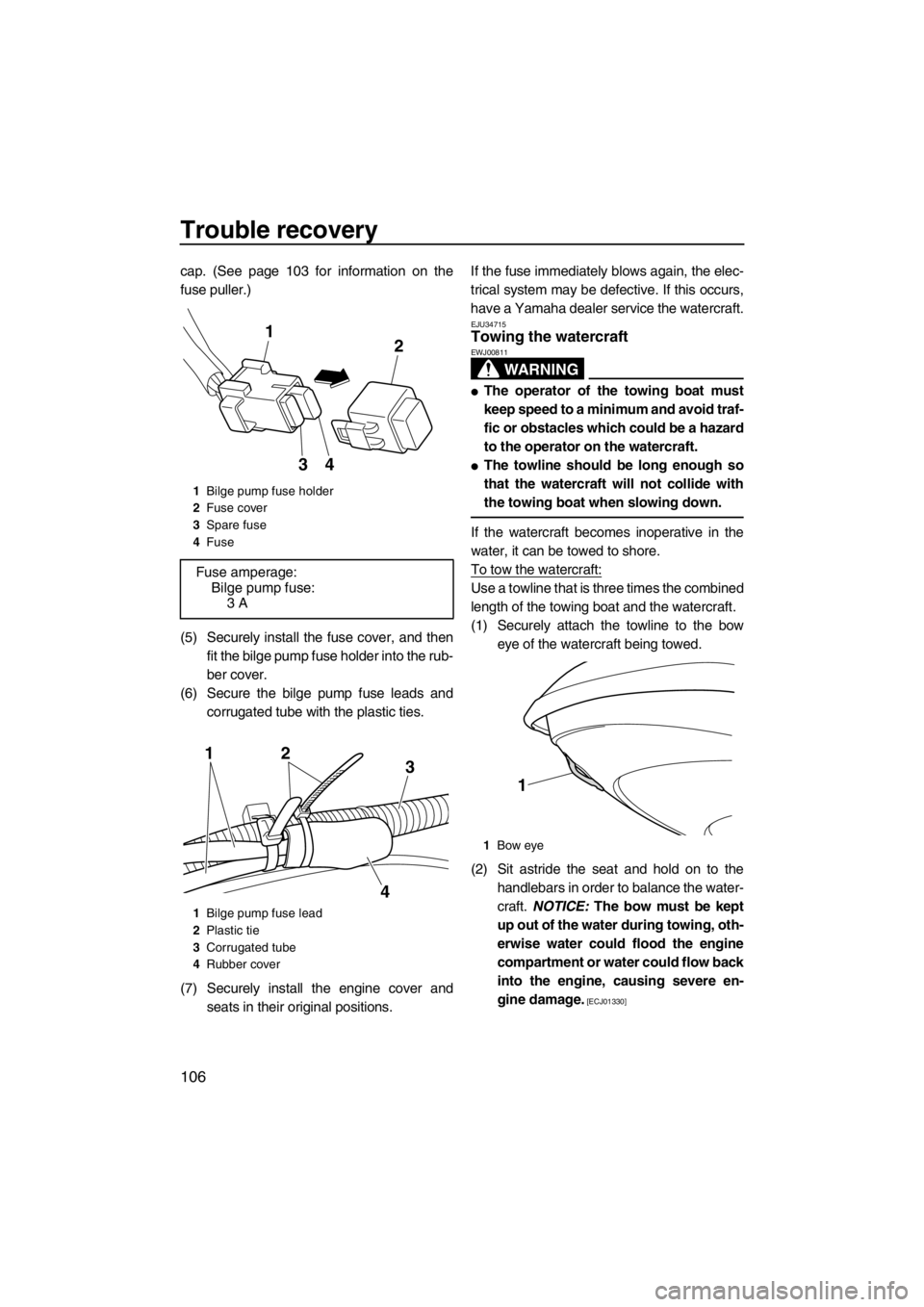

1Bilge pump fuse holder
2Fuse cover
3Spare fuse
4Fuse
Fuse amperage:
Bilge pump fuse:
3 A
1Bilge pump fuse lead
2Plastic tie
3Corrugated tube
4Rubber cover
21
43
213
4
1Bow eye
1
UF2S70E0.book Page 106 Wednesday, December 7, 2011 3:56 PM

Trouble recovery
107
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01321]
EJU36155
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
If the watercraft was submerged:
(1) Remove the watercraft from the water
and drain the water from the storage
compartments. (See page 52 for informa-
tion on draining the storage compart-
ments.)
(2) Drain the bilge water from the engine
compartment. (See page 61 for informa-
tion on draining the bilge water.)
(3) Have the watercraft serviced by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could re-
sult.
[ECJ00791]
UF2S70E0.book Page 107 Wednesday, December 7, 2011 3:56 PM
