Instrument operation
45
as the shift position and jet thrust nozzle trim
angle.
The display units of the multifunction display
are selected according to the display units of
the digital speedometer. (To change the dis-
play units, see page 40 for digital speedome-
ter display selection procedures.)
When “km/h” are selected as the display
units of the digital speedometer, values are
shown in kilometers/liters/degrees Celsius.
When “mph” are selected as the display units
of the digital speedometer, values are shown
in miles/gallons/degrees Fahrenheit.
EJU43181Shift indicator
This indicator shows the reverse gate shift
positions: “F” (forward), “N” (neutral), and “R”(reverse). (See page 31 for shifting proce-
dures.)
EJU43190Trim indicator
This indicator shows the trim angle of the jet
thrust nozzle. One of the two upper display
segments will be shown when the trim angle
is increased, and one of the two lower display
segments will be shown when the trim angle
is decreased. When the neutral position of
the jet thrust nozzle is selected, the middle
display segment will be shown. (See page 33
for trim angle selection procedures.)
EJU43201Watercraft information
The multifunction display shows various wa-
tercraft and environmental information. To
switch the display mode, push the “MO-
1Shift indicator
2Watercraft information
3Trim indicator
321
1Shift indicator
2“F” (Forward position)
3“N” (Neutral position)
4“R” (Reverse position)
1Trim indicator
1
2
3
4
1
UF3J75E0.book Page 45 Friday, July 7, 2017 9:55 AM

Instrument operation
46
DE/RESET” button for less than 1 second.
The display mode changes in the following
order.
Compass (FX Cruiser SVHO / FX Limited
SVHO)
This display shows the current direction of
the watercraft using the 8 major compass
points.
TIP:
The accuracy of the compass varies depend-
ing on the operating conditions. Use this
function as a reference only.
Average speed
This display shows the average speed in kilo-
meters per hour “AV KMH” or miles per hour“AV MPH” since the measurement was start-
ed.
Tripmeter
This display shows the distance traveled in
kilometers “KM” or miles “MILES” since the
measurement was started.
Fuel consumption per hour
This display shows the current fuel consump-
tion in liters per hour “L/HR” or gallons per
hour “G/HR”.
1“MODE/RESET” button
1
UF3J75E0.book Page 46 Friday, July 7, 2017 9:55 AM

Instrument operation
47

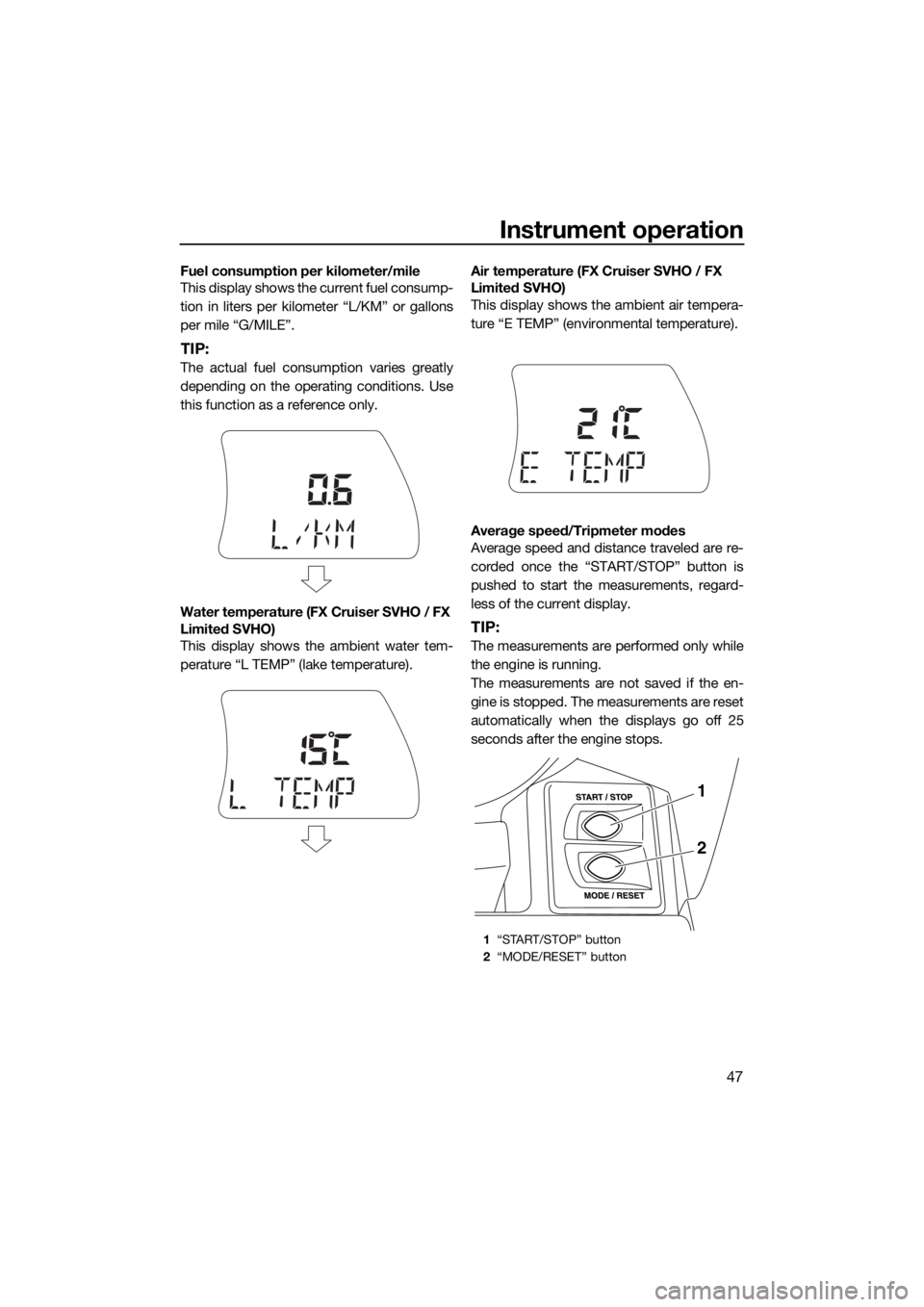

Fuel consumption per kilometer/mile
This display shows the current fuel consump-
tion in liters per kilometer “L/KM” or gallons
per mile “G/MILE”.
TIP:
The actual fuel consumption varies greatly
depending on the operating conditions. Use
this function as a reference only.
Water temperature (FX Cruiser SVHO / FX
Limited SVHO)
This display shows the ambient water tem-
perature “L TEMP” (lake temperature).Air temperature (FX Cruiser SVHO / FX
Limited SVHO)
This display shows the ambient air tempera-
ture “E TEMP” (environmental temperature).
Average speed/Tripmeter modes
Average speed and distance traveled are re-
corded once the “START/STOP” button is
pushed to start the measurements, regard-
less of the current display.
TIP:
The measurements are performed only while
the engine is running.
The measurements are not saved if the en-
gine is stopped. The measurements are reset
automatically when the displays go off 25
seconds after the engine stops.
1“START/STOP” button
2“MODE/RESET” button
1
2
UF3J75E0.book Page 47 Friday, July 7, 2017 9:55 AM

Instrument operation
48
To start the measurements:
Push the “START/STOP” button for less than
1 second. The beeper sounds once and the
measurements start.
To stop the measurements:
Push the “START/STOP” button for less than
1 second while the measurements are being
recorded. The beeper sounds once and the
measurements stop.
To restart the measurements:
Push the “START/STOP” button for less than
1 second while the measurements are
stopped. The beeper sounds once and the
measurements restart.
To reset the measurements:
Push the “MODE/RESET” button for at least
2 seconds while the measurements are
stopped. The beeper sounds twice and the
measurements are reset.
UF3J75E0.book Page 48 Friday, July 7, 2017 9:55 AM

Equipment operation
49
EJU40334
EquipmentEJU42203Seats
The front and rear seats are removable.
Remove the seats to access the engine com-
partment and removable watertight storage
compartment.
To remove the rear seat:
(1) Pull the rear seat latch up, and then lift up
the rear of the seat.
(2) Pull the seat rearward and remove it.To install the rear seat:
(1) Insert the projections on the front of the
seat into the stays on the deck.
(2) Push the rear of the seat down to secure-
ly lock it in place.
To remove the front seat:
(1) Remove the rear seat.
(2) Pull the front seat latch up, and then lift
up the rear of the seat.
1Seat latch
1
1Seat latch
1
UF3J75E0.book Page 49 Friday, July 7, 2017 9:55 AM

Equipment operation
50

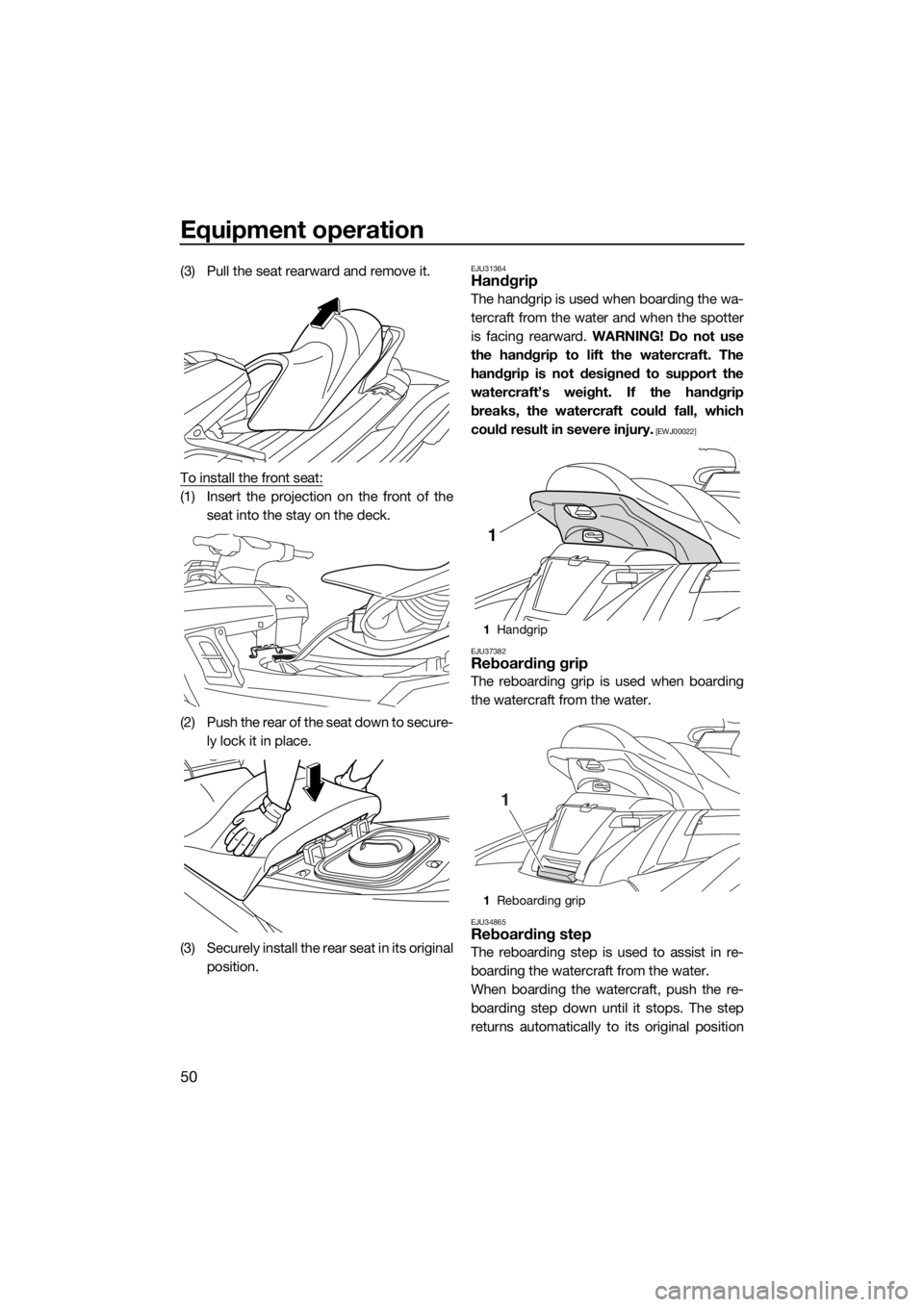

(3) Pull the seat rearward and remove it.
To install the front seat:
(1) Insert the projection on the front of the
seat into the stay on the deck.
(2) Push the rear of the seat down to secure-
ly lock it in place.
(3) Securely install the rear seat in its original
position.
EJU31364Handgrip
The handgrip is used when boarding the wa-
tercraft from the water and when the spotter
is facing rearward. WARNING! Do not use
the handgrip to lift the watercraft. The
handgrip is not designed to support the
watercraft’s weight. If the handgrip
breaks, the watercraft could fall, which
could result in severe injury.
[EWJ00022]
EJU37382

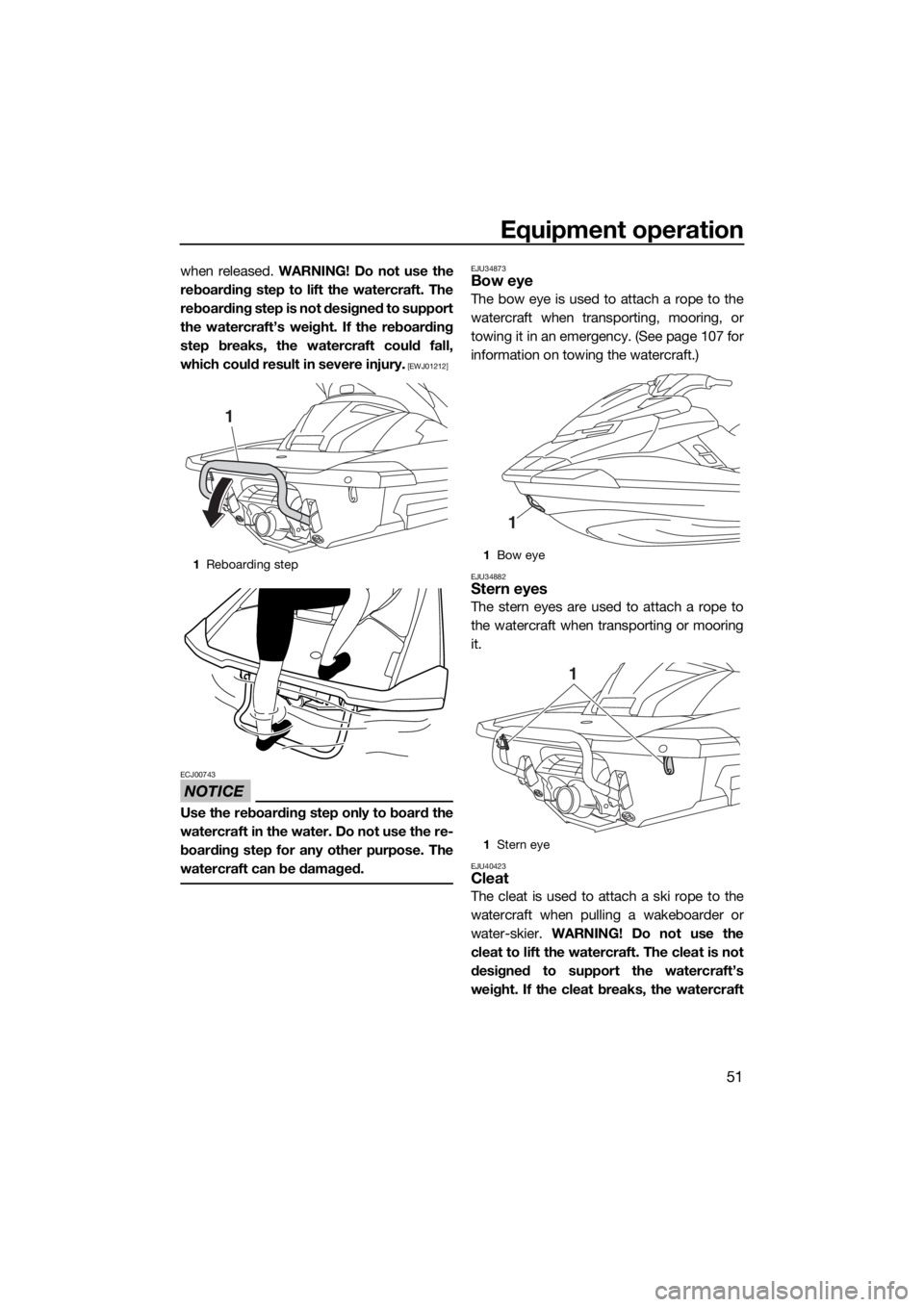

Reboarding grip
The reboarding grip is used when boarding
the watercraft from the water.
EJU34865Reboarding step
The reboarding step is used to assist in re-
boarding the watercraft from the water.
When boarding the watercraft, push the re-
boarding step down until it stops. The step
returns automatically to its original position
1Handgrip
1Reboarding grip
1
1
UF3J75E0.book Page 50 Friday, July 7, 2017 9:55 AM

Equipment operation
51
when released. WARNING! Do not use the
reboarding step to lift the watercraft. The
reboarding step is not designed to support
the watercraft’s weight. If the reboarding
step breaks, the watercraft could fall,
which could result in severe injury.
[EWJ01212]
NOTICE
ECJ00743
Use the reboarding step only to board the
watercraft in the water. Do not use the re-
boarding step for any other purpose. The
watercraft can be damaged.
EJU34873Bow eye
The bow eye is used to attach a rope to the
watercraft when transporting, mooring, or
towing it in an emergency. (See page 107 for
information on towing the watercraft.)
EJU34882Stern eyes
The stern eyes are used to attach a rope to
the watercraft when transporting or mooring
it.
EJU40423Cleat
The cleat is used to attach a ski rope to the
watercraft when pulling a wakeboarder or
water-skier. WARNING! Do not use the
cleat to lift the watercraft. The cleat is not
designed to support the watercraft’s
weight. If the cleat breaks, the watercraft
1Reboarding step
1
1Bow eye
1Stern eye
1
1
UF3J75E0.book Page 51 Friday, July 7, 2017 9:55 AM

Equipment operation
52
could fall, which could result in severe in-
jury.
[EWJ01511]
EJU34894

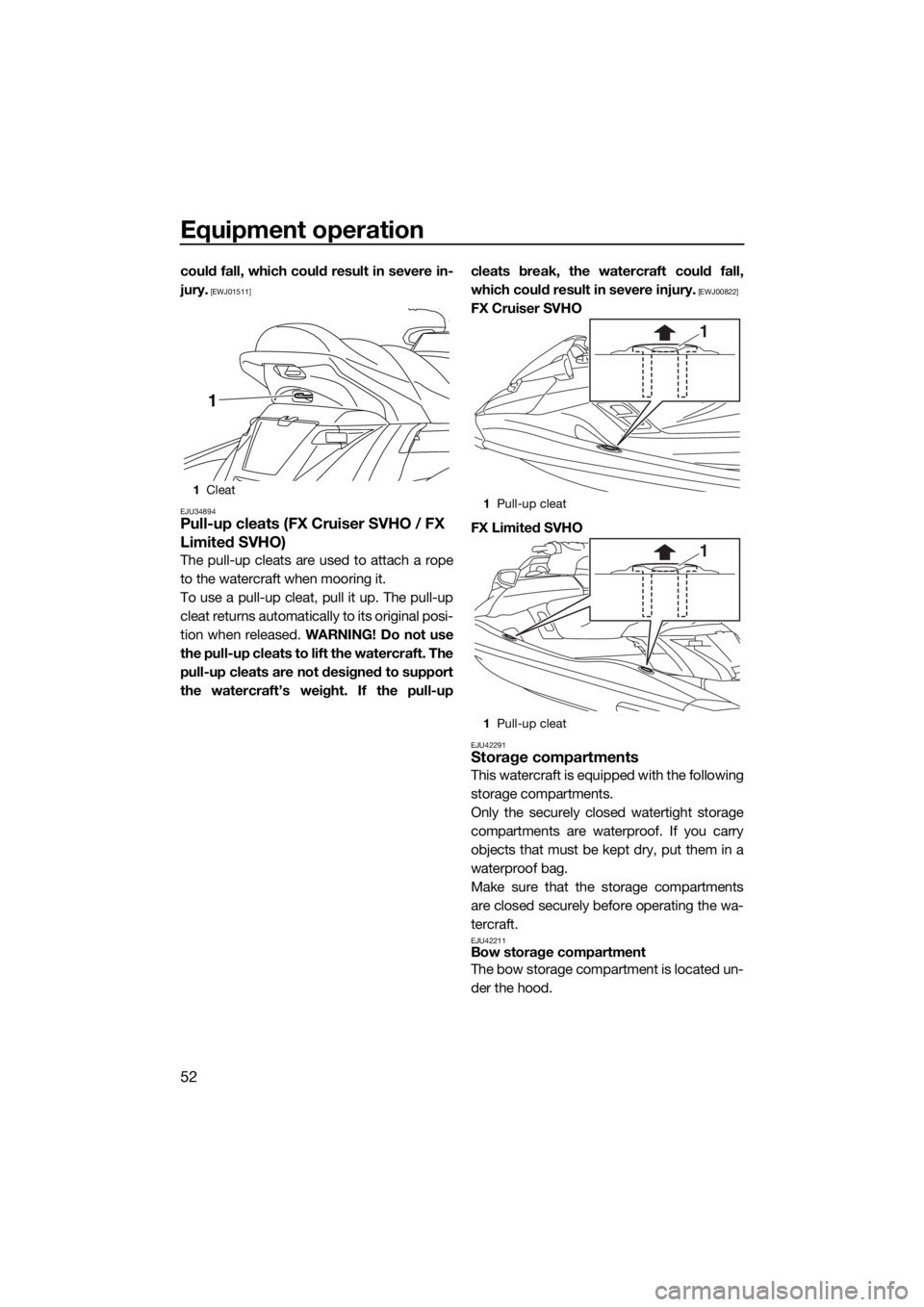

Pull-up cleats (FX Cruiser SVHO / FX
Limited SVHO)
The pull-up cleats are used to attach a rope
to the watercraft when mooring it.
To use a pull-up cleat, pull it up. The pull-up
cleat returns automatically to its original posi-
tion when released. WARNING! Do not use
the pull-up cleats to lift the watercraft. The
pull-up cleats are not designed to support
the watercraft’s weight. If the pull-upcleats break, the watercraft could fall,
which could result in severe injury.
[EWJ00822]
FX Cruiser SVHO
FX Limited SVHO
EJU42291Storage compartments
This watercraft is equipped with the following
storage compartments.
Only the securely closed watertight storage
compartments are waterproof. If you carry
objects that must be kept dry, put them in a
waterproof bag.
Make sure that the storage compartments
are closed securely before operating the wa-
tercraft.
EJU42211Bow storage compartment
The bow storage compartment is located un-
der the hood.
1Cleat
1
1Pull-up cleat
1Pull-up cleat
1
1
UF3J75E0.book Page 52 Friday, July 7, 2017 9:55 AM

Equipment operation
53

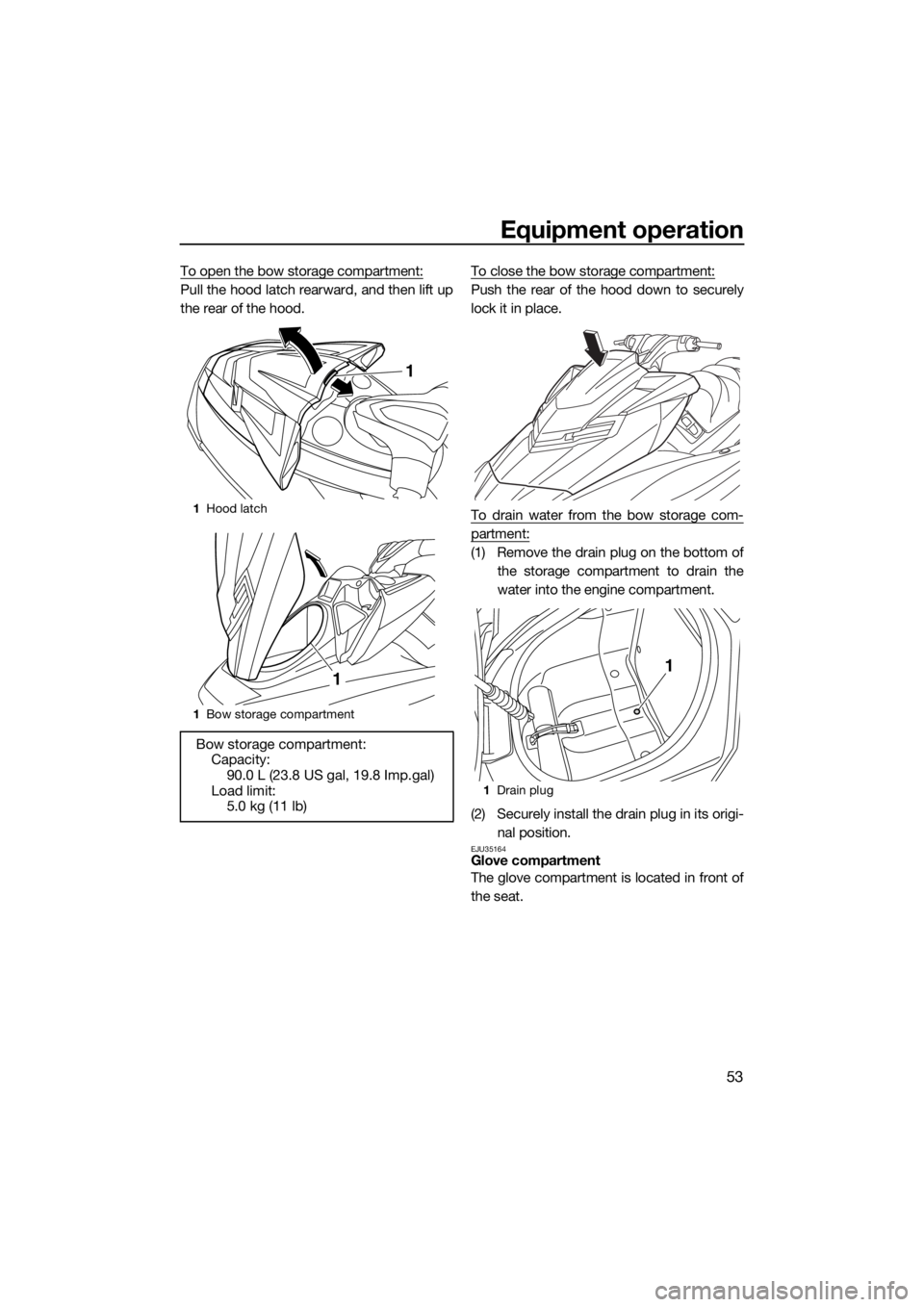

To open the bow storage compartment:
Pull the hood latch rearward, and then lift up
the rear of the hood.To close the bow storage compartment:Push the rear of the hood down to securely
lock it in place.
To drain water from the bow storage com-
partment:
(1) Remove the drain plug on the bottom of
the storage compartment to drain the
water into the engine compartment.
(2) Securely install the drain plug in its origi-
nal position.
EJU35164Glove compartment
The glove compartment is located in front of
the seat.
1Hood latch
1Bow storage compartment
Bow storage compartment:
Capacity:
90.0 L (23.8 US gal, 19.8 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
1Drain plug
1
UF3J75E0.book Page 53 Friday, July 7, 2017 9:55 AM

Equipment operation
54

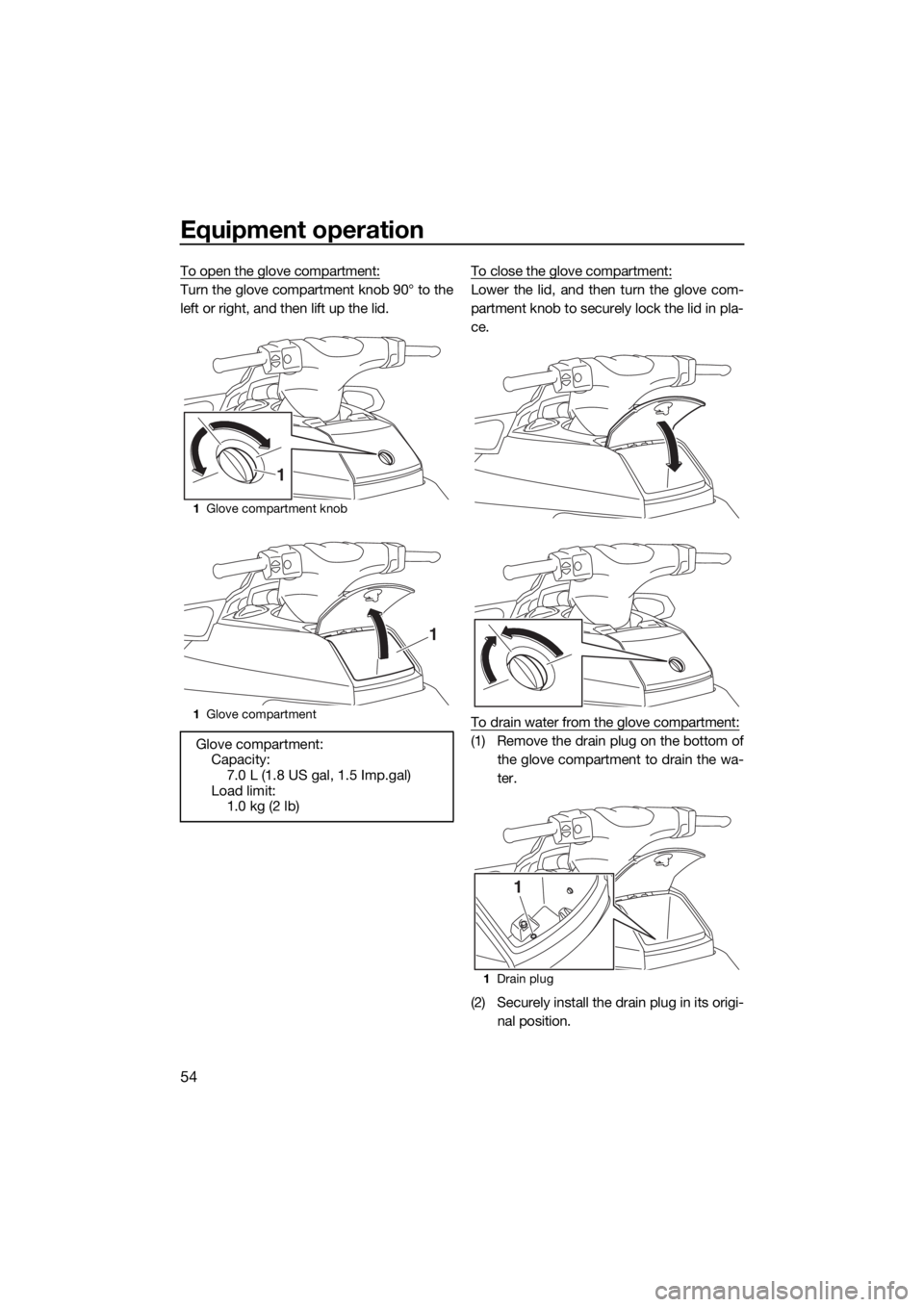

To open the glove compartment:
Turn the glove compartment knob 90° to the
left or right, and then lift up the lid.To close the glove compartment:Lower the lid, and then turn the glove com-
partment knob to securely lock the lid in pla-
ce.
To drain water from the glove compartment:
(1) Remove the drain plug on the bottom of
the glove compartment to drain the wa-
ter.
(2) Securely install the drain plug in its origi-
nal position.
1Glove compartment knob
1Glove compartment
Glove compartment:
Capacity:
7.0 L (1.8 US gal, 1.5 Imp.gal)
Load limit:
1.0 kg (2 lb)
1
1
1Drain plug
1
