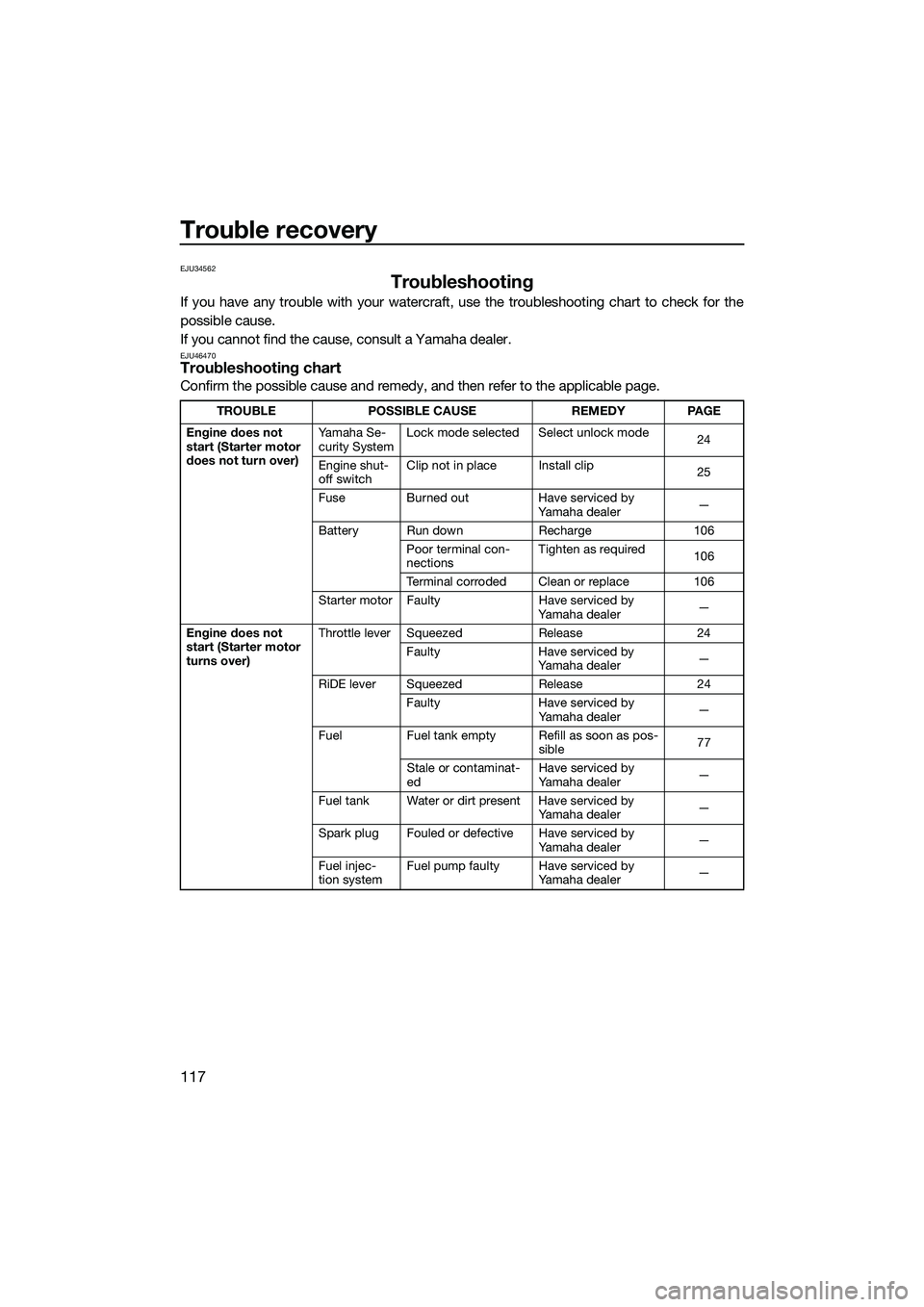

Trouble recovery
117
EJU34562
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the
possible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU46470Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLEPOSSIBLE CAUSE REMEDYPAGE
Engine does not
start (Starter motor
does not turn over) Ya m a h a S e -
curity System
Lock mode selected Select unlock mode
24
Engine shut-
off switch Clip not in place Install clip
25
Fuse Burned out Have serviced by
Yamaha dealer —
Battery Run down Recharge106
Poor terminal con-
nections Tighten as required
106
Terminal corroded Clean or replace 106
Starter motor Faulty Have serviced by
Yamaha dealer —
Engine does not
start (Starter motor
turns over) Throttle lever Squeezed
Release24
Faulty Have serviced by
Yamaha dealer —
RiDE lever Squeezed Release24
Faulty Have serviced by
Yamaha dealer —
Fuel Fuel tank empty Refill as soon as pos-
sible 77
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Fuel injec-
tion system Fuel pump faulty Have serviced by
Yamaha dealer —
UF3X73E0.book Page 117 Wednesday, October 6, 2021 9:04 AM

Trouble recovery
118
Engine runs irregu-
larly or stallsFuel Fuel tank empty Refill as soon as pos-
sible77
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Incorrect octane
number Use correct fuel
77
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel injec-
tion system Faulty or clogged in-
jectors Have serviced by
Yamaha dealer
—
Warning is dis-
played Fuel level
warningFuel tank empty Refill as soon as pos-
sible 77
Oil pressure
warning Oil pressure dropped Have serviced by
Yamaha dealer 65
Engine over-
heat warning Jet intake clogged Clean
120
Check en-
gine warning Faulty sensors Have serviced by
Yamaha dealer 64
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3X73E0.book Page 118 Wednesday, October 6, 2021 9:04 AM

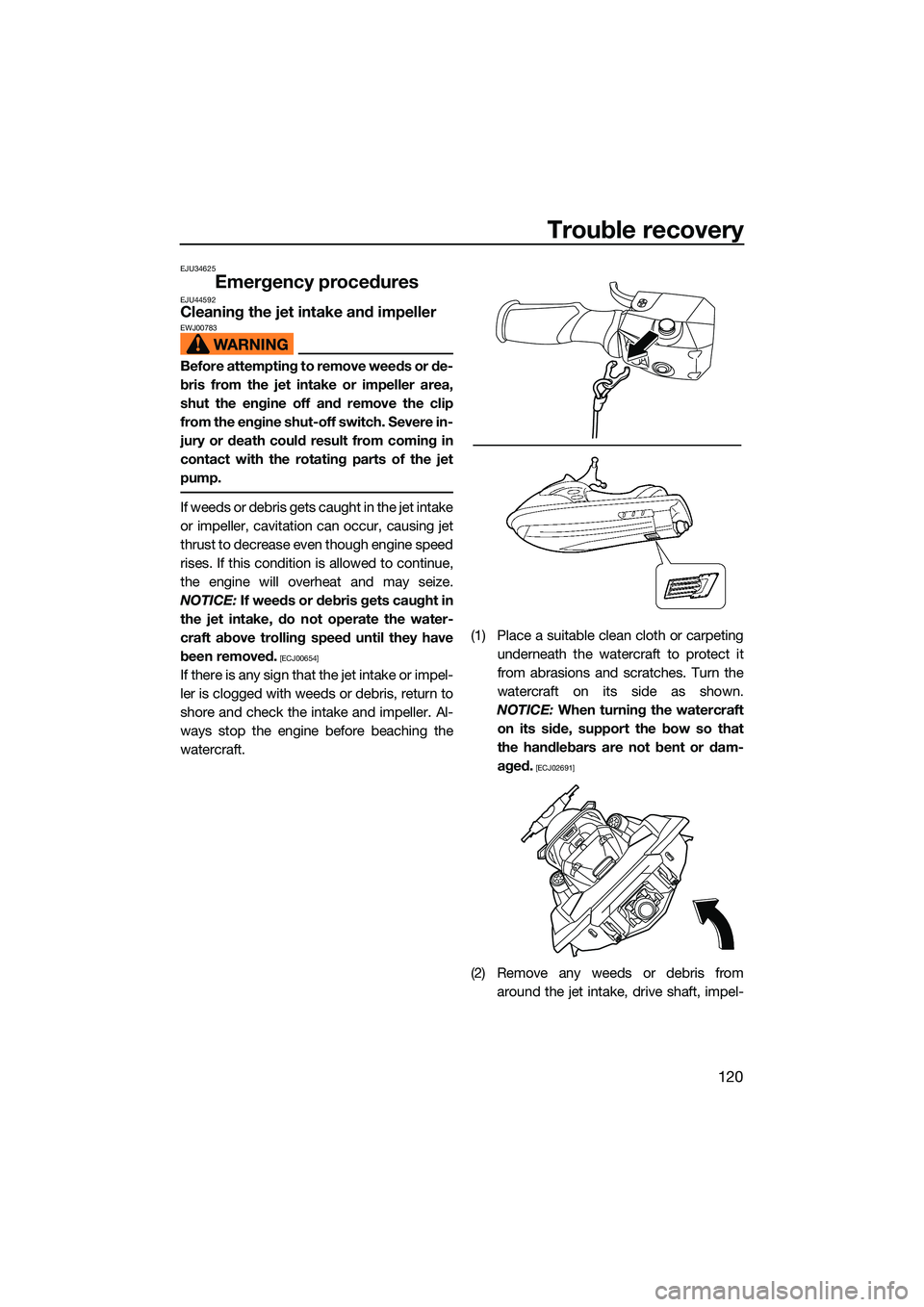

Trouble recovery
120
EJU34625
Emergency proceduresEJU44592Cleaning the jet intake and impellerEWJ00783
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the water-
craft above trolling speed until they have
been removed.
[ECJ00654]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-
ways stop the engine before beaching the
watercraft. (1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown.
NOTICE: When turning the watercraft
on its side, support the bow so that
the handlebars are not bent or dam-
aged.
[ECJ02691]
(2) Remove any weeds or debris from around the jet intake, drive shaft, impel-
UF3X73E0.book Page 120 Wednesday, October 6, 2021 9:04 AM

124
Index
A
Accessory outlet ...................................... 68
Adjustable tilt steering system ................. 26
Adjustable tilt steering system checks .... 88
After removing the watercraft from the water ................................................... 104
Audio control............................................ 66
Audio system (equipped models) ............ 66
B
Battery care............................................ 106
Battery checks ......................................... 87
Battery, jumping..................................... 121
Beaching and docking the watercraft .... 103
Beverage holder ....................................... 74
Bilge water check..................................... 87
Bilge water, draining ................................ 81
Bilge water, draining on land ................... 81
Bilge water, draining on water ................. 81
Boarding alone ......................................... 99
Boarding and starting off from a dock ... 102
Boarding the watercraft ........................... 99
Boarding with passenger(s) ................... 100
Bow eye ................................................... 71
Bow storage compartment ...................... 72
Builder’s plate ............................................ 3
C
Capsized watercraft ............................... 102
Changing the PIN ..................................... 54
Cleaning ................................................. 108
Cleaning the watercraft .......................... 106
Cleat ......................................................... 71
Cooling water pilot outlet check .............. 92
Cooling water pilot outlets ....................... 27
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 37
Cruising limitations................................... 10
D
Depth contour and safety contour settings (“Depth/Position”) ................... 62
Display ..................................................... 42
Display clock change ............................... 55
Display notification information................ 43
Display settings ........................................ 55
Displaying the time since the last maintenance ......................................... 56 Drive control mode................................... 36
Drive control mode screen ....................... 53
Dual Rope Hooks ..................................... 72
E
Electric trim system.................................. 31
Electric trim system check ....................... 90
Emergency procedures .......................... 120
Engine break-in ........................................ 83
Engine compartment check ..................... 86
Engine cover, removing and installing ... 110
Engine idling speed check ....................... 92
Engine lock screen ................................... 63
Engine oil.................................................. 79
Engine oil and oil filter ............................ 114
Engine oil level check ............................... 87
Engine oil requirements ........................... 79
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 89
Engine shut-off switch ............................. 25
Engine start/stop switch .......................... 24
Engine unit check ..................................... 87
Enjoy your watercraft responsibly ............ 18
Equipment ................................................ 69
F
Fire extinguisher check ............................ 90
Fire extinguisher holder and cover........... 75
Fire extinguisher holder, cover, and
band checks ......................................... 90
Flushing the cooling water passages..... 105
Fuel .......................................................... 77
Fuel level check........................................ 86
Fuel requirements .................................... 77
Fuel system checks ................................. 86
G
GeoFence ................................................. 51
GeoFence settings (“GeoFence”)............. 60
Getting to know your watercraft .............. 93
Glossary, watercraft ................................. 19
Glove compartment ................................. 73
H
Handgrip .................................................. 70
Hazard information................................... 14
Home screen ............................................ 44
Hood check .............................................. 91
Hull and deck check ................................ 91
UF3X73E0.book Page 124 Wednesday, October 6, 2021 9:04 AM

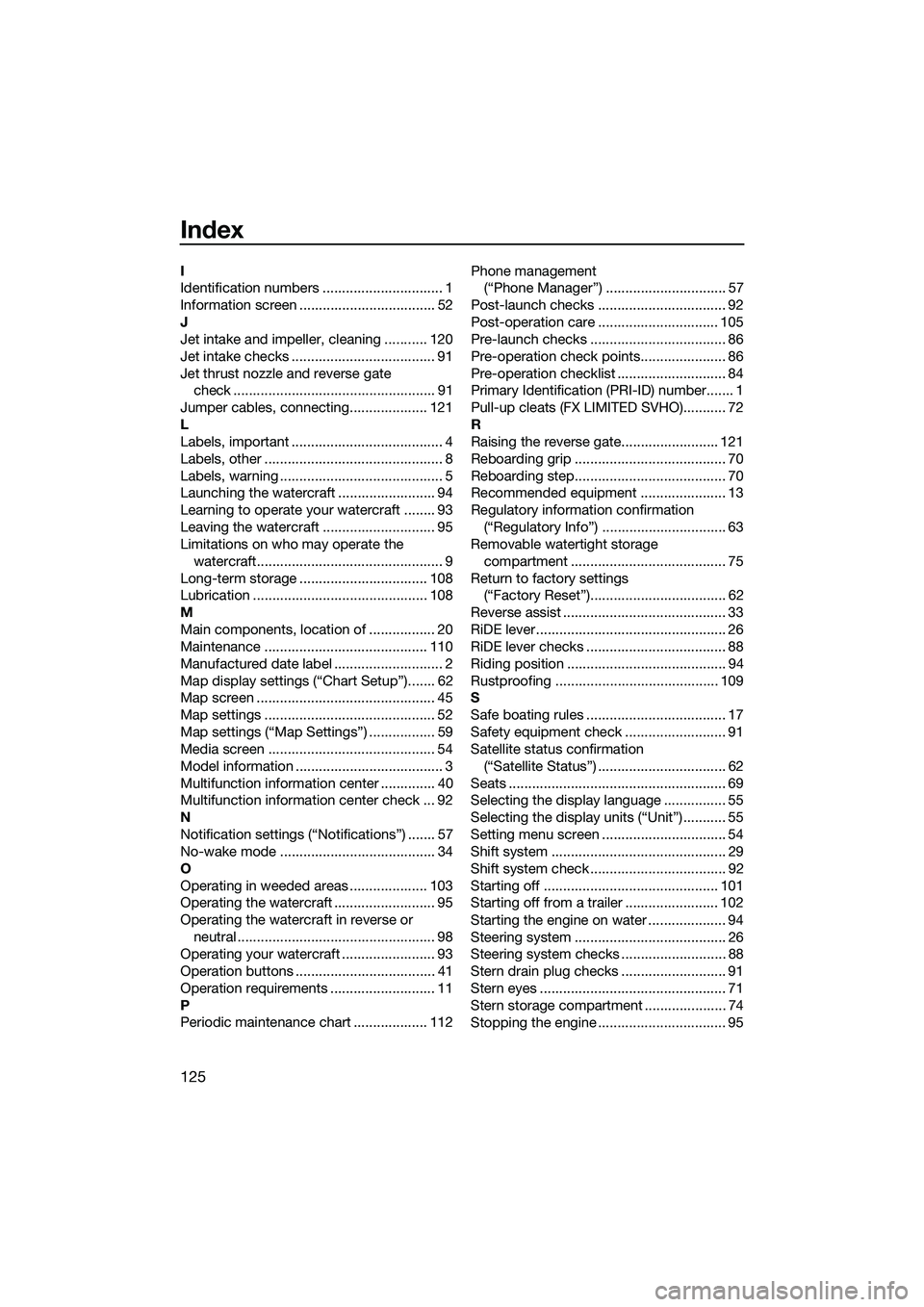

Index
125
I
Identification numbers ............................... 1
Information screen ................................... 52
J
Jet intake and impeller, cleaning ........... 120
Jet intake checks ..................................... 91
Jet thrust nozzle and reverse gate check .................................................... 91
Jumper cables, connecting.................... 121
L
Labels, important ....................................... 4
Labels, other .............................................. 8
Labels, warning .......................................... 5
Launching the watercraft ......................... 94
Learning to operate your watercraft ........ 93
Leaving the watercraft ............................. 95
Limitations on who may operate the watercraft................................................ 9
Long-term storage ................................. 108
Lubrication ............................................. 108
M
Main components, location of ................. 20
Maintenance .......................................... 110
Manufactured date label ............................ 2
Map display settings (“Chart Setup”)....... 62
Map screen .............................................. 45
Map settings ............................................ 52
Map settings (“Map Settings”) ................. 59
Media screen ........................................... 54
Model information ...................................... 3
Multifunction information center .............. 40
Multifunction information center check ... 92
N
Notification settings (“Notifications”) ....... 57
No-wake mode ........................................ 34
O
Operating in weeded areas .................... 103
Operating the watercraft .......................... 95
Operating the watercraft in reverse or neutral ................................................... 98
Operating your watercraft ........................ 93
Operation buttons .................................... 41
Operation requirements ........................... 11
P
Periodic maintenance chart ................... 112 Phone management
(“Phone Manager”) ............................... 57
Post-launch checks ................................. 92
Post-operation care ............................... 105
Pre-launch checks ................................... 86
Pre-operation check points...................... 86
Pre-operation checklist ............................ 84
Primary Identification (PRI-ID) number....... 1
Pull-up cleats (FX LIMITED SVHO)........... 72
R
Raising the reverse gate......................... 121
Reboarding grip ....................................... 70
Reboarding step....................................... 70
Recommended equipment ...................... 13
Regulatory informati on confirmation
(“Regulatory Info”) ................................ 63
Removable watertight storage
compartment ........................................ 75
Return to factory settings (“Factory Reset”)................................... 62
Reverse assist .......................................... 33
RiDE lever................................................. 26
RiDE lever checks .................................... 88
Riding position ......................................... 94
Rustproofing .......................................... 109
S
Safe boating rules .................................... 17
Safety equipment check .......................... 91
Satellite status confirmation (“Satellite Status”) ................................. 62
Seats ........................................................ 69
Selecting the display language ................ 55
Selecting the display units (“Unit”) ........... 55
Setting menu screen ................................ 54
Shift system ............................................. 29
Shift system check ................................... 92
Starting off ............................................. 101
Starting off from a trailer ........................ 102
Starting the engine on water .................... 94
Steering system ....................................... 26
Steering system checks ........................... 88
Stern drain plug checks ........................... 91
Stern eyes ................................................ 71
Stern storage compartment ..................... 74
Stopping the engine ................................. 95
UF3X73E0.book Page 125 Wednesday, October 6, 2021 9:04 AM
