YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU13220

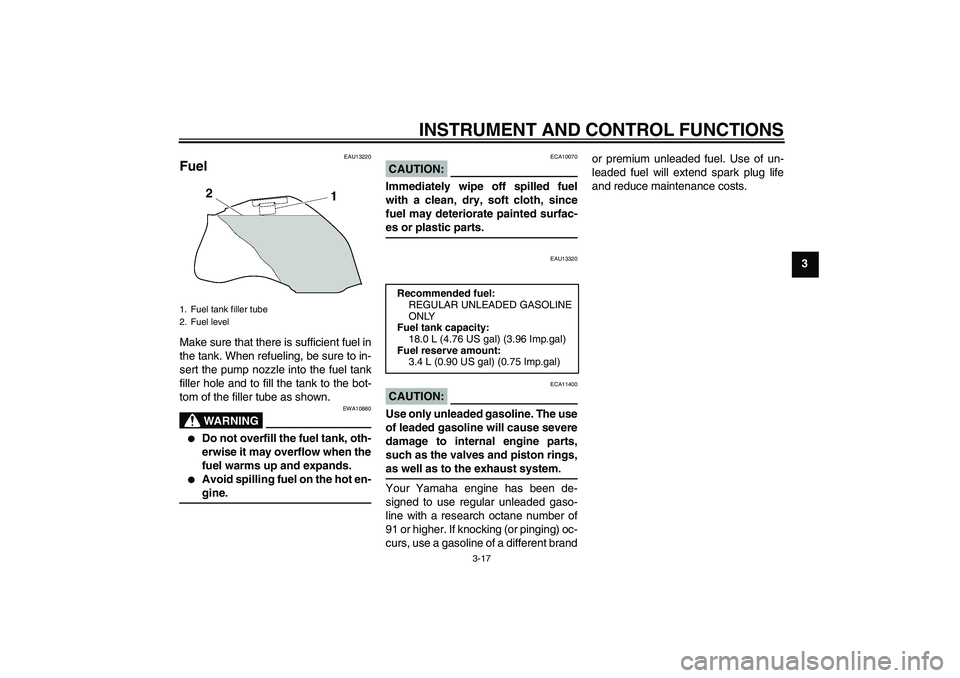

Fuel Make sure that there is sufficient fuel in
the tank. When refueling, be sure to in-
sert the pump nozzle into the fuel tank
filler hole and to fil

Page 32 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-18
3

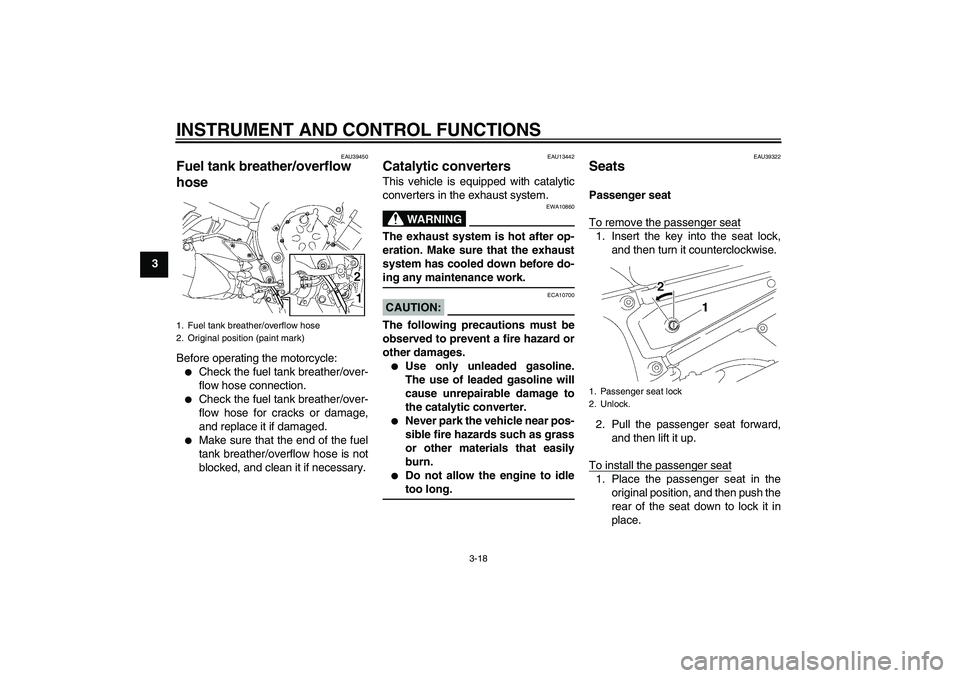

EAU39450
Fuel tank breather/overflow
hose Before operating the motorcycle:
Check the fuel tank breather/over-
flow hose connection.

Check the fuel tank brea

Page 33 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
2. Remove the key.
Rider seat

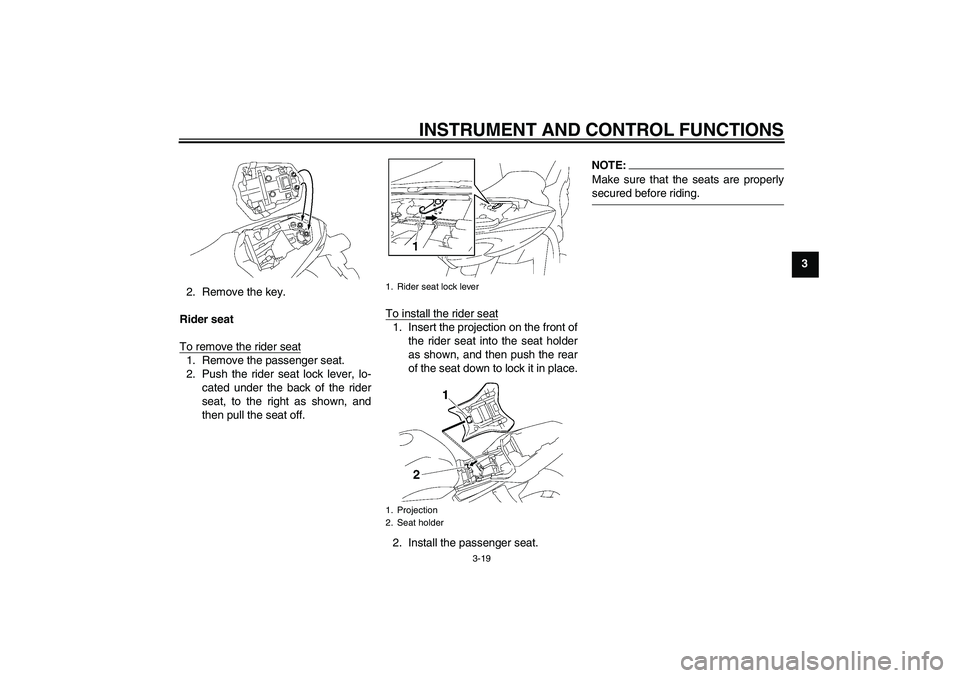

To remove the rider seat
1. Remove the passenger seat.
2. Push the rider seat lock lever, lo-
cated under the back of the rider
se

Page 34 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
EAU14412

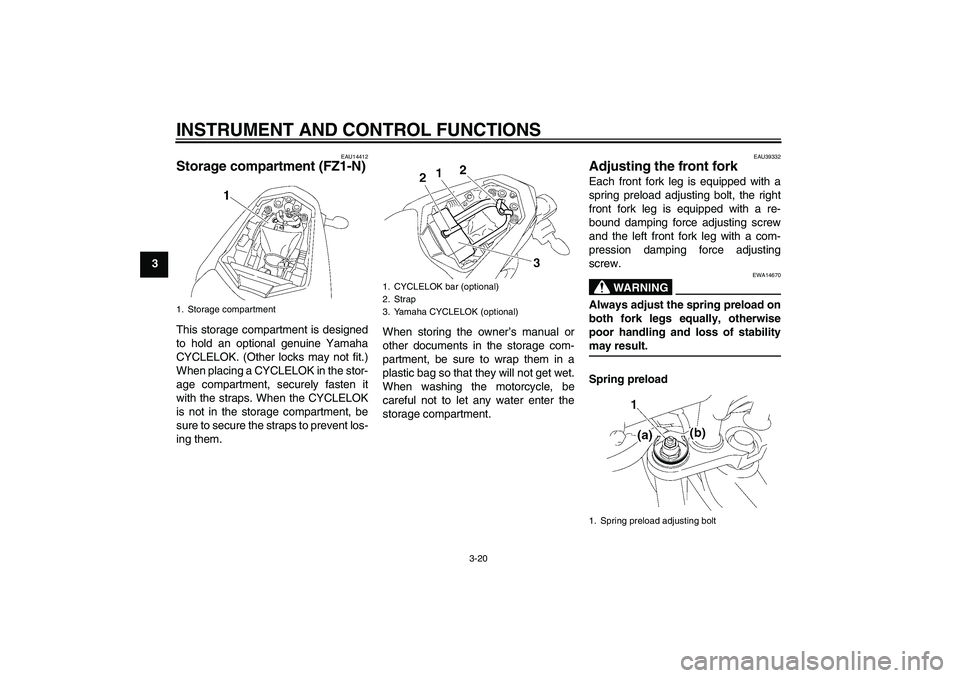

Storage compartment (FZ1-N)This storage compartment is designed
to hold an optional genuine Yamaha
CYCLELOK. (Other locks may not fit.)
When placing a

Page 35 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-21

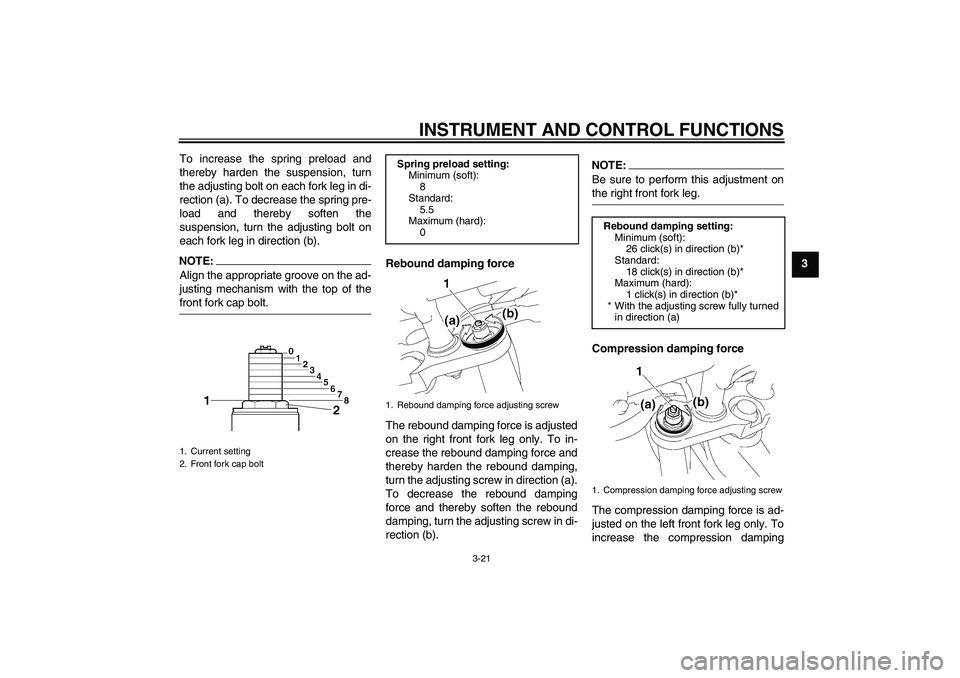

3 To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection (a). To decrease the spring pre-
load

Page 36 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-22

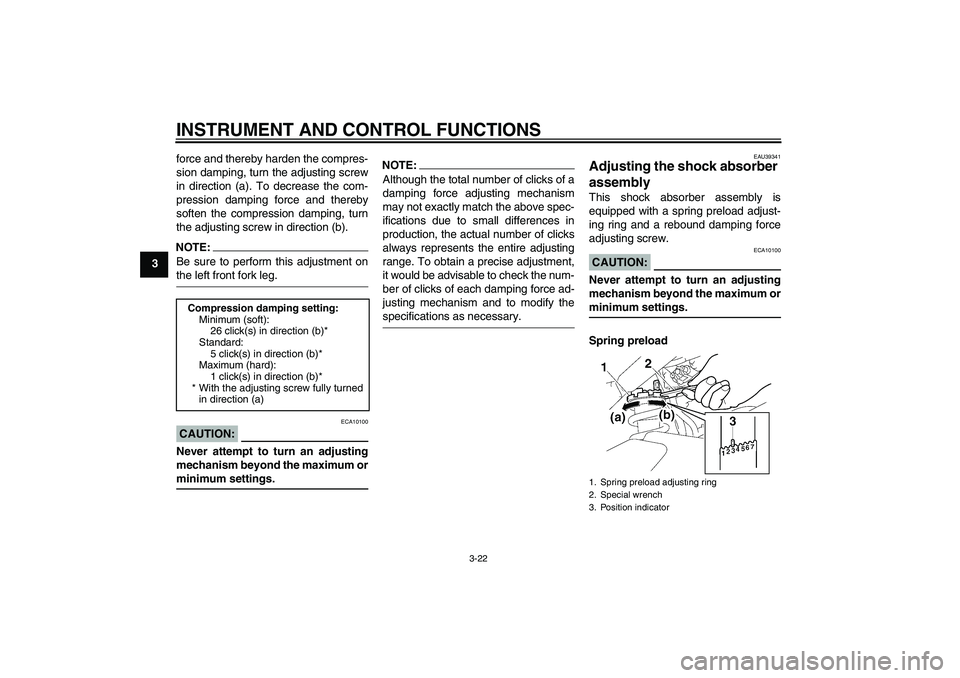

3force and thereby harden the compres-
sion damping, turn the adjusting screw
in direction (a). To decrease the com-
pression damping force and thereby
soften the

Page 37 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-23
3 To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To de-
crease the spring preload and thereby
soften

Page 38 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-24
3

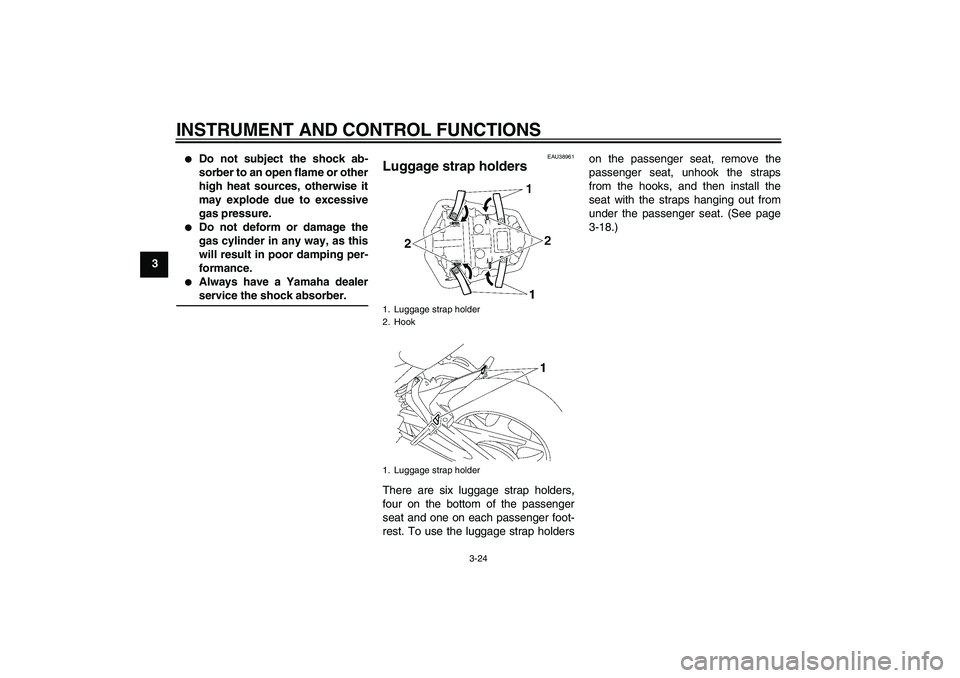

Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.

Do not deform or da

Page 39 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-25
3
EAU41940

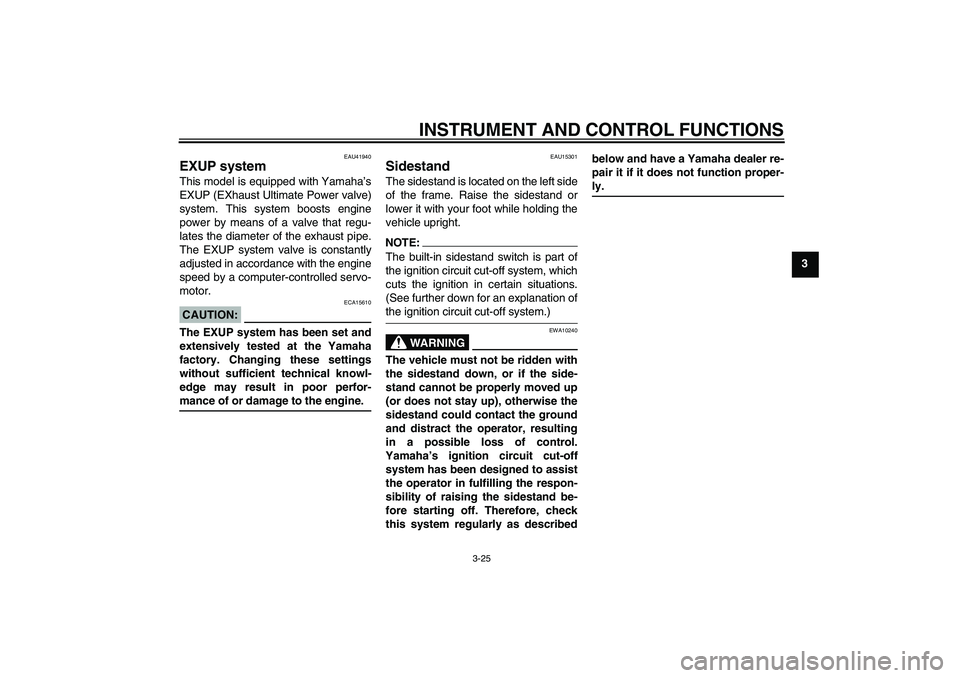

EXUP system This model is equipped with Yamaha’s
EXUP (EXhaust Ultimate Power valve)
system. This system boosts engine
power by means of a valve that

Page 40 of 104

YAMAHA FZ1-N 2008 Owners Guide INSTRUMENT AND CONTROL FUNCTIONS
3-26
3
EAU44890

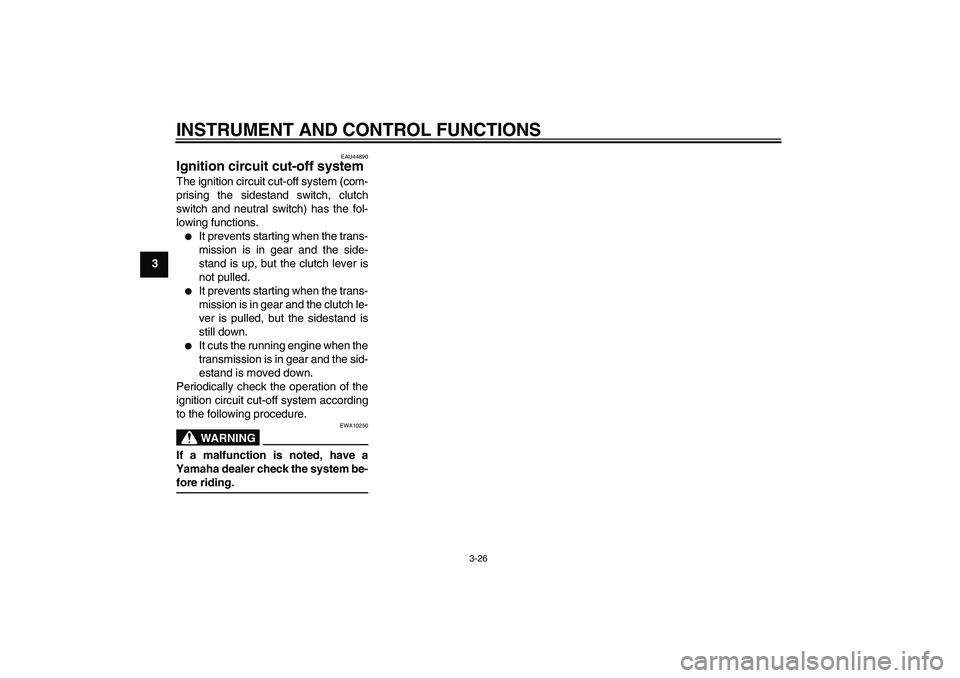

Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
