PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6 The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
EAU39362
Replacing the air filter element The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas.
1. Remove the rider seat. (See page
3-18.)
2. Remove the cowling bolts, and
then pull the cowling off.
3. Remove the fuel tank bolts.4. Lift the front of the fuel tank, and
then tilt it back and away from the
air filter case. (Do not disconnect
the fuel hoses!)
WARNING
EWA10410
Make sure that the fuel tank is
well supported.
1. Cowling
2. Bolt
1. Bolt
U2D1E2E0.book Page 13 Wednesday, August 22, 2007 3:36 PM
Page 62 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
Do not tilt or pull the fuel tank
too much, otherwise the fuel
hoses may come loose, whichcould cause fuel leakage.

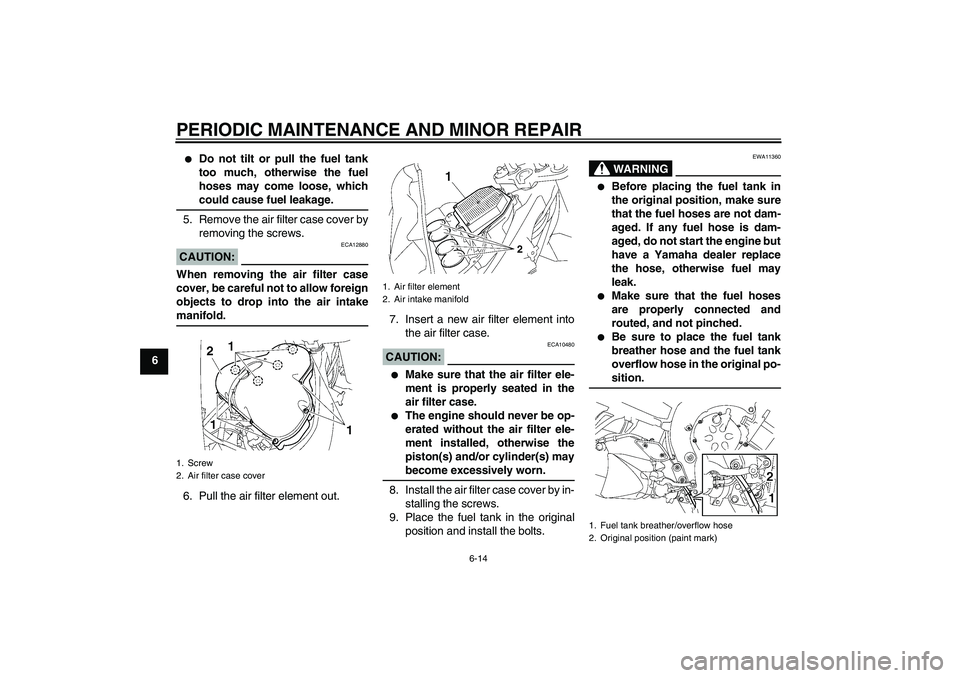

5. Remove the air filter case cover by
removing the screws.
CAUTION:
ECA12880
When removing the air filter case
cover, be careful not to allow foreign
objects to drop into the air intakemanifold.
6. Pull the air filter element out.7. Insert a new air filter element into
the air filter case.
CAUTION:
ECA10480
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
8. Install the air filter case cover by in-
stalling the screws.
9. Place the fuel tank in the original
position and install the bolts.
WARNING
EWA11360
Before placing the fuel tank in
the original position, make sure
that the fuel hoses are not dam-
aged. If any fuel hose is dam-
aged, do not start the engine but
have a Yamaha dealer replace
the hose, otherwise fuel may
leak.
Make sure that the fuel hoses
are properly connected and
routed, and not pinched.
Be sure to place the fuel tank
breather hose and the fuel tank
overflow hose in the original po-sition.
1. Screw
2. Air filter case cover
1. Air filter element
2. Air intake manifold
1. Fuel tank breather/overflow hose
2. Original position (paint mark)
U2D1E2E0.book Page 14 Wednesday, August 22, 2007 3:36 PM
Page 63 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6 10. Place the cowling in the original
position, and then install the bolts.
11. Install the rider seat.
EAU34301
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the idle adjusting screw. To in-
crease the engine idling speed, turn the
screw in direction (a). To decrease the
engine idling speed, turn the screw in
direction (b).
NOTE:If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
1. Idle adjusting screw
Engine idling speed:
1100–1300 r/min
U2D1E2E0.book Page 15 Wednesday, August 22, 2007 3:36 PM
Page 64 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU21382

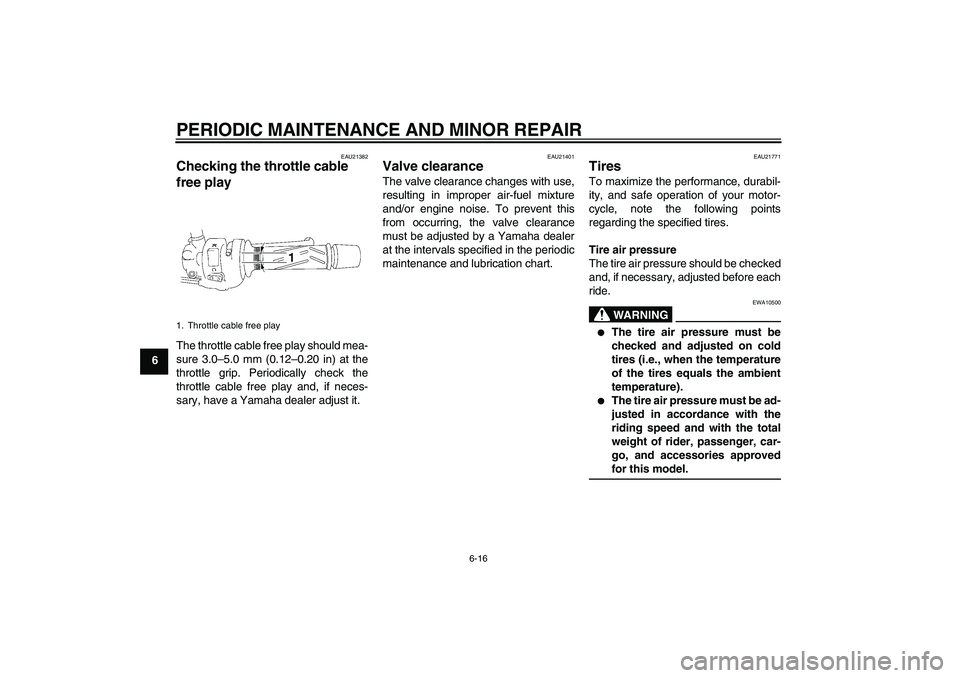

Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
1. Throttle cable free playU2D1E2E0.book Page 16 Wednesday, August 22, 2007 3:36 PM
Page 65 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.

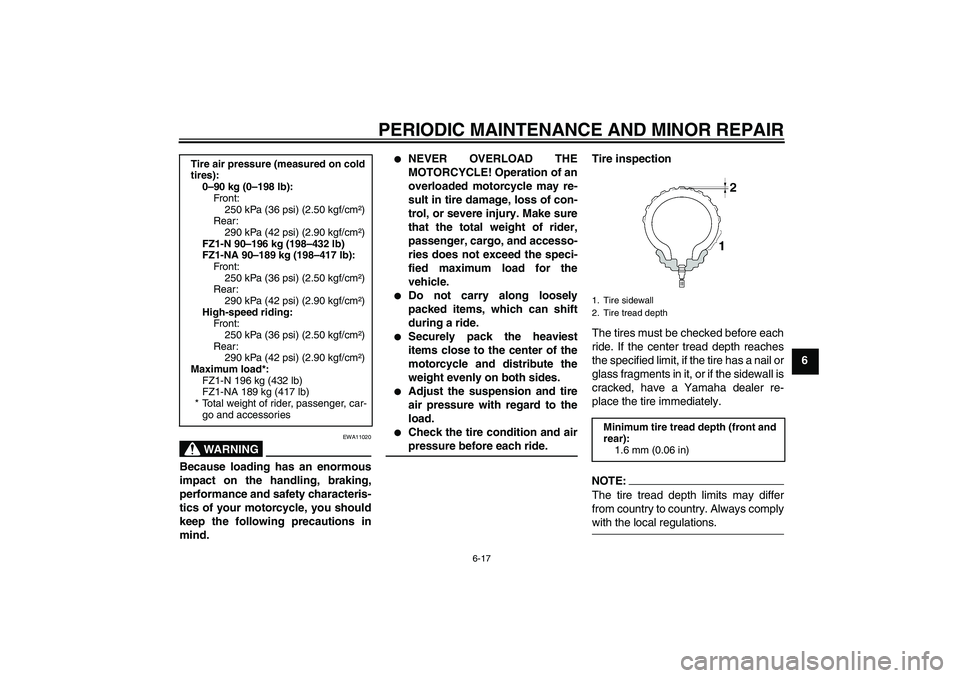

Check the tire condition and airpressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
FZ1-N 90–196 kg (198–432 lb)
FZ1-NA 90–189 kg (198–417 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Maximum load*:
FZ1-N 196 kg (432 lb)
FZ1-NA 189 kg (417 lb)
* Total weight of rider, passenger, car-
go and accessories
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
U2D1E2E0.book Page 17 Wednesday, August 22, 2007 3:36 PM
Page 66 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.

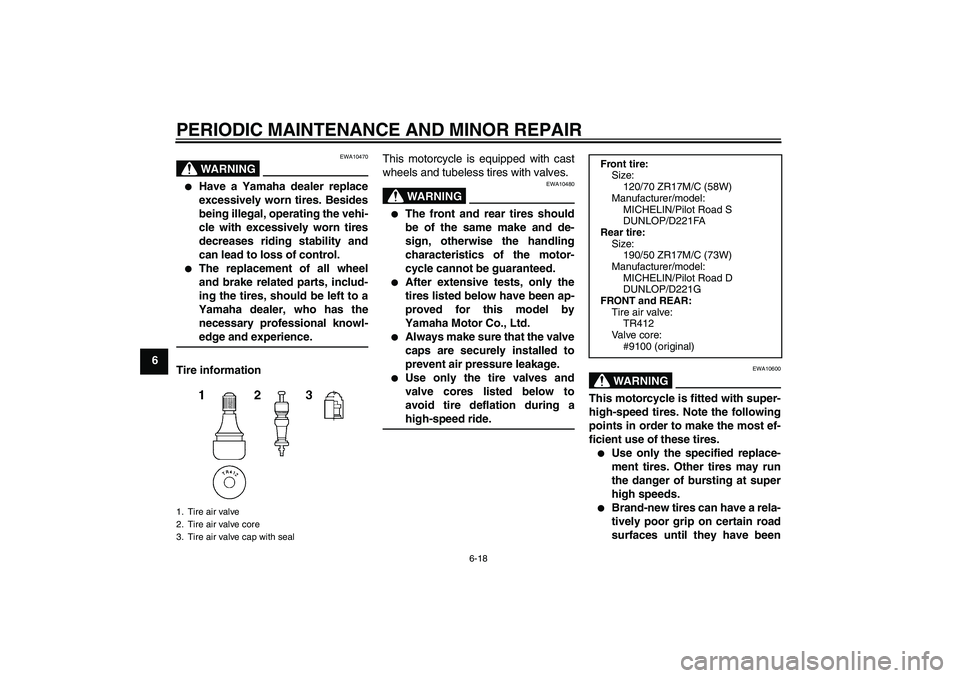

Tire informationThis motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING
EWA10480
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
WARNING
EWA10600
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
Front tire:
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
MICHELIN/Pilot Road S
DUNLOP/D221FA
Rear tire:
Size:
190/50 ZR17M/C (73W)
Manufacturer/model:
MICHELIN/Pilot Road D
DUNLOP/D221G
FRONT and REAR:
Tire air valve:
TR412
Va l ve c o r e :
#9100 (original)
U2D1E2E0.book Page 18 Wednesday, August 22, 2007 3:36 PM
Page 67 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6 “broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.
The tires must be warmed up
before a high-speed run.
Always adjust the tire air pres-
sure according to the operatingconditions.
EAU21960
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU22080

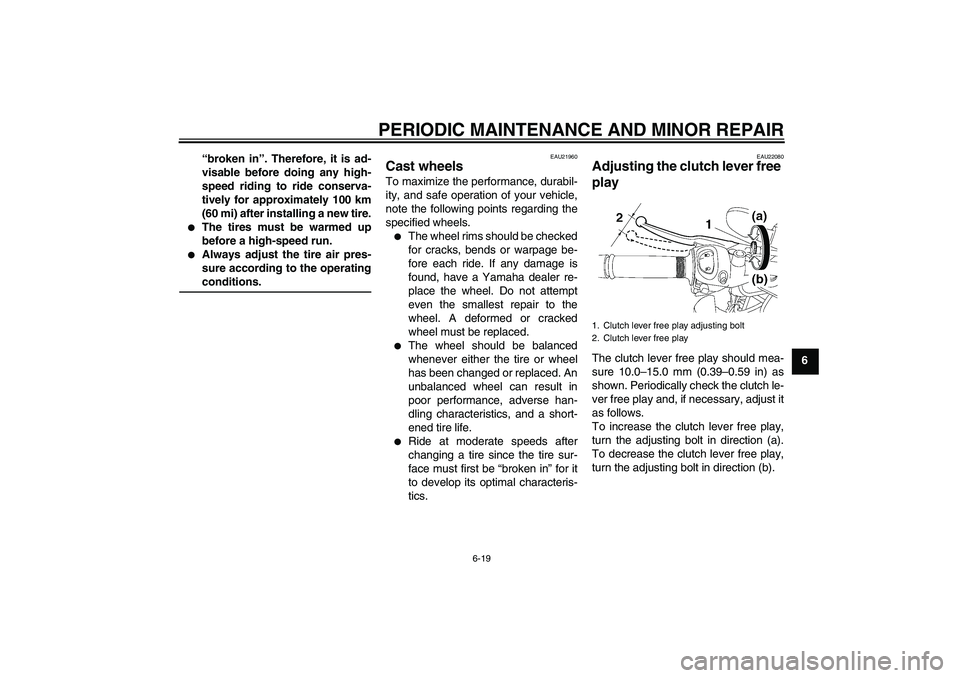

Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
To increase the clutch lever free play,
turn the adjusting bolt in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).1. Clutch lever free play adjusting bolt
2. Clutch lever free play
U2D1E2E0.book Page 19 Wednesday, August 22, 2007 3:36 PM
Page 68 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
NOTE:If the specified free play cannot be ob-
tained as described above or if the
clutch does not operate correctly, have
a Yamaha dealer check the internalclutch mechanism.
EAU22270

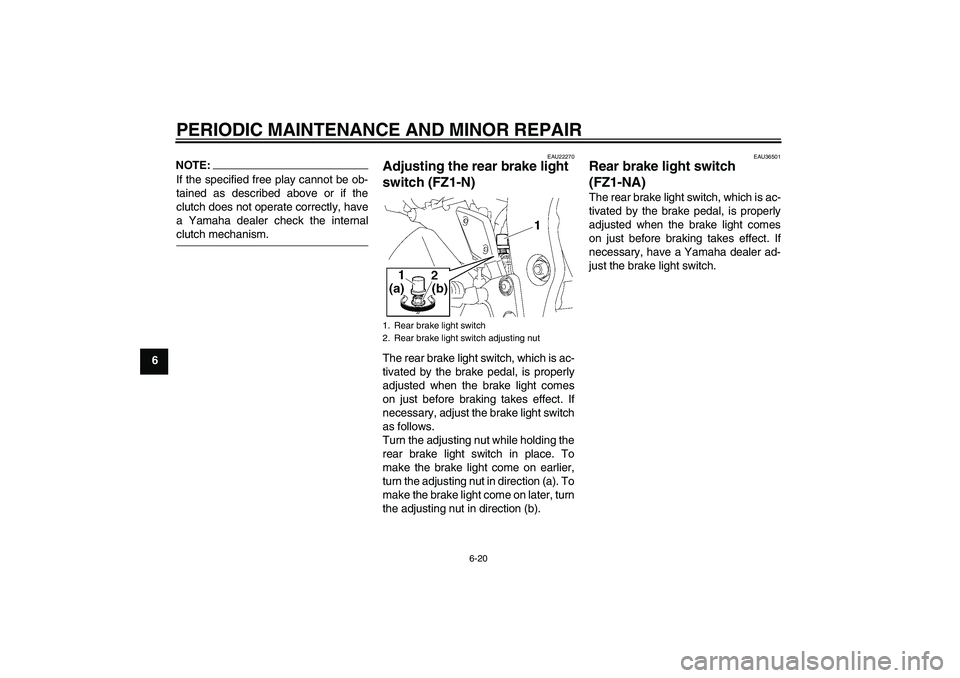

Adjusting the rear brake light
switch (FZ1-N)The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction (a). To
make the brake light come on later, turn
the adjusting nut in direction (b).
EAU36501
Rear brake light switch
(FZ1-NA)The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, have a Yamaha dealer ad-
just the brake light switch.
1. Rear brake light switch
2. Rear brake light switch adjusting nut
U2D1E2E0.book Page 20 Wednesday, August 22, 2007 3:36 PM
Page 69 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU22390

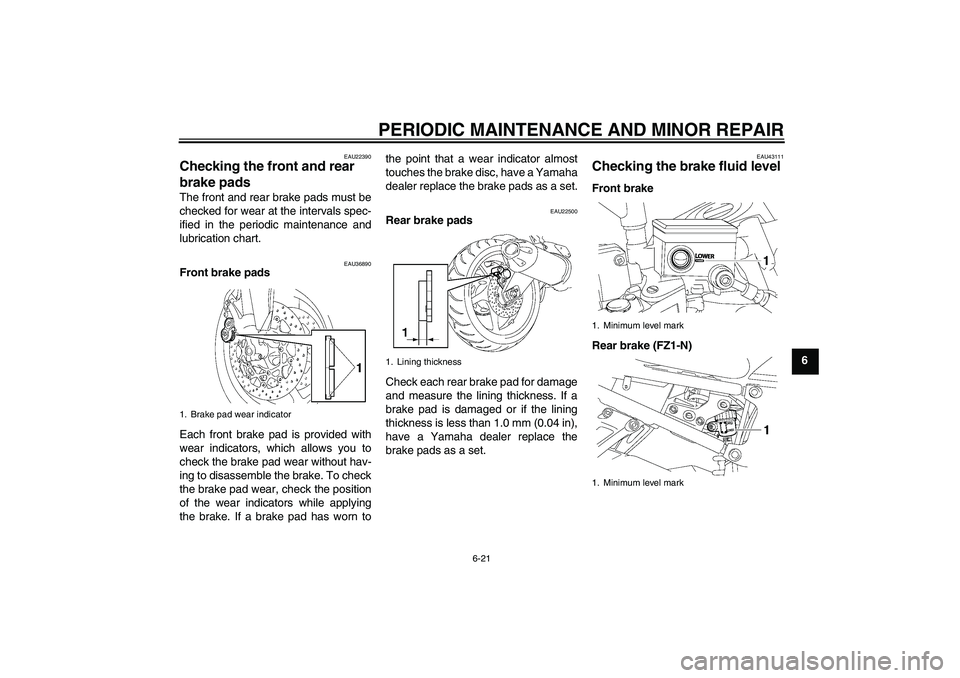

Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36890
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn tothe point that a wear indicator almost
touches the brake disc, have a Yamaha
dealer replace the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 1.0 mm (0.04 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU43111
Checking the brake fluid level Front brake
Rear brake (FZ1-N)
1. Brake pad wear indicator
1. Lining thickness
1. Minimum level mark
1. Minimum level mark
U2D1E2E0.book Page 21 Wednesday, August 22, 2007 3:36 PM
Page 70 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22

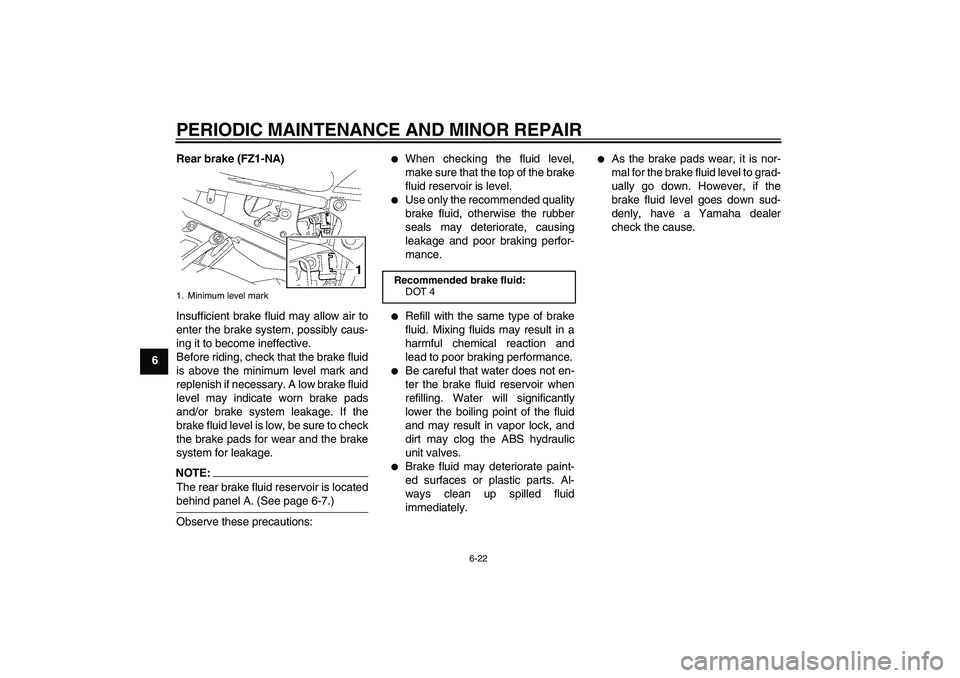

6Rear brake (FZ1-NA)
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
NOTE:The rear brake fluid reservoir is locatedbehind panel A. (See page 6-7.)
Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock, and
dirt may clog the ABS hydraulic
unit valves.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
1. Minimum level mark
Recommended brake fluid:
DOT 4
U2D1E2E0.book Page 22 Wednesday, August 22, 2007 3:36 PM
