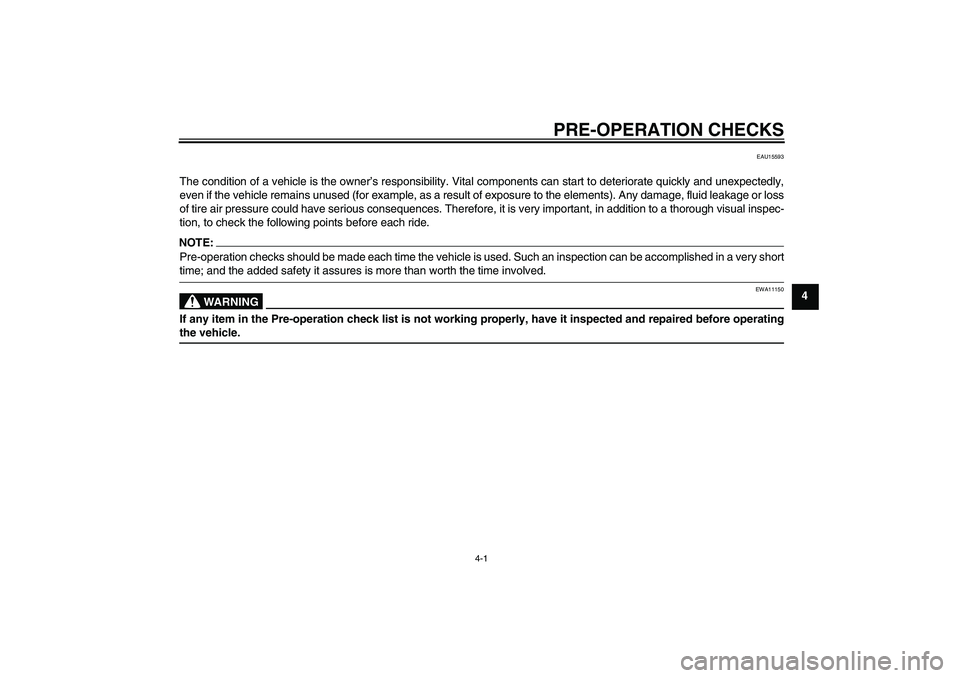

PRE-OPERATION CHECKS
4-1
4
EAU15593
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.NOTE:Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very shorttime; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operatingthe vehicle.
U3C3E2E0.book Page 1 Friday, July 6, 2007 9:09 AM

PRE-OPERATION CHECKS
4-2
4
EAU15605

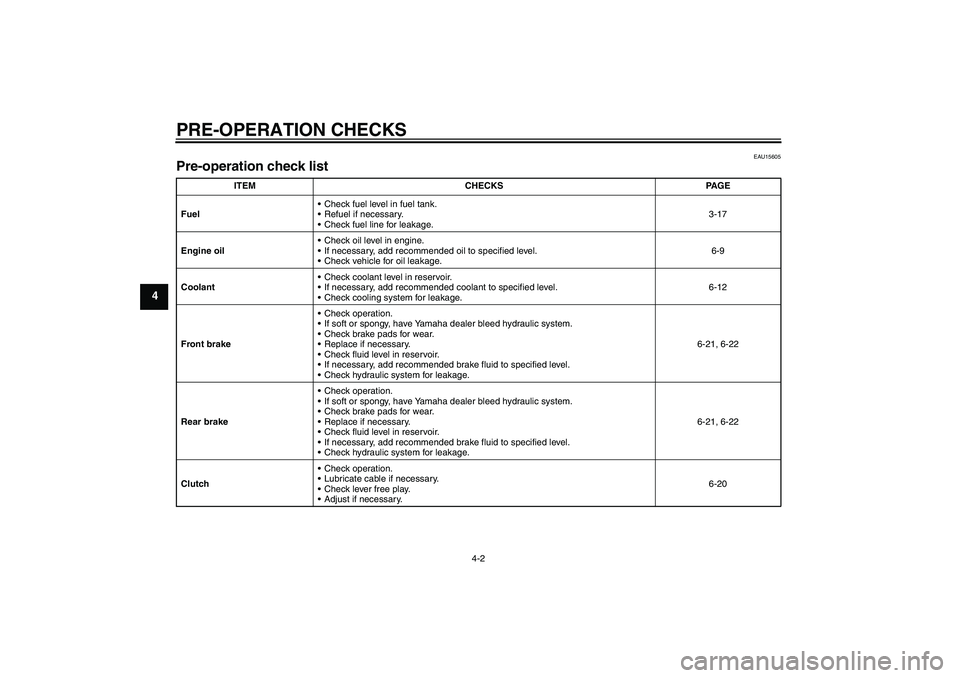

Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-17
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-12
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-21, 6-22
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-21, 6-22
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-20
U3C3E2E0.book Page 2 Friday, July 6, 2007 9:09 AM

PRE-OPERATION CHECKS
4-3
4

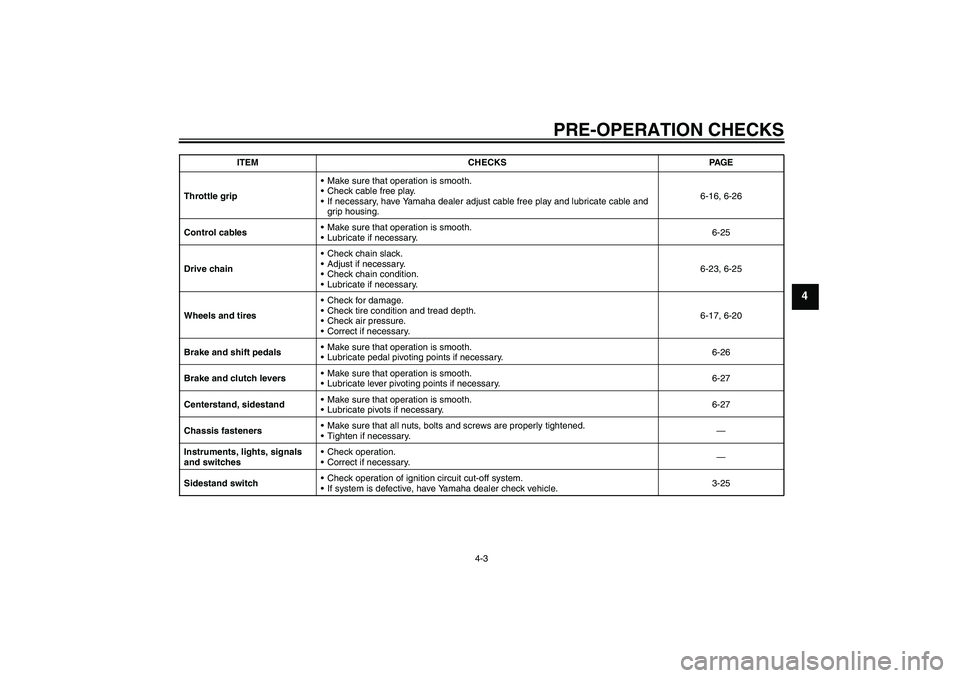

Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-16, 6-26
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-25
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-23, 6-25
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-17, 6-20
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-26
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-27
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-27
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-25 ITEM CHECKS PAGE
U3C3E2E0.book Page 3 Friday, July 6, 2007 9:09 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950

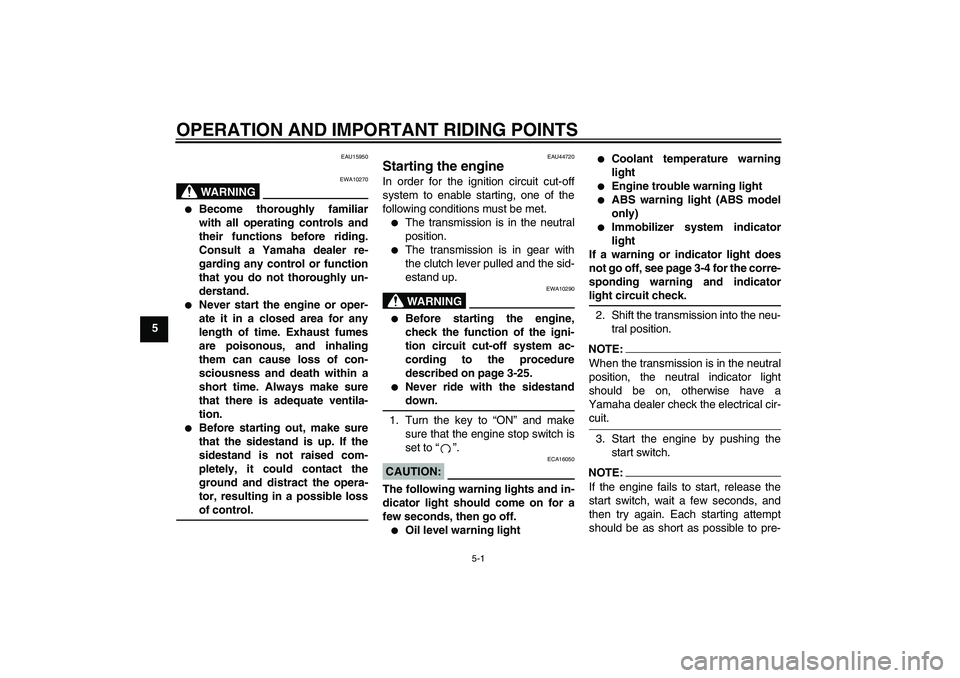

WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU44720
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met.

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-25.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
CAUTION:
ECA16050
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Coolant temperature warning
light


Engine trouble warning light


ABS warning light (ABS model
only)


Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
U3C3E2E0.book Page 1 Friday, July 6, 2007 9:09 AM

OPERATION AND IMPORTANT RIDING POINTS
5-2

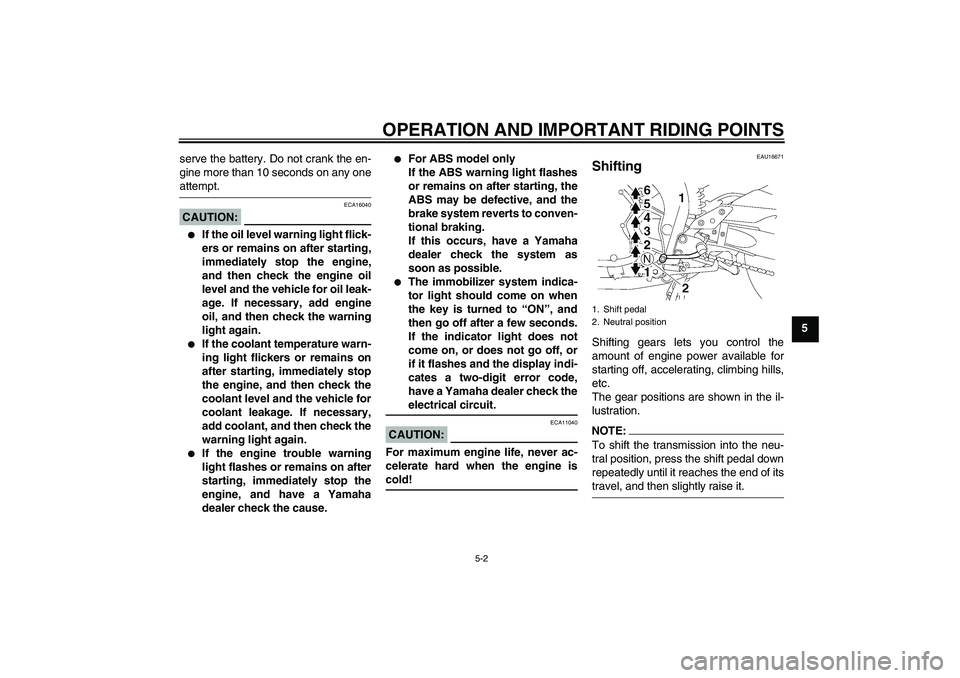

5 serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.CAUTION:
ECA16040


If the oil level warning light flick-
ers or remains on after starting,
immediately stop the engine,
and then check the engine oil
level and the vehicle for oil leak-
age. If necessary, add engine
oil, and then check the warning
light again.


If the coolant temperature warn-
ing light flickers or remains on
after starting, immediately stop
the engine, and then check the
coolant level and the vehicle for
coolant leakage. If necessary,
add coolant, and then check the
warning light again.


If the engine trouble warning
light flashes or remains on after
starting, immediately stop the
engine, and have a Yamaha
dealer check the cause.


For ABS model only
If the ABS warning light flashes
or remains on after starting, the
ABS may be defective, and the
brake system reverts to conven-
tional braking.
If this occurs, have a Yamaha
dealer check the system as
soon as possible.


The immobilizer system indica-
tor light should come on when
the key is turned to “ON”, and
then go off after a few seconds.
If the indicator light does not
come on, or does not go off, or
if it flashes and the display indi-
cates a two-digit error code,
have a Yamaha dealer check theelectrical circuit.
CAUTION:
ECA11040
For maximum engine life, never ac-
celerate hard when the engine iscold!
EAU16671
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.NOTE:To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel, and then slightly raise it.1. Shift pedal
2. Neutral position
U3C3E2E0.book Page 2 Friday, July 6, 2007 9:09 AM

OPERATION AND IMPORTANT RIDING POINTS
5-3
5

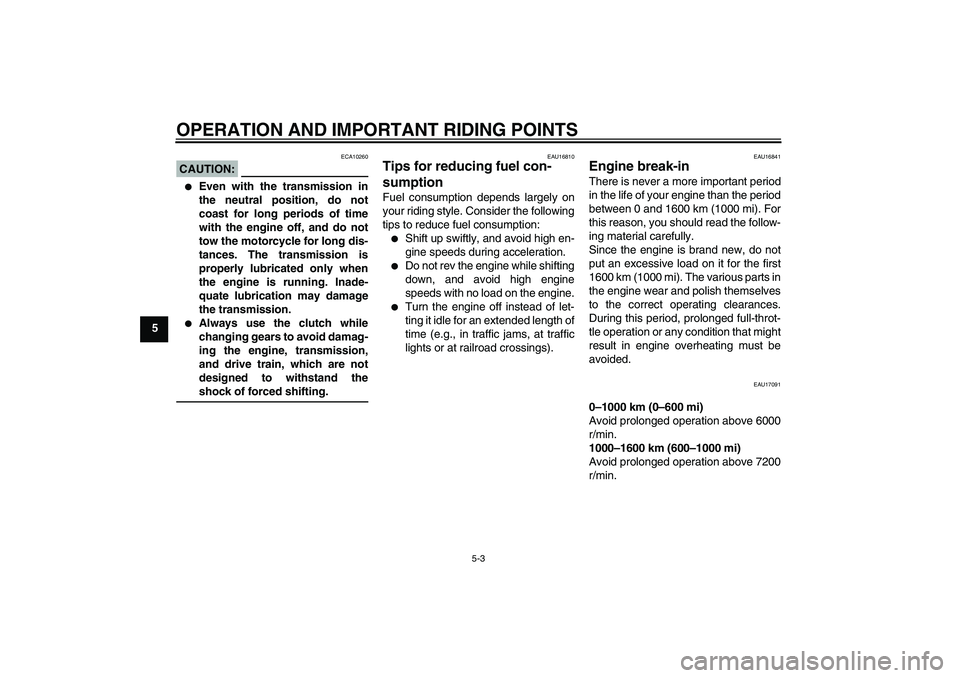

CAUTION:
ECA10260


Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.


Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand theshock of forced shifting.
EAU16810
Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17091
0–1000 km (0–600 mi)
Avoid prolonged operation above 6000
r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 7200
r/min.
U3C3E2E0.book Page 3 Friday, July 6, 2007 9:09 AM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5

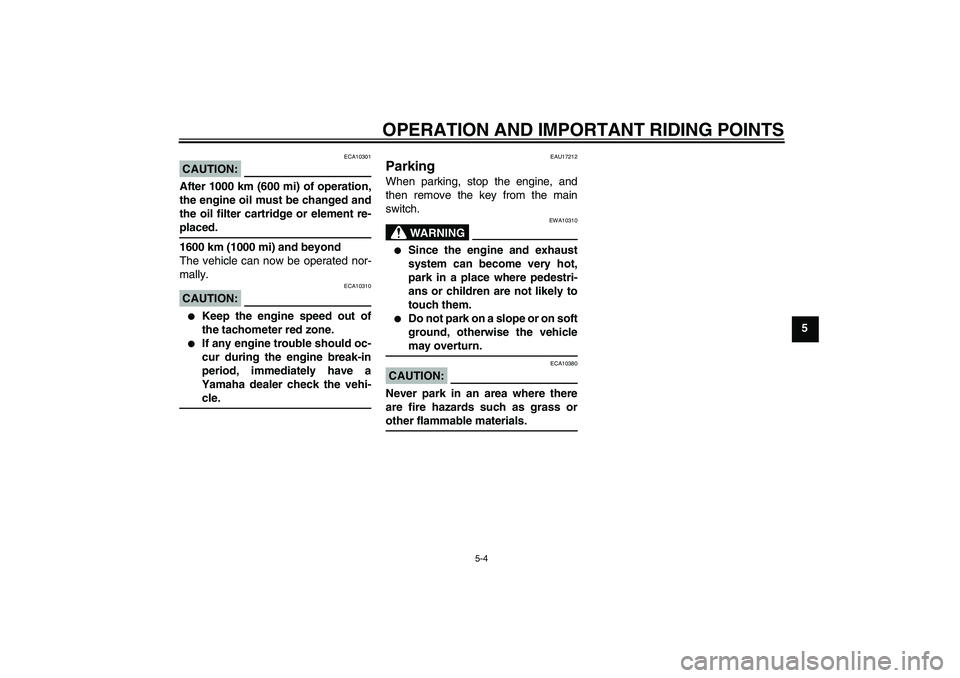

CAUTION:
ECA10301
After 1000 km (600 mi) of operation,
the engine oil must be changed and
the oil filter cartridge or element re-placed.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.CAUTION:
ECA10310


Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-cle.
EAU17212
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.
U3C3E2E0.book Page 4 Friday, July 6, 2007 9:09 AM

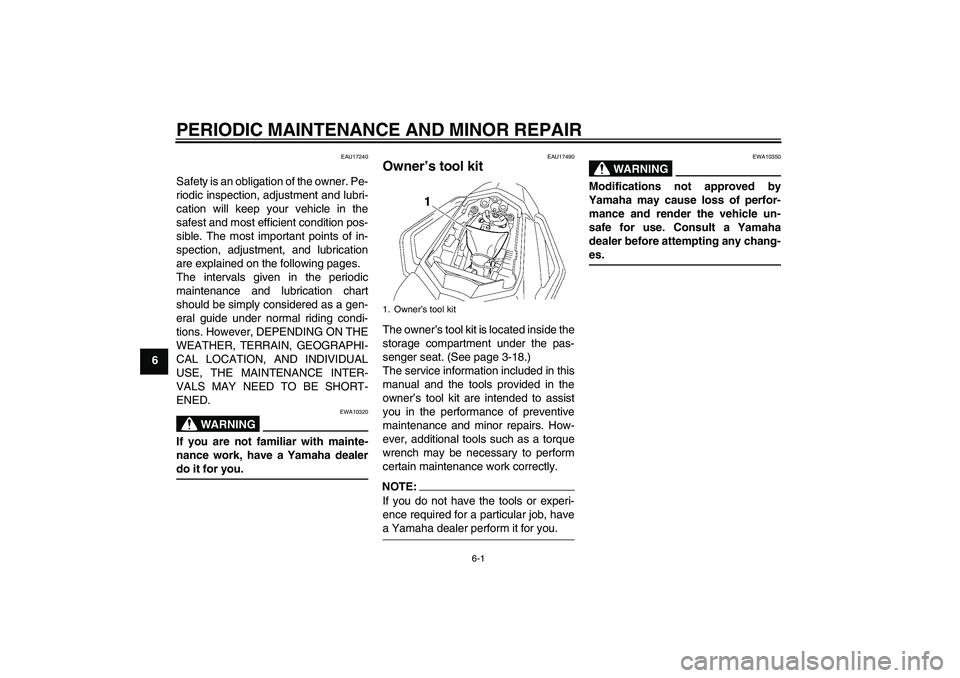

PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
EAU17240
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
EAU17490
Owner’s tool kit The owner’s tool kit is located inside the
storage compartment under the pas-
senger seat. (See page 3-18.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-es.
1. Owner’s tool kit
U3C3E2E0.book Page 1 Friday, July 6, 2007 9:09 AM

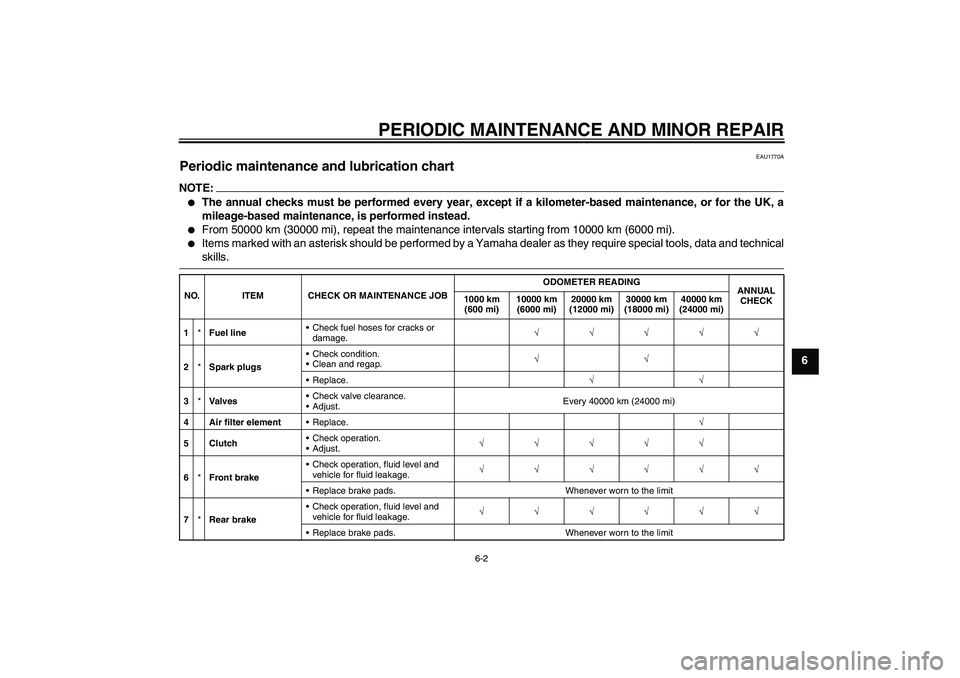

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km (24000 mi)
4 Air filter elementReplace.√
5ClutchCheck operation.
Adjust.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U3C3E2E0.book Page 2 Friday, July 6, 2007 9:09 AM

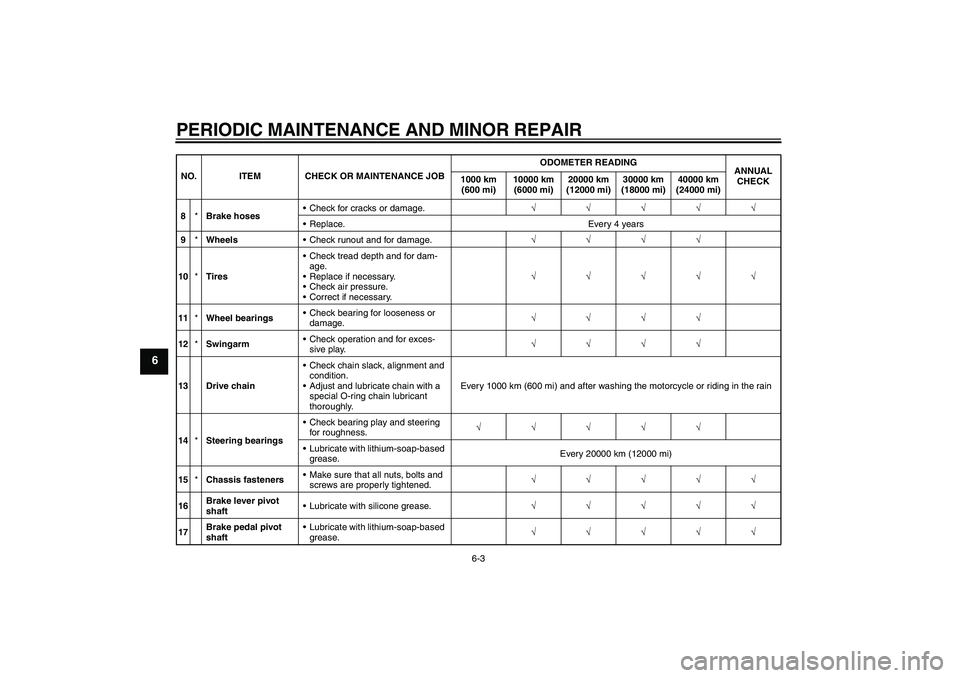

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*SwingarmCheck operation and for exces-
sive play.√√√√
13 Drive chainCheck chain slack, alignment and
condition.
Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 1000 km (600 mi) and after washing the motorcycle or riding in the rain
14*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
15*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
16Brake lever pivot
shaftLubricate with silicone grease.√√√√√
17Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U3C3E2E0.book Page 3 Friday, July 6, 2007 9:09 AM
