INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU36460

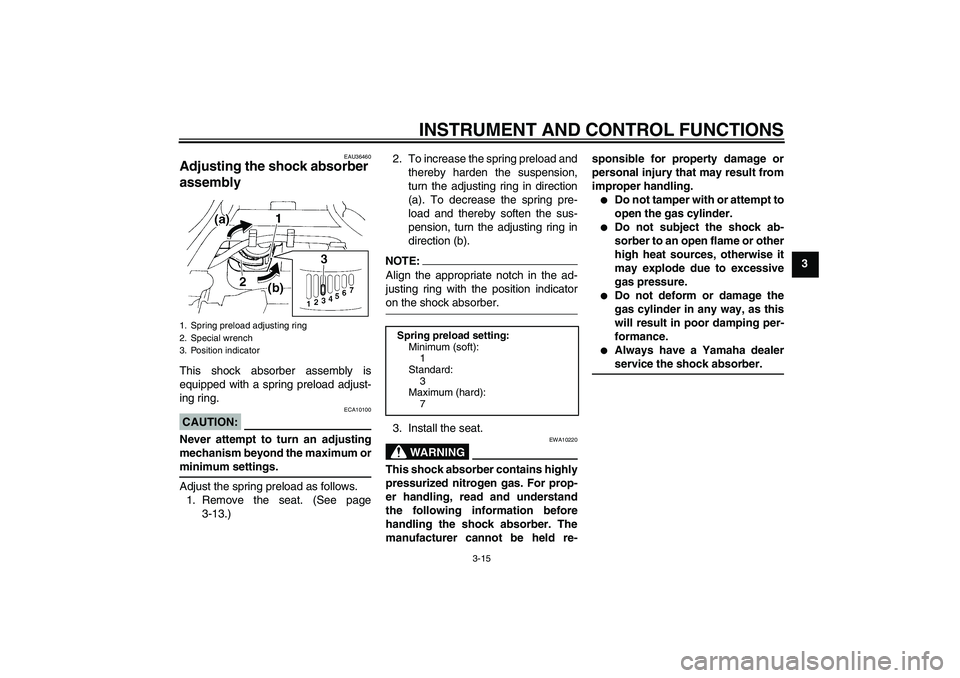

Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
Adjust the spring preload as follows.
1. Remove the seat. (See page
3-13.)2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting ring in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting ring in
direction (b).
NOTE:Align the appropriate notch in the ad-
justing ring with the position indicatoron the shock absorber.
3. Install the seat.
WARNING
EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-sponsible for property damage or
personal injury that may result from
improper handling.


Do not tamper with or attempt to
open the gas cylinder.


Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.


Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.


Always have a Yamaha dealerservice the shock absorber.
1. Spring preload adjusting ring
2. Special wrench
3. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
7
